Saturn Transmission. Manual - part 24

SA9112T

SA9112T

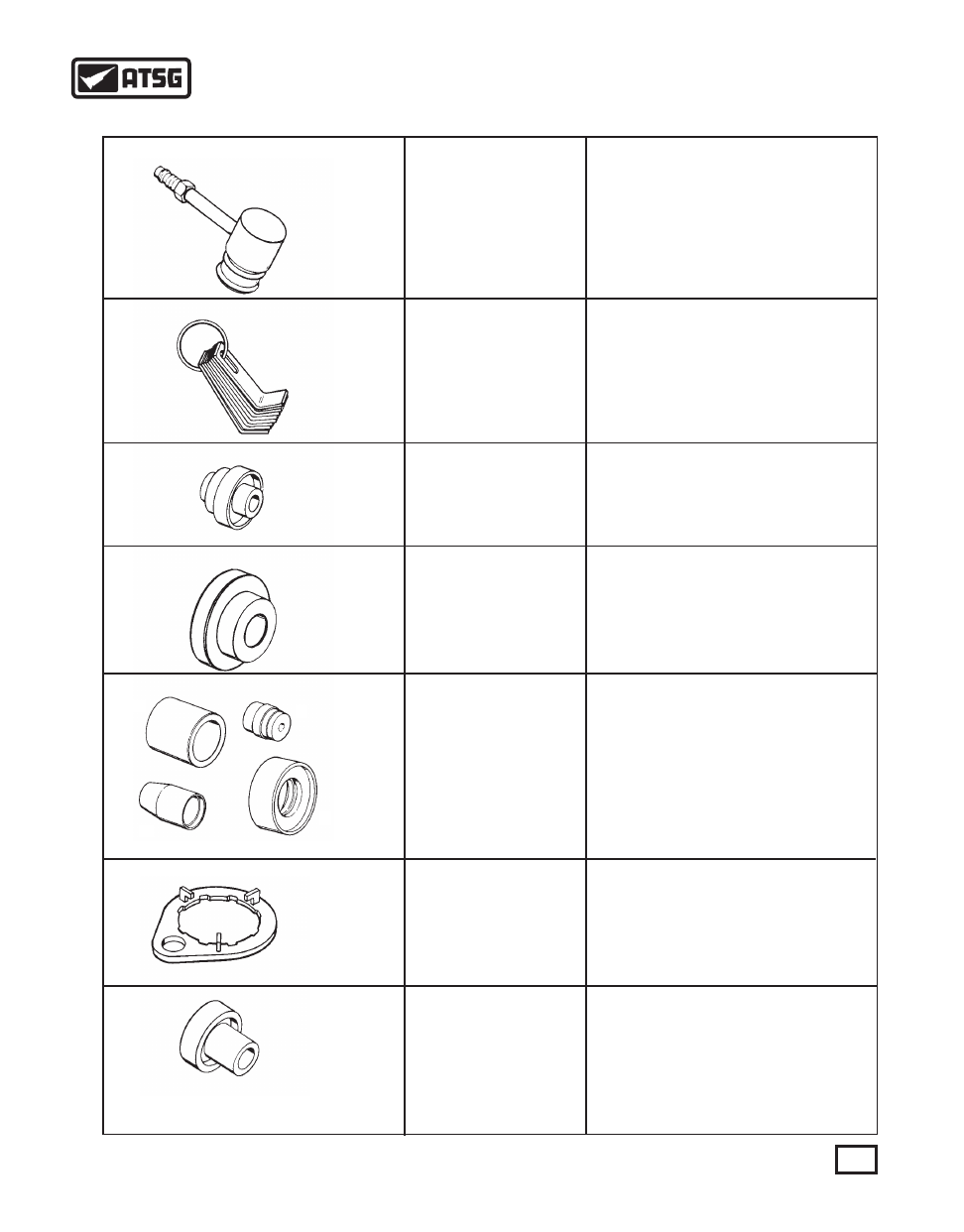

Air Check Tool - 4th

Differential End Play Gauge

-2

-1

-3

-4

SA9113T

SA9114T

SA9117T

SA9119T

SA9120T

Axle Seal Installer

Converter Bearing Installer

This Clutch Piston Replacer Set contains
one each of the following:

SA9117T-1
SA9117T-2
SA9117T-3
SA9117T-4

Piston Driver
Step Plate
Seal Protector
Piston Replacer

Input Shaft Holding Tool

Differential Bearing Installer

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

99

SA9129T

SA9133T

SA9135T

SA9136T

SA9137T

SA9143T

-2

-1

-3

-4

-1

-2

-3

-4A

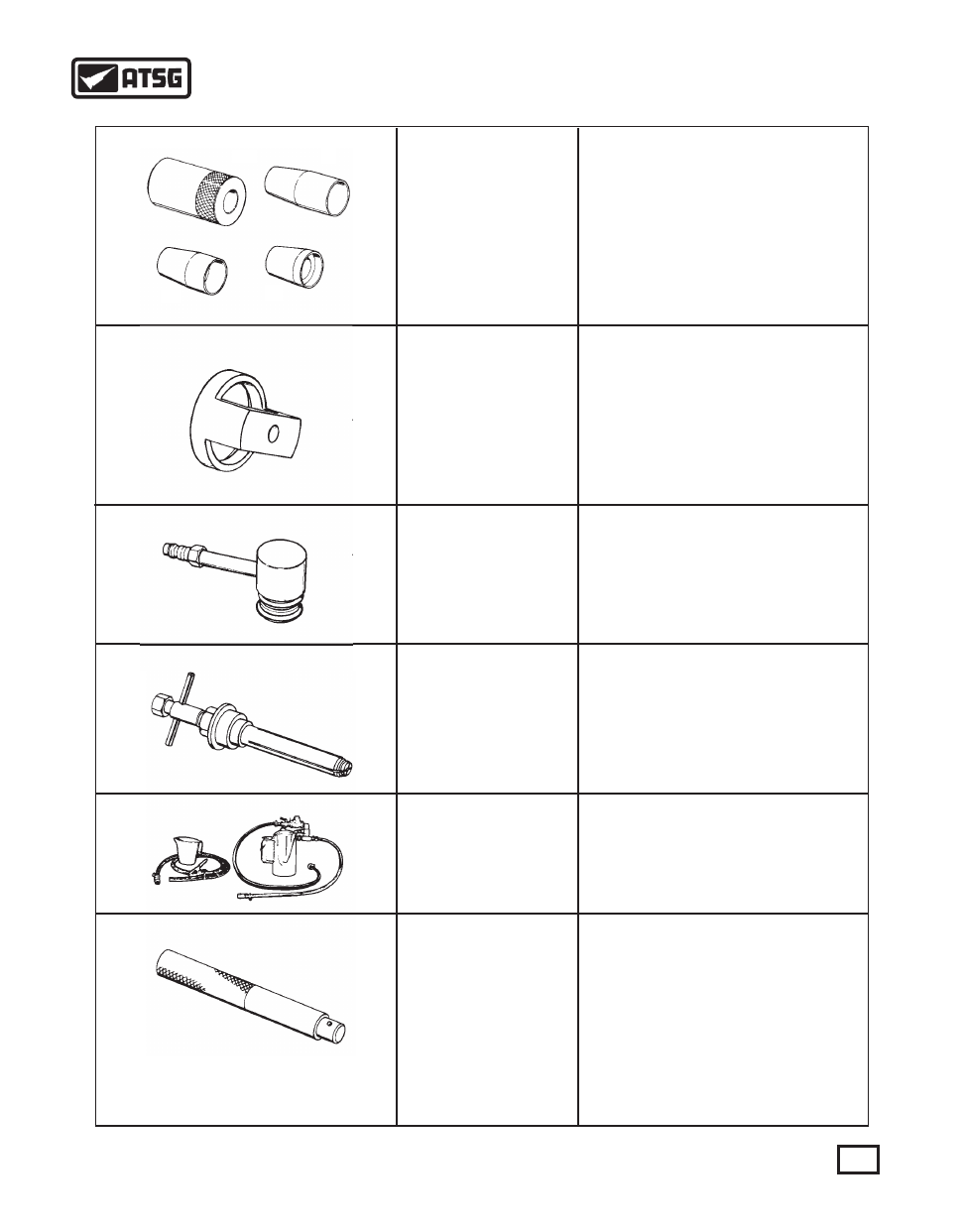

Support Fixture

Axle Seal Puller

Spiral Ring Installer/Expander

This Hub Seal Expander Sizer Kit
contains one each of the following:

SA9136T-1   Ring Expander
SA9136T-2   Sizer
SA9136T-3   Short Base
SA9136T-4   Long Base

This Servo Piston Seal Installer/Sizer
contains one each of the following:

SA9137T-1       Expander
SA9137T-2       Backup Base
SA9137T-3       Sizing Ring
SA9137T-4A    Holding Base

Input Shaft Seal Installer

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

100

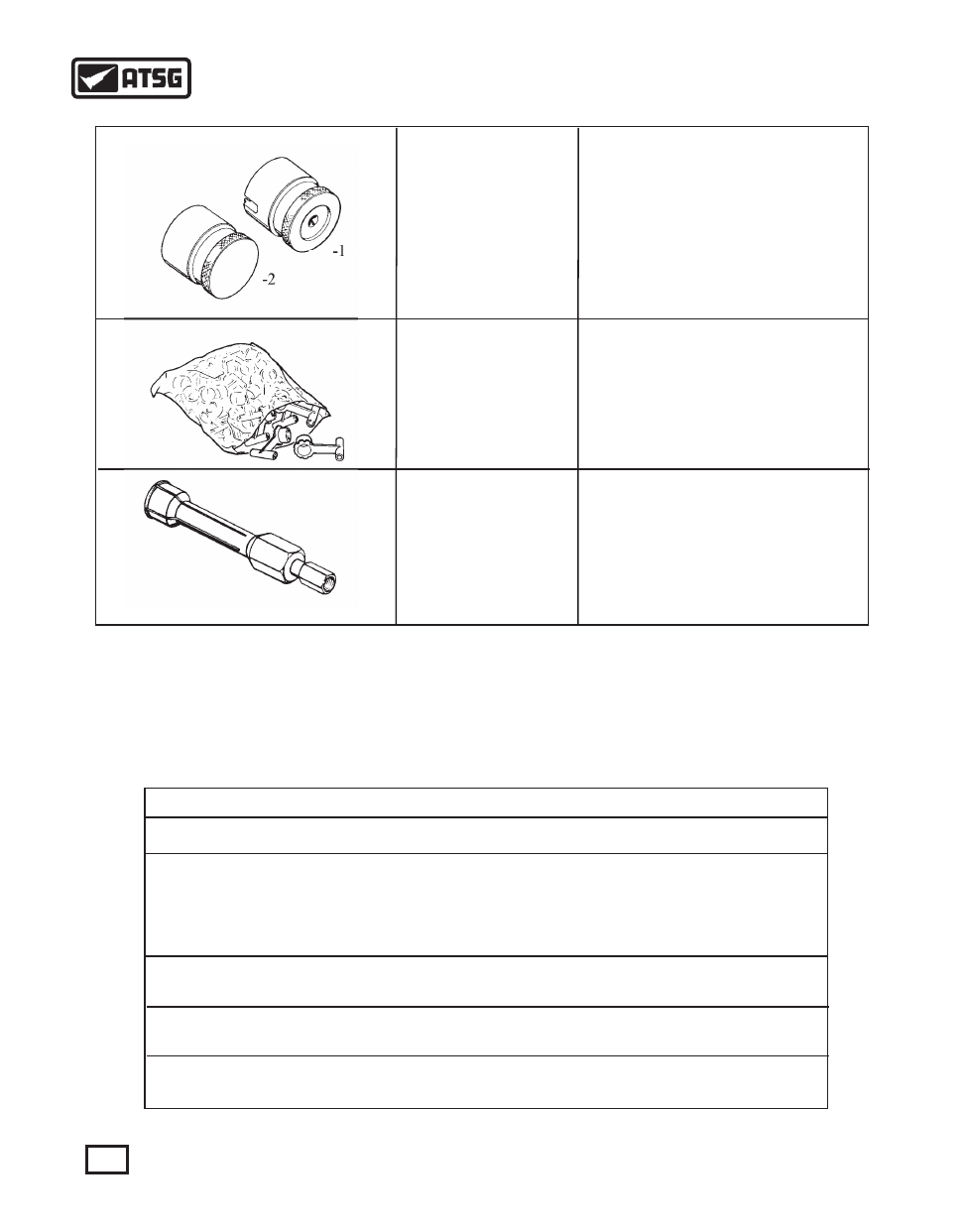

This Input Shaft Ring Set contains
one each of the following:

SA9144T

SA9146T

SA9147T

SA9163T

SA9165T

SA9172G

SA9144T-1  Ring Sizer
SA9144T-2  Long Ring Expander
SA9144T-3  Medium Ring Expander
SA9144T-4  Short Ring Expander

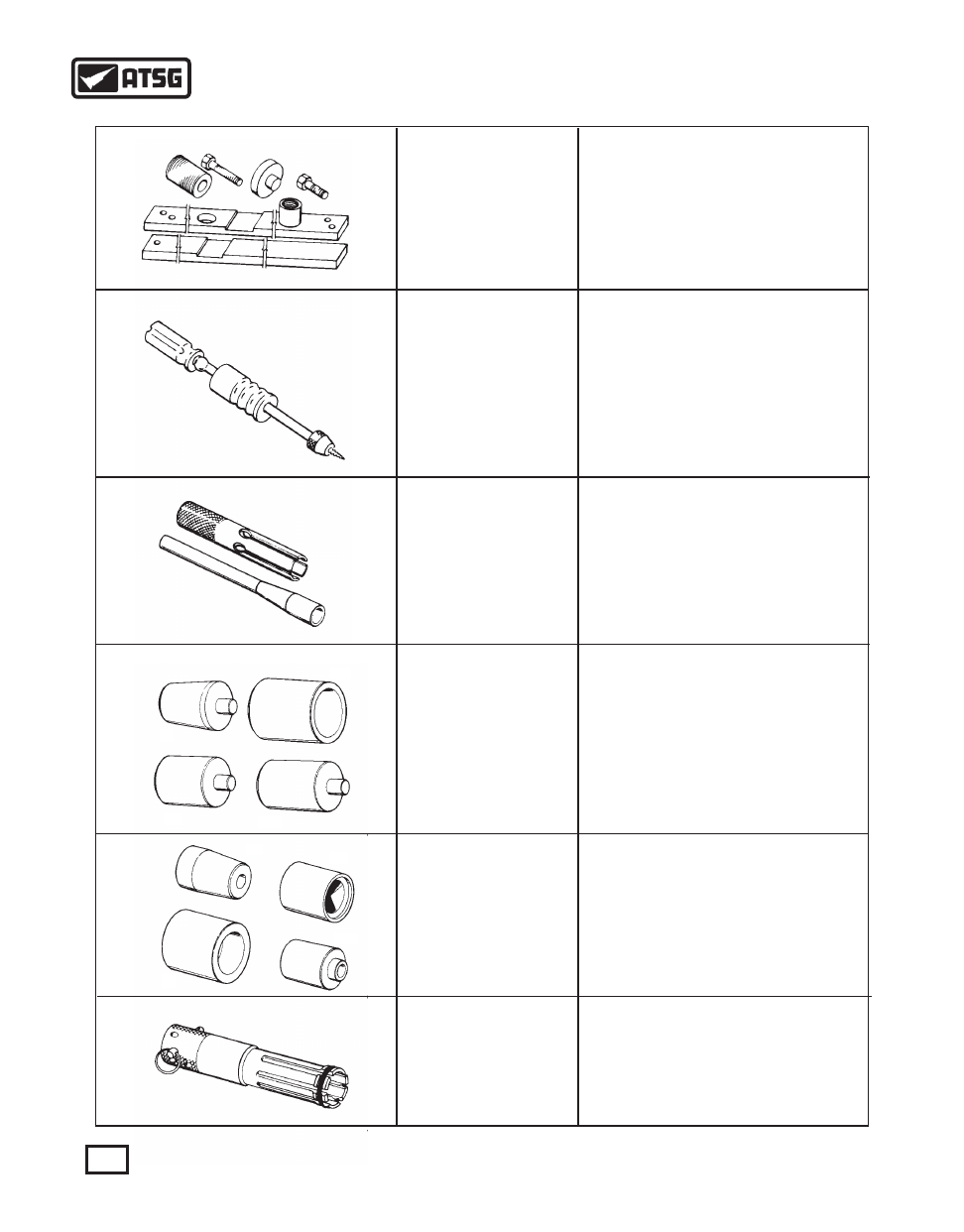

Clutch Spring Compressor

Air Check Tool - 1st

Converter End Play Tool

Oil Line Cooler Flusher

Ball Detent Handler

-2

-1

-4

-3

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

101

SA91111T

SA91112T

SA91113T

The Weight Set Contains one each
of the following:

SA91111T-1   Top Weight
SA91111T-2   Bottom Weight

Axle Seal Protector

A/T Output Shaft Bearing Puller

-1

-2

SCAN TOOL DEFINITIONS FOR TCM SERIAL DATA

The following TCM data definitions are intended to assist in understanding the data displayed by a Scan tool when
it is communicating with the transaxle controller. A thorough understanding of this data will not only aid in
diagnosing transaxle related problems, but will also help eliminate unnecessary repairs.

GENERAL INFORMATION TABLE

PARAMETER

T—CODE/FLAG

SPD M PH/KPH


TURBINE SPD RPM

ENGINE RPM

TPS PERCENT

DEFINITION

Will display YES if a DTC or information flag for the transaxle is set.

VEHICLE SPEED - Input from VSS is direct to the PCM. Signal is used by EC
and TC. The PCM/EC will process the signal and output the signal to the cruise
control and speedometer. This signal will vary depending on vehicle option such as
tire size. The speed displayed in the TCM list may vary 3 to 5 mph from the
speedometer value.

Turbine shaft rpm. Signal comes from a turbine speed sensor which picks up the
signal from the 2nd/3rd clutch hub.

This parameter is shared with the engine controller and the signal comes from the
ignition module (2x signal).

THROTTLE POSITION SENSOR - This parameter is transmitted from the EC
portion of the PCM.

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

102
