Iran Khodro Pars. Service Manual - part 6

86

3

STARTING AND DRIVING

Ignition of Injector type Motors

Releasing of the lock for steering wheel:

Move the steering wheel slowly and turn

the key in the switch hole.

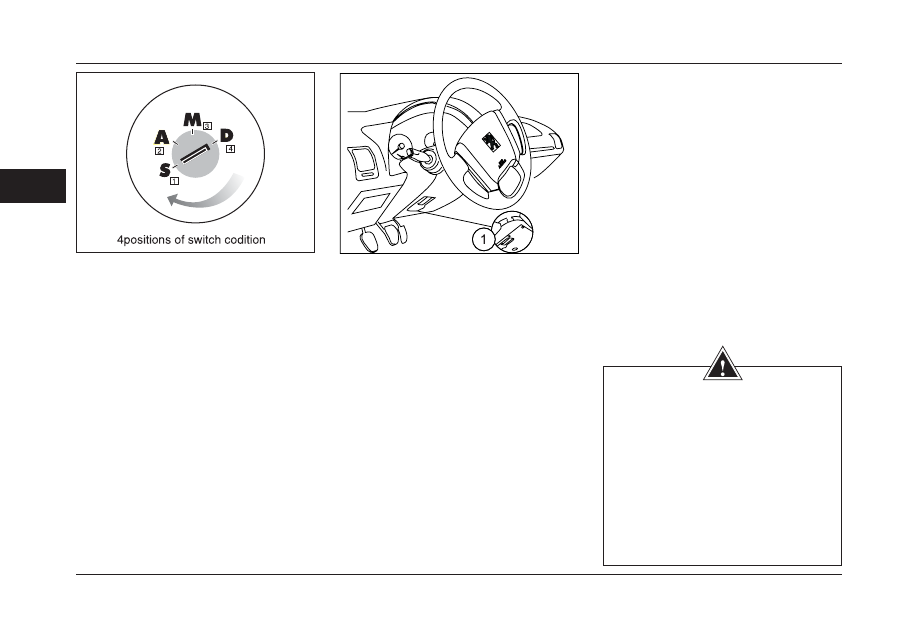

Ignition switch

Has four positions

1- Position  S: Main switch is closed.

(Shut)

2- Position A: Electric circuit forelectrical

equipments is connected but ignition circuit

is disconnected. In this situation, the warning

sign for charging battery lights up. (Aids)

3- Position M ignition of engine:

The ignition circuit is connected. In this

situation, the following warning lights turn on:

-Reduction in motor oil pressure.

-Increase in temperature of liquid in

cooling system.

-Charge of battery.

-Emergency stop. (Stop)

-Decrease in brake oil level or engagement

of hand brake.

-Trouble shooter.

4- Position D Starting the engine:

- Immediately leave the switch key, after

starting of the engine.

- When the engine is on, the warning

lights will turn off.

Adjusting the steering wheel

To adjust height of the wheel:

-Press the lever until the wheel is out of lock.

-Move the wheel up and down, as desired.

-After adjustment, pull the lever until it

gets locked.

WARNINGS

-Never adjust the steering wheel during

driving. This is a very dangerous action.

-strictly avoid starting of engine and

keeping it on for long time in confined

spaces.

-when the vehicle is moving , avoid

switching off the engine or taking out

the switch key , because the steering

wheel gets locked and steering will

not be possible.

87

3

STARTING AND DRIVING

Manual gear box (Gear shift)

Useful recommendations:

Never intend to drive with cold engine. Never

keep the engine working in confined spaces.

When the temperature drops below zero

degrees, push the clutch completely so that

the engine starts easily.

Manual brake

1-To lower the hand brake, press it’s button.

Gear lever (Gear Shift):

2-The modes of changing Gear Lever is

sketched on the head of Gear Lever.

The reverse gear should be engaged only

when the car is completely stopped and

engine is running calmly.

WARNING

If the engine is off, the auxiliary brake

system dose not work and more

pressure should be imposed to the

brake pedal. In this situation the

stopping distance of the vehicle will

be increased. Before moving your

vehicle, take all safety precautions.

CAUTIONS

-When parking in a slopped place,

turn the wheels towards the

pavement and put on the hand brake.

-When icons

 and

STOP lights

up, it shows that the hand brake is

not released or badly released.

-During driving take care that the hand

brake is fully released (the brake sign

will be off), because there is possibility

of warming up the linings.

88

3

*If equipped

FUEL ECONOMY

Saving in fuel consumption

Four main factors in fuel consumption

1-Mechanical conditions of the engine:

Air  filter:  Dirty  or  obstructed  air  filter

reduces  the  efficiency  of  the  engine.

Change the air filters at defined Distances.

2- Fuel system:

Check the injector system and fuel pump

for any leaking.

Petrol: Quality of petrol not only effects

the consumption of fuel, but also, in long

terms, effects the mechanical conditions

and operation of your car.

3- Conditions of the vehicle:

Air pressure of the tires:

Lack of enough air pressure in the tires,

increases in fuel consumptions by  3%.

Carrying weights:

Carrying 100 kg of weight inside the city,

will increase the fuel consumptions by  3%.

4- Resistance against the wind:

Driving with empty roof weight space ,

increases in fuel consumptions by  10%.

Therefore  immediately  after  finishing

your job with roof weight space take it out

along with wind breaker and  it’s mirrors.

During Driving void opening the windows.

it is better if you use the air vent channels.

WARNING

Do not place your car, when engine is

still running, in spaces which there is

possibility of contact with inflammable

substances .(like dry grass, leaves,...)

CAUTIONS

The suitable petrol in your car, is the

super petrol without plumb with figure

of Octane of 95.

89

3

FUEL ECONOMY

Saving in fuel consumption

-Driving:

Starting to move: Do not intend to drive

fast, immediately after starting of engine.

Drive slowly. Do not warm up the engine

when you are not moving, but try to drive

first  few  kilometers  with  average  speed

until the engine warms up.

Revolution per minute (RPM):

Driving with too high or too low RPM will

increase in fuel consumption. To avoid

unnecessary increase of  RPM, quickly

use the higher gear. Always use the gear

which is suitable with the road conditions

and calm driving conditions. Avoid sudden

acceleration.

Before reduction of speed in a sloped

road, and before over taking and

accelerating, come down to lower gear.

(specially from gear no.5)

Electrical devices: Use the electrical

equipments, only when you need them.

The rear glass heater, to remove  sweating

and freezing of the glass, increase in fuel

consumption by 10 %.

The weather and road conditions:

Short distances: if the engine is cold in

first  5 kilometer of driving, it will increase

in fuel consumption by  25 %.

Spinal and unsmooth roads:

Driving in such roads, will increase in fuel

consumption by  10 %.

Wind: Existence of wind during driving

will increase the fuel consumption .

Drop your speed in these situations. The

optimum fuel consumption takes place in

speed of  90 kilometer per hour.

WARNING

-To avoid excessive increase in  RPM, in

RPMs more than 6500, the fuel injection

to the engine will be disconnected.

-Never put the engine under pressure

before warming up. (Do not drive speedy)

If the engine dose not stop with the

switch key, push on the brake pedal,

engage the gear and leave your foot

from clutch until the engine turns off.

90

3

DRIVING & ENVIRONMENT

Driving & environment

You can reduce environmental pollution

and drive more safely and economically

by observing following advices:

- Use the factory recommended gasoline

and engine oil.

-  Prevent  gasoline  overflow  while  filling

the tank.

- Do not forget to conduct periodic checks

on your vehicle

- Check that the exhaust, oil and fuel system

do not have any leakage.

- Begin driving slowly and right after turning

on the engine.

- Turn off the engine for stops longer than

2 minutes (i.e in traffic jam or behind red light)

- Press the gas pedal slowly and do

not speed up suddenly.Try to keep a

steady speed to reduce not only exhaust

pollutants, but to prevent mechanical

parts erosion.

- Pay attention to the maximum allowed

speed.

- Adjust tires pressure and balance them

if necessary.

- Minimize using the air conditioner to

reduce fuel consumption.

- If you changed the engine oil by yourself,

do not drain the used oil and deliver it to

the refill oil stations for recycling.

- Plan your trips, and combine them

together.

- Avoid driving in busy streets or rush

hours as much as possible.

- Use electronic equipment when strictly

necessary.

-  Under-  inflated  or  non-  standard  tires

raise fuel consumption.

- Avoid driving with open windows; it is

preferable to use the ventilation ( it raises

to fuel consumption).

- Avoid fastening the empty roof weights

pace on the vehicle.

- Tire is not approved by the manufacturer

can increase fuel consumption.

- Non- balanced tires will increase fuel

consumption.

91

3

WINTER PRECAUTION

Winter precaution

Tires:

Winter tires: if you are using the car in hard winter

conditions like in snowy, freezing and slippery

loads, to select the required equipments, with

regards to the conditions, consult authorized

IRAN  KHODRO  representatives.
Four season tires:

To gain a higher speed in favorable weather

conditions, all four wheels of the vehicle should

be equipped with four season tires, so that the

stability of the car can be maintained better.
Wheel chains:

In  PEUGEOT PARS ,the wheel chains should

be attached to the front wheels. The chains

should be same size of the wheels and be fixed

to it, otherwise they cause severe damage to

the brake system
Motor:

Battery:  Specially in winters ,make sure the

battery is charged.
Engine cooling system: In cooling system of

your car, a kind of cooling liquid is used that

can ensure resistance against freezing or

system internal chemical erosion. This solution

which to be used in all four seasons of the year,

protects the system in temperatures down to

minus  20 degrees centigrade.

In any case the system can be protected

in temperatures down to minus 35 degrees

centigrade, which in this case, the authorized

representatives should be consulted.

Safety of vehicle

Detach the tag of the key no of your vehicle

from the key hole and keep it in a safe place.

After removing the switch key, turn the steering

wheel until it gets locked.
Safety of the road

Safety belts

According to regulations, use of Safety Belts

are compulsory. There should not be any

modifications to it’s installations.

-in wet roads, lack of adhesiveness of the tires

with the road and also delay in brake operation

due to wetness, causes slipping of the car and

increase in stopping distance.
Tires:

Check the air pressure of the tires, regularly.

The difference in air pressure of tires can effect

in returning the steering wheel.
Front lights and side lights

Take care that the front lights and side lights

are in good working conditions and clean and

their lights are adjusted at correct and suitable

height.
Safety in vehicle movement:

Hand brake:

At freezing temperatures, avoid parking your

car  for long times. In these kinds of situations,

obstruct the front wheels with something or

clutch the gear on gear no.1  or the back gear.

Main lights and side lights:  The front lights

and other lights should be always clean.

Interior and exterior equipments of the vehicle:

The locks and the rubber packings of the doors:

Grease the door locks with a little Graphite

contained oil and Oil the Rubber packings with

paraffin.
The  flaps for entering air into the cabin:

Take care that the outer channels for letting Air

inside the cabin ( beneath the front glass) is not

obscured by snow, ice or leaves  in any case.
Front Wind shield wiper:

Before operating the wipers, clean the ice

patches on the front glass.

The front glass cleaner:

To avoid freezing of liquid inside the container,

add a little anti freezing solution to the glass

cleaning liquid.

THE BODY:

At the end of winter season, wash the car

completely and  pay required attention in washing

beneath of the body and the mudguards.

WARNING

Never intend to drive in slopped grounds

with engine OFF. The brake booster dose

not operate in this situation.

CAUTION

In vehicles exported to cold climate areas,

having  very  difficult  winter  conditions,  a

kind of cooling solution is used which can

protect the cooling system of the car up to

minus 35 degrees centigrade.

92

3

*If equipped

STARTING / DRIVING (CNG)

Starting the Engine on CNG Mode*

To remind you, this method is used only for

special situations like gasoline shortage.

Firstturned the switch on, and then press

the conversion key for 5 seconds till the

green light will appear on instrument

panel the green light, appears on the

instrument panel. Then start. If there is no

technical malfunction in the gas system,

the engine will start on CNG.

Fuel Conversion Key

The fuel conversion key is on the middle

console next to the digital clock and it is

used from switch from gasoline to gas

and vice versa mode. By pressing the

related key, the fuel type can be changed.

Starting & Driving On CNG Mode*

Changing the type of fuel is done by the

fuel conversion key located on the middle

console and you can choose the type of

fuel as follows:

A. Before moving (at first the car will start

on gasoline then it will switch to gas)

B. During driving

C. Starting the car directly on gas mode**

Starting the Engine

The engine starts on gasoline mode.

Since gasoline pump is turned on, even

when the car runs on gas, and also to cool

fuel injectors, it is necessary to have at

least 5 liters of gasoline in the fuel tank.

In the case of any damage to gasoline

system, the engin finally starts on gas mode.

93

3

*If equipped

STARTING / DRIVING (CNG)

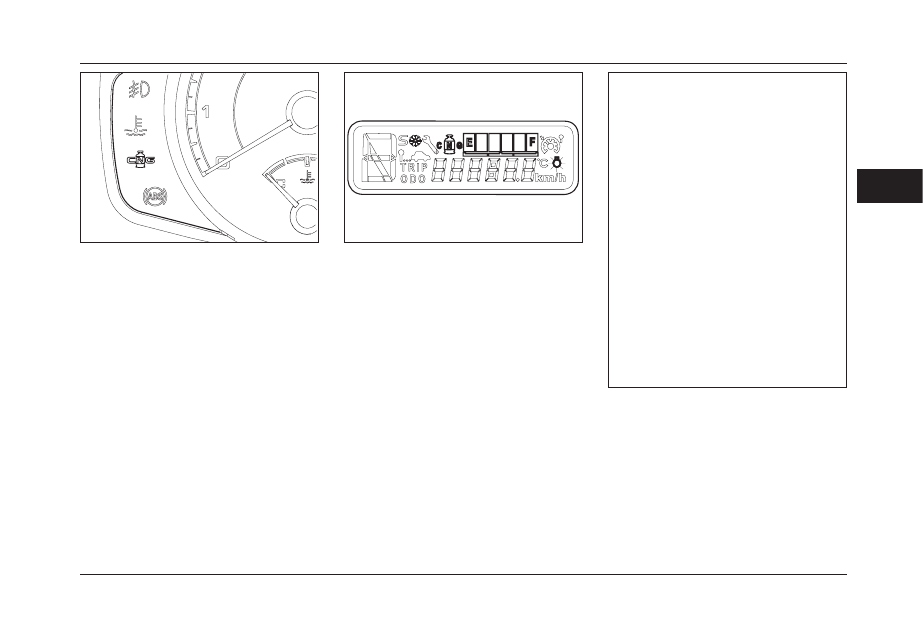

Conversion from Gasoline to Gas*

While the engine is operating on the

gasoline mode, by pressing and releasing

of fuel conversion button, the corresponding

indicator on the instrument panel LED will

start blinking which denotes that the fuel

conversion has not taken place. After a

while which depends on the engine water

temperature at the moment, the conversion

button is pressed down (e.g. under the engine

water temperature of 25 °C, this time will be

equal to 150 seconds, while under higher

temperatures the conversion time will be

shorter), the CNG indicator will stop blinking

and the light comes on permanently. This

implies that the fuel conversion has taken

place completely. Now the engine is working

on CNG mode .

NOTE

In the event the engine REV is higher

than 4000 revolutions per minute and

it is accelerating up at the moment the

conversion button is pressed down, the

LED indicator will start blinking and the

engine will remain on CNG as long as it

has not left the REV domain, after which it

will convert to gasoline.

In the event the engine REV is higher

than 4,000 revolution per minute and it

is accelerating on up, by pressing of the

conversion button, the indicator on the

LED will start blinking and the engine will

remain on gasoline as long as it has not

left the REV domain, after which it will

convert to CNG. It is worth mentioning

that in the cases above, the conversion to

CNG will take place automatically without

the need to press the conversion button.

Conversion from Gas to Gasoline*

By pressing the fuel conversion button,

in the case that there is no engine failure

and enough gasoline in the fuel tank,

the director on the instrument panel will

light off. This implies that the conversion

from CNG to gasoline has done properly.

It is necessary to remind that under the

two following circumstances , the engine

will automatically convert from CNG

to gasoline option( no need to press

conversion button) :

- Breakdown of CNG consumption system

- Non- availability of sufficient gasoline in

the fuel tank.

94

3

*If equipped

STARTING / DRIVING (CNG)

Steps of receiving  CNG fuel: *

1- Before arrival to the Gas station and

during stay in there, strictly avoid smoking

and operating your mobile phone.

2- After arrival to the Gas station **, the

Driver should switch off the engine and

make sure that the car is completely

stationary. (Put on hand brake).

3- the operator of the station, after

CAUTIONS

-The maximum number of fueling operation in the tank is  1000 cycle per year. Charging of the tank should not

take place  more than  3  times a day, approximately.

-Strictly Avoid fueling in Gas stations specialized for buses and heavy vehicles because there is possibilities

of malfunctioning  in manifold valve of the tank and it’s accessories, with regards to higher outlet Debbie of

the station.

**to get latest information regarding

conditions of active  CNG  stations, you can

refer to web sight: related to Association for

improving  fuel  consumption or contact with

following telephone numbers: 88604760- 5.

controlling the permit sticker for fueling

the vehicle, performs fueling  Operations.

4- After every fueling make sure that the Gas

filling  manifold  cover  is  completely  closed.

(closing the cover properly is necessary,

to avoid entrance of dust and dirt and

subsequently, problems in Gas system ).

5-The maximum authorized pressure for

fueling is 200 Bars.

The method of renewing the permit

sticker for fueling the vehicle*:

Expiry period of permit sticker for fueling

from the time of issuance, is 12 months

and without fueling permit, permission for

fueling will not be granted in Gas stations.

Therefore one month before date of

expiry of the sticker, attend the authorized

centers for inspections of binaural fuel

consuming cars.

WARNING

The CNG gas and the other equipment

must be assessed through assessing

centers(approved by ISIRI), every 36

months.

95

VEHICLE MAINTENANCE

4

MAINTENANCE  ...............................................................96

ENGINE COMPARTMENT  ..............................................98

COOLING SYSTEM ........................................................101

BRAKES ..........................................................................102

HYDRAULIC STEERING ................................................103

BATTERY  ........................................................................104

CLEANING & CARING VEHICLE  ................................105

96

4

MAINTENANCE

Owner Care & Maintenance

In addition to regular services and checks

described before, some simple periodical

checks should also be done. By paying

attention to the recommendations in the

next pages, you, yourself, can perform

these checks.

Daily checks

- Performance of lights, horn, indicator

lights, window wipers, window washer

and alarm lights

- Performance of safety belts and brakes

- Any drips of any liquids that may indicate the

leakage of engine liquids under the vehicle.

Weekly checks

- Engine oil level

- Coolant level

- Brake fluid level

- Steering wheel hydraulic oil level

- Window washer liquid level

- Air pressure in tires and their condition

- A/C performance

Special Conditions

If your vehicle is constantly used under

special conditions such as places with a lot

of dust or in very cold weather or very hot

places, it needs extra care. Contact your

authorized representative in this regard.

Safety in the Garage

If you need to carry out maintenance,

consider the following safety advices:

- Keep away your hands and clothing

from moving belts and pulleys.

- If the engine has been turned off recently,

do not touch the exhaust, cooling system

and its auxiliaries.

- Do not touch electrical connections or

its other components when the engine is

running or the switch is on.

- Never leave the engine running or start

in a closed place since exhaust emissions

are poisonous and very dangerous.

- Do not work underneath the car when

jack is the only means of support.

- Ensure that bare wires and all sparking

tools are away from the engine.

- Use protective clothes and impermeable

gloves for maintaining operation.

- Put off the metal wristbands and jewelry

before working in the engine compartment.

- Prevent tools or metal objects contacting

battery poles and terminals.

97

4

MAINTENANCE

Routine Services

The safety, reliability and performance

of your car is partly dependant on your

maintenance skills, and you should become

ensured that maintenance operations, oil

services,  checks,  brake  fluid  and  coolant

topping up are carried out in accordance

with the proposed schedules of the

manufacturer if required.

Poisonous Fluids

All fluids used in a car engine are poisonous

and should not get any contact with open

wounds. These liquids include battery acids,

anti-freeze,  brake  and  hydraulic  fluids,

gasoline, oil and the washer additives. Pay

attention to instructions written on the labels

and containers filled with these fluids.

WARNING

The cooling fan is an electrical device,

and may continue operating for a few

minutes after the vehicle has been

turned off. Keep out of the operating

fan when working in the engine.

A long contact with engine oil may

cause serious skin disorders as

dermatitis and cancer. Wash your

skin carefully if contacted.

WARNING

- If the vehicle moves at high speed

for a long time, check the engine oil's

level regularly.

- Any sudden or significant decrease

in the vehicle's liquid level or uneven

friction of the tires should be reported

to the authorized representative as

soon as possible.

98

4

ENGINE COMPARTMENT

The Parts in the Engine Compartment

1- Brake Fluid Reservoir

2- Oil Dipstick

3- Oil Filler Cap

4- Washer Reservoir

5- Radiator Cap

6- Battery

7- Hydraulic Fluid Reservoir

8- Engine compartment fuse box

CAUTION

Adding: when adding oil, ensure that

it is not spilt on engine parts there

may be danger of fire.

Do not forget to close the lid since

there is the danger of fire due to oil

splashing on the hot sueface of the

engine parts.

The indicator will only warm in engine

oil goes below the required level and

never shows any increase over the

maximum amount, which can only be

determined by reading the gauge.

WARNING

- The cooling fan is an electrical

device, and may continue operating

for few minutes after the vehicle

has been turned off. Keep out of the

operating fan when working in the

engine.

- A long contact with engine oil may

cause serious skin disoeders as

dermatitis and cancer. Wash your

skin carefully if contacted.

WARNING

- If the vehicle moves at high speed

for a long time, check the engine oil's

level regularly.

- Any sudden or significant decrease

in the vehicle's liquid level or uneven

friction of the tires should be reported

to the authorized representative as

soon as possible.

*If equipped

99

4

*It's recommended to use the approved brands and packages, offered by the Isaco.

ENGINE COMPARTMENT

Checking the motor oil level:

Check the motor oil level weekly or in

case of continuous usage of the car,

check it several times per week.

Check the oil level when the engine is hot

and vehicle is situated completely horizontal

and the oil is stationary in the cartel.

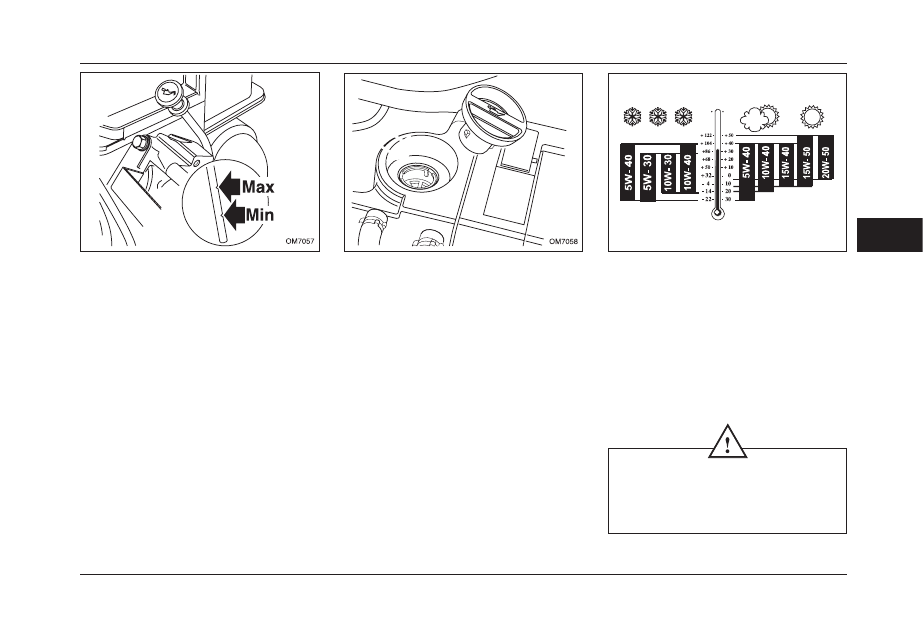

Inspection of Engine Oil Level

Put  the  car  on  a  flat  surface.  Turn  the

engine to warm it up. Turn off the engine

and then measure the oil level after 5

minutes.

Purring motor oil:

Take out the cap for motor oil manifold.

Pure the oil into the tank space. The level

of the oil should never exceed the  sign

of (MAX) on the oil measuring rod. To

get  information  regarding  specification

and volume of required motor oil, refer to

section of

Technical information.

The applicable engine oil in this vehicle

must  be  20W50  SL  /  SJ,  10W40SL.*

CAUTION

Never mix the Motor oil with additive

materials. This can cause serious

damage to the engine.

100

4

*It's recommended to use the approved brands and packages, offered by the Isaco.

ENGINE COMPARTMENT

Filling of glass cleaner container:

Check the water level of the glass cleaner

container weekly. To ensure clean washing

of  the  glass  and  avoid  freezing,  fill  the

container with mixture of water and a suitable

detergent. Mix the recommended amounts

of water and detergent in a separate bowl

and fill the container with it. Always follow

the instructions mentioned on washing liquid

container.

Washing solution of glasses must be Iso

Propanole.*

CAUTION

Never use mixture of anti freezing

liquid and water for glass cleaners.This

will damage the paint work of the car.

CAUTION

Change the air filter at regular intervals.

If you are using your car in a dusty

atmosphere, reduce the time intervals

to half.

WARNINGS

-During working on engine, the

radiator Fan may start working any

moment. (Danger of injury)

- Adding oil: When adding oil take

care not to pure the oil on the engine

parts because there will be danger

of catching Fire. Do not forget to put

the cover back, because there will be

danger of catching Fire due to splash

of oil on hot parts of the engine.

- Changing Motor Oil: If you are

changing the motor oil whilst the motor

still is hot, take care not to be burnt by

splash of hot oil.

- Do not start the engine in confined

spaces: The exhaust gases from

exhaust pipe is Toxic.

101

4

COOLING SYSTEM

Checking the Coolant

The coolant level should be checked weekly
when the cooling system is cold, and the car
resting on a plane level. Liquid level should
stand between (Max) and (min) signs on the
vertical wall of the radiator (next to filler cap).
Top up the radiator on necessity.



Filling the Radiator

If the engine is warm, wait 15 minutes until the
engine temperature falls below 100 C. Protect
your hands with a cloth and unscrew the filler
cap carefully and slowly to the safety stop,
letting radiator pressure fall.

NOTICE:

If more than one liter is needed to

top up, an authorized representative should
check the cooling system. Make sure that it is

fully tightened to the second thread.
In an emergency, and only if the recommended
anti-freeze is not available use clear water to fill
the cooling system, but be noted that it reduces
coolant freezing protection. Always use the
antifreezes with  recommended formula  and
approved brands and packages that are
offered by ISACO.

Important Note:

Cooling system draining

and refilling are service operations that need
sufficient  knowledge,  and  should  be  carried
out  by  qualified  personnel  according  to  the
instructions of the repair handbook.
It is necessary to replace the coolant every two
years. The coolant resists freezing down to - 30
degree centigrade.

Anti-Freeze

Anti-Freeze contains corrosion inhibitors.
Anti freeze content of the coolant should be
maintained between 40-50%, not only in cold
weather but also all the year.

WARNING

Anti-freeze solution is poisonous, and

could be fatal if swallowed. Keep it sealed

and out of children’s reach. If you suspect

of drinking it, refer to the physician

immediately.

Prevent anti-freeze solution contacting

with the skin and eyes. If you accidentally

get  it  in  your  eyes  or  on  your  skin,  flush

the place with water and get medical help

immediately.

WARNING

The evacuation must be done by

authorized deal of IKCO ,if any of cooling

system (except radiator) gets open or

repaired .

Avoid opening the radiator cap unless the

vehicle is off at least for an hour.
