Iran Khodro Dena. Service Manual - part 5

70

3

Automatic flaw diagnosis light

In case of diagnosing any flaw by this mechanism, the related light will turn on. In case the ignition switch in open on 2nd

position, indicating system analysis, this light will turn on and will disappear by powering engine on. In case the light turns on when

moving, this indicates a flaw in the engine.

Note: When the light is indicating but the vehicle is operating normally, you shall refer to branch offices. You can also keep running yet.

If the light turns on and the vehicle is not operating well, this shows an error in sparking and fueling system and the engine must work

in a very low RPM and you must refer to an authorized representative of IKCO.

ABS warning light – yellow

This indicator will turn on and off for a while when you're trying to power on the engine. In case it is not turn on during powering

on, or not turn off after powering on the engine, this shows an error in ABS brake system or in EBD system. In this case, you shall

immediately transfer the vehicle to an authorized branch office.

Passenger's air bag flaw indicator

If it's turned on constantly, this shows the passenger's air bag is not functioning or inactivating, this will remain on until the issue

is eliminated. If it's flashing, you shall immediately call the branch office.

Driver's air bag flaw indicator – Yellow

This will flash for 6 times by powering on the engine, then shall turn off, Or, shows an error in driver's airbag system. Hence, you

shall immediately refer to authorized branch office, Or the owner shall bear all responsibilities in this respect.

WARNING LIGHTS

* If your vehicle is equipped

71

3

Fuel shortage indicator light – Yellow:

If this turns on it means that less than 8 liters gas remained in tank, and then you shall take action as soon as possible. This light

will flash if the fuel is less than 3 liters.

Cruise control light – Green:

If this turns on/off it means that cruise control system is on/off.

Immobilizer light – Red:

When the vehicle is switched off; flashing of this light in every 4 seconds, means that the immobilizer is activated.

Service error light – Yellow: If this turns on it means that an error occurred in one of the vehicle's system or it’s the time for

periodical service. Refer to the nearest after-sale services office if you saw this light.

WARNING LIGHTS

72

3

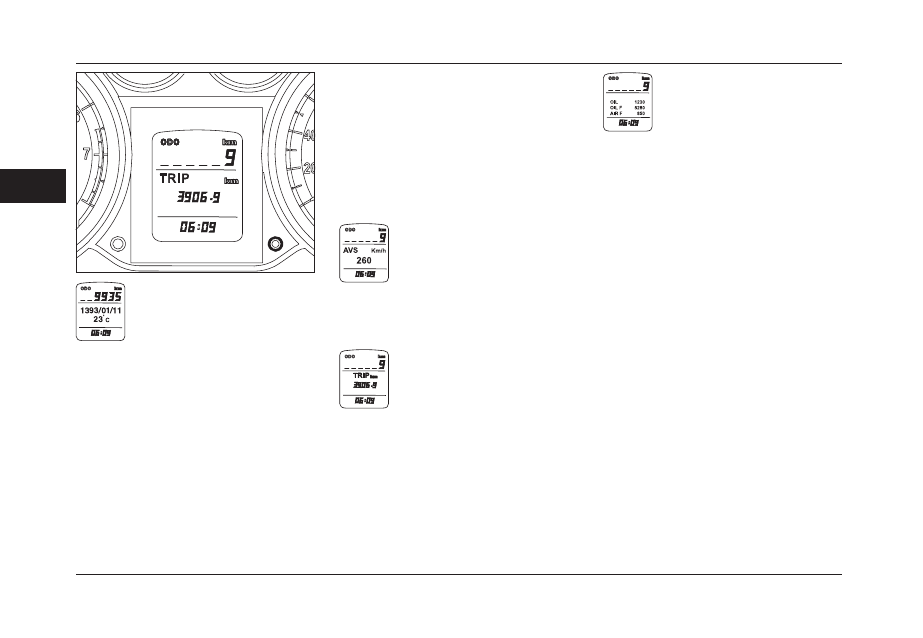

DIGITAL DISPLAY SCREEN GUIDE

Digital display screen guide:

"ODO" This turns on

immediately after ignition switch

in open, this indicates total kilometers

went through from delivery of vehicle on

km basis, and cannot be changed to Zero.

(If it is set for this setting, Or, it is not

shown a the time of ignition switch OFF.)

Time, date/ out temperature:

 Time range changes from 00:00 to 23:59

with accuracy of 1 minute. The range of

calendar changed from 2001 to 2020.

Leap years are not considered in the

calendar.

The range of temperature is from -40 to

+80 degree centigrade.

Average speed

This shows the vehicle’s speed

from zero time to the current

time. By pressing status changing key

when the amount is showing, this will

change to Zero.

This shows total distance went

through from the time you made

it Zero on km basis.

Pressing  the  Zero  maker  key  for  2

seconds will make this distance amount

as Zero.

Periodical service

To adjust the km amount to

replace the engine oil, oil filter, air

filter, press and hold the left key (rotating

key) for one second. Then you will enter

the sub-menu as shown. You can move

through your favorite item, then press

and hold the key for 2 seconds in order to

determine your favorite number. This will

also shows the differential amounts. The

accuracy of measurement is for 1 km,

periodical service light will be then turned

on necessary times.

73

3

Lamps fault indicator

This lamp will turns on in case of

any error in front or back lights.

Engine oil shortage indicator

This light will turn on when

the ignition switch is on its

2nd position which shows appropriate

functioning, and will turn off when the

engine is powered on. Or, this shows

engine oil shortage, Hence, you shall

power off the engine immediately and take

action to refer to the nearest authorized

branch office.

Light rate of lamps adjustment

The background light of lamps

will turn on by vehicle's lights.

Then you are able to adjust the

rate of lights by turning this volume (right

side volume) to decrease or increase the

light.

The rate of lamp lights is adjustable in 7

options as:

1

2

3

4

5

6

7

20% 25% 40% 55% 70% 85% 100%

Cruise control system*

The determined speed of cruise

control will be displayed on

screen in place of ODO, above

the screen.

In case of speed change more than 4

km/h,  this  speed  will  flashes  on  display

screen.

DIGITAL DISPLAY SCREEN GUIDE

74

3

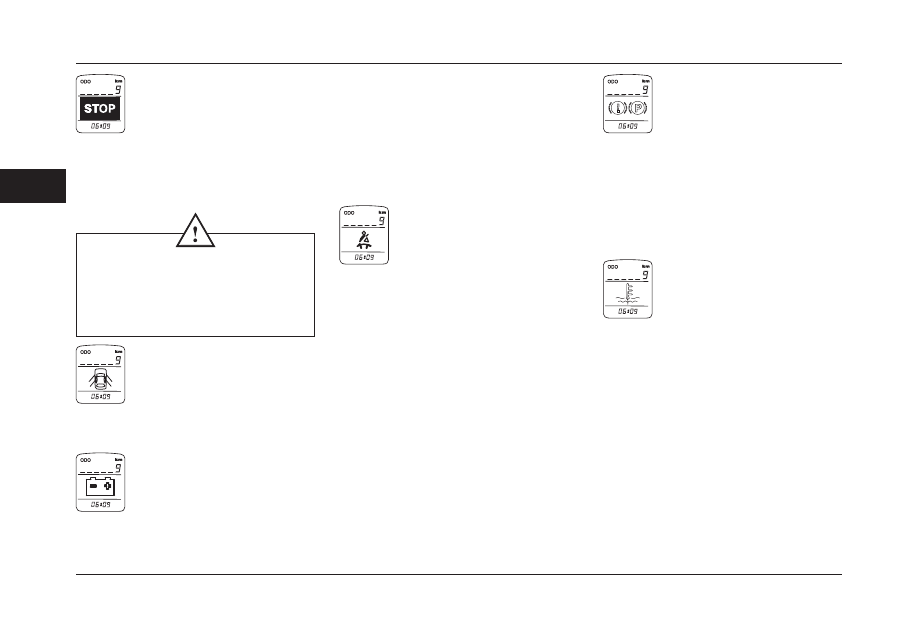

Instant STOP command

Seeing this command, instantly

stop the vehicle without any

hesitate then call the authorized

workshop.

This lamp may also light up by oil level,

battery charge, and engine oil shortage

and engine high temperature indicators.

Open doors indicator

This indicates which of the

vehicle's 6 doors is remained

open, and you shall immediately take

action to close it.

Battery charge warning light

With Ignition switch on its 2nd

position, this lamp will light up

and immediately disappear by powering

engine on, or, it shows an error in battery

charge level and you shall take immediate

WARNING

If "STOP" light is turned on for any

reason, the driver shall avoid running

the vehicle and any damage in this

case will be borne with the owner.

action to eliminate this issue.

This indicator light may signals for one of

the following reasons:

- Flaw on battery charge system

- Flaw on battery or its terminals

- Alternator error

- Flaw on alternator's wires

Driver's seat belt

We shall always ensure

appropriate fastening of driver's

seat belt by putting the clamp on its metal

hole and hearing the click sound. Doing

so will turn off this light on display screen.

When the vehicle is moving and vehicle's

speed exceeds 5 km/h, this indicator light

will appear on display and beep sound will

be heard for one minute, after which just

the light will remains.

Brake alarm

This will light up in case the

handbrake is up or the brake oil

level is low.

In case it is not turned on when starting the

vehicle or it remains light when the engine

is powered on, you shall immediately fill

the oil tank and check the handbrake to

be down, and then refer to an authorized

workshop as soon as possible.

Engine high temperature

You shall immediately stop

the vehicle if you saw this light

without need to power the engine off,

then call an authorized expert. The light

of STOP may also appear in case of

increasing water temperature.

DIGITAL DISPLAY SCREEN GUIDE

75

3

THE FRONT PANEL AUDIO WARNING

Priority of Audio Alarms

Type of audio alarm

Operation description

Priority Start switch

Audio alarm

Non-ending beep

Small lights are on and driver's and/or

passenger door is open

1

Engine OFF Lights audio alarm

A beep after going to rear gear Going rear gear with sensors functioning

well

1

step 2

and 3

Rear gear sensor

ready

Continuous beep

Going rear gear with an obstacle near the

vehicle

Obstacle diagnosis

A beep after each pressing

When central lock key is pressed for 5

seconds

2

Auto-central lock on/

off

3-second beep

Speed exceed 10 km/h and one door is

open

3

Open door alarm

3-second beep

Speed exceeds 120 km/h

4

High speed alarm

45-second beep + 15 seconds

with twice volume

Speed exceeds 10 km/h and seat belt is not

fastened

5

Open seat belt alarm

3-second beep

Fuel shortage light is on

6

Fuel shortage alarm

3-second beep

Engine high temperature light is on

7

Engine high temp

alarm

Simultaneous beep and

indicator lights

One of indicator lights or flasher is activating.

In the meanwhile,  indicator display in control

panel is activated with double frequencies

when  one of the lights are damaged and one

of the indicator light is activated.

8

All status

Flashers alarm

76

3

CRUISE CONTROL

Cruise Control

This mechanism is designed to keep the

vehicle’s speed fixed in long ways.

You will be able to fix your speed without

any need to press the gas pedal.

When the cruise control is activated,

actually an electrical driver will borne the

responsibility of adjusting gas channel,

and the main driver will not have any need

to press the gas pedal.

The Driver is also able to increase/

decrease the vehicle’s speed by pressing

the keys designed on related panel on the

steering wheel. In case the driver presses

the clutch or gas pedal(s), the cruise

control will be cancelled. Then the Driver

will be able to continue speed control and

the latest speed will be stored in system’s

memory. Also the driver is able to press

the gas pedal to increase the speed. The

indicators of cruise control on display

screen show the activity of this system.

*If equipped

Main Components of the system

1. Throttle (electric gas inlet), which controls

the opening of gas inlet and is installed on

engine compartment.

2. Electrical control unit (ECU)

This unit performs information process and

control tasks. This is installed on engine

compartment.

3. Steering wheel panel keys

The Driver will be able to control the system

through the instrument panel installed on the
steering wheel.

System manual

Gears upper 4 are designed to be control by
cruise system.
Vehicle’s speed shall exceed 42 km/h
The key

 on steering wheel panel is

designed to power on/off the cruise control.

The indicator

 will turn on with green light

on the display when the system is activated.
When the system is ON but not activated,
pressing  the  brake  pedal    for  first  time  after
powering engine on, the key

 will activate

the system, and the vehicle’s speed will remain
still. The indicator

 will be displayed by

activating the system.
When the system is activated, pressing and
holding

 will increase the vehicle’s speed

for 3 km/h per second, and releasing the key

 will fix the speed. Each pressing will also

increase the speed for 1 km/h.
If the system is not activated, pressing the



key will activate the system, and the vehicle
will move with the previously stored speed, if
nothing, based on the current speed.
When the system is activated, pressing and
holding the

 decreases the vehicle’s speed

for 3 km/h per second. Each pressing

 will

decrease the speed for 1 km/h per second.

77

3

Benefits of using Cruise control system

1.More convenience at driving and

keeping the energy of foots specially in

long journeys in express ways due to no

need for pressing the gas pedal.

2.Brilliant decrease in fuel consumption

3.Avoid violating the legal speed in roads

which are sometimes unintentional.

Condition of cruise control activation

- Cruise system is ON (with ignition switch

and ON/OFF key)

- Pressing one of SET or RES keys

- Being the determined speed range (42-

150 km/h)

- Appropriate gear for cruise (upper gear

4)

Instant inactivation of Cruise Control

System

- Pressing brake pedal

- Pressing clutch pedal

- Pressing OFF/ON key

Powering off with main ignition switch

(intentionally by driver or unintentionally

due to cruise module error)

- Changing the gear (manual gear)

- Engine speed is less than than 42km/h

- Vehicle speed is more than 152km/h.

- RPM is less than 1500mm

- RPM is more than 5000mm(1500-5000)

- Not being in 4 or 5 gear.

- Fuel cut due to safety considerations

- Positive or negative acceleration of

vehicle is out of permitted range.

- Brake pedal signal error

- Vehicle’s speed being 10 km/h upper

than the set speed for 9 0 seconds

- Vehicle’s speed being 20 km/h lower

than the set speed for 90 seconds



WARNING

Conduct a whole vehicle’s control

when using cruise control system.

Pay attention that cruise control

system is designed for express ways,

highways, direct and long roads with

light traffics.

Avoid using cruise control in these

cases:

Heavy traffic roads

Meander roads

Slippery roads

Roads with high slope

Rainy roads

As the cruise control does not have any

control on  brake system, the vehicle’s

speed may exceed the determined

amount. Hence, the vehicle’s speed

shall be control by the driver in roads

with high slope.

CRUISE CONTROL

78

3

Cold climates

In -10 degree centigrade, the vehicle

needs more time to be started. Hence,

power off all electrical devices when trying

to start.

Engine’s warm up

Immediately start to drive when the engine

is powered on, due to fuel decrease

considerations, but pay attention not to

drive speedy up to the time the engine

warms up.

Vehicle parking

Always pull up the handbrake and put the

gear on N mode before parking.

Sealing

Engine, gear box, brakes, and rubbers

need time to be sealed and fixed on their

appropriate place.

Please observe the following

considerations  in  at  least  the  first  1000

kilometers:

- Never allow the rpm to exceed 3000 in

any gear

- Never press the gas pedal on any gear

Powering Engine On

1.Make sure that the handbrake is up and

the gear is on N mode.

2.Power off all unnecessary electrical

devices like cooler.

3.Turn the ignition switch to 3rd position,

then immediately release it.

Never press the gas pedal when trying to

start and never continue starting for more

than 15 seconds. If you did not succeed to

start, pause the operation for 10 seconds,

then retry.

If engine did not power on, or

malfunction after starting

- Press the gas pedal to half length (try

only for 15 seconds)

- If you did not succeed, now press the

gas pedal completely then retry to start,

so that extra gas will be removed from the

engine (try only for 15 seconds)

- Avoid pressing and releasing gas pedal

when trying to start the engine.

POWERING ENGINE ON AND DRIVING

Caution

Never park your vehicle near

flammable  materials  like  leaf,  feed,

especially when the engine is ON.

- Never allow to inflict force on engine in

any gear

Avoid sudden brakes if possible

- Using high rpm after sealing period is

not limited.

79

3

POWERING ENGINE ON AND DRIVING

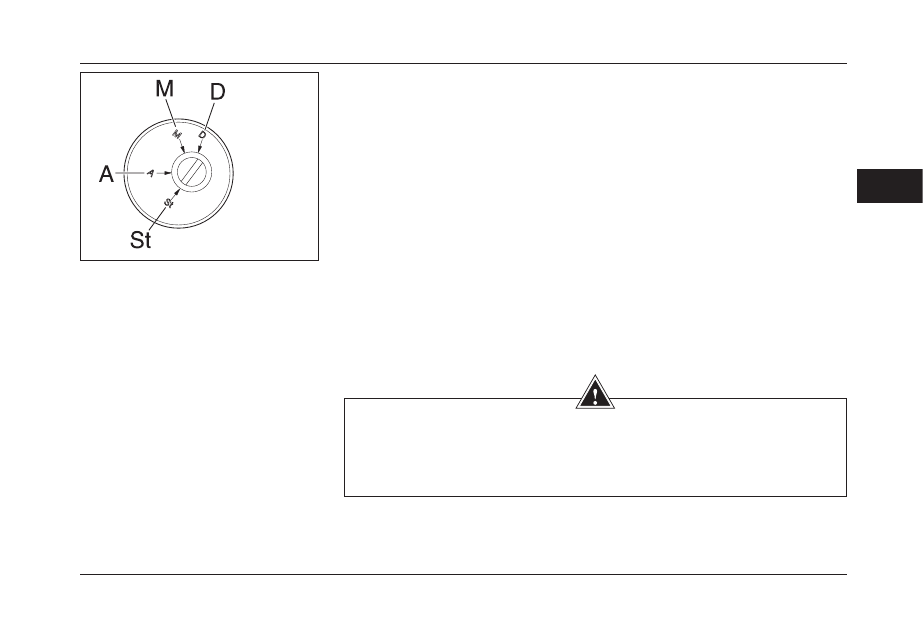

Ignition switch modes:

St Mode:

You can remove the switch

The steering wheel is locked

Most of the lights including side lamps, heal lights and flashers function

A Mode:

The steering wheel is not locked

Some of E-components function

M Mode:

All equipment including indicator lights and electrical circuits function

D Mode:

The engine can be started. Immediately release the switch after powering on, the switch

will return to M mode automatically.

Unlocking steering wheel's lock

After inserting ignition switch, slowly move

the steering wheel and turn the switch to

put it into 1st position, then you see the

steering wheel unlocks.

Locking steering wheel

After removing the ignition switch, turn the

steering wheel on pedestrian's side, you

see the steering wheel locks.

WARNING

When the vehicle is moving, avoid powering off or removing the switch, because the

steering wheel will be locked and the vehicle will get out of control.

Avoid keeping the engine powered on in the roofed places for long times.

80

3

FUEL CONSUMPTION REDUCTION AND ENVIRONMENTAL PROTECTION

Fuel consumption reduction and

environmental protection

You can reduce the environmental

pollutions and fuel consumption by

observing the following tips:

- Make use of the gas and engine oil

advised by the manufacturer

- Never allowed leakage of gas at stations

- Never forger periodical services

- Checkup exhaust system and those of

fuel and oil for any leakage

- Start moving after powering on the

engine

- Power off the engine in stops more than

2 minutes in traffic, etc.

- Press the gas pedal so slowly, try to

keep still the vehicle's speed for better

mechanical efficiency

- Pay attention to the maximum speed

limitations

- Adjust the tires air pressure periodically

and make them balanced.

- Make use of cooler just in necessary

cases, this will reduce the fuel

consumption

- Never throw out the used engine oil if you

want to replace the engine oil by yourself,

but deliver it to mechanical workshop for

recycling purposes.

- Plan for your travels to reduce them

- Avoid driving at rush and busy hours and

streets if possible

- Turn off your unnecessary electrical

equipment but pay attention that safety

is at first priority, so turn on the lights as

soon as dark comes.

- Make use of air inlets designed on

dashboard to have fresh air instead of

opening windows if possible

- Avoid fastening unnecessary barn on

the vehicle

- Making use of tires not approved by the

automotive company will increase the fuel

consumption

- Flat tires will severely increase the fuel

consumption.

81

3

*If equipped

MANUAL TRANSMISSION

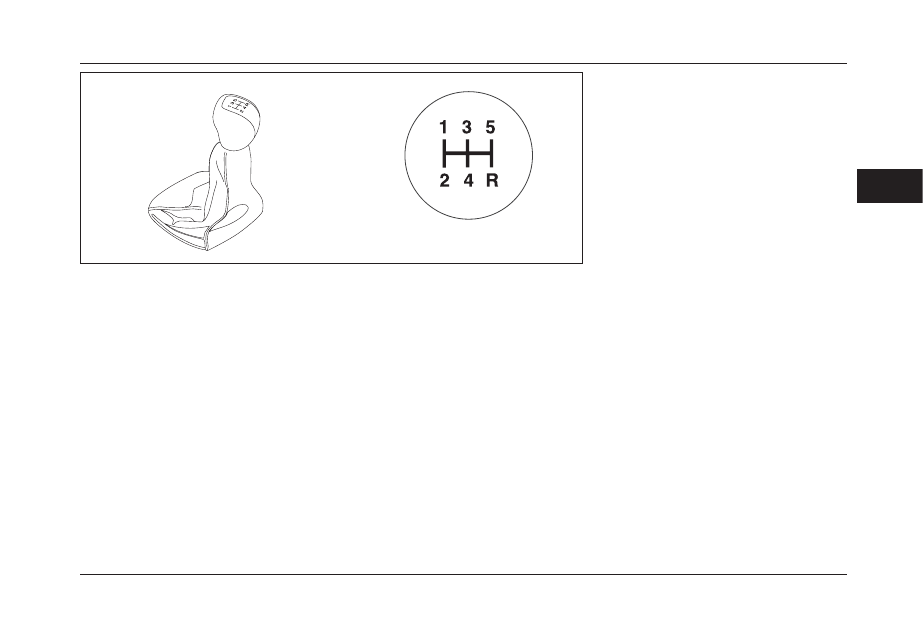

Gears positions

The different gears positions are shown in

the above image. This vehicles is equipped

with synchronization system on all gears.

Precautions of driving

- Never make use of the gear lever as a

backrest because this will reduce the useful

life of the gears mechanism. Never make

use of clutch pedal as foot back, because

this will result in mechanical issues.

- Never make use of half clutch technique

to stop the vehicle in slope roads, because

this will result in mechanical erosion of

clutch system.

- Avoid driving with heavy gear for long

times

- Driving with heavy gear will increase the

fuel consumption, the more rapid gear

changing, the better maintenance of the

vehicle's engine.

82

3

BACK OBSTACLE WARNING SYSTEM

Back obstacle warning system

This system includes three smart sensors

which are designed on the vehicle's

bumper, and are connected to the

E-network of the vehicle.

Performance

The above system will inform the driver of

any back obstacle in two ways of visual

(through display) and audio (through

beep sounds).

With the ignition switch open, and Rear

gear, this system will be activated which

will be declared to the driver by a short

beep and lighting up the back segments

on the display.

The display segments will be on until an

obstacle stands in 150 cm distance from

the vehicle as above image and no beep

will be heard. When the vehicle goes

WARNINGS

This system is designed to help the driver in

diagnosing the obstacle in 150 cm distance

from behind the vehicles specially at parking

with the speed less than 5 km/h, and naturally

has some limitations; hence, the driver's care

shall be the first priority.

Making use of audio signals, this system will

help parking positions and determination of

objects when the vehicle is running on rear

gear.

Hence, having this system shall not be result

in heedless driving on rear gear and sudden

moves.

The Driver shall always pay attention to back

obstacles, mobile obstacles like children,

carriers, bicycles, animal, etc., or short and

narrow obstacles like tables, narrow fences

shall always be at the focus of driver's

attention.

nearer to 150 cm to an obstacle, the side

related segments will be turned off on the

display and the beep sound will be heard.

Going nearer to the obstacle will cause the

beep to volume up and more segments

will be turned off.

The beep sound will be heard continuously

if the beep sound is nearer than 50 cm,

and  the  first  row  segments  will  flash  on

the display for more warning of the driver.

The vehicle shall be stopped in this

moment.

Sensor fault warning

In case of arising any fault in the sensor,

the warning message of "Sensor Fault"

will be shown in place of clock on the

screen and the sensors operations will

not function anymore.

In this mode, three short beep sounds will

be heard.

(1,2,3,) Location for the sensors on rear bumper

83

3

FUEL SYSTEM

Fuel tank cap

To open the cap, turn the fuel tank cap

counterclockwise, and wait a moment to

allow gases to release, then completely

open it up.

To get more information about allowed

gases, please refer to the manual attached

to the cap.

The cap is attached to the tank with a special

rope in order to avoid missing the cap.

WARNING

The gasoline in the tank may be

pressurized. Hence, never open up

the cam suddenly, actually it shall be

opened slowly to allow gases to be

released.

The gasoline steam is so dangerous,

when the fuel is pouring into the tank,

the engine shall be powered off and

the vehicle shall be far from any

spark, flame, cigarette, and matches.

CAUTIONS

The allowed gas for your vehicle is

actually the unleaded gasoline with

octane 95%, in case of making use

of any gasoline except that, this

will result in internal components

mechanical damage which will lead

in ignition phenomena.

Gasoline additive is not allowed for

this vehicle

Never put the gas nozzle completely

into the tank.

84

3

Fuel tank cap

The fuel tank cap is located on right side

of the back fender and is connected to the

central lock. When the central lock is open,

push the right side of cap to open it up.

Opening the fuel tank cap in emergency

(2)

- In case of central lock failure, you will be

able to open the fuel tank cap from inside

the boot.

- Pull the cap clamp backwards.

Fuel reconnection key

The fuel reconnection key is located on

the hood, on the right internal fender. In

severe accidents, a safety system will

cease the fuel transfer to the engine,

which you can reconnect this by pressing

this key after making sure that no fuel

leakage exists.

FUEL SYSTEM

85

3

LIGHTS AND INDICATORS

Lamps key

Status 1: all lamps off

Status 2: small, back, display and

dashboard lamps

Status 3: head lights ON

Warning beep:

This beep declares the driver that the

headlights are remained turned on when

he or she is leaving the vehicle, and will be

heard when the driver's or passenger's door

is open and the ignition switch is OFF.

WARNING

Precautions of driving at night : Always make sure the appropriate functioning of lights and

electrical equipment and adjust the lights. In case of vehicle's overload, special care shall be

focused not to cover the lights by any object including dirt, mud, snow, etc.

Low and high beam

Pull the lever towards steering wheel to

change the low and high beam. (the blue

light indicate high beam). pulling the lever

towards the steering wheel shortly and its

releasing will flash the high beam for one

time.

Horn

Status 3: push the key at the tail of the

lever to horn.

Left and right indicators

Status 1 and 2: pull the level down

before turning to left, and pull it up before

turning rights. The green indicator light of

turning signal will b shown on the display

according to the related direction.

Knocking on the lever on each direction

will  activates  it  for  one  flash  then  will

disappear  (number  of  flashers  can  be

adjusted by the troubleshooter)
