Iran Khodro Dena. Service Manual - part 4

53

2

Heating and ventilation

The heating and ventilation system of

vehicles will direct the fresh air or warm air

from inlets designed in different parts of the

vehicle.

The vents are designed for the windshield,

face and foot for front passengers.

Also there are vents for back passengers

at the end of central box.

The detailed description of heating system

and air vent settings are discussed in next

page.

Necessary tip:

Never cover the back niche on the

vent canal in order to help complete air

circulation in and out of the vehicles.

HEATING AND VENTILATION

WRNING

Avoid  turning  on  the  cooling  fluid

circuit, this is harmful for eyes and

skin.

WARNING

- Make use of distilled water in the radiator, in order to avoid fouling of heater.

- Turn on your cooler every 15 days for 10 minutes even in the semester.

- To turn off the cooler, first turn off the A/C button, then turn off the engine after

seconds.

- Charging the cooler gas with a gas other than R-134a will inflict damages on you

ventilation system.

- Make use of R-134a gas which is compatible with the environment and non-

destructive to ozone layer in your vehicles air vent system.

Air vents

In case you rotate the key down and up,

the air vent will be closed/opened.

By moving the central key to side

directions or up and down, will regulate the

air circulation.

54

2

Automatic air vent

1. Turning vents system ON and OFF

2. Adjusting fan speed up/down

3. Turning on windshield heater

4. Automatic adjustment of vent system

5. Selection of air circulation direction

6. Control air entrance

7. Turning on back windows heater

8. Adjusting temperature up/down

9. Turning on the cooler

HEATING AND VENTILATION

55

2

1-2. Fan speed adjustment key

- Automatic system of vehicle will be

turned ON/OFF by turning this volume.

- Fan speed will increase/decrease by

turning this volume to right and left.

- In automatic mode, the fan speed will

be adjusted based on determined

temperature.

3. Windshield heater

Press this button In order to eliminate fog

or freezing of windshield. By pressing

this button, the cooler will be turned on

and fan speed and temperature will be

automatically adjusted to maximum with

windshield air vents open. Vapors and

frosts will be eliminated and cleaned from

the windshield automatically.

4. AUTO key

By pressing this key, the vent system will

automatically adjust and the settings to reach

the predetermined temperature. All functions

including fan speed, vent canals will be set

automatically in this mode. Turn volume No.

9 to determine your favorite temperature. The

determined temperature will be shown on

display. It is advised that you enjoy this auto

mechanism because there will be no need to

adjust the settings manually in this mode.

5. Air direction selection key

You can change the air direction by

pressing this key consecutively.

Face

Face and foot

Foot

Foot and windshield

Windshield

The air direction will be shown on display,

in case of pressing AUTO key, this

operation will be set automatically. By

pressing air direction selection key, the air

vent system will exit from AUTO mode.

6. Air inlet control key

By pressing this key, you are able to

stop air exchanging and just the internal

vehicle's air will be circulated within the

vehicle. Avoid using this mode for a long

time because lack of fresh air, by pressing

this key again, the air exchanging will be

again started. Air inlet circulation also

operates even if the air vent is off. OFF will

be shown on display when the air vent is

off, by pressing the air vent keys, this light

will disappear.

7. Back windows heater key

You can turn on back windows heater by

pressing this key, the system will be then

turned on for 10 minutes. You can press

this key again before such 12 minutes

is terminated. this mechanism can also

operate even if the air vent sys is OFF.

8. Temperature selection volume

You can adjust the internal temperature

by turning this volume. Turning the

volume to rights (H) will increase the

temperature and turning to left (C) will

decrease.

This temperature can be adjusted within

the range of 14 to 32 degree.

By selecting the temperature 14,

the system will function with its Max.

capacity of frigorific and by selecting the

temperature 32 , the system will function

with  its  Max  .  capacity  of  calorific  and

by selecting the temperature 15 to 31,

the system controls the temperature

automatically.

This volume will not function when the

air vent sys is OFF. You can turn of the

air vent sys by pressing OFF button.

Pressing nay keys of AUTO, A/C, fan

speed control key

 and front/back

windshield heaters

 will turn on

the air vent system.

HEATING AND VENTILATION

56

2

9. A/C Button

This Key is to turn on/off the vehicle's' cooler

system.

The word "ECO" will be displayed on screen

when the cooler is off, by turning on this system

the word "A/C" will be shown on screen. The

setting will be started according to the latest

configuration.

Caution

1.The fan of vent system will not function for 3 minutes at winters when the

outdoor and engine's temperature is highly low, until it reaches to an appropriate

temperature.

2.The auto air vent system is designed to control the entrance of polluted air, dust,

and smoke in the vehicle's air filter you shall replace the air filter according to the

timetable of user's manual.

3.You shall replace the air filter in case of malfunctioning including weak fan speed

or any odor.

4.Make use of anti-freezing liquid in order to avoid fouling of heater.

5.To turn off the air vent system, first press the OFF button then turns off the engine.

6.Cooler gas shall be only charges with R134 gas.

7.Never block the air input channels on the tail of windshield.

8.Never put objects on light sensor of dashboard, and temperature sensor of front

bumper.

9.It is advised to make use of AUTO air vent mechanism, because in this way the

operation of temperature adjustment will be done by means of several sensors

designed within and there will be no need for several pressing of different keys.

WARNING

1.Air vent system will function when the

engine is power on.

2.Never leave disabled and children

passengers alone in the vehicle.

3.The internal air temperature will be

highly increased on hot summer days

with the risk of severe dangers.

4.Avoid using internal air circulation mode

because of lack of oxygen in the vehicle.

5.Favorite temperature is adjustable

according to the passengers taste

(recommended summer temperature is

22 degree and winter is 26 degree)

6.When the vehicle is parked at a hot

place with direct sunlight, first open the

windows for a while to get rid of internal

hot air, then try to turn on the cooler

system.

7.Turn on the air vent system twice a

month for 5 to 10 minutes in order for

good maintenance.

Caution



Never  open  the  cooler  fluid  circuit

because this is severely dangerous

for eyes and face. Refer to authorized

branch office in case of any problem.

HEATING AND VENTILATION

57

2

INTERNAL EQUIPMENT

Front ashtray

The ashtray is designed on the tail of front box.

1. This ashtray is removable like a glass to

vacate it.

2. Lighter

Caution



The ashtrays are deemed dangerous in

respect  of  firing  risks,  hence  never  put

papers or flammable objects in.

Caution



Never try to adjust the angle of steering

wheel when the vehicle is moving

because this is severely dangerous.

Hence, do it at stop.

Back ashtray

1. This is designed on the door and one can

pull it down to open it.

2. Push the clamp down to remove it and

vacate the ashes.

Adjusting the angle of steering wheel

You shall adjust the angle of steering wheel
based on your body position. First you shall
adjust your seat angle, and make sure that all
dashboard and display lights are within your
vision clearly, and then try to adjust the angle
of steering wheel.
1. Pull down the adjustment lever to release its
lock.
2. Try to adjust the angle of steering wheel and
then pull up the lever to lock the steering wheel
in this position.

58

2

Front console box

- The console box is designed beneath the

front elbow.

- Pull its door up to open it.

- You shall push the clamp to open it up.

- There is flooring on the console box which is

removable to be cleaned.

Sun visor

- You can pull it down to protect your eyes and

skin from direct sunlight.

- You can make use it for the windshield and

side windows.

INTERNAL EQUIPMENT

59

2

CAUTION

Transfer long objects always with

special care.

Back elbow

You can pull out the elbow from the back

seats. This is for more convenience of back

passengers. You shall also pull it out when you

want to access the boot.

There are two glass places designed as you

see in the image.

Access gate of boot

- This gate is design behind the back elbow.

- You can make use of it to transfer long object

like ski wood, which shall be located in the

boot and some part in the vehicle, or have

an access to the boot when the vehicle is

moving.

- You can pull down its clamp to be located on

the elbow, and then you will have access to

the boot.

Dashboard box

- Pull down its clamp to open it.

- A light will be turned on the dashboard

by its opening, which will be turned off

by its closing.

Note:

 Vehicle's user manual shall be

always placed in this box.

INTERNAL EQUIPMENT

60

2

1-BOOT OPENER KEY

To open the boot from inside the vehicle, press

the related key for 1.5 seconds, then the boot

will be opened.

2. FLASHER

Press  the  flasher  key,  all  indicators  and

indicator  lights  will  be  turned  on  flashing.

Make use of these lights in emergency only

when for example your vehicle is in the way

of other vehicles or its emergency cases.

These flashers will be remained on even when

the engine is off, hence turn off them after

eliminating emergency case.

3. CENTRAL LOCK KEY

Each press of this key will lock or unlock

all doors simultaneously and the related

indicator will be shown on the screen.

AUTOMATIC CENTRAL LOCK

At the time of driving at speed higher

than 10 Km/h, the doors will be locked

automatically. You can shortly press key

3 to unlock the doors temporary.

ACTIVATION



When the ignition switch is on, press and

hold the key No.3 for 5 seconds, and then

the operation will be activated with the

indicator light on the screen.

CAUTION

Set the clock only when at stop for

safety considerations.



WARNING

- In case of electricity cut off, including

cases of battery shortage and

electrical power supply system, the

clock numbers will disappear and the

clock shall be set again.

- It's possible to lock or unlock the

doors by remote controller and even

central key lock after disconnection

of battery.

- In order for protection of back

windows heater elements, never

scratch them or put any adhesive on

them.

-  The  flashers  will  be  automatically

turned on in case of any sudden

decrease of speed.

- Back windows heater and windows

lifters will not function simultaneously.

INTERNAL EQUIPMENT

61

2

AUTOMATIC SAVING OF THE RADIO

STATIONS

Audio system panel keys installed on steering

wheel*

1.

 This is for mute operation; pressing

again will exit mute operation.

2.

 This is for increasing/decreasing the

volume.

3.

A) selecting next/previous truck (CD/

USB)

B) Automatic search of radio stations.

4 .

To   e n t e r   R A D I O > C D

P L AY E R > U S B > A U X > B T

5.

Answer coming calls (in case of

receiving call)

STEERING WHEEL

Note: Background light is white, which

will be turned on by pressing SLIDE

LAMP button.

CRUISE CONTROL KEY INSTALLED ON

STEERING WHEEL

6.

Power on/off cruise control

7.

each pressing will cause



speed increase for 1 km/h

Pressing and holding this key will increase

The speed for 3 km/h. the speed will

remain as fixed by releasing this key.

8.

(in case of system inactivation),

the system will be activated by

pressing and holding this key

and he vehicle will run with the previous

determined speed. In case no speed is

stored in the memory, the vehicle will

move with the current speed.

(in case of system activation), pressing

and holding this key will decrease the

vehicle's speed for 3 km/h and will remain

on its speed by releasing the key.

(in case of system activation), each

pressing of this key will decrease the

vehicle's speed for about 1 km/h.

62

2

ROOF LIGHT TIMER

ROOF LIGHT TIMER (RLT)

The roof light will be controlled by the smart

system and will be turned on if:

1.The engine is off, one door opens, including

boot and hood, and will be turned off after

12 second if the related door closes,

meanwhile, if the ignition switch opens, the

light will be turned off slowly.

2.In case the vehicle is on alarm system,

pressing the unlock key of remote control

will turn on the roof light, if before auto lock

timer, one door opens, this will operate like

above paragraph, Or, the auto lock will

function and the roof light will disappear.

3.This will turn on at accidents and remains

until turning ignition switch to OFF.

4.In case one door is open when the vehicle

is moving, including boot and hood, the roof

light will inform the driver by flashing.

AUTOMOBILE FINDER

Pressing the lock key on remote control

will  help  you  finding  your  vehicle  by

flashing  for  5  times  when  you  are

searching for the vehicle at a parking.

NOTE:

One flash will takes 500 ms.

DRIVER'S COMPANIONSHIP IN DARK
AREAS:

When you want to leave your vehicle in a

dark place, this mechanism helps you to

light up the area for 30 seconds, so your

will be able to pass through the dark area.

For this operation:

- Turn off the lights; first

- Turn the switch to off position first.

- Pull the indicator lever towards yourself

within 1 minute;

- Get out of the vehicle and lock the doors.

Then you can see that the lights will be

turn on for 30 second in order for your

companionship in dark place.

63

2

ALARM SYSTEM

ACTIVATING ALARM SYSTEM

The alarm system will be activated by pressing

the lock key on remote control providing that

the ignition switch is on its initial mode and

all  doors  are  closes  appropriately.  One  flash

of indicator lights and one sound of alarm will

inform the driver of activating alarm system.

When the alarm system is on, one LED on

small box on the dashboard will flash.

The alarm system will horn in case of any

following events/:

- Opening any door

- Opening the locks of front doors with an

unknown key

- Changing the mode of ignition switch

The alarm system will sound for 30 minutes,

and then will be stopped for 5 seconds, in

case of risk elimination, flash lights and alarm

will turn off, or, the previous status will be

continued again.

This alarm status will be repeated for 10 times,

then the indicator lights and alarm will turn off,

but the alarm system will still remain activated.

INACTIVATION ALARM SYSTEM

When the alarm system is activated, press

the "unlock" button on remote control then all

doors will be opened and the alarm system

will  be  inactivated.  Two  indicators  flashing

and two alarm sounds will inform the driver of

inactivating the alarm system.

We can Inactivate the anti theft alarm by the

ignition switch (and not necessarily by remote

controller ) while we're locking the doors.

This approach is suitable for those  vehicles

in which the horn is used for anti theft alarm;

specially when the vehicle is parked in a safe

place for a long period of time and there is

worries of  unnecessary hearing the noise of

alarm (Horn sound).

DOORS AUTO-LOCK

In case the doors lock is opened heedlessly by

the remote control and no door opens for a while,

the doors will be locked again automatically by

this mechanism. This mechanism is actually

designed to avoid unintentional opening by the

remote control. When the speed exceeds 10

km/h, the doors will be locked automatically.

Activating and inactivating this mechanism is

accessible by holding the central lock key for

5 seconds.

When the vehicle's speed exceeds 10 km/h

in this mode, the doors will be automatically

locked. (If the related configuration is activated)

Reminder:

In case of malfunctioning any keys including

those of side doors, hoot or boot, or shock

sensor, if installed on your vehicle, the related

entrance will not be checked up. Such situation

will be declared to the driver by 4 alarm sounds

when the doors are locked by the remote

control, and the sound will makes some

differences from ordinary times.

You shall take action to eliminate this issue as

soon as possible by referring to an authorized

branch office.

In this mode the side doors are locked,

if the boot or engine cap is open. But he

antitheft is not activated in this case. All

doors are locked ,if one of the side doors

are open;but they'll get reopened.

* If your vehicle is equipped

65

DRIVING

3

*If equipped

DIGITAL FRONT SCREEN LIGHTS .................. 66-68

ALARM LIGHTS ............................................... 69-71

DIGITAL SCREEN GUIDE ................................ 72-74

AUDIO ALARM LIGHT ................................... 75

CRUISE CONTROL * ....................................... 76-77

 STARTING AND DRIVING ................................. 78-79

FUEL CONSUMPTION DECREASE AND

ENVIRONMENTAL PROTECTION …..................... 80

MANUAL GEAR BOX ............................................ 81

BACK OBSTACLES ALARM SYSTEM …...........… 82

FUEL SYSTEM ................................................ 83-84

LIGHTS AND INDICATORS ............................... 85-86

HEADLIGHTS HEIGHT ADJUSTMENT ................. 86

SNOW WIPERS AND GLASS WASHER ............... 87

BRAKES .......................................................... 88-89

ABS BRAKE SYSTEM ..................................... 90-91

AIR BAG .......................................................... 92-94

66

3

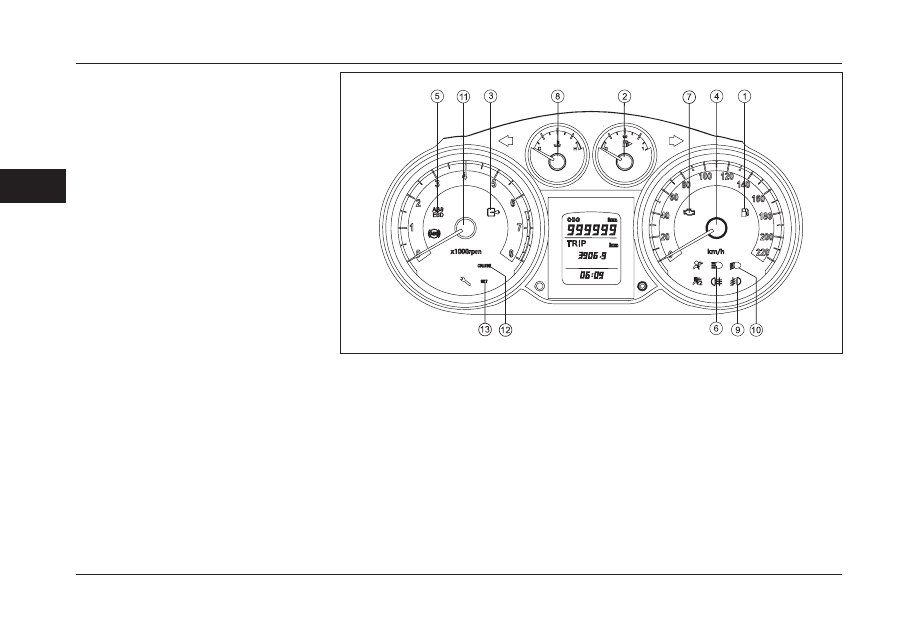

THE FRONT PANEL INDICATORS DISPLAY

Indicators and symbols

Warning lights and indexes

1.Fuel shortage warning light

2.Fuel rate light

3.Immobilizer light

4.Speedometer

5.EBD-ABS

6.High beam of head lights

7.Automatic flaw diagnosis light

8.Cooling system fluid temperature light

9.Front fog lights

10.Low beam of head lights

11.RPM light

12.Cruise control on indicator light *

13.Cruise control activation indicator light*

*If installed on your vehicle

67

3

THE FRONT PANEL INDICATORS DISPLAY

Indicators and symbols

Warning lights and indexes

1.Front passenger's air bag inactivation

light

2.Driver's air bag flaw light

3.Right indicator

4.Left indicator

5.Engine's fuel direction light

6.Back fog light

7.Status modifier and Zero maker

8.Rotating key of front display's lights

9.Periodical service warning light

10.ABS brake indicator light

11.Digital display screen

68

3

Fuel rate: The pointer will locate on Zero when the engine is off, and when the ignition switch is ON, this shows the level of fuel.

In case the fuel rate is low on the tank (about 8 liters), the fuel shortage light will turn on, which tells you to take action for fuel as soon

as possible.The capacity of fuel tank is 60 liters.

Engine RPM: This show RPM per minutes. Never allowed  the pointer to be located in red area in order for good maintenance

considerations.

Speedometer: This shows the vehicle's speed based on km/h.

Engine temperature display: This shows the temperature of cooling liquid. When the engine reaches to ordinary working

temperature, the indicator pointer will locate near the middle line and remains there until the engine is operating normally.

In case it reaches to red area, it shows overheating of cooling liquid, which may cause severe damages to the engine. In this case,

shall stop the car immediately and call authorized branch offices for repair.

Possible reasons:

- Flaw on cooling fan:

 checkup the fuses and replace each of them necessary.

- Leakage in cooling liquid:

 wait until the engine is cool, and then test the level of cooling fluid.

- Flaw on water pump operation.

Status modifier and Zero maker key: This is to be used in changing the mode of displaying different items on display and make

current statistics as zero.

THE FRONT PANEL INDICATORS DISPLAY

69

3

Indicators lights – Green light

This is to display the indicator to rights and left directions. In turning situations, these lights will indicate simultaneously

with vehicle's indicators. In case of using flasher in emergency cases, these lights will also turn on. In case one of the lights is flashing

rapidly, this shows flaw on one light.

Caution: This happens only if one of the lights is not functioning in front or back of the vehicle, means that side lights do not have any

effect on the speed of these lights.

Necessary tip: These lights will turn on automatically for 5 seconds in case of sudden decrease of vehicle's speed. This is a safety

mechanism showing sudden speed decreasing.

Head lights low beam – Green: It will turn on when using front head lights low beam.

Head lights high beam – Green: It will turn on when using front head lights high beam.

Front fog lights – Green: It will turn on when using front fog lights.

Back fog lights – yellow: It will turn on when using back fog lights.

WARNING LIGHTS
