YOUR VEHICLE AT A GLANCE

Access gate of the Bonnet

This is designed beneath the elbow part

and is for transferring long objects like

ski wood, in a way that some part of it is

located in hood and the rest on rear seats,

or for cases like when accessing the hood

is necessary from inside the vehicle.

Pull the elbow down and release its clamp

to pull it down, so is will be lied on the

elbow.

Child's safety locks

This lock mechanism is designed on rear

sears, beneath the main locks, which

prevents opening doors from inside the

vehicle and operates independently in

respect of central lock system.

22

1

YOUR VEHICLE AT A GLANCE

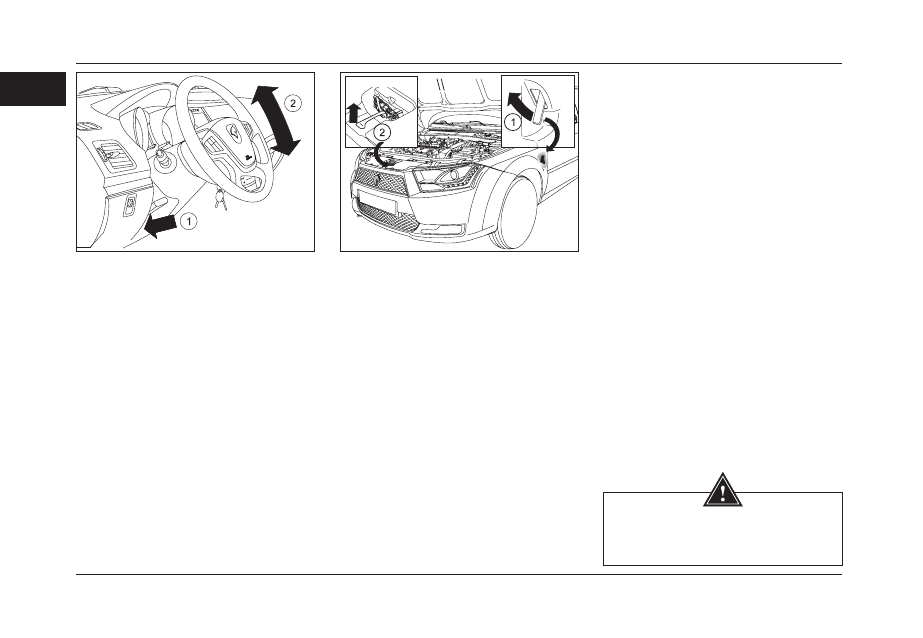

Adjusting the  Steering Wheel's angle

First adjust the angle of steering wheel

according to your body position and make

sure that dashboard gate lights are clearly

visible, and then fasten the steering wheel

in this position.

To do that:

1.Pull down the steering wheel adjustment

lever to release it from lock mode.

2.Then adjust its angle and pull it up to

fasten in appropriate location.

WARNING

Avoid adjusting the angle of steering wheel

on move, it is so dangerous.

Opening the Engine compartment

1.Inside the vehicle (driver's side), a

releasing lever is designed to open the

engine's compartment. First, push the

lever, then go in front of vehicle and pull

up the bonnet.

2.Pull the safety clamp up to be able to

open it.

Closing the Engine Compartment

Fasten the compartment rod on its

appropriate side and move its door down,

in this case you shall hold its door in 30

cm height and let it be released to close

the door.

23

1

YOUR VEHICLE AT A GLANCE

WARNING

Neglecting using unleaded gasoline will

cause severe damages to the vehicles

catalyst.

AVOID adding any additive with standard

fuel.

Type of fuel

ONLY Unleaded gasoline with the octane

95% is allowed to be used in your vehicle,

OR, internal components of the engine

may be severely damages, and losses of

ignition and impact may occur.

ONLY Unleaded gasoline with the

octane 95% is allowed to be used.

Please avoid completed insert of

fuel nozzle.

Using fuel additive is not allowed

for this vehicle.

24

1

YOUR VEHICLE AT A GLANCE

Hands Free mobile with Bluetooth

technology

Having been your vehicle equipped with

hand free mobile Bluetooth technology,

you will not be obliged to answer the

phone by hands, even if your phone is

located on your pocket or bag, answer/

reject key is designed on the related

panel designed on steering wheel.

Intelligent speed control (CRUISE

Control)*

When cruise control is ON, the driver will

be able to control the speed by means of

related keys to increase or decrease the

speed, the cruise control system will be

inactivated as soon as the driver pulls

brake or clutch pedals, so controlling the

speed will be again performed by the

driver.

*If equipped

25

BEFORE DRIVING

2

DOORS OPENING/CLOSING ................................. 26-29

VEHICLES ANTI-THEFT SYSTEM (IMMOBILIZER ) .. 30

SEATS ......................................................................... 31-35

CHILDREN SAFETY .................................................. 36-40

SEAT BELTS .............................................................. 42-43

PRETENSION SEAT BELT  .......................................... 44

FIREFIGHTING CAPSULE  ...................................... 45-56

MIRRORS ................................................................... 47-48

WINDOWS LIFTERS ................................................. 49-51

INSIDE LIGHTS .............................................................. 52

HEATING AND VENTILATION  ...............................  52-56

INTERNAL EQUIPMENT  ........................................... 57-60

STEERING WHEEL ........................................................ 61

ROOF LIGHT TIMER ..................................................... 62

ALARM SYSTEM ........................................................... 63

*If equipped

26

2

LOCKING / UNLOCKING

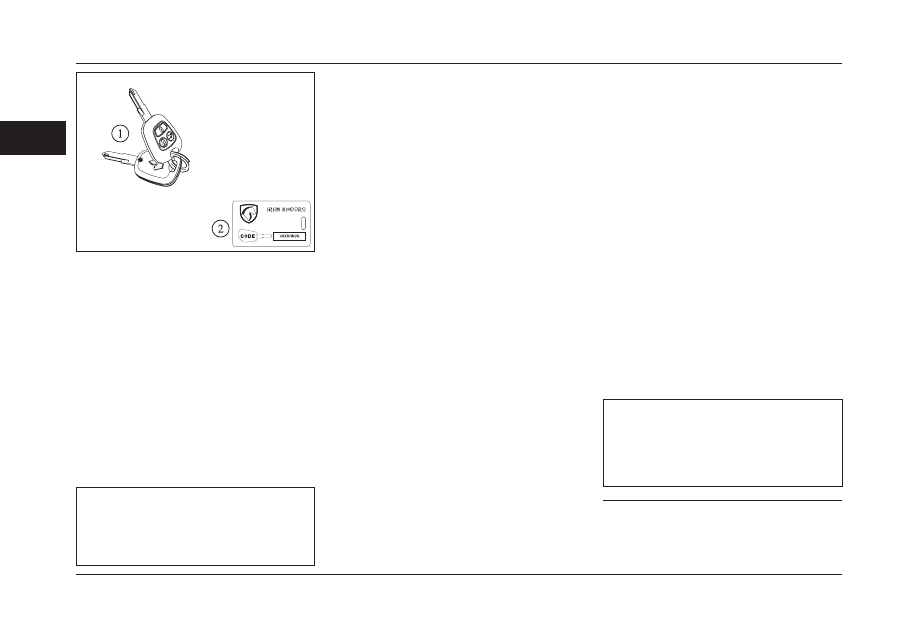

Key set:

The following keys will be delivered to

you:

1. Two radio remote switches equipped

with trunk opener key

2. Key ID plate

There inserted a number on this plate

which will be needed in case you want to

replace your key. Hence, keep it in a safe

place outside your vehicle and never put

this in the vehicle.

NOTE

Pressing the keys consecutively with

short pauses between will ceases their

operation for 20 seconds.

NOTE

There is possibility of breakage for  internal

parts of the remote controller in case

of severe impact and subsequently not

functioning of the immobilizer.

1. This time is adjustable by troubleshooter

systems existing in IRAN KHODRO offices.

2. This mechanism is able to be inactivated by

IRAN KHODRO authorized offices.

Locking/unlocking via Remote Control

Keep the remote control on your vehicle’s

side

Press button 1 to unlock (alarm system

will turns off)

Press button 2 to lock  (alarm system will

turns on)

Press button 3 to open the hood (press

this key twice with a bot pause between

to open the hood)

Automatic door locking

In case of unlocking doors with the remote

control, and not opening the doors for

a determined time *, the doors will be

again locked automatically and alarm

system will be activated. This mechanism

is designed to provide safety in case of

inadvertent press of unlock keys by the

remote control.

In case the vehicle speed exceeds 10

Km/H, the doors will be automatically

locked at the move.

Activating/inactivating of this mechanism

is possible by pressing and holding

central lock key for 5 seconds.

Automatic door unlocking

In case of accident and operation

of airbag system, the doors will be

automatically opened.

27

2

LOCKING / UNLOCKING

Locking/unlocking with keys

Make use of keys to lock or unlock the

central locking system, insert the keys on

lock hole of driver's door and turn it right to

lock, and turn it left to unlock, this locking/

unlocking action will be applied on all doors

simultaneously including those of doors,

hood, fuel door. Unlocking operation will be

also applied on all doors simultaneously.

NOTE

In case of locking through remote

control, and you unlock the doors

mechanically by keys, the alarm

system will function.

Locking/unlocking the Hood

By remote controller

Keep the remote control on direction of

radio control and press the key 3 to open

the hood (pressing twice with a short pause

between will open the hood)

In case of activating door locks with

remote control, accessing the hood is

possible providing that you close the hood

in 30 seconds, OR, the alarm system will

function, hence, you'd better to unlock the

vehicle through remote control, then take

action to open the hood (pressing key 1)

To lock, just by closing the hood, the

accessibility to the hood will be limited.

By key :

The booth will be opened by turning of the

key toward right inside the switch lock  .

The booth won't be in access just by locking

it.

28

2

LOCKING / UNLOCKING

Safety tips to prevent vehicle thievery

Observe the following safety tips even

when leaving the vehicle for seconds to

prevent thievery

1.Always keep the windows completely

closed.

2.Pick up the antique objects from inside

the vehicle or hide them in the boot.

3.Do not leave the keys inside the vehicle.

4.Lock the steering wheel (turn the steering

wheel a bit while the engine is OFF, to lock

the steering wheel).

5.Lock all the doors.

Make use of your own security

considerations in addition to above tips to

prevent vehicle thievery.

WARNING

Avoid parking your vehicle in solitude

places.

Avoid parking your vehicle in so dark

places.

Never leave the vehicle docs or keys

inside the vehicle.

Make use of your private parking lot

if possible, and pick the keys up with

yourself when leaving the car.

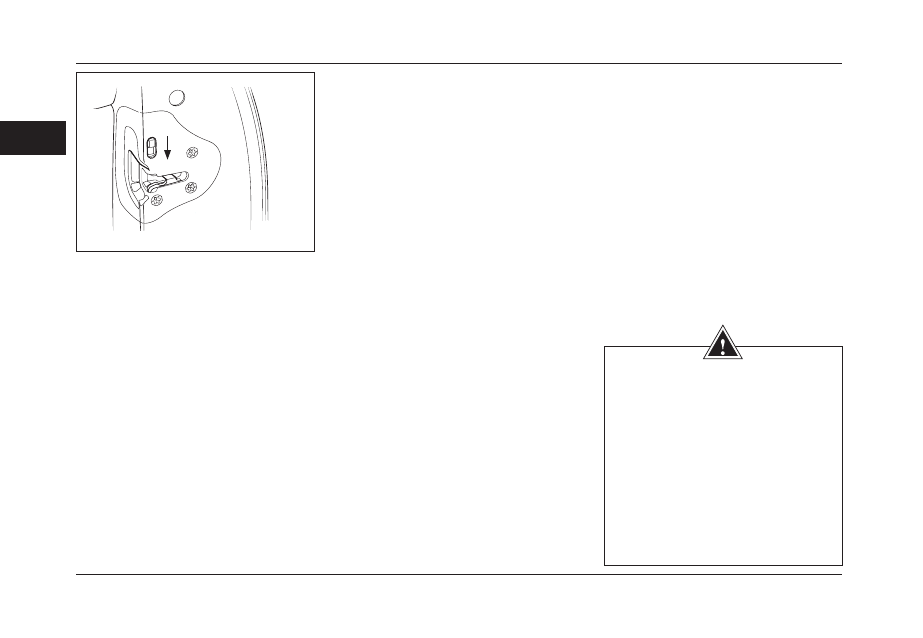

Children safety locks

These lock keys are designed beneath

the main lock keys on rear doors, which

prevents the possibility of opening doors

from inside the vehicle. This mechanism

functions independently in respect of central

locking system.

Pull the clamp down to activate this child

safety locks.

29

2

LOCKING / UNLOCKING

Replacing the remote control battery

Replace the battery of remote control if the

key doesn't function.

To replace the battery:

Open screw A, and open the frame by a

slow force between the gaps, then replace

the battery with an authorized one, i.e. CR

2032

NOTE THAT

The central locking system operates even

in case the battery does not have enough

charge. Avoid using used batteries if

possible.

*If your vehicle is equipped

Battery

CAUTION

Never throw the used batteries in

the nature, you shall give them to

authorized  offices  to  collect  and

recycle them.

Keep the remote control and its battery

out of reach of children, because

swallowing the battery will be result in

death. If it happened, refer to treatment

center as soon as possible.

30

2

ANTI-THEFT SECURITY SYSTEM (IMMOBILIZER)

Vehicle’s anti-theft security system

(Immobilizer)

Having been equipped with the security

system, the vehicle will be only turned

on by two ignition keys delivered to the

customer.

NOTICE

Copying the key blade will not be enough

to have appropriate functionality; the

keys shall be copied by IRAN KHODRO

authorized  office  through  diagnosis

systems.

Pay attention to the following tips for a

better vehicle maintenance:

1. Your key is designed with an electrical

chipsets including code information,

Therefore, avoid putting your keys in high

magnetic and electrical forces areas.

2.  A  card  as  the  present  figure  will  be

delivered to the vehicle’s owner at the

time of vehicle delivery.

Having this card is necessary at the

time of replacing keys, copying them,

replacing electrical unit of immobilizer,

ECU unit, together with ownership deeds,

and copying is allowed from 2 to 5 sets.

So, keep them in safe mode together with

vehicle deeds.

This is to be mentioned that, the above

operations will not be possible without

above card, in that case, all the system

shall be replaced with a new one and all

costs will be borne with the owner.

3. In case of lack of operation and error

of immobilizer system, an error indicating

light will be turned on.

ATTENTION

This system analyzes the E-system

after engine is OFF, so that prevents

starting engine with non-original keys.

Severe impact or remote control

fall may cause in remote control

break down and lack of appropriate

operation of immobilizer.

WARNING

- The security system of your vehicle

is equipped with is deemed as one

of the best security systems causing

high safety and security without any

special action, but this matter shall not

lead in owner’s negligence in security

considerations.

- Any kind of system repair and

modification including those of e-box,

wiring, etc., is forbidden.

31

2

SEATS

CAUTION

- Make sure that back passenger's foot

is not located beneath the seat when

you are trying to adjust its angle.

- Never let an object be placed near

or on the driver's floor, because it may

move beneath the pedals and create

serious risks.

- Avoid adjusting seats setting when

the vehicle is moving.

Electric seat

1.Seat's back angle adjustment key

2.Seat's floor angle adjustment key *

3.Seat's height angle adjustment key

4.Seat's rail angle adjustment key

5.Seat's lumbar angle adjustment key *

*If your vehicle is equipped

6. Head rest has got the following

capabilities :

- Height adjustment .

- Rotation towards front and back.

- Getting open towards the front and

getting closed towards the back in

some models.*

32

2

SEATS

1. Adjusting seat's back angle forward/

backward:

It's just enough to press the related

key to move and adjust your seat

forward or backward.

CAUTIOUS

- The seat belts have their standard

operation only when the back angle

keeps ±25 degree to the vertical line,

hence, avoid moving with the seats

absolutely lied.

- Avoid adjusting seat's angle when

the vehicle is moving.

2. Adjusting seat's floor angle

Press and hold the related key

upward downward to adjust this

floor angle.

33

2

SEATS

WARNING

- Make sure that passenger(s) foot is

not located beneath the seat when

you are trying to adjust seat settings.

- Avoid adjusting seat settings when

the vehicle is moving.

- Taking into consideration that the

headrest is a safety took, make sure

its appropriate location.

3. Adjusting seat’s height angle

Tilt the back side of this key up and

down to adjust the seat's height.

4. Seat's rail adjustment key

Pull the clamp in longitudinal

motion to adjust your appropriate position.

Seat's lumbar angle adjustment key *

Twist the side screws to adjust appropriate

back lumbar.

*If your vehicle is equipped

Adjusting back seat headrests height

When the passenger seats on back

seats, he or she shall pull up the headrest

according to the image.

34

2

SEATS

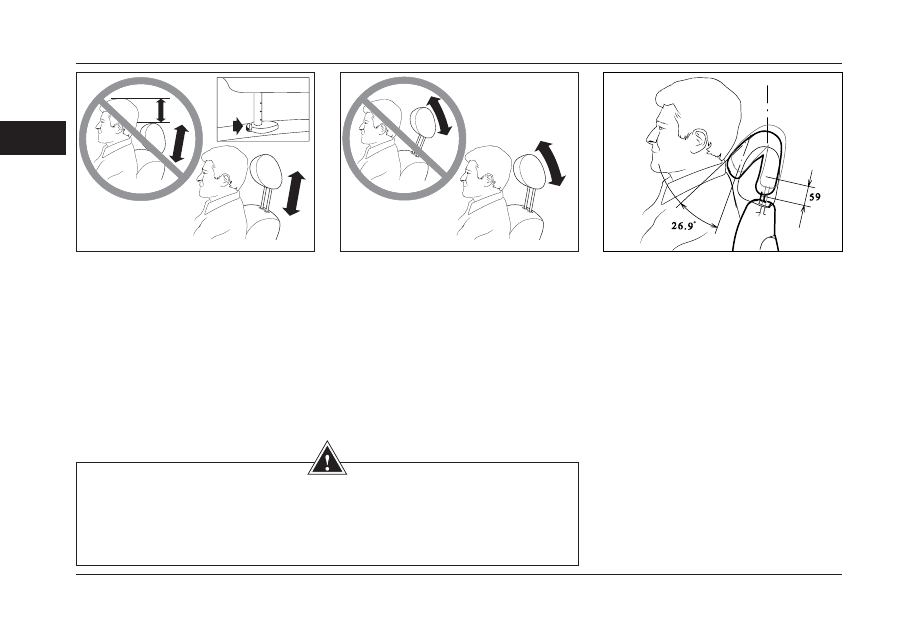

Headrest height adjustment

Pull the headrest upward to adjust it in

appropriate angle, you can also pull it

down to lower its height, to do so, you

shall first press the clamp then try to move

it upward or downward.*

NOTICE

Avoid ejecting the headrest completely,

unless in emergency cases.

CAUTIONS

Taking into consideration that the headrest is designed for safety of head and neck,

always make sure its appropriate position in order to decease the risks of danger to

driver and front passengers. Please observe the above considerations in order to adjust

and set the headrest appropriately.

Head position according to the

headrest *

The headrest is designed to avoid severe

moving of the head backward, so that

its appropriate adjustment will help

protecting head and neck.

Furthermore, the head rest is able to be

opened on front side and closed on back

side, you can see its image in the above

figure.

*If your vehicle is equipped

Head position according to the

headrest *

The headrest is designed to avoid severe

moving of the head backward, so that

its appropriate adjustment will help

protecting head and neck.

Furthermore the head rest is able to rotate

towards the front and back at its position.

35

2

SEATS

Installing baby seat based on ISOFIX

method

This seat is equipped for baby seat, the

clamps of baby seat is able to be easily

installed on the clamps of seat's back and

floor, a hook is designed on baby seats

which shall be installed on the back niche.

Connectors of the baby seat which is

showed on the image include three rings,

two of which are designed between the

floor and back space and the other one

is designed on the niche. The third clamp

designed on the niche has a cover.

In order to install the baby seat equipped

with ISOFIX, first fix two clamps of board

to the clamps of back and floor, and the

third above clamp shall be then installed

on the niche. Please release the above

clamp's cover at first, and then you can

fasten it.

- Upper hook cap for mounting of child safety seat .

-Upper hook for mounting of child safety seat

36

2

CHILDREN SAFETY

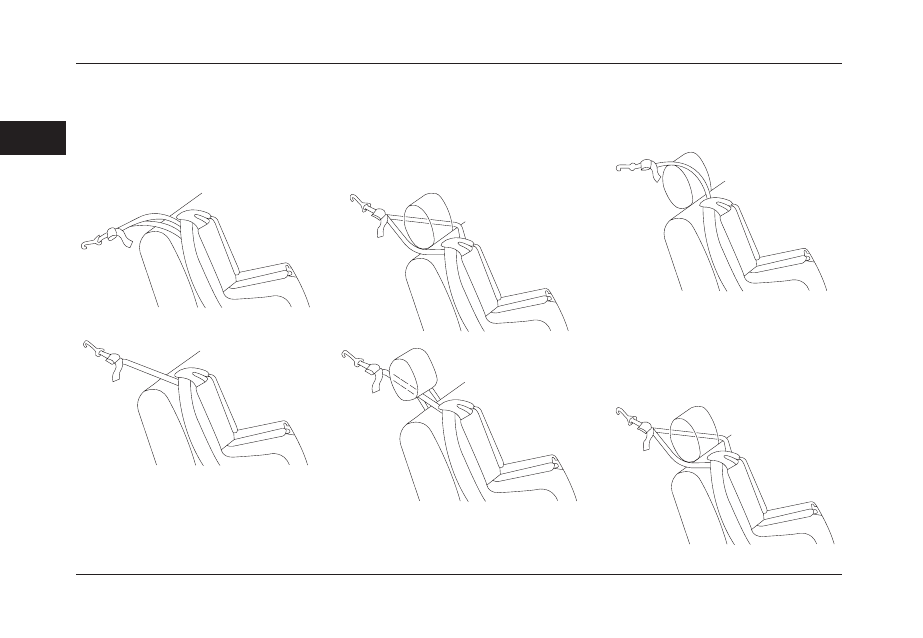

Installing baby seat's hook belt

Pass the hook belt from seat back

whether it is single or dual designed in

case no headrest is installed. See the

below image.

In case the baby seat is installed where

the portable headrest exists, you shall pull

up the headrest, pass the hook belt under

it, then pull it down, or if the hook belt is

dual designed, pass it from two sides of

the headrest. See the below image.

In case the baby seat is installed where

the fixed headrest is installed, you shall

pass the hook belt from above the

headrest in case it is single designed.

In case the baby seat is installed where

the fixed headrest is installed, you shall

pass two sides of hook belt from above

the headrest in case it is dual designed.

See the above image.
