Iran Khodro Bardo. Service Manual - part 6

86

5

Do you know...

That main function of the vehicle’s gasoline

filter is refinement and filtering the impurities

in the gasoline and improving the fuel

combustion in the vehicle’s engine cylinder.
Special paper, with very small pores, is used

in the internal structure of the Gasoline filter.

These pores are gradually closed by the

impurities in the gasoline.
Blockage  of  the  filter’s  pores  causes

reduction of its efficiency, disturbance in the

engine combustion process and increase of

the fuel consumption. Therefore, considering

following conditions
Environmental and road conditions

Better combustion of the fuel in engine

Un-necessary pressure on the oil pump

Decrease of the fuel consumption

 Replace  your  van  gasoline  filter  by

standard filter latest after each 20000 km

driving.
You should use only standard filters and

approved by Iran Khodro Industrial Group.

It is mandatory.
It is recommended to avoid change of oil

filter in the unauthorized service stations

which may not be familiar with opening

and closing Connector Quick attached

to  the  oil  filter.  Iran  Khodro  Authorized

dealers and service stations enjoy special

tools and trained personnel. Please refer

to them.

REPLACING FILTER

87

TECHNICAL INFORMATION

6

PLATE AND SPECIFICATIONS LABEL…............................88

HOW TO CHANGE THE FUELING PERMIT LABEL.............89

DIMENSIONS AND GENERAL CHARACTERISTICS......90-93

CPACITIES...........................................................................94

88

6

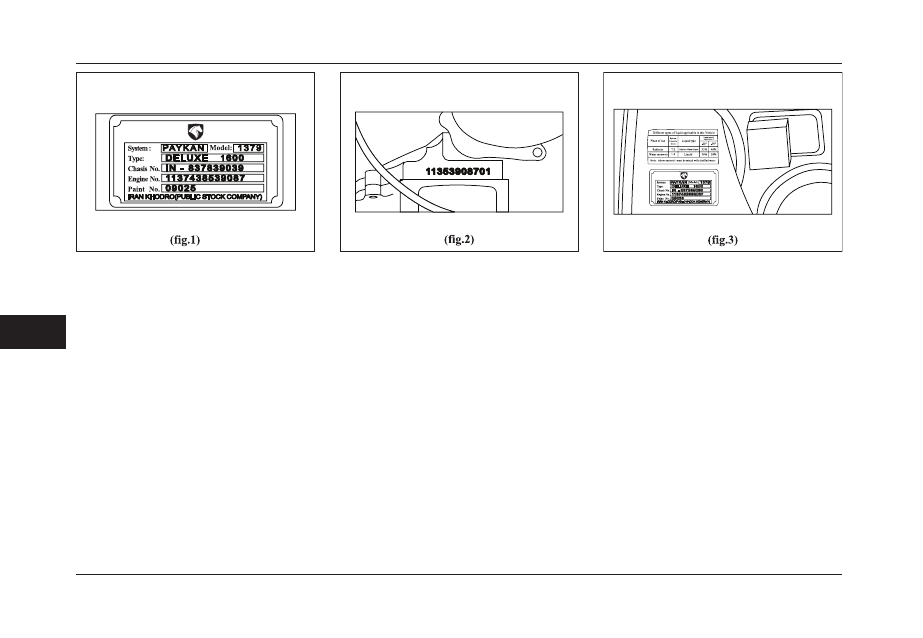

Vehicle identification number

When you open the engine door, there is a

metal plaque on the inside surfaces of the

fender (figure 1) which shows the engine

number, interim (trunk) number IN, paint

number, model code and product date

even there is small plaque on the front lock

trace which shows the Interim Number (IN)

and the Interim Number is started with INP

on the trunk of Van 1600.

While corresponding to organization after

sales services or other orgs, possibly

stipulate you identify. By means the engine

number every automobile is engraved on

the cylinder layer. (fig.2)

Specifications label

To get the access to some vital information

and tested for different types of oils.

Consumptive liquids, types of rings tire

and amounts of tire air pressure. the

mentioned identification is labeled on the

specified places (in figure 2 and on the figs

of next pages.)

PLATE AND SPECIFICATIONS LABEL

89

6

HOW TO CHANGE THE FUELING PERMIT LABEL

Caution

We strictly recommend all the owners

of CNG vehicles to avoid fuel injection

at  CNG  fuel  filling  stations  related

to buses and other heavy vehicles

because of its probable damage of

reservoir valve and its belongings.

How to change the fueling label

The validation period of this label is 12

months and you are not authorized to

inject fuel of your automobile without it.

So at least 1 month before completion of

the validity limit of this label, refer to CNG

automobile certified centers.

90

6

DIMENSIONS AND GENERAL CHARACTERISTICS

*Related to bi-fuel vehicles.

**It's recommended to use the approved brands and packages, offered by the Isaco.

Pickup

4.5 J* 13

Ring Size

Ring

and T

ire

590*13

Tire Size

Front*  27psi   24psi

Rear*   27psi   24psi

Up to 2 seats

Tire pressure

Front*  31psi   28psi

Rear*   31psi   28psi

In high speed

and long distance

Liquids / Applicable in this vehicle**

The Relationship

between

Solvent and

Temperature

Type of Liquid

System’

s Capacity

(in liter)

Consumption

Area

-30 °C

 20 °C

35 %

46 %

Ethylene Glycol

Solvent**

7/2

Radiator

50 %

58 %

Isopropanol

Solvent**

1/4

Windshield

 Wiper

supply

Note:

 the above materials must be mixed

with non-mineral water.

Capacity

 Oil type **

Component

4.5 litter with

filter

3.97 litter

without filter

20 W 50

or

10 W 40

Engine

2 litter

85 W 90

Gearbox

(4 speed)

1.2 litter

85 W 90

Differential

0.32 litter

85 W 90

Steering Box

0.568 litter

DOT 3
DOT 4

Brakes &

Clutch

Fuel consumption

with pressure of

200 bar

Driving condition

45 lit

Urban

28.3 lit

Suburban

34.14

Average consumption

(urban & suburban)

CNG fuel consumption

The consumption is in 100 Km based on

ECE R83/03 standard; and according to

the following table:

91

6

DIMENSIONS AND GENERAL CHARACTERISTICS

*Related to bi-fuel vehicles.

** Weights are different from other tank capacity.

General specifications

Weight (kg)

Net weight

Gas

960 kg

Gasoline

1210 kg

Max. Cargo load

Gas

500 kg

Gasoline

415 kg

Max. Weight allowed *

1625 kg

Vehicle net weight

(without extra accessories) *

1210 kg

General specifications

Brakes

Front brake

Hydraulic – Disk type

Rear brake

Hydraulic –Drum type

Springs

Front spring

Coil Spring with Telescopic

Shock Absorber

Rear Spring

Leaf spring

Rear shock absorber

Telescopic

Bardo pickup

General specifications

3.89:1

Final drive reduction ratio

Gearbox

4-Speeds + Reverse

Gearbox - Manual

39 Km/h

Max. Speed in 1st gear

60 Km/h

Max. Speed in 2nd gear

95 Km/h

Max. Speed in 3rd gear

137 Km/h

Max. Speed in 4th gear

37 Km/h

Max. Speed in reverse gear

Hypoid

Differential type

Dif

ferential

9:35

Pinion / crown wheel gear

ratio

12 volt, 60Amph, 9 plate

Battery type

Electrical system

65Amperes lucas tondar rasht

Alternator type

35 m j Lucas tondar rasht

Start type

blades three - 40spa

Radiator type

Cooling system



80~84 Degree centigrade

Thermostat opening

Temperature

5-Plastic blades

Type of blade

92

6

DIMENSIONS AND GENERAL CHARACTERISTICS

*Related to bi-fuel vehicles.

Pickup 2

General Specifications

Four Cylinder, Four Stroke, Internal Combustion 1598CC

Engine type (Capacity)

Engine

5

Number of main bearings

87.3 mm

Cylinder bore

Equipped with valve seat bush

Cylinder type

66.7 mm

Piston stroke

133 Nm at 3000 RPM

Max. engine torque

59 Kw at 5000 RPM

Max. engine output power

24.48

Max. engine output power in CNG mode*

114 Nm in engine RPM of 3000

Max. torque in CNG mode

24.48 hp

Max. engine out put power in CNG mode

7.8:1

Compression ratio

1-3-4-2

Firing arrangement

3.447~4.136 bar (50-60 Psi) in Driving at 80Km/h

Oil pressure (Warm engine)

Injection (MPFI)

Fueling system

Leaded with an octane number of  87-95

Fuel type

Electronic Ignition(Full Sequential)

Sparking system

Ignition



System



Devices

SIEMENS 5 WY2820 A

Ignition coil type

EYQUEM RFN 58LZ or equivalent

Spark plug type

0.9mm

Spark plug gap

0.30 mm (0.12 inch)

Exhaust valve clearance

Valves


Clearance

0.15 mm (0.006 inch)

Intake valve clearance

93

6

DIMENSIONS AND GENERAL CHARACTERISTICS

 4232

Length(bumper to bumper)

Dimension in mm

2505

Length bet.  Rear and front tires

1321

Length bet. Two front tires

1321

Length bet. Two rear tires

1620

Width of the vehicle

1422

Vehicle height, Net weight

140

Vehicle height from the earth

94

6

CAPACITIES

Engine oils (without filter)            3.97  lit.

Oil filter                                0.56 lit.

Gear box oil



                            2 lit.

Differential oil

                      1.1 lit

Braking fluid

                 0.568 lit.

Gasoline tank                       45.45 lit.

Cooling system with heater              7.2 lit.

Capacity of the screen wiper               1.4 lit.

Steering box oil                            0.32 lit.
