Iran Khodro Bardo. Service Manual - part 4

54

4

Caution

- Never drive the car in slops with neutral

gear, either with the engine on or off.

- Remove any extra thick cover

under drivers’ feet. If the cover is not

standard, the clutch pedal could not

be pressed while shifting gears.

-While vehicle is moving, do not

switch it off or take out the switch,

otherwise the vehicle steering wheel

will be locked and you can not steer

it anymore.

-Avoid starting engine and its working

idle for a long time in the confined areas.

Warning

Take care to release handbrake when

driving (brake light is off); otherwise

brake-band lining gets hot.

Handbrake

To release handbrake, pull the lever a little

upward and push the button at the end

of lever with your thumb, then move the

lever downward. Make sure that the lever

is reached to its most possible down limit.

Operating your vehicle



Starting the engine:

Since exhaust gases contain carbon

monoxide, a potentially lethal gas, never

run the engine in a confined space .Before

starting, place the gear shift lever in neutral

position and pull the handbrake lever, turn

ignition key. Be careful that both engine

oil pressure and battery charge warning

lights have been turned on before engine

running. Then start the engine and after, it

is better drive the car with first gear. Use

low gears only for a short duration.

Accelerator pedal

Always depress the accelerator pedal

smooth and gradually. Rapid depressing

of accelerator pedal may cause engine

damage and raising fuel consumption

Brake pedal



1-Two circuit brake, Teklantus in which the

hydraulic clutch is used at this system and

the clutch and oil reservoir is shared.

2- Azin Taneh two circuit brake that uses

the cable clutch in this system and the

clutch cable is regulatory.

MAINTENANCE

55

4

Caution

Should the vehicle is going not to be

used for more than 6 days, it should

be started  at least once and work one

hour idle.

Running-in of engine and gearbox

The running-in of a new engine, gearbox

and differential are very important, which

should be taken under care of driver,

because only under this circumstances

can be ensured that different components

of vehicle will worked for long period

of time, with minimum cost and most

efficiency.  It  should  be  noted  that  the

running-in process should be applied not

only for engine and gearbox, but also it has

special importance for other components

of chassis such as wheel ball bearings and

other moving parts of a car.

This process should be carried out carefully

and gradually for the first 3000 km driving.

It should be considered that within running-in

period, the engine must not be overloaded.

In cases such as uphill driving with fourth

gear in low speed, lower gears should be

selected. Caring new car in the period of

running-in, either in driving or engine idling,

is significantly important.

In first 800Km of driving, the maximum

speed must be kept in following limits:

First gear 15 Km/h

Second gear 30 Km/h

Third gear 50 Km/h

Fourth gear 65 Km/h

Fifth gear 80 Km/h

Between first 800 to 1600 Km of driving,

the car speed must not be exceeded from

the following values and after this duration

the speed may be increased gradually:

First gear 20 Km/h

Second gear 40 Km/h

Third gear 60 Km/h

Fourth gear 90 km

After  completion  of  first  800Km,  the  car

must be brought to an IRANKHODRO

authorized service center for free service

and checking

MAINTENANCE

56

4

Warning

Never travel fast before engine gets

warm. If the engine does not go off

by the switch, press brake pedal,

engage the gear and take your foot

off the clutch until the engine goes off.

Brake pedal

Avoid sudden brake and stoppage of your

vehicle. Use heavy gears, 1 or 2, while

running downhill to reduce unnecessary and

continuous brakes. To increase the brake

safety a mechanical brake button (STOP)

has been added.

After driving through a large puddle of

water or a car wash, apply your brake pedal

lightly until your brakes work normally. If the

brakes are less effective than normal, dry

them by repeatedly applying the brakes

while driving slowly until the brakes have

regained their normal effectiveness

Do not “ride” the brakes by applying them

continuously or resting your foot on the

pedal. This will result in overheating of the

brakes which could cause unpredictable

braking action, longer stopping distances,

or permanent brake damage. In a long-

distance driving or continuous braking,

have the vehicle checked by an authorized

dealer. For more security of the automobile

and passengers, two circuit brakes is used

so that if any leakage or breakdown is made

at one the brake circuits, the second circuit

can stop the vehicle properly.

MAINTENANCE

Clutch pedal

Do not drive with your foot resting on the

clutch pedal. It could result in excessive

clutch wear, clutch damage, or unexpected

loss of engine braking.

57

4

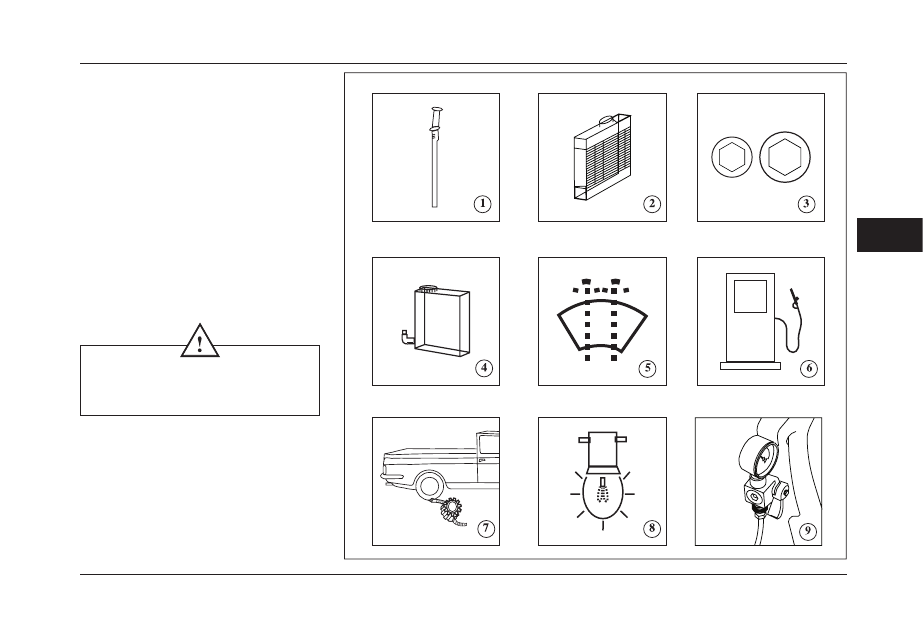

Checks / Adjustments before a journey

1- Engine Oil

2- Coolant Level

3- Clutch & Brake Fluid

4- Windscreen Washer Fluid

5- Windscreen washer/ wiper nozzles

6- Fuel Level

7- Check Tire pressures.

8- Check Front / Rear Lamps

9- Gas pressure level inside the reservoir.

NECESSARY POINTS BEFORE TRAVELING

Caution

For critical occasions, take some lamps

and fuses.

58

4

* It’s recommended to use the approved brands

and packages, offered by the Isaco.

Warning

-Should the screen wiper blades are

stopped or move slowly due to the snow

or freezing, return the key to the initial

position immediately and switch off its

engine to prevent its damage. Then

clean snow and ice under the blades.

-Make sure the screen wiper blades are

not frozen (screen wiper engine may get

hot). Check the blades. Replace them,

when  their  efficiency  has  decreased

(approx. each year).

-Clean the windscreen regularly. If you

switch off the engine before switching

off the screen wiper (O position) screen

wiper blades will stop at any position.

Put the screen wiper in position O

after starting engine, then the blades

return to stop position.

Make sure the wind screen is in position

O (stop) when you open the engine

cover, otherwise you may be injured.

Caution

Anti-freeze is fatal if swallowed. Keep

it in a closed container and out of

the reach of children. If swallowed,

immediately contact a physician. It is

harmful if it comes in contact with skin

or eyes. If it gets in eyes, flush eyes with

plenty of water.

WINTER PRECAUTIONS

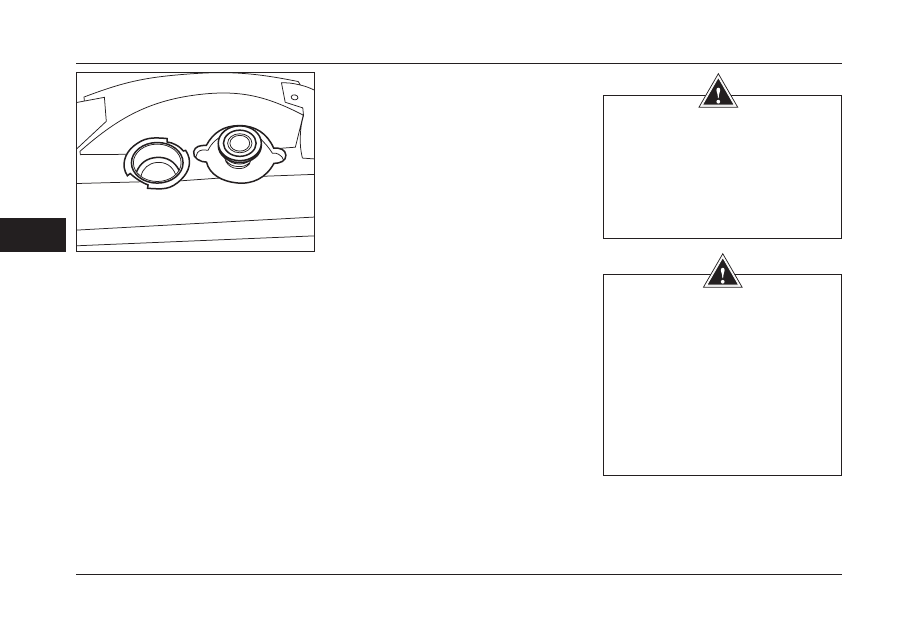

Preparation for winter cooling system

The car is containing of approved anti-

freeze solution. This solution retains the

system down to -15 ºC (In some countries

down to- 35ºC). Knowing that antifreeze

solutions are containing of anti boiling

and anti corrosion compounds, so it is

necessary this solution remains in the

cooling system for all season. Check

the  amount  of  anti  freeze  and  fill  up  if

required. The following table indicates the

anti freeze solution density in relation of

ambient temperature.

27 %

anti freeze

25 %

anti freeze

40 %

anti freeze

46 %

anti freeze

50 %

anti freeze

15

20

25

30

35

Applicable anti-freeze in vehicle is Ethylene

glycol.

Winter tires

Two types of winter tires can be used:

1-Winter tires: Must be used on rear

wheels

2-Tires with safety chains: Safety chains

must be used on rear wheels.

Front windscreen wiper

Before using wipers: Remove the ices on

the windscreen by heater defroster.

To use the windshield wiper, press its key

and  note  while  the  finger  is  on  the  key,

the water pump function is automatically

done. To balance the windshield wiper

pump which is set on the air conditioning

network at the bottom of the windshield,

put some sharp metal like needle inside

the windshield wiper eyes and turn it to the

concerning direction. It is better wash out

the washing liquid reservoir in each refilling

due to avoid clogging its port by dust and

particles accumulation. To prevent the

rusting of dimmer head you must always

use the windscreen washing liquids.

59

4

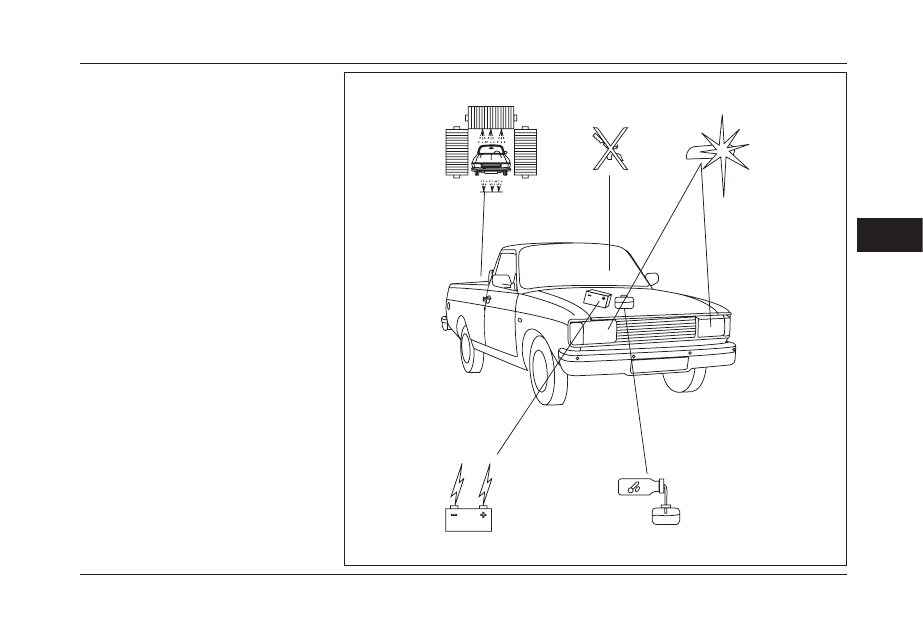

WINTER PRECAUTIONS

Door locks and door rubber seal

- Smear the door locks with graphite lubricants.

-Smear the door rubber seals with paraffin.

Passenger air intake

Look for opening of external air spoiler (At

the bottom of front windshield), which is not

clogged in any way by snow, ice or leaves.

Handbrake

Avoid from prolonged using of handbrake

for parking of the car in freezing weather.

In such cases block off the wheels front

with a chock or put the gear change lever

in first or reverse gear.

Battery

Check regularly the battery situation.

Lights and Turn Signal

Check all the external lights for cleanness

and proper operation.

Car body

At the end of winter wash the vehicle

thoroughly and pay attention for washing of

under body parts and fe

60

4

Warning

Damaged tires are dangerous! Avoid

driving with damaged, worn and bald

or overinflated tires.

Caution

Do not drive with worn, cracked,

damaged,

underinflated

or

overinflated tires.

Underinflated  tires  are  worn  rapidly

and have severe adverse effects on

safety and control of the vehicle.

TIRES

The role of tires at protecting the safety

and improving the driving is vital and

important.

1- Underinflated Tires

Driving with low-pressure tires causes high

fuel consumption may damage the tires.

Consequences: The risks of tread

throwing or separation of the casing which

could give rise to rapid deflation or even

a blow out.

2- Kerb contact

There is a risk of deformation, cuts or blisters

of the casing, which is overstretched. This

can lead to rapid deflation or blow-out.

- Hitting made by falling down the vehicle

into a hollow space which produces dents

on the ring and make damages to the tires

(Pot-holes). There is a risk of deformation

of the rim and/or damage to the tyre, which

often takes the form of an internal, therefore

often undetectable, cut; this in turn will

trigger off a tear in the casing ply, causing

abnormal wear concentrated on one part of

the tread, which can lead to rapid deflation

or a blow-out.

Consequences: If abrasion appeared

on some part of spokes of the tire is not

discovered on time, the tire, which is

exposed to these hitting falling into the

hollow space, must be visited.

The advantages of the tire pressure adjustment.

Controlling the

vehicle on the roads

Longer life of your tire

Total checks:

- Inspect the air pressure of the tires

properly especially before long travels,

when the tires are cold.

- Wheels and tires must be precisely

inspected to identify the status of spokes

and sidewalls of tires and wheel rings.

- Never lower the warm tire air; since it can

be 0.3 bar or 4pounds power per squared

inch (4) more than cold tires.

- While the air pressure at the spare tires is

not specified, then drive using the low speed.

- Under no circumstances, do not use tires

without inner tubes.

Abrasion Index

In some tires the corruption of tires is

located under the spokes which appears

after abrasion; in this mode we should

replace the tire.

61

4

Warning

Batteries contain sulfuric acid which is

very corrosive. If it is poured on the

skin, wash with water. Charged or

being charged battery emit Hydrogen

which is very flammable.

Never leave the batteries near the

fire (risk of explosion)

- Make sure the cables are connected

correctly to avoid damage to the

vehicle charging system.

Spare battery

Consumption battery in this automobile is

of 12 volt and 60-ampere and in case of

de-charging battery; it can be charged by

another vehicle of an auxiliary battery (12

volts) and begins to start. For this purpose

use the following instruction:

1- Turn the ignition switch containing low

battery off and use high power cables and

clamps to make the connections.

2- It’s better to leave the auxiliary vehicle

running.

3- Connect the positive (+) terminals and

negative (-) terminal of the two batteries.

4- Disconnect the low battery of the

ignition switch and start.

ACCESSORY BATTERY

62

4

BATTERY SERVICE AND MAINTENANCE

Caution

-Batteries emit Hydrogen which

may cause serious injuries. So keep

flame  or  spark  away  from  engine

compartment.

-Do not start engine when your vehicle

battery seems to be frozen.

-Make sure the voltage of the both

battery to be same (12 volt) and

connection cable have insulated clamps

and are suitable for 12 volt batteries.

- Do not detach the discharged

battery’s cable when connecting

another battery to it.

- Never attach the battery’s positive

terminal to the negative terminal and

make sure the connection cable to be

away from moving parts of the engine.

Be careful when working near moving

parts of the engine.

Warning

Connecting the battery to an auxiliary

battery or another vehicle’s battery by

the cable is the only approved method

for starting a vehicle with discharged

battery.

Maintenance of the battery

1-Check the battery terminals (poles) to be

clean of the sulfated residue. Clean them

with solution of the clean water and baking

soda. Then clean terminals by clean water.

2-Cover the terminal by mineral (oil)

grease to prevent further sulfating.

3-Use special tool to disconnect the cable

from battery. First disconnect negative cable

(negative connection). When connecting the

cables, connect positive cables first.

Clean terminals by brush, if necessary.

Best maintenance for batteries

-Fasten battery firmly in its place.

-Keep top of the battery clean and dry.

-Keep terminals and their connection

clean, firm and covered by grease.

-Should battery electrolyte (acid) is poured

out; clean there by solution of water and

baking soda.

-If the vehicle is going not to be used for a

long time, disconnect the battery cables.

Charge the battery every 6 weeks.

-Never  have  flame,  cigarette  or  match

near the battery, since Hydrogen, which

is  very  flammable  is  always  available  in

the cells. Never let the electrolyte contacts

with your skin, eye or vehicle finishing.

Never keep the old batteries, especially

those which have sulfuric acid and lead,

together with the home appliances. They

should be kept out of the reach.

63

4

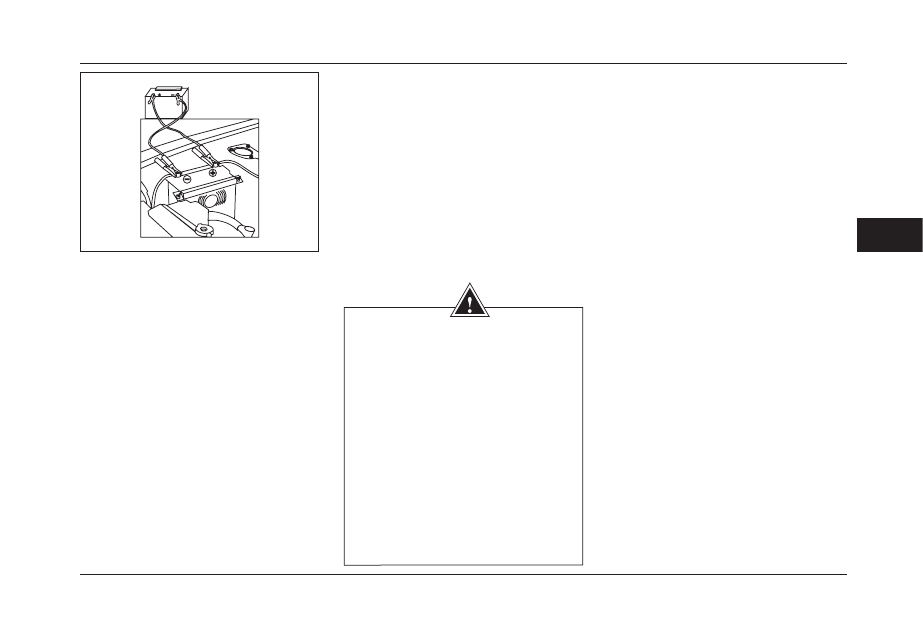

Jump starting

- Do as follows:

1- Connect a cable from auxiliary battery’s

positive terminal to the positive terminal of

the flat battery.

2- Connect a cable from auxiliary battery’s

negative terminal to a heavy metal part

of  the  vehicle  with  the  flat  battery  (such

as engine handle of any un-painted

part) which is away from the battery and

gasoline hoses and brake.

Make sure the connection cables are

away from moving parts of the both

engines, then start auxiliary vehicle and

leave it work for some minutes.

BATTERY SERVICE AND MAINTENANCE

Warning

Should you use auxiliary battery

improperly, it causes dame to the

vehicle and battery. So observe

followings strictly:

Vehicle start is 12 volt, so if you use a

24 volt battery or two 12 volts batteries,

electrical systems of the vehicle

damage. Therefore use only a 12 volt

battery as auxiliary battery

64

4

Warning

In order to be able to use more electric

equipments, we have installed 65A

alternator on your vehicle. Make sure

to replace it only with 65A type.

ALTERNATOR AND FAN BELT

Alternator / fan belt

The alternator charges the battery through

a completely closed circuit transistorized

voltage regulator which no maintenance is

required or possible.

As the alternator bearings are packed

permanently with grease during assembly,

future lubricating is not needed.

Fan belts tensioning adjustment

The drive belt is correctly tensioned, when

a total movement of 16mm can be obtained

on the largest deflection of the belt.

To adjust the tensioning of belt, first loosen

the alternator mounting bolts as shown in

figure and move the alternator for reaching

to correct tensioning amount. Then tighten

the bolts. Run the engine for few minutes

due to working of belt, then shut down the

engine and recheck the belt tensioning.

This function must be done in every

8000 km.

65

4

Ignition system of pickup engine

Bardo engine ignition is of electronic

double ignition coil type.

Due to higher voltage in electronic

ignition systems, compared with common

mechanical systems, always before working

with the systems, always make sure of

turning the ignition off or disconnecting the

battery cables while:

The switch is off or battery cable is

disconnected.The systems must be tested

exclusively by the relative experts.

Bardo engine ignition is of electronic double

ignition coil type.

Due to higher voltage in electronic ignition

systems, compared with common

mechanical systems, always before working

with the systems, always make sure of

turning the ignition off or disconnecting the

battery cables while:

The switch is off or battery cable is disconnected.

The systems must be tested exclusively by the

relative experts.

Inertia / safety switch:

In Bardo fuel injection cars, due to shutting

down the fuel flow in the event of a sever

shock or car rolling over, a safety switch

is provided in this switch. There is a globe

which in case of applying a shock to a

switch or rolling over, make the electric

current of fuel pump cuts - off.

If, by any reasons, the switch is deactivated,

it should be activated again by pushing the

top of switch to return to the initial position

(activated mode); otherwise the engine

may not be start.

SAFETY CARES

66

4

Warning

Cooling system fan is electrical and

may continue working a few minutes

after the engine is switched off. To

help preventing personal injury, keep

away from working fan while engine

compartment cover is open.

Warning

If you need to check the water cooling

after a long driving, keep in mind

never open the radiator at once;

but firstly turn it 1/4 round to the left

and wait a moment till the system

inside the compartment at the top

of radiator is gradually depleted and

lose the pressure. Turn the overhead

completely to the left side and open it.

Engine coolant system (Radiator)

When water temperature at the radiator

raise up and its pressure passes over

the relief valve of the radiator head.

The above mentioned valve opens and

the steam goes out of the upper pipe

of this valve. Obviously some water is

gradually lost in this order, which must be

compensated, in proper inspections. The

radiator mustn’t overpass the bottom line

of the radiator glottis. Keep in mind that

radiator overhead must be completely

closed at all seasons and the packing

rubber at overhead must be intact.

Flowing out radiator water

At  first  we  must  remove  the  radiator

overhead (according to figure).

Put the control lever of heater on warm

after removing the overhead then open

the evacuation valve under the radiator

as well as engine nearside the evacuation

valve to deplete (evacuate) water (the

figure on the next page).

COOLING SYSTEM

67

4

Re-filling the radiator

1- Put the controlling lever of heater on warm
2- Close the evacuation valve under the radiator
and close to engine. (Figure 1 and 2)
3- Spill the solvent into radiator till it is full. Note
that water is always clean and lacks any settled
minerals if possible.
4- after filling up radiators, start the engine and let
it work a few moments then visit those parts of the
radiator which are not dropping or leaking water.
5- To open thermostat valve the engine must
be functioning fixed and its temperature must
reach 80 degrees centigrade then the confined
air is released and you can control the water
level again so that you can spill water again.

Clean the radiator once in two years.

This is highly required when you use water
including settled solvents, which contain lime
materials.

To clean the radiator and its rotor please do

as following:

At  first  evacuate  the  radiator  water  then  if  the
radiator is cool put the water pipe inside the
edges of radiator and cleanse the residues by
pressing it softly then close the evacuation valves
and fill up the radiator with the cleaning solvent
(these types of solvents must be reliable and
without materials which make damages to metal)
and follow the instructions which is ordered by
producers of how to use the solvents.
You must keep in mind that these types of
material may make damages to the automobile

paint so while using them we can give precise
attention, then evacuate the cleansing solvent
and wash it by tubes again and close the
evacuation  pumps  finally  and  fill  them  up
whole gear of cooling solvent (defrost and non-
mineral water, according to the indices and
table of page

Cleansing the outer parts of the radiator

At regions and conditions in which the dust and
several insects exist, the we must swipe out the
radiators by pumping compressed air through
the inner part of engine and every while we visit
it properly and try out the plastic pipes and the
related connections (settings) to prevent the
corruption and dysfunction.

COOLING SYSTEM

68

4

Recommendations for washing the

vehicle

1- Wash vehicle at least once per week

when weather is normal.

2- Wash vehicle away from direct sunlight

3- Start washing at least 30 minutes after

engine has been stopped.

4- Do not use cloth and/or hard materials

which can scratch the paint during

washing/wipe off. It is recommended to

wear plastic gloves during washing. Use

warm or lukewarm water for washing.

Never use hot water. Meanwhile it is

recommended to use waxes and polishers

which are not abrasive or erosive.

5- Do not stand on the door step and do

not depress the vehicle’s roof and body

during washing/wiping. Meanwhile it is

recommended to use leather or cotton

cloth for wiping off and polishing to avoid

scratching the paint.

6- Since the brake’s dust is very corrosive,

first wash the wheels, then change the cloth

and the washing solution and wash other

parts of the vehicle from top to bottom.

Wash Aluminum wheels and Chrome

metal sheets with a water and mild soap

using a soft and clean cloth.

Wheels surfaces are very sensitive such

as the vehicle’s paint. Do not use strong

chemical and/or acid substances and

also abrasive and erosive materials such

as chrome polishers. Chrome polishers

should be used only on the Chrome metal

sheets on the Aluminum wheels.

7- Max. Temperature of the water for

washing the vehicle is 60

º

C, Max 65 bar

pressure, 10 cm distance between nozzle

and washing area and 25 degree angle for

spurting. This angle actually is the angles

between water spurting out the nozzle in

both side of the longitudinal axis (water

exit direction) as following figure.

8- Suitable detergent for washing vehicle:

- Low basic (PH=7-9)

- Proper lubricant to protect the paint from

scratching. Use preferably fluid detergent.

- Free from materials which affect on

vehicle after drying;

- Containing polisher ingredients to maintain

gloss and dry quickly.

9- Do not wash the vehicles, having metallic

and two coverage paint, by  automatic

carwashes which use rotary brushes;

10- Foreign material such as bird

droppings, tree sap, etc. may damage the

finish of your vehicle. Remove these types

of deposits as quickly as possible.

11- If the water permeates to the luggage

compartments and interior parts of the

vehicle, dry it immediately.

WASHING AND MAINTAINING THE VEHICLE

69

4

Caution

Blue straps on the lacing of the side

mirror, windows, and vehicle bumper

should be detached. Otherwise they

may cause problem.

Warning

-Never  use detergents, abrasive or

chemical products

-Do not wash seat belt by whitening

substance.

Clean any stain on the upholstery by

carpet shampoo and sponge

Caution

Use only vacuum cleaner for vehicle

whose  floor  are  entirely  covered  by

carpet. Application of the detergents

may result to corrosion of the body

and carpet.

General washing upholstery:

Dry clean

Plastic parts:

(Glove box, doors internal cover and internal

part of the roof)

Use only lukewarm soap water or industrial

alcohol. Consult with Iran Khodro authorized

dealer if there is any problem.

Special washing

Seat belt:

Use only lukewarm soap water and avoid

using any metal objects

Type of stain

Leather and plastic parts

Fabric upholstery

Mud

Lukewarm soap water

Commercial detergents

Commercial detergents

Acetic acid

Chocolate (cacao)

Lukewarm soap water

Commercial detergent

Ammonia solvent 25% borax

solvent then soap and water

Sugary substances,

 fruit juice

Lukewarm soap water

Commercial detergent

Lukewarm soap water

Commercial detergent

Pen ink

Industrial alcohol

90 alcohol

Industrial alcohol

90 alcohol

Blood

Lukewarm soap water

Commercial detergent

Ammonia solvent 25%

Lukewarm soap water

Grease or bitumen

Turpentine / gasoline

Turpentine

Engine oil

Gasoline/industrial alcohol

Gasoline/ industrial alcohol

WASHING AND MAINTAINING THE VEHICLE

General hints for washing various part of the vehicle
