Mechanical converter gearbox

Gear lever

It is installed at the protuberances of the

auto  floor.  The  positions  are  marked  on

the knob.

Synchronization tool

This tool is installed for all four front gears

and gear replacements can be made

easily and without noise providing that do

not put the clutch pedal all the way.

Always  use  the  first  gear  to  start  the

vehicles; otherwise, the clutch will soon

be abraded .To transfer the gear to the

reverse gear, put the palm of the hand on

the top of the gear handle and move it by

a low pressure to the right side so that the

spring opens up then press it down and

clockwise. For the purpose of not mixing

gears when transferring these gears put

the spring holder at the end of the right

side of the gear.

New position of brake lever

Brake lever position has been transferred

from side part of the cabin to the middle part

( between two chairs) .

GERABOX

39

3

ANTI-LOCK BRAKING SYSTEM (ABS)

Anti-lock braking system (ABS)

Anti-lock braking system is one of the car

control systems preventing the wheels

from locking on slippery roads, or intense

braking. Therefore, it reduces the brake

distance, steer ability, improves stability,

and increases car safety in general.If the

wheels slip, when braking, not only the

brake distance increases but also the car

control is endangered.Therefore, using the

anti-lock braking system (ABS) system is

necessary in this situation. It prevents fully

locking of the wheels, and lets the driver to

control the vehicle when making sudden

and intense brakes. The system has a

considerable effect on increase safety since

it controls and adjusts the braking pressure

electronically, and adapts itself to variations

in road surface.In the conventional hydraulic

brakes, a timely constant pressure is

applied to the brake pedal, and causes to

lock the wheels on braking.

New navigation and stability system such

as ABS prevent wheels from locking

in these situations, which may cause

critical driving situations. ABS actually

monitors each of the wheels, and it can

adjust braking pressures so that each

wheel gets the maximum possible braking

force without locking of the wheel while

functioning. It prevents continual locking

and slipping of tires, and can provide the

best braking conditions for the vehicle to

remain stable and controllable especially

on slippery roads.

It is possible to summarize the advantages

of the anti lock braking system (ABS) as

follows:

1- Ability to maneuver and maintain the

stability of the vehicle when braking (on

direct paths and while changing direction)

2- Sustained steerability during braking

(on direct paths and while changing

direction)

3- Reducing the burden of responsibility

regarding the driver

4- Preventing the wearing of tires due to

impeding repeated locking of the brakes

and slipping of tires.

Warning

This system shall not be deemed

as a reason to incite you into

sudden accelerating and driving

with high speed. Indeed, nothing

can be replaced instead of driver’s

responsibility and precaution while

driving.This performance is an

auxiliary system which manages the

driver’s response according to the

prompt circumstances during driving

in critical conditions.

40

3

When using a car equipped with anti

lock brake system always consider the

following points:

- Since the anti lock brake system is only

for balancing the braking force, therefore

when braking sufficiently press the brake

pedal and always follow safety guidelines.

-Feeling brake pedal vibrations under the

foot while braking over unstable roads or

sudden braking is normal and caused by

the operation of the anti brake system.

- To hear noise when braking over

unstable roads or sudden braking from

front and rear wheels is normal and due

to the operation of the anti brake system.

- The anti brake system is equipped

with  an  automatic  defect  finding  system

that will light the anti lock brake system

warning indicator

 on the front panel

display in case of a problem.

- When the car is turned on, the anti- lock

brake system warning indicator

 on

the front panel display is on and will turn

off after a few seconds. If the warning

indicator does not light when the car

is turned on or remains lit, is a sign of

problem in the anti lock brake system. In

this situation the car should be directed to

an authorized workshop with precaution.

- If the handbrake is completely released

the handbrake indicator

 and anti

lock brake system warning indicator

 are both lit on the front panel

display, stop the car with precaution and

contact an authorized workshop.

Caution

The brake dragging distance will

be more  while you’re  driving on

sloppy surfaces. Make sure of proper

functioning of the brake after washing

the vehicle or while you’re passing

from the puddles.

Warning

This system shall not be deemed as

a reason to incite you into sudden

accelerating and driving with high

speed. Indeed, nothing can be replaced

instead of driver’s responsibility and

precaution while driving.

This performance is an auxiliary

system which manages the driver’s

response according to the prompt

circumstances during driving in critical

conditions.

ANTI-LOCK BRAKING SYSTEM (ABS)

41

3

* If equipped

Starting on CNG mode (1)

Changing the type of fuel is done by the

fuel conversion key located on the front

console .The vehicle will be operated on

CNG fuel at the following situations.

A) Before driving (at first the vehicle starts

on the gasoline then it switches on gas).

B) While driving

C) Starting the vehicle on gas mode (**).

Warning

- ** This mode shall only be used in emergency situation such as lack of gasoline.

This mode is not recommended in normal conditions because it may damage the gas-

powered parts.

- Do not park your vehicle, which is on, in places that there may be any contact of

hot exhaust with flammable things such as grass or leaves.

Caution

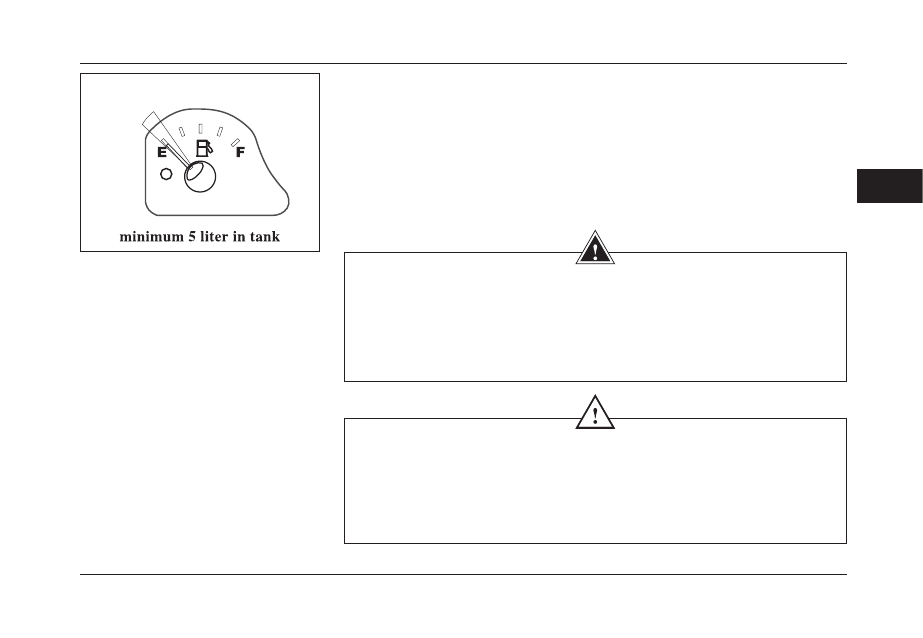

There should be always at least 5 litters gasoline in fuel tank because the gasoline

pump is on, even when engine is working with CNG and also  gasoline is necessary

for cooling the gasoline injectors.

- Use unleaded  super gasoline; otherwise vehicle catalyst will be damaged.

Avoid combination of any fluid with standard fuels.

SWITCHING ON AND DRIVING WHILE USING CNG

42

3

A) Operating on CNG mode before

starting

Start the engine then put the fuel

conversion key on gas. In this mode, in

addition to the light on the right side of the

conversion key (yellow) being turned on,

the green light on the left and the red light

for saving gas on the left of the conversion

key are blipping fast.

The blinking of the lights on the conversion

switches show that fuel consumption

has not turned yet from gasoline to gas.

Therefore the fuel conversion is done and

lights are frequently on and gas saving red

lights and yellow ones on the right side are

turned off. When the engine is turned on,

the 4 green lights of the conversion key

are turned on in compliance with the gas

pressure inside the gas pump.

B) Selecting CNG fuel while moving

Put the fuel conversion key on gas mode

(on the left) and the fuel converted to gas

instantly.

C) Turning the engine on CNG

mode directly

This method is used only for special

situations like gasoline shortage and

it’s not recommended at the ordinary

conditions. Fist turn on the switch and

put the fuel conversion key on the gas

mode. Then start the engine. If there is no

technical malfunction in the gas system,

the engine will start on CNG.

D) Fuel conversion from gas to gasoline

Switching to gasoline is easily done in any

case just by pushing the fuel conversion

key on the gas mode. When the engine

is started on the gasoline mode, the right

light of the conversion key (yellow) is on.

SWITCHING ON AND DRIVING WHILE USING CNG

43

3

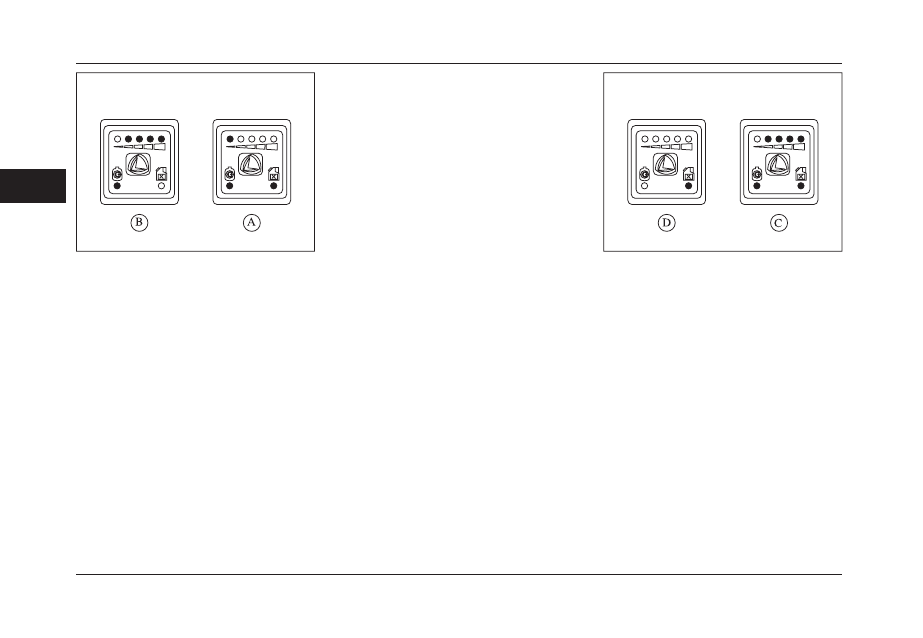

LIGHTS POSITION OF FUEL SELECTION KEY

Fuel conversion keys positions of

lamps

Considering the consumptive fuel type

and the amount of CNG fuel in the pump,

the position is as follows:

Fuel conversion key



This fuel type selection key is located on

the front console instead of panel key.

Conversion key positions

(Gasoline to gas)*



The yellow light at the right side is on and

the left green light as well as red gas saving

light is set on blinking mode (the blinking at

the above lights show that the conversion

of gasoline to gas is not yet done). Then

after fuel conversion, the light of the fuel

conversion key on the left side is still on

and the red and yellow lights are turned

off. The 4 green lights over the conversion

key are turned in accordance with the gas

pressure level inside the pump.

The vehicle is on gasoline, mode The yellow

light shows

* If equipped

44

3

Fuel conversion keys in gas running

out position*

When the gas inside the container is near

termination, the four lights above the fuel

conversion key (green) turn off. Then the

red light above the fuel conversion key

turns on. With the complete termination of

gas inside the tank, the light on the left side

of the fuel conversion key (green) starts to

blink. The slow glimmering of green light

at the left side of the conversion key does

not mean depletion of fuel but it shows

some errors at the gas system which

causes rotor not to start on the CNG fuel

and must return to the gasoline mode.

* If equipped

Notice

If you have trouble starting the car

in gas mode, set the fuel conversion

keys to gasoline position and start

the vehicle. If the engine does

not start again, consult with an

authorized dealer.

LIGHTS POSITION OF FUEL SELECTION KEY

45

3

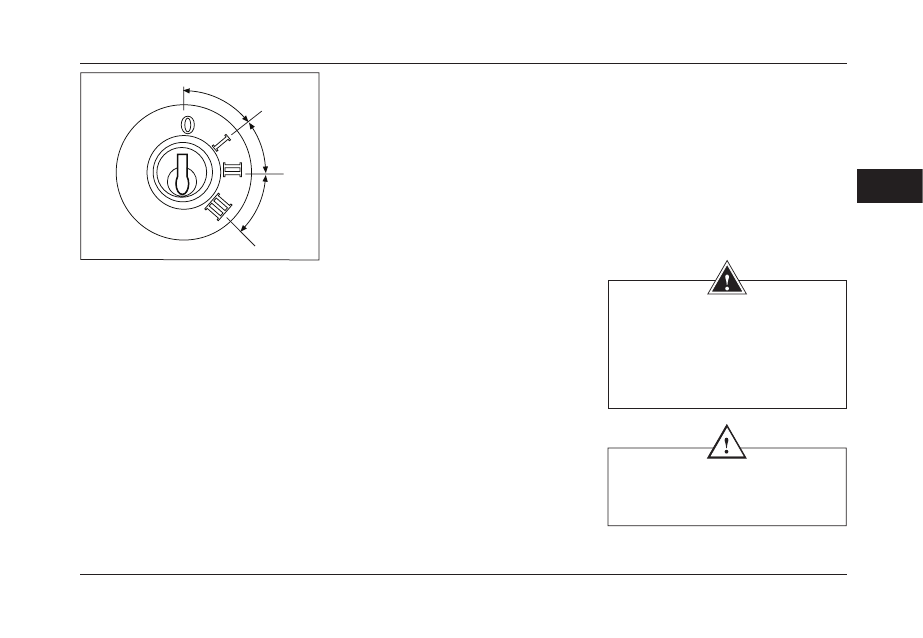

Ignition key

There are 4 positions

O. The steering wheel lock and ignition off.

I. Supply to electrical accessories and

steering wheel unlock.

II. The electrical devices on, Engine on

and diagnostic lamplight up.

III. Running. Ignition on.

Please note that the key is getting in and

out only in 0 position

Unlocking the steering wheel

Put the key at I position.

Move the steering wheel gently while

turning the key.

Starting

By turning the key to III position, release

the key till located in the II position.

Caution

Never turn off the engine while going

down the hill (the brake booster will be

damaged). Never remove the switch

while driving (the steering wheel is

locked).

Notice

To start the vehicle, put it on gasoline

position.

MAIN SWITCH

46

3

Caution

We strictly recommend all the owners

of CNG vehicles to avoid fuel injection

at  CNG  fuel  filling  stations  related

to buses and other heavy vehicles

because of its probable damage of

reservoir valve and its belongings.

* If equipped

CNG Fueling steps*

1) During fueling at gas stations, avoid

smoking or using your cell phone.

2) After going to filling station (2), the driver

should turn off the vehicle and make sure

the automobile has stopped completely

(pull the brake lever up). Never move the

vehicle while the nozzle is connected.

3) The station operator does the fuel

injection operation after controlling the fuel

certificate label of automobile.

4) Make sure of closing the gas filler valve

overhead after each fuel injection. (It’s

essential to prevent entering dust and

accordingly defects into the gas system).

5) The cylinder is used to store CNG at the

working pressure of 200 bars.

CNG REFUELING STAGES

47

3

Caution

Each 8000 km, have your vehicle

serviced.

Factors determine the fuel

consumption:

The condition of the engine:

A badly tuned engine adds fuel consumption.

Ignition system:

Check the spark plugs electrode gap and

adjust them if required.

Fuel feeding system:

To prevent oil leakage, check the fuel

injection feeding system for fuel rail, fuel

filler pipes, fuel pump and fuel filter.

Fuel quality:

Fuel quality does affect not only on the

fuel consumption rate, but also on the

mechanical condition and performance of

engine in long period.

SAVING FUEL CONSUMPTION

48

3

SAVING FUEL CONSUMPTION

Notice

Clogged  air  filter  reduces  the  engine

power. If the car is used on dusty roads,

the period of services must be shorten

Heat shield of exhaust manifold

For the purpose of elimination the exhaust

manifold heat radiation effect on throttle

valve and intake manifold assembly, a

shield plate is mounted between intake

and exhaust manifolds.

Fuel consumption

The fuel consumption is depended not

only on the car design, but also on driving

style and maintenance.

Considering the following points could reduce

fuel consumption down to a reasonable limit.

A- Vehicle maintenance

Maintenance & services of car should be

performed according to the recommended

intervals by replacing on time oil, and

regular checking of the related parts in fuel

consumption.

- Engine tuning up according to manufacturer’s

instruction

- Removing carbon deposits of spark plugs

- Air filter changing as determined in service

section

- Keeping tire pressure corrects

(Underinflation of the tires can waste fuel due

to increased running resistance of the tires.

Keep your tires inflated to the correct pressure)

- Using standard tires.

49

3

B-Driving style

- Keep a steady cruising speed: Keep

as  constant  a  speed  as  road  and  traffic

conditions permit.

- Slowly move the shift lever into the gear

you wish, till the tachometer indicates

appropriate engine speed in revolution per

minute (rmp).

- Don’t drive with high speeds. The

optimum fuel consumption can be gained

with speed of 80Km/h in fifth gear.

- By increasing the speed, the fuel

consumption will be increased accordingly.

(Fuel consumption rate in a distance of

100Km with speed of 90Km/h is about 8.3

litters).

After raising the engine coolant temperature

up to normal range, drive the car quietly

and avoid from extra acceleration.

Warm up the engine by slow driving in the

first few kilometers

- Driving with high speed will increase fuel

consumption. Drive with a slow speed.

- Avoid high acceleration in low gears (First

and second) select the highest possible

gear without to prevent excessive load on

the engine. By keeping suitable distance

from frontal vehicle minimize unnecessary

stops and breaks.

- By making realistic guess about the traffic-

allowing proper distances, eliminating a lot

of unnecessary breakings and avoiding

hard accelerations- keep pace with the

traffic flow.

- Turn off the electrical equipments when

they are not really in use.

- Avoid driving with open windows; it is

preferable to use ventilators.

- Disassemble the roof rack after usage.

- Make an arrangement before travelling

- Don’t use the car in city short trips.

- be Driving in heavy city traffic makes the

highest fuel consumption rate.

- Use ring road as well as possible to

avoid traffic encounters and entering into

the city zones.

SAVING FUEL CONSUMPTION

50

3

* If equipped

SAVING FUEL CONSUMPTION

Improving fuel economy

Periodic maintenance schedule is

included in the Service and Guarantee

book. To be able to enjoy common

guarantee of the Iran Khodro, which is

described in said book, you should  do

necessary periodic maintenance up to

first 10000 km function, otherwise in case

of any fault, it is considered as fault of the

owner and manufacturer undertakings are

excluded.

Intervals of the periodic maintenance are

specified in the schedule. Remuneration

depends on the quantity of the performed,

material and the parts are excluded.

Should you use your vehicle in the harsh

situation and also drive in the polluted

environment, intervals of the replacing

engine oil, oil filter, air filter, oil pump and

other parts affected by the unfavorable

environment should be less than those

predicted in the maintenance schedule.

It is recommended to consult with one

of the Iran Khodro authorized dealer to

determine the new intervals.

Periodic maintenance should be done

only in one of the Iran Khodro authorized

shops. Special place considered in the

service book for each service should be

sealed by that authorized shop’s stamp.

Vehicle gas consumption*

Vehicle gas consumption for every 100

km. based on the ECER83/03 standard

shall be as below table:

Driving condition

fuel consumption

200 bar pressure

Urban

45 lit.

Suburban

28.3 lit.

Urban and suburban

(combined cycle)

34.14 lit.

51

3

Warning

Never use anti-freeze and water mixture

in windshield washer reservoir. It can

severely damage your vehicle paint.

SCREEN WASHER AND SCREEN WIPER

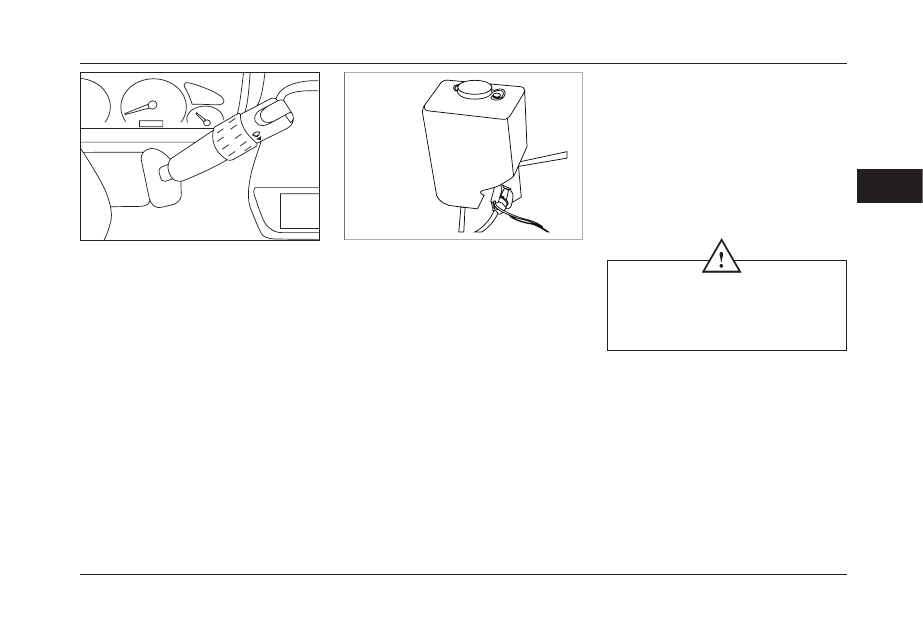

Wind screen washer

Pull the stalk towards steering wheel and

keep it for a while to spray the liquid in the

water reservoir.

Wind screen wiper

Wiper can start moving with different  speeds;

by turning of stalk in a multiple steps.

(c) Windscreen washer fluid reservoir

Regularly check windscreen washer fluid

reservoir (inside engine). Always use liquid

glass cleaner specified for windscreen in

the reservoir.

52

3

Caution

Before starting driving at night:

Make sure electrical equipments function properly and adjust vehicle lights (in case

of over loading). In general, make sure the lights are not covered (by dirt, mud, snow

or any other object.

Warning

Should the vehicle is going not to be used for more than 6 days, it should be started

at least once and work one hour idle.

53

VEHICLE MAINTENANCE

4

MAINTENANCE ..............................................................54-56

NECESSARY POINTS BEFORE  TRAVELING ................….57

WINTER PRECAUTIONS................................................58-59

TIRES……..............................................…......….....………. 60

ACCESSORY BATTERY.......................................................61

BATTERY SERVICE AND MAINTENANCE.................…62-63

ALTERNATOR AND FAN BELT………........................……..64

SAFETY CARES...................................................................65

COOLING SYSTEM ........................................................66-67

WASHING AND MAINTAINING THE VEHICLE................68-70

BODY STAIN REMOVING ....................................................71

CHANGING OIL ...................................................................72

OIL TYPE…...........................................................………73-74

INSPECTION AND REPLACING OIL……..................….75-77

INSPECTION AND REPLACING FILTERS .........................78
