EF494T OM

36

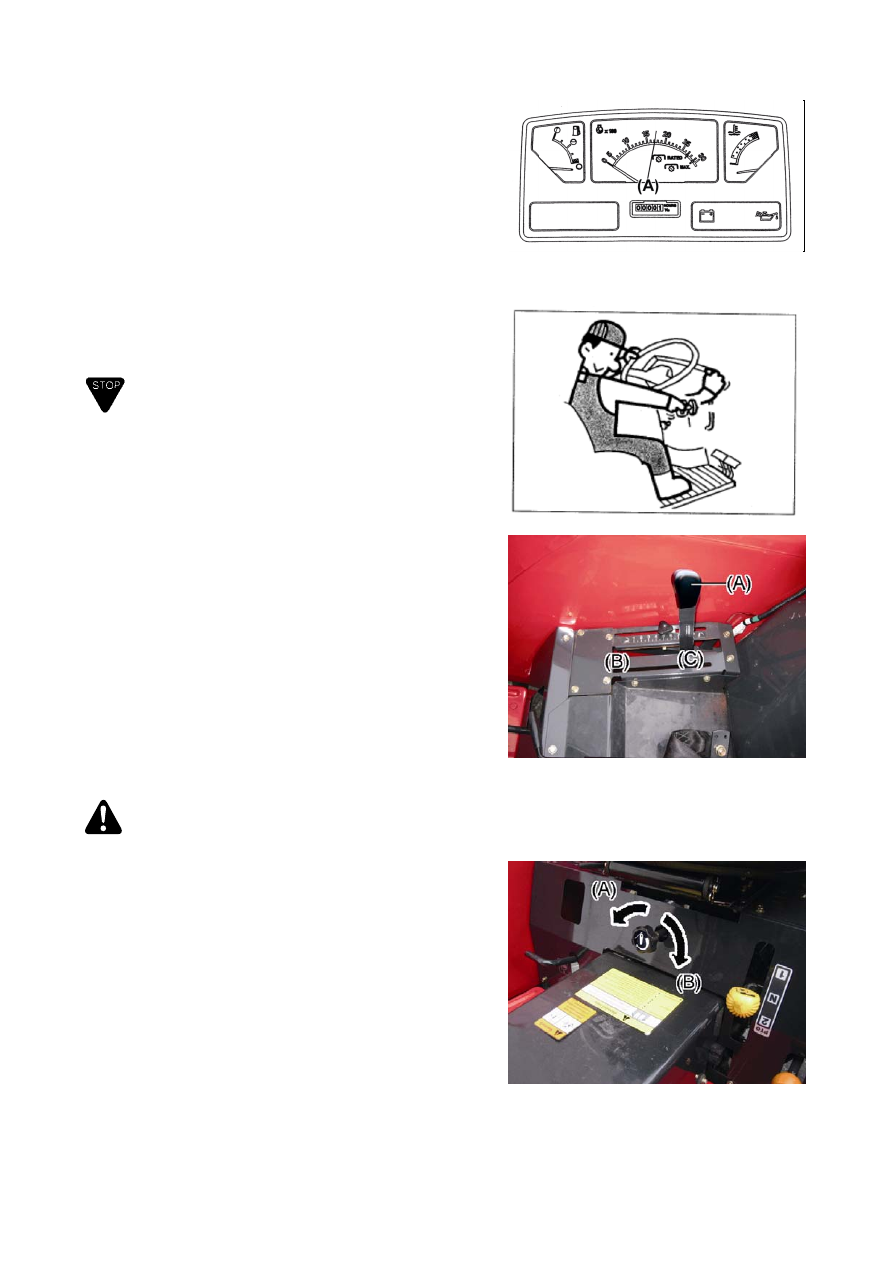

(6) Warm up the engine by running under no-load at

1500 rpm for 5 minutes approximately.



(A) 1500 rpm


NOTE:
  The starter motor consumes plenty of current from

the battery. Do not keep it running for more than 10
seconds. If it fails to start the engine, allow one
minute before retry. Then, execute steps (6) - (7).


  Never turn the main switch to START if the engine

has been started or is running.





Stopping

(1) Reduce engine R.P.M. with the accelerator lever.
(2) Turn the main switch to OFF.


IMPORTANT



Stopping a hot engine suddenly can damage the engine
because of overheating. Keep engine running unloaded
at 1200 - 1500 RPM for about 2 minutes, to prevent
damage.







4. Raising or lowering implement

Adjust the position control lever back and forth to raise
or lower the implement.


(A) Position control lever
(B) Lower
(C) Raise





5.

Adjusting lowering speed for

implement



WARNING

Never crawl beneath or step in the implement. Severe
injury may result.

To reduce the lowering speed for an implement, turn the
hydraulic stop slow return valve clockwise.
To increase the speed, turn the valve counterclockwise.
Turning the valve fully clockwise will stop the oil
pressure and stop lowering the implement no more.


(A) Fast descending speed
(B) Slow descending speed


NOTE:
Do not operate the position control lever when the
hydraulic slow return valve is closed. Hydraulic parts
may be damaged.














EF494T OM

37

6.

Starting and stopping



WARNING

  Make a slow start after calling attention of the people

in the vicinity. Do not make an abrupt start. Human
injury can result.

  For traveling, never fail to link the left and right brake

pedals with the connector.

  When you leave the tractor, park it on the safe flat

location; never fail to put on the parking brake, put
the reverse lever and range shift lever in N (neutral);
and lay down the implement on the ground. Block
the wheels. Otherwise, the tractor may move without
intention of the operator, causing a serious accident.












CAUTION

Never keep your foot on the clutch pedal while traveling
or working. Otherwise, an accident may result.

NOTE:
Operate the main shift lever and the range shift lever or
reverse lever after the machine stops completely.


Starting

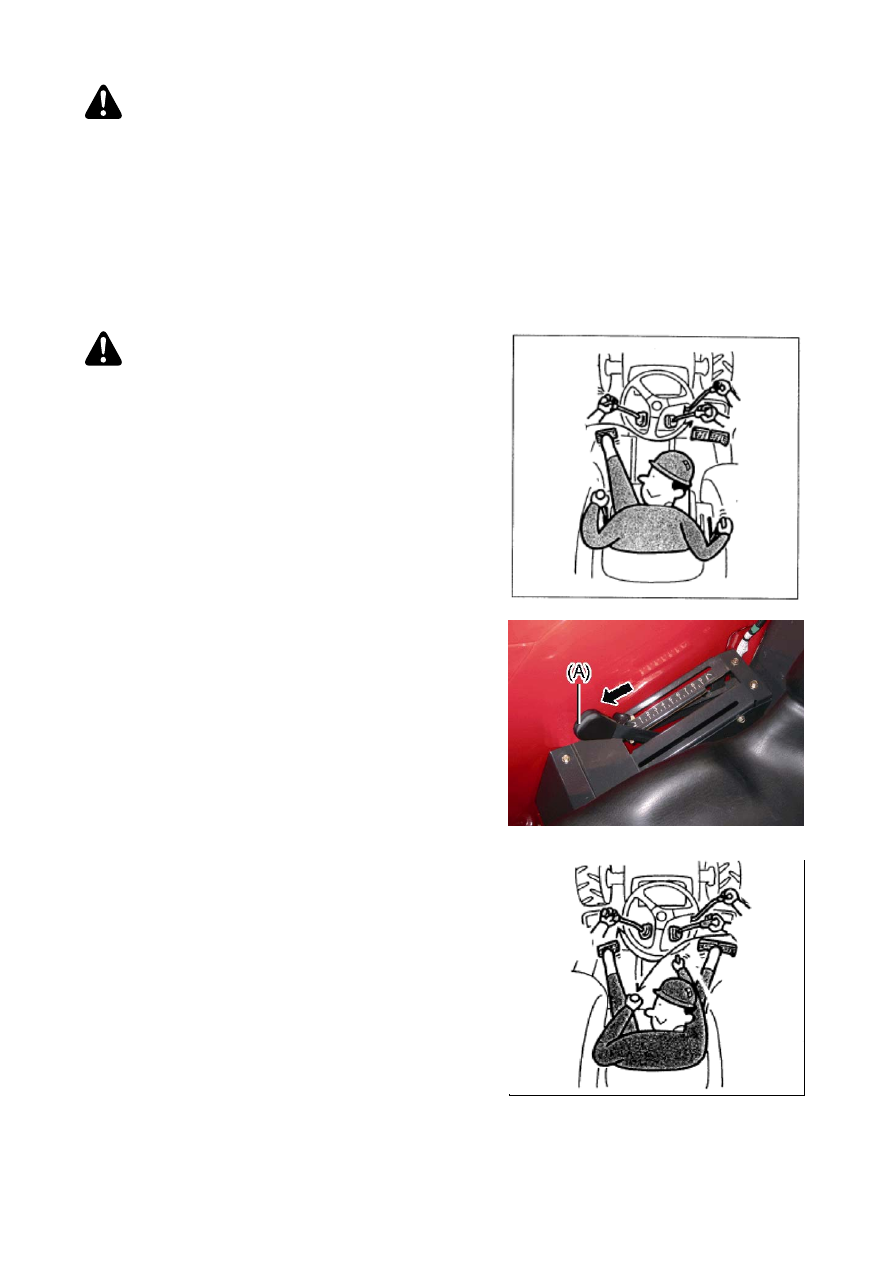

(1) Check that the left and right brake pedals are tied

together with the connector.

(2) Set the engine speed around 1500 rpm with the

accelerator lever.

(3) Move the position control lever to Upward to lift the

implement to a maximum height.

(4) Depress the clutch pedal and place the main and

range shift levers in the wanted position.

(5) Put the reverse lever in the position of F or R.
(6) Slowly release the clutch pedal. The tractor starts to

run.

Stopping and parking

(1) Return the accelerator lever to LOW to slow down

the speed.

(2) Depress the clutch and brake pedals to stop the

tractor, and set the main shift lever in position N.

(3) Put the main shift lever, reverse lever and PTO shift

lever in N (neutral).

(4) Make sure the left and right brake pedals are

connected with the connector. Depress the brake
pedal and put on the parking brake.

(5) Lay down the implement, if any, on the ground by

putting the position control lever in LOW.

(A) Position control lever

(6)

Turn the main switch to OFF to stop the engine.












EF494T OM

38

7.

Traveling on the load



WARNING



  To travel on the road or cross a farm ridge, never fail

to link the left and right brake pedals. One-sided
braking effect will roll over the tractor or result in a
sharp turn.

  Follow the traffic regulations and rules when running

on the road. Wear the helmet.

  Do not carry other persons except a driver.









CAUTION



  Remove implements are better when traveling on

the road, or an accident may result.

  Put the PTO shift lever in N and link the right and left

pedals together.

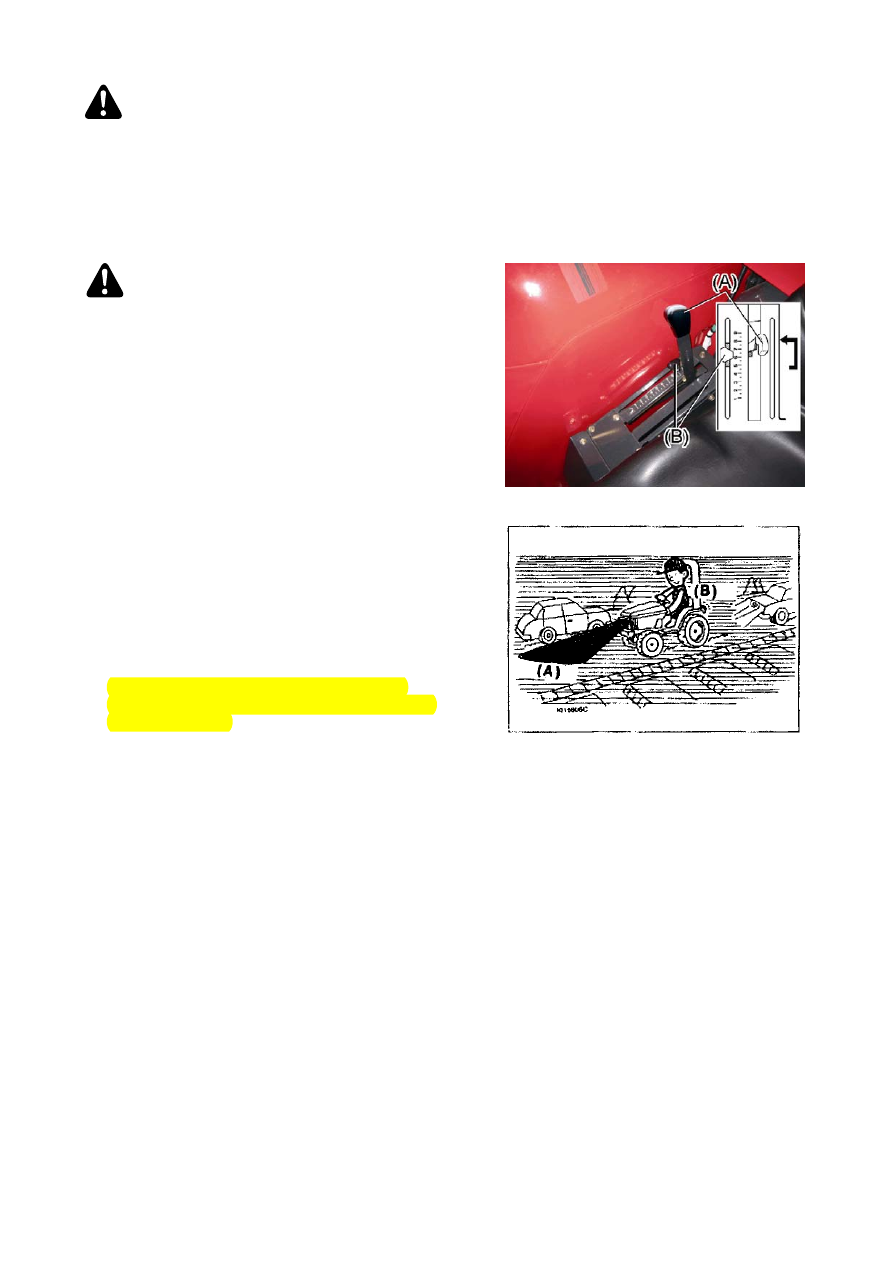

  For traveling on the road or to lock the hydraulic

device in the upper position, adjust the upper
stopper and move the position control lever to the
stopper.



(A) Position control lever
(B) Upper stopper






  Adjust the traveling speed with the foot accelerator

pedal.

  To change the traveling course, notify others by

flasher switch.

  Watch any following cars on the rear view mirror and

give way to them.

  On narrow farm paths, tilled ground or roads with

weedy shoulders, travel at a reduced speed noting
the road shoulders.

  When passing other cars at night, switch the

headlight to the low beam for the convenience of
others to pass by.



(A) Low beam
(B) Flasher switch


NOTE:
When traveling, keep open the hydraulic stop slow
return valve and put the position control lever in the
RAISE position, and the set the stopper.








EF494T OM

39

8.

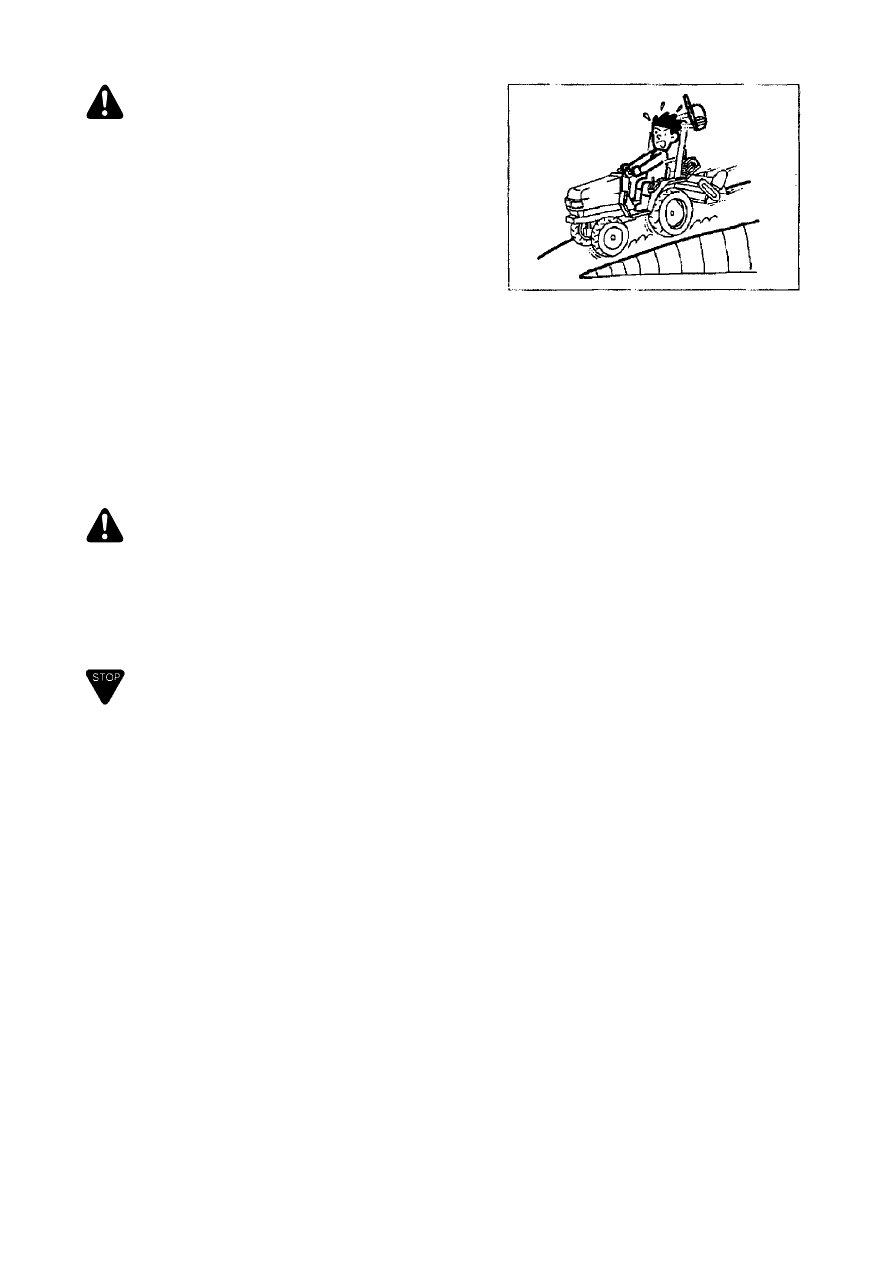

Traveling on the slope



WARNING



  Do not change speeds on the slope. Travel slowly

on the slope. Use the engine brake on down-slope.


  Do not travel on the slope with the reverser lever,

the main shift lever or the range shift lever set in the
N position.


  Do not depress the clutch on the slope; it causes a

great danger as the tractor may glide down.


  To start on an up-slope, use a low gearshift and set

off at low speed. Abrupt start will jump up the front
wheel.


  Before leaving the tractor, stop the engine, set the

parking brake and block the wheels.


  Shift should be changed after reaching a highest

point on the slope. To stop on the slope, lock the
parking brake lever.







9. Power

steering



CAUTION



The steering wheel is easily rotated when the tractor is
running.
Pay a special attention in operating the steering wheel
when traveling on the road. Power steering is effective
only while the engine is running. The steering wheel will
be slightly heavier at a low engine speed.


IMPORTANT



  Turning hard the steering wheel will cause the relief

valve to sound a blowing sound. Do not operate the
tractor with this sound continuously for an extended
period. It damages the hydraulic components.

  Do not operate the steering wheel while the tractor is

stationary except for an unavoidable case.
Otherwise the tires or rims are damaged.
