EF494T OM

28

INSTRUMENT PANEL

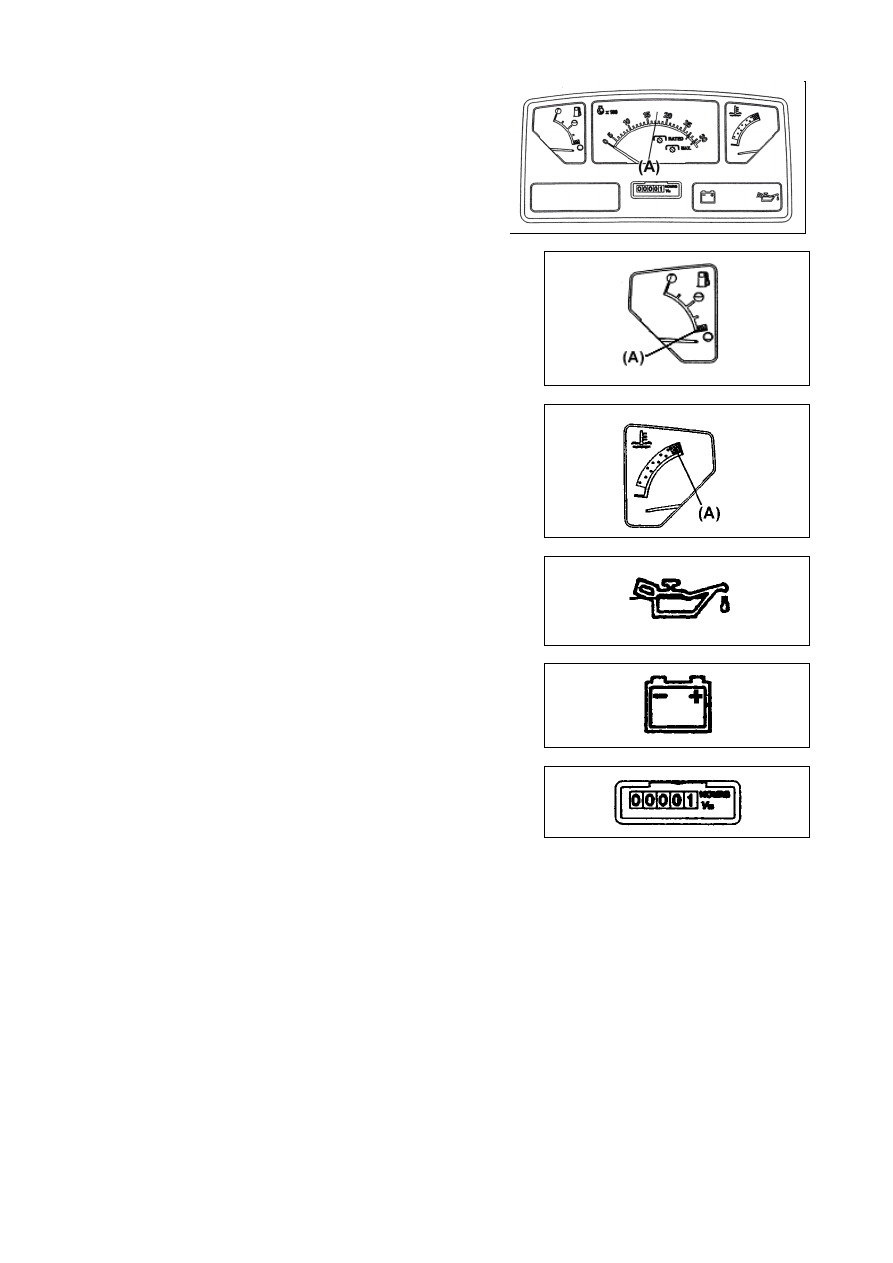

(A) Tachometer





Fuel gauge

(A) Red region


Indicates the remaining fuel level. Prepare to replenish fuel if the
pointer comes in the red area.



Water temperature

(A) Red region


Indicates the temperature of the cooling water in operation. If the
pointer comes in the red region, stop the work and check for
abnormality.





Engine lubricating oil lamp

This lamp lights when the main switch is turned on and goes off
when the engine starts. If the lamp lights during engine speed,
suspect an abnormality in the lubrication circuit.
Stop the engine immediately and locate the trouble.


Charge lamp

The charge lamp goes off when the engine increases its speed
above 1500 rpm and the battery starts to be charged. Note that
charging will not take place at an engine speed below 1000 rpm.



Hour meter

Indicates the operating hour of the tractor. Multiply the figure in
white frame by 6 to indicate the operating time in minutes.






EF494T OM

29

Others

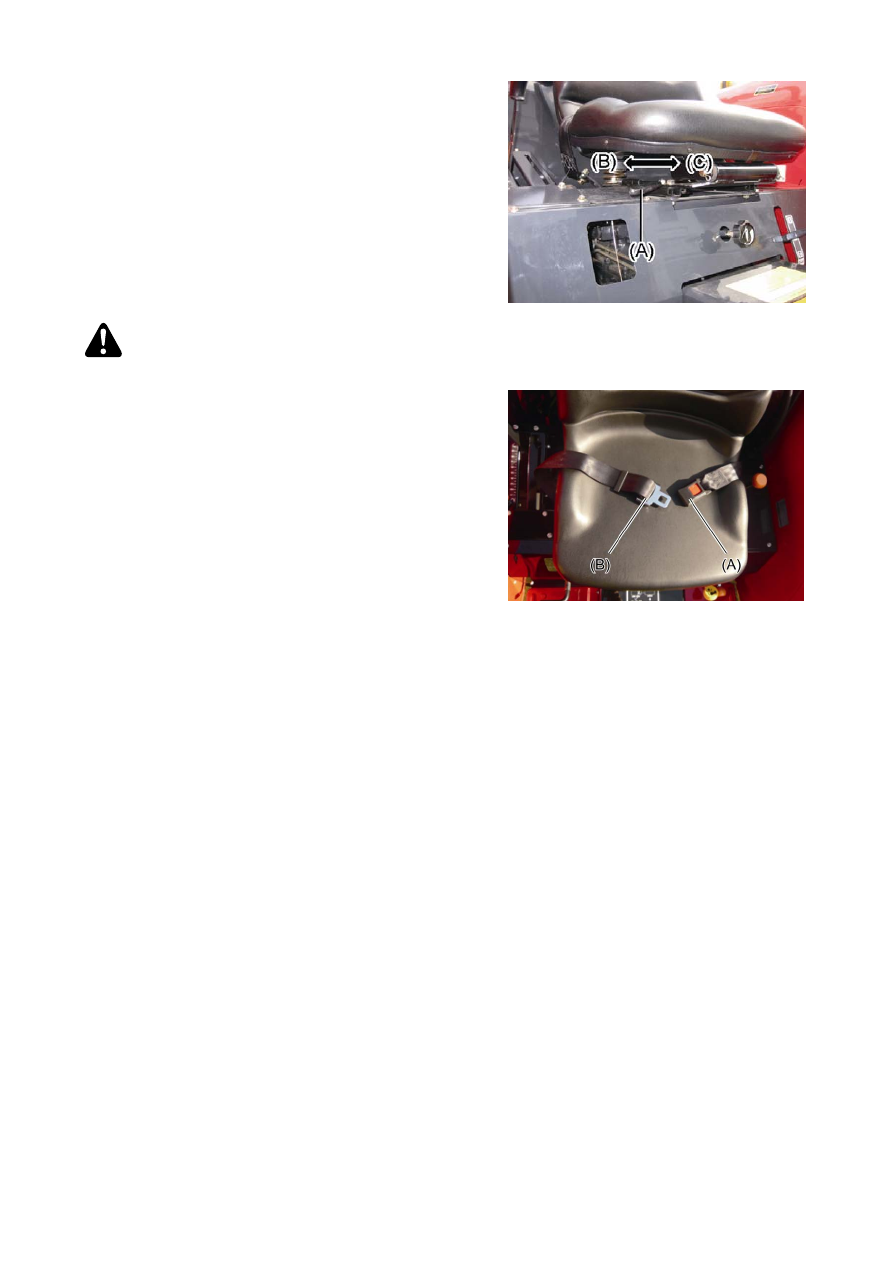

Driver's seat adjustment pin

The driver's seat should be adjusted to suit your physical
shape.


(A) Seat adjust lever
(B) Release
(C) Lock







Seat belt



WARNING



  Always fasten seat belt while operating the tractor

with the ROPS.

  Do not use the seat belt if the tractor does not have

the Roll-over Protective Structure (ROPS).



(A) Buckle
(B) Tongue


Connect both segments of the belt with the buckle,
being careful to avoid twisting of the belt, adjust the belt
length, being suitable for the operator.

To unfasten, press the release button (marked PRESS
in the buckle.














EF494T OM

30

PRE-OPERATION CHECKS

1. Pre-operation

checks



DANGER



  Never lubricate or supply fuel oil while the engine is

warm.


  Never smoke during fuel replenishing.

  Never use bare lamp/light during fuel replenishing.

  Do not crawl or step under a service machine.

  After replenishing fuel, be sure to fasten the fuel tank

cap and clean off the fuel spill. A fire can result.









WARNING



  To check or service your machine, fix it on the flat ground,

out of traffic of other vehicles or people. Otherwise, the
tractor can collapse and cause an unexpected accident.


  When accessing beneath an implement, close the

hydraulic valve completely to stop the oil flow. Otherwise
the implement may abruptly fall by any reason, causing
injuries to the people within the reach.









 CAUTION



  Never fail to stop the engine before checks or

maintenance. Otherwise, you may be trapped in the
machine and seriously injured.


  To check or service the machine, wait until the

engine and mufflers are cooled down. You may be
burnt.


  Never fail to remount the covers and parts detached

for service. Otherwise, you may be trapped in the
machine and seriously injured.










EF494T OM

31

For safety reasons, always check the tractor before
initiating day's works. Remove any abnormalities.

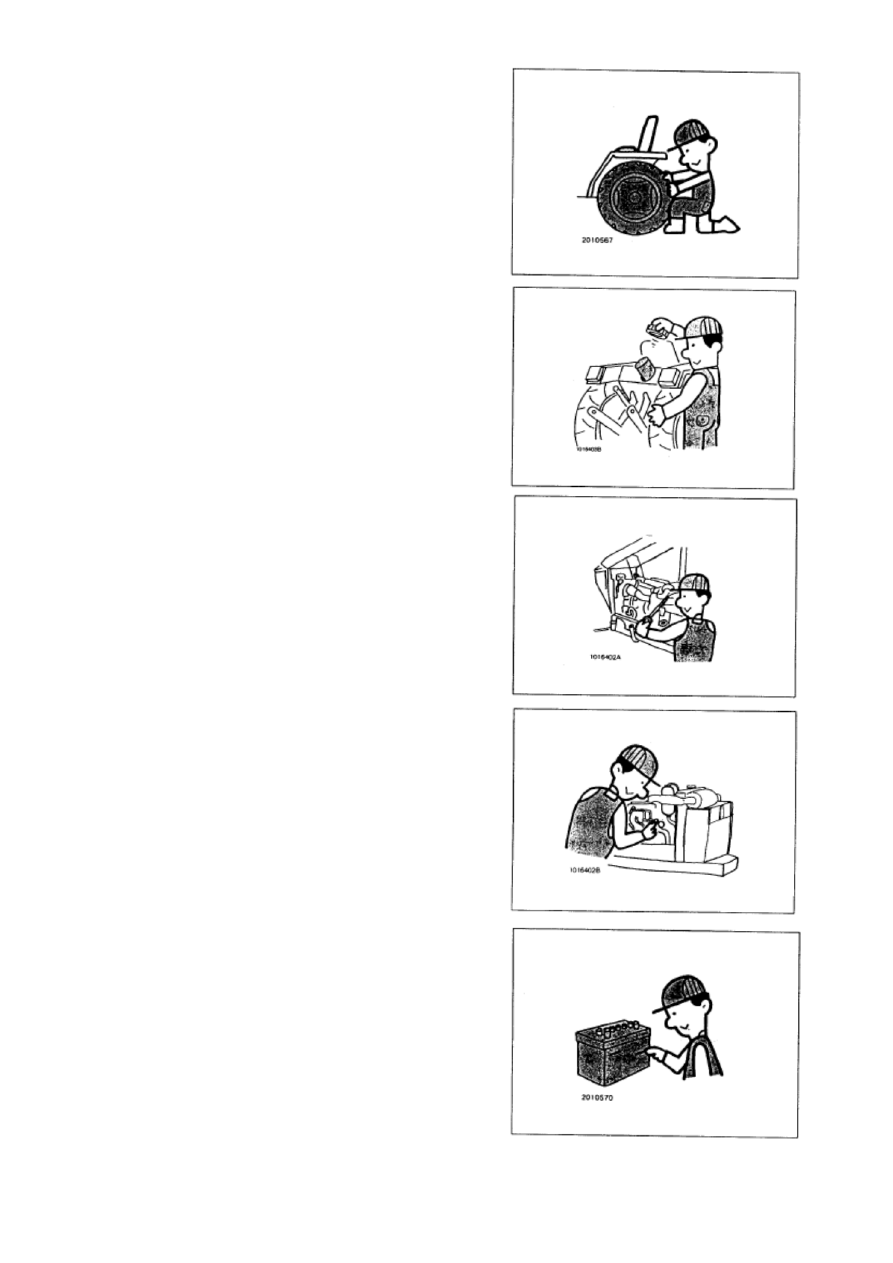

CHECK THE FOLLOWINGS IN ORDER:

(1) Abnormalities in previous day.

(2) Walk around the tractor to look into:

  Deformed parts, damages, wear.
  Air pressure of tires, wear of tires.
  Wear of various parts, loosened bolts and nuts.
  Loosened bolts and nuts of the tire rims and disks.






Fuel oil amount and leak, damage on the fuel piping



(3) Check inside the bonnet.

  Oil level, quality of oil, leak.





Quantity of cooling water, damage in hoses.



  Color of the hydrometer or level of battery liquid,

depending on battery type.
