Yanmar diesel tractor EF494T. OPERATOR'S MANUAL - part 6

EF494T OM

20

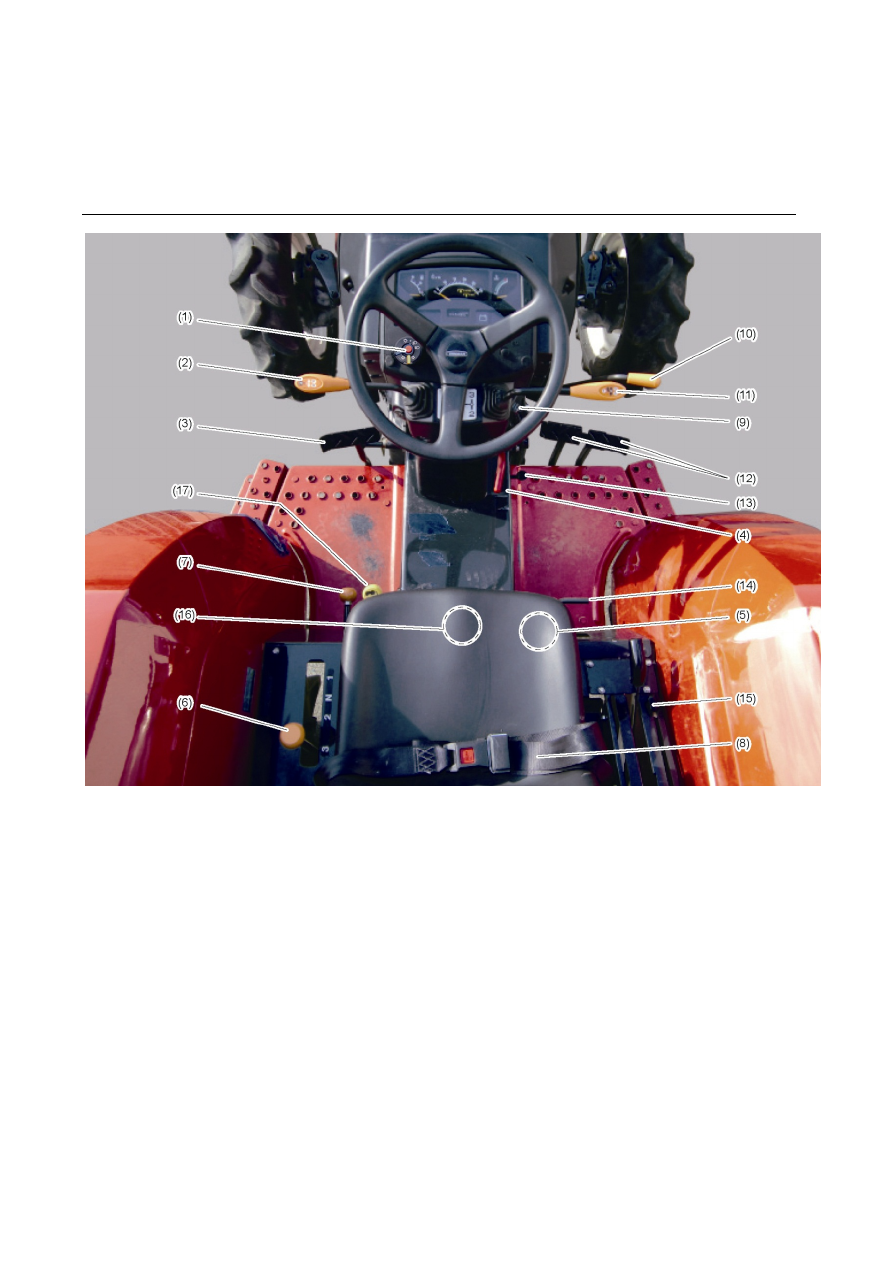

(1)

Light switch, Horn switch, Flasher switch

(2) Reverser

lever



(3)

Clutch pedal

(4)

Parking brake lever

(5)

Operator's seat adjusting pin

(6)

Range shift lever

(7)

Front wheel drive lever

(8) Seat

belt

(9) Main

switch



(10) Accelerator lever
(11)  Main shift lever
(12) Brake

pedal

(13) Accelerator

pedal

(14)  Differential lock pedal
(15)  Position control lever
(16)  Hydraulic stop slow return valve
(17)  PTO shift lever





EF494T OM

21

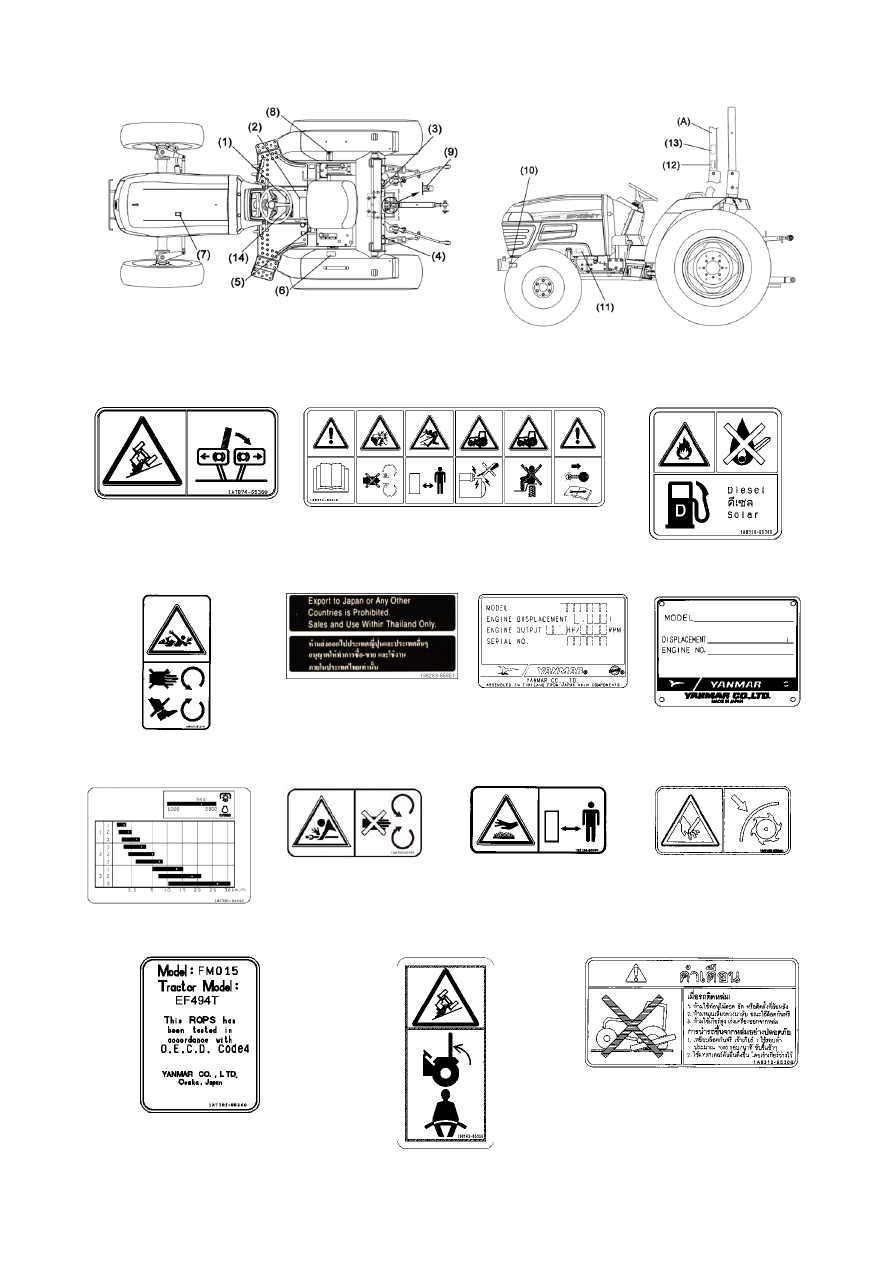

SAFETY LABEL LOCATION





(A) ROPS right side frame



(1) 1A7874-65360
Label, brake coupling

(2) 1A8310-65310
Label, caution

(3) 1A8310-65340
Label, fire caution





(4) 198163-65350
Label, danger rotate shaft

(5) 198283-65651
Label, Thailand only

(6)
Label, tractor ID

(7)
Label, engine ID







(8) 1A7781-65560
Label, speed

(9) 1A6150-93151
Label, caution cover

(10) 198163-65930
Label, caution muffler

(11) 198163-65940
Label, safety cover











(12)
Label, ROPS ID

(13) 198263-65950
Label, seat belt

(14) 1A8310-65300
Label, warning escape










EF494T OM

22

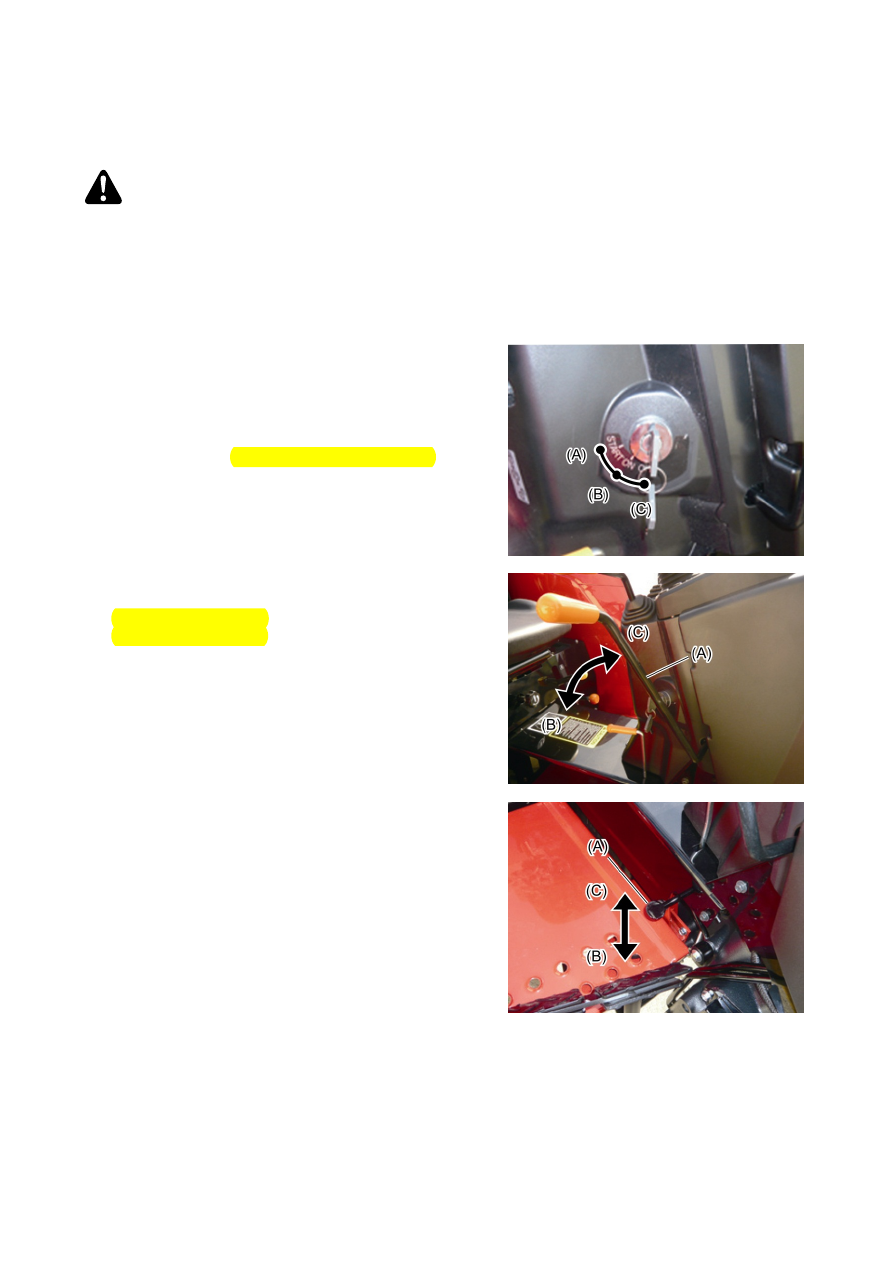

FUNCTION OF EACH CONTROL

Engine

Main switch
Used to turn on and off the engine




WARNING

When the tractor is not in use, never fail to remove the
key and store it at a safe location. Do not allow a child to
access the key.






(A) START
(B) ON
(C) OFF






START:


Starter motor runs to start the engine.
Release the key when the engine starts,
and the key returns to the "ON" position
automatically.





ON:


The electric current is on. If the engine is
stopped, the engine lubricating oil lamp and
charge pilot lamp turn on.





OFF:


The electric current is shut off. The key can
be removed.




Accelerator lever



(A) Accelerator lever
(B) Engine slow speed
(C) Engine high speed


The accelerator lever is used to increase or decrease
the engine speed. Used to keep the engine at a constant
speed.






Accelerator pedal



(A) Accelerator pedal
(B) Depress the pedal to increase the engine

speed.

(C) Release the pedal to decrease the engine

speed.


The accelerator pedal is used to increase or decrease
the engine speed, mainly during travel on the road. To
increase the engine speed, depress the pedal.







EF494T OM

23

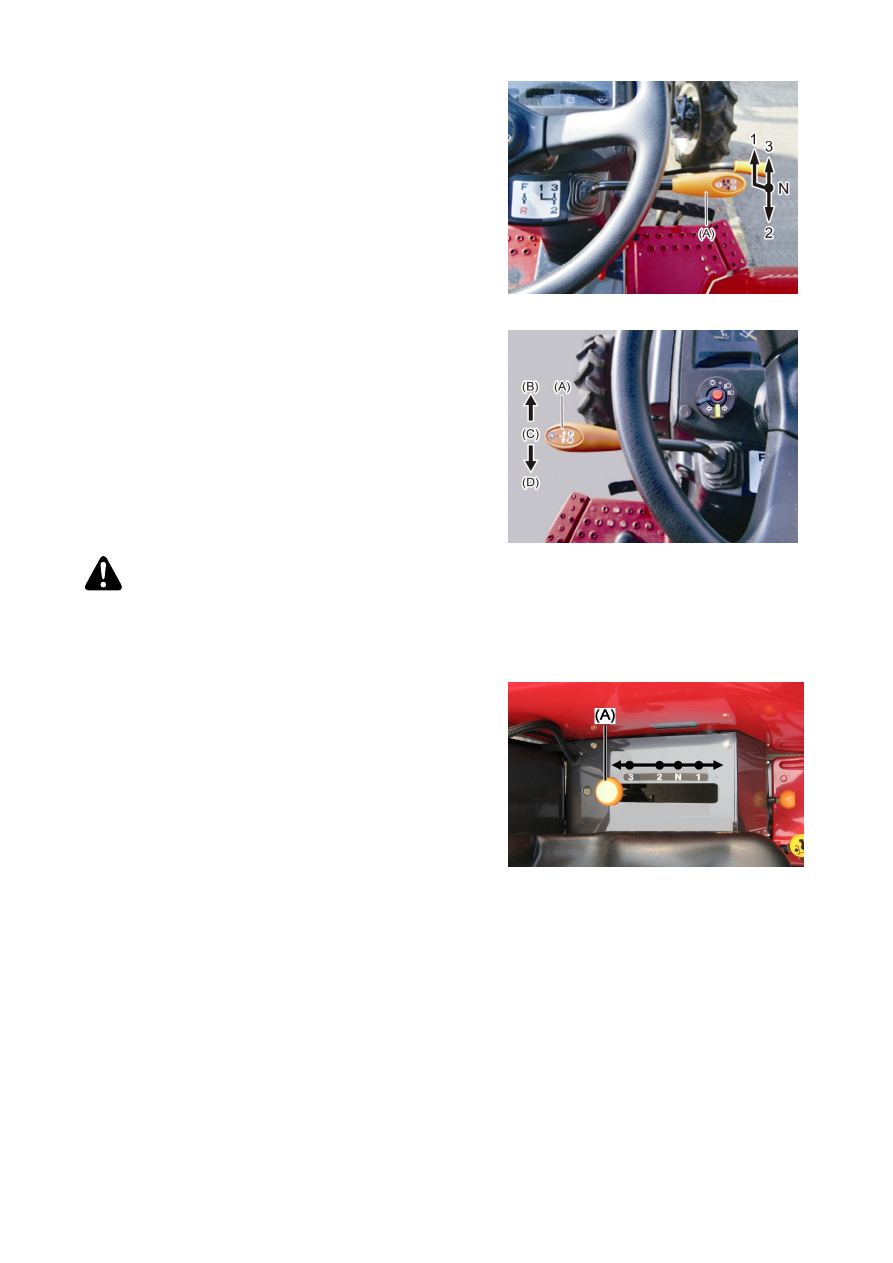

Traveling, PTO related functions

Main shift lever

(A) Main shift lever :1, 2, 3, N


This lever changes the transmission system in 3 stages.
Combination with the range shift and reverser creates 9
forward speeds and 9 reverse speeds. Operate the main
shift lever while depressing the clutch pedal.








Reverser lever

(A) Reverser lever
(B) F: Forward
(C) N: Neutral
(D) R: Reverse


This lever is used to change running direction of tractor.
Move the lever forward for running forward and move
the lever rearward for running reverse.

Lift up the lever and move it to desired position.
When shifting the lever, be sure to depress clutch pedal
and that tractor stops completely.




CAUTION



When shifting between forward and reverse, depress
clutch pedal and brake pedal to stop the tractor
completely and put the lever to desired direction.






Range shift lever

(A) Range shift lever: 1, N, 2, 3


This lever changes the transmission system in 3 ranges.
Combination with the main shift and reverser makes 9
forward and 9 reverse speeds.
When operating the range shift lever, be sure to depress
the clutch pedal and that tractor stops completely.
