Model MA TOW Tractor. Manual - part 87

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 233

67-1

136 15573

T6-1300-197-73

base and strainer assembly

1

As Req’d

67-2

136 15598

T6-1300-197-48

valve assembly with couplings and hoses

1

“

67-3

136 15606

T6-1300-197-92

crossover valve kit

1

“

67-4

136 15639

T6-1300-197-107

pilot check valve kit

1

“

67-5

136 15832

T6-1300-197-120

coil, b-solenoid (red wire)

1

“

67-6

136 15830

T6-1300-197-121

cartridge, b-solenoid valve

1

“

67-7

136 15576

T6-1300-197-125

check valve kit, b-solenoid valve

1

“

67-8

136 15357

T6-1300-197-119

valve assembly, complete, b-solenoid

1

“

67-

136 15432

T6-1300-197-169

seal kit, b-solenoid valve (note 1)

1

“

67-9

136 15430

T6-1300-197-123

coil, c-solenoid (green wire)

1

“

67-10

136 15381

T6-1300-197-124

cartridge, c-solenoid valve

1

“

67-11

136 15358

T6-1300-197-122

valve assembly, complete, c-solenoid

1

“

67-

136 15433

T6-1300-197-166

seal kit, c-solenoid valve (note 1)

1

“

67-12

136 15659

T6-1300-197-90A

coil, a-solenoid (black wire)

1

Note 2

136 15392

T6-1300-197-90B

coil, a-solenoid (black wire)

1

Note 3

67-13

136 15660

T6-1300-197-91A

cartridge, a-solenoid valve

1

Note 2

136 15393

T6-1300-197-91B

cartridge, a-solenoid valve

1

Note 3

67-14

136 15661

T6-1300-197-89A

valve assembly, complete, a-solenoid

1

Note 2

127 D52

T6-8013-201

brake pads kit, organic

2

“

22 AS-781

T6-8013-111

brake pads kit

2

128-2116

127 D11

T6-8003-105

brake pads kit

2

001-127

136 15356

T6-1300-197-89B

valve assembly, complete, a-solenoid

1

Note 3

67-

136 15431

T6-1300-197-49

seal kit, a-solenoid valve (note 1)

1

“

1. Master seal kit T6-1300-197-170 includes solenoid valve seal kits T6-1300-197-169, T6-1300-197-166 and

T6-1300-197-149, 1/4-inch O-ring T6-1300-197-82 (item 17) and 9/16-inch T6-1300-197-118 (item 20), as
well as various other seals used in the hydraulic pump and lifting ram.

2. Used with later style A-solenoid valves having a 9/16-inch valve stem.
3. Used with early style A-solenoid valves having a 3/8-inch valve stem.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 234

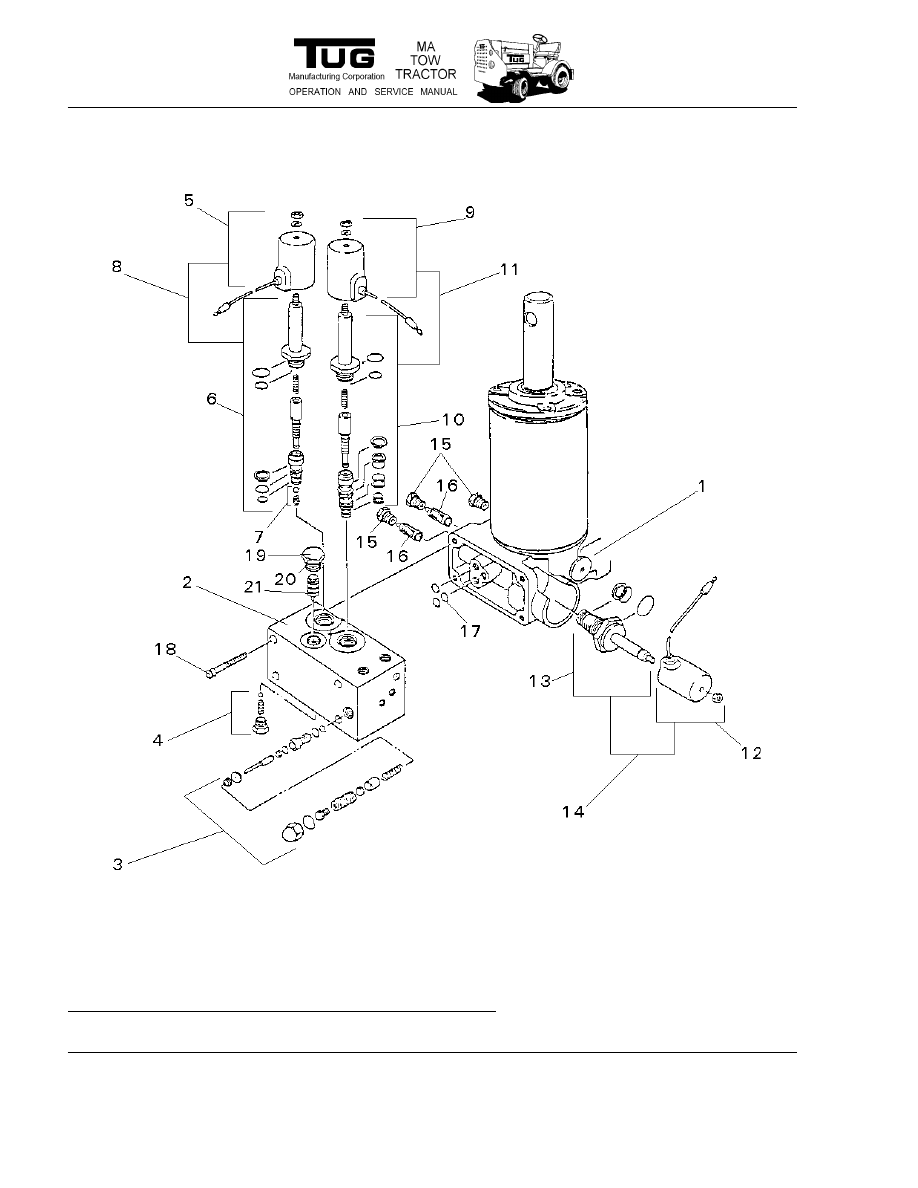

Figure 67: Snow Plow Electro-Hydraulic Controls Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 235

67-15

136 21827

T6-1300-197-85A

plug with o-ring, 1/2" (note 4)

Ref. As Req’d

136 21999

T6-1300-197-85B

plug with o-ring, 9/16" (note 5)

Ref.

“

67-16

136 15619

T6-1300-197-84

filter (note 4, 5)

2

“

67-

136 15620

T6-1300-197-83A

filter kit, 1/2" (note 4)

2

“

136 15641

T6-1300-197-83B

filter kit, 9/16" (note 5)

2

“

67-17

136 15122

T6-1300-197-82

o-ring, 1/4" i.d. (note 1)

3

“

67-18 —— ----------------

5/16-18NCX1-1/2"

socket head cap screw

4

“

67-19

136 15359

T6-1300-197-117

plug, valve block (note 6)

1

“

67-20

136 15126

T6-1300-197-118

o-ring, 9/16" i.d.      (notes 1, 6)

1

“

67-21

136 15609

T6-1300-197-116

piston

1

“

67-

136 15370

T6-1300-197-23

starter solenoid, hydraulic pump

1

“

67-

136 22092

T6-1300-197-20

switch, 4-way, lift/angle (note 7)

1

“

136 21918

T6-1300-197-31

lift switch (note 7)

1

“

136 21919

T6-1300-197-32

angle switch (note 7)

1

“

67-

136 15680

T6-1300-197-22A

wire harness, single lever switch (note 7)

1

“

136 15478

T6-1300-197-22

wire harness, dual lever switch (note 7)

1

“

67-

136 15671

T6-1300-197-29

cable, starter solenoid to hydraulic pump, 63", red (note 8)

1

As Req’d

67-

136 15672

T6-1300-197-30

ground cable, 42", black (note 8)

1

“

67-

136 O5024

T6-1300-197-29A

power cable, battery to starter solenoid, 36" (note 8)

1

“

----- ----------------

T6-1300-197

Snow Plow Kits

Ref

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Master seal kit T6-1300-197-170 includes solenoid valve seal kits T6-1300-197-169, T6-1300-197-166 and

T6-1300-197-149, 1/4-inch O-ring T6-1300-197-82 (item 17) and 9/16-inch T6-1300-197-118 (item 20), as
well as various other seals used in the hydraulic pump and lifting ram.

2. Used with later style A-solenoid valves having a 9/16-inch valve stem.
3. Used with early style A-solenoid valves having a 3/8-inch valve stem.
4. 1/2-inch filter kit T6-1300-197-83A includes 1/2-inch plug with O-ring T6-1300-197-85A and filter T6-1300-

197-84 (item 16).

5. 9/16-inch filter kit T6-1300-197-83B includes 9/16-inch plug with O-ring T6-1300-197-85B and filter T6-

1300-197-84 (item 16).

6. Valve block plug T6-1300-197-117 (item 19) includes 9/16-inch O-ring T6-1300-197-118 (item 20).
7. 4-way switch T6-1300-197-33 replaces both switches T6-1300-197-31 and T6-1300-197-32 on later model

tractors equipped with snow plow.

8. Cable length may vary slightly.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 236

(This Page Intentionally Left Blank)
