Model MA TOW Tractor. Manual - part 85

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 225

64-

—— ----------------

T6-1300-197

snow plow assembly, complete

1

As Req’d

64-1

—— ----------------

T6-1300-197-1

moldboard, 78" (note 1)

1

“

64-2

136 O9131

T6-1300-197-2

cutting edge, 78" (note 1)

1

“

64-3

—— 08184

T6-1300-197-3

hex head bolt (note 1)

10

“

64-4

—— ----------------

1/2-13NC

locknut (notes 1, 2)

12

“

64-5

136 12493

T6-1300-197-4

runner and spindle assembly (notes 1, 2)

2

“

64-6

136 O7006

T6-1300-197-5

runner (note 2)

2

“

64-7

136 12057

T6-1300-197-6

spindle (note 2)

2

“

64-8

—— ----------------

1/2-13NCX3"

hex head bolt (note 2)

2

“

64-9

—— ----------------

1-1/4

flat washer (note 2)

Ref.

“

64-10

136 22083

T6-1300-197-8

linch pin (note 2)

2

“

64-11

136 12326

T6-1300-197-17

sector

1

“

64-12

136 O9119

T6-1300-197-11

pivot pin (note 3)

2

“

64-13 —— ----------------

3/16X3"

cotter pin (note 3)

2

“

64-14

136 12149

T6-1300-197-200

pivot pipe (note 1)

2

“

64-15

136 O7141

T6-1300-197-201

washer, reinforcing     (note 1)

2

“

64-16

136 O7017

T6-1300-197-13

trip spring

2

“

64-17 —— ----------------

T6-1300-197-12

eye bolt

2

“

64-18 —— ----------------

5/8-11NC

locknut

9

“

64-19

136 13299

T6-1300-197-164

a-frame

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Note:tractors equipped with snow plow must be equipped with a 70 amp alternator.

1. Moldboard T6-1300-197-1 (item 1) includes cutting edge T6-1300-197-2 (item 2), 1/2-13NCx2" hex head bolts and

locknuts for cutting edge mounting (items 3 and 4), runner and spindle assembly T6-1300-197-4 (item 5), pivot pipe

T6-1300-197-200 (item 14) and reinforcing washer T6-1300-197-201 (item 15).

2. Runner and spindle assembly T6-1300-197-4 (item 5) includes runner T6-1300-195-5 (item 6), spindle T6-1300-197-

6 (item 7), 1/2-13NCx3" hex head bolt with locknut (items 8 and 4), 1-1/4" flat washers (item 9) and linch pin T6-1300-

197-8 (item 10).

3. Pivot pin T6-1300-197-11 (item 12) includes 3/16 x 3" pivot pin (item 13).

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 226

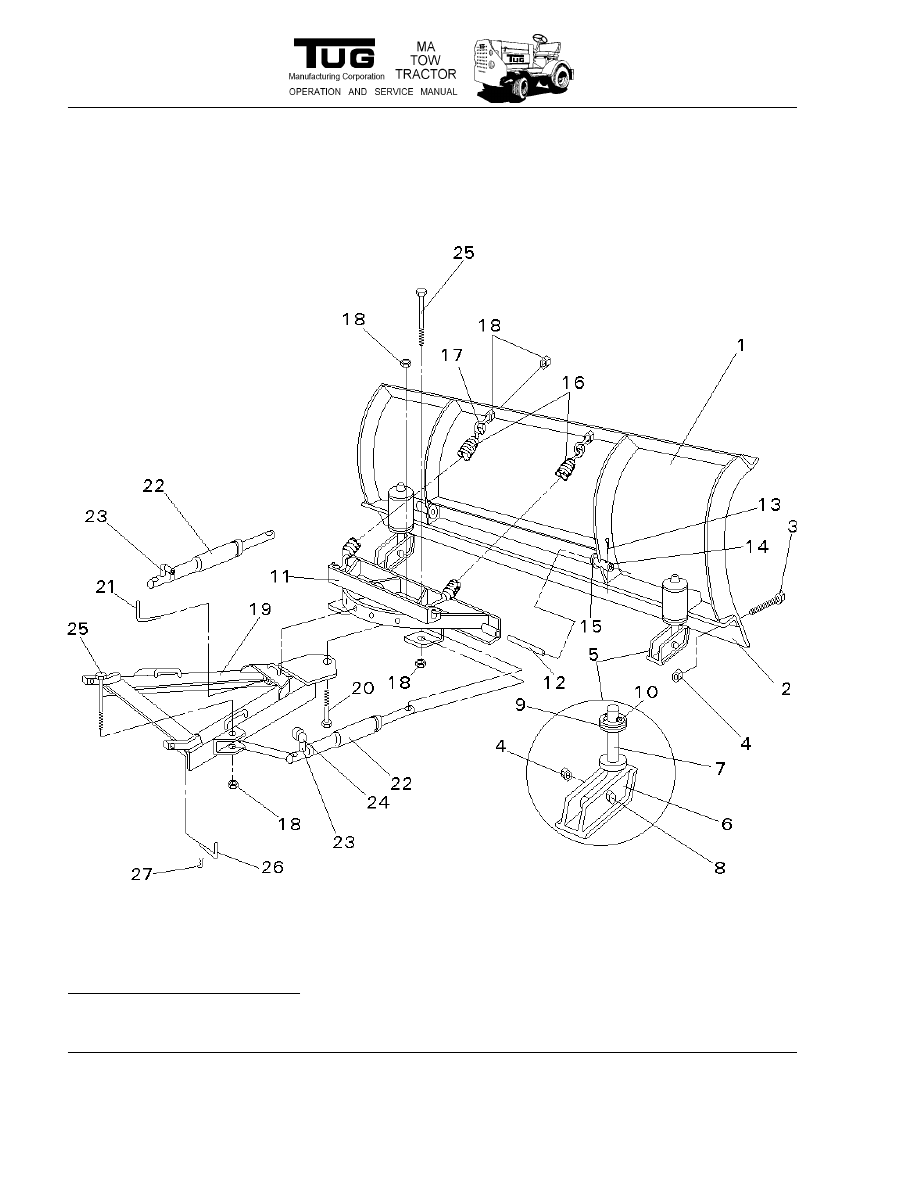

Figure 64: Snow Plow Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 227

64-20 —— ----------------

5/8-11NCX2-3/4"

hex head bolt

1

“

64-21

136 13003

T6-1300-197-15

sector pin

1

“

64-22

136 O5810

T6-1300-197-25A

ram, angling, without fittings (notes 4, 5)

2

“

64-

—— ----------------

T6-1300-197-25

ram, angling, with fittings, rH (note 4)

1

“

64-

—— ----------------

T6-1300-197-24

ram, angling, with fittings, lH  (note 5)

1

“

64-23

136 21855

T6-1300-197-26

swivel, e-11, 1/4x90° (notes 4, 5)

2

“

64-24

136 15072

T6-1300-197-28

coupler, 1/4", RH angling ram (notes 4, 6)

1

“

64-

136 21856

T6-1300-197-27

hose assembly, angling ram, 1/4"x45"       (notes 4, 5)

2

“

64-25 —— ----------------

5/8-11NCX3-1/4"

hex head bolt

4

“

64-26

136 11006

T6-1300-197-16

hinge pin (note 7)

2

“

64-27

136 21984

T6-1300-197-16A

spring clip (note 7)

2

“

64-

136 10514

T6-1300-197-47

lift arm

1

“

64-

136 14618

T6-1300-197-202

lower support, a-frame, bumper mount

1

“

64-

136 O4580

T6-1300-197-203

upper mount, power unit, bumper mount

2

“

64-

136 O7831

T6-1300-197-204

seal kit, angling ram

2

Note 8

64-

136 O7705

T6-1300-197-205

seal kit, angling ram

2

Note 9

64-

136 O7832

T6-1300-197-206

gland nut, angling ram

2

Note 8

64-

136 O7805

T6-1300-197-207

gland nut, angling ram

2

Note 9

64-

136 O7773

T6-1300-197-208

guide ring, split

2

Note 9

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Note: tractors equipped with snow plow must be equipped with a 70 amp alternator.

4. Right hand angling ram with fittings T6-1300-197-25 includes angling ram T6-1300-197-25A (item 22), 1/4-inch 90°

swivel E-11 T6-1300-197-26 (item 23), 1/4-inch coupler T6-1300-197-28 (item 24) and 1/4-inch x 45-inch hose T6-

1300-197-27.

5. Left hand angling ram with fittings T6-1300-197-24 includes angling ram T6-1300-197-25A (item22), 1/4-inch 90°

swivel E-11 T6-1300-197-26 (item 23) and 1/4-inch x 45-inch hose T6-1300-197-27.

6. 1/4-inch coupler T6-1300-197-28 (item 24) includes male and female halves.

7. HInge pin T6-1300-197-16 (item 26) includes spring clip T6-1300-197-16A (item 27).

8. Seal kit T6-1033-204 and gland nut T6-1300-197-206 are used on angling ram with “M” or “MRM” manufacturing

code stamped on the end of the ram. These rams do not have split guide rings.

9. Seal kit T6-1033-205, gland nut T6-1300-197-207 and split guide ring T6-1300-197-208 are used on angling ram

with a split guide ring symbol manufacturing code stamped on the end of the ram.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 228

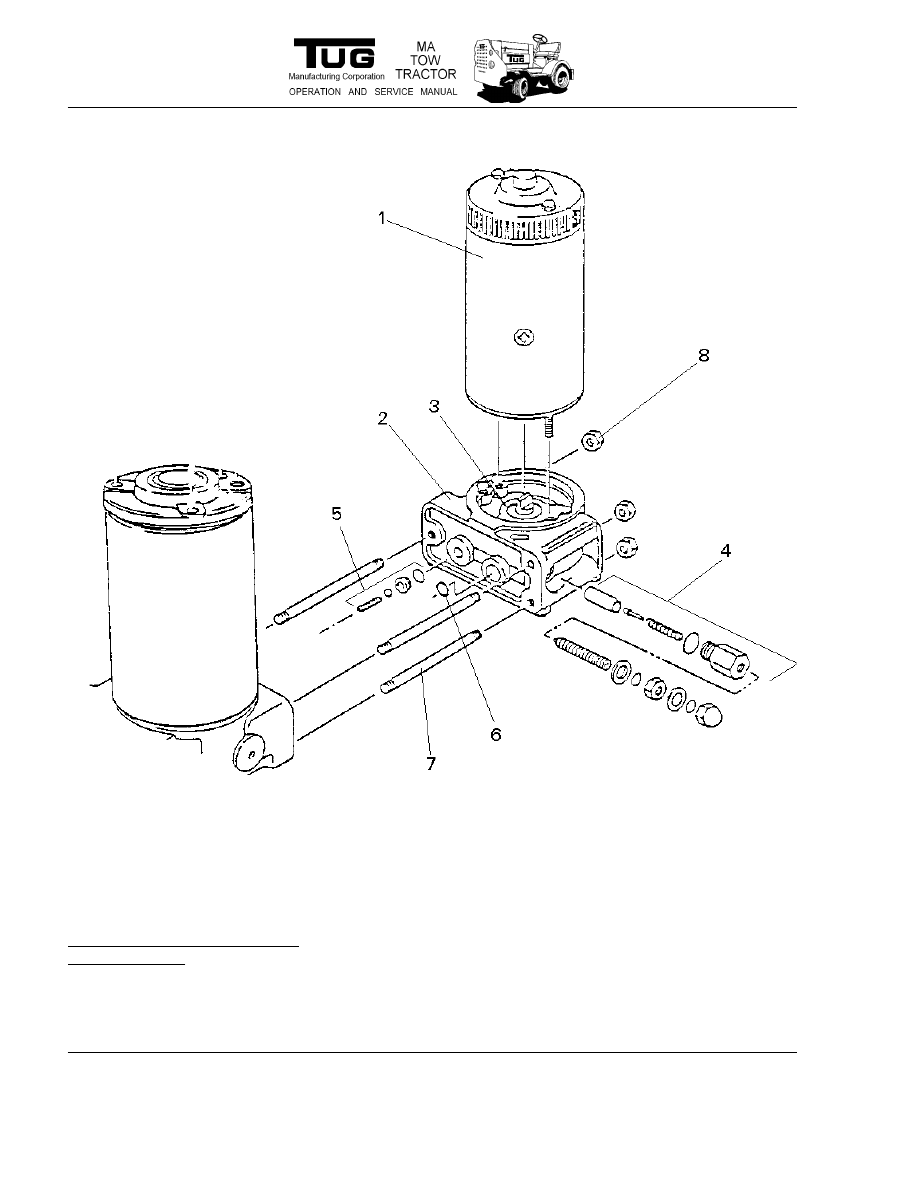

Figure 65: Snow Plow Hydraulic
Pump Assembly
