Model MA TOW Tractor. Manual - part 84

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 221

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

63-10

210 10374-16

T6-9003-302

latch mechanism, rH door

1

3732 & Up

283 58ZNRH

T6-9003-108

latch mechanism, rH door

1

001-3731

63-

210 11443-16

T6-9003-301

latch mechanism, lH door

1

3732 & Up

283 57ZNLH

T6-9003-107

latch mechanism, lH door

1

001-3731

63-11 —— ----------------

1/4-20NCX1-1/2"

hex head bolt

4

3732 & Up

63-

—— ----------------

1/4-20NC

locknut, nylon insert, latch mechanism

4

“

63-12

283 GD303

T6-9003-105

door handle, outside

2

001 & Up

63-13 —— ----------------

#10-32NFX3/4"

screw

4

“

63-

—— ----------------

#10-32NF

locknut, nylon insert, door handle

4

“

63-14 —— ----------------

T6-9003-133

latch operator (note 3)

2

001 & Up

63-

—— ----------------

T6-9003-307

spacer, latch lever     (note 3)

2

001-3731

63-15 —— ----------------

T6-9003-309

retainer, door handle

2

001 & Up

63-16 —— ----------------

CMA-321

rod, door handle linkage (note 3)

2

3732 & Up

—— ----------------

T6-9003-135

rod door handle linkage

2

001-3731

63-17 —— ----------------

1/4-20NC

locknut (note 3)

2

3732 & Up

—— ----------------

T6-9003-311

retainer, door handle linkage rod (note 3)

2

001-3731

63-18 —— ----------------

CMA-320

door handle, inside (note 3)

2

3732 & Up

283 74ZN

T6-9003-127

door handle, inside (note 3)

2

001-3731

—— ----------------

CMA-323

door handle, RH inside, spoon handle (note 4)

1

As Req’d

63-

—— ----------------

CMA-322

door handle, lH inside, spoon handle (note 4)

1

“

63-19 —— ----------------

3/8-16NCX2-3/4"

hex head bolt (note 3)

2

3732 & Up

63-20

62 SF1216-4

CMA-604

bushing, inside door handle (note 3)

4

“

63-21 —— ----------------

1/2

flat washer (note 3)

2

“

63-22 —— ----------------

3/8-16NC

locknut, nylon insert   (note 3)

2

“

63-23

241 325-89

CMA-609

grip, handle (note 3)

2

“

63-24 —— ----------------

CMH-300

cover plate, door handle, inside (note 3)

2

“

3. Used on units with inside door handle located at center of door.

4. Used on units with inside door handle located at rear of door.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 222

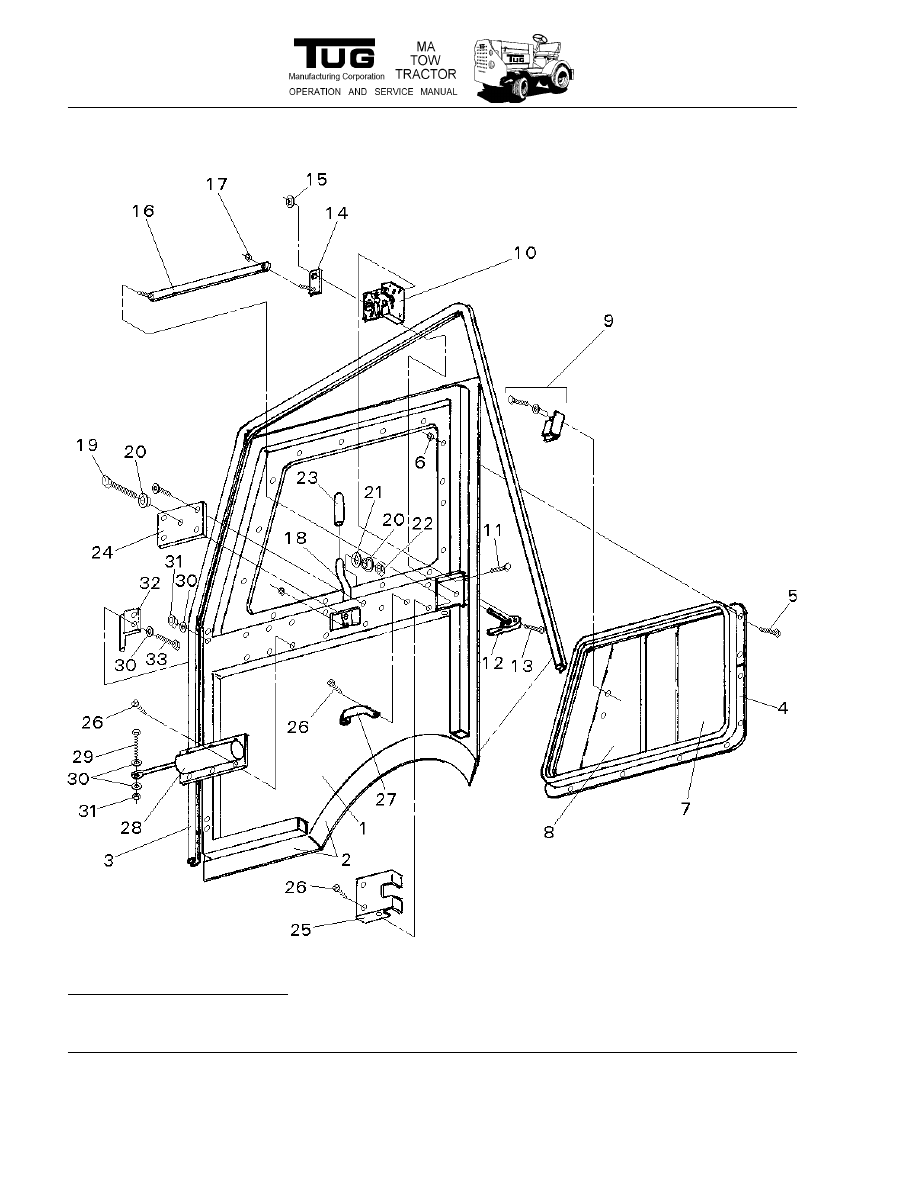

Figure 63: Cab Door Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 223

63-25 —— ----------------

CMA-118

cover plate, door latch mechanism

2

001 & Up

63-26 —— ----------------

3/8X3/4"

sheet metal screw

Ref.

“

63-

210 10795-16

T6-9003-303

striker bolt, cab door

2

001 & Up

63-

—— ----------------

CMH-316

plate, striker bolt

2

“

63-27 —— ----------------

T6-4005-109

grab handle, no arm rest

2

As Req’d

—— ----------------

T6-9003-190

grab handle, with arm rest, rH

1

“

63-

—— ----------------

T6-9003-189

grab handle, with arm rest, lH

1

“

63-28 —— ----------------

T6-9003-313

door stop assembly, spring and tube type

2

As Req’d

—— ----------------

T6-9003-182

door stop assembly, rH, sliding rod type (note 5)

1

“

63-

—— ----------------

T6-9003-181

door stop assembly, lH, sliding rod type (note 5)

1

“

63-

—— ----------------

T6-9003-131

sliding rod, sliding rod type door stop (note 5)

2

“

63-29 —— ----------------

3/8-16NCX1-1/2"

hex head bolt

2

001 & Up

63-30 —— ----------------

3/8

flat washer

12

“

63-31 —— ----------------

3/8-16NC

locknut

6

“

63-32 —— ----------------

CMA-123

door hinge, rH, top half

2

“

63-

—— ----------------

CMA-124

door hinge, lH, top half

2

“

63-33 —— ----------------

3/8-16NCX2"

hex head bolt

4

“

63-

603 30-12-18

CMH-410

window, lower, rH door

1

Note 6

63-

283 7500053

T6-9003-165

gasket, window, lower, rH door

Ref.

“

63-

304 712650-7

CMA-605

mirror, west coast type

2

As Req’d

22 7328

T6-9011-347

mirror, 5", round

2

“

22 7040

T6-9011-375

mirror, 5"x10"

2

“

63-

22 4202

T6-9011-376

bracket, 5"x10" mirror

2

“

63-

----- ----------------

T6-9003-302-01

Latch Spring

2

“

63-

----- ----------------

T6-9003-106

UPS Door Strap

2

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

5. Sliding rod type door stop assemblies T6-9003-182 (right hand) and T6-9003-181 (left hand), include

slotted bracket, spring and tongue catch, but do not include sliding rod T6-9003-135.

6. Used in right hand door T6-9003-148FE for tractors with side hitch.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 224

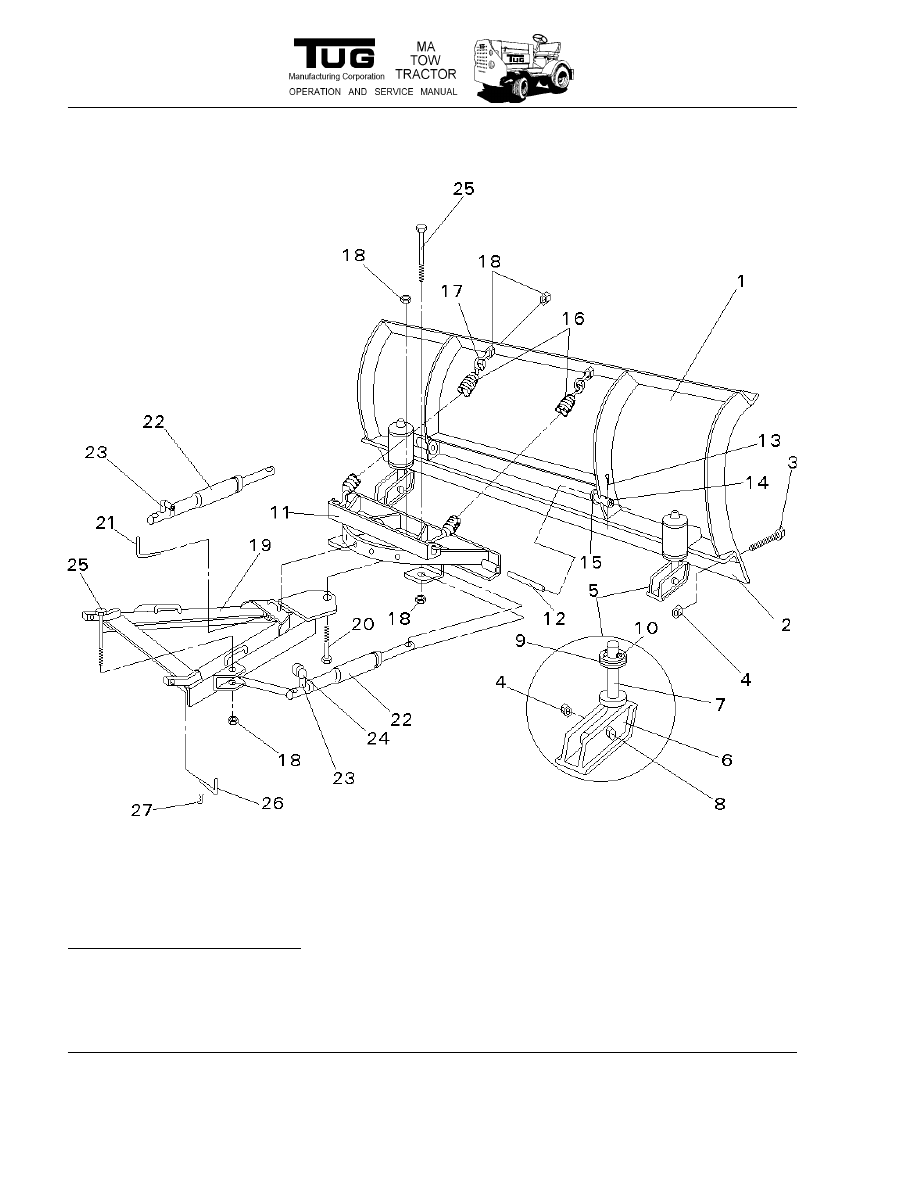

Figure 64: Snow Plow Assembly
