Model MA TOW Tractor. Manual - part 83

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 217

—— ----------------

T6-7010-333SA

wiring harness, cab, multiple connectors

1

As Req’d

62-

16 2281

T6-9011-237

grommet, wiring

Ref.

Note 2

62-

—— ----------------

T6-1300-321

wire cover, tail light wire

2

As Req’d

62-46

210 10339-16

T6-9003-303

striker bolt, cab door

2

Note 3

62-47 —— ----------------

3/8

flat washer

Ref.

“

62-48 —— ----------------

CMH-316

plate, striker bolt

2

“

62-

—— ----------------

T6-9003-148

door, rH, without side hitch

1

Note 3

—— ----------------

T6-9003-148FE

door, rH, with side hitch

1

“

62-

—— ----------------

T6-9003-147

door, lH

1

“

62-

304 712650-7

CMA-605

mirror, west coast type

2

As Req’d

22 7328

T6-9011-347

mirror, 5", round

2

“

22 7040

T6-9011-375

mirror, 5"x10"

2

“

62-

22 4202

T6-9011-376

bracket, 5"x10" mirror

2

“

62-

317 2057C003C

T6-9004-103

heater, 12-volt

1

“

—— ----------------

T6-9004-103GER

heater, 12-volt, Padded

1

“

62-

317 TC101036

T6-9004-103-1A

core, heater, amfab

1

“

178 800-2

T6-9004-103-1

core, heater, sGM

1

“

62-

317 TC140009

T6-9004-103-2A

motor, heater, amfab

1

“

178 1800-009

T6-9004-103-2

motor, heater, sGM

1

“

62-

317 TC19002

T6-9004-103-3A

fan, heater, amfab

1

“

178 PC-1000-3

T6-9004-103-3

fan, heater, sGM

1

“

62-

239 3200-12

T6-9011-105

fan, cab ventilation

1

“

62-

297 305A

T6-1300-251

strobe light, amber

1

“

118 876-3101

T6-1300-223

beacon, flashing, amber

1

“

62-

—— ----------------

T6-9011-332

grab handle

Ref.

“

62-

—— ----------------

T6-9011-340

turn signal box, roof mount

2

“

62-

—— ----------------

CMA-213

removeable panel, inside front, left

1

“

62-

—— ----------------

CMA-215

removeable panel, inside, front, right

1

“

62-

—— ----------------

CMA-219

removeable panel, outside, front

1

“

----- ----------------

MH-ND-442

Mirror, Inside

1

“

----- ----------------

CMA-607

Defroster Hose

1

“

----- ----------------

T6-1300-251

Strobe

1

“

----- ----------------

T6-9011-391

Rotating

1

“

----- ----------------

T6-1300-251B

Rotating Blue

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 218

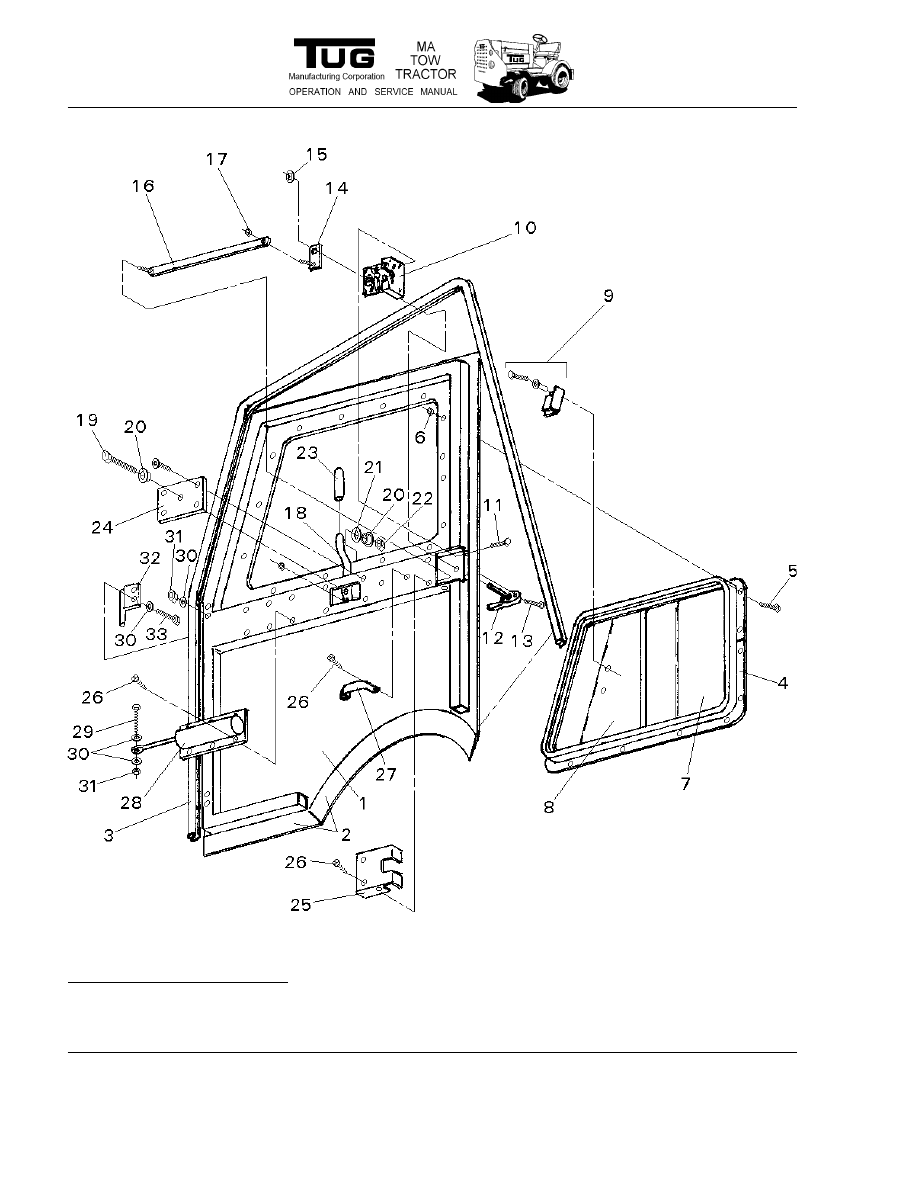

Figure 63: Cab Door Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 219

63-1

—— ----------------

T6-9003-148

door, rH, without side hitch

1

As Req’d

—— ----------------

T6-9003-148FE

door, rH, with side hitch

1

“

63-

—— ----------------

T6-9003-147

door, lH

1

001 & Up

63-2

—— ----------------

CMA-507

door seal, bottom

2

“

63-3

862 75001362

CMA-504

door seal, rubber bead

Ref.

“

63-

----- ----------------

T6-4006-113

Trim, UPS

Ref

As Req’d

63-

----- ----------------

T6-9003-153

Foam Strip, Rear

Ref.

“

63-4

----- 10000978RO

CMA-404

window assembly, aluminum frame, rh complete (note 1)

1

As Req’d

 283 75000601

T6-9003-169

window frame, rubber (note 1)

Ref.

“

283 75000047

T6-9003-173

channel, sliding window, rubber frame (note 1)

2

“

283 AS-1524-61

T6-9003-175

spacer, rubber, rubber frame window (note 1)

Ref.

“

283 75000687

T6-9003-177

filler strip, rubber window frame (note 1)

Ref.

“

283 75000026

T6-9003-179

sealer, fixed window, rubber frame (note 1)

Ref.

“

63-5

—— ----------------

#8-32NFX1/2"

screw, aluminum frame window

Ref.

“

63-6

—— ----------------

#8-32NF

locknut, nylon insert

Ref.

“

63-7

----- 181903

CMA-402

STATIONARY GLASS, ALUMINUM FRAME WINDOW

2

Note 2

273 30-21-13

CMA-402TP

STATIONARY GLASS, ALUMINUM FRAME WINDOW

2

“

----- 30-21-13

T6-9003-113

stationary glass, rubber frame

2

As Req’d

63-8

----- 181904

CMA-401

Sliding GLASS, ALUMINUM FRAME WINDOW

2

Note 2

339 ESK-1576A

CMA-401TP

Sliding GLASS, ALUMINUM FRAME WINDOW

2

“

273 30-21-15

T6-9003-115

sliding glass, rubber frame

2

As Req’d

63-9

—— ----------------

CMA-406

latch kit, 3-1/2" base, 2-7/16" hole centers, aluminum window 2

Note 2

—— ----------------

CMA-406TP

latch kit, 3-3/4" base, 3" hole centers, aluminum window

2

“

396 32S00002

T6-9003-117

knob, sliding window, rubber frame

2

As Req’d

63-

16 2558

T6-9003-171

rubber grommet, sliding window knob, rubber frame

2

“

63-

—— ----------------

5/16-18NCX3/4"

truss head bolt

2

“

63-

339 ESK-1576A

CMA-401TP

window assembly, lH complete (note 1)

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Aluminum frame window assemblies CMA-404 (right hand) and CMA-403 (left hand) are recommended for

replacement of rubber frame window arrangements used on early tractors. Rubber frame windows can be

replaced with aluminum frame windows with light drilling and no cutting.

2. Stationary glass CMA-402, sliding glass CMA-401 and window latch CMA-406 are applicable to aluminum

frame windows with latch mounting holes on 2-7/16-inch centers and 3-1/2-inch window latch base.

Stationary glass CMA-402TP, sliding glass CMA-401TP and window latch CMA-406TP are applicable to

aluminum frame windows with latch mounting holes on 3-inch centers and 3-3/4-inch window latch base.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 220

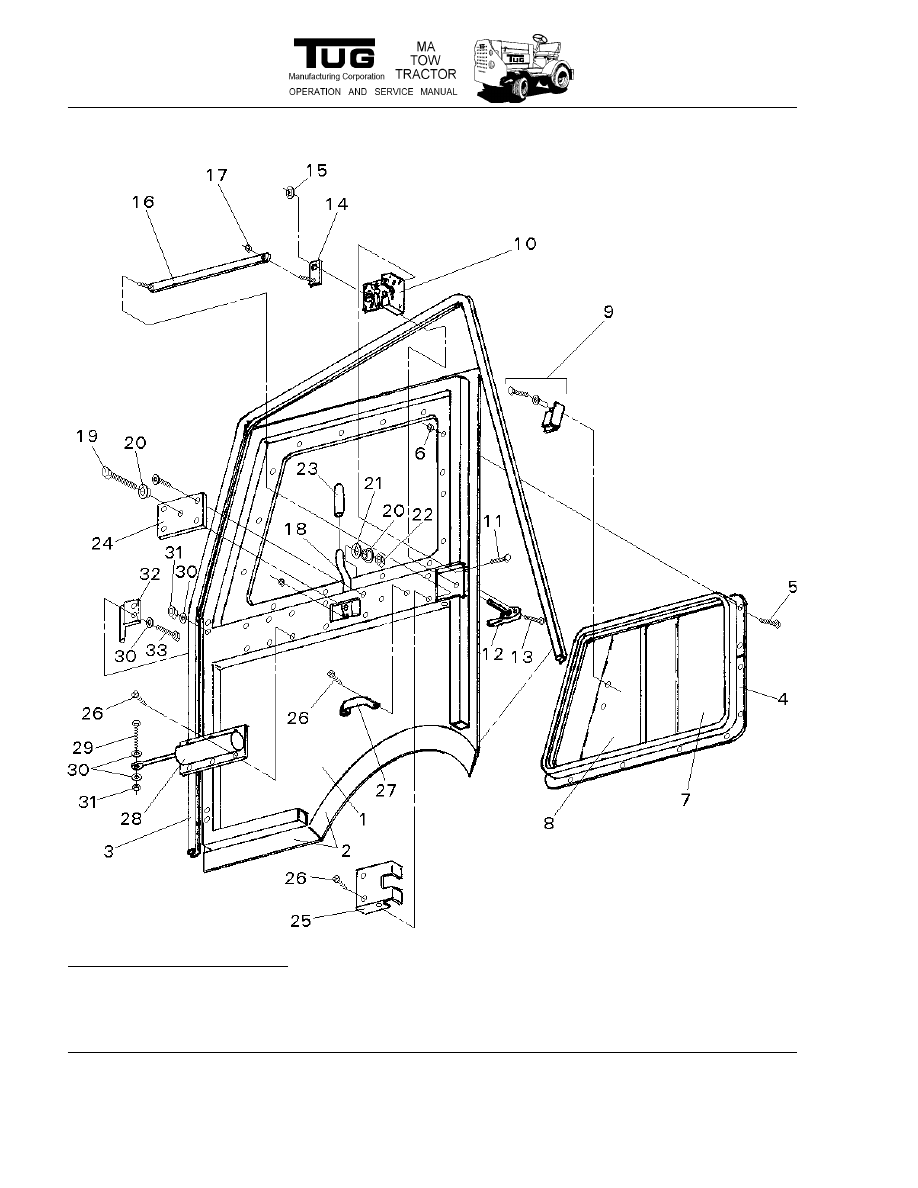

Figure 63: Cab Door Assembly
