Index Tractors Model MA-30, MA-40, MA-50, MA-60, MA-70, MA-80 TOW Tractor - service manual 1995 year
|
|

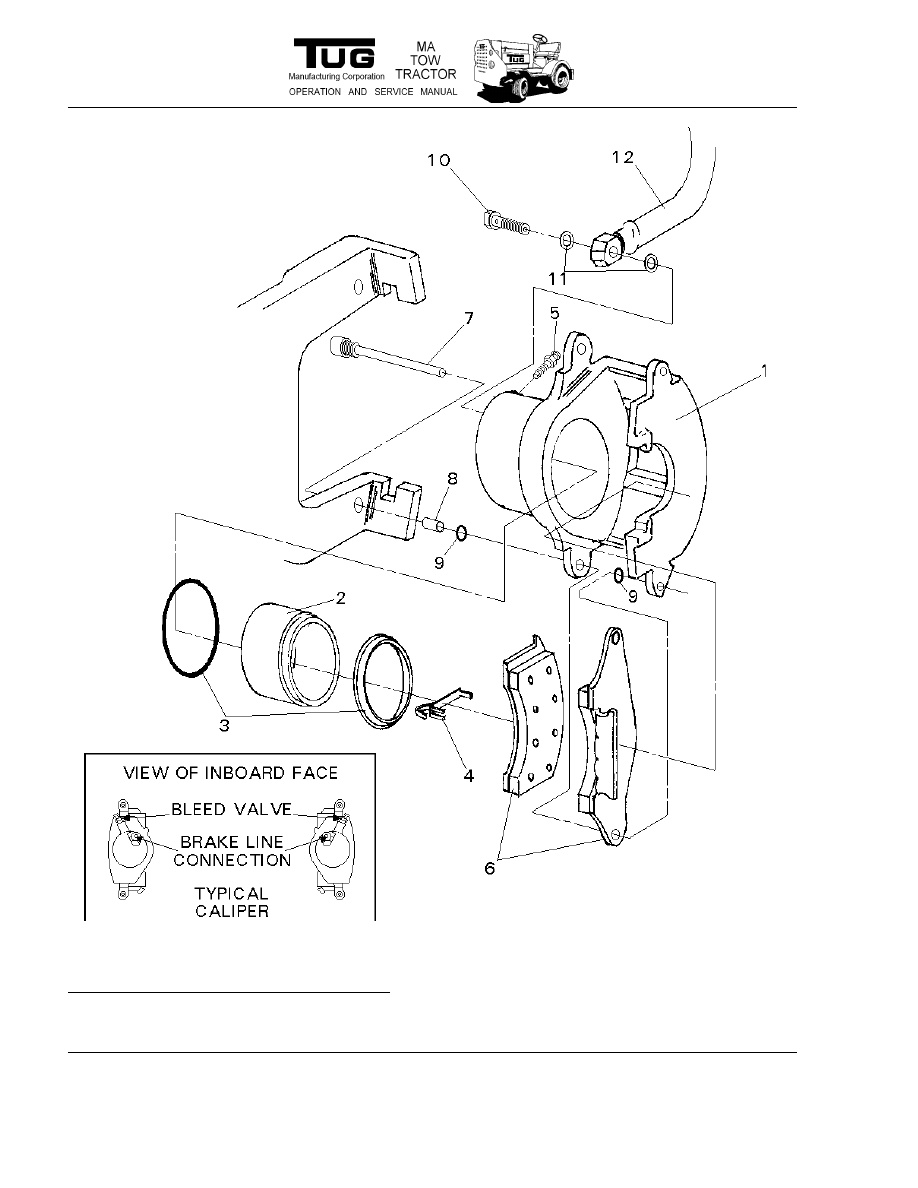

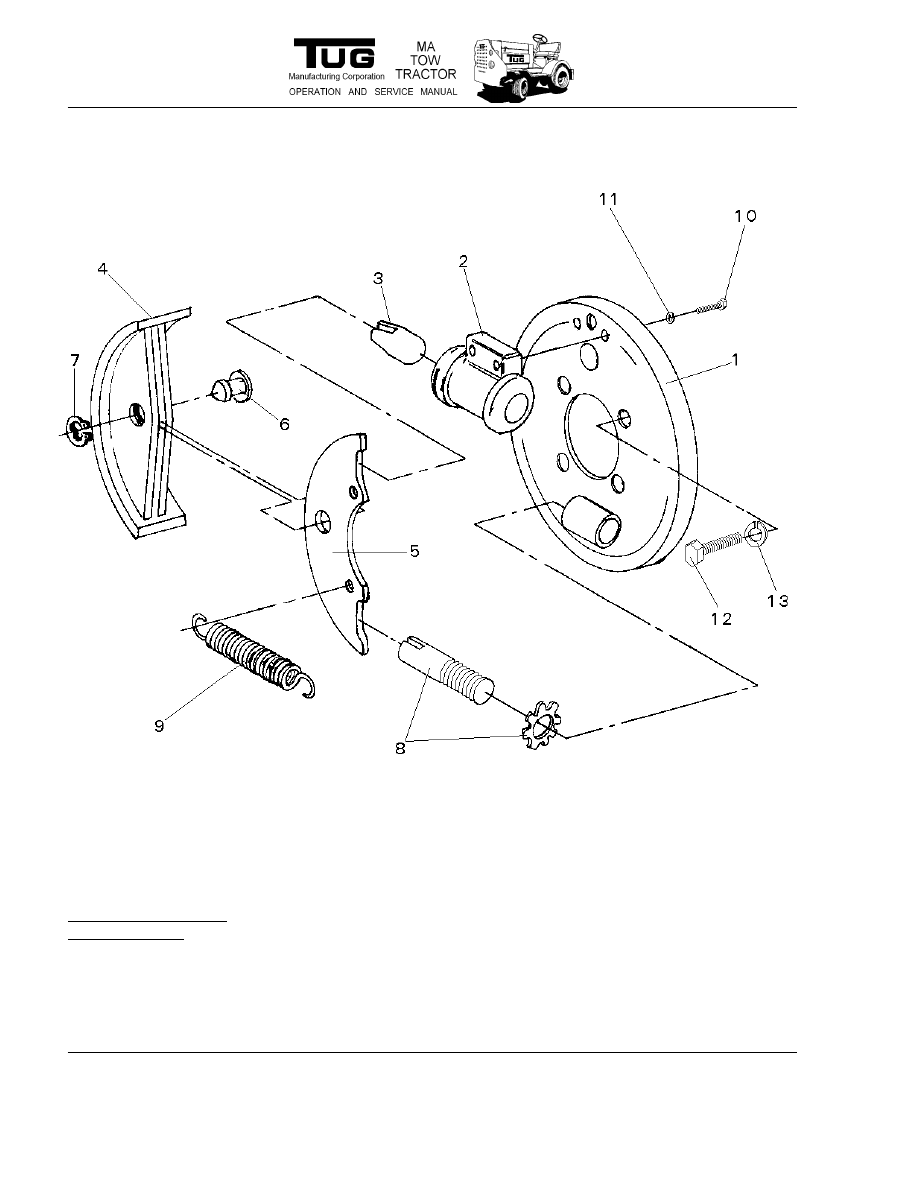

Chapter 4: Illustrated Parts List Jan. 1997 Section 4-2 p. 177 Note: original equipment rear disc brake calipers on units through serial number 127 are no longer available. replacement of rear disc brake calipers on these units requires retrofitting to new configuration using disc brake change over kit t6-8013-501. Note: Quantities given are for four-caliper rear disc brake systems. for two-caliper rear disc brake systems, actual quantities for calipers and associated equipment is half the indicated quantity. 1. Calipers are installed such that the bleed valve and brake line connection are inboard and the bleed valve points upward (see insert in FIGURE 49). On four-caliper rear disc brake systems, the forward, right hand caliper is interchangeable with the aft, left hand caliper and the forward, left hand caliper is inter-changeable with the aft, right hand caliper. On two-caliper rear disc brake systems, the two calipers are NOT interchangeable. 2. Complete caliper assembly includes caliper, piston, seal, boot and mounting bolt sleeves and bushings as applicable 49-1 625 631063 L T6-8013-144 caliper assembly, RH fwd or LH rear (notes 1,2) 2 2117 & Up 127 R55109 T6-8013-103 caliper housing, RH fwd or LH rear (note 1) 2 128-2116 —— ---------------- T6-8013-103K caliper assembly, RH fwd or LH rear (notes 1,2) 2 “ 49- 625 631064 R T6-8013-146 caliper assembly, LH fwd or RH rear (notes 1,2) 2 2117 & Up 127 R55108 T6-8013-104 caliper housing, LH fwd or RH rear (note 1) 2 128-2116 —— ---------------- T6-8013-104K caliper assembly, LH fwd or RH rear (notes 1,2) 2 “ 49- ------ ---------------- T6-8013-181 caliper assembly, LH rear 1 8507 & Up 49- ------ ---------------- T6-8013-183 caliper assembly, RH rear 1 8507 & Up 49-2 9 180128880 T6-8013-157 piston 4 2117 & Up 127 WA-0277-1 T6-8013-117 piston 4 128-2116 22 85103 T6-8003-115 piston, dual piston calipers 8 001-127 49-3 22 524 T6-8013-153 piston seal and caliper boot kit 4 2117 & Up 127 66851 T6-8013-115 piston seal and caliper boot kit 4 128-2116 127 F59179 T6-8003-117 piston seal and caliper boot kit 4 001-127 49-4 22 82309 T6-8013-169 retainer, inboard brake pad 4 2117 & Up 127 13105 T6-8003-107 brake pad retainer clip with bolt and lock washer 4 001-127 49- 127 H5411 T6-8013-113 clip, anti-rattle 4 128-2116 49- ----- ---------------- T6-8013-131 Clip and Grommet Kit 1 “ 49-5 22 22660 T6-8013-165 bleed valve 4 2117 & Up 22 6858 T6-8013-109 bleed valve 4 128-2116 49- 22 77706 T6-8003-109 cross over line, dual piston caliper, RH fwd or lH aft (note 1) 2 001-127 49- 22 77705 T6-8003-110 cross over line, dual piston caliper, LH fwd or RH aft (note 1) 2 “ 49-6 22 MAS-728A T6-8013-149 brake pads kit, non-organic 2 2117 & Up Fig & Co Vendor Part Tug Part Number Description Qty Effective Ind# de Number |
