Model MA TOW Tractor. Manual - part 60





Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 125

34-27

110 36155154

-----------------

adjusting arm, alternator, perkins engine

1

As Req'd

34-28

110 38164125

-----------------

Alternator bracket, perkins engine

1

"

34-29

127 17510

T6-1200-147

water pump/alternator belt

1

"

34-30

110 2184545

-----------------

hex head bolt

1

"

34-31

----- ----------------

3/8

flat washer

Ref.

"

34-32

----- ----------------

T6-9011-363

spacer

1

"

34-33

110 2211224

-----------------

locknut

1

"

34-34

110 2314h003

-----------------

hex head bolt

1

"

34-35

----- ----------------

5/16

lock washer

1

"

34-36

----- ----------------

5/16

flat washer

1

"

34-37

110 33245408

-----------------

spacer

1

"

34-38

110 o096434

-----------------

hex head bolt

1

"

34-39

110 o920054

-----------------

lock washer

3

"

34-40

110 2217161

-----------------

stud

2

"

34-41

110 o920004

-----------------

flat washer

2

"

34-42

110 o576051

-----------------

nut

2

"

34-43

388 40-2505580

-----------------

Alternator assembly, hercules engine

1

"

34-44

----- ----------------

T6-7200-055

mounting bracket, alternator, hercules engine

1

"

34-45

----- ----------------

T6-7200-050

adjusting arm, alternator, hercules engine

1

"

34-46

----- ----------------

3/8-16ncx3-1/2"

hex head bolt

1

"

34-47

----- ----------------

3/8-16nc

locknut

1

"

34-48

----- ----------------

5/16-18ncx1-1/4"

hex head bolt

1

"

34-49

----- ----------------

T6-7200-075

water pump/alternator belt, hercules engine

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 126

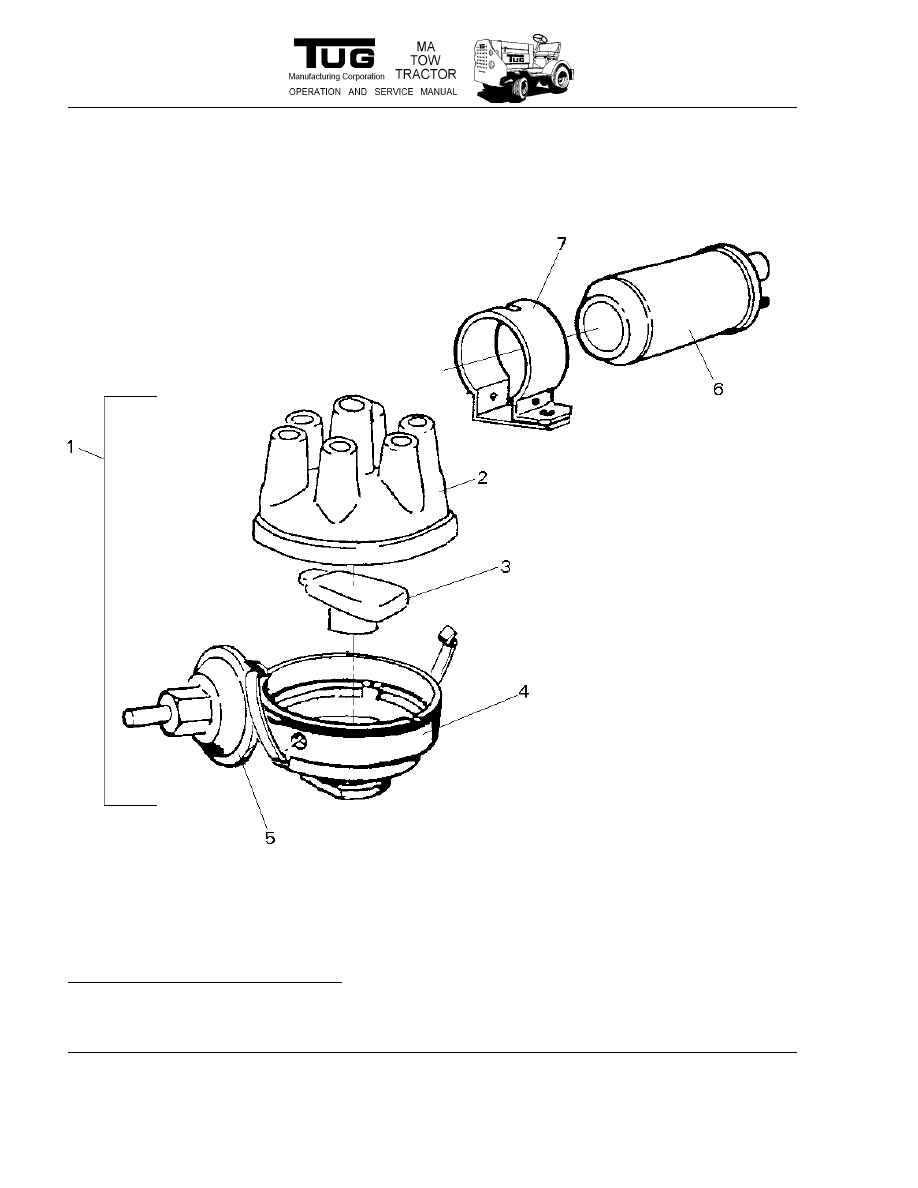

Figure 35: Ignition System Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 127

35-1

79 81402

T6-7022-101

distributor  assembly

1

330 & Up

22 482669

T6-7021-101

distributor assembly

1

206-330

35-2

127 fr121m

T6-7022-103

distributor  cap

1

330 & Up

----- ----------------

T6-7021-115

distributor cap

1

206-330

246 7ha12106

T6-7018-115

distributor cap

1

001-084

35-3

127 fr106m

T6-7022-105

rotor  button

1

330 & Up

22 fa-143

T6-7021-103

rotor button

1

206-330

246 c5tz-12200b

T6-7018-133

rotor button

1

085-163

246 c5tz-12208

T6-7018-103

rotor button

1

001-084

35-4

----- ----------------

T6-7022-107

distributor  housing

1

330 & Up

246 d3bz-12127b

T6-7018-141

distributor housing

1

164-205

246 d3uz-12127b

T6-7018-125

distributor housing

1

001-163

35-5

256 d5tz-12370j

T6-7022-109

diaphragm  assembly,  distributor

1

330 & Up

35-6

256 d5az-12029a

T6-7014-101

ignition coil

1

"

35-7

256 b85-12043

-----------------

ignition coil strap

1

"

35-

22 mp-702

T6-7021-105

reluctor

1

206-330

35-

127 el331

T6-7021-107

plate assembly, magnetic pickup

1

"

35-

256 d9uz-12a199a

-----------------

ignition module

1

330 & Up

35-

256 d7jl-12a200a

T6-1300-127s

electronic ignition harness

1

"

35-

256 bsf-42

-----------------

spark plug

6

"

35-

256 wr4050

-----------------

wire kit (includes spark plug wires and coil wire)

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 128

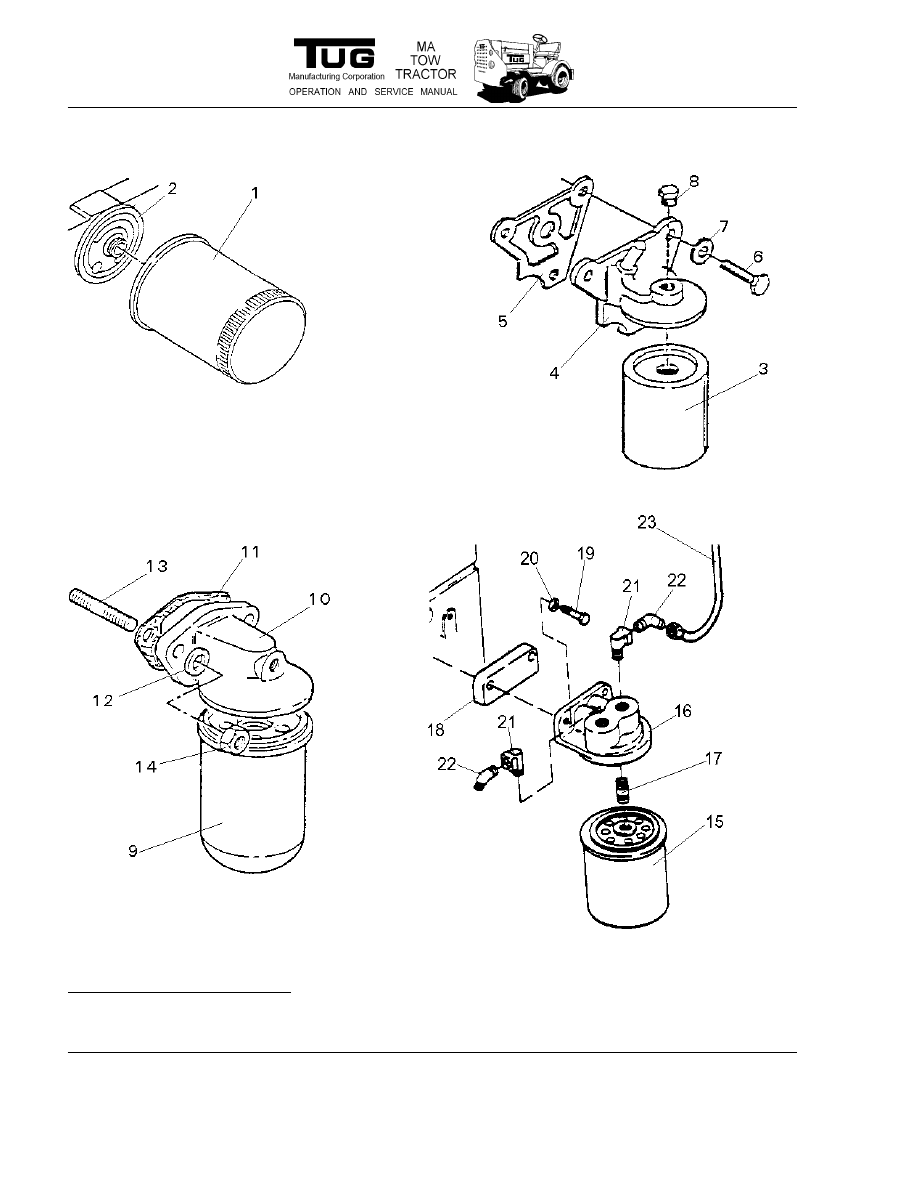

Figure 36: Oil Filter Installation
