Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 121

34-1

22 13-3014

T6-7002-113

alternator, motorcraft, 60a, gasoline engine

1

As Req'd

22 13-3020

T6-7002-117

Alternator, motorcraft, 70a, gasoline engine

1

"

404 1105360

T6-1211-101-1

alternator, delco, 61a, gasoline engine (note 1)

1

"

34-

----- ----------------

T6-9011-359

alternator assy, delco 61a, gasoline eng (note 1)

34-2

246 e5sz-10a310a

-----------------

alternator fan, motorcraft 60a, gasoline engine

1

"

404 gp-496aa

T6-7002-121

alternator fan, motorcraft 70a, gasoline engine

1

"

246 e5sz-10a310a

-----------------

alternator fan, delco 61a, gasoline engine (note 1) 1

"

34-3

246 d2af-10a352aa -----------------

alternator pulley, motorcraft 60a, gasoline engine 1

"

404 gp-484aa

T6-7002-119

alternator pulley, motorcraft 70a, gasoline engine 1

"

246 d2az-10344a

-----------------

alternator pulley, delco 61a, gasoline eng (note 1) 1

"

34-4

256 c5uz-10145a

T6-7002-153

adjusting arm, alternator, 60a/61a, gasoline eng

1

"

----- ----------------

T6-7002-133

adjusting arm, alternator, 70a, gasoline engine

1

"

34-5

246 c5ue-10039a

T6-7002-155

alternator bracket, gasoline engine

1

"

34-6

127 15445

T6-9011-151

water pump/alternator belt, Gasoline engine

Ref.

"

34-7

----- ----------------

7/16-14ncx4-1/4"

hex head bolt

1

"

34-8

----- ----------------

7/16

lock washer

4

"

34-9

----- ----------------

5/16-18ncx3/4"

hex head bolt

2

"

34-10

----- ----------------

5/16

lock washer

2

"

34-11

----- ----------------

7/16-14ncx1"

hex head bolt

3

"

34-

T6-1212-107

resistor, ammeter

1

“

1. Delco 61 amp alternator assembly T6-9011-359 for gasoline engines includes alternator T6-1211-101-1,

alternator pulley D2AZ-10344A and alternator fan E5SZ-10A310A.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 122

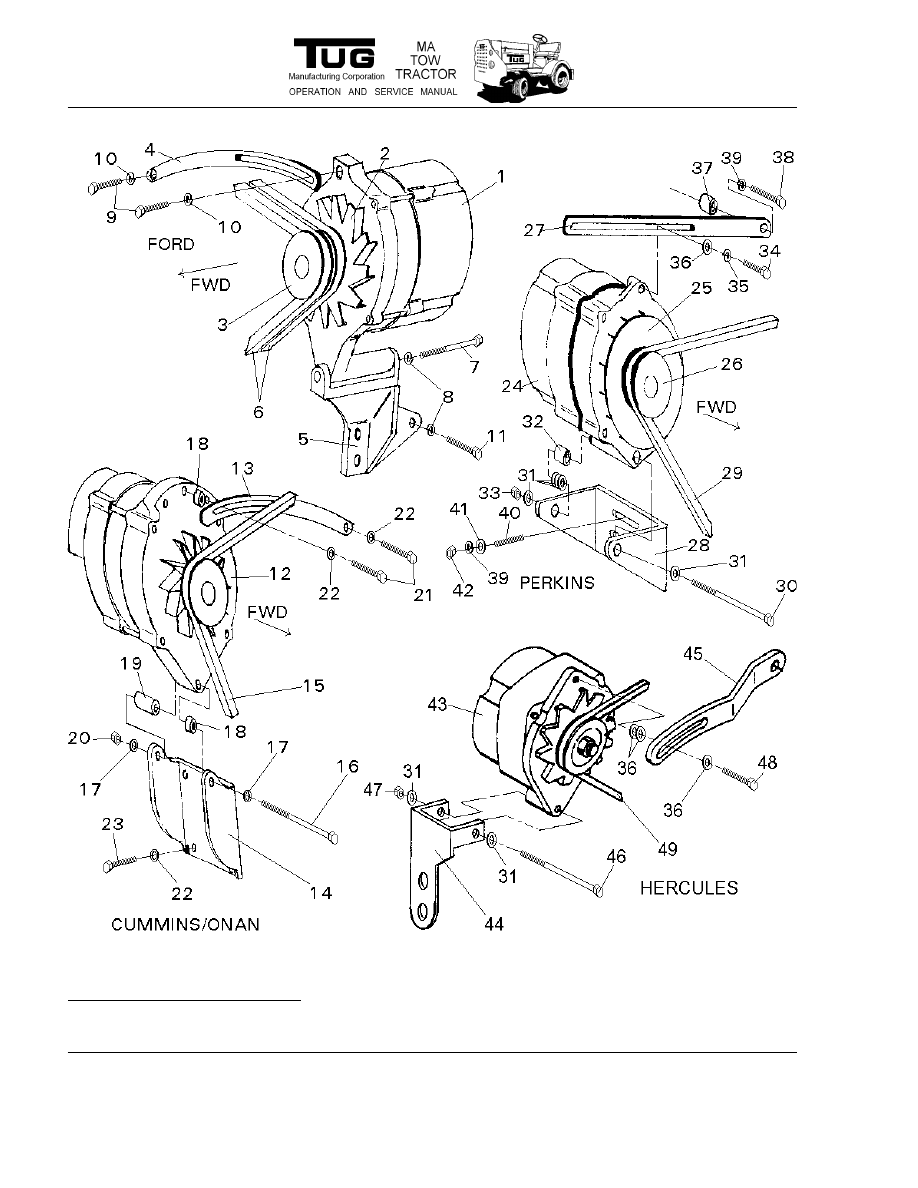

Figure 34: Alternator Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 123

34-12

256 c0191187200

-----------------

alternator, 37a, cummins/onan engine*

1

As Req'd

----- ----------------

T6-1211-101

alternator assy, delco 61a, diesel engine (note 2) 1

"

34-

404 1105360

T6-1211-101-1

alternator, 61a, without fan and pulley (note 2)

1

"

34-

404 1963261

T6-1211-101-3

alternator fan, 61a     (note 2)

1

"

34-

404 1959703

T6-1211-101-2

alternator pulley, 61a  (note 2)

1

"

34-13

256 c0191136500

-----------------

adjusting arm, alternator, cummins/onan engine

1

"

34-14

256 c0191133100

-----------------

alternator bracket, cummins/onan engine

1

"

34-15

256 c0511014715

-----------------

water pump/alternator belt, cummins/onan engine 1

"

34-16

----- ----------------

m10x1.50x100

hex head bolt

1

"

34-17

----- ----------------

m10

flat washer

2

"

34-18

256 c0191132200

-----------------

spacer, short

2

"

34-19

256 c0370404900

-----------------

spacer, long

1

"

34-20

----- ----------------

m10

locknut

1

"

34-21

----- ----------------

m8x1.25x20

hex head bolt

2

"

34-22

----- ----------------

m8

flat washer

6

"

34-23

----- ----------------

m8x1.25x25

hex head bolt

4

"

34-24

404 1105360

T6-1211-101-1

alternator, 61a, without fan and pulley (note 2)

1

"

34-25

404 1963261

T6-1211-101-2

alternator fan, 61a     (note 2)

1

"

34-26

404 1959703

T6-1211-101-3

alternator pulley, 61a  (note 2)

1

"

34-

----- ----------------

T6-1211-101

alternator assy, delco 61a, diesel engine (note 2) 1

"

2. Delco 61 amp alternator assembly T6-1211-101 for diesel engines includes alternator T6-1211-101-1,

alternator fan T6-1211-101-2 and alternator pulley T6-1211-101-3.

*

(includes fan and pulley)

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 124

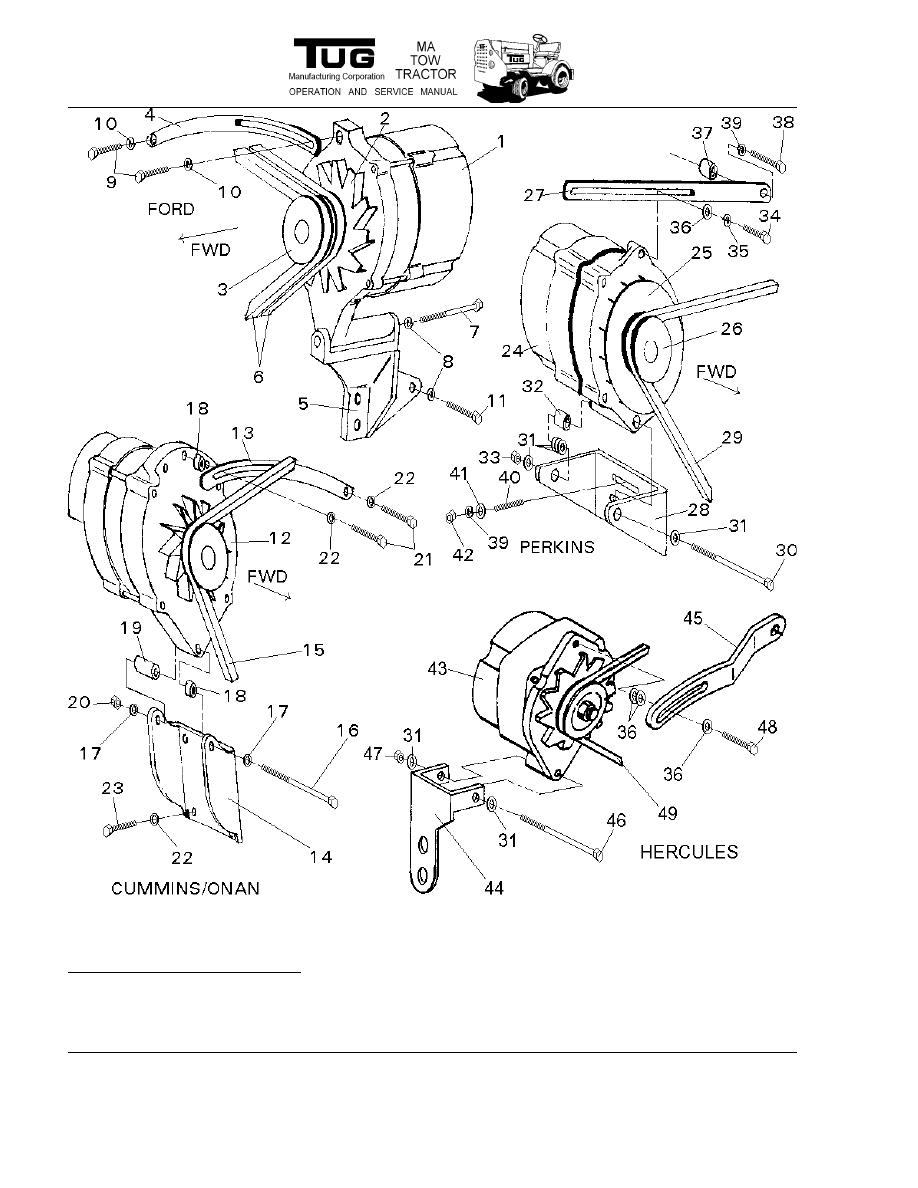

Figure 34: Alternator Installation
