Index Tractors Model MA-30, MA-40, MA-50, MA-60, MA-70, MA-80 TOW Tractor - service manual 1995 year
|
|

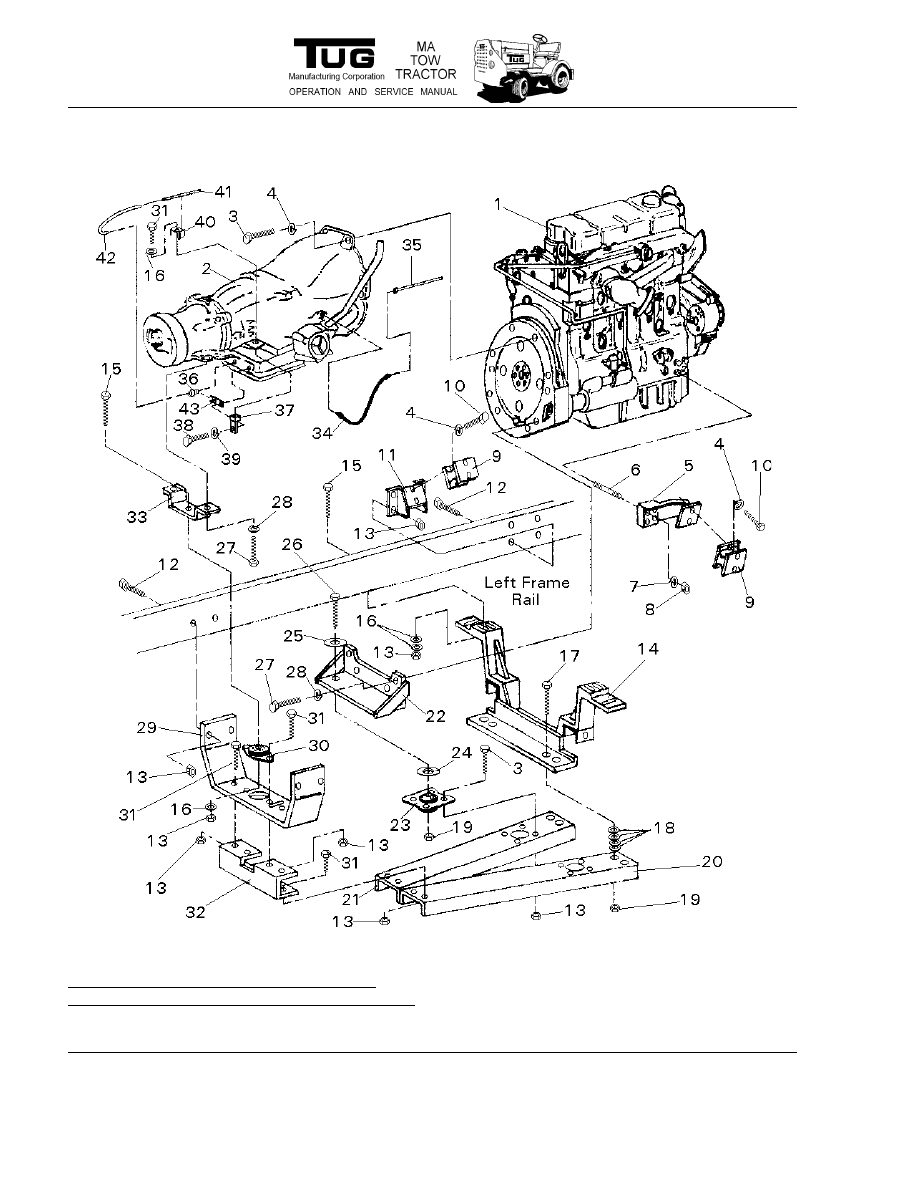

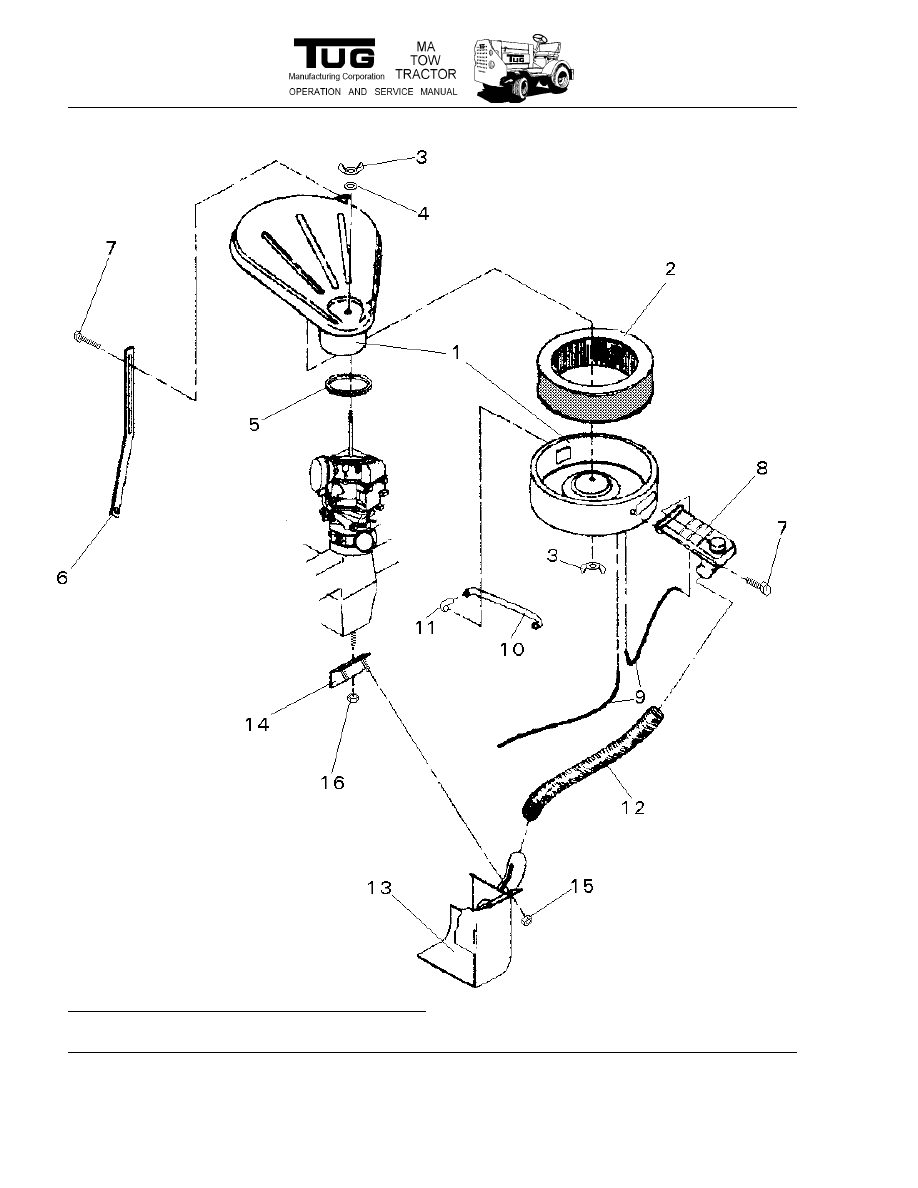

Chapter 4: Illustrated Parts List Jan. 1997 Section 4-2 p. 69 20-1 ----- ---------------- T6-1200-103 perkins 4.236 diesel engine 1 As Req'd 20-2 246 c-6 T6-1008-111 transmission, 3-speed automatic (note 1) 1 " 20-3 ----- ---------------- 3/8-16ncx1-1/4" hex head bolt 14 " 20-4 ----- ---------------- 3/8 lock washer 18 " 20-5 200 38313513 ----------------- engine mount, rh 1 " 20- 200 38313631 ----------------- engine mount, lh 1 " 20-6 200 o826618 ----------------- stud 8 " 20-7 200 o920055 ----------------- lock washer 8 " 20-8 200 o576054 ----------------- locknut 8 " 20-9 200 o550053 T6-1203-109 isolator, engine mount 2 " 20- 200 2641728 ----------------- Fuel Pump 1 “ 20- 200 2487845 ----------------- Oil Cap 1 “ 20- 200 35772655 ----------------- Oil Tube 1 “ 20- 200 31788334 ----------------- Oil Dipstick 1 “ 20-10 ----- ---------------- 3/8-24nfx1" hex head bolt 8 " 20-11 ----- ---------------- T6-1203-101a engine support 2 " 20-12 ----- ---------------- 3/8-16ncx1-1/2" hex head bolt 12 " 20-13 ----- ---------------- 3/8-16nc locknut 25 " 20-14 ----- ---------------- T6-1212-103 front spring aft support 1 " 20-15 ----- ---------------- 3/8-16ncx2" hex head bolt 5 " 20-16 ----- ---------------- 3/8 flat washer 10 " 20-17 ----- ---------------- 1/2-13ncx2" hex head bolt 4 " 20-18 ----- ---------------- 1/2 flat washer (note 2) Ref. " 20-19 ----- ---------------- 1/2-13nc locknut 6 " 20-20 ----- ---------------- T6-1204-108 transmission suppor, rh 1 " 20-21 ----- ---------------- T6-1204-107 transmission support, Lh 1 " 20-22 ----- ---------------- T6-1204-103 engine mount angle, rear 1 " 20-23 68 17/277-50 T6-1204-111 rubber engine mount 2 " 20-24 68 18-311a T6-1211-113 recessed washer 2 " 20-25 68 18-391c T6-1211-115 flat washer 2 " 20-26 ----- ---------------- 1/2-13ncx3-1/2" hex head bolt 2 " 20-27 ----- ---------------- 1/2-13ncx1-1/2" hex head bolt 6 " 20-28 ----- ---------------- 1/2 lock washer 6 " Fig & Co Vendor Part Tug Part Number Description Qty Effective Ind# de Number 1. FMX transmission (original equipment through serial number 361) is no longer available. Replacement of this transmission must be with C-6 3-speed transmission T6-1008-111 and requires replacement of 2. 1/2-inch flat washers (item 18) are used as required to shim between front spring aft support T6-1212-103 (item 14) and transmission support beams T6-1204-108 and T6-1204-107 (items 20 and 21). engine, transmission and mounts installation, |
