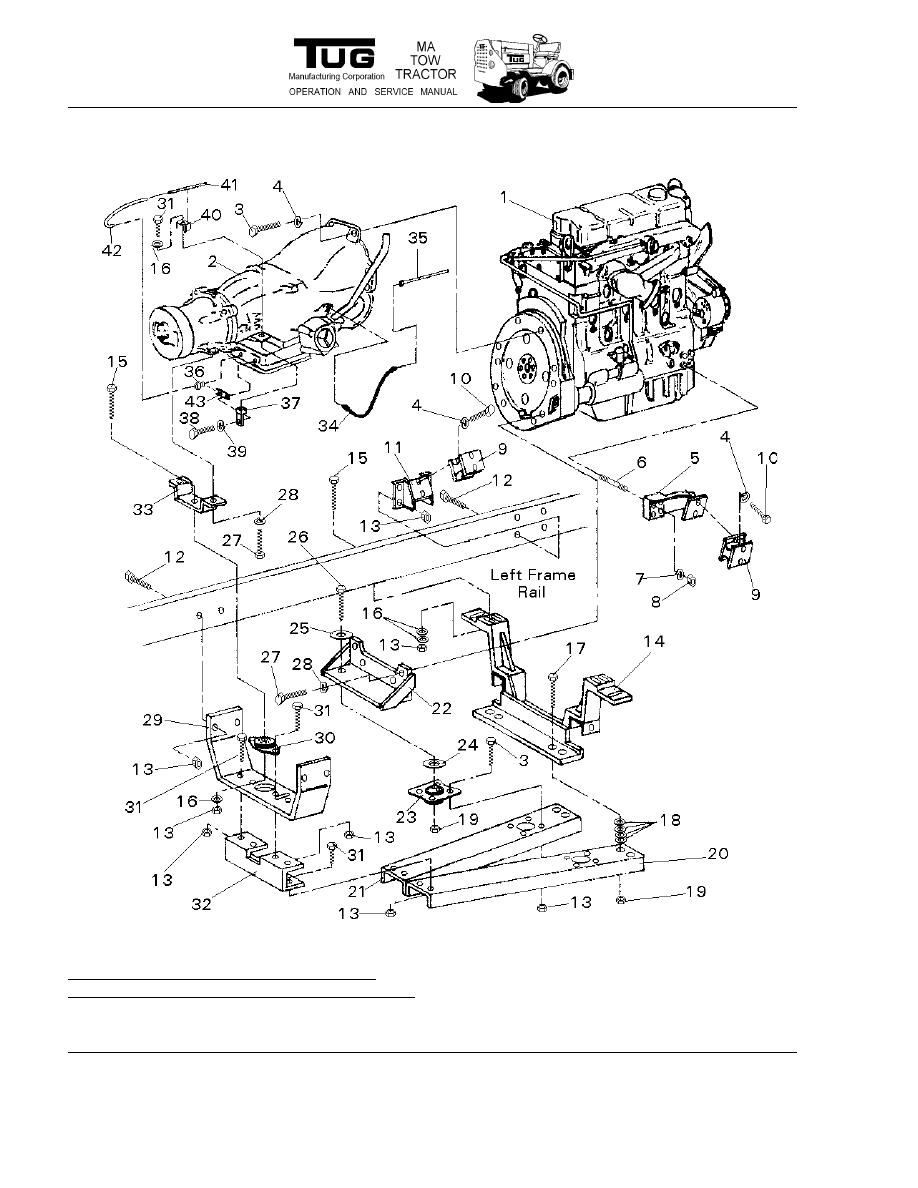

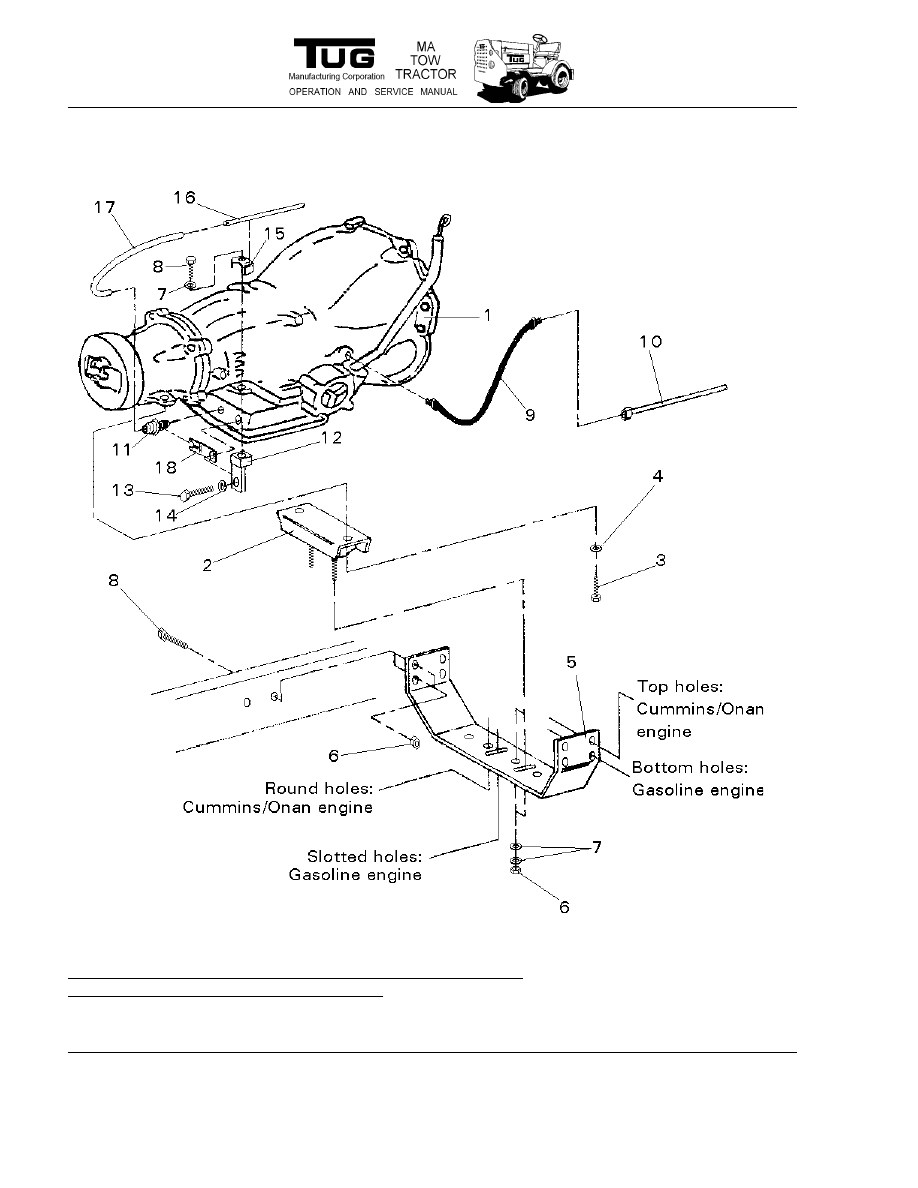

Chapter 4: Illustrated Parts List Jan. 1997 Section 4-2 p. 65 19-1 ----- ---------------- T6-1001-101t transmission, 2-speed automatic (gasoline engine) (note 1) 1 362 & Up 246 c-6 T6-1008-111 transmission, 3-speed automatic (diesel engine) ( note 2) 1 " 19-2 256 d6dz-6068-a md-p21-105 isolator, transmission mount 1 " 19-3 ----- ---------------- 1/2-13ncx1-1/4" hex head bolt 2 " 19-4 ----- ---------------- 1/2 lock washer 2 " 19-5 ----- ---------------- T6-4047-103 transmission support, Solid mount drive axle 1 As Req'd ----- ---------------- T6-4027-501 transmission support, spring mount drive axle 1 " 19-6 ----- ---------------- 3/8-16nc locknut 6 362 & Up 19-7 ----- ---------------- 3/8 flat washer 5 " 19-8 ----- ---------------- 3/8-16ncx1" hex head bolt 5 " 19- 246 d8tz-7a100b T6-1008-121 2-speed valve body, c-6 (gasoline engine) 1 " 246 d9fp-7a100aa T6-1008-123 3-speed valve body, c-6 (diesel engine) 1 " 19-9 227 10404U755B0501400 T6-6018-103 hose, transmission line 2 001 & Up 19-10 ----- ---------------- 5/16odx0.035 transmission cooling line Ref. " ----- ---------------- T6-6018-105 Hose, Trans. Line 14" OAL 1 “ 19-11 22 1-4657 T6-1008-113 modulator valve, c-6 1 362 & Up 256 ciaz-7a377b T6-1008-103 modulator valve, Fmx 1 001-361 19-12 ----- ---------------- T6-1212-105 transmission ear support (diesel engine) 1 362 & Up ----- ---------------- 3/8-16nc locknut (gasoline engine) 1 " 19-13 ----- ---------------- 1/4-20ncx1" hex head bolt (diesel engine) 1 362 & Up ----- ---------------- 1/4-20ncx3/4" hex head bolt (gasoline engine) 1 " 19- 70 2180-90” 660-1-1264 Modulator Cable 1 “ 19- 256 TPG-E7TZ-7A020D---------------- Dipstick, 22” 1 “ 19- ----- TPG-E0TZ-7A228-A ---------------- Tube, 14 1/2” 1 “ 1. FMX transmission (original equipment through serial number 361) is no longer available. Replacement of this transmission must be with C-6 2-speed transmission T6-1001-101T and requires replacement of 240 2. FMX transmission (original equipment through serial number 361) is no longer available. Replacement of this transmission must be with C-6 3-speed transmission T6-1008-111 and requires replacement of Fig & Co Vendor Part Tug Part Number Description Qty Effective Ind# de Number |
