Model MA TOW Tractor. Manual - part 44

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 61

18a-1

388 d2300

T6-7200-001

Hercules diesel engine

1

As Req'd

18a-2

388 40-3103101

----------------

spacer, engine mount

2

"

18a-3

388 40-0037559

----------------

engine mount, rh (note 1)

1

"

18a-

388 40-0037558

----------------

engine mount, lh (note 1)

1

"

18a-

388 40-0008318

----------------

insulator, engine mount (note 1)

1

"

18a-4

----- ----------------

9/16-12ncx2-1/2"

hex head bolt

4

"

18a-5

----- ----------------

9/16-12ncx1-1/4"

hex head bolt

4

"

18a-6

----- ----------------

T6-7200-045

engine support, rh

1

"

18a-7

----- ----------------

T6-7200-040

engine support, lh

1

"

18a-8

----- ----------------

7/16-14ncx1-1/4"

hex head bolt

4

"

18a-9

----- ----------------

7/16-14nc

locknut

4

"

18a-10 ----- ----------------

7/16

flat washer

4

"

18a-11 ----- ----------------

1/2-13ncx1-1/4

hex head bolt

6

"

18a-12 ----- ----------------

1/2

flat washer

6

"

18a-13 ----- ----------------

1/2-13nc

locknut

6

"

18a-

388 40-0015653

----------------

vacuum pump

1

"

18a-

388 40-0004628

----------------

belt, vacuum pump

1

"

18a-

156 88011258

T6-7002-137

engine block heater, freeze plug type

1

"

156 810-0101

T6-1300-171

engine heater, pump type

1

"

18a-

388 40-3044852

----------------

flywheel assembly

1

"

18a-

388 40-3042952

----------------

adapter plate assembly

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Engine mounts 40-0037558 and 40-0037559 do not include insulator 40-0008318.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 62

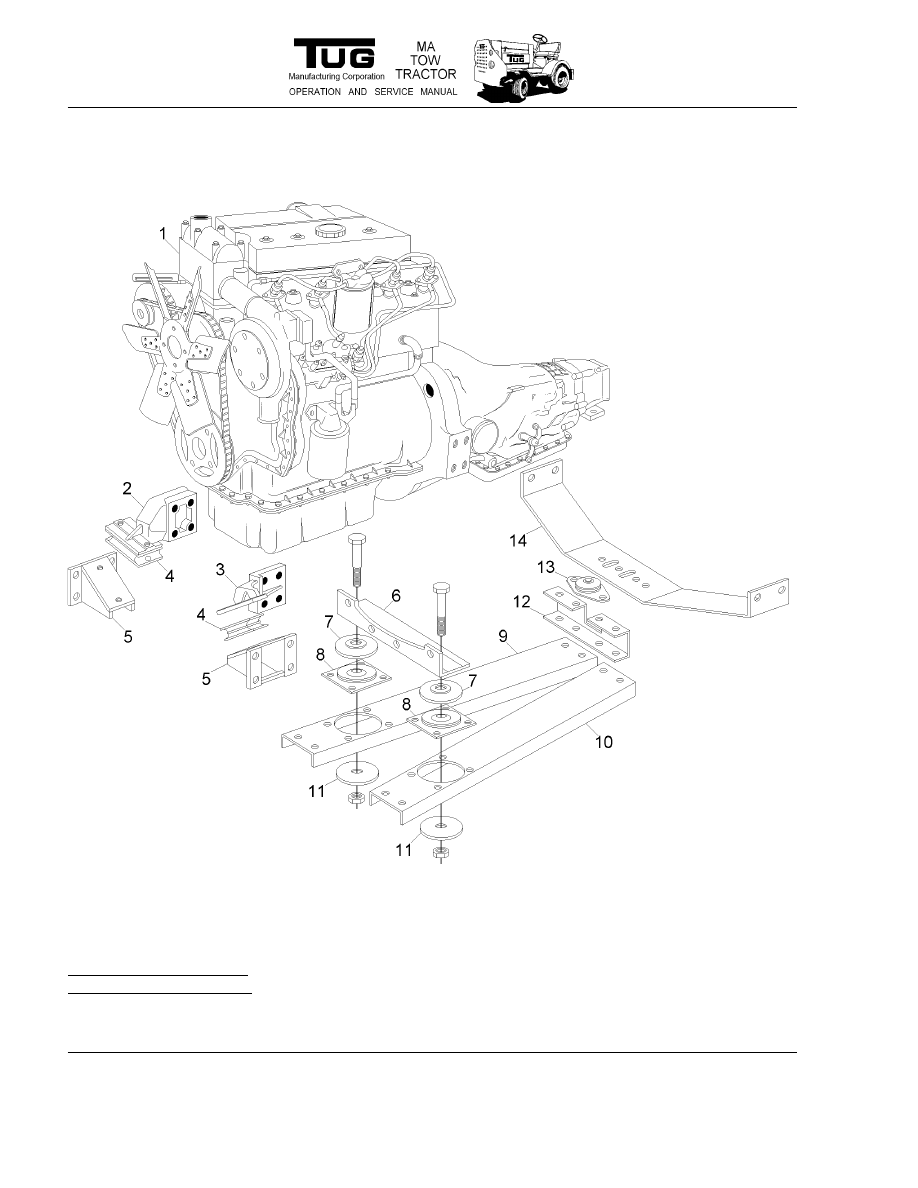

Figure 18B: Perkins 1004
Diesel Engine Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 63

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

18b-1

200 1004-4

T6-2200-100

Perkins 1004 Diesel Engine

1

As Req’d

18b-2

200 38313513

----------------

Engine Mount, Cast Iron -R/H

1

“

18b-3

200 38313631

----------------

Engine Mount, Cast Iron -L/H

1

18b-4

200 0550053

T6-1203-109

Rubber Mount, Front -Engine

2

18b-5

199 ----------------

T6-1203-101A

Engine Support

2

18b-6

199 ----------------

T6-1204-103

Transmission Mount Angle Support

1

18b-7

68 18-311A

T6-1211-113

Washer, Recessed Center

4

18b-8

68 17/277-50

T6-1204-111

Rubber Engine Mount

2

18b-9

199 ----------------

T6-1204-107

Transmission Support Beam R/H

1

18b-10 199 ----------------

T6-1204-108

Transmission Support Beam L/H

1

18b-11

68 18-391C

T6-1211-115

Washer, Plain

1

18b-12

2 ----------------

T6-1204-105

Transmission Mount Channel

1

18b-13

68 17/379-35

T6-1204-113

Rubber Transmission Mount

1

18b-14

54 ----------------

T6-4205-105

Transmission Mount, Diesel

1

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 64

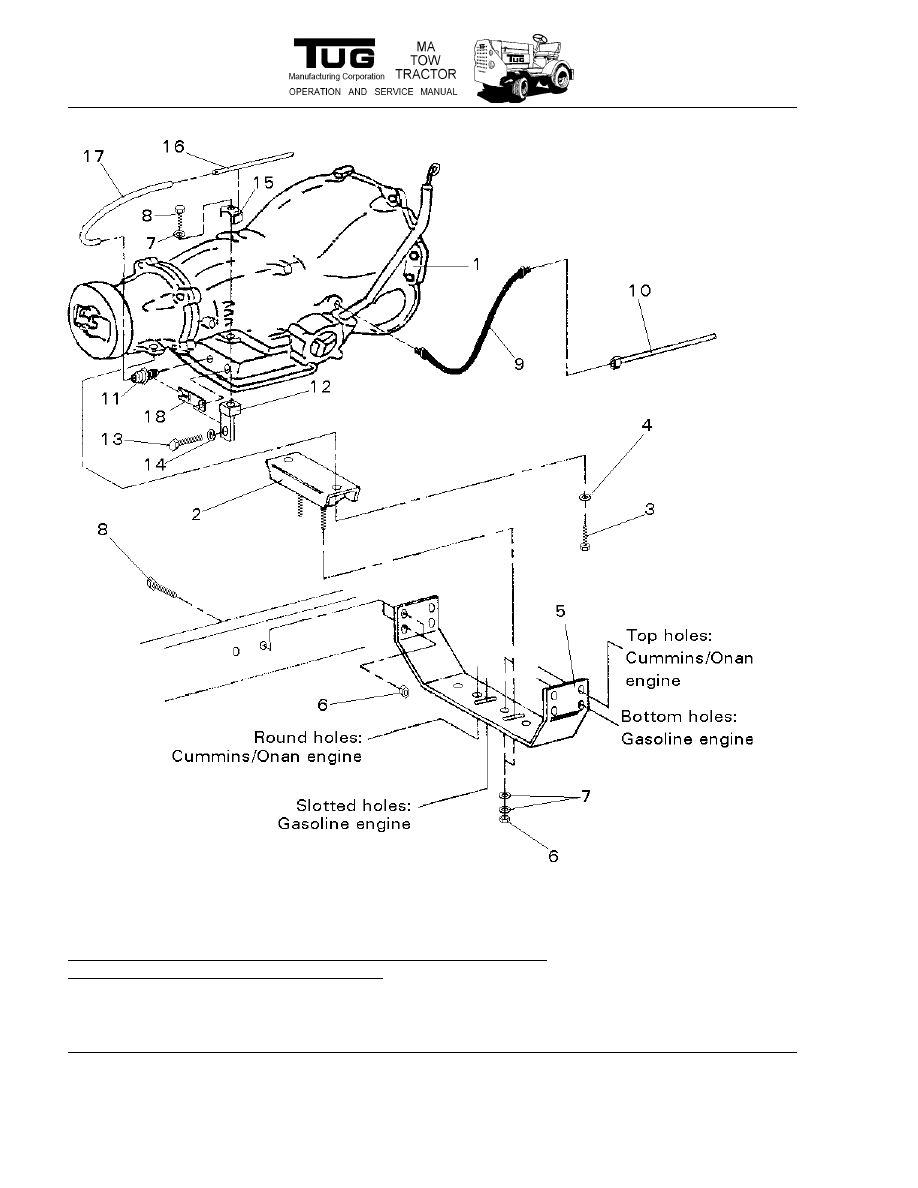

Figure 19: C6 Transmission and Transmission Mounts Installation,
Gasoline and Cummins/Onan Diesel Engine
