Model MA TOW Tractor. Manual - part 42

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 53

16-1

246 eohz-173222b

mh-nd-553-2

Transmission pinion

1

As Req'd

16-2

246 ct8z-17297a

mh-nd-553

Transmission adapter

1

"

16-3

189 hr183

mh-nd-553-1

Adapter driver

1

"

16-4

----- ----------------

T6-9011-404

Speedometer adapter, .4105 ratio

1

"

16-5

----- ----------------

T6-9011-245

Speedometer cable, 4'

1

"

16-6

196 82677

mh-nd-549

Speedometer head

1

"

16-

----- ----------------

Opt-mis-030

Speedometer, Kit -MA

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 54

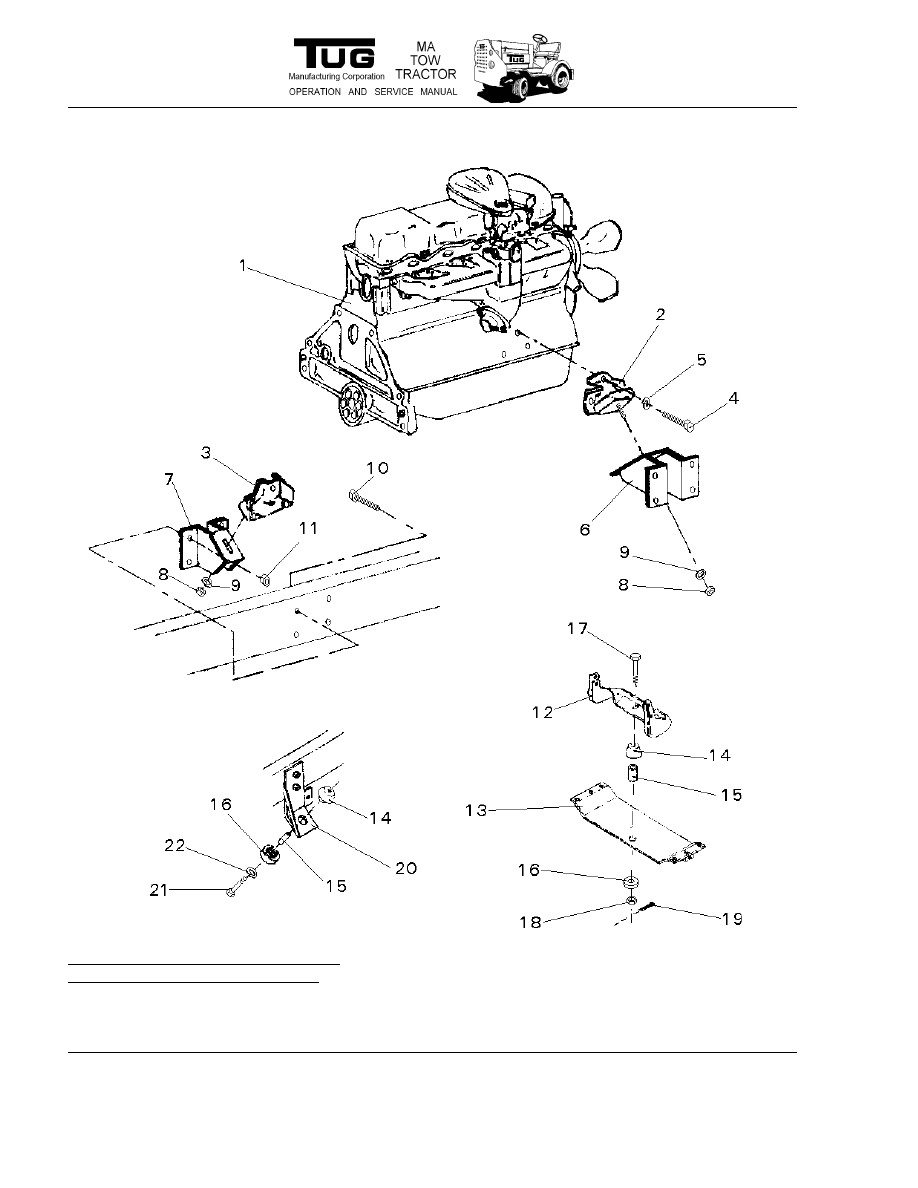

Figure 17: Engine and Engine Mounts
Installation - Ford Gasoline Engine

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 55

17-1

246 csg-649

T6-1001-101e

ford 300 c.i.d. gasoline engine (note 1)

1

362 & Up

17-2

127 270-2331

T6-4046-107

engine mount, rh, 300

1

"

17-3

127 270-2332

T6-4045-109

engine mount, lh, 300

1

"

17-4

----- ----------------

7/16-14ncx1"

hex head bolt

6

"

17-5

----- ----------------

7/16

lock washer

6

"

17-6

----- ----------------

T6-4046-103

Engine support, rh, 300 (small)

1

"

17-7

----- ----------------

T6-4045-103

Engine support, lh, 300 (large)

1

"

17-8

----- ----------------

3/8-16nc

locknut

2

"

17-9

----- ----------------

3/8

flat washer

2

"

17-10

----- ----------------

1/2-13ncx1-1/2"

hex head bolt

8

"

17-11

----- ----------------

1/2-13nc

locknut

8

"

17-12

246 c5tz-6028b

T6-1000-103

front engine mounting bracket, 240

1

001-361

17-13

----- ----------------

T6-4007-103

front spring plate assembly

1

001-020

----- ----------------

T6-4007-113

front spring plate assembly

1

021-137

----- ----------------

T6-4007-159

front spring plate assembly

1

138-234

----- ----------------

T6-4007-165

front spring plate assembly

1

235-310

----- ----------------

T6-4007-169

front spring plate assembly

1

311-361

----- ----------------

T6-4007-171

front spring plate assembly

1

362 & Up

17-14

246 c3tz-6068d

T6-1000-105

engine shock mount, upper, 240

3

001-361

17-15

246 citt-6a027c

T6-1000-107

shock mount spacer, 240

3

"

17-16

246 citt-6a061d

T6-1000-109

engine shock mount, lower, 240

3

"

17-17

----- ----------------

T6-1000-111

front engine mounting bolt, 240

1

"

17-18

----- ----------------

T6-1000-117

front engine mounting nut, 240

1

"

17-19

----- ----------------

1/8"

cotter pin

1

"

17-20

----- ----------------

T6-4022-103

rear engine mount, lh, 240

1

"

17-

----- ----------------

T6-4022-105

rear engine mount, rh, 240

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Ford 240 C.I.D. gasoline engine (original equipment through serial number 361) is no longer available.

Replacement of this engine must be with Ford 300 C.I.D. gasoline engine T6-1001-101E (item 1) and
requires replacement of FMX automatic transmission with C-6 automatic transmission and replacement of
all associated mounts with appropriate mounts as shown.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 56

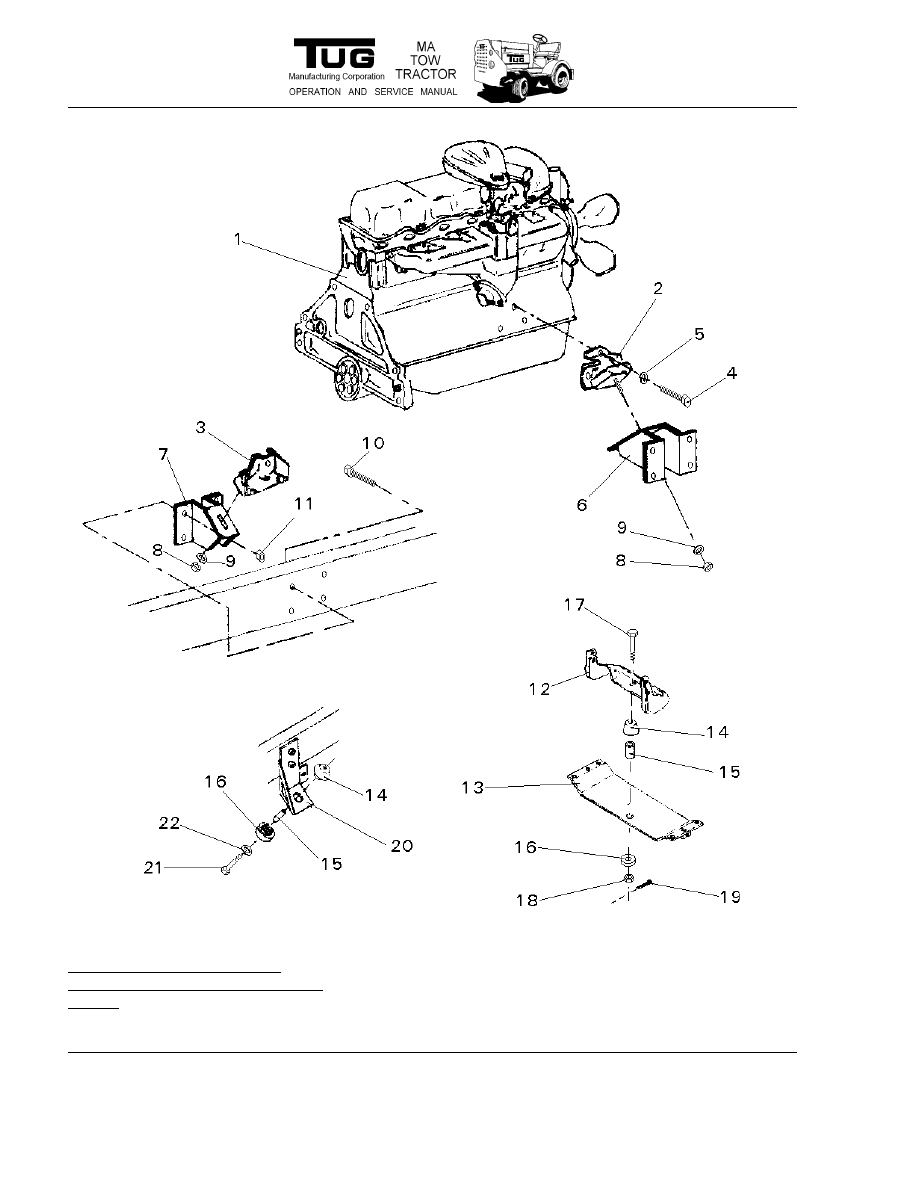

Figure 17: Engine and Engine
Mounts Installation - Ford Gasoline
Engine
