Model MA TOW Tractor. Manual - part 41

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 49

14-1

297 3753AD

T6-7007-103

Light, Turn Signal on Post

2

As Req'd

14-2

22 1156

----------------

bulb single filament

2

"

14-3

56 634005

----------------

male connector, quick disconnect

2

"

14-

----- ----------------

T6-4003-115

Reflector Mounting Bracket

2

“

14-

----- ----------------

T6-7008-103B

Amber Lens

2

“

14-

----- ----------------

T6-5001-101

Reflector, Amber -Round

2

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 50

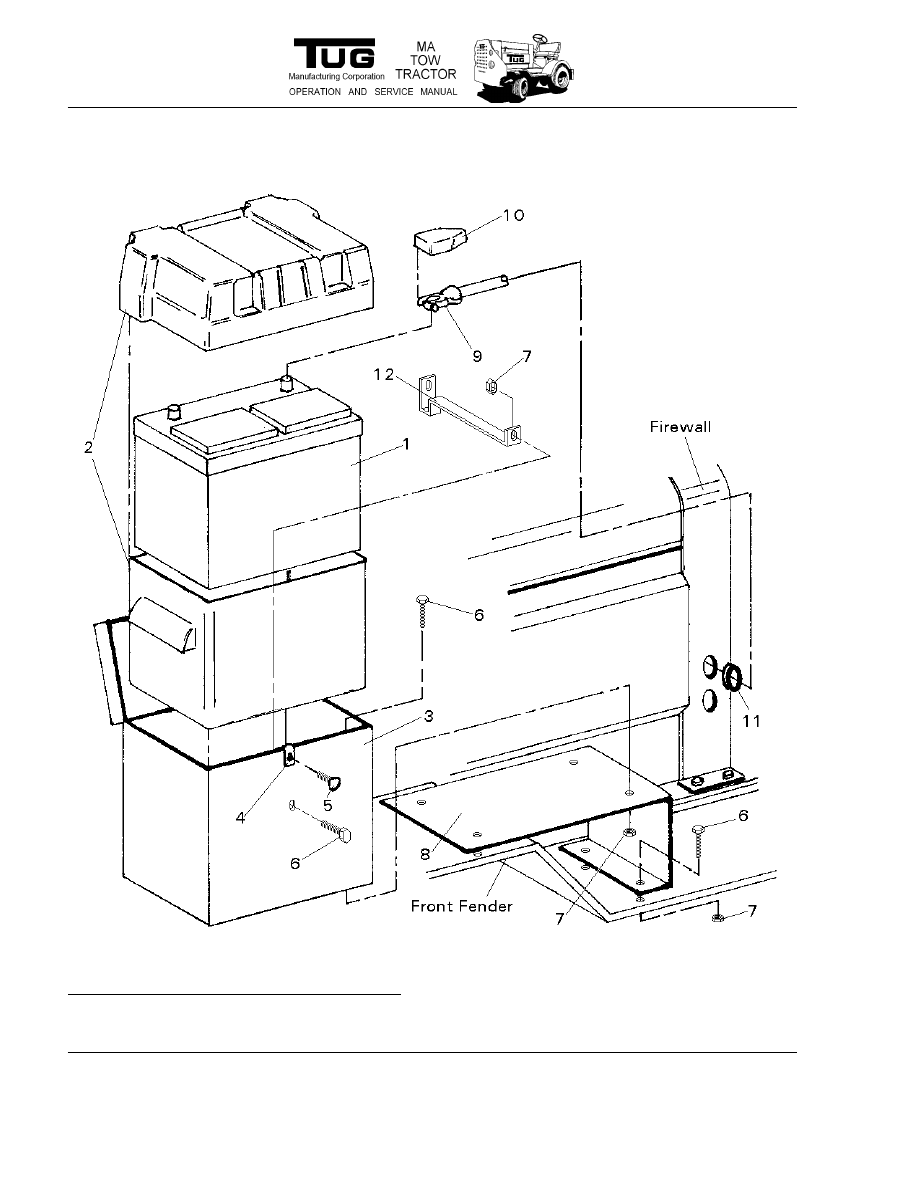

Figure 15: Battery and Battery Box Installation

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 51

15-1

380 24f-50

T6-7001-103

battery, group 24

1

As Req'd

380 27fxhd

T6-7001-205

battery, group 27

1

"

380 a31-900

T6-7001-105

battery, group 31

1

"

127 1150

T6-9011-235

delco battery, group 31c (threaded posts)

1

"

380 com-4d

x6007-201

battery 4d

1

"

15-2

17 9065

T6-4019-101

liner, battery box, group 24 battery

1

"

17 9067

T6-1212-102

liner, battery box, group 27/31/31c battery 16”

1

"

15-3

----- ----------------

T6-4018-103

battery box, 16" Long, group 24/27/31/31c battery

1

"

----- ----------------

T6-4018-103s

battery box, 13-1/2" Long group 24 battery

1

"

----- ----------------

T6-3200-125

battery box, 4d

1

"

----- ----------------

T6-4018-117

battery box, two batteries

1

"

15-4

79 86782

T6-4006-119

tinnerman  fastener

1

001 & Up

15-5

204 1/4-20ncx1"

T6-4018-115

thumb screw

1

"

15-

373 wj-202

T6-4018-119

rubber latch, battery box

1

As Req'd

15-6

----- ----------------

1/4-20ncx1"

hex head bolt

Ref. 001 & Up

15-7

----- ----------------

1/4-20nc

locknut

Ref.

"

15-8

----- ----------------

T6-4018-113

battery stand, short

1

"

15-

----- ----------------

T6-4019-113

battery stand, long

1

"

15-9

----- ----------------

660-1-1309

battery cable, black, group 24/27/31/4d battery

1

As Req'd

----- ----------------

T6-7016-121

battery cable, black, group 31c battery

1

"

15-

----- ----------------

T6-7016-115

battery cable, red, group 24/27/31/4d battery, lh mounted

1

"

----- ----------------

T6-7016-117

battery cable, red, group 31c battery, lh mounted 1

"

----- ----------------

T6-7016-119

battery cable, red, group 24/27/31/4d battery, rh mounted

1

"

----- ----------------

mg-1-543

battery cable, red, group 31c battery, rh mounted 1

"

15-

56 370-10-4-3blk

T6-7016-105

cable, ground

1

001 & Up

15-

56 370-20-4-3red

T6-7016-111r

cable, relay to starter, gas

1

As Req'd

15-10

----- ----------------

T6-9011-344

battery terminal cover, plastic

2

"

----- ----------------

T6-9011-343

battery terminal boot, rubber

2

"

15-11

144 2870-26012

T6-500-108

grommet, battery cable, rubber

2

001 & Up

15-12

----- ----------------

T6-4018-121

battery hold down bar, group 24/27/31/31c

1

As Req'd

----- ----------------

T6-9011-351

battery hold down bar, 4d

1

"

79 89652/31346

T6-9011-101

battery hold down bracket, kit, group 24/27/31/31c

1

"

----- ----------------

T6-7016-123

Battery Disconnect Switch

1

“

----- ----------------

T6-7016-101

38” Battery Cable (Delta)

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 52

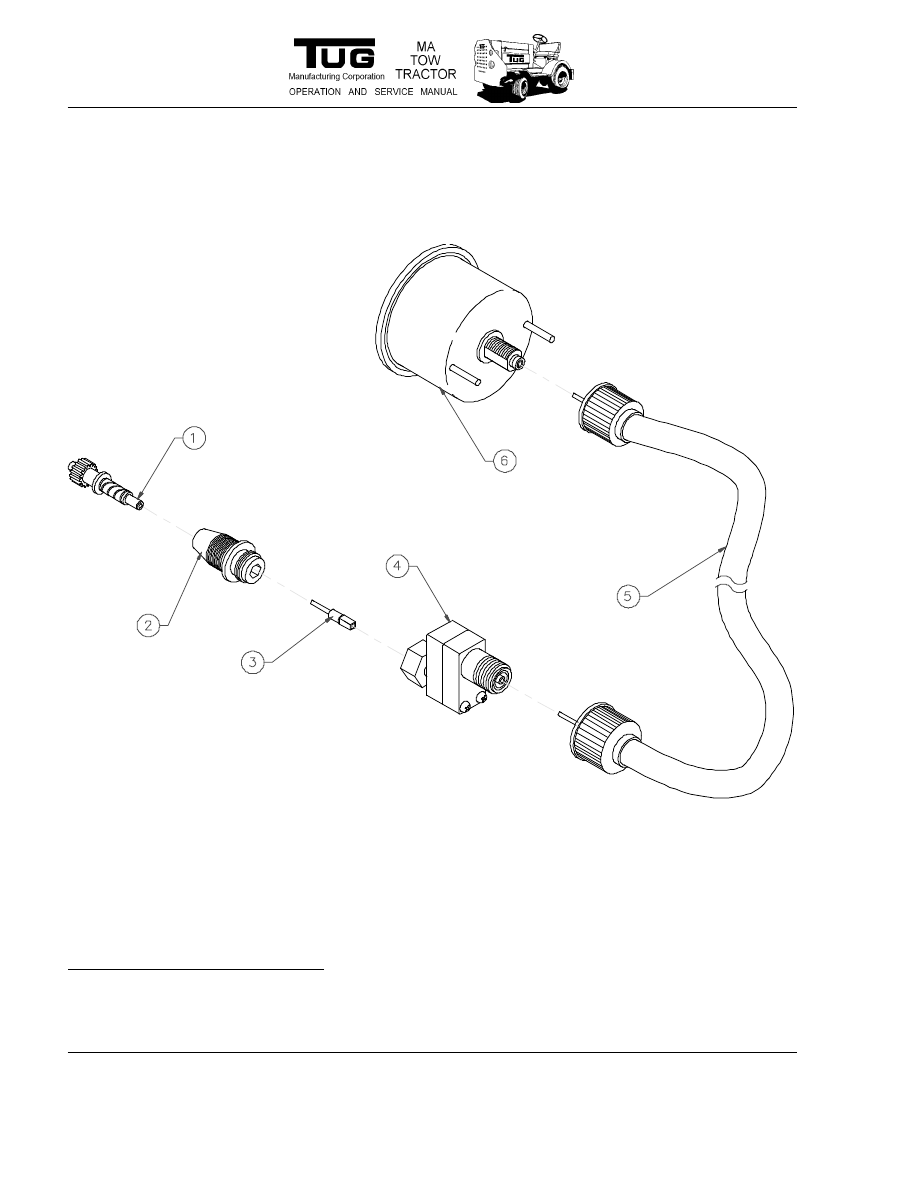

Figure 16: Speedometer Installation
