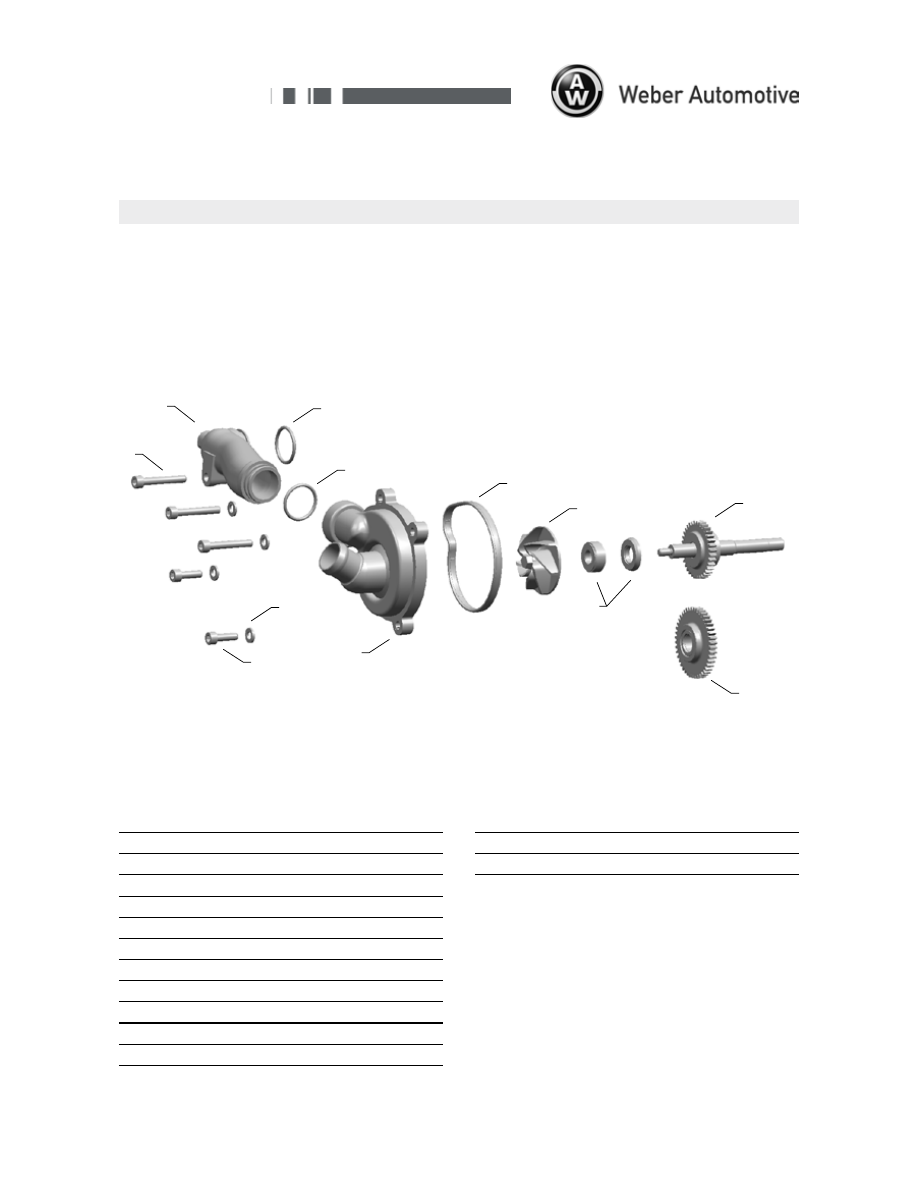

Spare Parts Catalogue

Page 11

050 Cooling

System

02 Water Pump

Pos.

Part No

Description

QTY

1

100826

Bolt

M6x40

3

2

100501

Bolt

M6x20 8.8

2

3

100448

Washer

4

4

102903

Water Tube

1

5

102454

O-Ring

2

6

102194

Water Pump Cover  incl. Pos. 7

1

7

102427

Gasket

1

8

400180

Impeller Type 2

1

9

103743

Sealing Kit

1

10

102948

Water Pump Axle

1

Pos.

Part No

Description

QTY

11

102870

Intermediate Gear Water Pump

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

3

4

5

6

2

Spare Parts Catalogue

Page 12

*

See Chapter Engine Management System

070 Intake

Area

Pos.

Part No

Description

QTY

1

100823

Intake Fitting

1

2

101007

Intake Fitting

1

3

100502

Bolt

M6x25 8.8

4

4

*

Pressure Sensor

1

5

*

Bolt

M6x12

1

6

102651

O-Ring

2

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

3

1

1

2

2

1

2

1

2

1

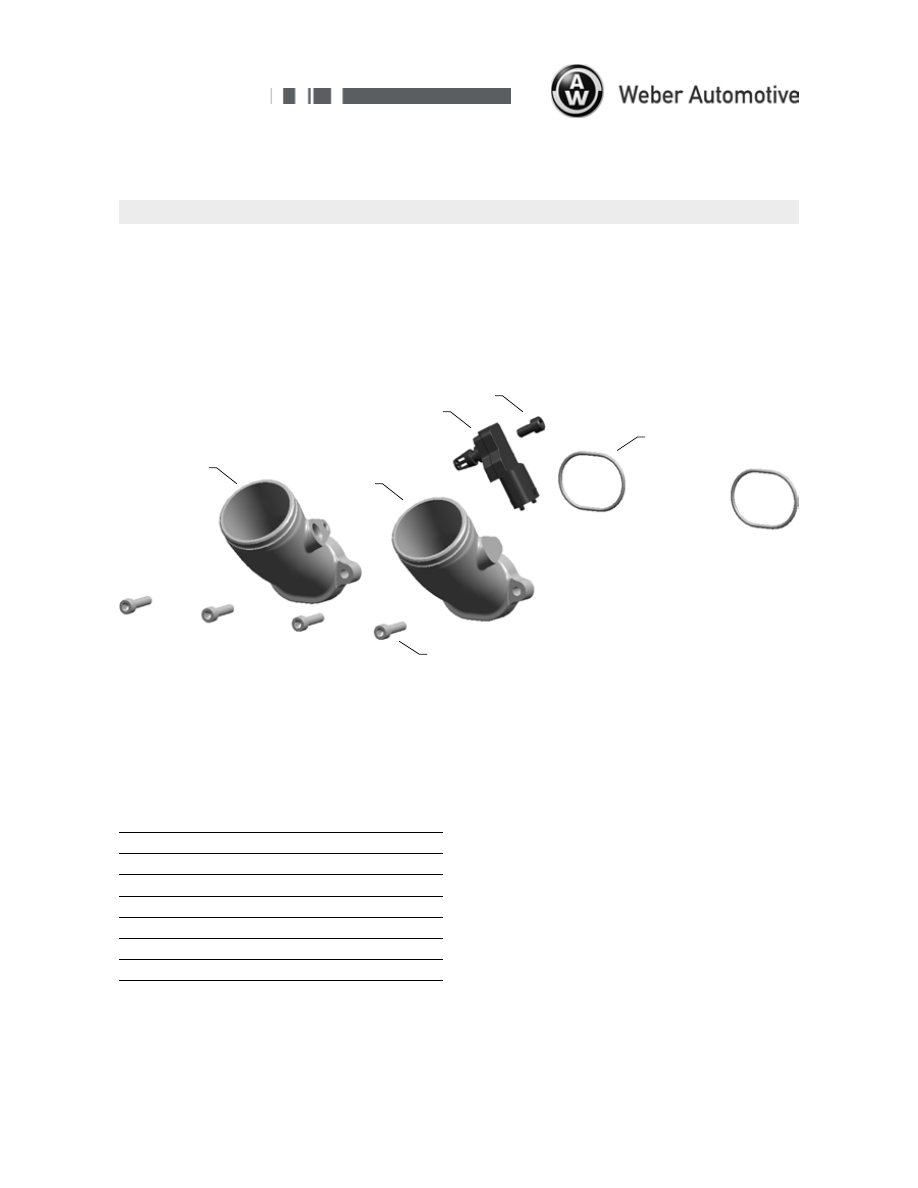

Spare Parts Catalogue

Page 13

Pos.

Part No

Description

QTY

1

100031

Sensor Camshaft

1

2

102021

Bolt

6x18

1

Pos.

Part No

Description

QTY

1

102256

Pressure Sensor

1

2

403390

Bolt

M6x12

1

Pos.

Part No

Description

QTY

1

100141

Ignition Coil

2

2

100448

Washer

4

3

100501

Bolt

M6x20 8.8

4

See Chapter Cylinder Head

See Chapter Cylinder Head

See Chapter Intake Area

See Chapter Cylinder Head

080

Engine Management System

Pos.

Part No

Description

QTY

1

102359

Injector incl. Pos. 2

2

2

100708

O-Ring

2

See Chapter Fuel Unit

Pos.

Part No

Description

QTY

1

100024

Sensor Coolant Temperature

1

See Chapter Cooling System

Pos.

Part No

Description

QTY

1

104258

Spark Plug

RC7PYCBX

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

2

3

1

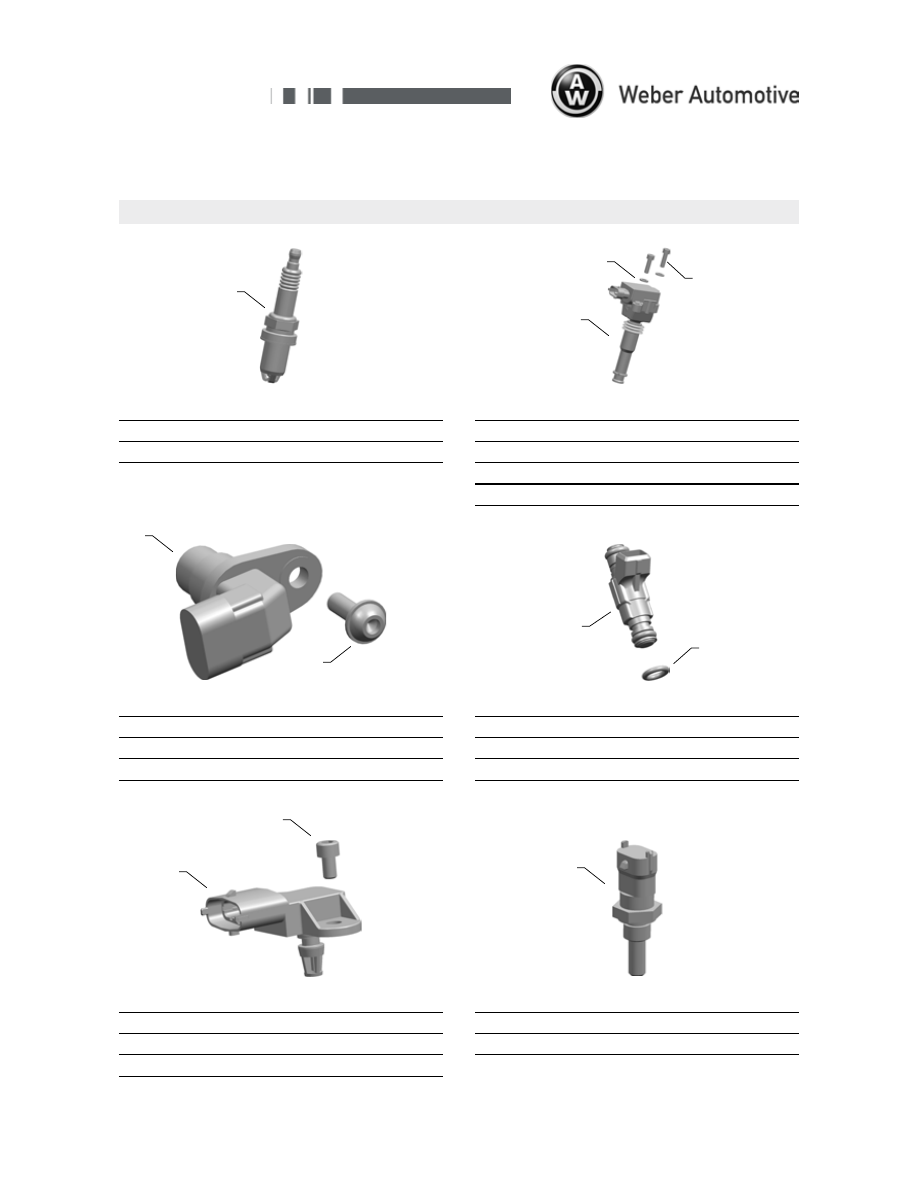

Spare Parts Catalogue

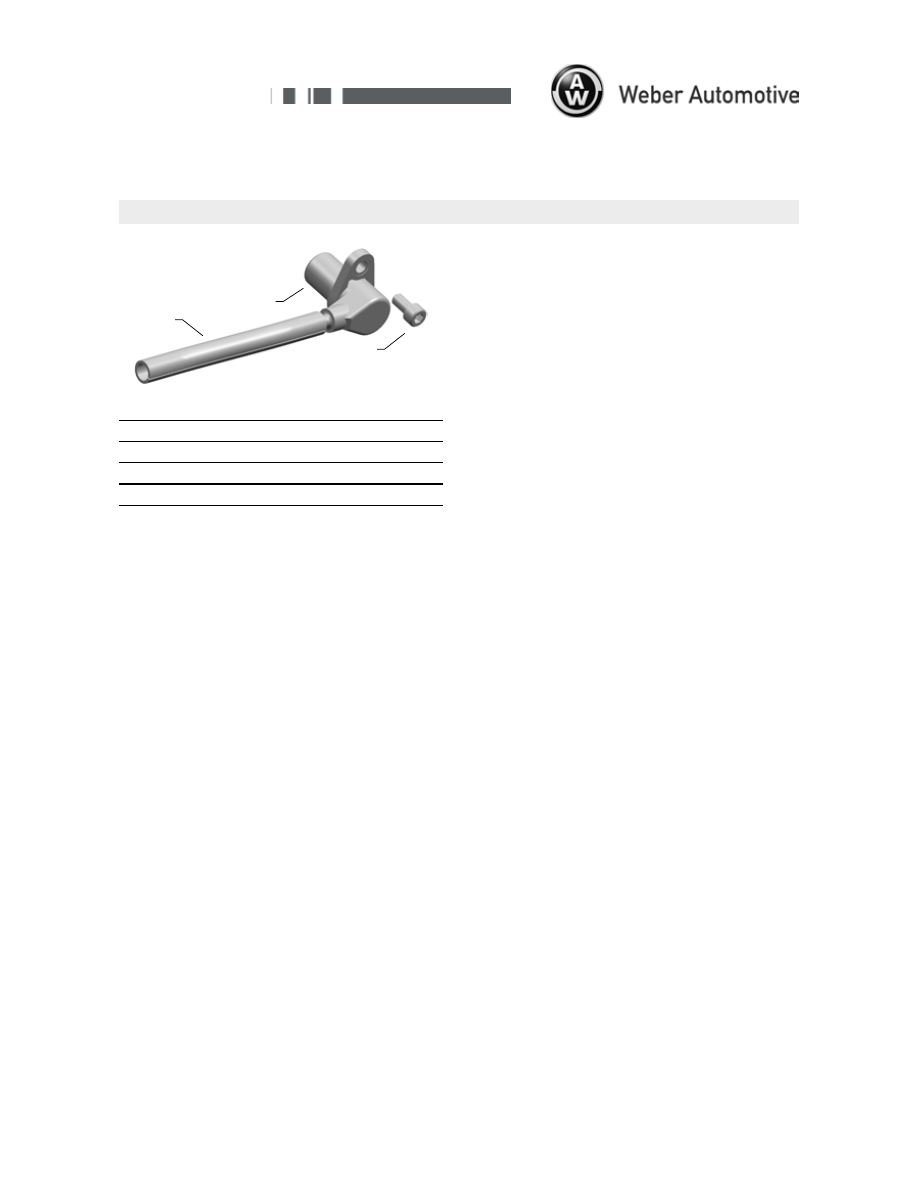

Page 14

080

Engine Management System

Pos.

Part No

Description

QTY

1

100032

Sensor Crankshaft

1

2

101736

Bolt

M6x12

1

3

100831

Conduit

1

See Chapter Crankcase
