MPE 750 NA Snow. Manual - part 1

10056_abMJ07_ETK_Rev1.3_090128

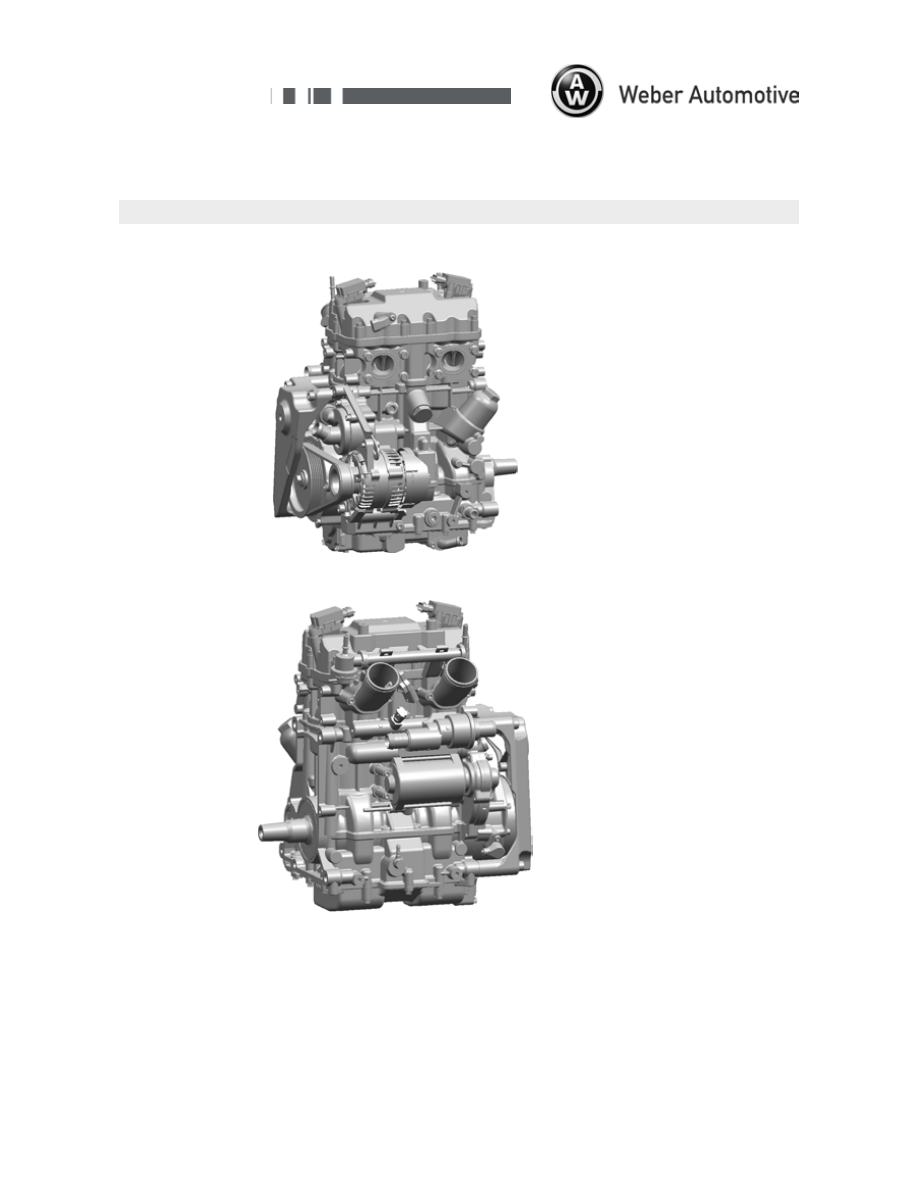

MPE 750 NA Snow

MPE 750 NA Snow

•

10056_ Snow NA 3.2 Liberty ab Modelljahr 2007

Spare Parts Catalogue

This spare parts catalogue is valid for the following engine variants:

Document No:   10056 MJ07 ETK

1.3

Date of Issue:

28.01.2009

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

Spare Parts Catalogue

Table of Contents

010 Crankcase

1

01 Case

1

02 Front Cover

3

020 Crank

Drive

4

030 Cylinder

Head

5

01 Valve Cover

5

02 Rocker Arms

6

03 Cylinder Head

7

04 Valves

8

040 Valve

Train

9

050 Cooling

System

10

01 Water Manifold

10

02 Water Pump

11

070 Intake

Area

12

080

Engine Management System

13

090 Starter,

Generator

15

01 Starter

15

02 Generator

16

100 Fuel

Unit

17

110 Lubrication

System

18

01 Dry Sump

18

02 Oil Filter, Oil Pump

19

900 Special

Tools

20

910 Repair

Kits

22

Overview of Revisions

23

Terminology

24

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

1

2

3

5

5

4

6

22

2

19

20

19

21

6

9

8

10

2

7

13

12

18

17

16

11

15

14

(3)

11

23

Spare Parts Catalogue

Page 1

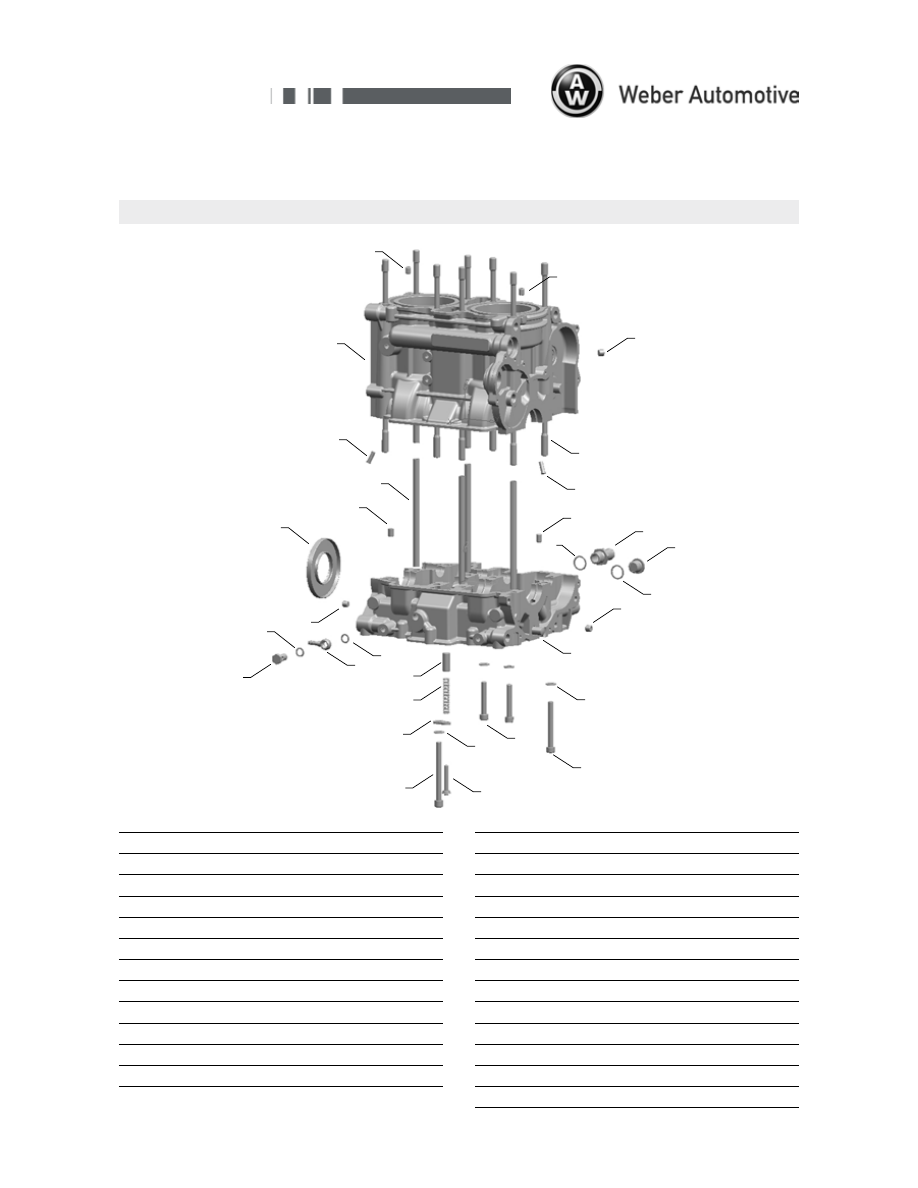

010 Crankcase

01 Case

Pos.

Part No

Description

QTY

1

100280

Sleeve

2

2

102992

Plug

3

3

*

Crankcase incl. Pos. 2, 4, 5, 6, 1x 11, 1x13

1

4

100070

Tie Rod

8

5

100287

Welch Plug

2

6

100225

Centering Pin

2

7

*

Seal

18.22.15. Al

2

8

*

Fitting

M18x1.5

1

9

100454

Seal

18x22x1.5 Al

1

10

102523

Plug

1

11

100468

Washer

4

Pos.

Part No

Description

QTY

12

*

Bolt

M8

1

13

100464

Bolt

M8x50 10.9

2

14

102442

Pin

1

15

100467

Bolt

M8x90 10.9

1

16

100297

Clamp Plate

1

17

100328

Spring

1

18

100072

Oil Pressure Piston

1

19

101107

Seal

10x14x1 Al

2

20

102572

Banjo Fitting

1

21

100085

Banjo Bolt

M10x1

1

22

101108

Oil Seal

1

23

100224

Tie Rod Sleeve

4

*

See next page

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

2

4

6

7

8

3

M18

14

M18

18

102980

401291

Spare Parts Catalogue

Page 2

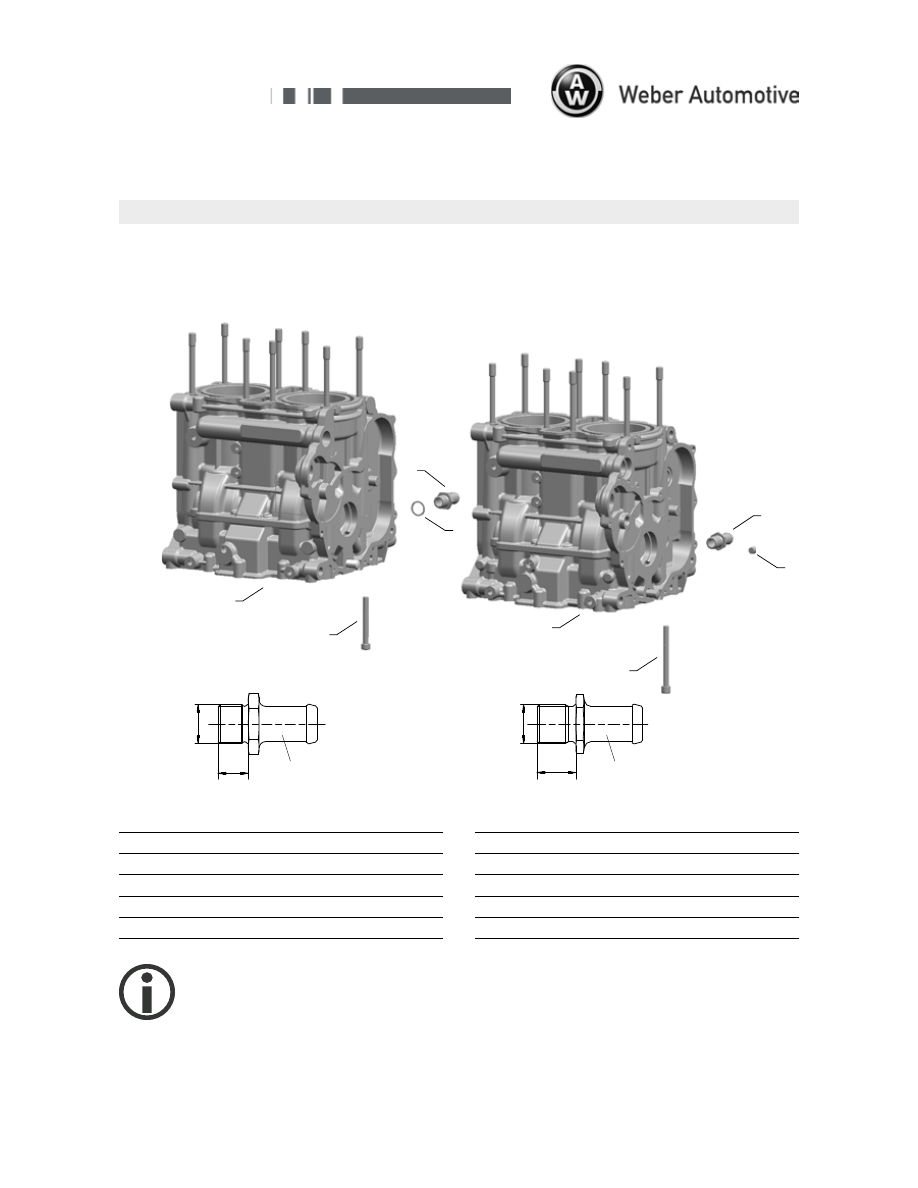

010 Crankcase

01 Case (continuation)

Crankcase Type 1 with
Fitting 102980

Crankcase Type 2 with
Fitting 401291

The crankcase can be differentiated according to the Fitting.

Device-dependent parts are:

• Fitting

M18x1.5

• Bolt

M8

Along with a change in crankcase type, these parts must also be exchanged.

Pos.

Part No

Description

QTY

1

(103865) Crankcase Type 1

1

2

100466

Bolt

M8x70 10.9

1

3

102980

Fitting

M18x1.5x14

1

4

100454

Seal

18x22x1.5 Al

1

Pos.

Part No

Description

QTY

5

104022

Crankcase Type 2

1

6

100467

Bolt

M8x90 10.9

1

7

401291

Fitting

M18x1.5x18

1

8

102992

Plug

1

1

no longer available

5

replacement part for Pos. 1
