MPE 750 NA Snow. Manual - part 5

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

2

3

4

5

6

9

7

8

Spare Parts Catalogue

Page 15

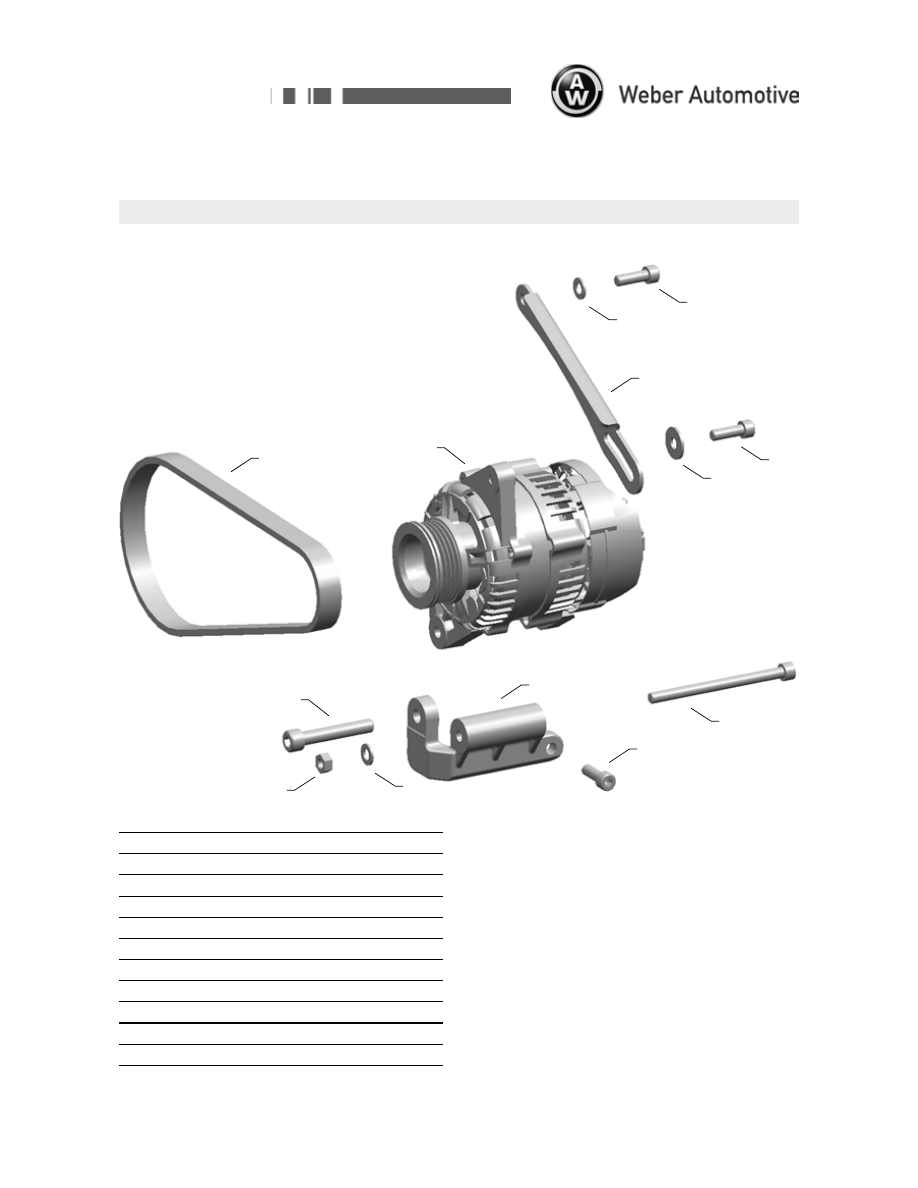

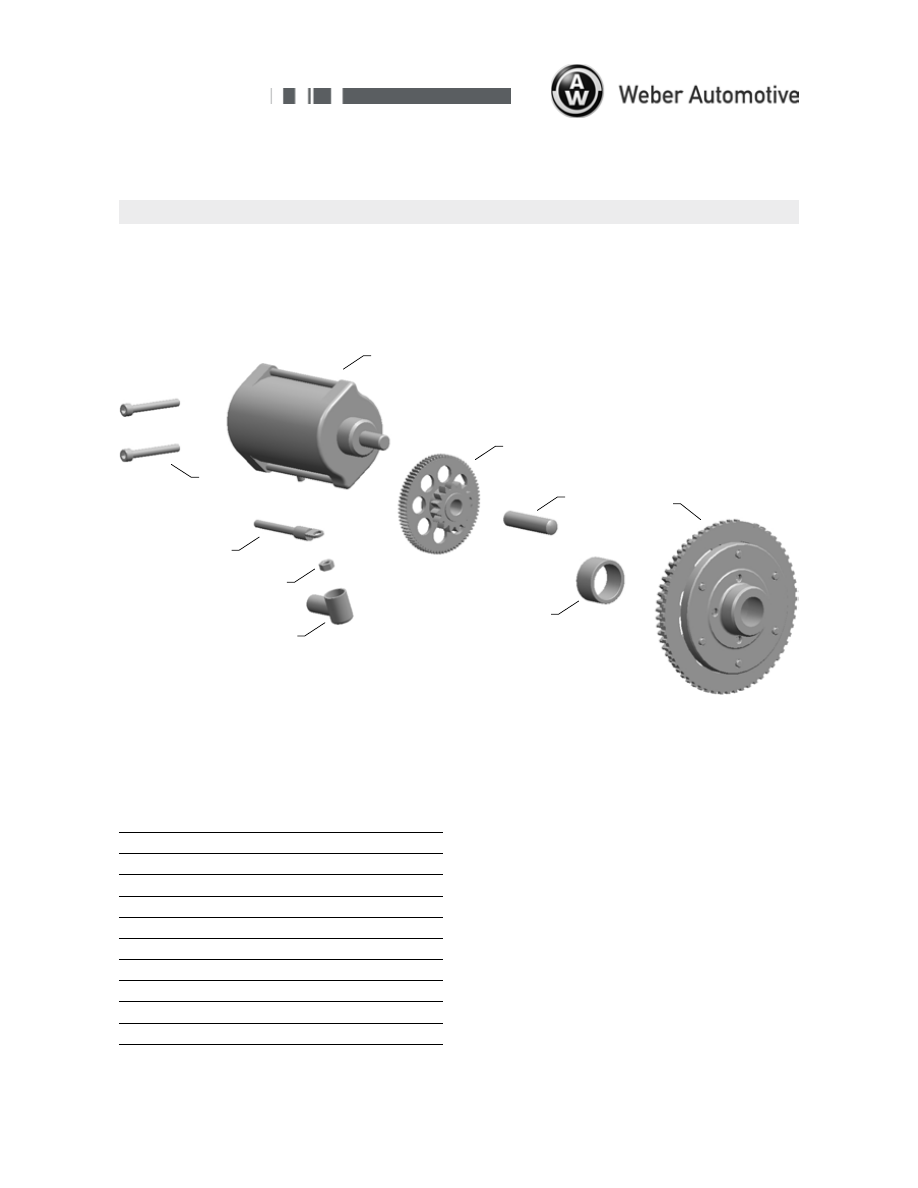

090 Starter,

Generator

Pos.

Part No

Description

QTY

1

100545

Bolt

M6x50 8.8

2

2

100151

Starter

1

3

102263

Starter Lead

1

4

100835

Nut

M6

1

5

100388

Rubber Gromet

1

6

101261

Gear

1

7

101117

Axle

1

8

100565

Neadle Bearing

1

9

401427

Overrun

1

01 Starter

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

7

8

2

10

4

9

5

4

5

6

5

3

Spare Parts Catalogue

Page 16

090 Starter,

Generator

Pos.

Part No

Description

QTY

1

103088

Belt

1

2

402201

Alternator

1

3

401192

Clamping Arm

1

4

100468

Washer

2

5

102490

Bolt

M8x25

3

6

101924

Washer

1

7

100525

Bolt

M10x60 8.8

1

8

102481

Nut

M8

1

9

101090

Alternator Bracket

1

10

102478

Bolt

M8x110 8.8

1

02 Generator

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

2

4

7

8

5

6

3

Spare Parts Catalogue

Page 17

*

See Chapter Engine Management System

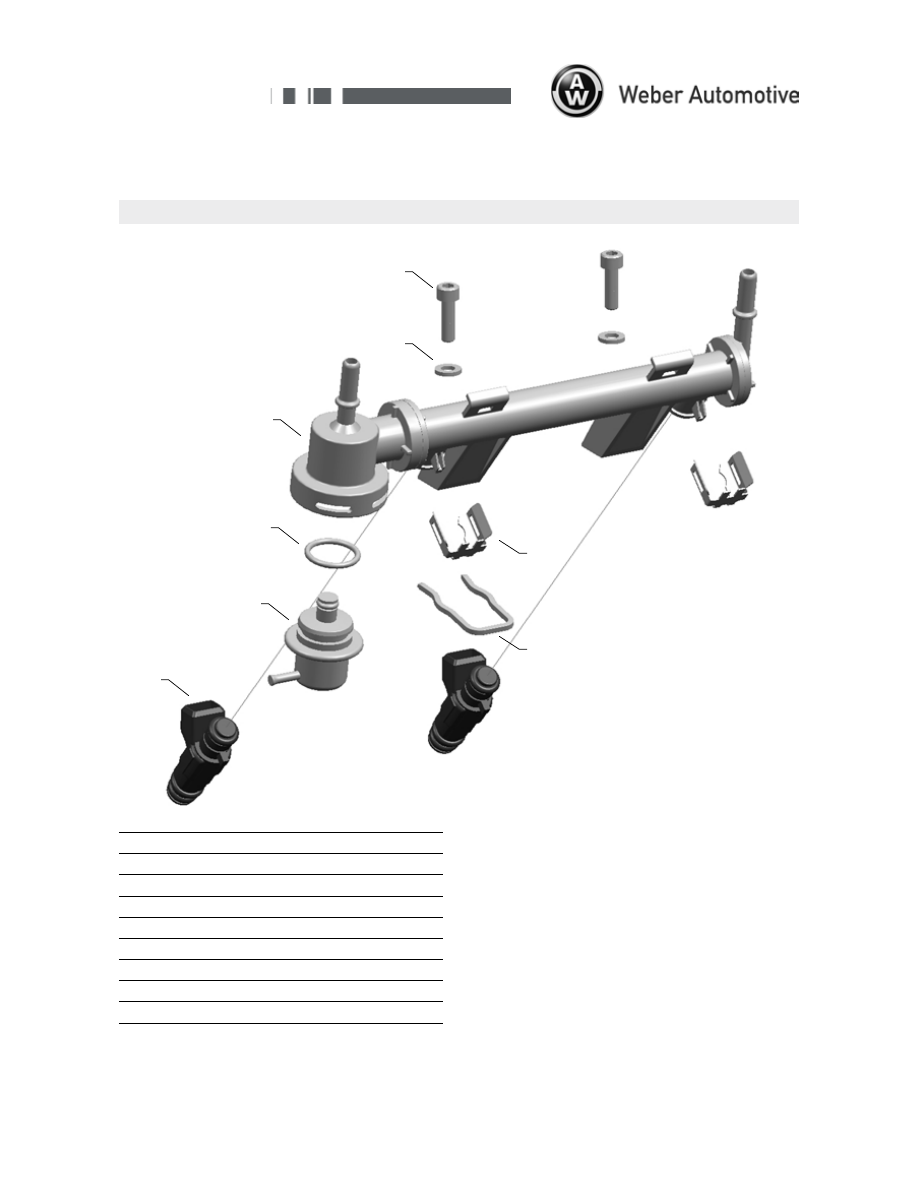

100 Fuel

Unit

Pos.

Part No

Description

QTY

1

100447

Bolt

M6x20

2

2

100448

Washer

2

3

*

Injector

2

4

103037

Fuel Rail

1

5

100431

Locking Clip

2

6

102927

O-Ring

1

7

103041

Fuel Pressure Regulator incl. Pos. 6

1

8

100364

Locking Clip

1

10056_abMJ07_ETK_Rev1.3_090128

MPE 750 NA Snow

1

6

1

2

3

5

4

7

11

10

9

4

8

13

14

14

14

6

12

Spare Parts Catalogue

Page 18

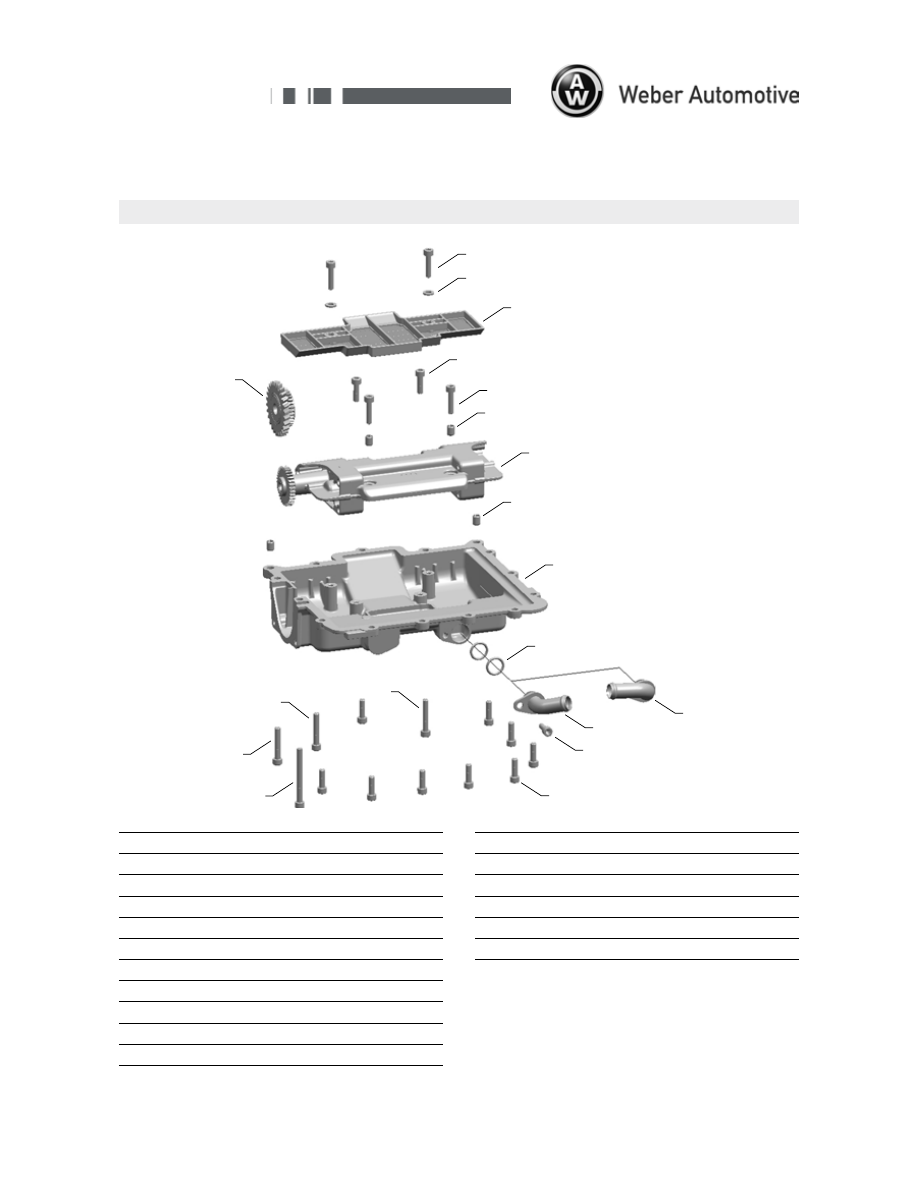

110 Lubrication

System

01 Dry Sump

Pos.

Part No

Description

QTY

1

100502

Bolt

M6x25 8.8

4

2

100448

Washer

2

3

100195

Oil Screen

1

4

100501

Bolt

M6x20 8.8

11

5

401428

Intermediate Gear Suction Pump

1

6

100280

Sleeve

4

7

102225

Suction Pump

1

8

102243

Suction Pump Cover

1

9

100491

O-Ring

2

10

100507

Bolt

M6x16 8.8

1

Pos.

Part No

Description

QTY

Depending on delivery status Pos. 11 or Pos. 12

11

102864

Connector

1

12

100492

Connector

1

13

100506

Bolt

M6x60 8.8

1

14

100505

Bolt

M6x35 8.8

3

Oil Screen
Suction Pump
Suction Pump Cover
