Snowmobile Polaris PRO X (2003 year). Manual - part 12





ENGINE

2.16

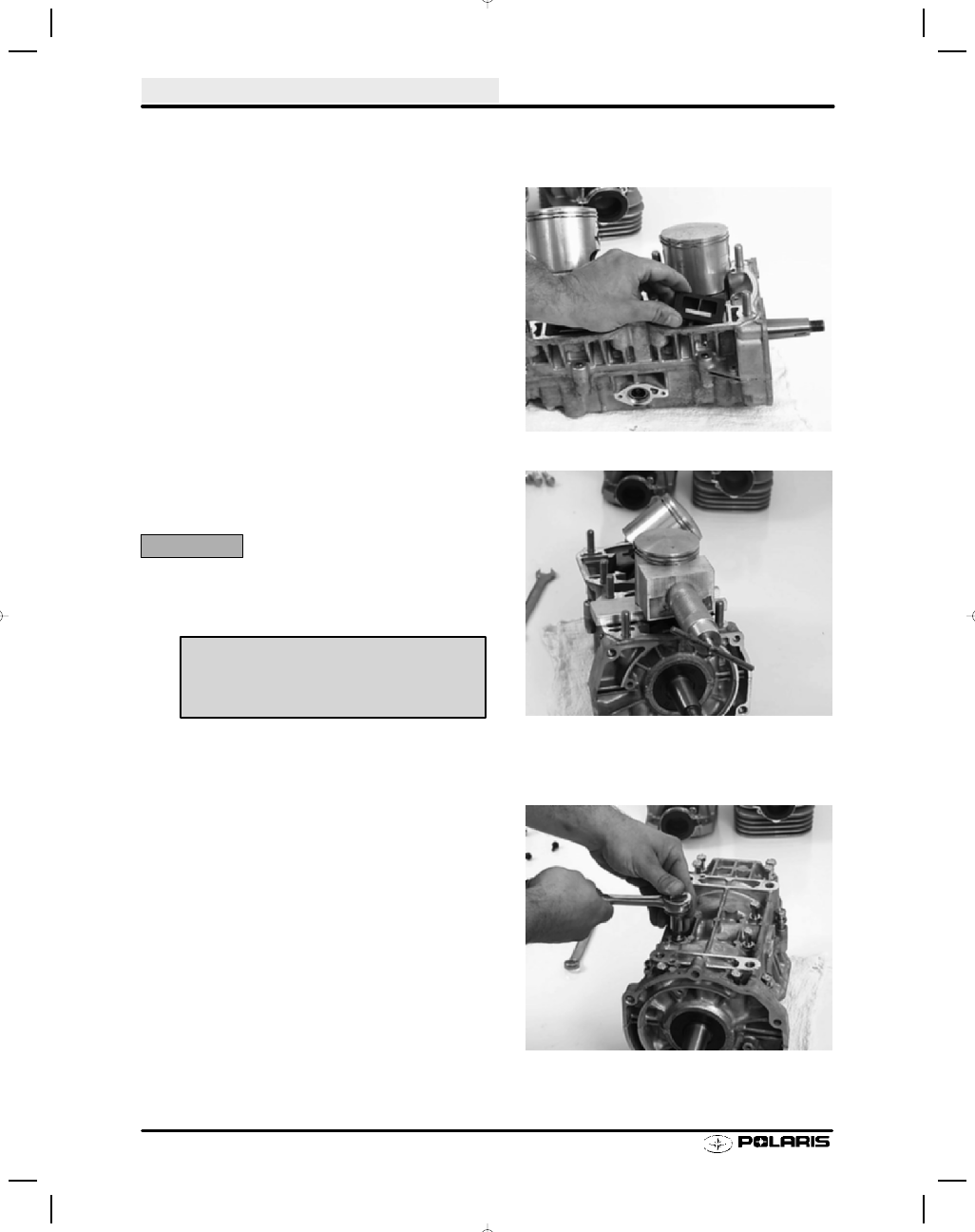

Disassembly - Continued

19. Remove the reed valves from the crankcase.

20. Using an awl and piston pin puller, remove the

pistons.

CAUTION:

Wear eye protection during piston c-clip removal
to prevent eye injury.

21. Turn

crankcase

over

and

remove

the

crankcase bolts. Turn over and separate the
case halves.

22. Refer to General Inspection section for

crankshaft

inspection

and

measurement

procedures.

Piston Pin Puller

PN 2870386

ENGINE

2.17

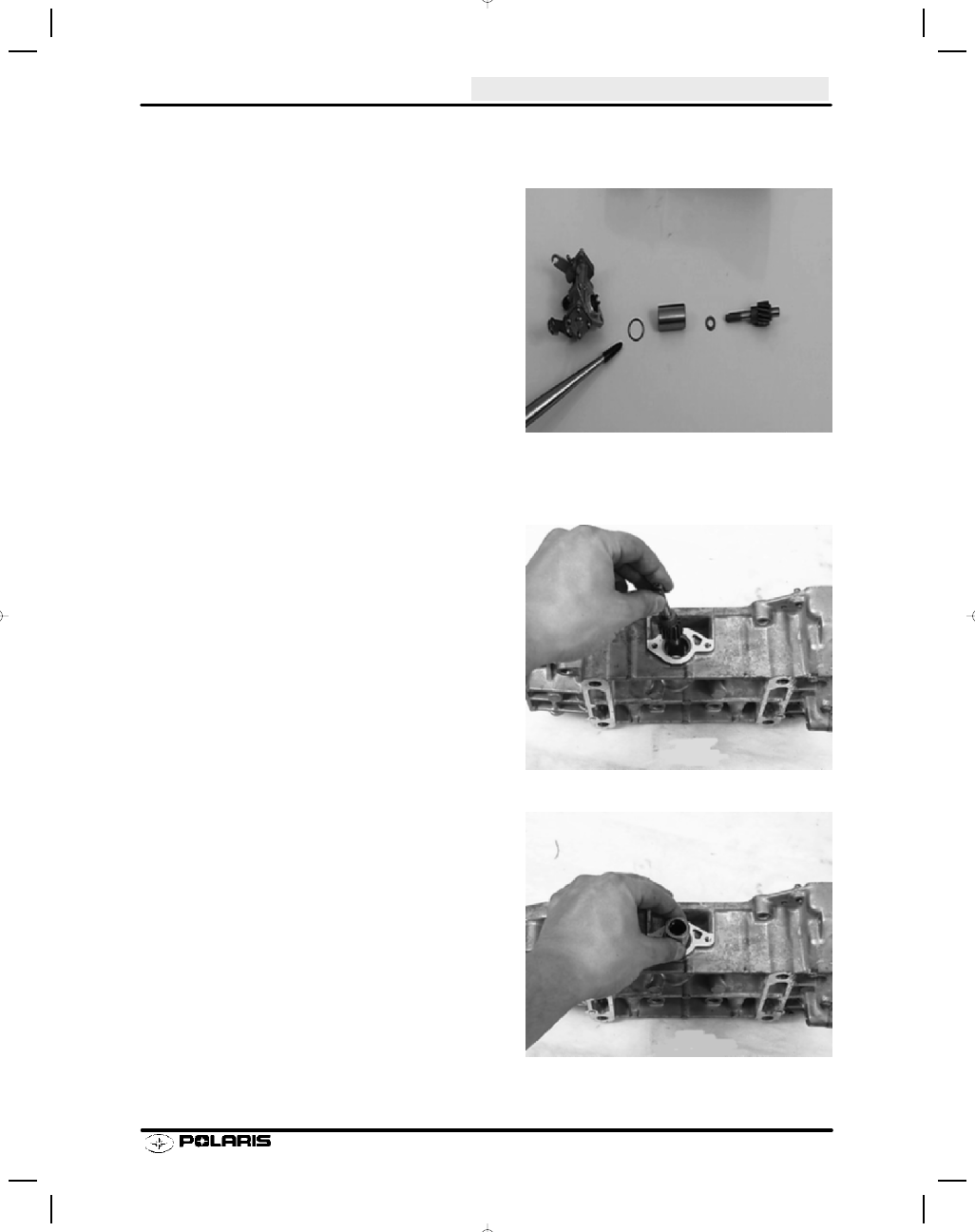

Engine Assembly

1.

Prior to assembly, make sure that you have all
of the oil pump shims when the oil pump was
removed, and that the shims are installed in
the correct order.

2.

Insert oil pump drive gear.

3.

Insert oil pump driveshaft spacer.

4.

ENGINE

2.18

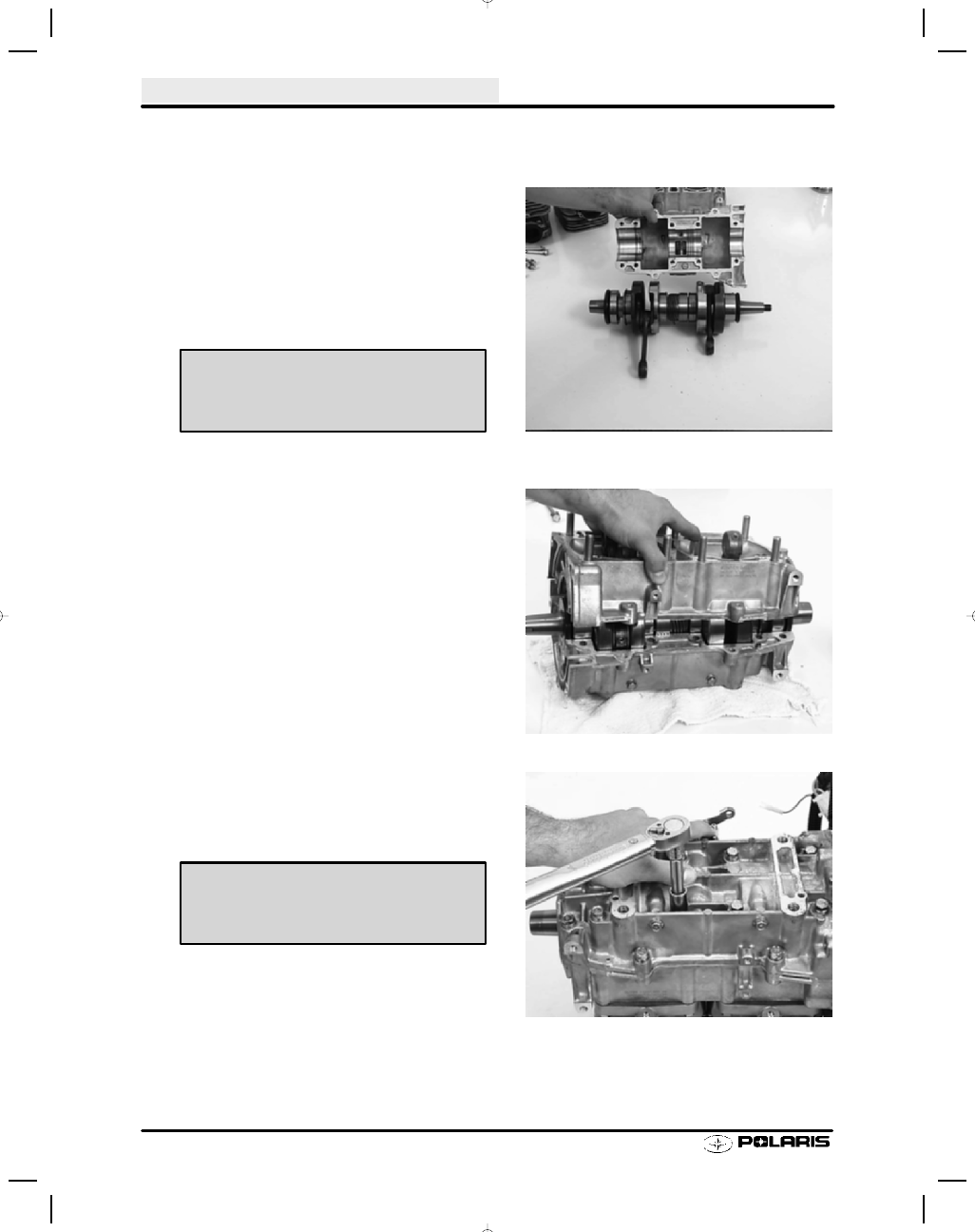

Engine Assembly - Continued

5.

Lay crankshaft into the lower case half. Make
sure that the crankshaft rotates smoothly and
does not bind. Rotate the bearings so that the
anti-rotation pins rest in their appropriate
galleries.
NOTE: Lubricate the crankseal prior to installation.

6.

Apply

3-Bond

¥ sealer to top half of

crankcase. Lubricate oil pump drive gear.

7.

Install the upper case half.

8.

Turn the crankcase over and torque the case
bolts in sequence illustrated in beginning of
chapter.

3-Bond

¥ 1215

PN 2871557

120 Gram Tube

Crankcase Bolt Torque
16.6 - 18 ft.lbs. (22 - 25 Nm)

ENGINE

2.19

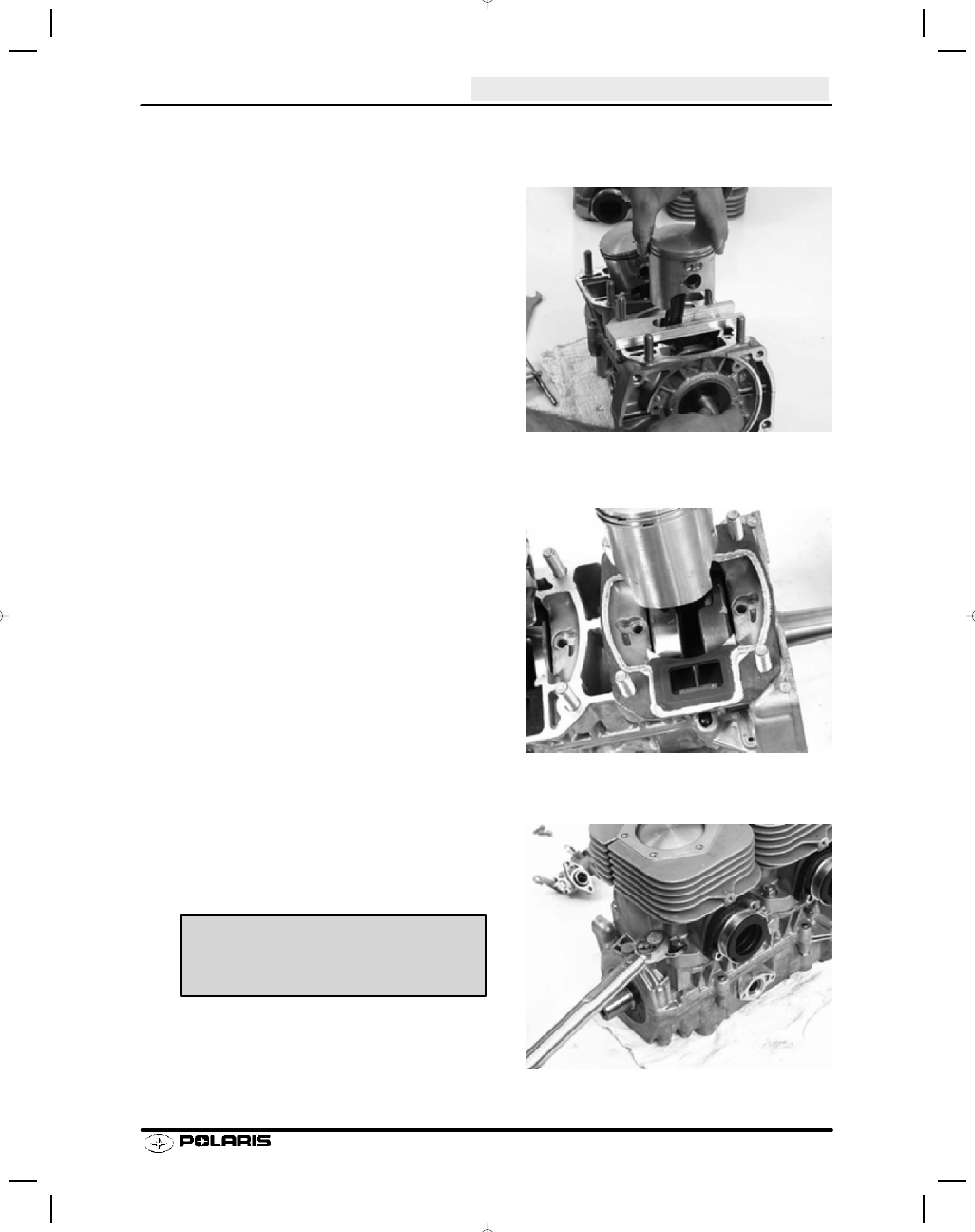

Engine Assembly - Continued

9.

Install pistons with arrow (") on piston facing
flywheel, with locating pins to intake side.
Install C-clips securely in piston groove.
NOTE: C--Clip should be facing with the open end up.

10. Lubricate rings and pistons with two stroke oil.

Install rings with letter, mark, or beveled side
facing upward.

11. Install the reed valves in the crankcase. After

installing the reed valves, insert the base
gaskets.

12. Install each cylinder. Torque cylinder base

nuts in sequence illustrated in beginning of
chapter.

Cylinder Base Nut Torque
24 - 28 ft.lbs. (33 - 39 Nm)
