113

MAINTENANCE

Tires

Operating your vehicle with worn tires will increase the possibility of skidding,
loss of control and an accident, which could result in serious injury or death.
Always replace tires when the tread depth measures 1/8” (3 mm) or less.
Improper tire inflation or the use of non-standard size or type of tires may
adversely affect vehicle handling, which could result in vehicle damage or
personal injury. Always maintain proper tire pressure.. Always use POLARIS-
approved size and type of tires for this vehicle when replacing tires.

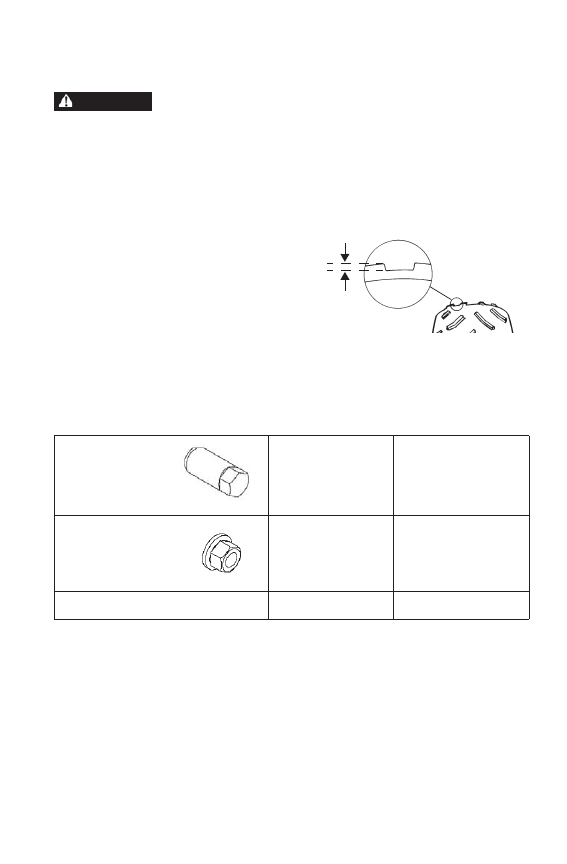

Tire Tread Depth

Always replace tires
when tread depth is
worn to 1/8" (3 mm) or
less.

Axle and Wheel Nut Torque Specifications

Inspect the following items occasionally for tightness, and if they've
been loosened for maintenance service. Do not lubricate the stud or the
lug nut.

Lug Nut

(Aluminum

Wheels)

Front and Rear

30 ft. lbs. (41 Nm)

PLUS 1/4 TURN or

90 degrees

2-Piece Flange

Nut (Steel

Wheels)

Front and Rear

27 ft. lbs. (37 Nm)

Hub Retaining Nut

Front and Rear

80 ft. lbs. (108 Nm)

WARNING

1/8" (3 mm)

114

MAINTENANCE

Tires

Wheel Removal

1. Position the vehicle on a level surface.

2. Place the transmission in PARK. Stop the engine.

3. Loosen the wheel nuts slightly.

4. Elevate the side of the vehicle by placing a suitable stand under the

frame.

5. Remove the wheel nuts and washers. Remove the wheel.

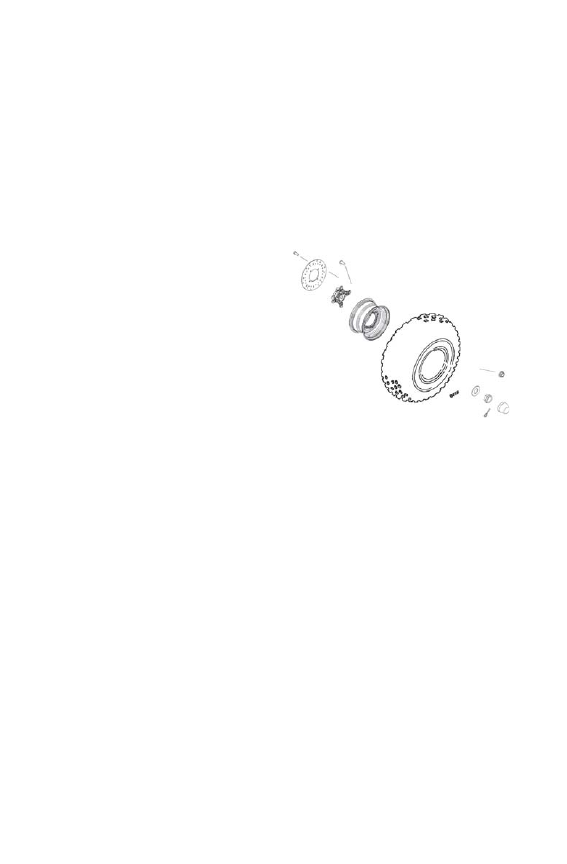

Wheel Installation

1. Place the transmission in

PARK.

2. Place the wheel in the

correct position on the
wheel hub. Be sure the
valve stem is toward the
outside and rotation
arrows on the tire point
toward forward rotation.

WARNING! Improperly installed wheels can adversely affect tire wear and
vehicle handling, which can result in serious injury or death. Always ensure that
all nuts are torqued to specification. Do not service axle nuts that have a cotter
pin installed. Your POLARIS dealer can assist.

3. Attach the wheel nuts and washers and finger tighten.

4. Carefully lower the vehicle to the ground.

5. Torque the wheel nuts to specification. See page 113.

115

MAINTENANCE

Lights

Headlight and taillight lenses become dirty during normal operation.
Clean all lights frequently to ensure a clear field of vision as well as vis-
ibility to other vehicles.

When servicing a halogen lamp, don't touch the lamp with bare fingers.
Oil from your skin leaves a residue, causing a hot spot that will shorten
the life of the lamp.

LED Headlamps (if equipped)

If a headlight becomes damaged or inoperable, the entire headlight
assembly must be replaced.

Tip: If an LED headlamp has moisture or fogging inside, disconnect the wiring

harness from the headlamp(s) for a few days to allow the moisture to clear
out. Do not operate the vehicle at night or in low light conditions without
properly working headlights.

Headlight Lamp Replacement

Do not service the headlamps until they've cooled sufficiently.

1. Unplug the headlamp from

the wiring harness. Be sure
to pull on the connector,
not on the wiring.

2. Turn the lamp counter-

clockwise to remove it.

3. Install the new lamp. Make

sure the tab on the lamp
locates properly in the
housing.

4. Reinstall the harness

assembly into the headlight
assembly.

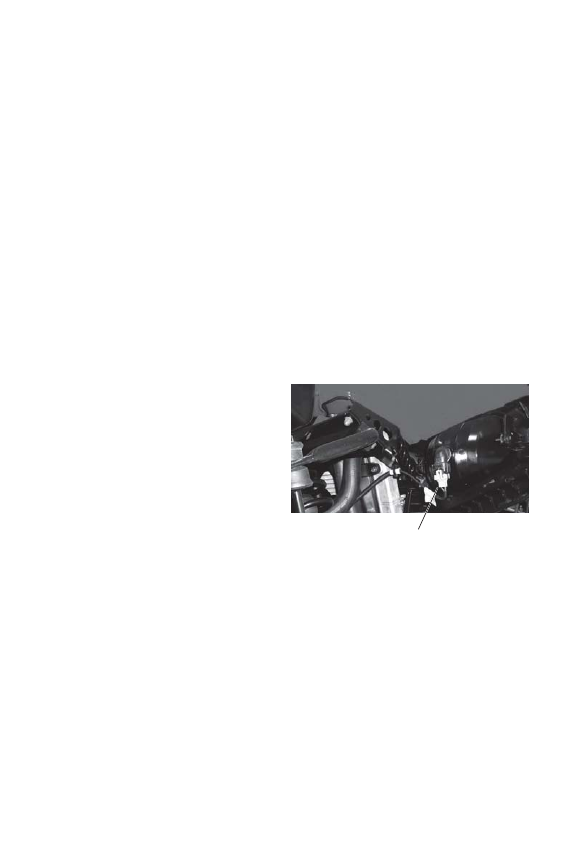

Wiring Harness

116

MAINTENANCE

Lights

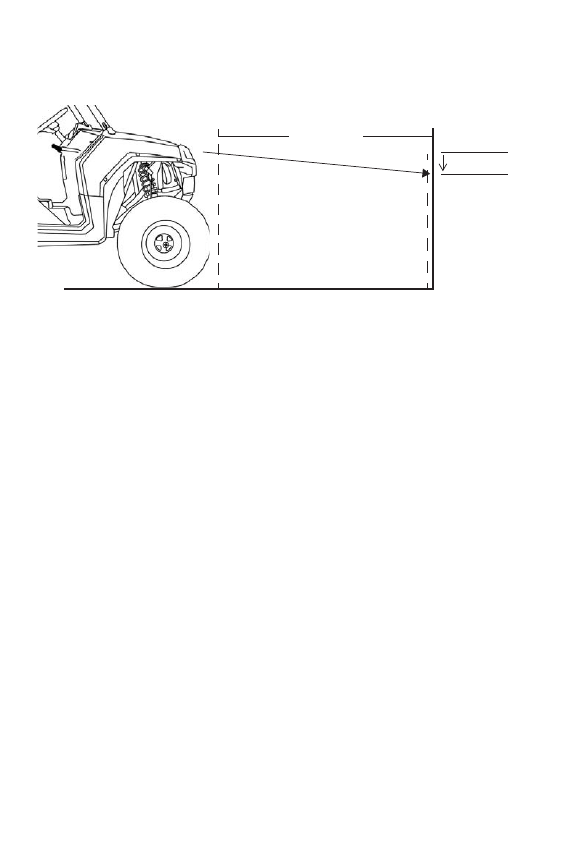

Headlight Beam Adjustment

1. Place the vehicle on a level surface with the headlight

approximately 25 ft. (7.6 m) from a wall. Place the transmission in
PARK.

2. Measure the distance from the floor to the center of the headlight

and make a mark on the wall at the same height.

3. Apply the brakes. Turn the ignition switch to the LIGHTS ON

position.

4. Observe the headlight aim. The most intense part of the headlight

beam should be aimed 8" (20 cm) below the mark placed on the
wall in step 2. Include the weight of a rider on the seat while
performing this step.

5. If adjustment is necessary, turn the headlight adjustment screw to

adjust the beam.

6. Repeat steps 4-5 until the beam is properly adjusted.

25 ft.

(7.6 m)

8" (20 cm)

X

X
