Polaris Ace RZR 570, RZR 570 EPS (2018 year). Manual - part 9

37

FEATURES AND CONTROLS

Park Brake Lever (if equipped)

Always apply the service brakes before engaging or releasing the park
brake. To help prevent the vehicle from rolling, set the park brake when
parking the vehicle. When the park brake is set and the park brake
indicator is illuminated, engine speed is limited. If the accelerator is
applied, this limiting feature prevents operation, which protects the park
brake pads from excessive wear.

Tip: This feature will not operate

properly if the park brake
connector or switch (under the
hood) malfunctions or
becomes disconnected, or if
the switch has moved. Check
for disconnection, then see
your dealer or other qualified
service person promptly if this
feature fails to operate
properly.

1. To set the park brake, apply

the brakes.

2. Pull the park brake lever

upward as far as possible.

3. To release the park brake,

apply the brakes. Press the
park brake release inward
and move the lever
downward as far as possible.

Park Brake

Lever

Park Brake

Release

38

FEATURES AND CONTROLS

Rollover Protective Structure (ROPS)

The Rollover Protective Structure
(ROPS) on this vehicle meets
OSHA 1928.53 rollover
performance requirements. Always
have authorized service personnel
or your POLARIS dealer
thoroughly inspect the ROPS if it
ever becomes damaged in any way.

No device can assure occupant
protection in the event of a rollover.
When used with seat belts and cab
nets, the ROPS helps prevent
occupants from being ejected from
the vehicle. Always follow all safe
operating practices outlined in this
manual to avoid vehicle rollover.

WARNING! Vehicle rollover could cause severe injury or death. Always avoid
operating in a manner that could result in vehicle rollover.

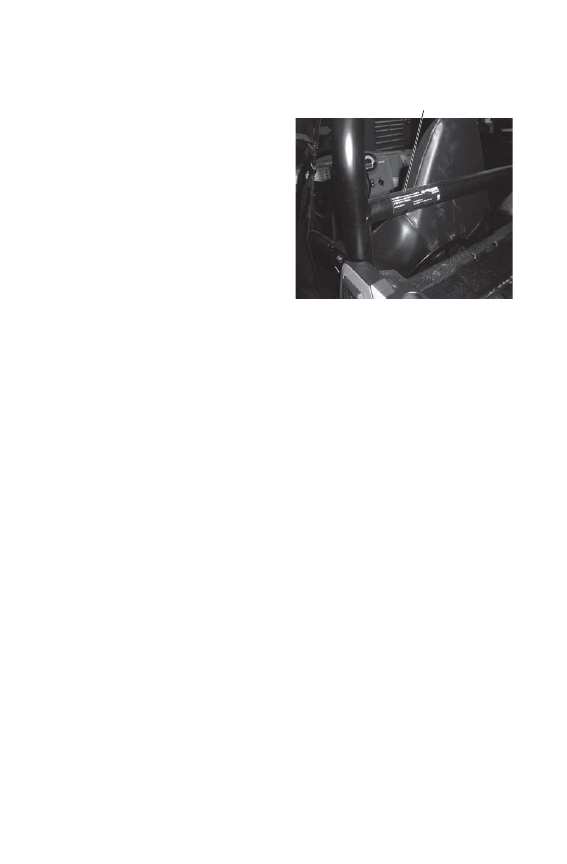

ROPS Label

39

FEATURES AND CONTROLS

Electronic Power Steering (EPS)

Electronic power steering (if
equipped) engages when the ignition
key is turned to the ON position. EPS
remains engaged whether the vehicle
is moving or idle.

The EPS warning indicator briefly
illuminates when the key is turned to
the ON position. See page 45.

To conserve battery power, the EPS
will shut down 5 minutes after the
engine is stopped if the key remains
in the ON position. The EPS warning
indicator will illuminate to indicate
the EPS has shut down.

If the light remains on after starting the engine, the EPS system is
inoperative. Your POLARIS dealer can assist.

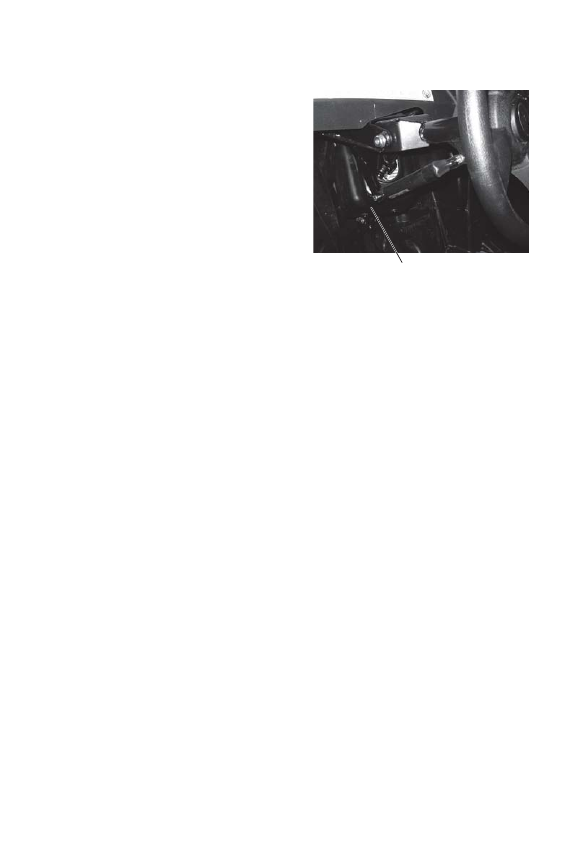

Power Steering Unit

(under cover)

40

FEATURES AND CONTROLS

All Wheel Drive (AWD) System

For models equipped with a rear differential, refer to the All Wheel
Drive/Rear Differential section beginning on page 41.

On models not equipped with a rear differential,
the All Wheel Drive system is controlled by the
AWD switch. When the switch is on 2X4, the
vehicle is in two-wheel drive at all times. When
the switch is on AWD, the vehicle is in all wheel
drive and the 4X4 indicator in the instrument
cluster will be on.

When in AWD, the demand drive unit will
automatically engage any time the rear wheels lose
traction. When the rear wheels regain traction, the
demand drive unit will automatically disengage.

There is no limit to the length of time the vehicle may remain in AWD.

Engaging AWD

The AWD switch may be turned on or off while the vehicle is moving.
Initially, the vehicle's electronic system will not enable the AWD until
the engine RPM is below 3100. Once enabled, the AWD remains
enabled until the AWD switch is turned off. If the switch is turned off
while the demand drive unit is moving, it will not disengage until the
rear wheels regain traction.

Engage the AWD switch before getting into conditions where front
wheel drive may be needed. If the rear wheels are spinning, release the
throttle before switching to AWD.

NOTICE: Switching to AWD while the rear wheels are spinning or slipping may

cause severe drive shaft and gearcase damage. Always switch to
AWD while the rear wheels have traction or are at rest.

AWD

2WD
