FEATURES AND CONTROLS

Switches

Ignition Switch/Light Switch (Base Model)

Use the ignition switch to start the engine and to turn the lights on or off.
The key can be removed from the switch when it is in the OFF position.

Ignition Switch (LE Model)

The ignition switch is a three-position, key-operated switch. The key
can be removed from the switch when it is in the OFF position.

Light Switch (LE Model)

The ignition switch key must be in the
ON/RUN position to operate the
headlights. Press the top of the rocker
switch toward the dash to place the
headlights on high beam. Move the
rocker switch to the center position to
place the headlights on low beam. Press
the bottom of the rocker switch to turn off
the headlights.

OFF

Turn the key to the OFF position to stop the engine. Electrical

circuits are off.

LIGHTS ON

Electrical circuits are on. Electrical equipment can be used.

LIGHTS OFF

Electrical circuits are on. Electrical equipment can be used.

START

Turn the key to the START position to engage the electric

starter. See page 56 for starting procedures.

OFF

The engine is off. Electrical circuits are off, except Acc, 12V.

ON

Electrical circuits are on. Electrical equipment can be used.

START

Turn the key to the START position to engage the electric

starter. The key returns to the ON position when released.

HIGH

OFF

LOW

34

FEATURES AND CONTROLS

Switches

All Wheel Drive (AWD) Switch (if equipped)

The AWD Switch has two positions:
• All Wheel Drive (AWD)
• Two Wheel Drive (2WD).

Press the top of the rocker switch to engage All
Wheel Drive. Press the bottom of the switch to
operate in two wheel drive.

See page 40 for AWD operating instructions.

AWD/Differential Lock Switch (if equipped)

The AWD/Differential Switch has
three positions:
• All Wheel Drive (AWD)
• Differential Lock (2WD)
• Differential Unlock (TURF mode)

Press the top of the rocker switch to
engage All Wheel Drive (AWD). See
page 42 for operating instructions.

Move the rocker switch to the center position to lock the differential and
operate in rear wheel drive. Press the bottom of the switch to unlock the
differential and allow the two rear drive wheels to operate
independently. See page 42 for differential lock operating instructions.

WARNING! Never operate in TURF mode (if equipped) while operating on a hill
or other irregular terrain. Always move the AWD switch to AWD before
ascending or descending a hill. See page 43.

AWD

2WD

AWD

Differential Lock

Differential Unlock

35

FEATURES AND CONTROLS

Gear Selector

P: Park

R: Reverse

N: Neutral

L: Low Gear

H: High Gear

To change gears, stop the vehicle,
and with the engine idling, move the
lever to the desired gear. Do not
attempt to shift gears with engine
speed above idle or while the vehicle
is moving.

Tip: Maintaining shift linkage adjustment is important to assure proper

transmission function.  Your POLARIS dealer can assist in resolving any
shifting problems.

NOTICE: Do not attempt to shift the transmission while the vehicle is moving or

damage to the transmission could result. Always shift when the
vehicle is stationary and the engine is at idle.

Using Low Range

Always shift into low gear for any of the following conditions.
• Operating in rough terrain or over obstacles
• Loading the vehicle onto a trailer
• Towing heavy loads

Gear Selector

36

FEATURES AND CONTROLS

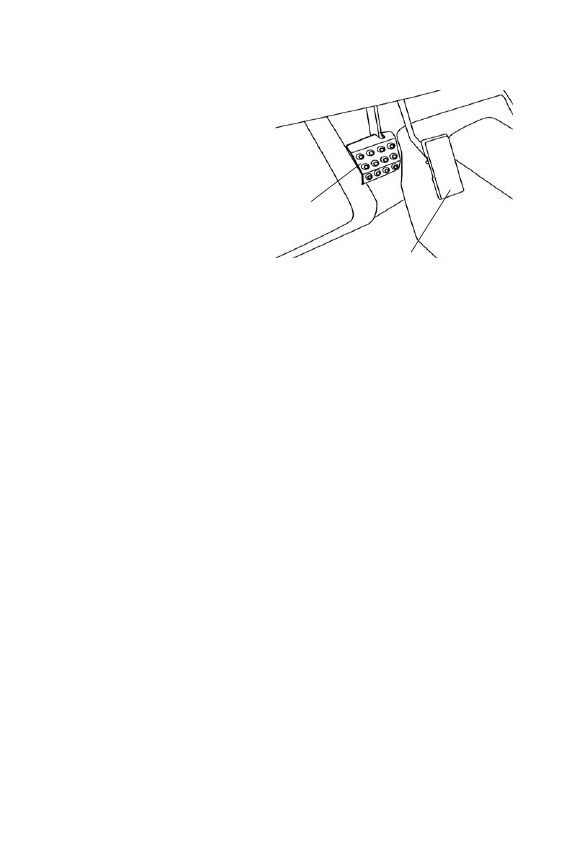

Brake Pedal

Depress the brake pedal to
slow or stop the vehicle.
Apply the brakes while
starting the engine.

Throttle Pedal

Push the pedal down to
increase engine speed. Spring
pressure returns the pedal to
the rest position when
released. Always check that
the throttle pedal returns
normally before starting the engine.

Tip: If the throttle pedal and brake pedal are applied simultaneously, engine

power may be limited.

Throttle

Pedal

Brake

Pedal
