Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect

suspension action.
Each rear suspension can be adjusted to suit rider preference and deliver

excellent performance for a given set of conditions. However, all sus-

pension designs and adjustments involve a compromise, or trade-off.

For example, a suspension set up for snow-cross racing would provide a

very stiff ride on the trail. A suspension set up for trail riding would bot-

tom out harshly on a snow-cross course.
Refer to the suspension setup label on your snowmobile, or see your

Polaris dealer for initial suspension setup information. Additional

adjustments can be made after initial setup. Make adjustments to one

area at a time so you can evaluate the change. For further assistance, see

your dealer.

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a

little experimentation, each rider can find a preferred set-up. These

adjustments are easy to make, involve very little time or effort, and

greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over a

worn slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the machine's performance. Bogie wheel kits

are available from your dealer.

• Polaris offers track kits for improved flotation in deep snow. See your

dealer for assistance.

Tip: Keep the suspension pivot points lubricated. This will reduce moisture and

rust build-up and ensure proper function of the suspension components.

Grease rear suspension pivots before adjusting the rear suspension. Refer

to the suspension lubrication information beginning on page 89.

54

THE PERFECT FIT

IQ Rear Suspension Adjustments

Initial Spring Preload Setting (Sag Method)

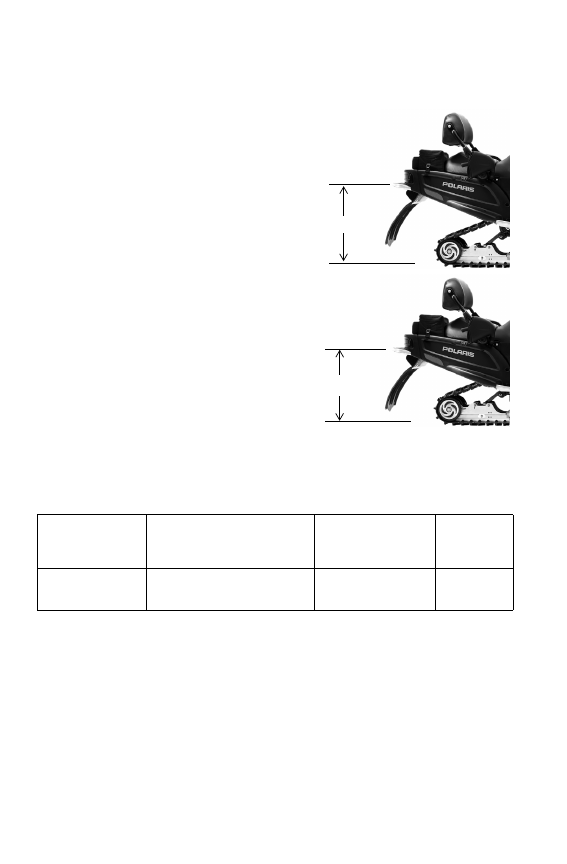

To set up the rear suspension torsion

spring preload, measure the distance

between the ground and rear bumper.

This is measurement X.
Take the first measurement with no

rider and with the rear suspension at

full extension.

Tip: The rear bumper may need to be

lifted upward slightly to fully extend

the rear suspension.

Next, have the rider drop down hard

on the seat and bounce up and down

several times, collapsing the rear

suspension. With the rider seated,

measure the distance between the

ground and the rear bumper at the

exact location used for measure-

ment X. This is measurement Y.
To determine sag, commonly

referred to as ride-in, subtract measurement Y from X (sag=X-Y). If the

measured sag is incorrect, adjust the FRA position and/or rear torsion

spring preload.

Tip: This is only an initial setup, and final spring preload may vary based on rider

preference and riding conditions. Accessory springs with a higher load rat-

ing are available for some models. Please see your dealer for availability.

Suspension Recommended Sag

Adjustment

See

Page

IQ Comfort

(136)

4-5 inches (10-13 cm)

Torsion Spring

Preload

55

X

Y

55

THE PERFECT FIT

IQ Rear Suspension Adjustments

Torsion Spring Preload

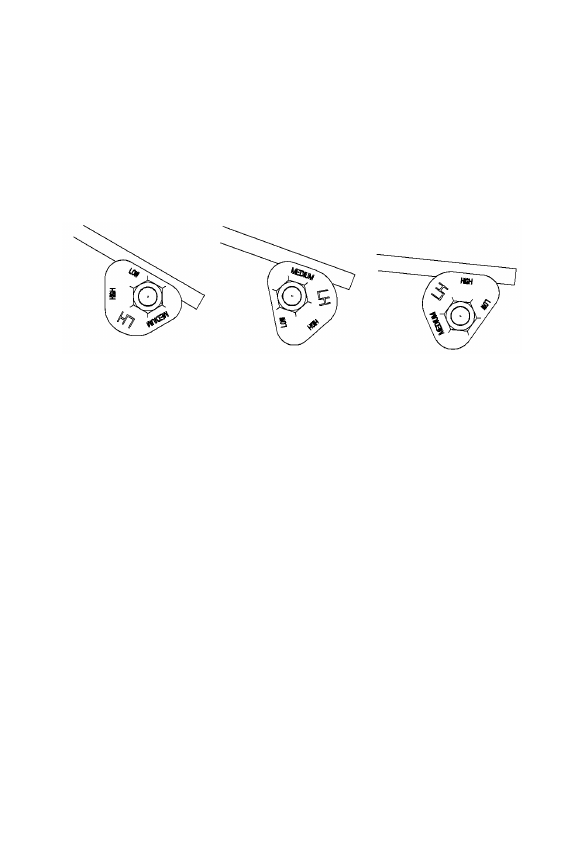

To adjust rear torsion spring preload, rotate the three-position cam using

the engine spark plug tool. Adjustment is easiest when the cam is

rotated from low to medium, and then to high. Rotating directly from

low to high will require significantly more effort.
Different rate torsion springs are available if a firmer ride is desired. See

your dealer for more information.

Soft

Medium

Firm

56

THE PERFECT FIT

IQ Rear Suspension Adjustments

Limiter Strap Position (Ski Pressure)

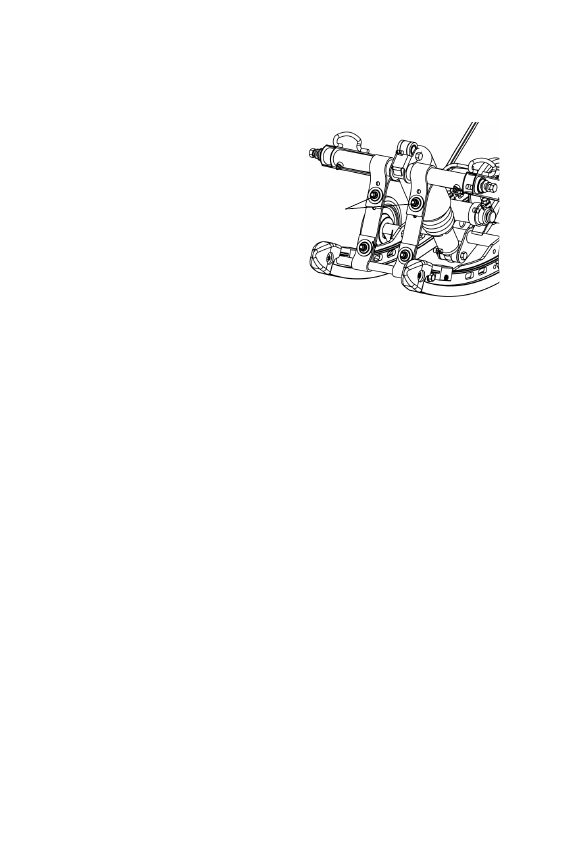

Ski pressure is set at the factory to

deliver the optimum balance

between ride and handling. If a

rider prefers more ski pressure for

improved steering performance,

adjustments can be made to the

front limiter straps. Tighten the

straps to increase ski pressure.

Loosen the straps to reduce ski

pressure.
1. Remove the nuts and flat

washers from the upper limiter

straps.

2. Relocate the straps to the desired position.
3. Reinstall the nuts and washers. Tighten securely.

Upper

Nuts
