IQ Rear Suspension Adjustments

Suspension Coupling

On all Polaris snowmobile rear suspensions, there are two torque arms

that control the movement of the rail beam. Prior to the advent of sus-

pension coupling, these torque arms could move independently of each

other. Rear suspension coupling links the movement of the front and

rear torque arms to each other. There are two types of rear suspension

coupling.

Front To Rear Coupling and the Front Rear Scissor Stop

(FRSS)

The front rear scissor stop (FRSS) couples the movement of the front

torque arm with the rear torque arm and limits the amount of indepen-

dence between the movement of the front torque arm and the rear torque

arm.
When hitting a bump, the front torque arm starts to compress. The FRSS

links that movement to the rear torque arm, causing it to compress and

raise the rear suspension up as one, allowing the suspension to hit the

bump only once and reducing kickback.
The factory setting is usually adequate for all riders and conditions.

58

THE PERFECT FIT

IQ Rear Suspension Adjustments

Rear To Front Coupling and the Rear Rear Scissor Stop

(RRSS)

The rear rear scissor stop (RRSS) couples the movement of the rear

torque arm with the front torque arm and limits the amount of indepen-

dent movement between the rear torque and the front torque arm.
Adjusting the RRSS either allows more weight to transfer to the rear for

more traction, or allows less weight to transfer to the rear, resulting in

improved cornering performance. An adjustment dot is located on the

RRSS. This dot is on the longest end of the scissor stop.

Rear Rear Scissor Stop (RRSS) - Attributes

Moving the RRSS to a higher position will have the following effects on

the suspension:
• Reduced weight transfer.
• Improved chatter bump ride.
• Improved cornering performance.
• Increased load carrying capacity (2-up)

59

THE PERFECT FIT

IQ Rear Suspension Adjustments

Weight Transfer During Acceleration

The preferred method for controlling

weight transfer during acceleration is

by adjusting the rear rear scissor stop

(RRSS). The factory setting is the

best for most trail riding conditions.
To decrease weight transfer under

acceleration (for improved corner-

ing), rotate the RRSS to a higher

position.

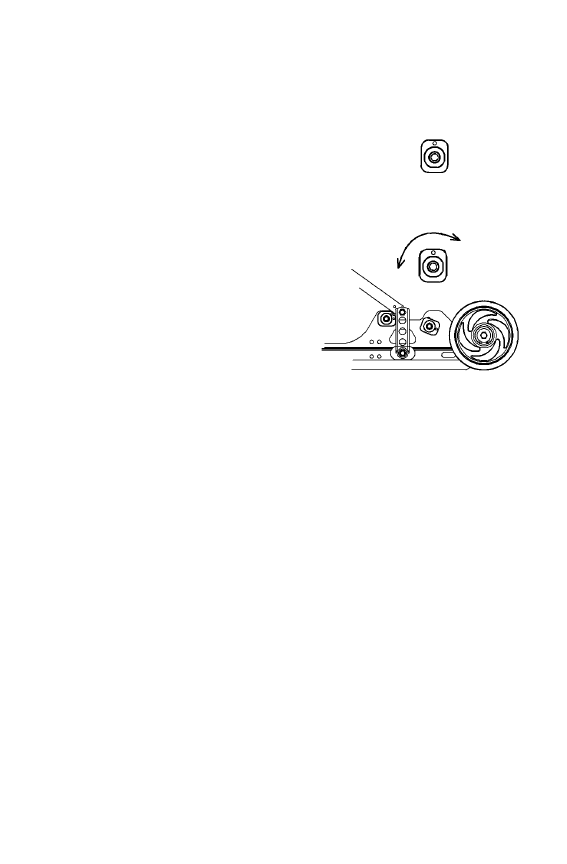

To increase weight transfer or ski lift

during acceleration, rotate the RRSS

to a lower position.

Tip: Your dealer can help you with initial

setup and additional setup instruc-

tions to help you achieve your opti-

mum ride. A scissor stop tool is also

available from your dealer.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-

rect tension and alignment. Refer to the track tension maintenance sec-

tion beginning on page 110.

HIGH

LOW

LOW

MEDIUM

60

THE PERFECT FIT

Handlebar Adjustments

Use the RIDER SELECT feature to adjust handlebar position. See page

33. Use the following steps to adjust handlebar angle at the handlebar

block.

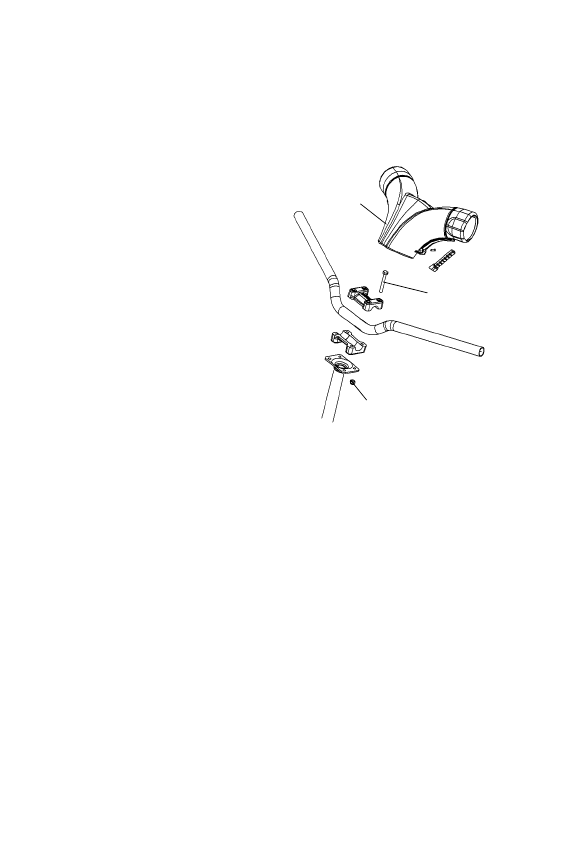

1. Remove the handlebar cover

to expose the handlebar and

the four adjuster block bolts.

2. Using a 7/16" wrench, loosen

the four nuts on the bottom of

the adjuster block (turn han-

dlebar to left or right for

access to back nuts).

Tip: If necessary, pry the blocks apart

with a screwdriver.

3. Adjust the handlebar to the

desired height. Be sure han-

dlebars, brake lever and

throttle lever operate

smoothly and do not hit the

gas tank, windshield or any

other part of the machine

when turned fully to the left

or right.

4. Torque the front bolts first, then torque the rear bolts. Torque the

bolts to 15-17 ft. lbs. (20-23 Nm).

5. Reinstall the handlebar cover.

Handlebar

Cover

Adjuster

Block

Bolts

Nuts
