45

FEATURES

Instrumentation

MFD Digital Display Programs

History Program

The History Program automatically displays electrical system voltage

level and fuel level (if equipped).

While in the History mode, press the SET button to view maximum

vehicle speed, maximum engine rpm or the current service interval set-

ting. The gauge automatically logs the maximum speed and engine rpm

even if the History Program is not currently displayed.
The History Program will display the history of the Maximum Speed,

Maximum RPM and Service Interval settings.

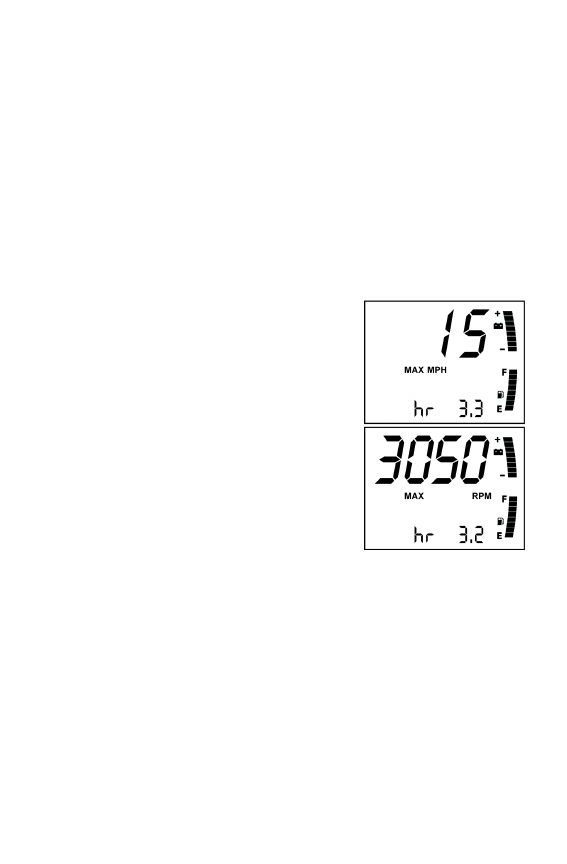

Maximum Speed/Maximum RPM
1. Enter the History Program.
2. Press and release the SET button until

one of the two screens is active.

Tip: The MPH and RPM values are both reset at

the same time. Reset the values before each

run to obtain accurate readings.

3. Press and hold the SET button for three

seconds to reset the recorded maximum

values for both MPH and RPM.

Tip: Due to electrical noise, the MFD may occa-

sionally display MAX MPH/RPM values that

are not representative of actual values.

46

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
Service Interval Reminder
The gauge logs the number of engine

hours accumulated between service

reminders. When the logged hours

reaches the designated service interval

(set by the user), the gauge provides a

reminder that service is due. "SErVCE"

will flash in the odometer area and

"ENG" will flash in the icon area for five

seconds each time the engine is started

(until the service reminder is reset.) Use

the following procedures to reset the

reminder.
To reset the reminder at the existing interval:
1. Enter the History Program.
2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for ten seconds, continuing to hold

even after the display begins to flash.

4. When the display stops flashing, release the button. The service

interval has been reset.

47

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
Service Interval Reminder
To reset the reminder at a new interval:
1. Enter the History Program.
2. Press and release the SET button until the service interval screen is

active.

3. Press and hold the SET button for five seconds, until the hours begin

to flash. Immediately release the button.

4. Press the button again, up to five times, to advance the reminder in

50-hour increments.

Tip: The maximum interval is 250 hours.

5. Press and release the MODE button to save the new settings.

To disable the service interval reminder:
1. Press the SET button once after reaching 250 hours on the display.

The gauge will display "OFF".

48

FEATURES

Instrumentation

MFD Battery Replacement

Models equipped with the clock feature

have a battery to power the clock. If the

clock function of the MFD isn't working

properly, replace the battery. Replace-

ment batteries are available from your

dealer.
1. Remove the plenum from the under-

side of the hood.

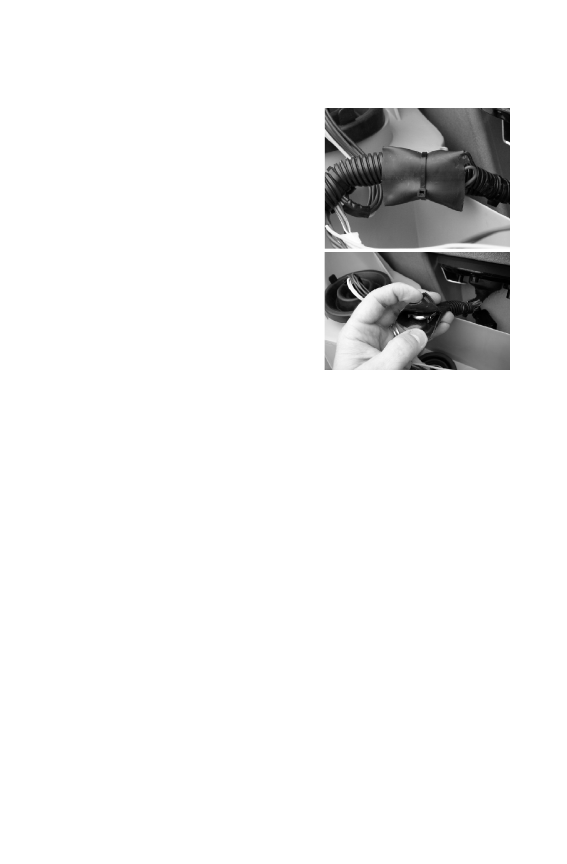

2. Locate the black battery compart-

ment. It has a red wire and a brown

wire with a white stripe. It's located

about three inches down the main

harness from the point where the

harness connects to the MFD.

3. Cut the plastic cable tie from the

outside of the compartment.

4. Carefully cut the bottom of the compartment (opposite the wires) to

separate the heat-sealed seams. Squeeze the corners of the compart-

ment inward so the battery is visible.

Tip: Note the orientation of the battery before removing it. An incorrectly

installed battery will not maintain the clock.
