Page 6

Item

Description

1

SPINDLE

2

WHEEL BEARING SPACER

3

HUB AND CUP ASSEMBLY

4

WHEEL BEARING NUT

5

LOCK PLATE

6

DRIVE FLANGE

7

O-RING

8

PLANETARY SPIDER ASSEMBLY

9

PLANETARY PINION

10

COVER

11

O-RING

12

PLANETARY RING GEAR

13

O-RING

14

SNAP RING

15

TRS FACE SEAL ASSEMBLY

16

SOCKET HEAD CAPSCREW

Item

Description

17

SOCKET HEAD CAPSCREW

18

PLANETARY SUN GEAR

19

THRUST WASHER

20

SPRING HOUSING

21

HARDENED WASHER

22

SOCKET HEAD CAPSCREW

23

SNAP RING

24

AXLE SHAFT

25

AXLE SHAFT

26

HARDENED WASHER

27

CAPSCREW

28

LOCK NUT

29

PLANETARY PINION BEARING KIT

30

BEARING KIT

31

BEARING KIT

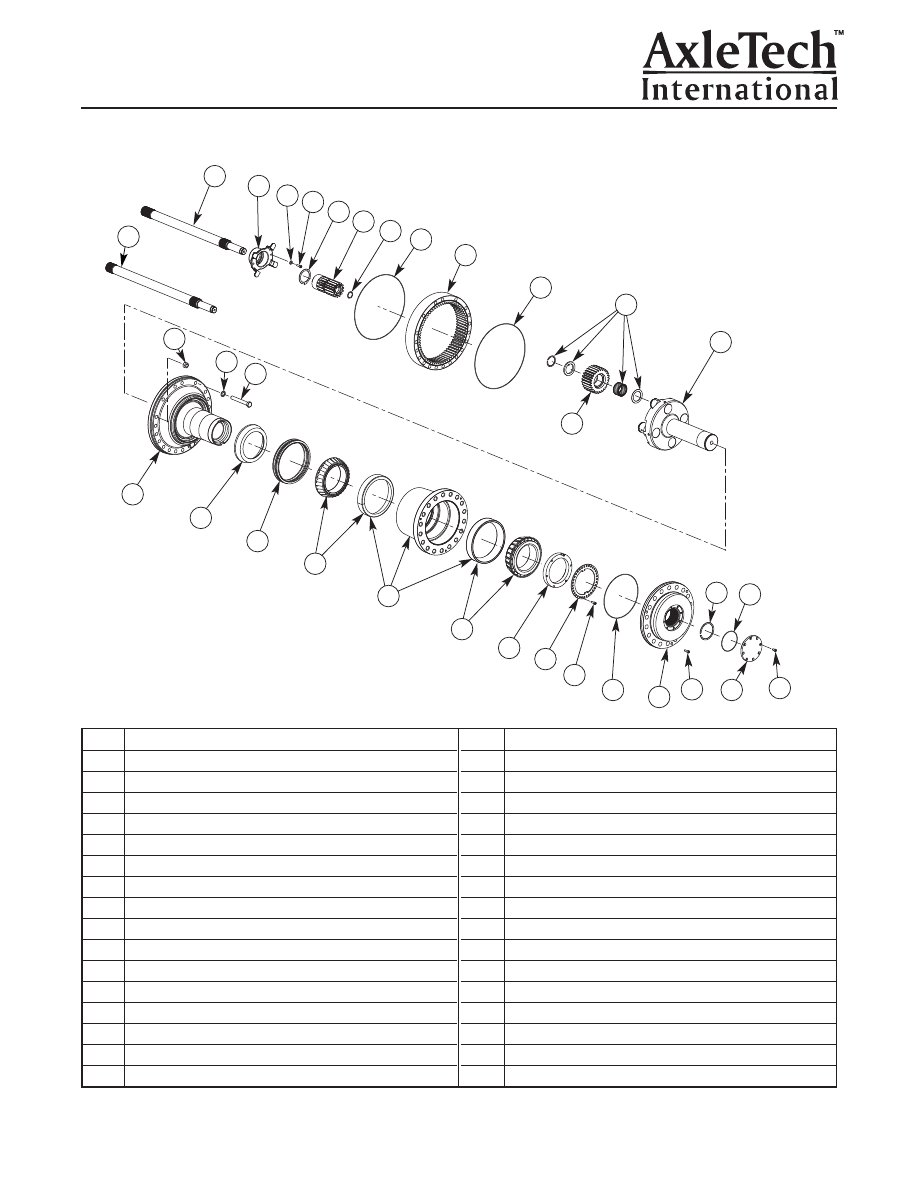

Planetary Wheel End Components

25

24

20 21

22

19 18

23 13

13

29

8

9

14 11

10

16

17

17

6

5

4

30

3

31

15

2

1

27

26

28

7

12

Exploded View

Item

Description

1

BACKING PLATE

2

FRICTION DISC (ROTATING)

3

STATIONARY DISC

4

PISTON

5

D-RING PISTON SEAL

Item

Description

6

D-RING PISTON SEAL

7

STATIONARY DISC DOWEL

8

SPRING GUIDE DOWEL

9

RETURN SPRING

Page 7

2

1

2

3

3

4

5

6

9

8

7

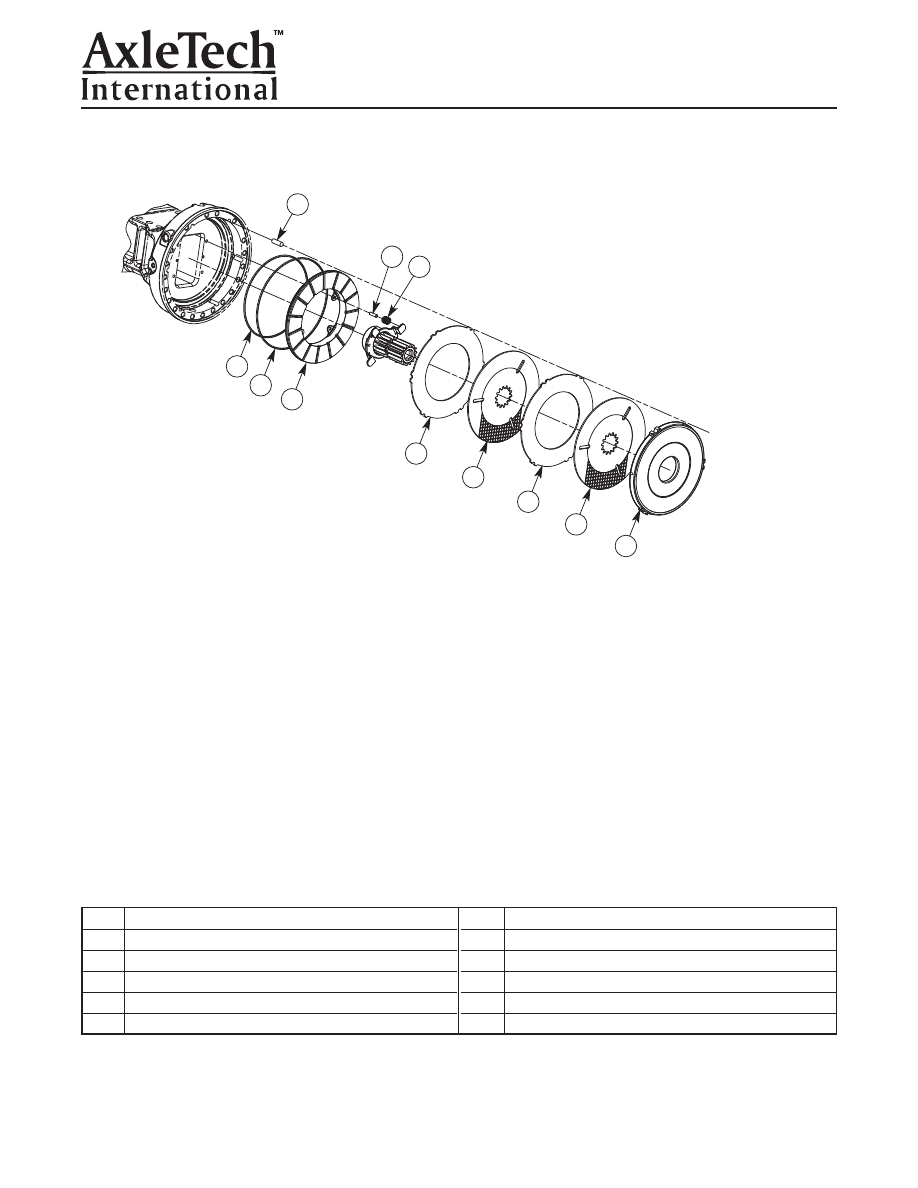

Exploded View

W3H Shaft Speed Wet Disc Service

Two Friction Disc Brake

Page 8

Rigid Mount Axle — No Brake

WHEEL END

ASSEMBLY

AXLE

SHAFT

AXLE

SHAFT

DIFFERENTIAL

CARRIER

DIFFERENTIAL

CARRIER

DIFFERENTIAL

CARRIER

DIFFERENTIAL

CARRIER

Trunnion Mount Axle — with Service Brake

PARKING

BRAKE

W3H SHAFT SPEED

SERVICE BRAKE

W3H SHAFT SPEED

SERVICE BRAKE

AXLE

SHAFT

AXLE

SHAFT

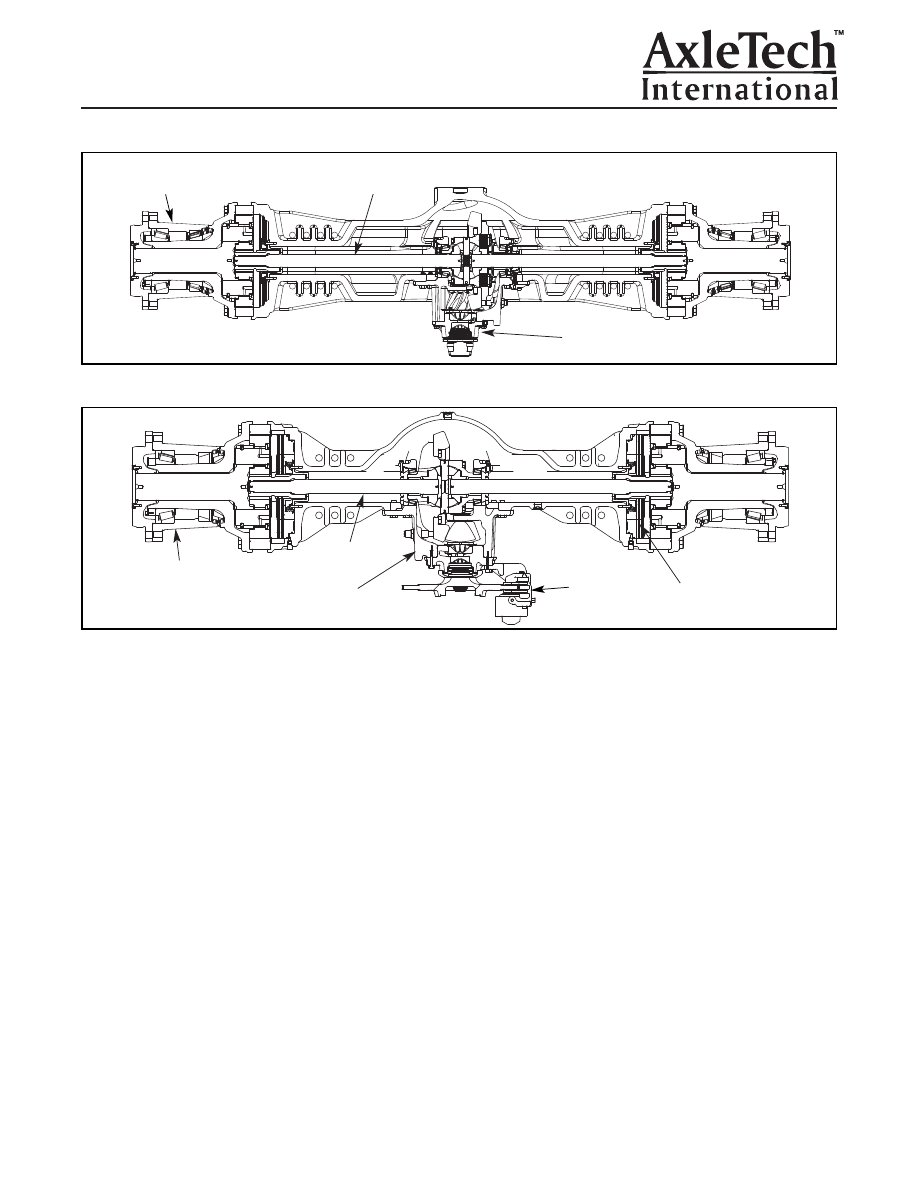

Axle Cross-Section Views

WHEEL END

ASSEMBLY

WHEEL END

ASSEMBLY

WHEEL END

ASSEMBLY

TRUNNION MOUNT

(OSCILLATING)

TRUNNION MOUNT

(OSCILLATING)

TRUNNION MOUNT

(OSCILLATING)

TRUNNION MOUNT

(OSCILLATING)

Rigid Mount Axle — with Service Brake and Parking Brake

Trunnion Mount Axle — No Brake

Page 9

Description

The AxleTech PROC2715 and PRC2715 axle family

is a single speed planetary axle series. Key features

in this axle family are:
• Hypoid ring and pinion gearing in the

carrier assembly.

• Carrier assembly available with standard differential or

a hydraulically actuated differential lock (HDL) option.

• Carrier available with trunnion feature option or

standard differential.

• Thrust screw standard in carrier shell.
• Axle with a “trunnion” feature option.
• Internal large diameter Wet Disc Brake for

service braking.

• Standard cast housing or heavier cast housing.
• Axle housing has wet brake inspection port standard

when wet brakes are fitted.

• Internal brake actuation lines standard in the

heavy axles with wet disc service brake.

• A planetary system with 3 or 4 planetary pinions

per wheel end assembly.

• A common lubrication sump throughout the axle.
• O-ring drain/fill/breather port plugs standard.
• Force cooling inlet and return ports are standard on

basic axle housing.

• Park/Emergency brake on carrier input is optional

on axles without trunnion option.

This manual covers the servicing of this axle family.

The carrier is covered separately in AxleTech

maintenance manual 5.4. Refer to the “How to Order”

section to obtain copies of these maintenance

manuals. Optional parking brake on carrier input is

covered separately in AxleTech maintenance

manual 4A.

Identification

To determine the exact axle model specification, refer

to the identification tag fastened to the main housing.

Figure 1.1.

Wheel End Base Model Number
271 = 4 Planet With Standard Housing
272 = 4 Planet With Heavy Housing
220 = 3 Planet With Standard Housing

Typical Axle Model
Number Examples:

PROC2715N200557
PRC2715W3H200583

Carrier Base Model

5 = RS145
6 = RS160

Service Brake Model
W = Wet Disc Brake
3 = 360 mm Dia.
H = Hydraulic Actuation
N = Less Brake

P = Planetary

R = Rigid

O = Trunnion Mounting


(Oscillating)

Housing Type Designation

C = Cast Axle Housing

P

R

O

C

Exact
Specification
Number

X X X

Carrier Ratio
557 = 5.57:1.0

5 5 7

5

W 3 H

Single Planetary Axle

Axle Tag

MODEL

CUST No.

SERIAL No.

RATIO

DATE

2 7 1

Figure 1.1

Section 1

Introduction
