Challenger Terra Gator 3244 Chassis. Manual - part 91

Item

Description

1

AXLE HOUSING

2

MAGNETIC PLUG

2A

MAGNETIC PLUG- FORCE COOLING OUTLET PORT

3

FILL PLUG

3A

FILL PLUG - FORCE COOLING INLET PORT

4

HARDENED WASHER

5

CAPSCREW

Item

Description

6

CAPSCREW

7

BLEEDER SCREW

8

BREATHER ASSEMBLY

9

SHIM

10

STUD

11

BRAKE ACTUATION PORT FITTING

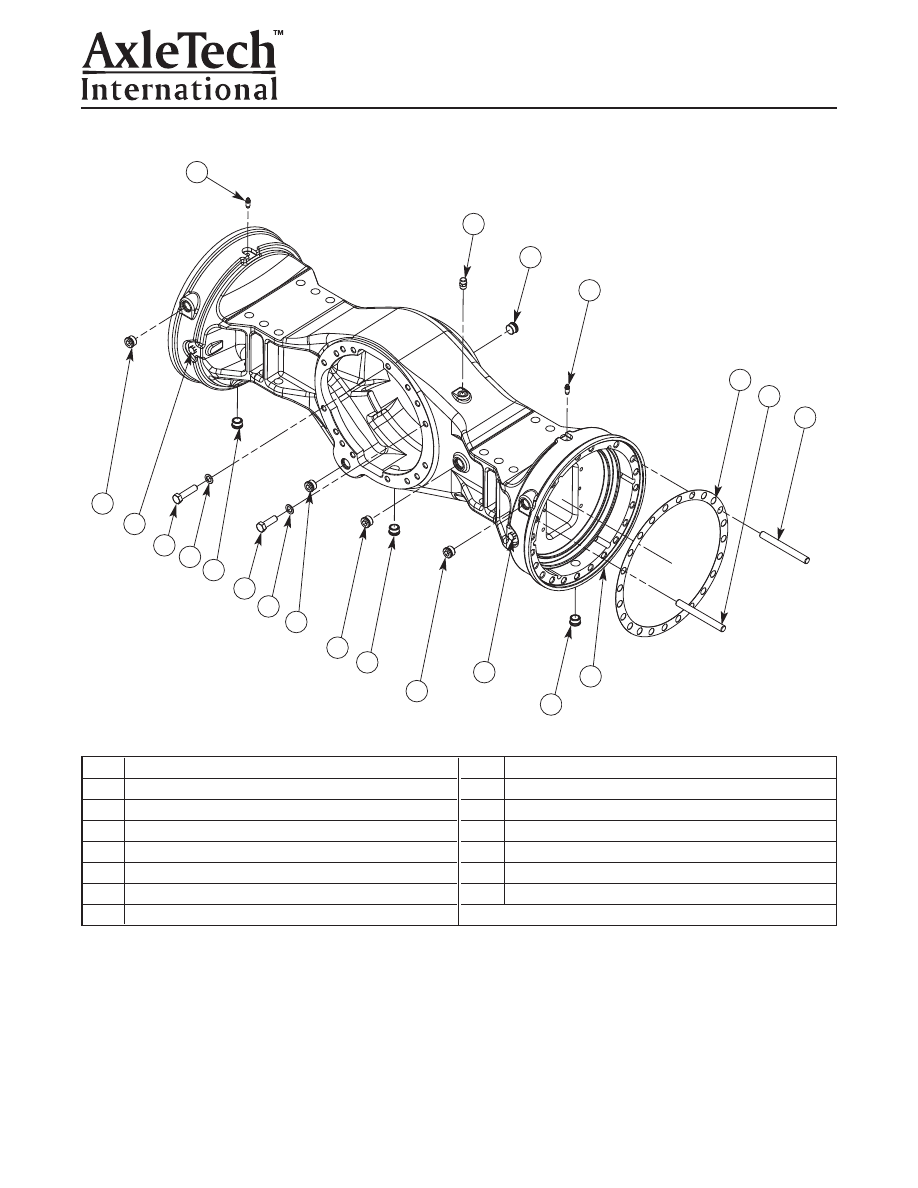

Axle Housing Assembly With Forced Cooling Option

1

6

7

7

2

2

2

5

3

3

3A

11

11

3A

2A

8

9

10

10

4

4

Page 1

Exploded View

Page 2

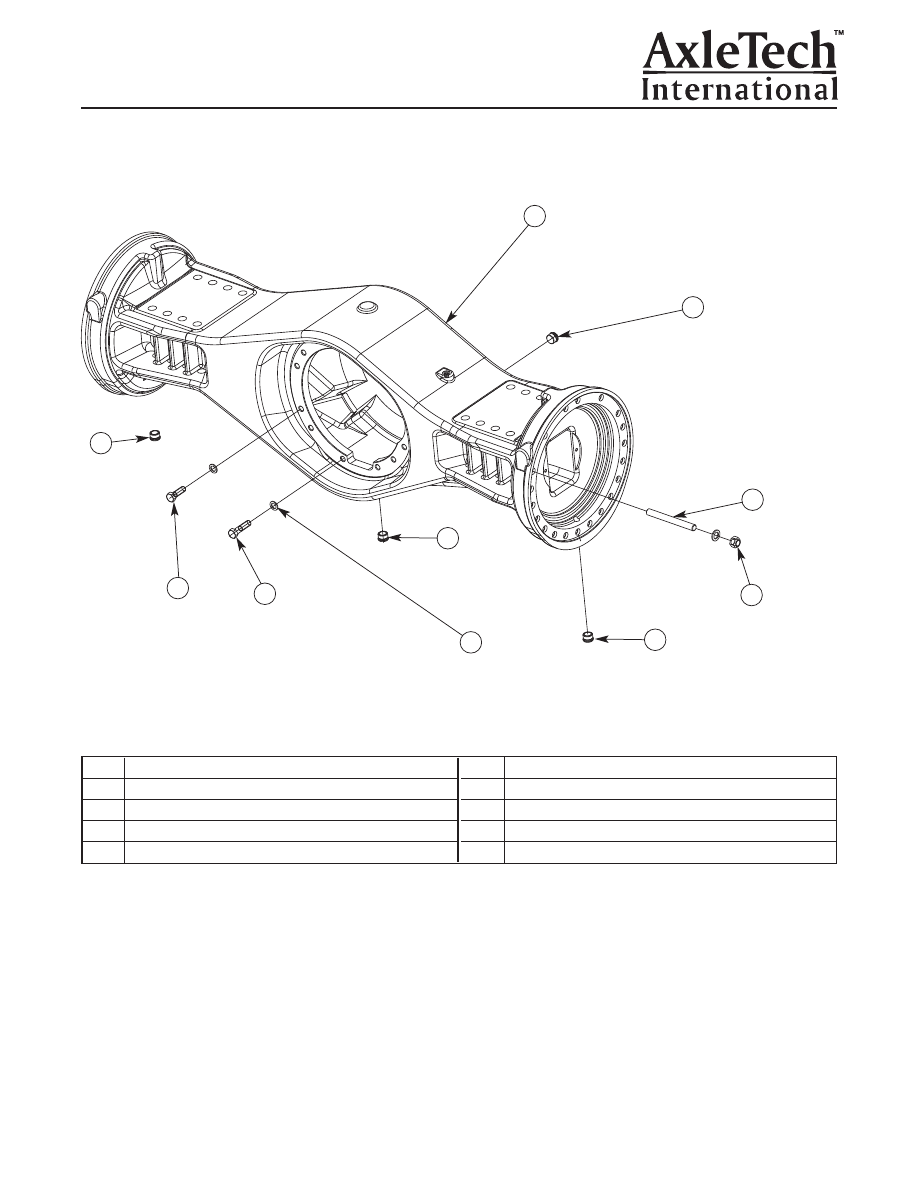

Axle Housing Assembly – Heavy Housing Using Recessed Carrier Mounting

1

6

7

2

2

2

3

8

5

4

Item

Description

1

AXLE HOUSING

2

MAGNETIC PLUG

3

FILL PLUG

4

STUD

Item

Description

5

LOCK NUT

6

HARDENED WASHER

7

CAPSCREW

8

CAPSCREW

Exploded View

Page 4

Item

Description

1

AXLE HOUSING

2

TOP INLET PORT CENTRAL ACTUATION

3

HYDRAULIC TEE FITTING

4

TUBING ASSEMBLY

5

CONNECTOR FITTING ASSEMBLY

6

SHIM

7

TUBE ASSEMBLY

8

STUD

Item

Description

9

MAGNETIC PLUG

10

BLEEDER SCREW

11

FILL PLUG

12

HARDENED WASHER

13

CAPSCREW

14

CAPSCREW

15

WET DISC BRAKE INSPECTION PORT PLUG

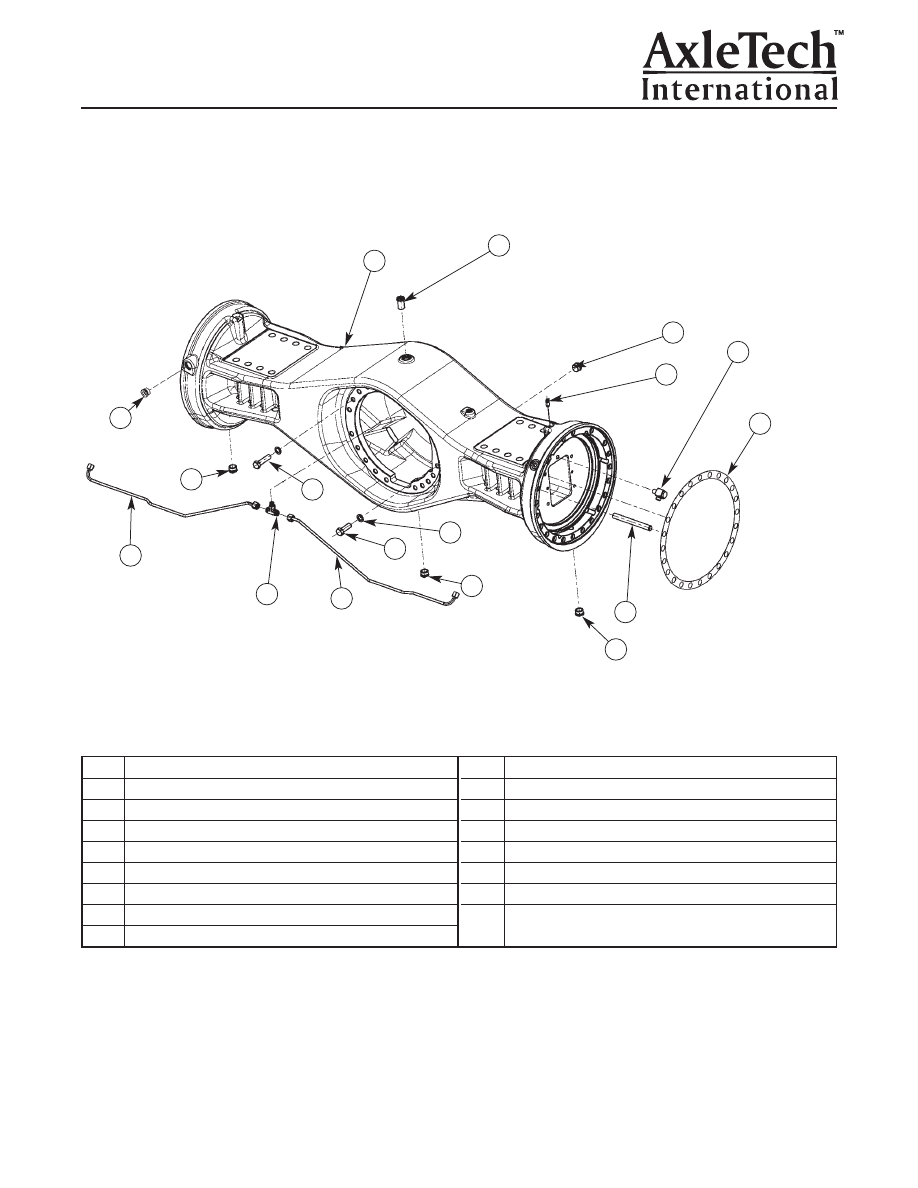

Heavy Axle Housing With Central Actuation Service Brake – Top Inlet Port

7

14

13

12

9

9

9

8

6

5

10

11

2

1

15

3

4

Exploded View

Page 5

Item

Description

1

AXLE HOUSING

2

CONNECTOR FITTING ASSEMBLY

3

STUD

4

MAGNETIC PLUG

5

BLEEDER SCREW

6

FILL PLUG

7

SHIM

8

HARDENED WASHER

Item

Description

9

CAPSCREW

10

CAPSCREW

11

CENTRAL ACTUATION FRONT INLET PORT

12

HYDRAULIC TEE FITTING

13

TUBE ASSEMBLY

14

TUBE ASSEMBLY

15

CLIP, BRAKE TUBE

16

CAPSCREW

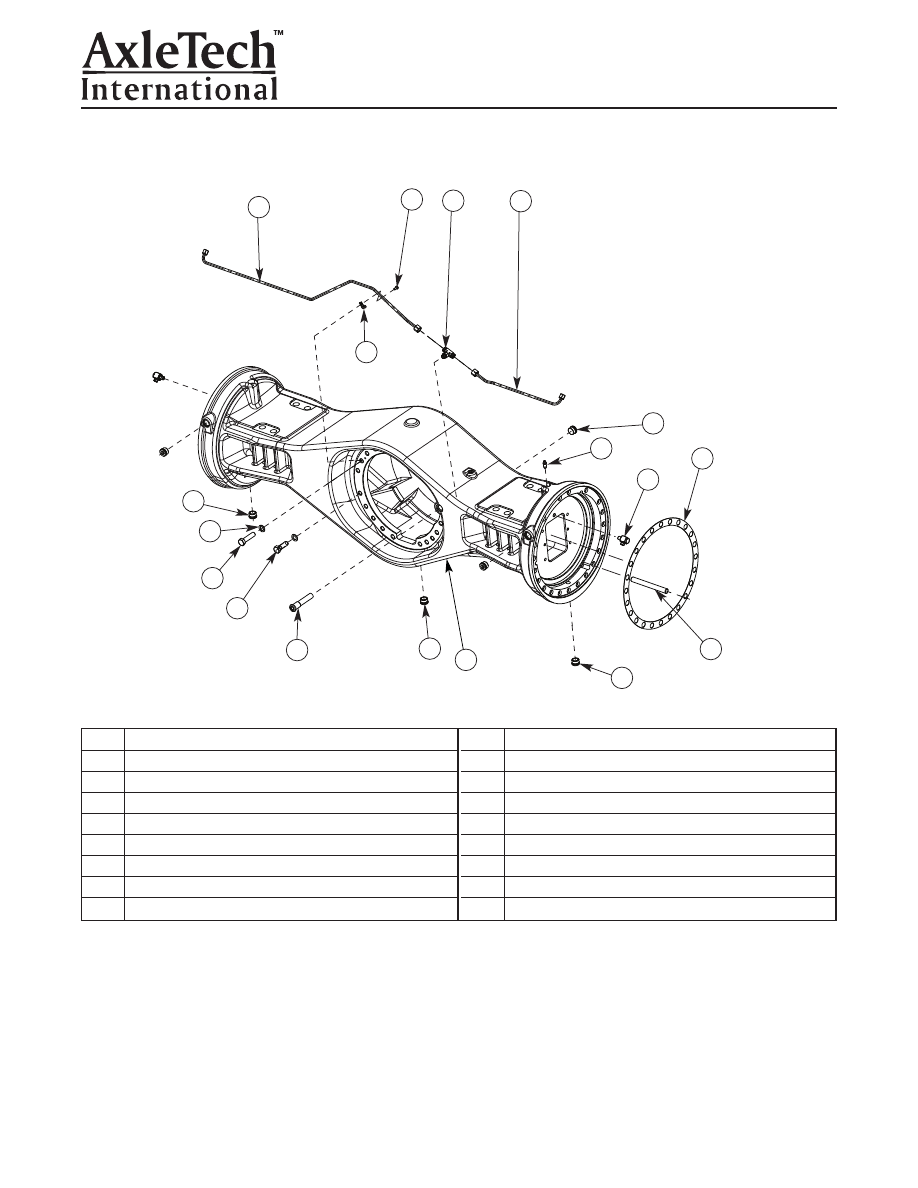

Heavy Axle Housing With Central Actuation Service Brake – Front Inlet Port

1

3

6

7

4

4

4

9

8

10

11

5

2

15

12

14

16

13

Exploded View
