Challenger Terra Gator 3244 Chassis. Manual - part 38

KENR6054

Disassembly and Assembly Section

Disassembly and Assembly

Section

i02648750

Relief Valve (Transmission

Main) - Remove

SMCS Code: 5069-011-T3

Removal Procedure

NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting and repair of the product. Be prepared to

collect the fluid with suitable containers before open-

ing any compartment or disassembling any compo-

nent containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar

Dealer Service Tool Catalog” for tools and supplies

suitable to collect and contain fluids on Caterpillar

products.

Dispose of all fluids according to local regulations and

mandates.

g01329210

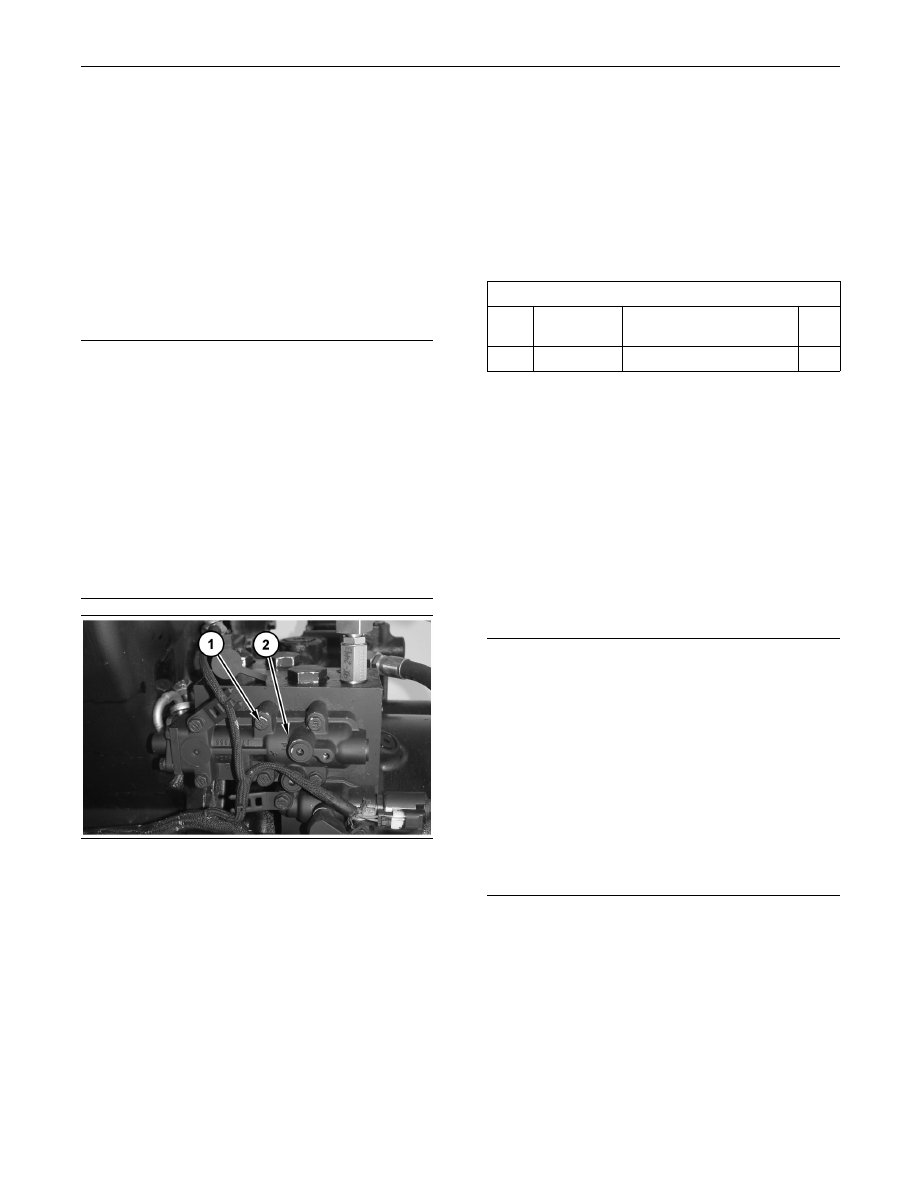

Illustration 1

1. Remove bolts (1).

2. Remove relief valve (2).

i02536685

Relief Valve (Transmission

Main) - Disassemble

SMCS Code: 4059-015-T3; 5069-015-T3

Disassembly Procedure

Table 1

Required Tools

Tool

Part

Number

Part Description

Qty

1P-1853

Retaining Ring Pliers

Start By:

a. Remove the relief valve. Refer to Disassembly and

Assembly, “Relief Valve (Transmission Hydraulic

Control) - Remove”.

Note: Cleanliness is an important factor. Before

you begin the disassembly procedure, the exterior

of the components should be thoroughly cleaned.

This will help to prevent dirt from entering the

internal mechanism. Precision components can

be damaged by contaminants or by dirt. Perform

disassembly procedures on a clean work surface.

Keep components covered and protected at all times.

NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting and repair of the product. Be prepared to

collect the fluid with suitable containers before open-

ing any compartment or disassembling any compo-

nent containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar

Dealer Service Tool Catalog” for tools and supplies

suitable to collect and contain fluids on Caterpillar

products.

Dispose of all fluids according to local regulations and

mandates.

KENR6054

Disassembly and Assembly Section

g01209440

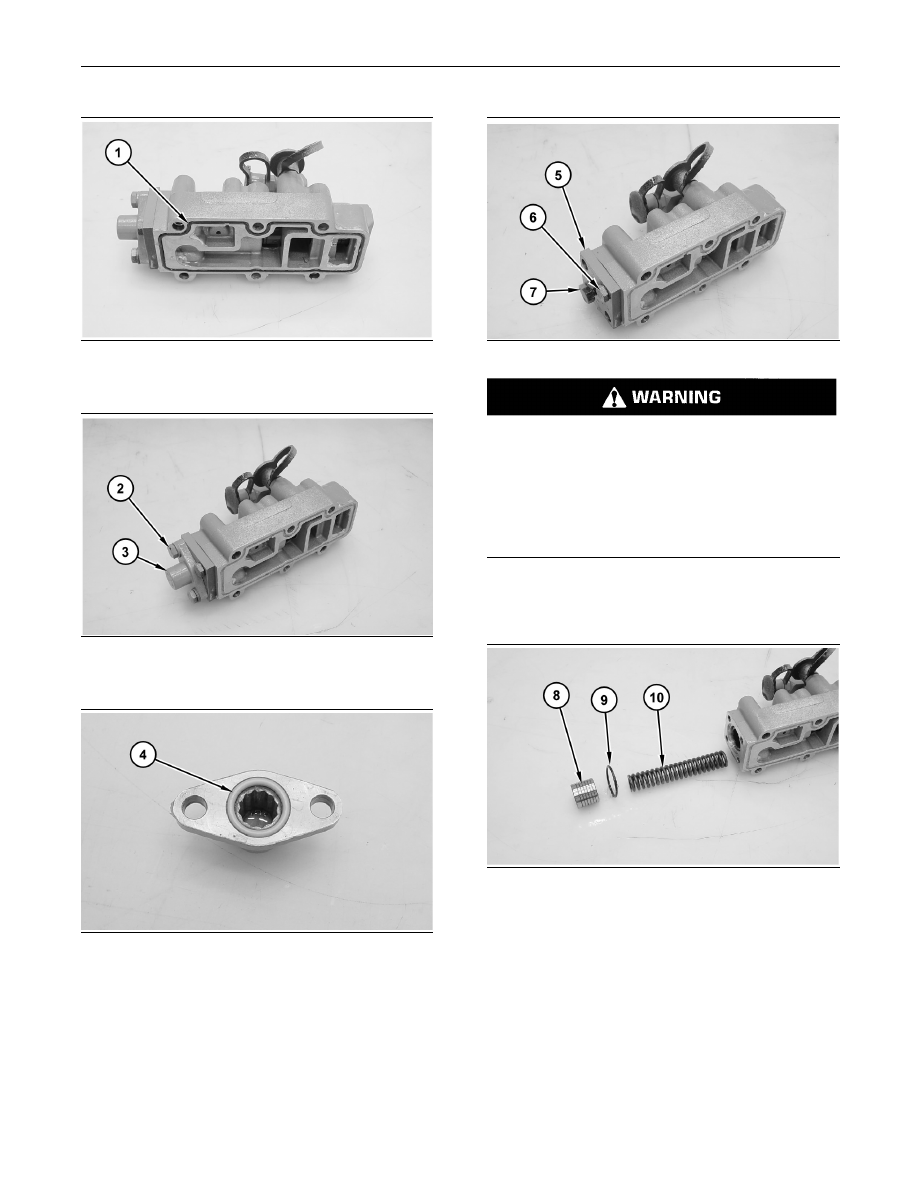

Illustration 2

1. Remove O-ring seal (1).

g01209441

Illustration 3

2. Remove bolts (2) and cover (3).

g01209450

Illustration 4

3. Remove O-ring seal (4).

g01209465

Illustration 5

Personal injury can result from being struck by

parts propelled by a released spring force.

Make sure to wear all necessary protective equip-

ment.

Follow the recommended procedure and use all

recommended tooling to release the spring force.

4. Note the position of adjustment screw (7). Remove

adjustment screw (7). Remove bolts (6) and cover

(5).

g01209506

Illustration 6

5. Remove load piston (8), O-ring seal (9), and

spring (10).

KENR6054

Disassembly and Assembly Section

g01209507

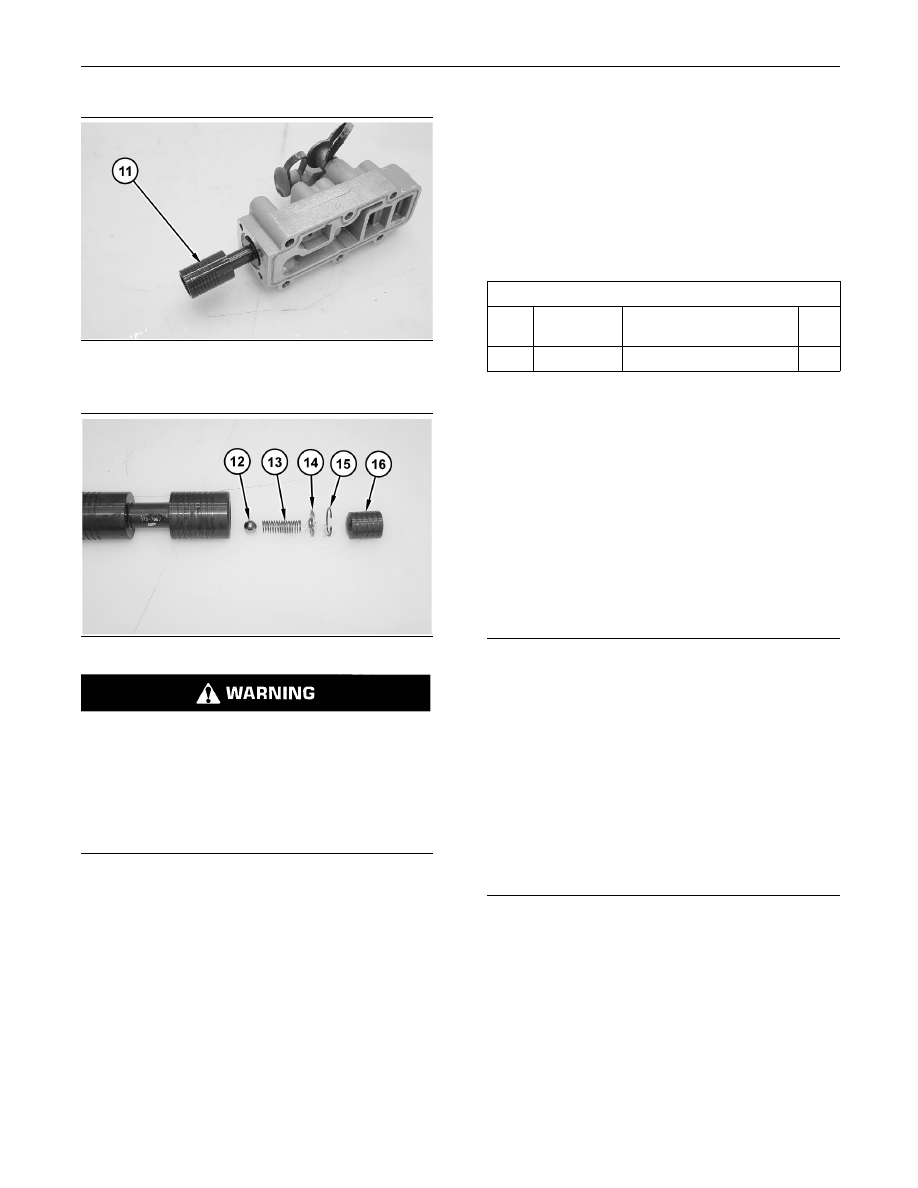

Illustration 7

6. Remove spool assembly (11).

g01209518

Illustration 8

Personal injury can result from being struck by

parts propelled by a released spring force.

Make sure to wear all necessary protective equip-

ment.

Follow the recommended procedure and use all

recommended tooling to release the spring force.

7. Remove slug (16).

8. Use Tooling (A) in order to remove retaining ring

(15). Remove retainer (14), spring (13), and ball

(12).

i02536679

Relief Valve (Transmission

Main) - Assemble

SMCS Code: 5069-016-T3

Assembly Procedure

Table 2

Required Tools

Tool

Part

Number

Part Description

Qty

1P-1853

Retaining Ring Pliers

Note: Cleanliness is an important factor. Before

assembly, thoroughly clean all parts in cleaning

fluid. Allow the parts to air dry. Do not use wiping

cloths or rags to dry parts. Lint may be deposited

on the parts which may cause trouble. Inspect all

parts. If any parts are worn or damaged, use new

parts for replacement. Dirt and other contaminants

can damage the precision component. Perform

assembly procedures on a clean work surface. Keep

components covered and protected at all times.

Note: Check the O-ring seals, the gaskets, and

the seals for wear or for damage. Replace the

components, if necessary.

NOTICE

Care must be taken to ensure that fluids are contained

during performance of inspection, maintenance, test-

ing, adjusting and repair of the product. Be prepared to

collect the fluid with suitable containers before open-

ing any compartment or disassembling any compo-

nent containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar

Dealer Service Tool Catalog” for tools and supplies

suitable to collect and contain fluids on Caterpillar

products.

Dispose of all fluids according to local regulations and

mandates.

KENR6054

Disassembly and Assembly Section

g01209518

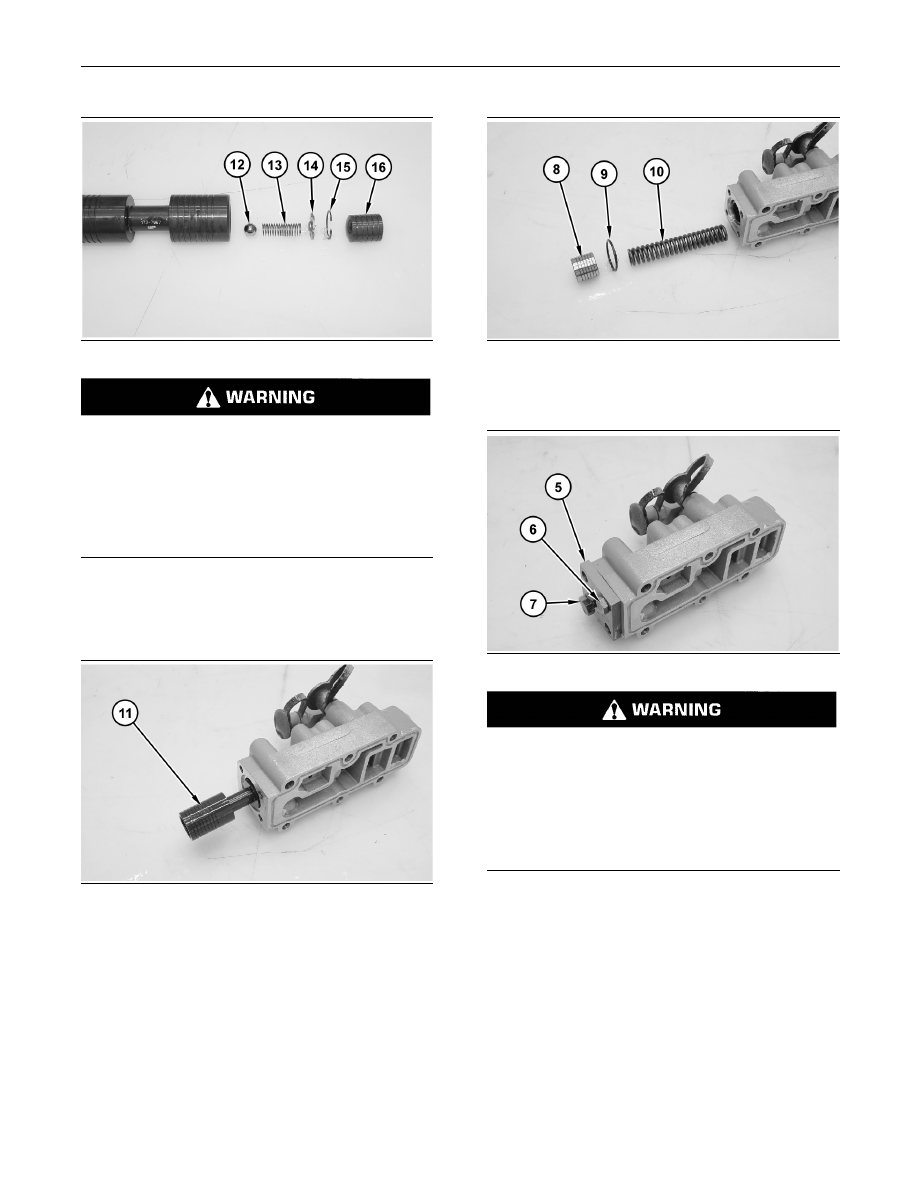

Illustration 9

Personal injury can result from being struck by

parts propelled by a released spring force.

Make sure to wear all necessary protective equip-

ment.

Follow the recommended procedure and use all

recommended tooling to release the spring force.

1. Install ball (12), spring (13), and retainer (14). Use

Tooling (A) in order to install retaining ring (15).

2. Install slug (16).

g01209507

Illustration 10

3. Install spool assembly (11).

g01209506

Illustration 11

4. Install spring (10), O-ring seal (9), and load piston

(8).

g01209465

Illustration 12

Personal injury can result from being struck by

parts propelled by a released spring force.

Make sure to wear all necessary protective equip-

ment.

Follow the recommended procedure and use all

recommended tooling to release the spring force.

5. Install adjustment screw (7) to the original location.

Install cover (5) and bolts (6). Tighten bolts (6) to

a torque of 28 ± 7 N·m (21 ± 5 lb ft).
