HUAWEI OptiX OSN 8800 T64/T32 Intelligent Optical Transport Platform. Product Overview - part 3

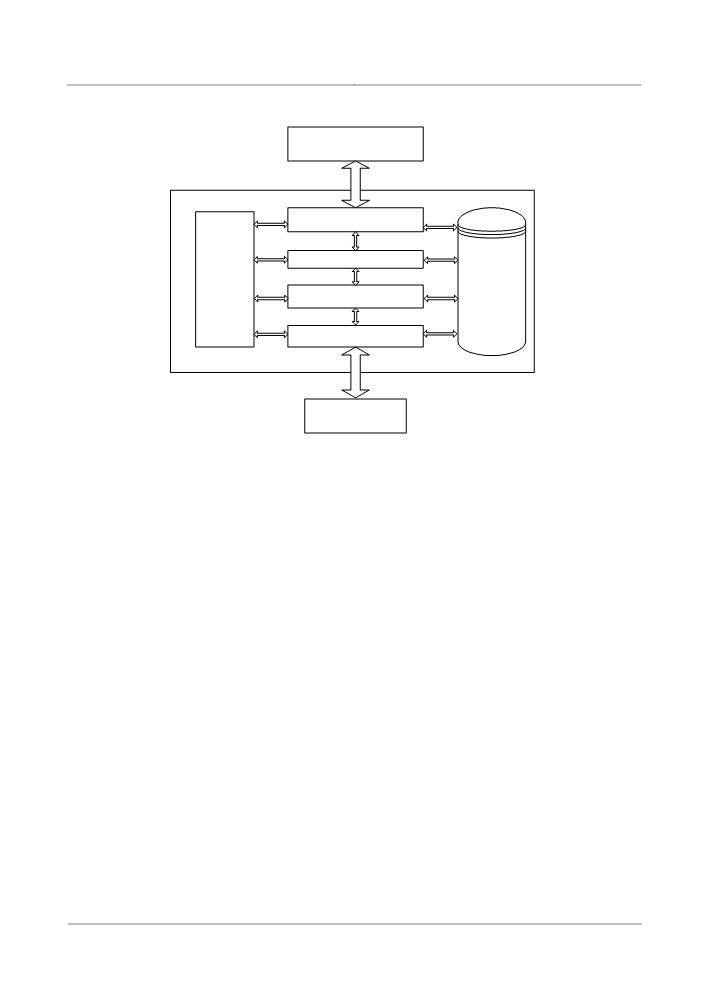

Figure 2-9 Software architecture

Network Management

System

High Level

Communication Module

Real-time

Network side Module

multi-task

Database

operating

Equipment Management

Management

system

Module

Communication Module

NE software

Board Software

2.3.2 Communication Protocols and Interfaces

The Qx interface is used for communication. Complete protocol stack and messages of the Qx

interface are described in ITU-T G.773, Q.811 and Q.812.

The Qx interface is mainly used to connect the mediation device (MD), Q adaptation (QA)

and NE (NE) equipment with the operating system (OS) through local communication

network (LCN).

At present, QA is provided by the NE management layer. MD and OS are provided by the NM

layer. They are connected to each other through the Qx interface.

According to the Recommendations, the Qx interface provided by the system is developed on

the basis of TCP/IP connectionless network layer service (CLNS1) protocol stack.

In addition, to support remote access of the NM through Modem, the IP layer uses serial line

internet protocol (SLIP).

Functions and Features

About This Chapter

3.1 Service Access

The OptiX OSN 8800 T64/8800 T32 supports synchronous digital hierarchy (SDH) service,

synchronous optical network (SONET), Ethernet service, storage area network (SAN) service,

optical transmission network (OTN) service, video service and others.

3.2 Electrical Layer Grooming

The OptiX OSN 8800 T64/8800 T32 supports the integrated grooming of electrical layer

signals.

3.3 Optical Layer Grooming

3.4 Transmission System

3.5 Protection

The OptiX OSN 8800 T32/8800 T64 provides various types of equipment-level protection

and network-level protection.

3.6 Data Characteristics

The OptiX OSN 8800 T32/8800 T64 supports the Ethernet features and mainly supports the

following Ethernet services: EPL, EVPL (QinQ), and EPLAN.

3.7 Optical Power Management

The optical power management includes IPA, IPA of Raman System, IPA of PID, ALC, APE ,

EAPE, OPA and AGC.

3.8 WDM Technologies

This chapter describes the WDM technologies and functions implemented on the OptiX OSN

8800 T32/8800 T64.

3.9 Clock Feature

OptiX OSN 8800 T32 and OptiX OSN 8800 T64 support the physical layer clock and PTP

clock to realize the synchronization of the clock and the time.

3.10 ASON Management

An automatically switched optical network (ASON) is a new-generation optical transmission

network.

3.1 Service Access

The OptiX OSN 8800 T64/8800 T32 supports synchronous digital hierarchy (SDH) service,

synchronous optical network (SONET), Ethernet service, storage area network (SAN) service,

optical transmission network (OTN) service, video service and others.

3.1.1 Service Types

The OptiX OSN 8800 supports synchronous digital hierarchy (SDH) services, synchronous

optical network (SONET) services, Ethernet services, storage area network (SAN) services,

optical transmission network (OTN) services, and video services.

Table 3-1 and Table 3-2 lists the service types and rates that the OptiX OSN 8800 supports.

Table 3-1 Service types and rates that the OptiX OSN 8800 supports

Service

Service Type

Service Rate

Reference Standard

Category

FC200

2.12 Gbit/s

FC400

4.25 Gbit/s

FC800

8.5 Gbit/s

FC1200

10.51 Gbit/s

FICON4G

4.25 Gbit/s

FICON8G

8.5 Gbit/s

ISC 1G

1.06 Gbit/s

IBM

GDPS( Geographically

ISC 2G

2.12 Gbit/s

Dispersed Parallel

Sysplex) Protocol

ETR

16 Mbit/s

CLO

16 Mbit/s

InfiniBand 2.5G

2.5 Gbit/s

InfiniBand TM

Architecture Release

InfiniBand 5G

5 Gbit/s

1.2.1

FDDI

125 Mbit/s

ISO 9314

OTN service

OTU1

2.67 Gbit/s

ITU-T G.709

ITU-T G.959.1

OTU2

10.71 Gbit/s

OTU2e

11.10 Gbit/s

OTU3

43.02 Gbit/s

Video

HD-SDI

1.485 Gbit/s

SMPTE 292M

service

DVB-ASI

270 Mbit/s

EN 50083-9

SDI

270 Mbit/s

SMPTE 259M

3G-SDI

2.97 Gbit/s

SMPTE 424M

Table 3-2 Service types that the OptiX OSN 8800(OCS) supports

Service Category

Service Type

Reference Standard

SDH

 SDH standard services:

 ITU-T G.707

STM-1/STM-4/STM-16/STM-6

 ITU-T G.691

 ITU-T G.957

 SDH standard cascaded

 ITU-T G.783

services:

VC-4-4c/VC-4-16c/VC-4-64c

 ITU-T G.825

 SDH services with FEC:

STM-64

Service Category

Service Type

Reference Standard

Ethernet service

 GE services

 IEEE 802.3u



10GE services

3.1.2 Capability of Service Access

Table 3-3 lists the capability of service access when the OptiX OSN 8800 T64/8800 T32

functions as the equipment in the OCS system. Table 3-4 lists the capability of service

access when the OptiX OSN 8800 T64/8800 T32 functions as the equipment in the OTN

system.

Table 3-3 Capability of service access in the OCS system

Service Type

Maximum of

Service Amount

for a Board

for an 8800 T32

for an 8800 T64

Subrack

STM-1

512

1024

STM-4

512

1024

STM-16

256

512

STM-64

128

256

512

1024

Table 3-4 Capability of service access in the OTN system

Service Type

Maximum of

Service Amount

for a Board

for an 8800 T32

for an 8800 T64

Subrack

448

896

336

672

10GE LAN

128

10GE WAN

128

STM-256/OC-768

STM-64/OC-192

128

STM-16/OC-48

256

512

STM-4/OC-12

400

816

STM-1/OC-3

448

896

Service Type

Maximum of

Service Amount

for a Board

for an 8800 T32

for an 8800 T64

Subrack

OTU1

256

512

OTU2/OTU2e

128

OTU3

ESCON

448

896

FC100/FICON

336

672

FC200/FICON

336

672

Express/InfiniBand

2.5G

FC400/FICON4G/Infi

128

niBand 5G

FC800/FICON 8G

100

204

FC1200

ISC 1G

256

512

ISC 2G

128

256

ETR/CLO

128

256

HD-SDI

256

512

FDDI

256

512

DVB-ASI/SDI

448

896

3G-SDI

256

512

3.2 Electrical Layer Grooming

The OptiX OSN 8800 T64/8800 T32 supports the integrated grooming of electrical layer

signals.

3.2.1 OTN Centralized Grooming

The OptiX OSN 8800 T32 provides cross-connect boards to achieve centralized

cross-connections and supports full cross-connections between slots IU1-IU8, IU12-IU27,

IU29-IU36 with a cross-connect capacity of 40 Gbit/s for each slot. The equipment has a

cross-connect capacity of 1.28 Tbit/s. The equipment supports centralized cross-connections

of ODUflex, ODU0, ODU1, ODU2, and ODU3 signals.

The OptiX OSN 8800 T64 provides cross-connect boards to achieve centralized

cross-connections and supports full cross-connections between slots IU1-IU8, IU11-IU42,

IU45-IU68 with a cross-connect capacity of 40 Gbit/s for each slot. The equipment has a

cross-connect capacity of 2.56 Tbit/s. The equipment supports centralized cross-connections

of ODUflex, ODU0, ODU1, ODU2, and ODU3 signals.

Centralized Grooming

Table 3-5 lists the services supported by the tributary board and the line board centralized

grooming.

Table 3-5 Services supported by the tributary board and the line board centralized grooming

Board

Centralized Grooming

TN52ND2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals

TN53ND2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals, ODUflex signals

TN52NS2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals

TN53NS2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals, ODUflex signals

TN52NS3

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals

TN54NS3

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals, ODU3 signals

TN52NQ2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals

TN54NQ2

TN53NQ2

ODU0 signals, ODU1 signals,

ODU2/ODU2e signals, ODUflex signals

TN52TDX

ODU2/ODU2e signals

TN53TDX

ODU2/ODU2e signals, ODUflex signals

TN52TQX

ODU2/ODU2e signals

TN53TQX

TN55TQX

ODU2/ODU2e signals, ODUflex signals

TN52TOM

ODU0 signals, ODU1 signals

TN54TOA

ODU0 signals, ODU1 signals

, ODUflex signals

TN54THA

ODU0 signals, ODU1 signals

TN52TOG

ODU0 signals

TN53TSXL

ODU3 signals

Application of Electrical-Layer Grooming

Three types of typical application are supported by electrical grooming, for detail, see Figure

3-1.

 Passing through on the client side: The services are input from a client-side port of the

local station and are output through another client-side port. This is, the services are not

transmitted through the fiber line.

 Adding and dropping on the client side: The services of the other stations are transmitted

through the fiber to a WDM-side port of the local station, and then are output through a

client-side port, or the client services are input from the local station and are transmitted

to the other station through the fiber.

 Passing through on the line side: The services are not added or dropped at the local

station. The local station functions as a regeneration station and sends the services from

one side of the fiber line to the other side.

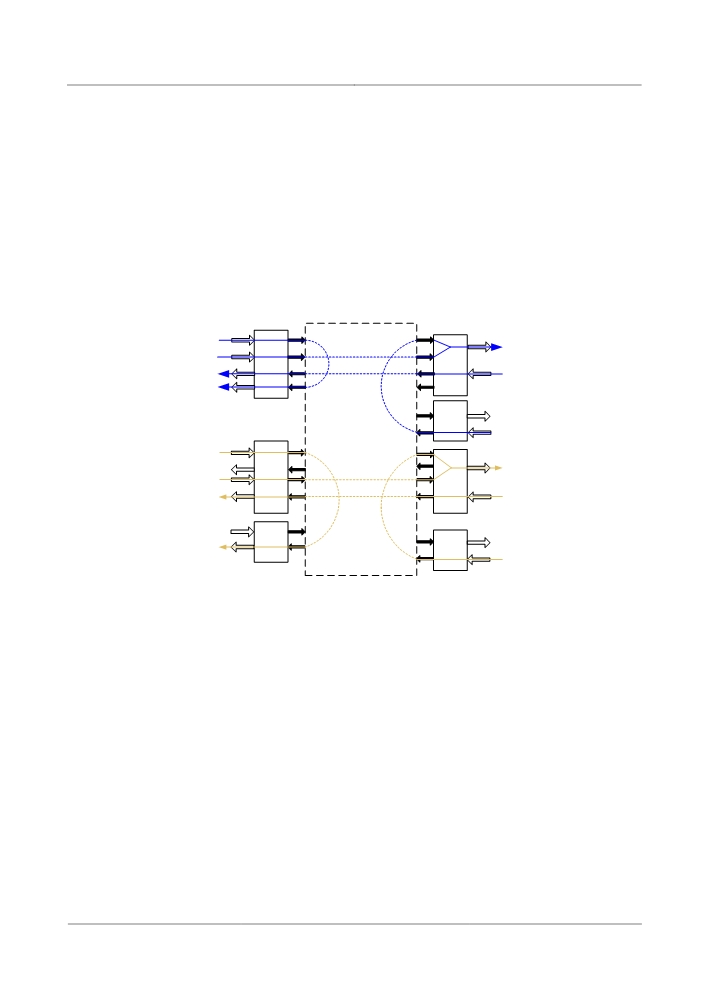

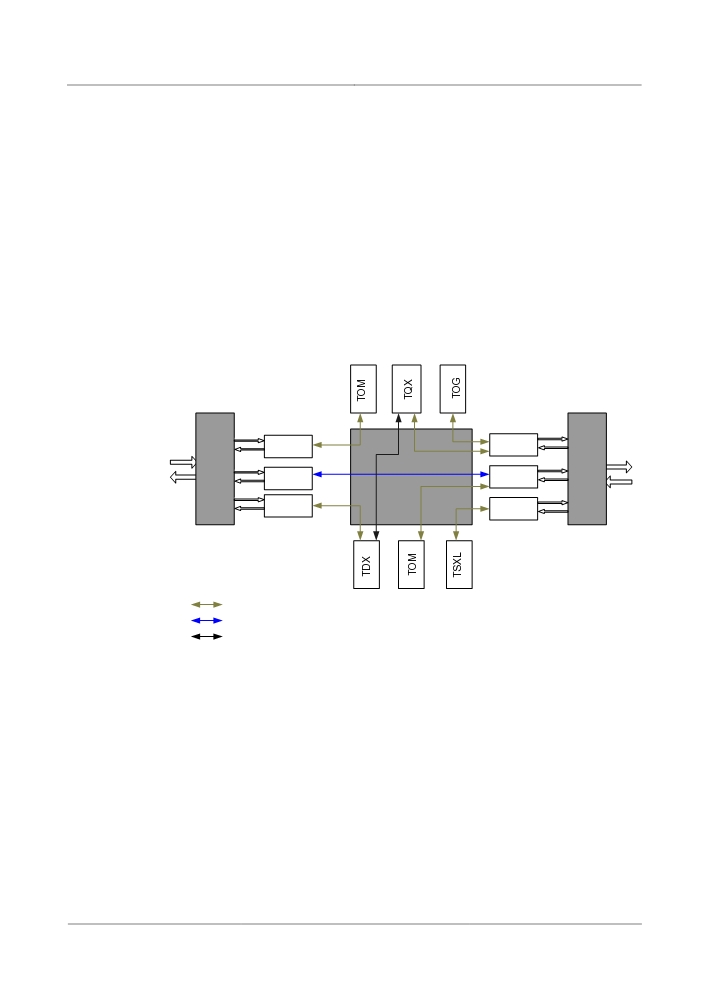

Figure 3-1 Application of electrical-layer grooming

ND2

NQ2

MUX/

DMUX

ND2

MUX/

Cross-Connect

DMUX

Unit

ND2

NS3

:Adding and dropping on the client side

:Passing through on the client side

:Passing through on the line side

3.2.2 OCS Centralized Grooming

When the OptiX OSN 8800 T32 used as an OCS device, it can realize full cross-connection

among the 32 slots of IU1-IU8, IU12-IU27 and IU29-IU36 with the XCM board. It supports a

maximum of 1.28 Tbit/s grooming of VC-4 or 80 Gbit/s grooming of VC-3/VC-12 signals.

When the OptiX OSN 8800 T64 used as an OCS device, it can realize full cross-connection

among the 64 slots of IU1-IU8, IU11-IU42 and IU45-IU68 with the SXM board. It supports a

maximum of 1.28 Tbit/s grooming of VC-4 or 80 Gbit/s grooming of VC-3/VC-12 signals.

Table 3-6 lists the services supported by the SDH service processing boards centralized

grooming.

Table 3-6 Services supported by the SDH service processing boards centralized grooming

Board

Centralized Grooming

EAS2

VC-4 signals

EGSH

VC-12 signals

VC-3 signals

VC-4 signals

SF64A

VC-12 signals

VC-3 signals

VC-4 signals

SF64

VC-12 signals

VC-3 signals

VC-4 signals

SFD64

VC-12 signals

VC-3 signals

VC-4 signals

SL64

VC-12 signals

VC-3 signals

VC-4 signals

SLD64

VC-12 signals

VC-3 signals

VC-4 signals

SLH41

VC-12 signals

VC-3 signals

VC-4 signals

SLO16

VC-12 signals

VC-3 signals

VC-4 signals

SLQ16

VC-12 signals

VC-3 signals

VC-4 signals

SLQ64

VC-12 signals

VC-3 signals

VC-4 signals

Application of Electrical Layer Grooming

The following three types of typical application are supported by electrical grooming.

 Passing through on the client side: The services are input from a client-side port of the

local station and are output through another client-side port. This is, the services are not

transmitted through the fiber line.

 Adding and dropping on the client side: The services of the other stations are transmitted

through the fiber to a WDM-side port of the local station, and then are output through a

client-side port, or the client services are input from the local station and are transmitted

to the other stations through the fiber.

 Passing through on the line side: The services are not added or dropped at the local

station. The local station functions as a regeneration station and sends the services from

one side of the fiber line to the other side.

The application of electrical layer grooming is shown in Figure 3-2.

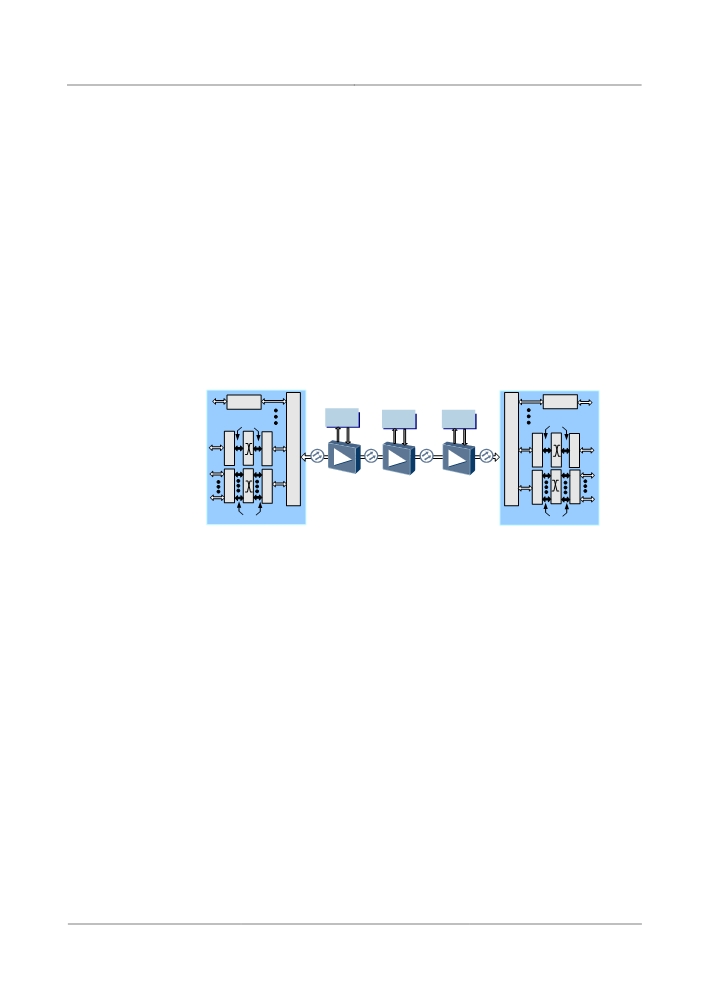

Figure 3-2 Application of electrical layer grooming

Client

WDM

Side

Cross-connection Unit

Client

Line

Side

A: Tributary unit

B: Line unit

C: SDH unit

3.3 Optical Layer Grooming

Distribution solutions of medium wavelength resource of WDM equipment are as follows:

 Fixed optical add/drop multiplexer (FOADM)

 Reconfigurable optical add/drop multiplexer (ROADM)

The FOADM solution cannot adjust the distribution of wavelength resource according to the

service development.

The ROADM solution realizes reconfiguration of wavelengths by blocking or

cross-connecting of wavelengths. This ensures that the static distribution of the wavelength

resource is flexible and dynamic. ROADM with U2000 can remotely and dynamically adjust

the status of wavelength adding/dropping and passing through. A maximum of 80

wavelengths can be adjusted.

In the case where one link, fiber or dimension fails in the ROADM solution, other links, fibers

and dimensions remain unaffected. This is attributed to three factors: gain locking of optical

amplifiers, service separation and wavelength blocking of the ROADM solution.

The ROADM solution has the following advantages:

3.4 Transmission System

3.4.1 40 Gbit/s

The OptiX OSN 8800 provides a 40/80 x 40 Gbit/s transmission solution.



40 Gbit/s non-coherent transmission solution

Figure 3-3 shows the a typical application of the 40 Gbit/s non-coherent transmission

solution.

Figure 3-3 Typical application of the 40 Gbit/s transmission solution

OTU

40/80x40 Gbit/s

OTU

DCM

ODU3

Client

services

ODU2/ODU1/ODU0/ODUflex

T: Tributary boards

N: Line boards

3.4.2 10 Gbit/s, 40 Gbit/s, 100 Gbit/s Hybrid Transmission

With the emergence of service requirements, the existing 10 Gbit/s WDM transmission

system may be gradually upgraded to the 40 Gbit/s transmission system. When this occurs,

the hybrid transmission of the 40 Gbit/s and 10 Gbit/s signals becomes very important.

The OptiX OSN 8800 supports hybrid transmission of 10 Gbit/s signals, 40 Gbit/s

non-coherent signals, 40 Gbit/s coherent signals, and 100 Gbit/s coherent signals, and any of

their combinations. Thanks to this feature, the incumbent networks can be upgraded to ones

with larger capacity based on proper system designs of system performance parameters,

protecting operators' investments while addressing the increasing bandwidth demands. Figure

3-4 shows hybrid transmission of 100 Gbit/s, 40 Gbit/s, and 10 Gbit/s signals.

Content .. 1 2 3 4 ..
