Suzuki GSX-R1000. Service Manual - part 14





1B-6 Emission Control Devices:

Schematic and Routing Diagram

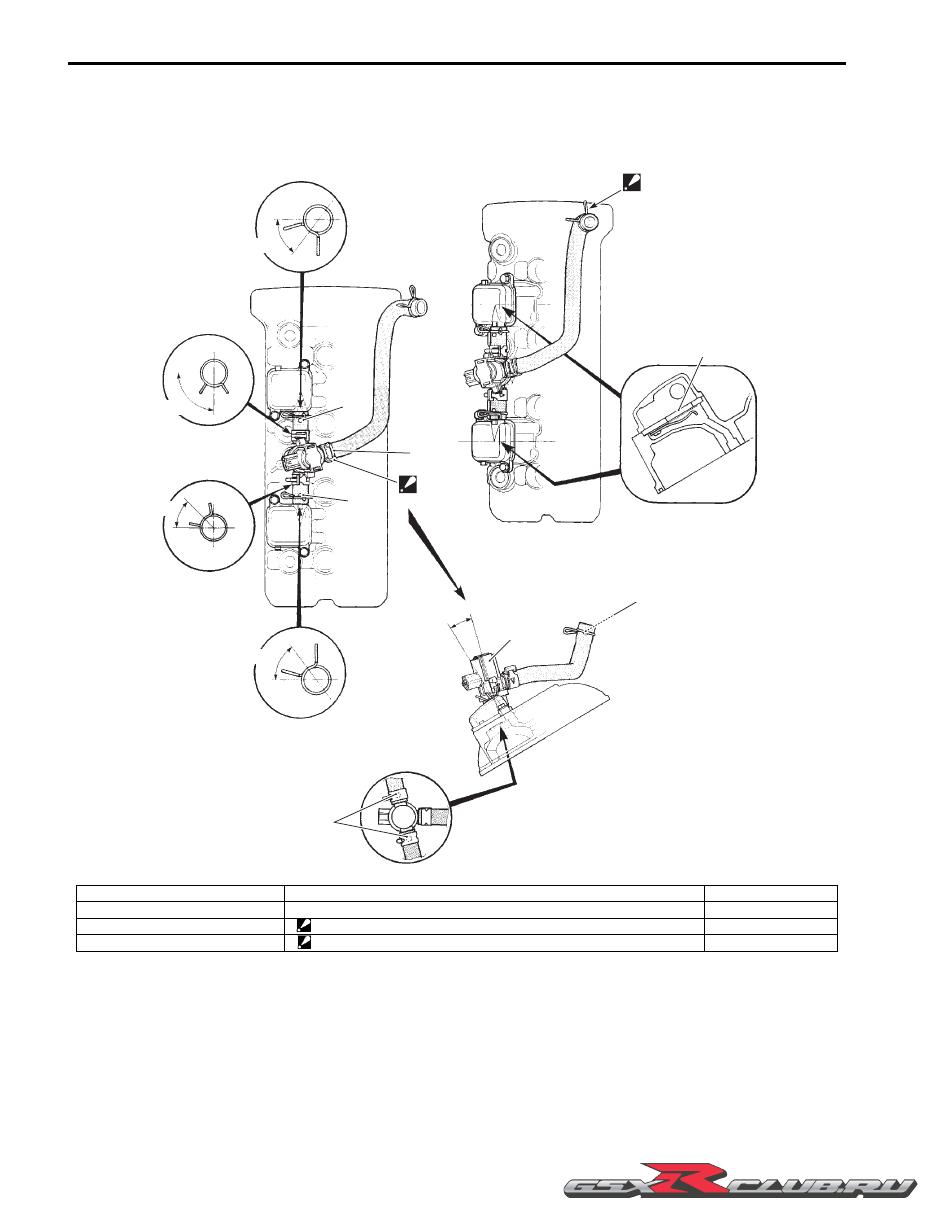

PAIR System Hose Routing Diagram

B947H11202001

1

2

“C”

“D”

“E”

“B”

“B”

“ b ”

“ a ”

“ b ”

“ b ”

“ c ”

“F”

“A”

I947H1120006-03

1. PAIR control solenoid valve

“C”: Blue marking

“a”: 90

°

2. PAIR reed valve

“D”: Red marking

“b”: 45

°

“A”: White marking (hidden side)

“E”: Face the clamp end to the top.

“c”: 15

°

“B”: Yellow marking

“F”: Make sure the clamp is not contacted to the frame or air cleaner box.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emission Control Devices:  1B-7

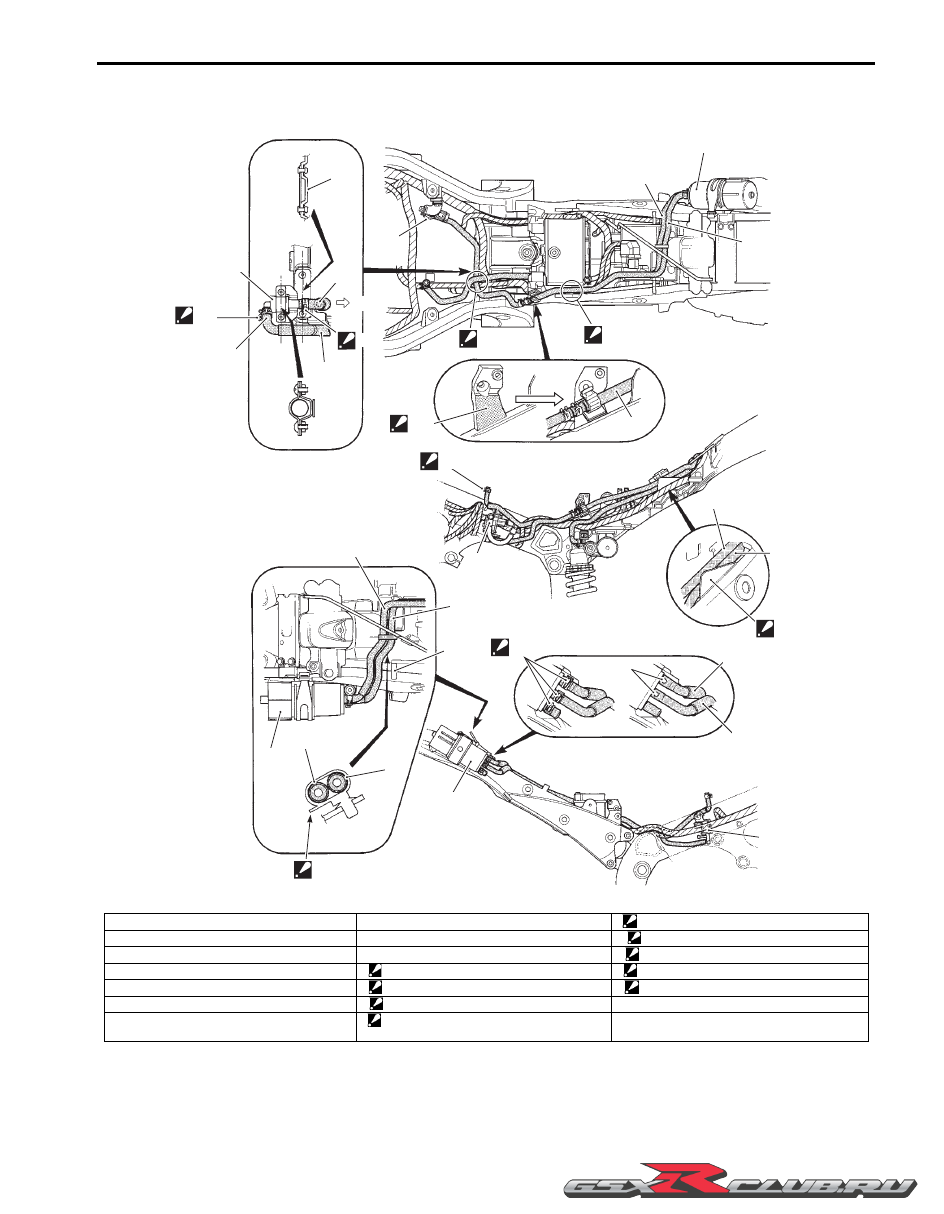

EVAP Canister Hose Routing Diagram (Only for E-33)

B947H11202002

1

1

2

2

2

2

2

2

3

3

3

3

3

3

5

1

6

6

6

7

“J”

“D”

“E”

4

“I”

“B”

“A”

“A”

“C”

“L”

“H”

“G”

“F”

“K”

I947H1120007-03

1. EVAP system purge control solenoid valve

“A”: White marking

“H”: Stick the clamp firmly in this area.

2. Surge hose

“B”: Yellow marking

“I”: Pass the hoses inside the parts holder.

3. Purge hose

“C”: UP

“J”: Face the clamp end forward.

4. Fuel shut-off valve

“D”: Face the clamp end downward.

“K”: Face the clamp end backward.

5. Rear fender

“E”: Face the clamp end to the left.

“L”: Face the clamp end to the outside.

6. EVAP canister

“F”: Pass the hoses above the harness.

7. Seat hook

“G”: Pass the hoses between the seat rail and

battery holder.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1B-8 Emission Control Devices:

Repair Instructions

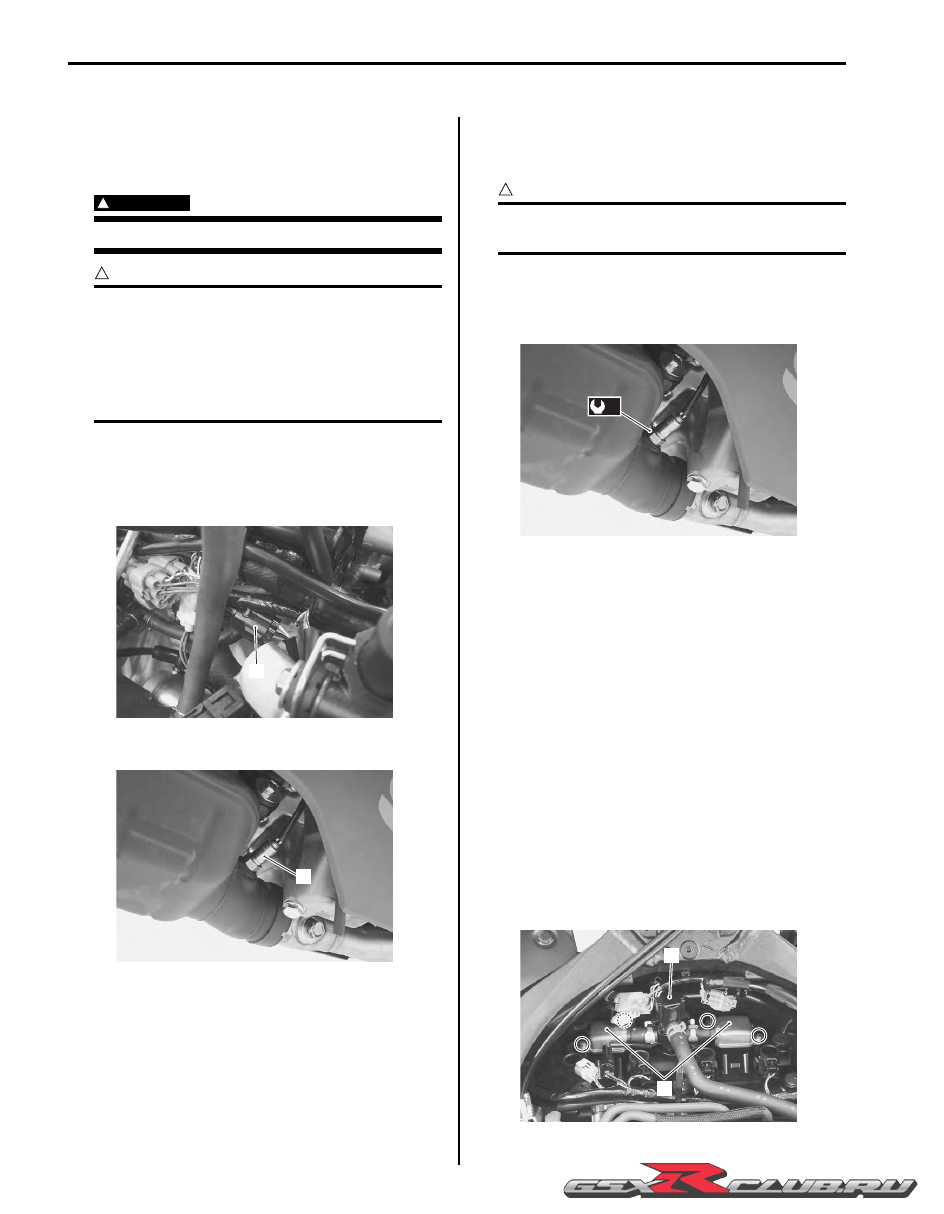

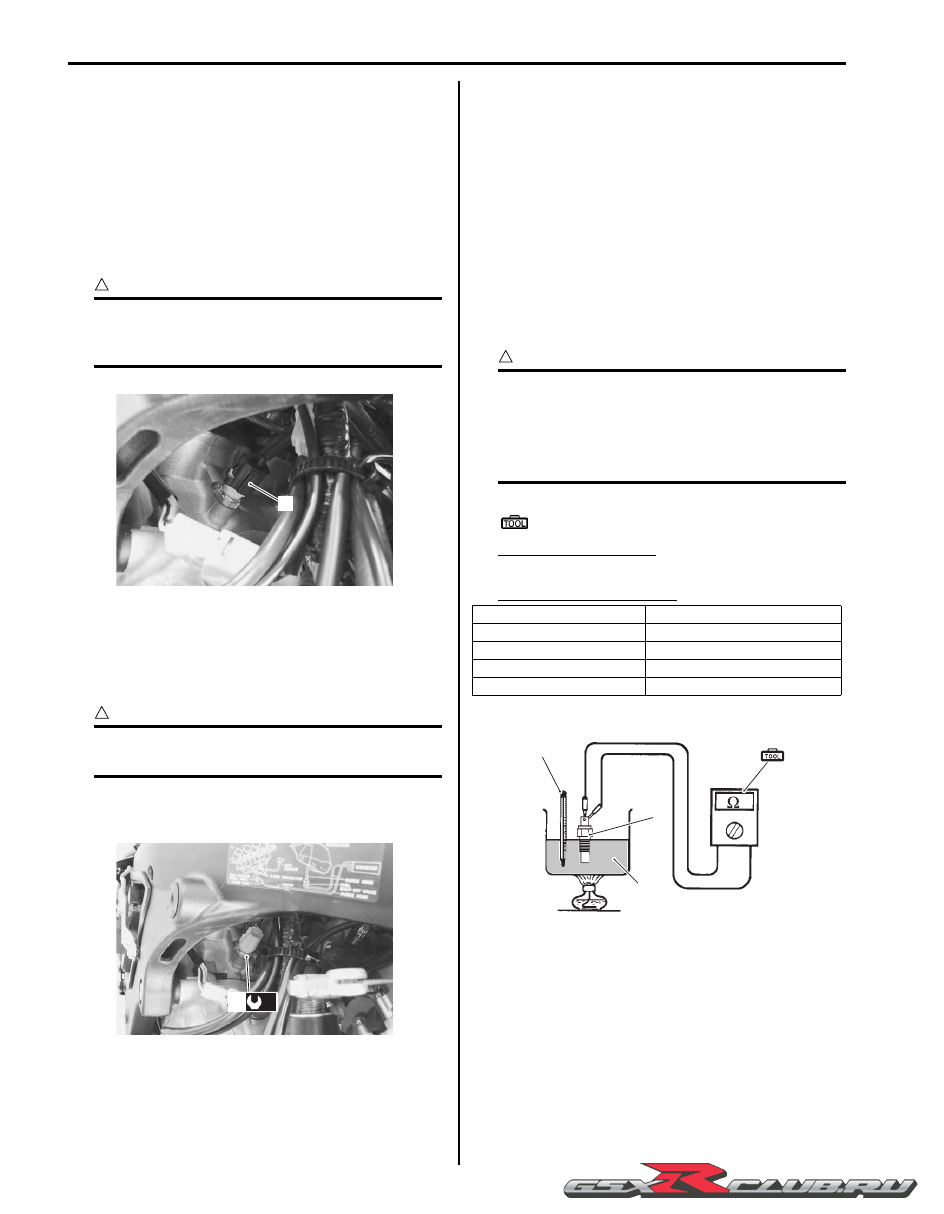

Heated Oxygen Sensor (HO2S) Removal and
Installation

B947H11206001

Removal

WARNING

!



Do not remove the HO2 sensor while it is hot.



CAUTION

!



• Be careful not to expose the HO2 sensor to

excessive shock.

• Do not use an impact wrench when

removing or installing the HO2 sensor.

• Be careful not to twist or damage the HO2

sensor lead wires.



1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9)
.

2) Disconnect the HO2 sensor coupler (1).

3) Remove the HO2 sensor (2).

Installation

Install the HO2 sensor in the reverse order of removal.
Pay attention to the following points:

CAUTION

!



Do not apply oil or other materials to the
sensor air hole.



• Tighten the HO2 sensor to the specified torque.

Tightening torque
HO2 sensor (a):  25 N·m (2.5 kgf-m, 18.0 lbf-ft)

Heated Oxygen Sensor (HO2S) Inspection

B947H11206002

Refer to “DTC “C44” (P0130/P0135): HO2 Sensor
(HO2S) Circuit Malfunction” in Section 1A (Page 1A-
103).

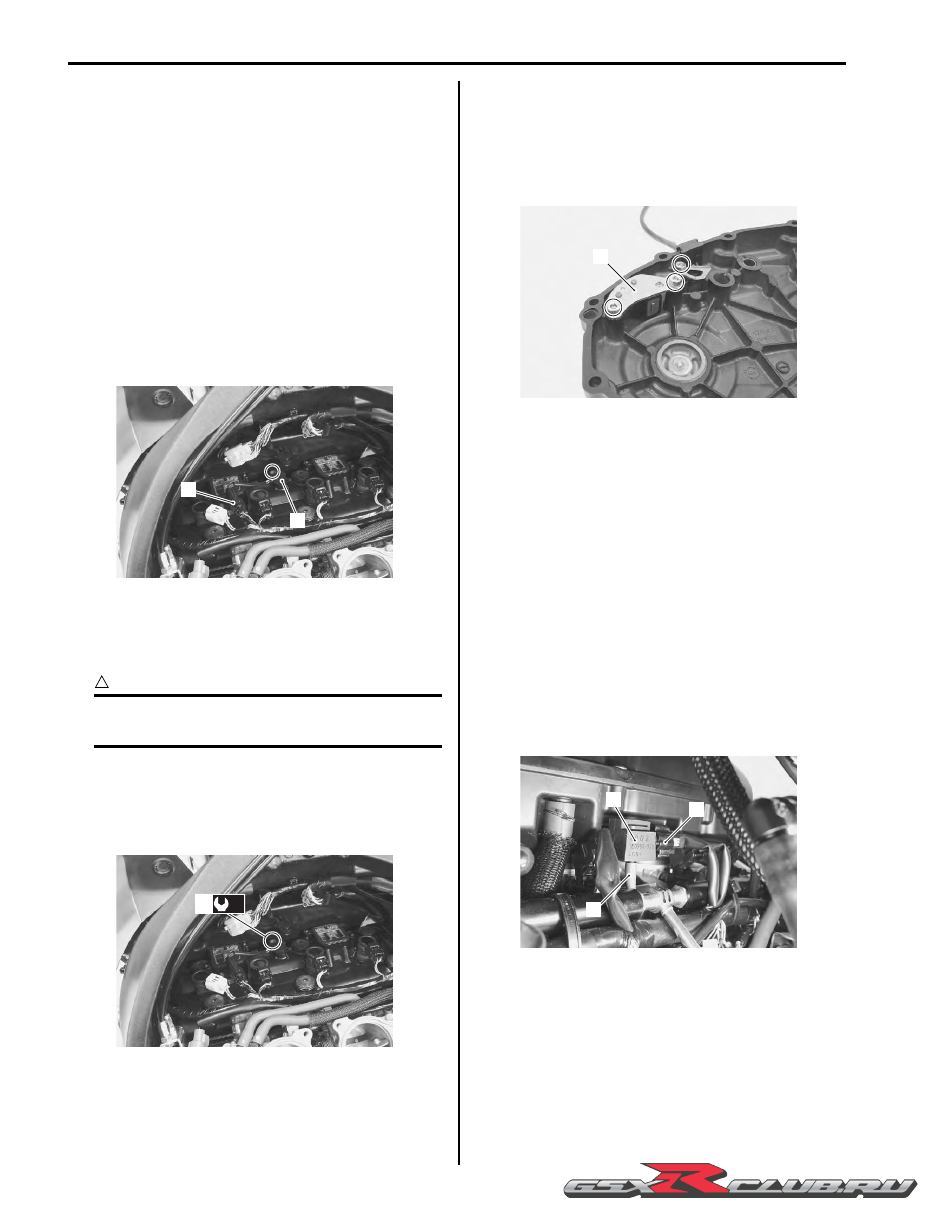

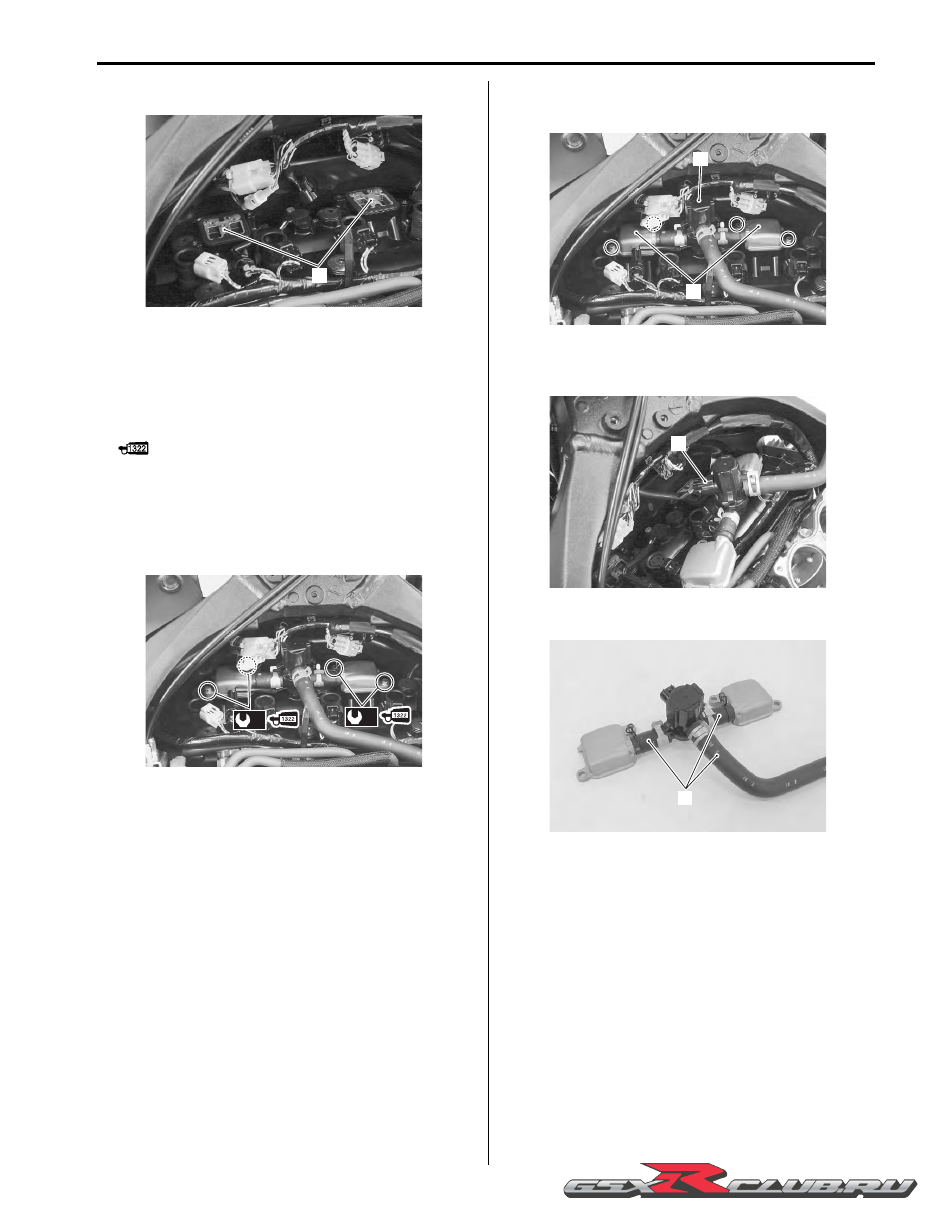

PAIR Reed Valve Removal and Installation

B947H11206003

Removal

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9)
.

2) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7)
.

3) Remove the PAIR control solenoid valve (1) along

with the PAIR reed valve covers (2). Refer to “PAIR
Control Solenoid Valve Removal and Installation”
(Page 1B-9)
.

1

I947H1120008-01

2

I947H1120009-01

(a)

I947H1120010-01

1

2

I947H1120011-02

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emission Control Devices:  1B-9

4) Remove the PAIR reed valves (3).

Installation

Install the PAIR reed valve in the reverse order of
removal. Pay attention to the following points:

• Apply thread lock to the PAIR reed valve cover bolts

and tighten them to the specified torque.

:  Thread lock cement 99000–32110

(THREAD LOCK CEMENT SUPER “1322” or
equivalent)

Tightening torque
PAIR reed valve cover bolt (a):  10 N·m (1.0 kgf-m,
7.0 lbf-ft)

PAIR Control Solenoid Valve Removal and
Installation

B947H11206004

Removal

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9).

2) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7).

3) Remove the PAIR control solenoid valve (1) along

with the PAIR reed valve covers (2).

4) Disconnect the PAIR control solenoid valve coupler

(3).

5) Disconnect the PAIR hoses (4).

Installation

Install the PAIR control solenoid valve in the reverse
order of removal. Pay attention to the following point:

• Connect the PAIR hoses properly. Refer to “PAIR

System Hose Routing Diagram” (Page 1B-6).

PAIR System Inspection

B947H11206005

PAIR Hose

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9).

2) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7)
.

3

I947H1120013-01

(a)

(a)

I947H1120014-02

1

2

I947H1120015-02

3

I947H1120016-02

4

I947H1120042-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1B-10 Emission Control Devices:

3) Inspect the PAIR hoses for wear or damage. If it is

worn or damaged, replace the PAIR hose with a new
one. Refer to “PAIR System Hose Routing Diagram”
(Page 1B-6).

4) Reinstall the removed parts.

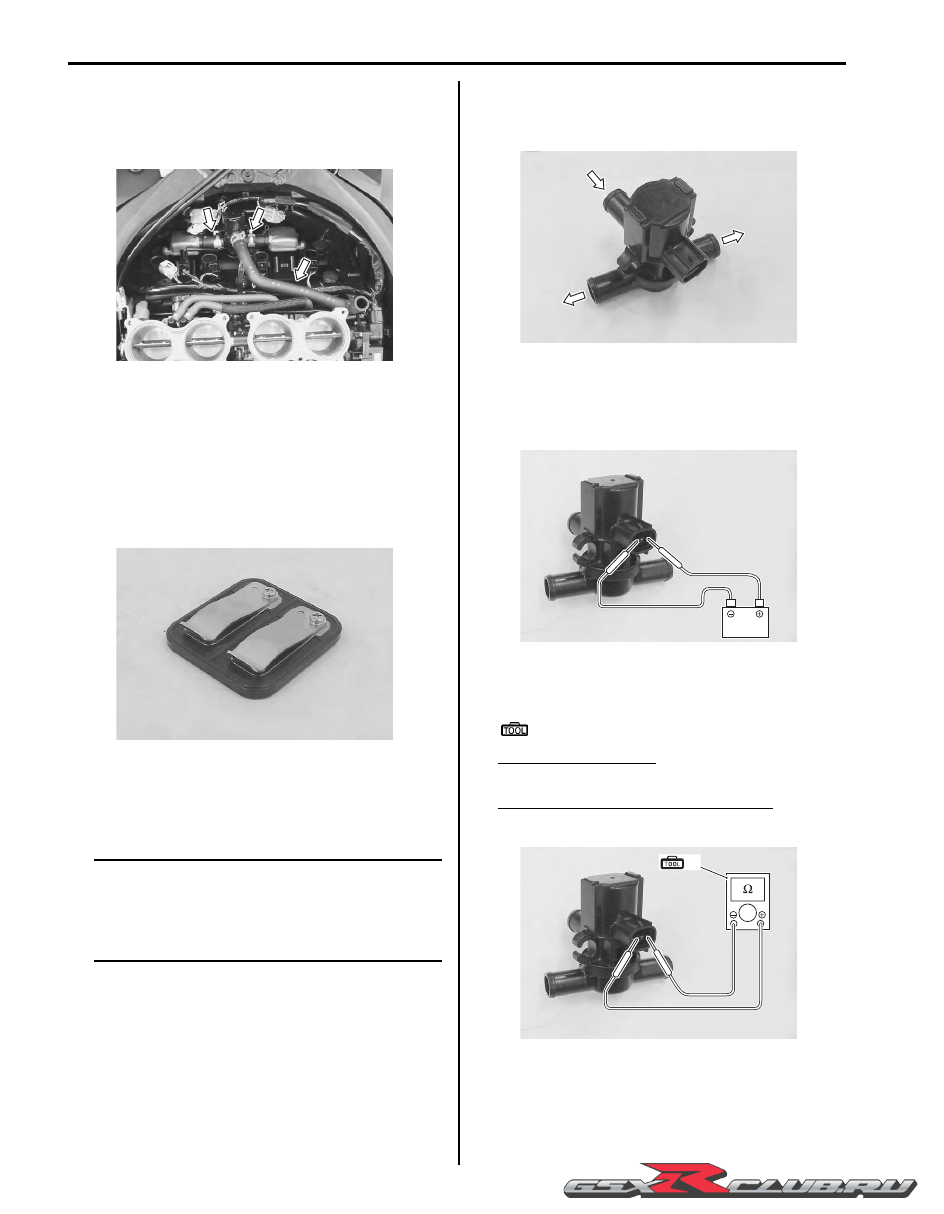

PAIR Reed Valve

1) Remove the PAIR reed valves. Refer to “PAIR Reed

Valve Removal and Installation” (Page 1B-8).

2) Inspect the reed valves for carbon deposit.

If carbon deposit is found on the reed valve, replace
the PAIR reed valve with a new one.

3) Reinstall the PAIR reed valves. Refer to “PAIR Reed

Valve Removal and Installation” (Page 1B-8).

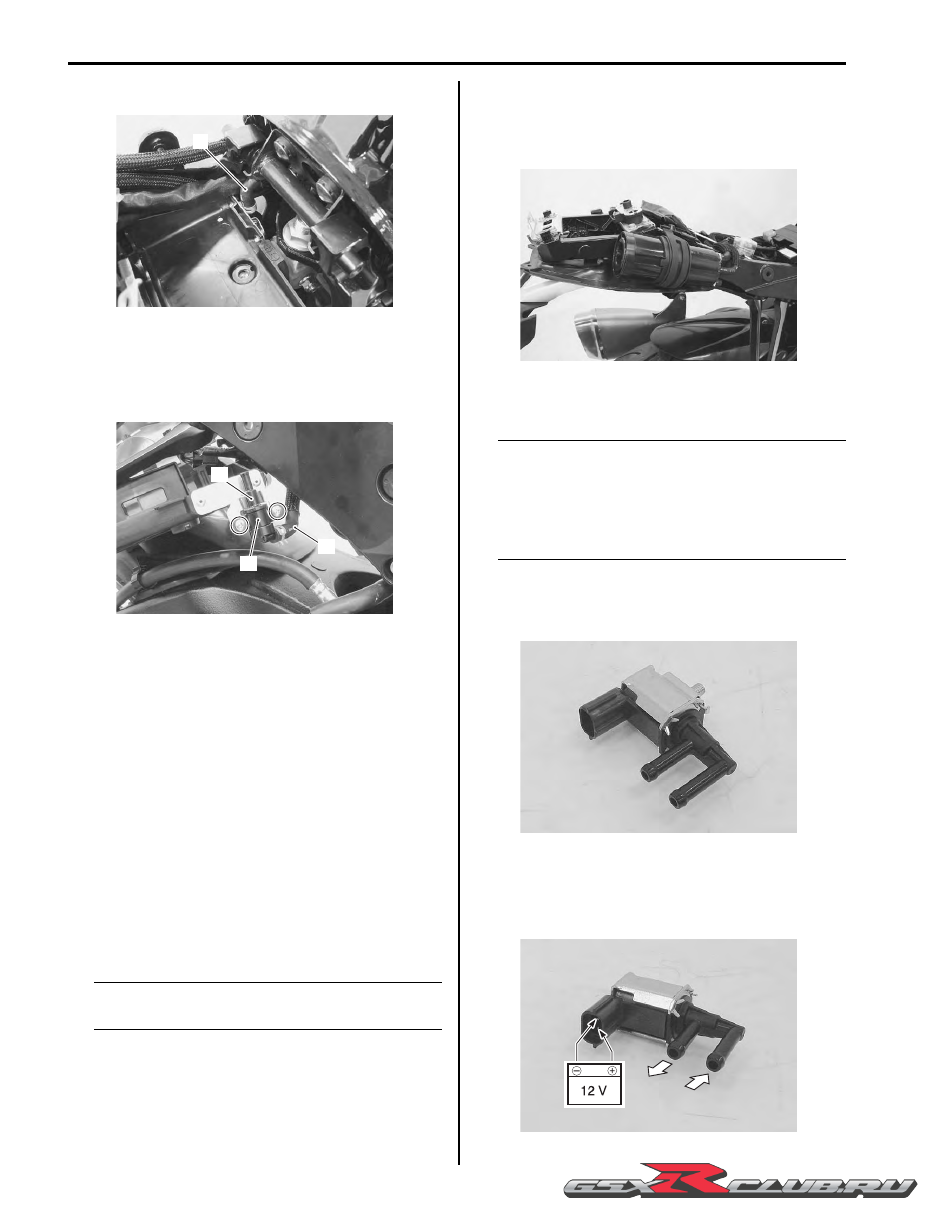

PAIR Control Solenoid Valve

NOTE

PAIR control solenoid valve can be checked
without removing it from the motorcycle.
Refer to “DTC “C49” (P1656): PAIR Control
Solenoid Valve Circuit Malfunction” in
Section 1A (Page 1A-121).



1) Remove the PAIR control solenoid valve. Refer to

“PAIR Control Solenoid Valve Removal and
Installation” (Page 1B-9).

2) Check that air flows through the air inlet port to the

air outlet ports. If air does not flow out, replace the
PAIR control solenoid valve with a new one.

3) Connect the 12 V battery to the PAIR control

solenoid valve terminals and check the air flow. If air
does not flow out, the solenoid valve is in normal
condition.

4) Check the resistance between the terminals of the

PAIR control solenoid valve.

Special tool

(A):  09900–25008 (Multi circuit tester set)

Tester knob indication
Resistance (

)

PAIR control solenoid valve resistance
20 – 24

 at 20 – 30

°

C (68 – 86

°

F)

5) Reinstall the PAIR control solenoid valve. Refer to

“PAIR Control Solenoid Valve Removal and
Installation” (Page 1B-9).

I947H1120017-01

I947H1120018-01

I947H1120019-01

12V

I947H1120020-01

(A)

I947H1120021-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emission Control Devices:  1B-11

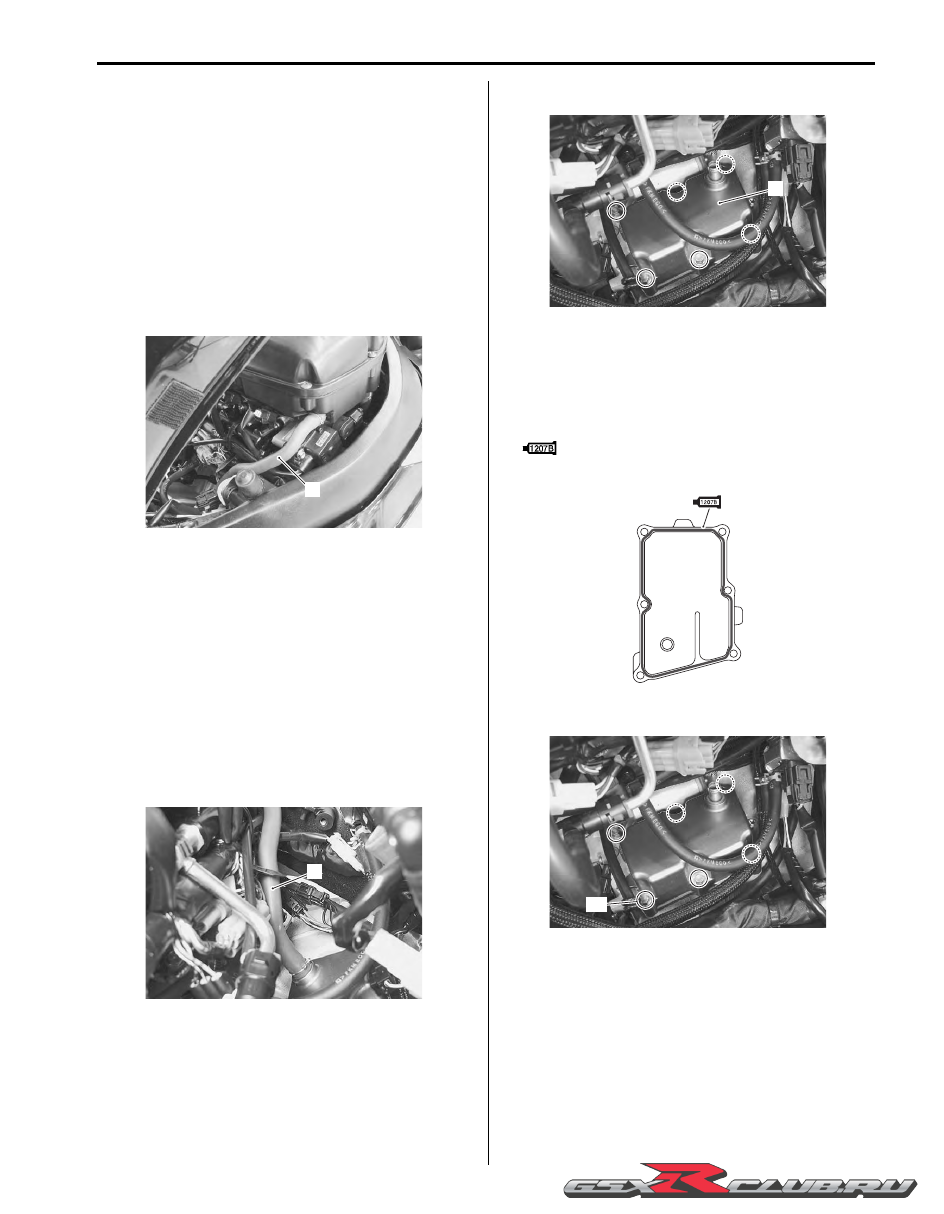

Crankcase Breather (PCV) Hose Inspection

B947H11206006

Inspect the crankcase breather (PCV) hose in the
following procedures:

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9).

2) Inspect the crankcase breather (PCV) hose (1) for

wear and damage.
If it is worn or damaged, replace the crankcase
breather (PCV) hose with a new one.

3) Check that the crankcase breather (PCV) hose (1) is

securely connected.

4) Install the removed parts.

Crankcase Breather (PCV) Hose / Reed Valve /
Cover Removal and Installation

B947H11206007

Removal

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9).

2) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7).

3) Disconnect the crankcase breather (PCV) hose (1).

4) Remove the crankcase breather (PCV) cover (2).

Installation

Installation is in the reverse order of removal.
Pay attention to the following points:

• Apply bond to the hatching part of crankcase breather

(PCV) cover.

:  Sealant 99000–31140 (SUZUKI BOND

No.1207B or equivalent)

• Fit the clamp to the bolt “A”.

• Connect the crankcase breather (PCV) hose securely.

Refer to “Throttle Body Construction” in Section 1D
(Page 1D-9).

1

I947H1120022-01

1

I947H1120023-01

2

I947H1120024-02

I947H1140293-01

“A”

I947H1120025-03

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1B-12 Emission Control Devices:

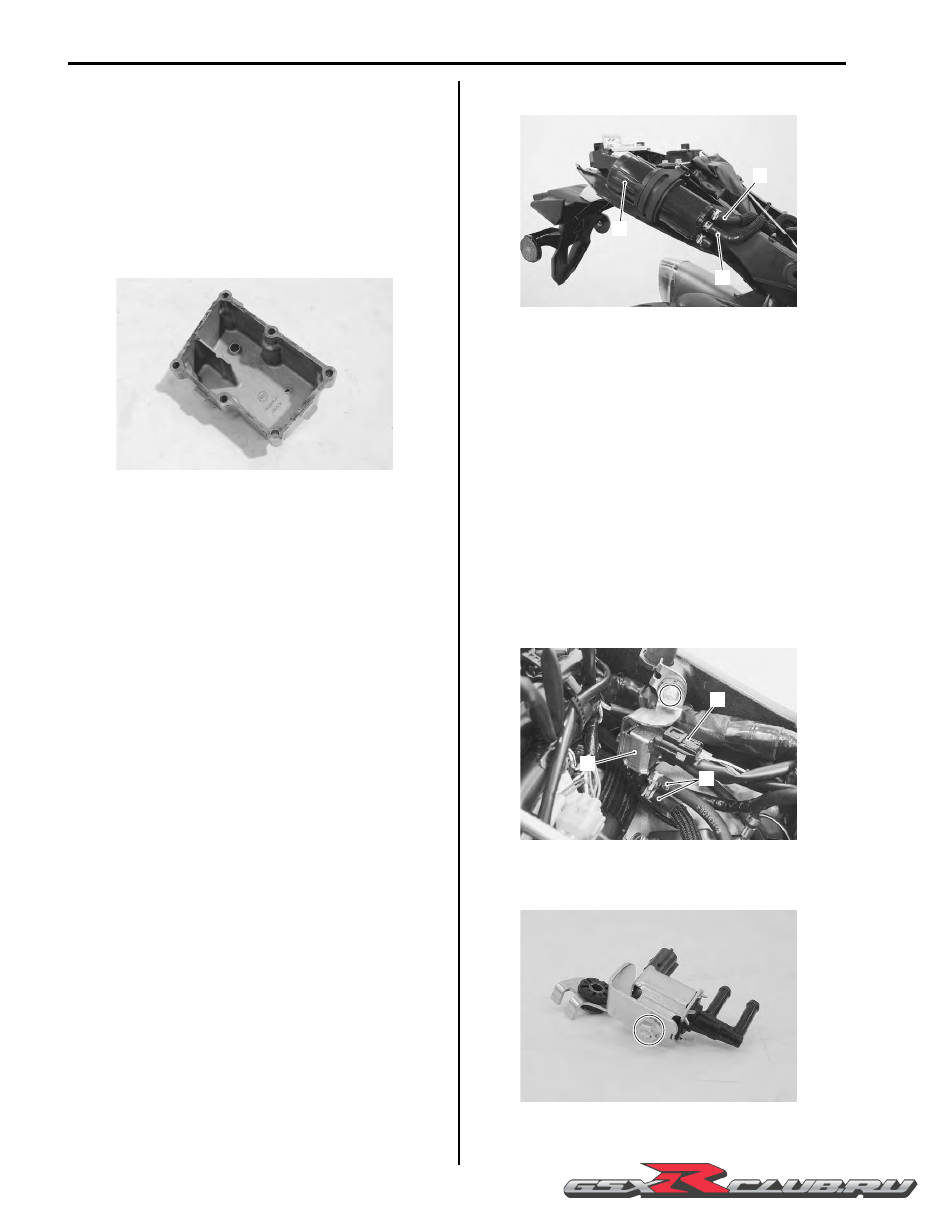

Crankcase Breather (PCV) Cover Inspection

B947H11206008

Inspect the crankcase breather (PCV) cover in the
following procedures:

1) Remove the crankcase breather (PCV) cover. Refer

to “Crankcase Breather (PCV) Hose / Reed Valve /
Cover Removal and Installation” (Page 1B-11).

2) Inspect the crankcase breather (PCV) cover for

carbon deposit. If carbon deposit is found in the
crankcase breather (PCV) cover, remove the carbon.

3) Reinstall the crankcase breather (PCV) cover. Refer

to “Crankcase Breather (PCV) Hose / Reed Valve /
Cover Removal and Installation” (Page 1B-11).

Evaporative Emission Control System Removal
and Installation (Only for E-33)

B947H11206010

Hose
Removal

1) Lift and support the fuel tank. Refer to “Fuel Tank

Removal and Installation” in Section 1G (Page 1G-
9).

2) Remove the frame cover assembly. Refer to

“Exterior Parts Removal and Installation” in Section
9D (Page 9D-6).

3) Remove the EVAP hoses as shown in the EVAP

canister hose routing diagram. Refer to “PAIR
System Hose Routing Diagram” (Page 1B-6)
.

Installation

1) Install the EVAP hoses as shown in the EVAP

canister hose routing diagram. Refer to “EVAP
Canister Hose Routing Diagram (Only for E-33)”
(Page 1B-7).

2) Reinstall the removed parts.

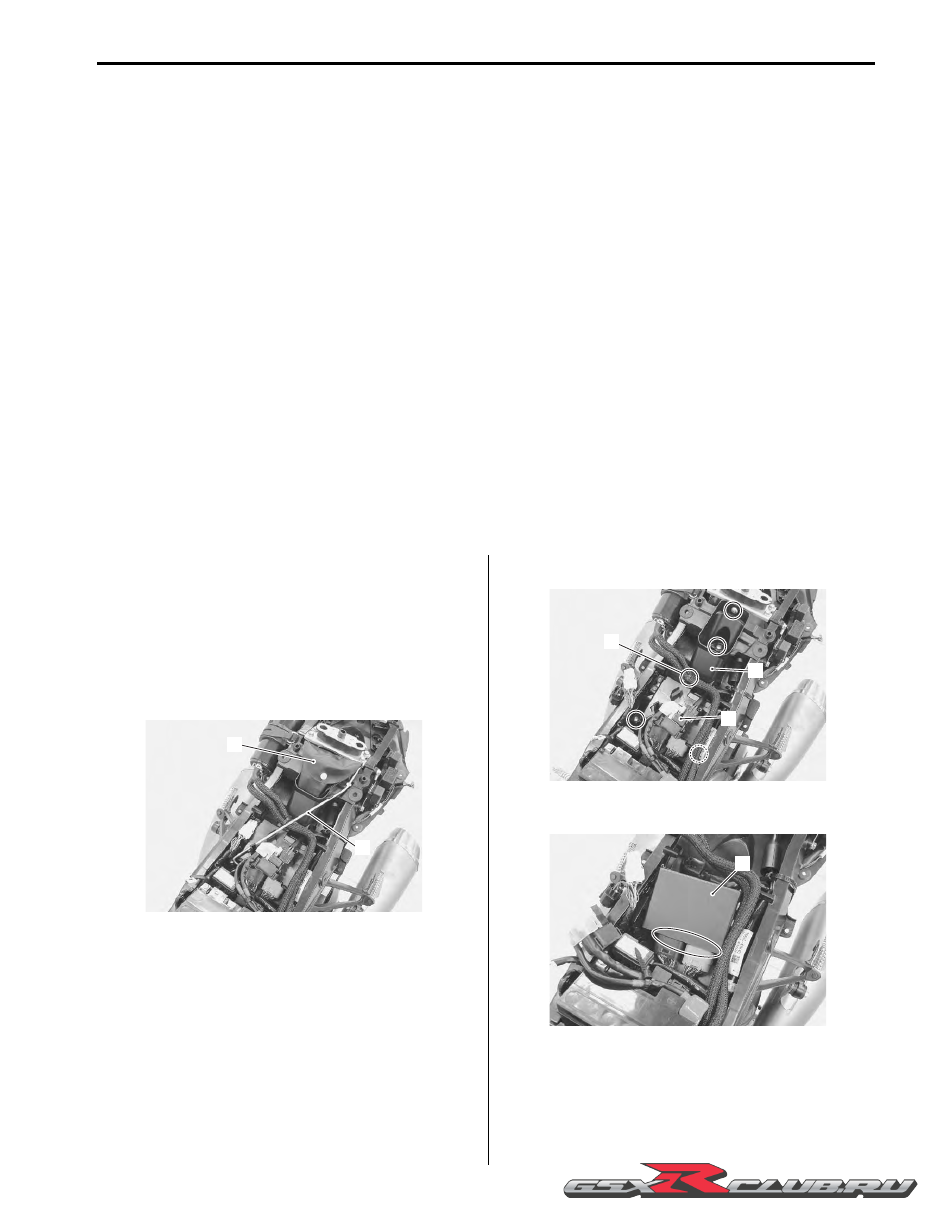

EVAP Canister
Removal

1) Remove the frame cover assembly. Refer to

“Exterior Parts Removal and Installation” in Section
9D (Page 9D-6).

2) Disconnect the surge hose (1) and purge hose (2).

3) Remove the EVAP canister (3) from the bracket.

Installation

1) Install the EVAP canister as shown in the EVAP

canister hose routing diagram. Refer to “EVAP
Canister Hose Routing Diagram (Only for E-33)”
(Page 1B-7)
.

2) Reinstall the removed parts.

EVAP System Purge Control Solenoid Valve
Removal

1) Lift and support the fuel tank with the prop stay.

Refer to “Fuel Tank Removal and Installation” in
Section 1G (Page 1G-9)
.

2) Disconnect the coupler (1) and purge hoses (2).

3) Remove the EVAP system purge control solenoid

valve (3) with the bracket.

4) Remove the EVAP system purge control solenoid

valve from the bracket.

I947H1120026-01

1

2

3

I947H1120027-01

1

2

3

I947H1120028-01

I947H1120029-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emission Control Devices:  1B-13

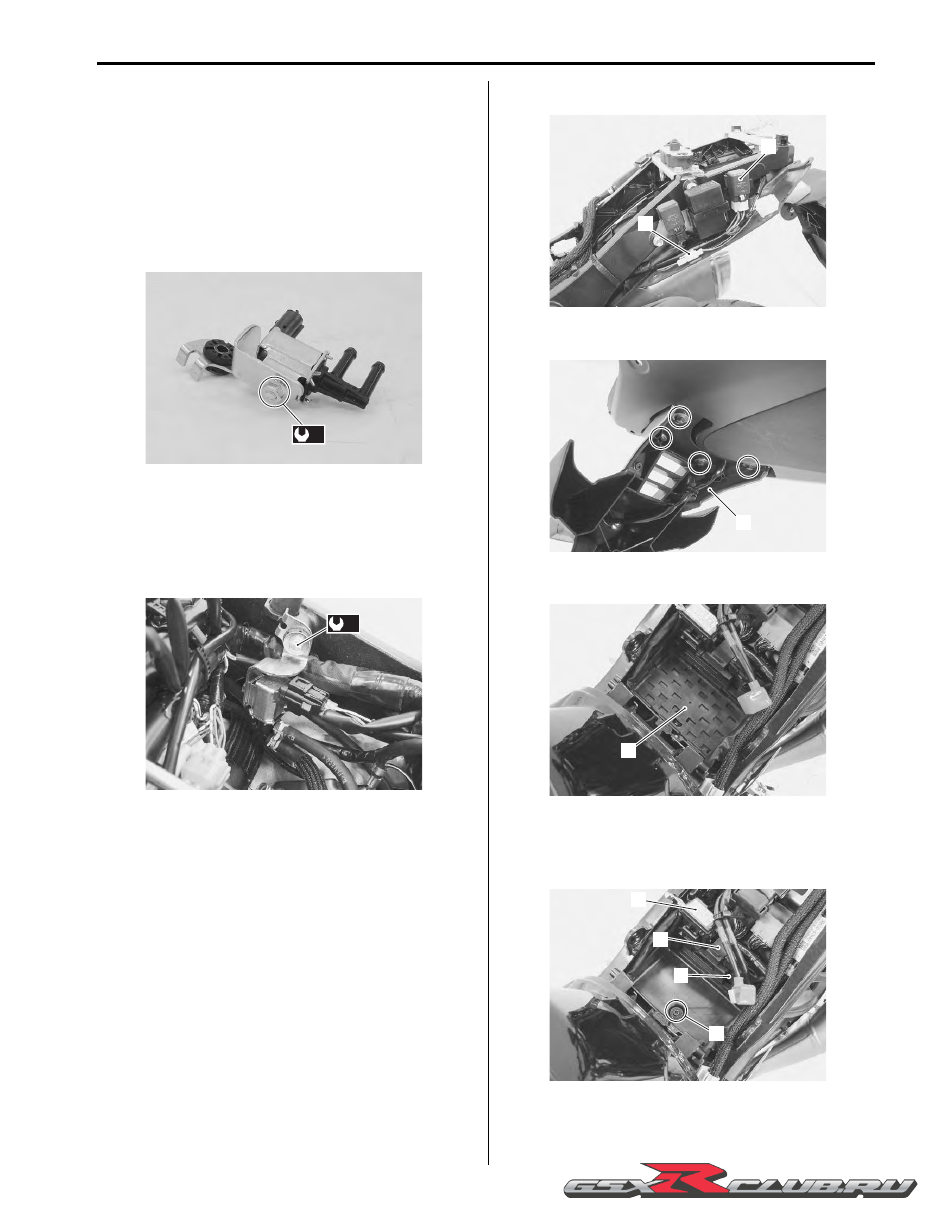

Installation

Install the EVAP system purge control solenoid valve in
the reverse order of removal. Pay attention to the
following point:

• Tighten the EVAP system purge control solenoid valve

mounting nut to the specified torque.

Tightening torque
EVAP system purge control solenoid valve
mounting nut (a):  6.5 N·m (0.65 kgf-m, 4.5 lbf-ft)

• Tighten the EVAP system purge control solenoid valve

bracket bolt.

Tightening torque
EVAP system purge control solenoid valve
bracket bolt (b):  10 N·m (1.0 kgf-m, 7.0 lbf-ft)

Fuel Shut-off Valve
Removal

1) Remove the front seat. Refer to “Exterior Parts

Removal and Installation” in Section 9D (Page 9D-
6)
.

2) Remove the battery. Refer to “Battery Removal and

Installation” in Section 1J (Page 1J-11).

3) Remove the ECM. Refer to “ECM Removal and

Installation” in Section 1C (Page 1C-1).

4) Remove the frame cover assembly. Refer to

“Exterior Parts Removal and Installation” in Section
9D (Page 9D-6).

5) Disconnect the cooling fan relay (1) from the rear

fender (front).

6) Disconnect the license plate light coupler (2).

7) Remove the rear fender (rear) (3).

8) Remove the battery mat (4).

9) Disconnect the fuse box (5), AP sensor (6) and TO

sensor (7) from the rear fender (front).

10) Remove the rear fender (front) mounting bolt (8).

(a)

I947H1120030-01

(b)

I947H1120041-01

1

2

I947H1120031-01

3

I947H1120032-01

4

I947H1120033-01

5

6

7

8

I947H1120034-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1B-14 Emission Control Devices:

11) Disconnect the surge hose (9).

12) Move the rear fender (front) backward.

13) Disconnect the surge hose (10).

14) Remove the bracket (11) and fuel shaft-off valve

(12).

Installation

Install the fuel shut-off valve in the reverse order of
removal. Pay attention to the following point:

• Install the fuel shut-off valve as shown in the EVAP

canister hose routing diagram. Refer to “EVAP
Canister Hose Routing Diagram (Only for E-33)”
(Page 1B-7).

Evaporative Emission Control System
Inspection (Only for E-33)

B947H11206011

Refer to “Evaporative Emission Control System Removal
and Installation (Only for E-33)” (Page 1B-12).

Hose

Inspect the hoses for wear or damage. If it is worn or
damage, replace the hose with a new one.

NOTE

Make sure that the hoses are securely
connected.



EVAP Canister

Inspect the EVAP canister for damage to the body. If any
defect is found, replace the EVAP canister with a new
one.

EVAP System Purge Control Solenoid Valve

NOTE

EVAP system purge control solenoid valve
can be checked without removing it from the
motorcycle. Refer to “DTC “C62” (P0443):
EVAP System Purge Control Solenoid Valve
Circuit Malfunction (E-33 only)” in Section 1A
(Page 1A-127).



1) Check that no air flows through both of the air inlet

and outlet ports. If air flows out, replace the EVAP
system purge control solenoid valve with a new one.

2) Connect the 12 V battery to the terminals of the

EVAP system purge control solenoid valve and
check the air flow. If air flows out, the solenoid valve
is in normal condition.

9

I947H1120035-01

11

10

12

I947H1120036-01

I947H1120037-01

I947H1120038-01

I947H1120039-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Emission Control Devices:  1B-15

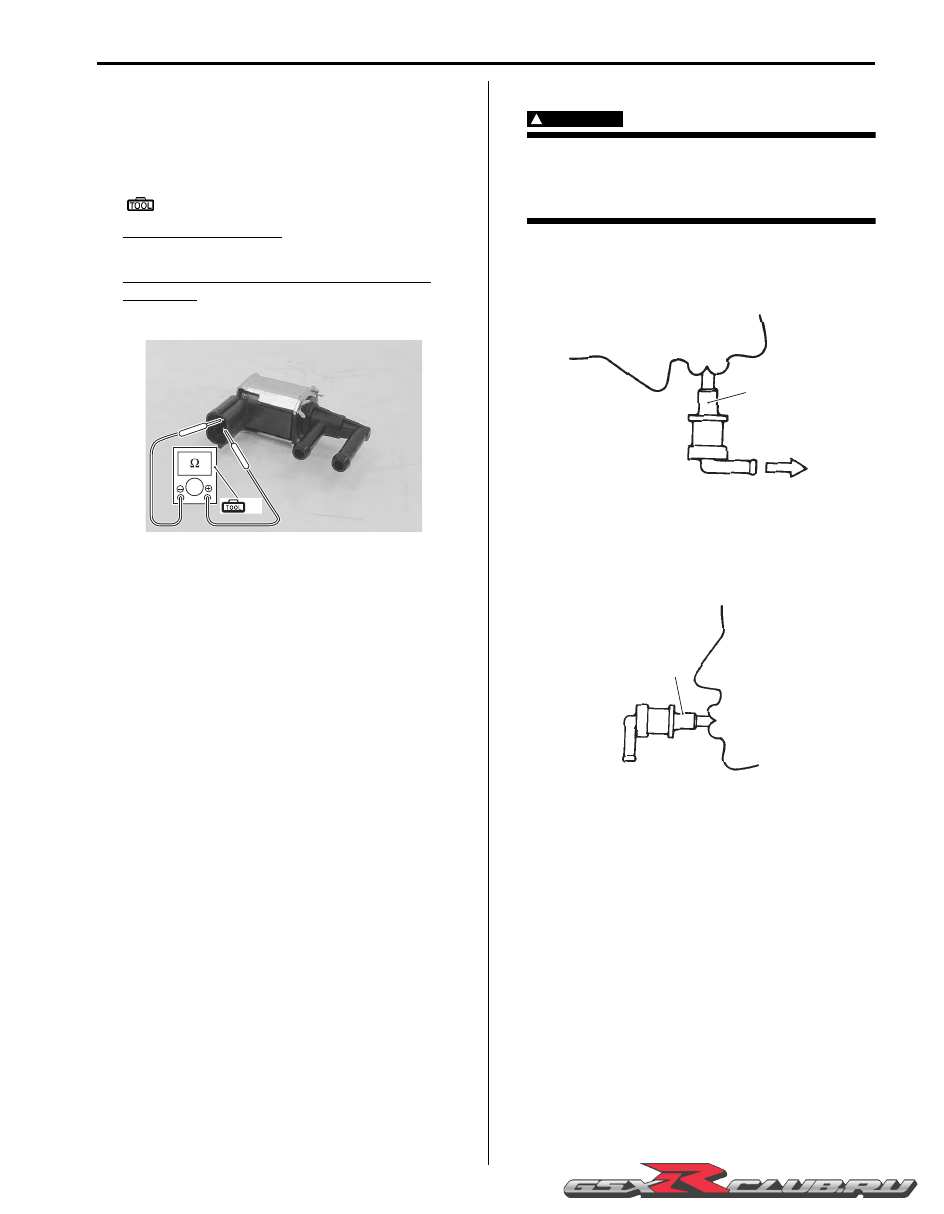

3) Check the resistance between the terminals of the

EVAP system purge control solenoid valve. If the
resistance is not within the standard range, replace
the EVAP system purge control solenoid valve with a
new one.

Special tool

(A):  09900–25008 (Multi circuit tester set)

Tester knob indication
Resistance (

)

EVAP system purge control solenoid valve
resistance
Approx. 32

 at 20

°

C (68

°

F)

Fuel Shut-off Valve

WARNING

!



Gasoline and gasoline vapor is toxic. A small
amount of fuel remains in the fuel shut-off
valve when checking it. Do not swallow the
fuel when blowing the fuel shut-off valve.



1) When air is blown into the fuel shut-off valve with its

side “A” positioned upward, the air can pass through
to the canister side.

2) When air is blown into the fuel shut-off valve with its

side “A” positioned sideways, the air cannot pass
through to the canister side. If the fuel shut-off valve
operates otherwise, it must be replaced.

(A)

I947H1120040-01

“A”

I823H1120037-01

“A”

I823H1120038-02

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1B-16 Emission Control Devices:

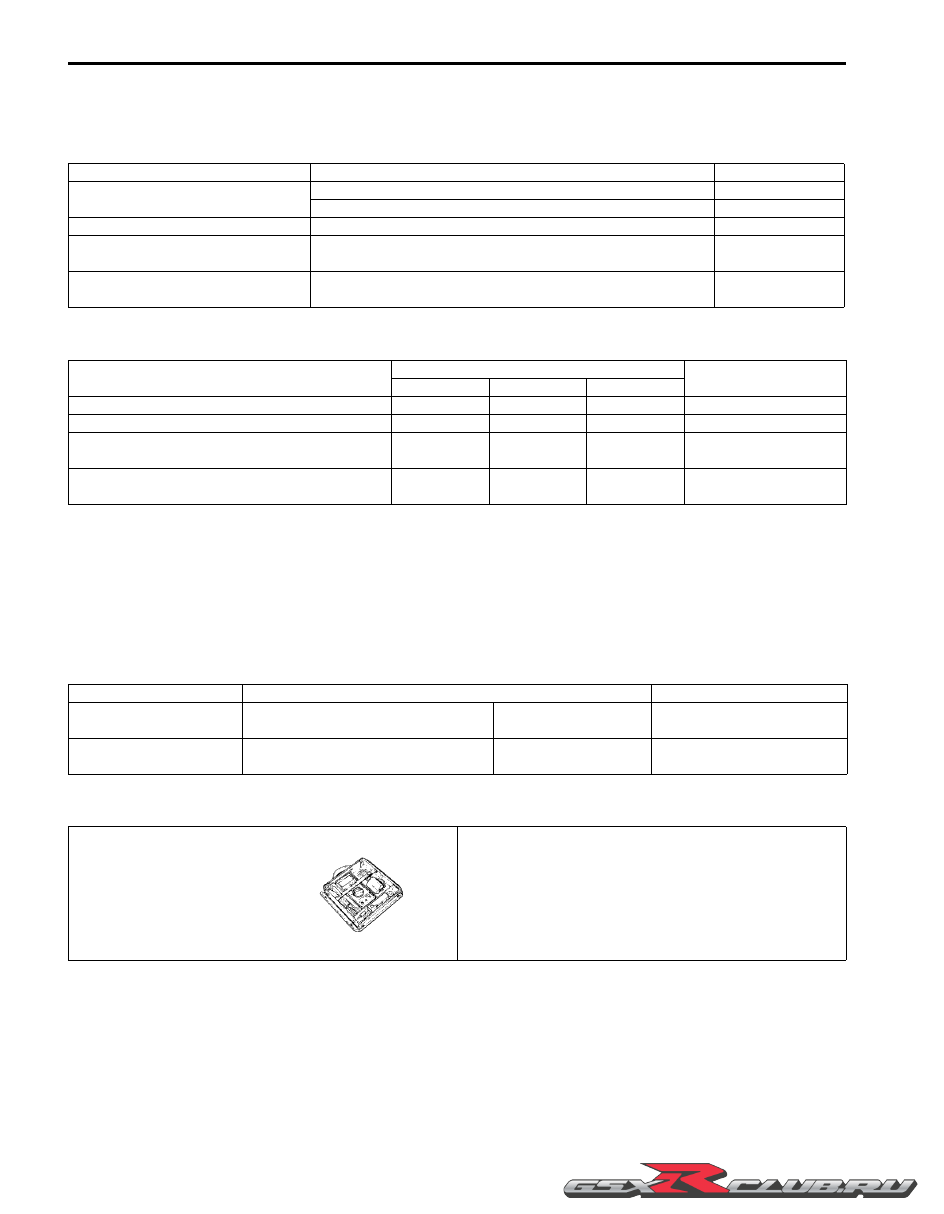

Specifications

Service Data

B947H11207001

FI sensors

Tightening Torque Specifications

B947H11207002

Reference:

For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List” in Section 0C
(Page 0C-9).

Special Tools and Equipment

Recommended Service Material

B947H11208001

Special Tool

B947H11208002

Item

Specification

Note

HO2 sensor output voltage

0.3 V and less at idle speed

0.6 V and more at 5 000 r/min

HO2 sensor heater resistance

6.7 – 9.5

 at 23

°

C (73

°

F)

PAIR control solenoid valve
resistance

20 – 24

 at 20 – 30

°

C (68 – 86

°

F)

EVAP system purge control
solenoid valve resistance

Approx. 32

 at 20

°

C (68

°

F)

E-33 only

Fastening part

Tightening torque

Note

N

m

kgf-m

lbf-ft

HO2 sensor

25

2.5

18.0

)

(Page 1B-8)

PAIR reed valve cover bolt

10

1.0

7.0

)

(Page 1B-9)

EVAP system purge control solenoid valve
mounting nut

6.5

0.65 4.5

)

(Page 1B-13)

EVAP system purge control solenoid valve
bracket bolt

10

1.0 7.0

)

(Page 1B-13)

Material

SUZUKI recommended product or Specification

Note

Sealant

SUZUKI BOND No.1207B or
equivalent

P/No.: 99000–31140

)

(Page 1B-11)

Thread lock cement

THREAD LOCK CEMENT SUPER
“1322” or equivalent

P/No.: 99000–32110

)

(Page 1B-9)

09900–25008
Multi circuit tester set

)

(Page 1B-10) /

)

(Page 1B-15)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Electrical Devices:  1C-1

8Engine

Engine Electrical Devices

Precautions

Precautions for Engine Electrical Device

B947H11300001

Refer to “General Precautions” in Section 00 (Page 00-1) and “Precautions for Electrical Circuit Service” in Section 00
(Page 00-2).

Component Location

Engine Electrical Components Location

B947H11303001

Refer to “Electrical Components Location” in Section 0A (Page 0A-7).

Diagnostic Information and Procedures

Engine Symptom Diagnosis

B947H11304001

Refer to “Engine Symptom Diagnosis” in Section 1A (Page 1A-8).

Repair Instructions

ECM Removal and Installation

B947H11306001

Removal

1) Remove the frame covers. Refer to “Exterior Parts

Removal and Installation” in Section 9D (Page 9D-
6)
.

2) Disconnect the battery (–) lead wire.

3) Remove the tool set (1) and prop stay (2).

4) Disconnect the hose clamp (3) (E-33 only) and

starter relay (4).

5) Remove the electric parts holder bracket (5).

6) Disconnect the couplers and remove the ECM (6).

Installation

Install the ECM in the reverse order of removal.

1

2

I947H1130001-01

5

4

3

I947H1130002-01

6

I947H1130003-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1C-2 Engine Electrical Devices:

CMP Sensor Inspection

B947H11306002

Refer to “DTC “C11” (P0340): CMP Sensor Circuit
Malfunction” in Section 1A (Page 1A-29).

CMP Sensor Removal and Installation

B947H11306003

Removal

1) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7).

2) Remove the PAIR control solenoid valve. Refer to

“PAIR Control Solenoid Valve Removal and
Installation” in Section 1B (Page 1B-9)
.

3) Disconnect the coupler (1) and remove the CMP

sensor (2).

Installation

Install the CMP sensor in the reverse order of removal.
Pay attention to the following points:

CAUTION

!



When installing the CMP sensor, make sure
to clean the sensor surface.



• Tighten the CMP sensor bolt (1) to the specified

torque.

Tightening torque
CMP sensor bolt (a):  10 N·m (1.0 kgf-m, 7.0 lbf-ft)

CKP Sensor Inspection

B947H11306004

Refer to “CKP Sensor Inspection” in Section 1H
(Page 1H-9).

CKP Sensor Removal and Installation

B947H11306005

Removal

1) Remove the clutch cover. Refer to “Clutch Removal”

in Section 5C (Page 5C-5).

2) Remove the CKP sensor (1).

Installation

Install the CKP sensor in the reverse order of removal.
Refer to “Clutch Installation” in Section 5C (Page 5C-7).

IAP Sensor Inspection

B947H11306006

Refer to “DTC “C13” (P0105-H/L): IAP Sensor Circuit
Malfunction” in Section 1A (Page 1A-35).

IAP Sensor Removal and Installation

B947H11306007

Removal

1) Lift and support the fuel tank. Refer to “Fuel Tank

Removal and Installation” in Section 1G (Page 1G-
9).

2) Disconnect the coupler (1) and vacuum hose (2).

3) Remove the IAP sensor (3) from the air cleaner box.

Installation

Install the IAP sensor in the reverse order of removal.

TP Sensor Inspection

B947H11306008

Refer to “DTC “C14” (P0120-H/L): TP Sensor Circuit
Malfunction” in Section 1A (Page 1A-43).

1

2

I947H1130004-02

(a)

1

I947H1130005-02

1

I947H1130006-01

1

2

3

I947H1130007-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Electrical Devices:  1C-3

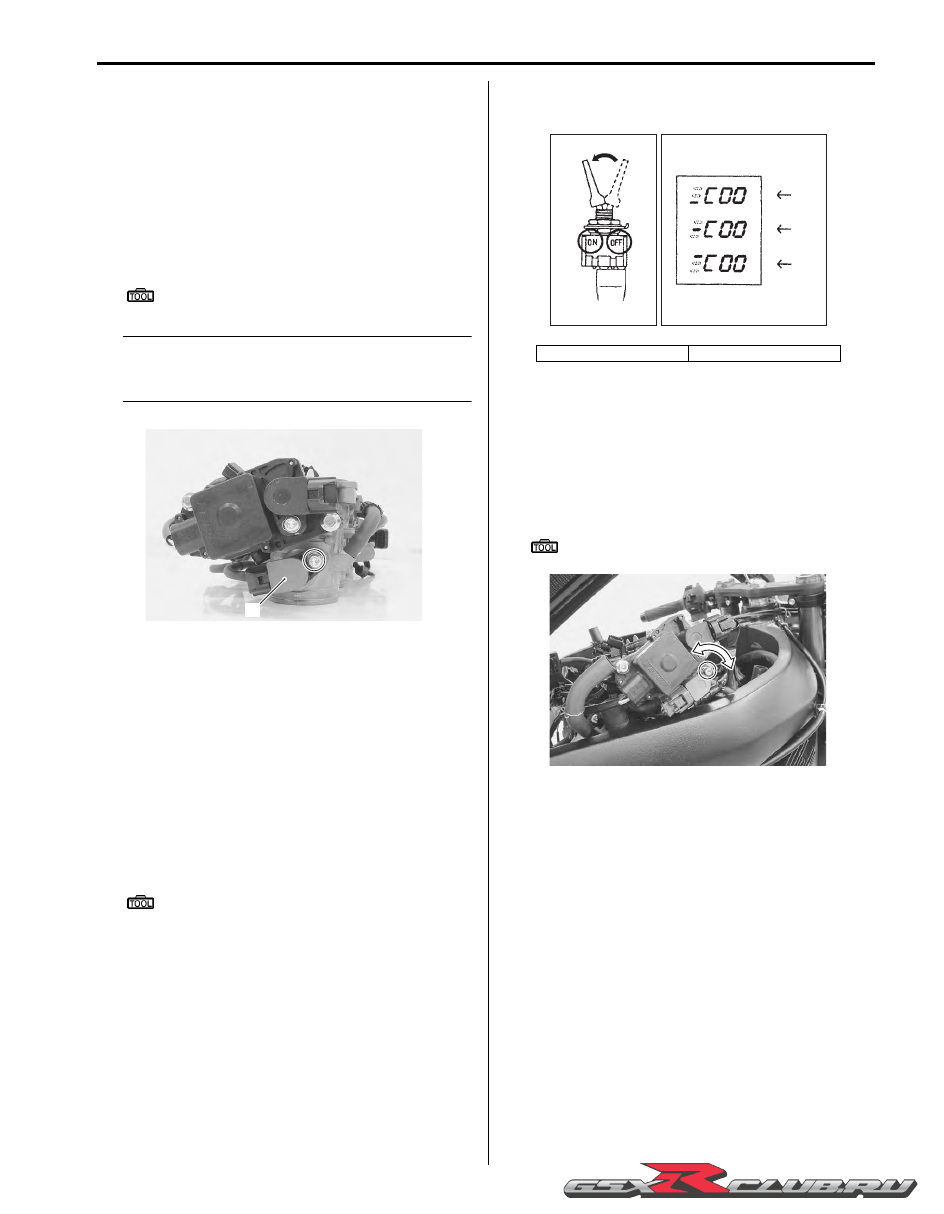

TP Sensor Removal and Installation

B947H11306009

Refer to “Throttle Body Disassembly and Assembly” in
Section 1D (Page 1D-11).

Removal

1) Remove the throttle body. Refer to “Throttle Body

Removal and Installation” in Section 1D (Page 1D-
10).

2) Remove the TP sensor (1) with the special tool.

Special tool

:  09930–11950 (Torx wrench (5 mm))

NOTE

Prior to disassembly, mark the TP sensor’s
original position with a paint or scribe for
accurate reinstallation.



Installation

Install the TP sensor in the reverse order of removal.
Refer to “Throttle Body Disassembly and Assembly” in
Section 1D (Page 1D-11).

TP Sensor Adjustment

B947H11306010

Inspect the TP sensor setting position and adjust it if
necessary in the following procedures:

1) Connect the special tool (Mode select switch) to the

dealer mode coupler. Refer to “Self-Diagnostic
Procedures” in Section 1A (Page 1A-12).

Special tool

:  09930–82720 (Mode selection switch)

2) Warn up the engine and keep it running in idling

speed.

3) Turn the mode select switch ON.

4) Check the position of the bar in the left of C code

displayed on the LCD panel.

5) If the TP sensor adjustment is necessary, turn off the

engine and lift up the throttle body from the intake
pipes. Refer to “Throttle Body Removal and
Installation” in Section 1D (Page 1D-10).

6) Loosen the TP sensor mounting screw using the

special tool and turn the TP sensor to bring the bar
to the correct position.

Special tool

:  09930–11950 (Torx wrench (5 mm))

7) Tighten the TP sensor mounting screw to the

specified torque.

Tightening torque
TP sensor mounting screw:  3.5 N·m (0.35 kgf-
m, 2.5 lbf-ft)

8) Reinstall the throttle body.

9) Turn on the engine and make sure that the TP

sensor bar is at the correct position.

10) Turn off the engine and reinstall the removed parts.

1

I947H1130008-01

“A”: Incorrect position

“B”: Correct position

“B”

“A”

“A”

I823H1130022-01

I947H1130009-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1C-4 Engine Electrical Devices:

ECT Sensor Removal and Installation

B947H11306011

Removal

1) Remove the left side cowling. Refer to “Exterior

Parts Removal and Installation” in Section 9D
(Page 9D-6).

2) Drain engine coolant. Refer to “Cooling System

Inspection” in Section 0B (Page 0B-12).

3) Disconnect the coupler and remove the ECT sensor

(1).

CAUTION

!



Take special care when handling the ECT
sensor. It may cause damage if it gets an
excessive impact.



Installation

Install the ECT sensor in the reverse order of removal.
Pay attention to the following points:

• Tighten the ECT sensor (1) to the specified torque.

CAUTION

!



Use new gasket washer to prevent engine
coolant leakage.



Tightening torque
ECT sensor (a):  18 N·m (1.8 kgf-m, 13.0 lbf-ft)

• Pour engine coolant. Refer to “Cooling System

Inspection” in Section 0B (Page 0B-12).

ECT Sensor Inspection

B947H11306012

Refer to “DTC “C15” (P0115-H/L): ECT Sensor Circuit
Malfunction” in Section 1A (Page 1A-50).
Inspect the ECT sensor in the following procedures:

1) Remove the ECT sensor. Refer to “ECT Sensor

Removal and Installation” (Page 1C-4).

2) Connect the ECT sensor (1) to the circuit tester and

place it in the oil (2) contained in a pan, which is
placed on a stove.

3) Heat the oil to raise its temperature slowly and read

the column thermometer (3) and ohmmeter.
If the ECT sensor ohmic value does not change in
the proportion indicated, replace it with a new one.

CAUTION

!



• Take special care when handling the ECT

sensor. It may cause damage if it gets an
excessive sharp impact.

• Do not contact the ECT sensor and column

thermometer with a pan.



Special tool

(A):  09900–25008 (Multi circuit tester set)

Tester knob indication
Resistance (

)

ECT sensor specification

4) Install the ECT sensor. Refer to “ECT Sensor

Removal and Installation” (Page 1C-4).

1

I947H1130010-01

(a)

1

I947H1130011-01

Temperature

Standard resistance

20

°

C (68

°

F)

Approx. 2.45 k

50

°

C (122

°

F)

Approx. 0.811 k

80

°

C (176

°

F)

Approx. 0.318 k

110

°

C (230

°

F)

Approx. 0.142 k

(A)

2

1

3

I718H1130014-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Electrical Devices:  1C-5

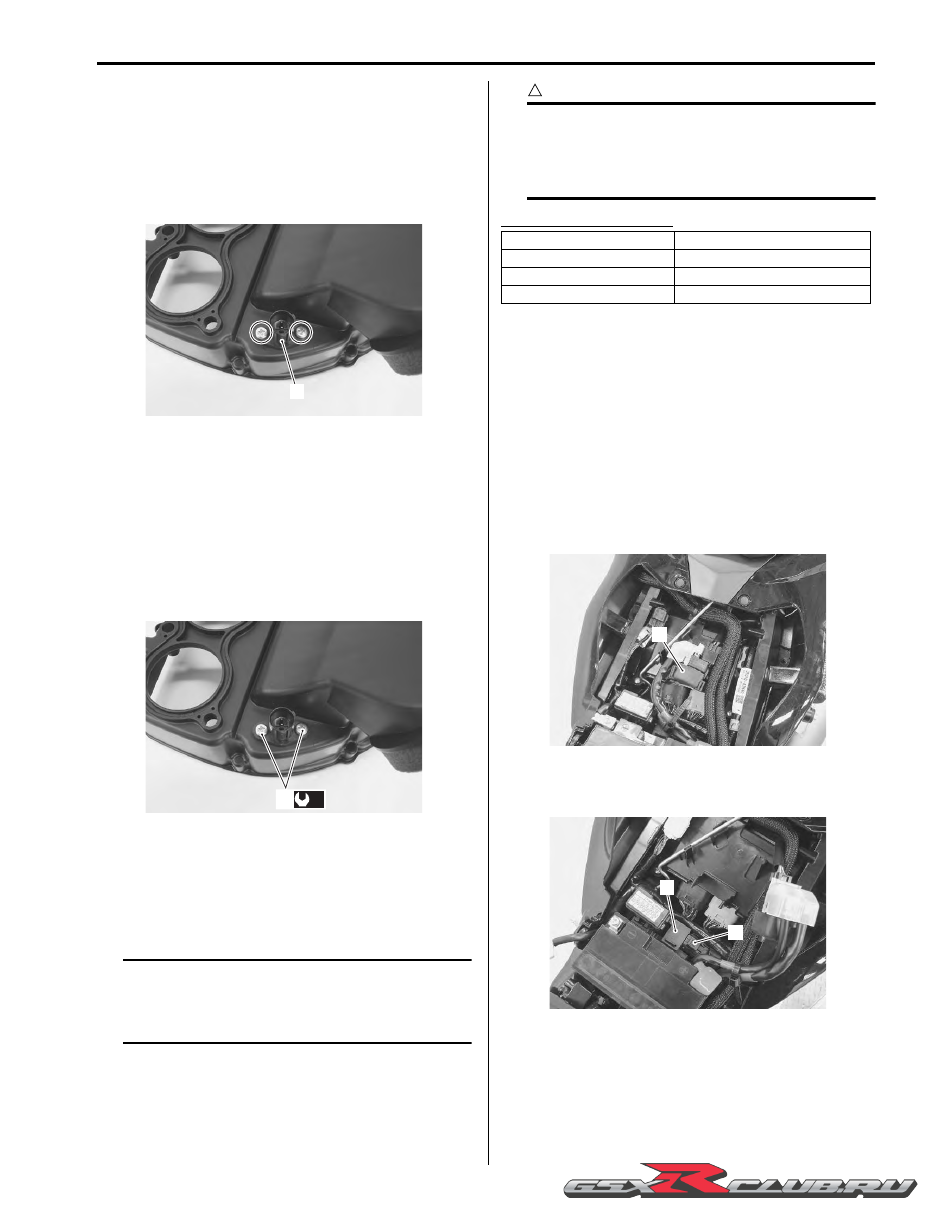

IAT Sensor Removal and Installation

B947H11306013

Removal

1) Remove the air cleaner box. Refer to “Air Cleaner

Box Removal and Installation” in Section 1D
(Page 1D-7).

2) Remove the IAT sensor (1) from the air cleaner box.

Installation

Install the IAT sensor in the reverse order of removal.
Pay attention to the following point:

• Tighten the IAT sensor screw (1) to the specified

torque.

Tightening torque
IAT sensor mounting screw (a):  1.3 N·m (0.13 kgf-
m, 1.0 lbf-ft)

IAT Sensor Inspection

B947H11306014

Refer to “DTC “C21” (P0110-H/L): IAT Sensor Circuit
Malfunction” in Section 1A (Page 1A-55).
Inspect the IAT sensor.

NOTE

IAT sensor resistance measurement method
is the same way as that of the ECT sensor.
Refer to “ECT Sensor Inspection” (Page 1C-
4)
.



CAUTION

!



• The IAT sensor operative temperature

range is –30 – 120

°

C (–22 – 248

°

F).

• Do not heat the oil up to 120

°

C (248

°

F) or

more for this inspection.



IAT sensor specification

AP Sensor Inspection

B947H11306015

Refer to “DTC “C22” (P1450-H/L): AP Sensor Circuit
Malfunction” in Section 1A (Page 1A-60).

AP Sensor Removal and Installation

B947H11306016

Removal

1) Remove the front seat. Refer to “Exterior Parts

Removal and Installation” in Section 9D (Page 9D-
6)
.

2) Disconnect the starter relay (1) from the holder.

3) Disconnect the coupler (2) and remove the AP

sensor (3).

Installation

Install the AP sensor in the reverse order of removal.

TO Sensor Inspection

B947H11306017

Refer to “DTC “C23” (P1651-H/L): TO Sensor Circuit
Malfunction” in Section 1A (Page 1A-68).

1

I947H1130012-01

(a)

1

I947H1130013-01

Temperature

Standard resistance

20

°

C (68

°

F)

Approx. 2.58 k

40

°

C (104

°

F)

Approx. 1.14 k

100

°

C (212

°

F)

Approx. 0.16 k

1

I947H1130014-01

3

2

I947H1130015-01

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14      15     ..
