CFMoto motorcycle CF150-A. Service Manual - part 10

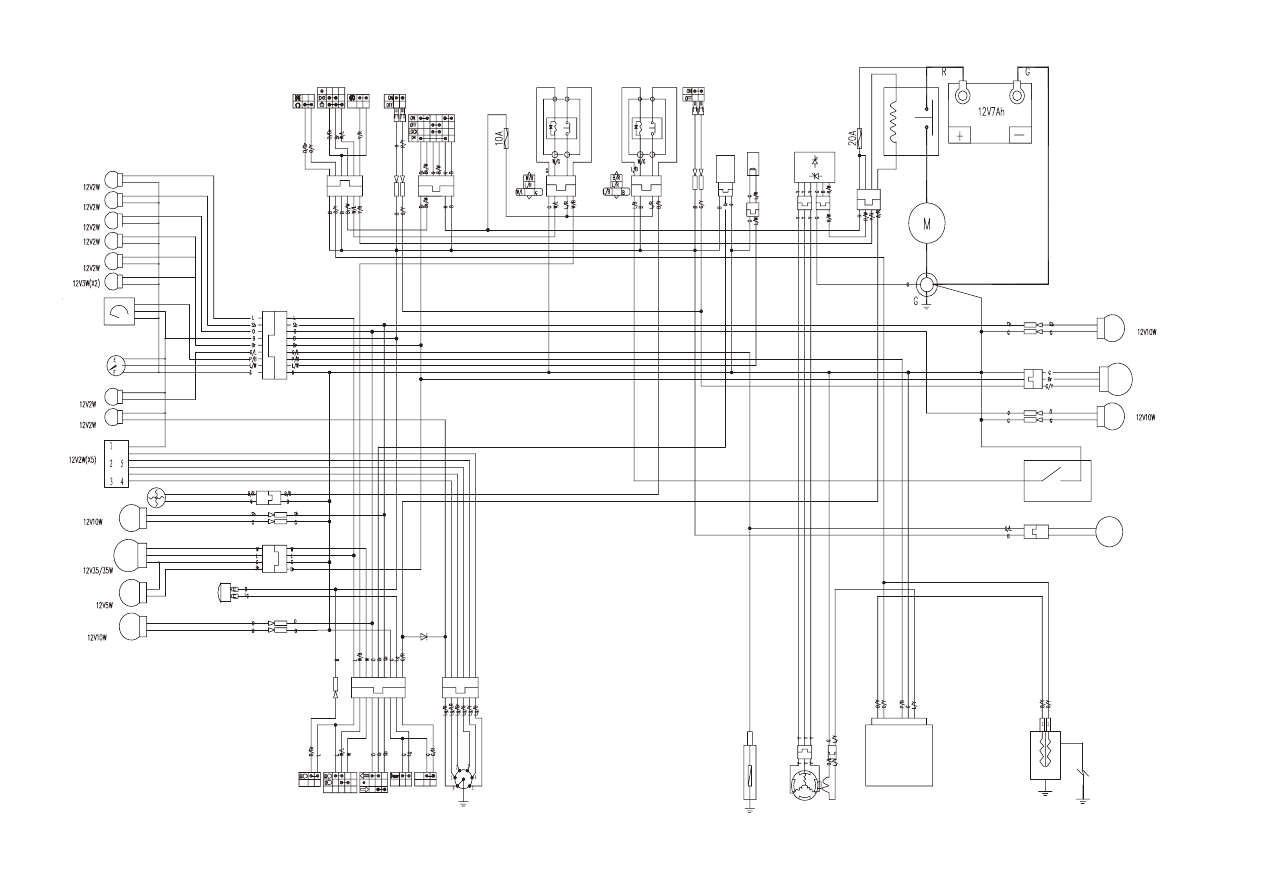

(17) Electric diagram

Start relay& Fuse

CDI

Fuel sensor

Flasher relay

Rear brake switch

Fan&Motor relpay

Hand light relpay

Fuse box

Ignition switch lock

Front brake switch

Start switch

Llumination switch

Kill switch

Starting Motor

Regulator

3-Phase shift sensor    Magneto

Thermostat

Automatic switch

Clutch switch

Horn

Turning switch

Dimmer switch

Overriding switch

High beam indicator

Turning indicator(RH)

Turning indicator(LH)

Instrumert indicator

Engine rotate speed indicator

Fuel indicator

Water temperature indicator

Neutral gear indicator

Fan motor

Front turning light(RH)

Head light

Position light

Front turning light(LH)

Horn

R-Red
B-Black
G-Green
Y-Yellow
L-Blue
W-White
Gr-Grey

Br-Brown
O-Orange
P-Pale
LR-Light red
Sb-Light Blue
Lg-light green

Battery

Lgnitioncoil and spark plug

Rear turning signal(RH)

Tail light/ brake light

Rear turning signal(LH)

water Thermostat

Water Temperature alarm

12v 21/5w

-49-

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 13 Troubleshooting

13-1

 13

Troubleshooting



 Engine ............................. .............              13-2

                                  Carburetor............................................        13-5

                                  Cooling system/Radiator....................          13-6

                                  Ignition system........................................      13-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

13-2

1.

Engine part



 Troubles



 Possible causes                                      Countermeasures

Cannot start or              1.

 Improper spark plug clearance



  Replace or adjust

difficult to start               2.

Spark plug dirty or wet



 Clean and dry or repair

Cylinder pressure too low

1.Cylinder wear                                              Replace

2.Piston ring wear                                          Replace

3.Air leakage of cylinder gasket                     Replace

4.Valve stem wear or unsuitable valve seat  Replace or repair

5.Spark plug loosen                                       Tighten

6.Starting motor rotate too slowly

 Check electric parts

7.Improper valve timing                                 Adjust

8.Improper valve clearance



Adjust

Spark plug cannot ignite or weak ignition

Insufficient fuel inside carburetor

1

.Breather hole blocked



Clean or Replace

2.

Fuel switch failure or blocked



Clean or Replace

3.

 Valve needle failure



Replace

4.

Fuel tank blocked



Replace

5.

Carburetor blocked



Clean or Replace

1.

Improper valve clearance



   Replace

2.

Unsuitalbe valve seat



    Replace or repair

3.

Defective valve



  Replace

4.

Rocker or rocker arm wear



Replace

5.

Dirty spark plug



Replace

6.

Incorrect valve clearance



Replace or adjust

7.

Ignition coil failure



Replace

8.

CDI failure



Replace

9

. Flywheel failure



Replace

10.

Fuel level unsuitable of float chamber



Adjust height of



float

11.

Injector blocked of carburetor



 Clean

12.

Fuel switch failure



Replace

13.

Improper position of idle screw



   Adjust

No idle speed or

unstable speed

Gear not in Nuetral position



Shift to N postion

                    3.

Defect ignition coil                                    Replace

                    4.

Pick up short circuit or open circuit          Replace

                    5.

Defect flywheel                                         Replace

                                        6. CDI defect                                                 Replace

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 13 Troubleshooting

13-3

 13



 Troubles



Possible causes



   Solutions

1.

Valve spring getting weak



       Replace

2.

Camshaft wear



Replace

3.

Spark plug dirty



      Clean or Replace

4.

Spark plug gap too narrow



 Adjust or Replace

5.

Valve timing incorrect



 Adjust

6.

Ignition coil failure



Replace

7.

 Float too low



                       Adjust height of float

8.

Air filter too dirty



Clean or Replace

9.

Fuel blocked inside carburetor



        Clean

10.

Fuel switch failure



   Replace

1.

Engine oil too much



Check oil level and drain

2.

Piston ring wear



Replace

3.

Valve wear



          Replace

4.

Cylinder wear or scraped



Replace

5.

Valve stem wear



Replace

6.

Oil seal of valve stem damaged



Replace

High RPM



unstable

Blue or black exhaust

gas

1

.Valve clearance improper



 Adjust

2.

Valve spring getting weak



Replace

3.

Valve timing incorrect



Adjust

4.

Cylinder wear



Replace

5.

Piston ring wear



Replace

6.

Improper valve seat



Replace or repair

7.

Spark plug dirty



Clean or replace

8.

Improper spark plug gap



Clean or replace

9.

Injector of Carb. blocked



Clean or replace

10

.Improper float level



          Adjust float level

11.

Air filter too dirty



Clean or replace

12.

Rocker arm or Camshaft wear



Replace

13.

Air leakage of inlet pipe



Tighten or replace

14

.Engine oil too much



    Check oil level and change

Power not enough

1.

Carbon deposit on piston head



Clean

2.

Engine oil too less or too much



Check and add or

 drain

3.

Fuel hose blocked



Clean

4.

Float level too low



Adjust float level

5.

Air leakage of inlet pipe



Tighten or replace

6.

Unsuitable engine oil



Change oil

7

.Cooling system failure(See13-6)

Engine overheating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

13-4

Valve abnormal noise

1.

Valve clearance too big



 Adjust

2.

Valve spring worn or damaged



  Replace

3

.Rocker arm or camshaft worn



  Replace

Piston abnormal noise

1.

Piston worn



 Replace

2.

Cylinder worn



 Replace

3.

Carbon deposit inside combustion

    chamber



    Clean

4.

Piston pin or pin hole worn



 Replace

5.

Piston ring or groove worn



 Replace



Troubles



 Possible causes



Solutions

Engine abnormal

noise

Timing chain abnormal noise

1.

Chain stretched out



   Replace chain and sprocket

2.

Chain sprocket worn



    Replace chain and sprocket

3.

Tensioner failure



                   Repair or replace

Clutch abnormal noise

1.

Clutch gear worn or damaged

2.

Cushion rubber aging or damaged

Crankshaft abnormal noise

1.

Bearing noise



Replace

2.

Crankshaft pin bearing worn



Replace

3.

Clearance too big



Replace

Transmission abnormal noise

1.

Gear worn or damaged



 Replace

2.

Main shaft or countershaft worn



Replace

3.

Bearing worn



Replace

4.

Bush worn



Replace

1.

Clutch drive disc worn



        Replace

2.

Clutch driven disc worn or damaged



Replace

3.

Clutch spring getting weak



Replace

Clutch slippery

Replace clutch gear

Replace clutch gear

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 13 Troubleshooting

13-5

 13

Troubles



Possible causes



           Solutions

Gear shift not smooth

or locked

1.

Gear damaged



    Replace

2.

Shift fork bent



Replace

3.

Shift drum worn



Replace

4

.Improper shift lever



 Adjust

2.

Carburetor

Hard to start

1.

Injector blocked



     Clean

2.

Injector chanel blocked



     Clean

3

.Leakage of joint



                                Tighten,adjust or replace oi

l

 seal

4.

Choke opened fully



     Close or Tune choke

1.

Air intake pipe blocked



      Clean

2.

By-pass air pipe blocked



      Clean

3.

Choke opened fully



     Close or Tune choke

4.

Unsuitable idle screw torque



      Adjust

5.

Float level improper



     Adjust

6.

Injector blocked



     Clean

Idle or low RPM

unstable

H i g h   R P M   u n -

stable

1.

Injector blocked



    Clean

2

. Main jet blocked



        Clean

3

.Needle valve blocked



     Clean

4.

Choke closed fully



     Clean

5.

Fuel filter blocked



     Clean



or replace

6.

Float level improper



Adjust

Overflow or fuel

level fluctuation

1.

Needle valve worn or damaged



Replace

2.

Needle valve spring damaged



Replace

3.

Float work failure



  Adjust or Replace

4.

Needle valve dirty or blocked



Clean

Troubles



Possible causes



  Solutions

-------------------------------------------------------------------------------------------------------------------------------------------------------------

13-6

3.

Cooling system/Radiator



Troubles



Possible causes



Solutions

Engine overheating

1.

Radiator or water hose blocked



Clean

2.

Air bubble inside cooling system



 Remove bubble and add coolant

3.

Water pump failure



Check and replace

4.

Bad quality coolant



     Replace

5.

Thermostat failure



Replace

6.

Fan motor or thermo switch failure



Check and replace

1.

Fan motor or thermo switch failure



Replace

2.

Thermostat failure



Replace

Coolant  temp. too

low

4.

Ignition system



Troubles



         Possible causes



Solutions

No spark or too

weak spark

1.

CDI failure



    Check and replace

2.

Spark plug failure



Check and replace

3.

Flywheel failure



Check and replace

4.

Battery voltage insufficient



Check and replace

5.

Ignition coil failure



Check and replace

6.

Pick-up failure



Check and replace

-------------------------------------------------------------------------------------------------------------------------------------------------------------
