CFMoto motorcycle CF150-A. Service Manual - part 9



9 ELECTRIC SYSTEM

9-1

 9

9

9

9

9



 Electric Apparatuses



  Charging system

....................... 9-1



           Electrical Starting system

   ..............9-4



    Ignition system

 ........................ 9-6

9-2

 Charging System

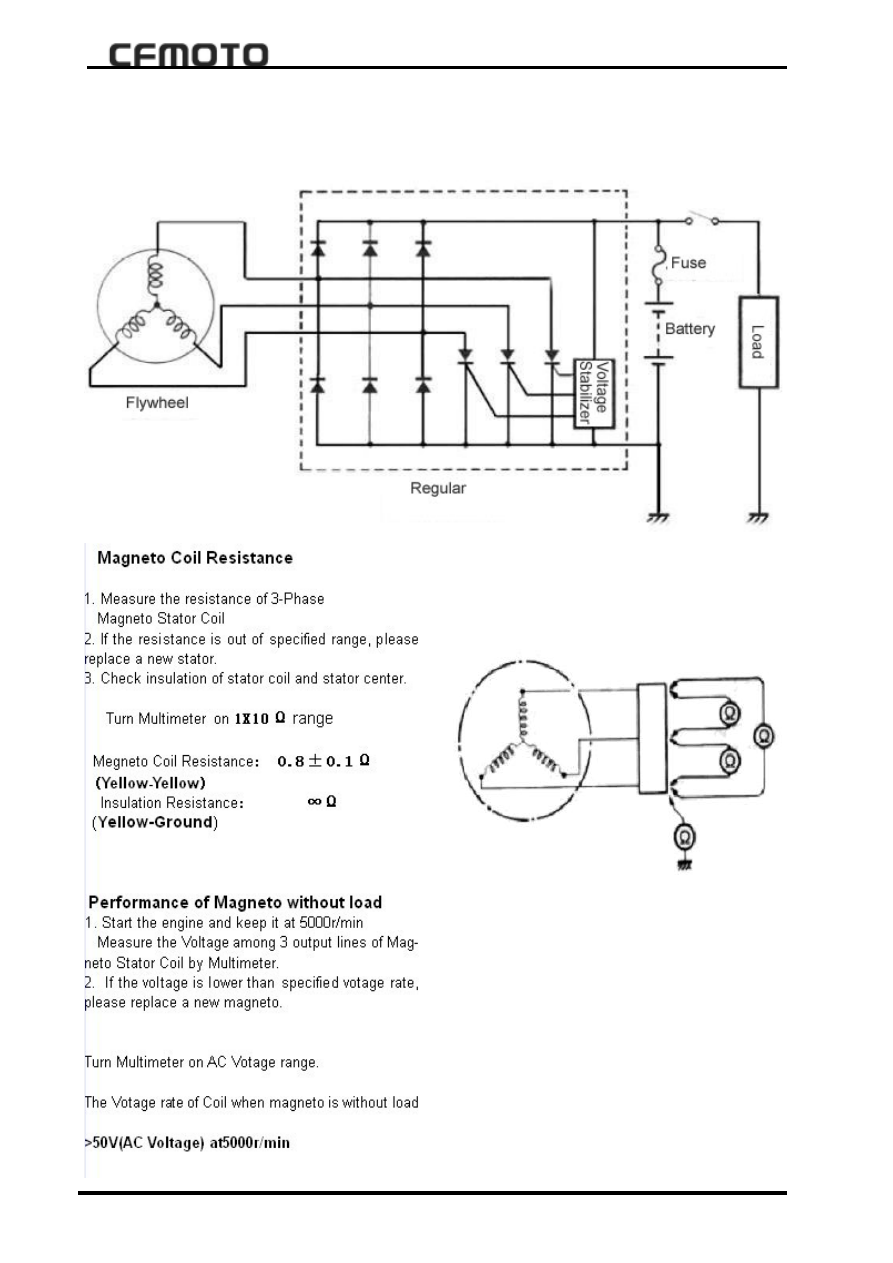

  Charging Diagram



9 ELECTRIC SYSTEM

9-3

 9

9

9

9

9





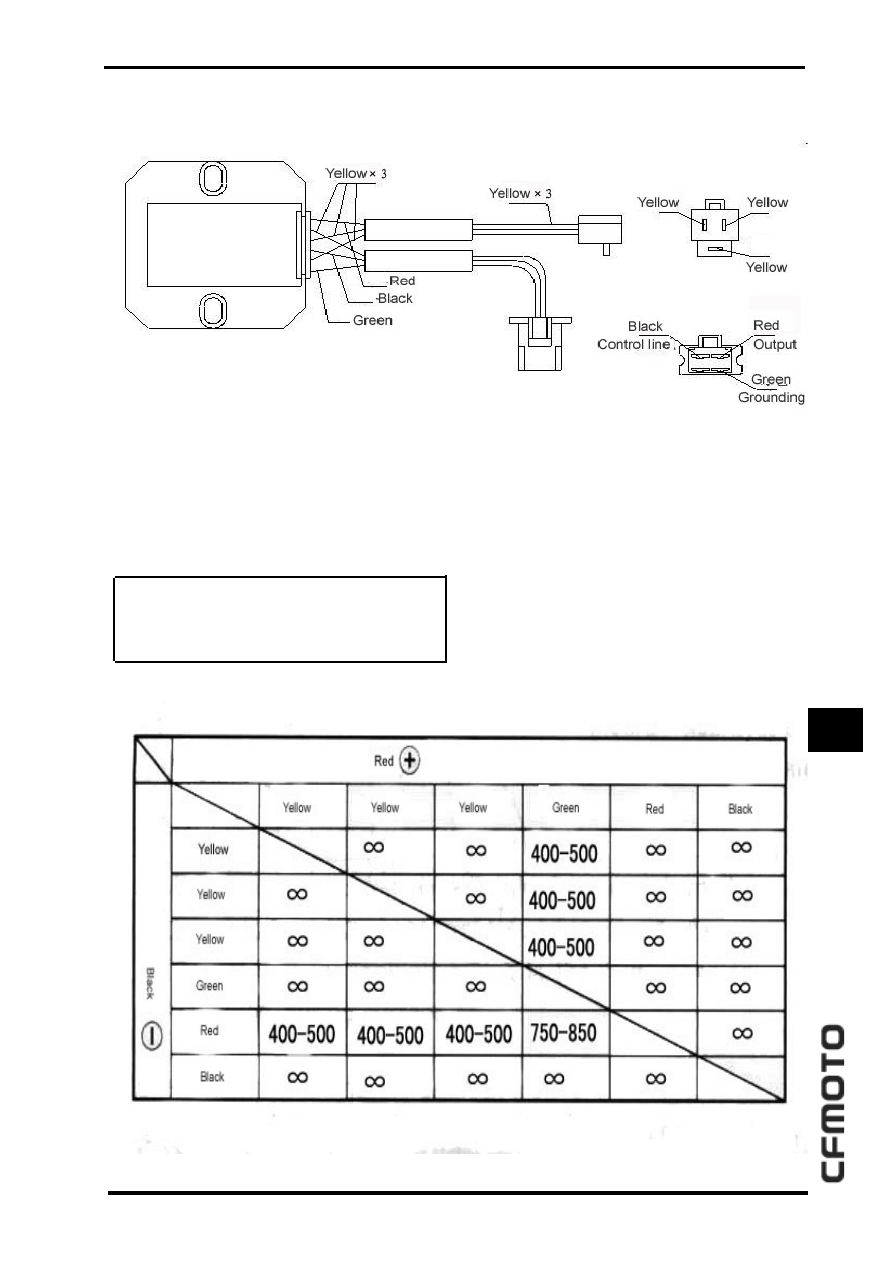

Regulator

Measure resistances among connecting line
ends by multimeter(See below Picture). If one
value is out of specified range. Please replace a
new one.

  Turn Meltimeter on Diode

  Caution

:

   When Multimeter probe is unconnceted,
   Multimeter voltage is below than 1.4V,
   Please replace Multimeter Battery.

When Engine gets started and battery is fully
charged, if the voltage between  red line and
green line is more than 15V or less than 12V,
please replace it with  a new one.
(Engine at 5000rpm)

9-4

Starting system

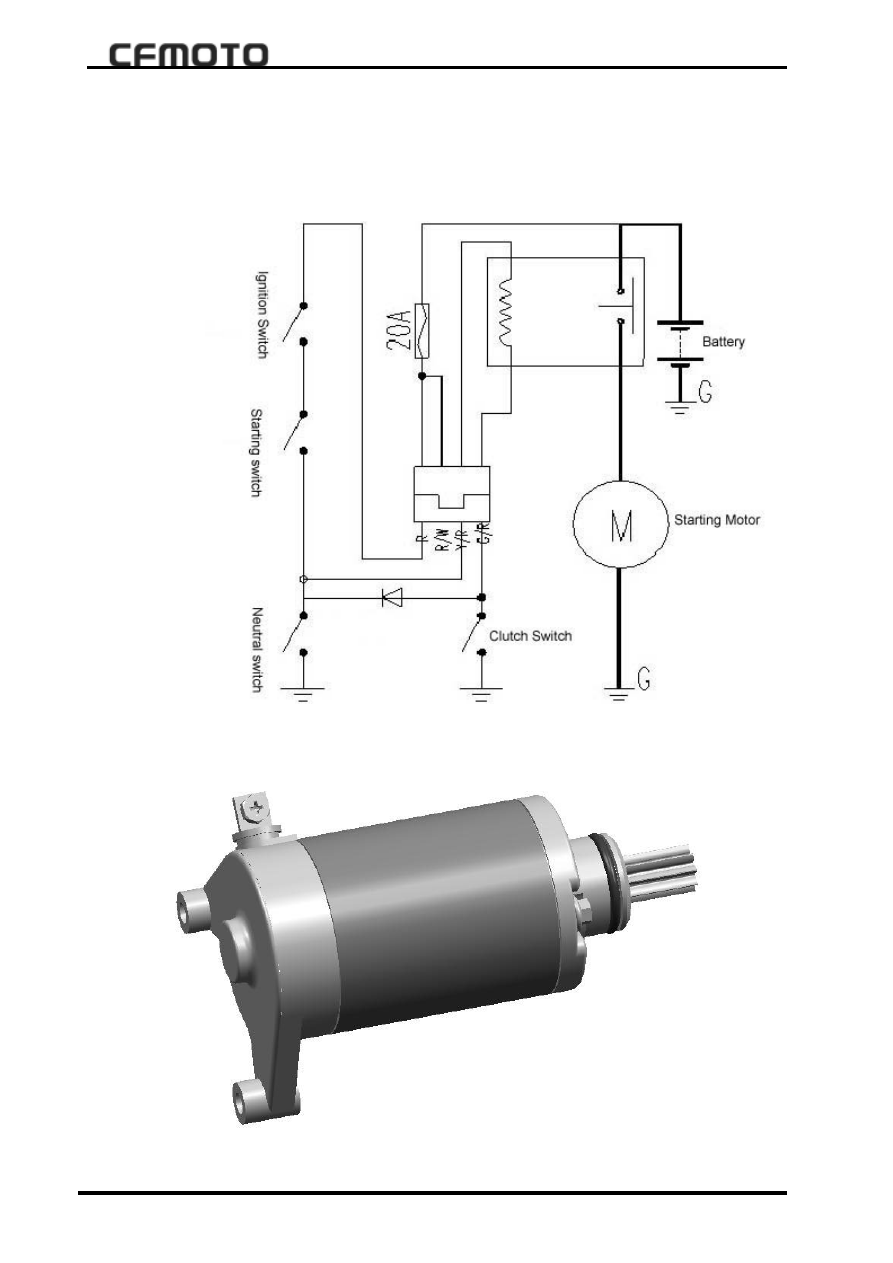

Starting system Diagram

   Starting Motor





9 ELECTRIC SYSTEM

9-5

 9

9

9

9

9





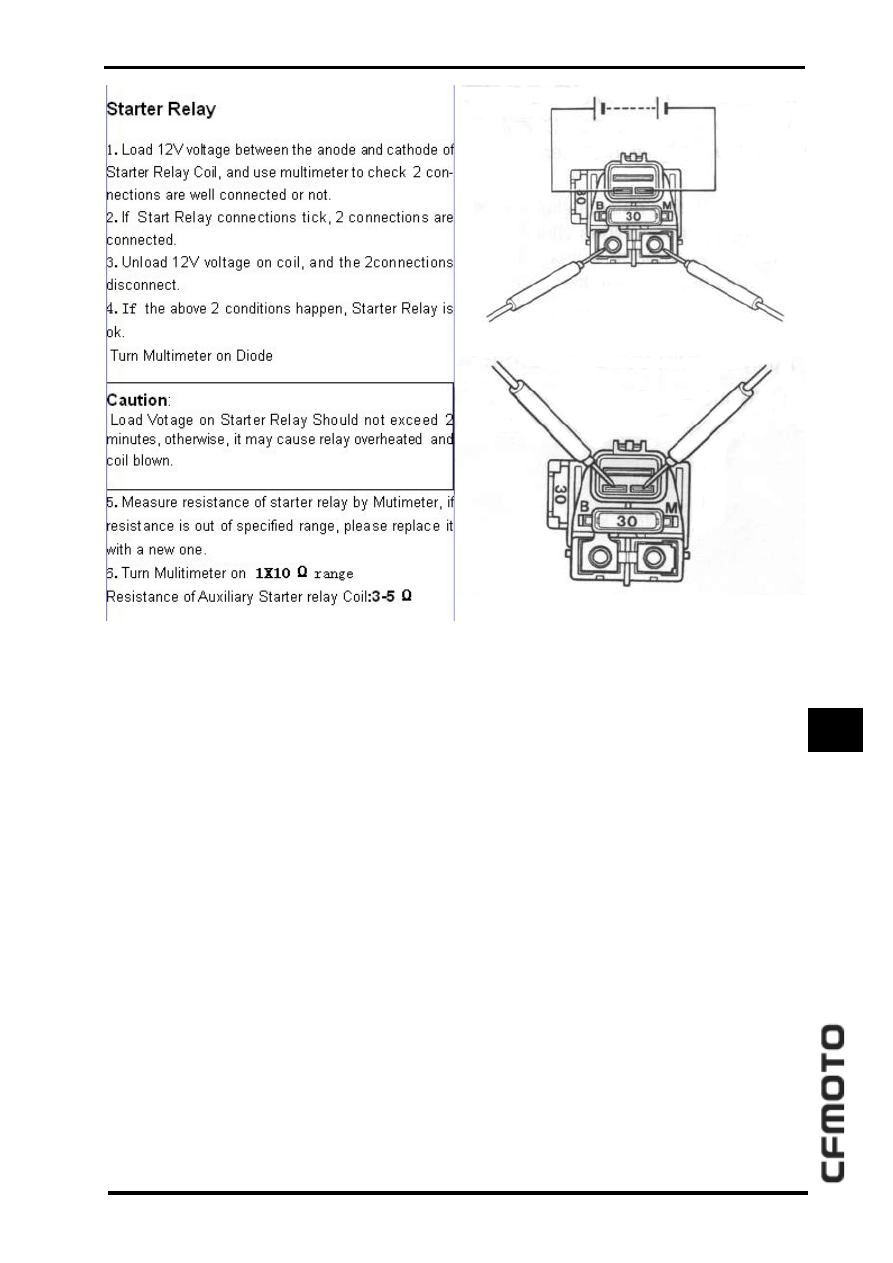

Caution when starting engine

7.Connect the lines according to circuit diagram.

8.Check whether parts are connected properly

    before starting.

9.Check air circulation system.

10.Check fuel system.

  If blocked, clean clogged parts and ensure smooth

fuel system.

  If leakage, try to reconnect the leaked parts and  en-

sure leakless fuel system.

11.Release throttle and turn off ignition swtich. Push

starting switch with 3-5 seconds.

12.After starting engine, warm up engine , check idle

speed after it’s stable.



Idle speed:1350-1650rpm

9-6

Ignition system

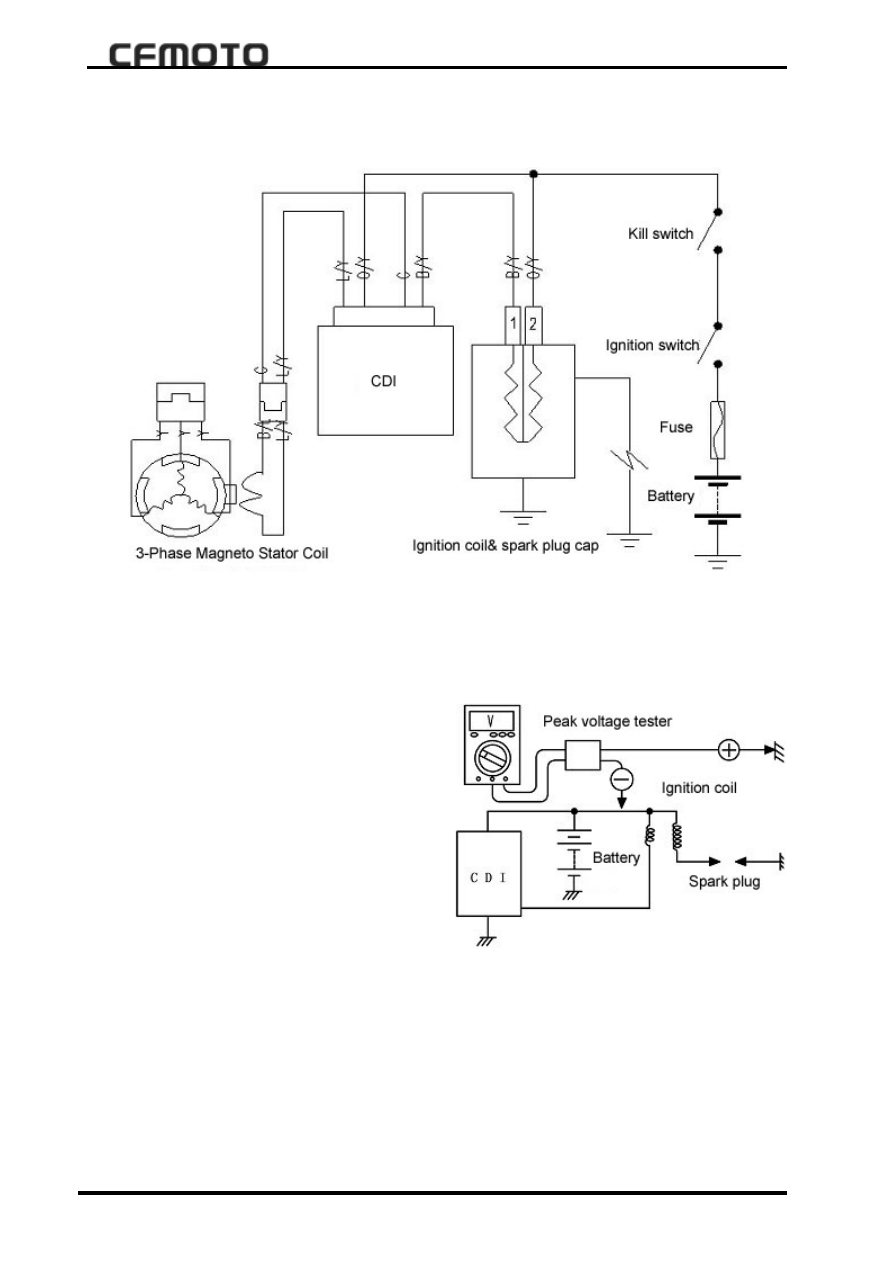

Ignition system Diagram

Ignition coil primary voltage

1.Keep spark plug in the cylinder head, install quali-

fied spark plug on the spark plug cap and earth the

engine.
2. Measure the primary voltage of Ignition coil by

multimeter.

3.Connect multimeter and peak value voltage  adapter

as follow:
          + Probe: Green Downlead/Ground
          - Probe: Black/Yello Downlead

Notice

:

  Confirm the voltage of battery 12V
  Downlead of Ignition coil is connected.
 Refer to User Guide when using Multimeter
  and Peak value voltage adapter

Ignition coil

4. Turn the gear at Neutral, and Turn the ignition switch
at ¡°ON¡±.Run the engine few seconds by pushing
startig buttin, and measure Peak value of Pick-up Coil.

5. Repeat few times to get the highest peak value.
Turn Mulitimeter to AC.


Ignition coil primary Peak value  12V

Warnning

 When measuring the voltage, do not touch the termi-

nal with finger to avoid electric shock.



9 ELECTRIC SYSTEM

9-7

 9

9

9

9

9

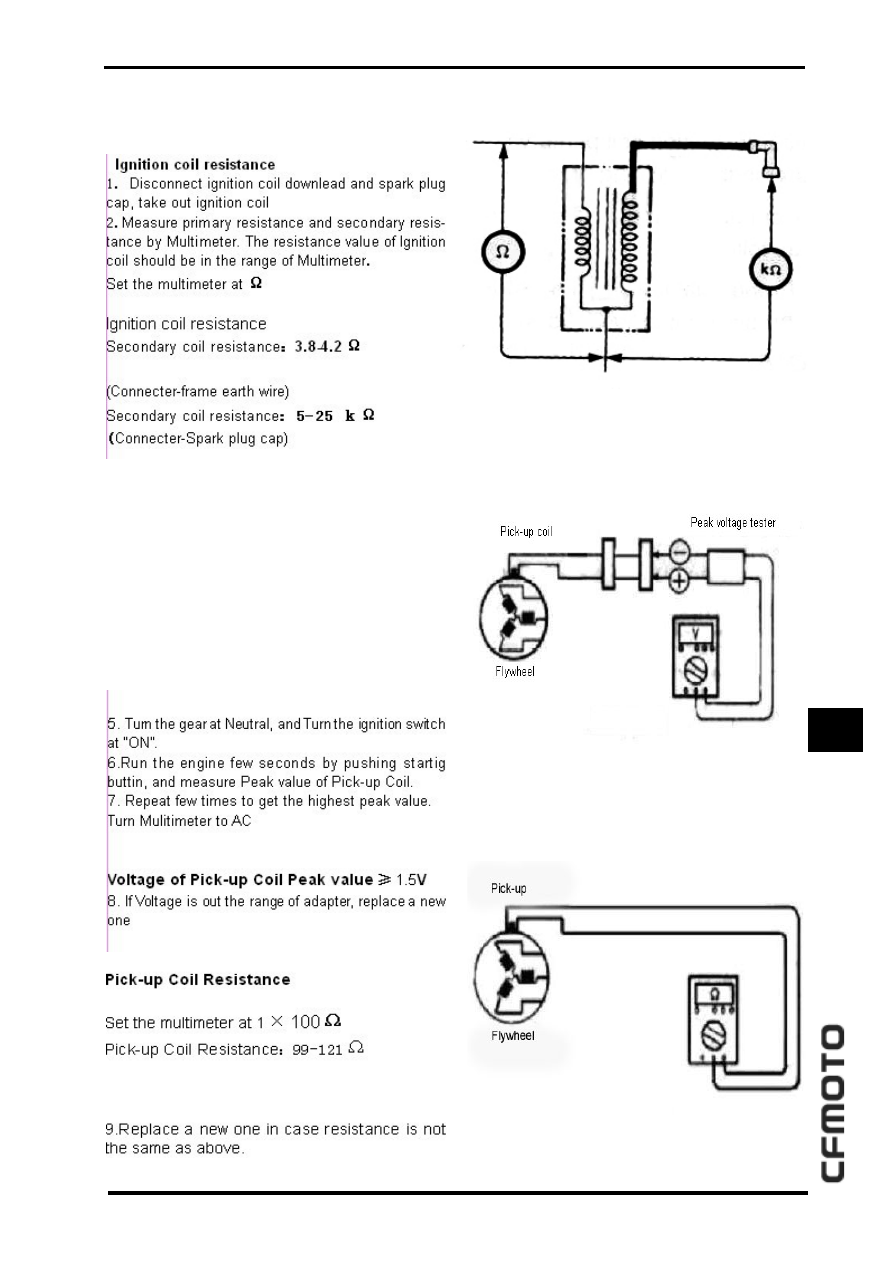

6. Refer to Troubleshooting and check all the items

when the measured value is lower than the specified

value.

Voltage of Pick-up Coil Peak value

3. Refer to User Guide when using Peak value
voltage adapter:
4. Connect Multimeter and Peak value voltage
adapter as shown in pictures on the righ
          + Probe:Green Downlead
          - Probe: Blue Downlead

Notice

:

Please check the User Guide when using



Mulitimeter and Peak value voltage adapter.

10

Lights&instruments&switches

 10

10

10

10

10

10-1

Overhaul information

................10-1

     Handlebar switch

..................10-5

Troubleshooting

.....................10-2

    Electrical horn

.................. 10-5

Bulb replacement

....................10-3

       Fuel sensor

.....................10-6

Odometer Bulb

......................10-3

Ignition switch

.......................10-4

Brake light switch

....................10-5

Overhaul information

Notice

1.Headlight bulb has larger power and the temperature is very high when it is turned on. Do not touch it

immediately after it is just turned off. Operation should be done when the bulb is cooled down.

2.The temperature of headlight is quite high when turned on. Replacing with bare hand or stained glove will

cause oil stains on the glass cover which may form heat points and cause deformation of glass face and

damage to bulb.

  3.Pay attention to the following points when replacing the bulb.

  £-Do not replace the bulb when it is turned on. Keep ignition switch in the “OFF”position, and replace after the

bulb is cooled down

.

  £-Replace the bulb with hands in clean gloves.

   4.Clean the glass with a piece of clean cloth dipped in alcohol in case of any oil stains on the surface.

  5.If the Inspection has to be done with battery, check if the battery is normal.

  6.Inspection of switches can be done without removing the switches from the vehicle.

  7.After the inspecting and overhauling of each part, routing of cables and wires should pass through the

proper positions.

Overhaul standard

I t em s



Standard



Main



2 0 A

Fuse



Auxiliary



1 0 A

Headlamp

（ Hi ／ Lo ）

1 2 V- 35 /3 5W

Position light



1 2 V- 5W

Brake light／Taillight



1 2 V- 21 W  /5 W

Turning light



1 2 V- 10 W × 4

Odometer Bulb



1 2 V- 2W × 2 、 1 2V -3 W × 2

Turning indicator



1 2 V- 2W × 2

H i gh  b ea m  in di ca to r

1 2 V- 2W

G e ar  i nd ic at or

1 2 V- 2W × 5

Light、bulb



N e ut ra l  in di ca to r

1 2 V- 2W



10-2

Troubleshooting

Head light cannot turn on.

Hi/Lo beam can not be transfered.

1.

Fuse blown

2.

Switch damaged

3.

Bulb burnt

4.Dead

battery

5.

Poor connections

10

Lights&instruments&switches

 10

10

10

10

10

10-3

Replacing bulb

Head light bulb

Notice

Headlight bulb has larger power and the tem-

perature is very high when it is turned on. Do

not touch it after it is just turned off. Operation

should be done when the bulb is cooled down.

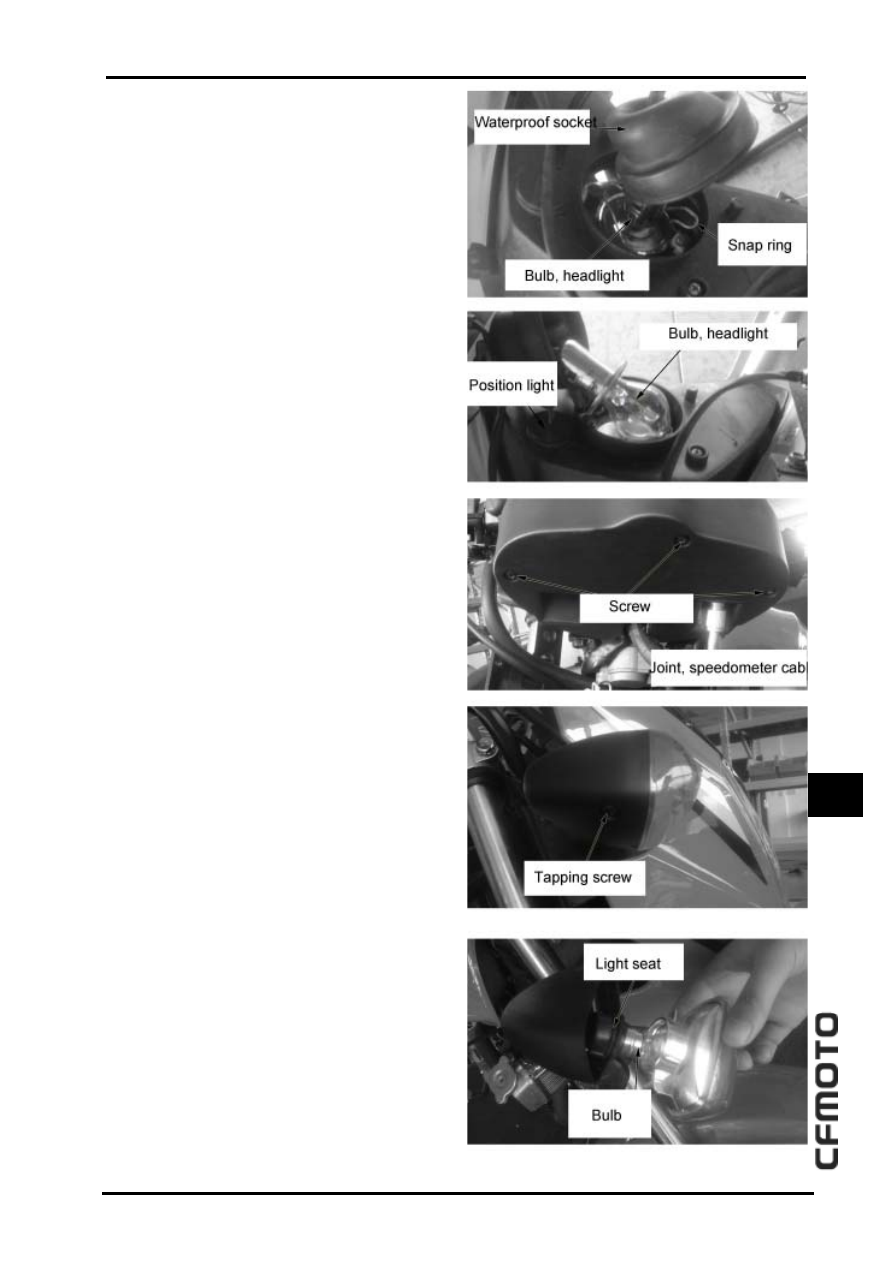

Remove handlebar front cover-(2-8)

Remove waterproof cover, push the Jump sring

Remove headlight bulb

Remove position bulb

Inspect the bulb. replace the bulb with a new one

if it  was damaged

Position Bulb specification:12V 5W

Headlight Bulb specification:12V 35/35W

Installation

Reverse the removal procedure for installation.

Odometer Bulb

Remove handlebar front cover-(2-8)

Remove the connecter of flexible cable for odometer.

Loosen 3 pieces of screw. Remove the rear cover

of odometer.

Remove  odometer bulb,

Replace with a new bulb if it was damaged

Installation

Reverse the removal procedure for installation.

Turnning light

Remove the screws

Take out the ligh seat,remove the bulb.

Replace with a new bulb if it was damaged

Bulb specification:12V R10W

Installation

Reverse the removal procedures for installation.

10-4

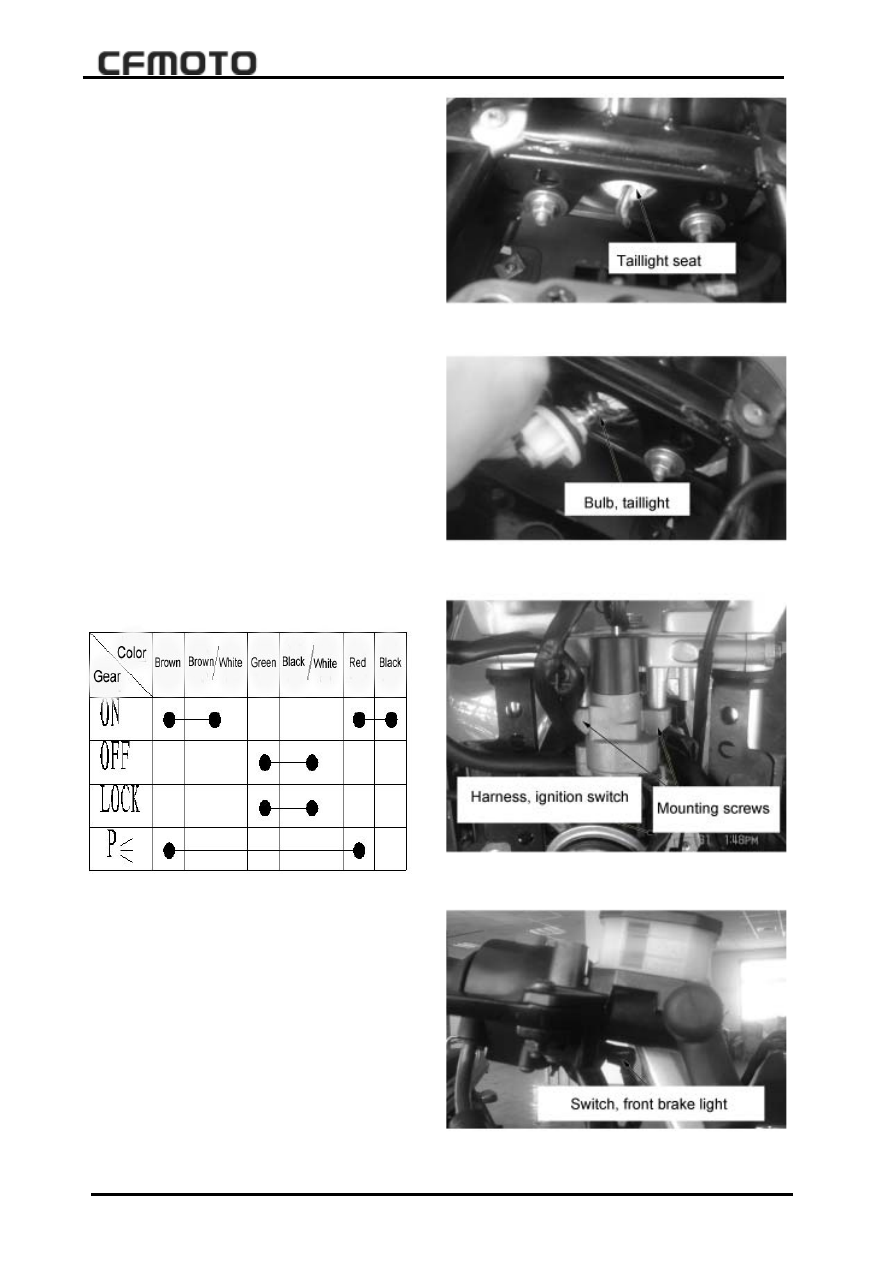

Brake light/Tail light bulb

Remove

Remove the seat.

Unscrew the tail light holder

Take out the bulb of Tail light.

Replace the bulb with a new one if it was

damaged.

Bulb specification:12V P21/5W

Installation

Reverse the removal procedure for installation.

Ignition Switch

Remove

Remove the 2 pieces of screw.

Take off the ignition switch lock.

Inspection:

Check if the coupler terminals are connected.

Front brake light switch

Disassemble front brake switch wire, inspect  the

connection of wire.

Apply the front brake: brake light works
Release the brake: brake light doesn’t work

10

Lights&instruments&switches

 10

10

10

10

10

10-5

Rear brake switch

Disassemble rear brake switch wire, inspect the

connection of wire.

Inspection

Push brake pedal

:

rear brake light works

.

Release brake pedal

:

rear brake light doesn’t work

.

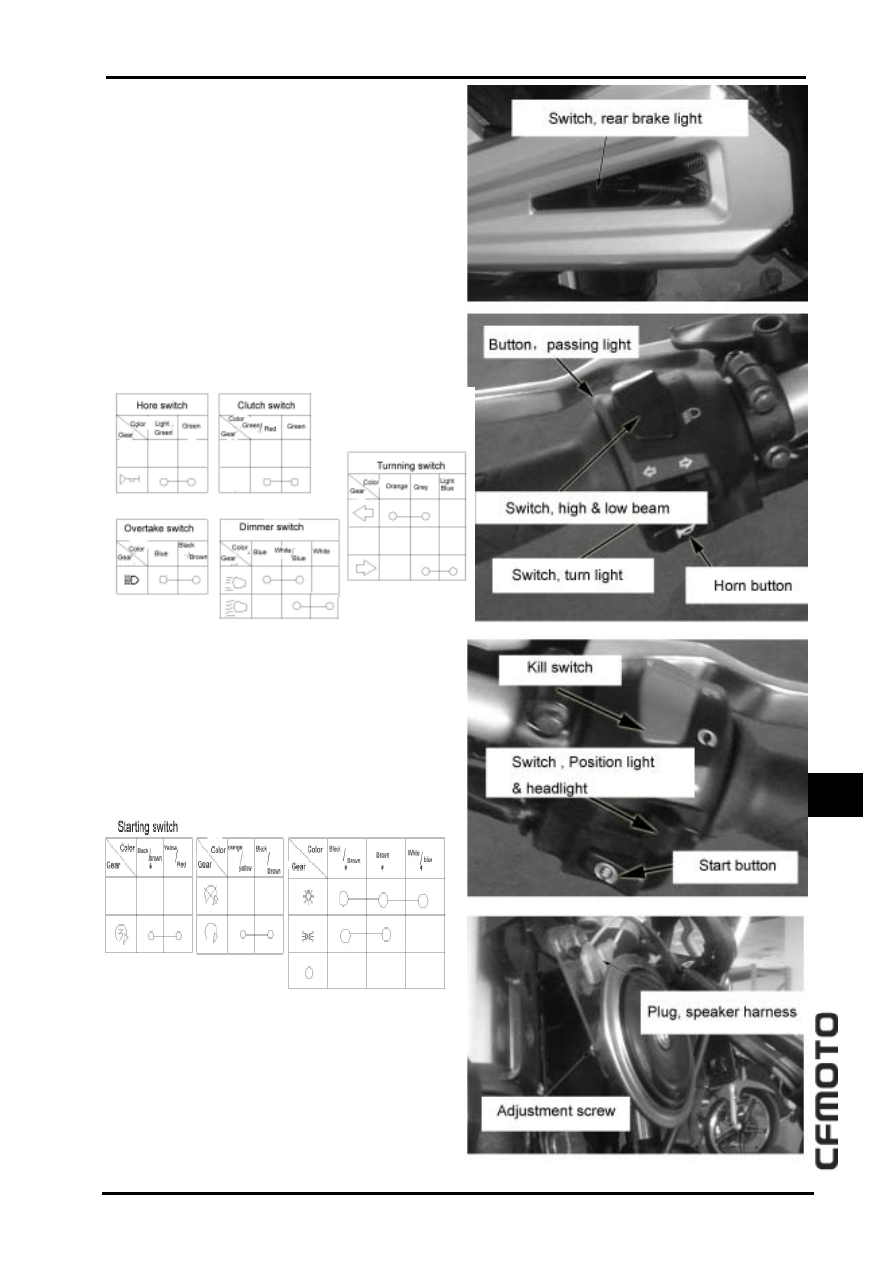

Left handlebar switch

Remove fuel tank

-(

2-4

)

Disassemble the connection of left handlebar

switch harness

-(

1-12

)

Check according to the following table if the coupler

terminals are connected.

Right handlebar switch

Remove fuel tank

-

(2-4

)

Disassemble connecter ofright handlebar

 switch harness

-(

1-12

)

Check according to the following diagram if the

coupler

terminals are connected.

Horn

Connected with a fully charged 12V battery

and check if the horn can make sounds.

if dumb, replace the horn with a new one.

If it sounds bad, turn the adjusting screw to adjust

the sound quality

.

10-6

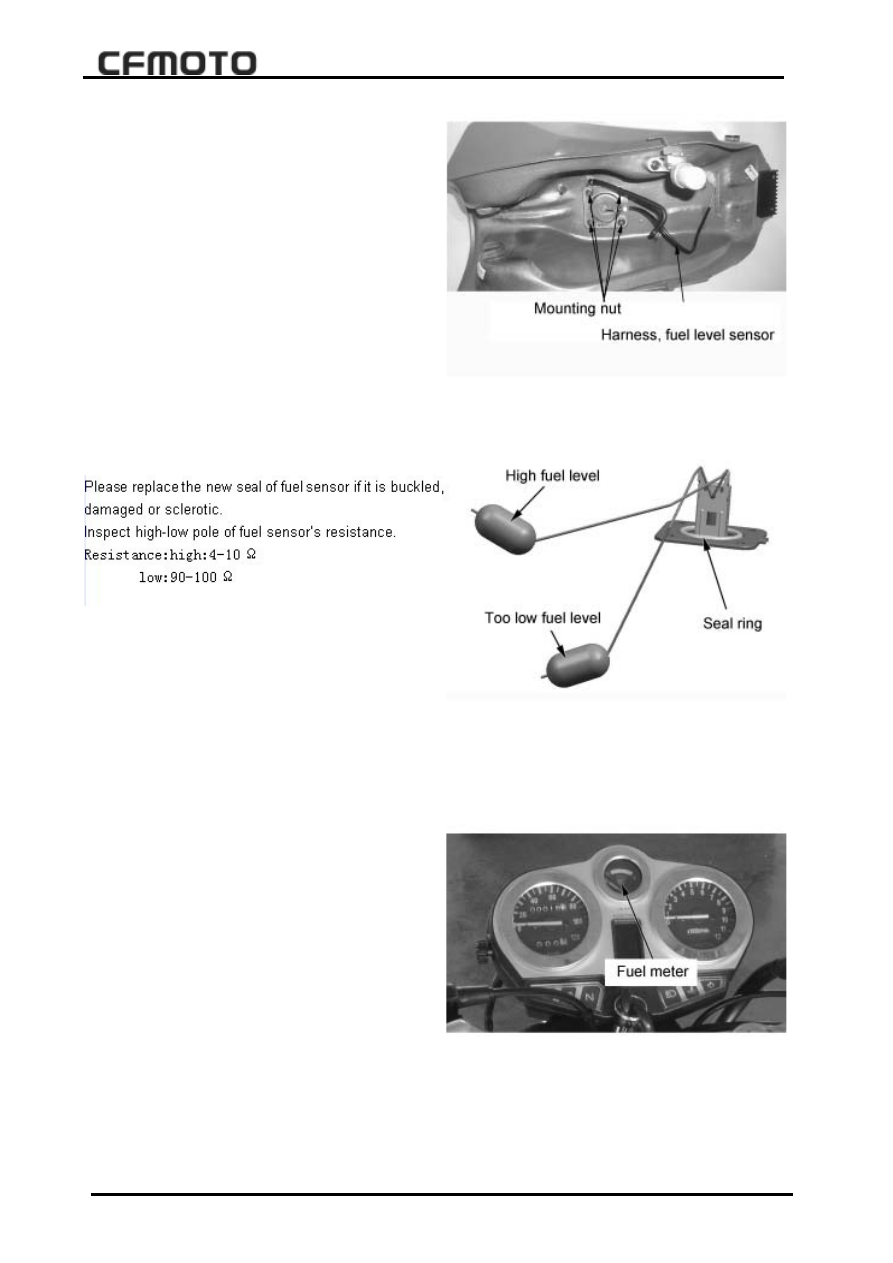

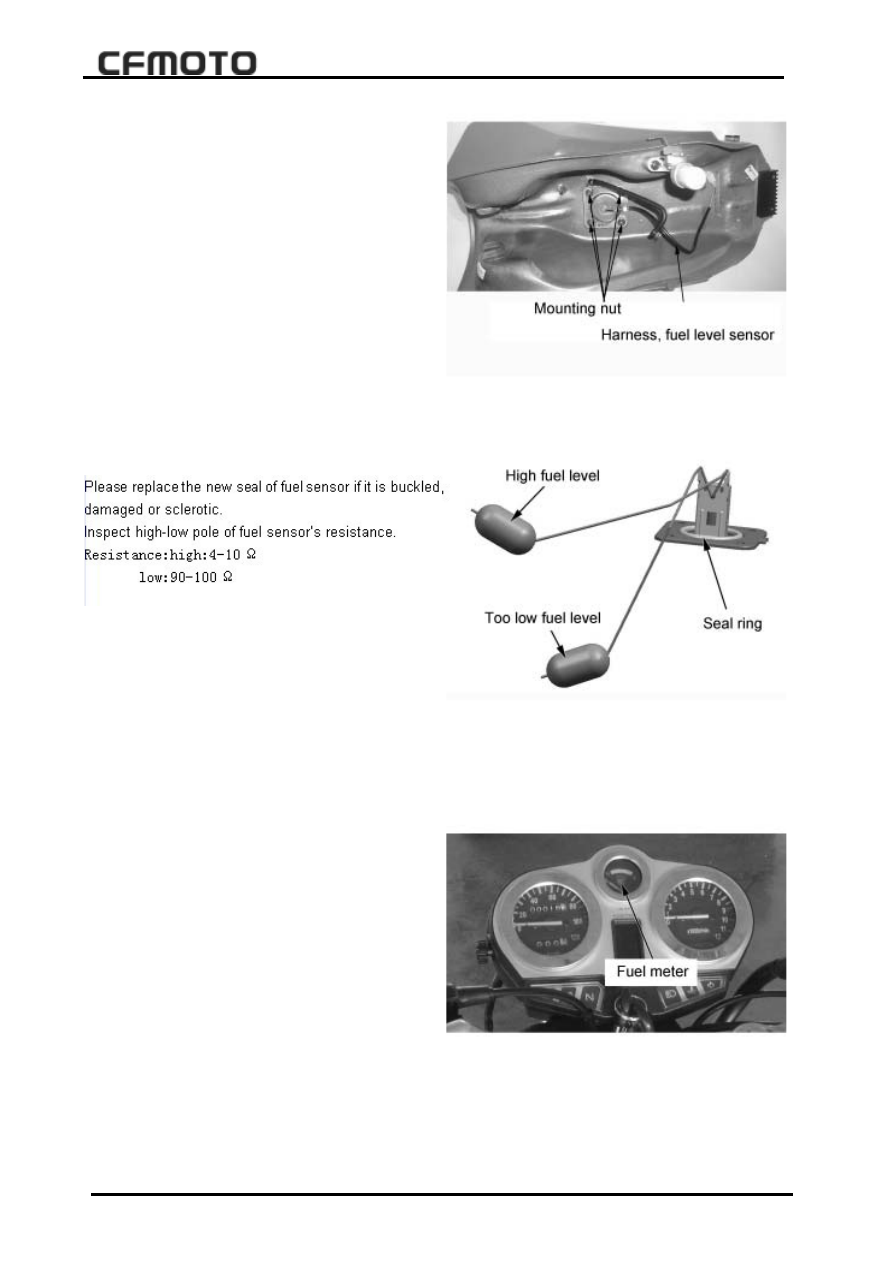

Fuel sensor

Disassembly

Remove the seat-(2-2)

Remove the front protective cover and middle protective

cover-(2-3)

Remove the fuel tank-(2-4)

Remoce the 4 pieces of nut and take out the fuel sensor.

Notice

Remove the fuel sensor fixing plate with a flat

screwdriver by turning it counter clockwise

and remove fuel sensor.

Inspection

Connect Fuel sensor harness with main cable.

Turn on Ignition switch.

Swing the floater slowly, and check the needle  on the oil

gauge.

If the needle can not  reach F or E point, please replace

new oil gauge.

If the needle swings instability, please replace new fuel

sensor.

Installation

Reverse the removal procedures for installation.

Caution:

Install the fuel sensor properly into fuel tank hole.

There should be no fuel leakage.

11-1



11  Carburetor

 11

11

11

11

11















Carburetor





Overhaul information

........................................11-2



Trouble shooting

................................................11-2





Carburetor disassembly/assembly

................11-3

11-2

Overhaul information

Caution

Note

Gasoline is highly flammable, therefore smoke and fire are strictly forbidden in the work

place. Special attention should also be paid to sparks.  Gasoline may also be explosive

when it is vaporized, so operation should be done in a well-ventilated place.

1.

Do not over twist or bend the cables. The twisted cables may cause poor operation.

2.

To prevent impurities from entering into the engine after the carburetor is removed, cover the

engine air intake opening with a piece of cloth or packing tape.

Overhail Info

Starting Failure

1.

Too much fuel in the engine

—air filter blocked

—air circulation is not right

2.

No fuel in carburetor

—fuel filter clogged

—fuel pipe clogged

Difficult Starting, Unstable Idle Speed

1.

Air circulation is not right

2.

Fuel system clogged

3.

Ignition system doesn’t work properly

4.

Hole of fuel tank cap clogged

Stall when accelerating

Ignition system doesn’t function properly

11-3



11  Carburetor

 11

11

11

11

11

Carburetor Assembly

Reverse the removal procedures for assembly

Carburetor removal

Carburetor

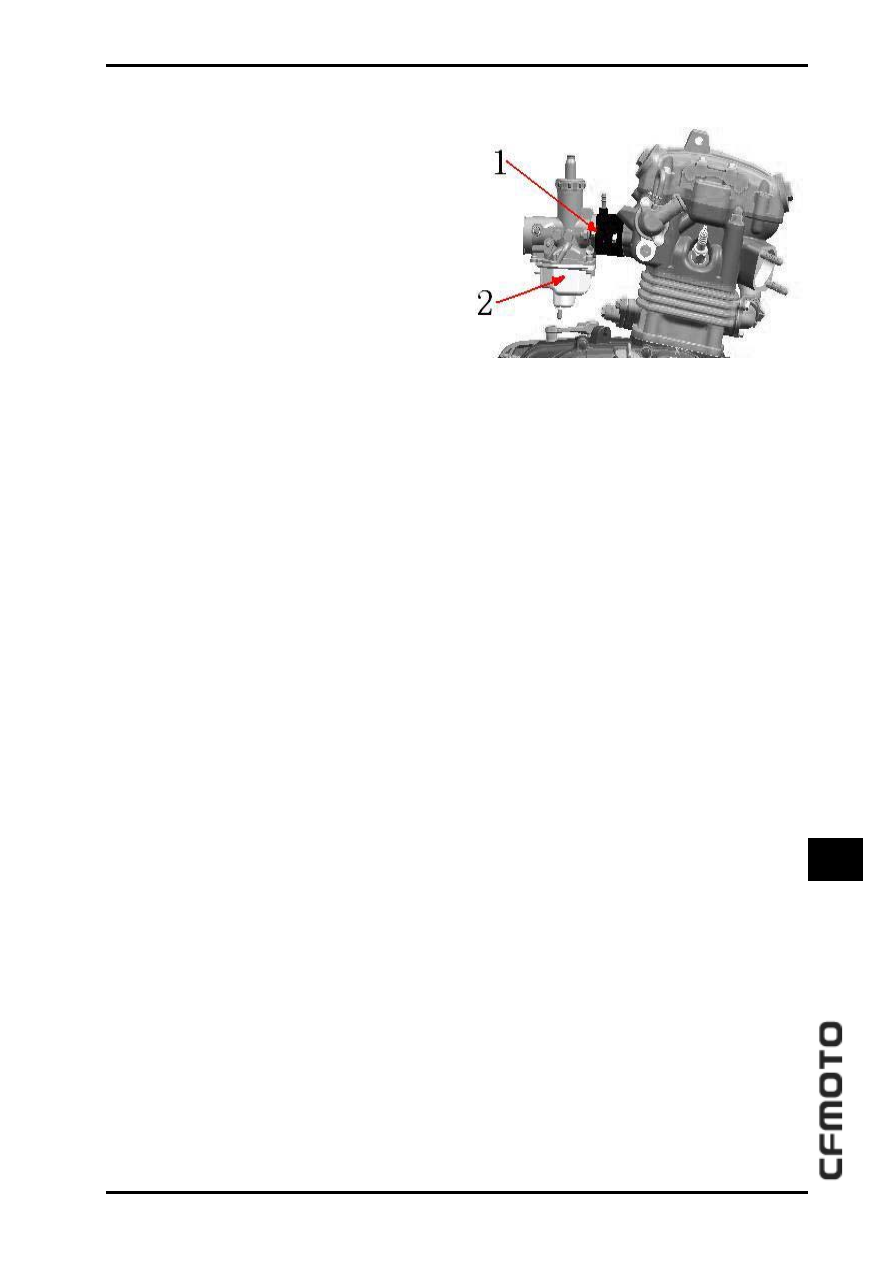

Unscrew two blolts 1, remove carburetor 2
