Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 27

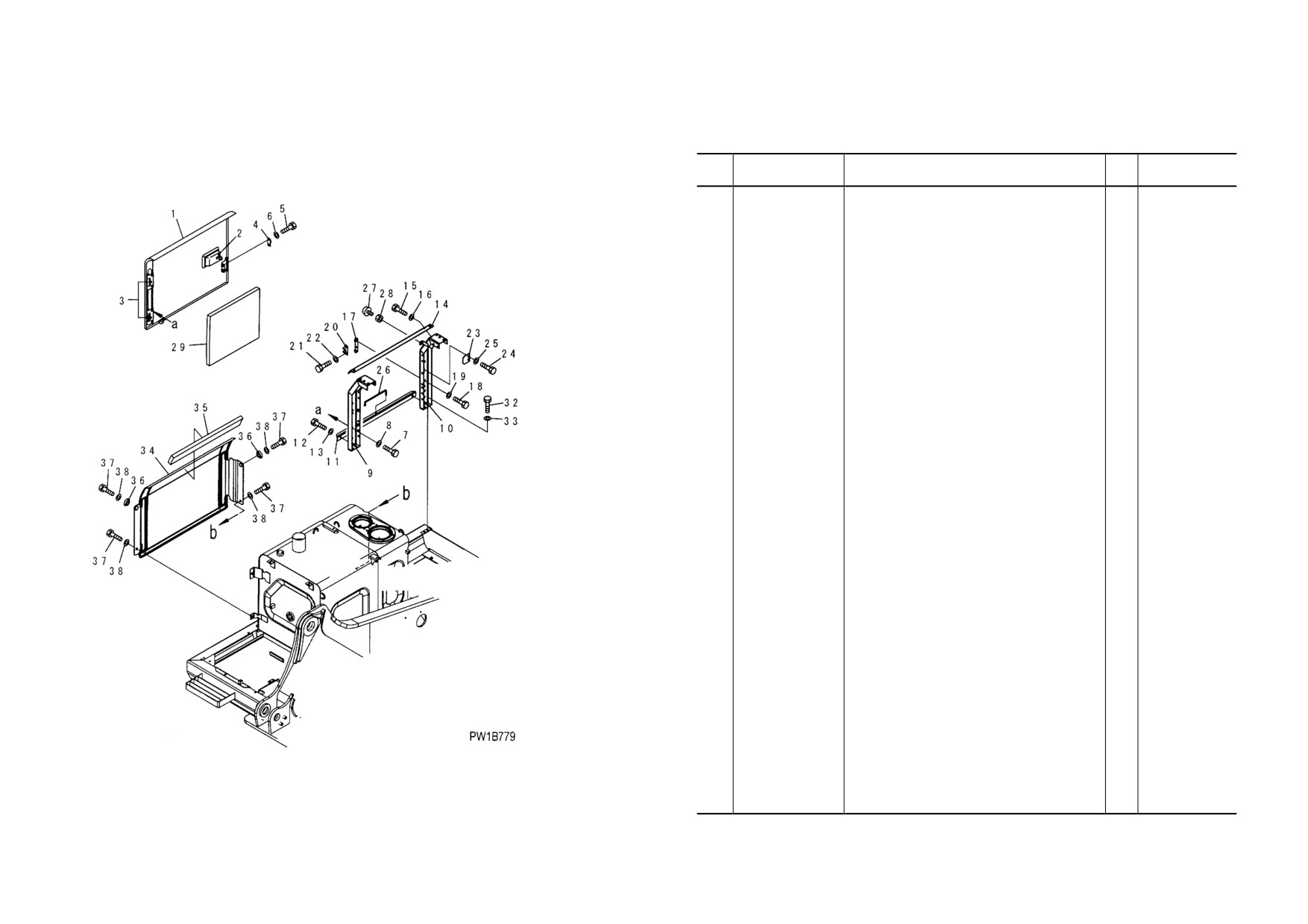

FIG NO. ：M1140-01A0
FIG. M1140-01A0 RIGHT SIDE DOOR (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-61132
COVER
1
DBB0001~
2
198-54-41982
. LOCK ASS’ Y
1
DBB0001~
3
20Y-54-63410
. HINGE (WELDED)
2
DBB0001~
4
205-54-53550
DOVE TAIL
1
DBB0001~
5
01010-80612
BOLT
2
DBB0001~
6
01643-30623
WASHER
2
DBB0001~
7
01010-81230
BOLT
4
DBB0001~
8
01643-31232
WASHER
4
DBB0001~
9
20Y-54-61411
FRAME
1
DBB0001~
10
20Y-54-61421
FRAME
1
DBB0001~
11
20Y-54-61431
PLATE
1
DBB0001~
12
01010-81225
BOLT
2
DBB0001~
13
01643-31232
WASHER
2
DBB0001~
14
20Y-54-61441
PLATE
1
DBB0001~
15
01010-81230
BOLT
2
DBB0001~
16
01643-31232
WASHER
2
DBB0001~
17
20Y-54-28170
BRACKET
1
DBB0001~
18
01010-81230
BOLT
2
DBB0001~
19
01643-31232
WASHER
2
DBB0001~
20
205-54-51970
DOVE TAIL
1
DBB0001~
21
01010-80616
BOLT
2
DBB0001~
22
01643-30623
WASHER
2
DBB0001~
Fuel Tank
23
20Y-54-61470
PLATE
1
DBB0001~
Hydraulic Tank
24
01010-81230
BOLT
2
DBB0001~
25
01643-31232
WASHER
2
DBB0001~
26
20Y-54-29231
BAR
1
DBB0001~
27
20Y-54-11611
STOPPER
1
DBB0001~
28
01580-11008
NUT
1
DBB0001~
29
20Y-54-D1761
SHEET
1
DBB0001~
Revolving Frame
32
01010-81230
BOLT
4
DBB0001~
33
01643-31232
WASHER
4
DBB0001~
34
20Y-54-61162
COVER
1
DBB0001~
35
20Y-54-61391
SHEET
1
DBB0001~
PW1B779
36
208-54-57180
COLLAR
2
DBB0001~
37
01010-81230
BOLT
4
DBB0001~
38
01643-31232
WASHER
4
DBB0001~
MO- 10
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 11

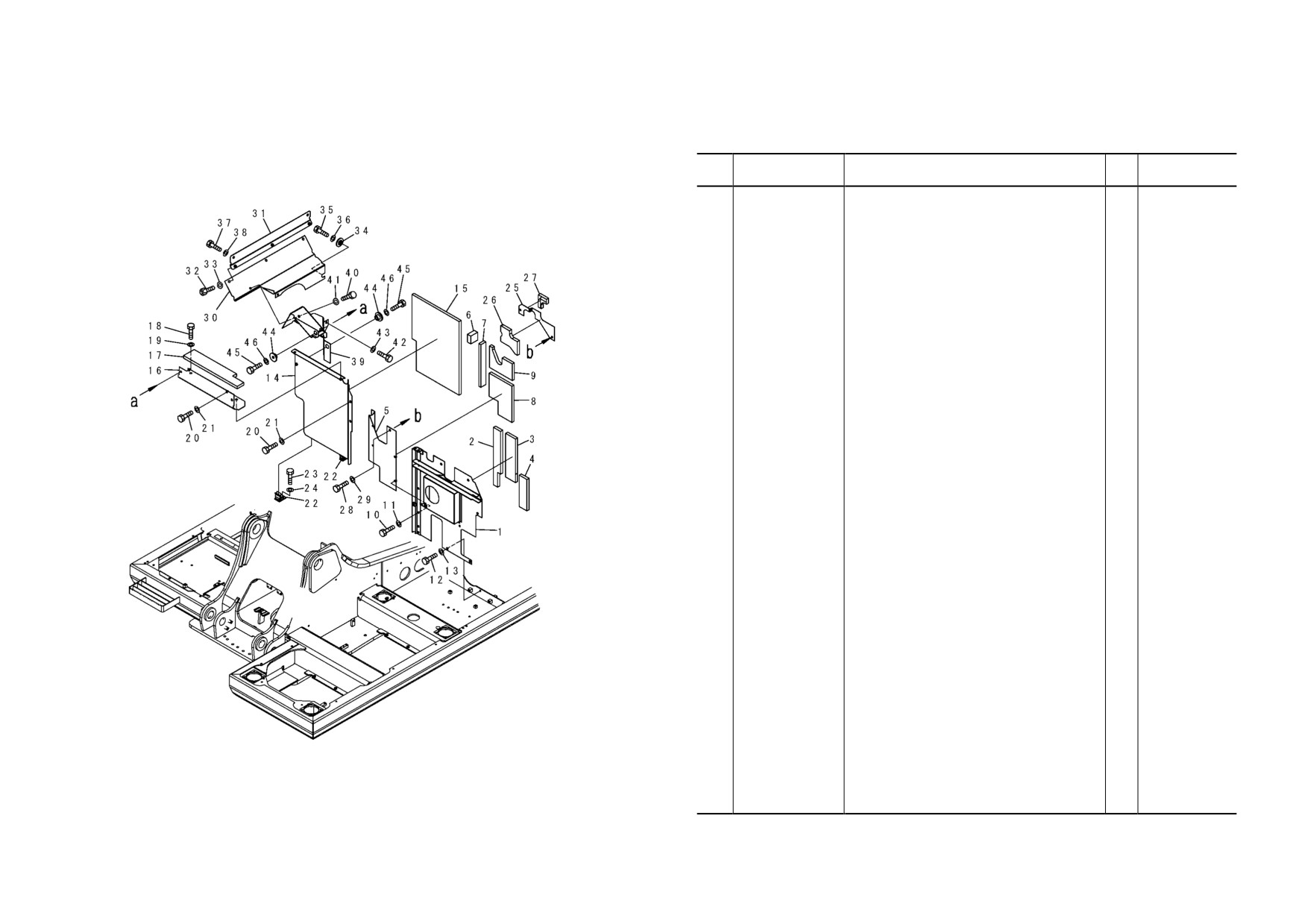

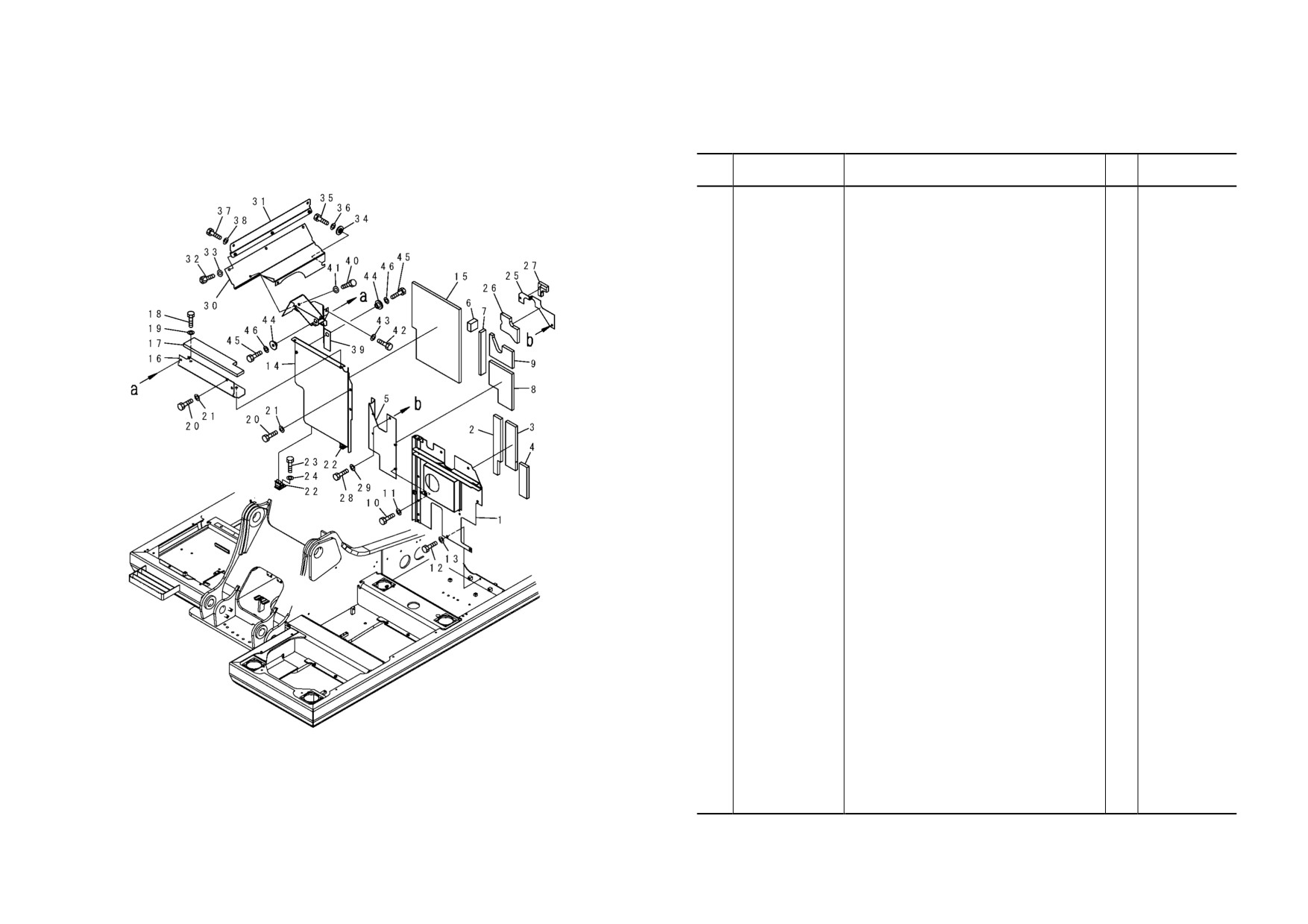

FIG NO. ：M1150-01A0
FIG. M1150-01A0 PARTITION (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-54-61911
COVER
1
DBB0001~
1
☆
. COVER
1
DBB0001~
2
20Y-54-63161
. SHEET
1
DBB0001~
3
20Y-54-63171
. SHEET
1
DBB0001~
4
20Y-54-63181
. SHEET
1
DBB0001~
20Y-54-61921
COVER
1
DBB0001~
5
☆
. COVER
1
DBB0001~
6
20Y-54-63290
. SHEET
1
DBB0001~
7
20Y-54-63281
. SHEET
1
DBB0001~
8
20Y-54-63251
. SHEET
1
DBB0001~
9
20Y-54-63241
. SHEET
1
DBB0001~
10
01010-81230
BOLT
2
DBB0001~
11
01643-31232
WASHER
2
DBB0001~
12
01010-81230
BOLT
8
DBB0001~
13
01643-31232
WASHER
8
DBB0001~
20Y-54-61931
COVER
1
DBB0001~
14
☆
. COVER
1
DBB0001~
15
20Y-54-63211
. SHEET
1
DBB0001~
20Y-54-61971
COVER
1
DBB0001~
16
☆
. COVER
1
DBB0001~
17
20Y-54-63221
. SHEET
1
DBB0001~
18
01010-81230
BOLT
2
DBB0001~
Revolving Frame
19
01643-31232
WASHER
2
DBB0001~
20
01010-81230
BOLT
4
DBB0001~
21
01643-31232
WASHER
4
DBB0001~
22
20Y-54-12320
CATCH
2
DBB0001~
23
01010-81225
BOLT
2
DBB0001~
24
01643-31232
WASHER
2
DBB0001~
20Y-54-61961
COVER
1
DBB0001~
PW1B780
25
☆
. COVER
1
DBB0001~
26
20Y-54-63261
. SHEET
1
DBB0001~
27
20Y-54-63270
. SHEET
1
DBB0001~
28
01010-81230
BOLT
2
DBB0001~
29
01643-31232
WASHER
2
DBB0001~
30
20Y-54-61551
COVER
1
DBB0001~
MO- 12
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 13
FIG NO. ：M1150-01A0
FIG. M1150-01A0 PARTITION (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
20Y-54-61591
COVER
1
DBB0001~
32
01010-81230
BOLT
3
DBB0001~
33
01643-31232
WASHER
3
DBB0001~
34
20Y-54-12550
COLLAR
1
DBB0001~
35
01010-81230
BOLT
1
DBB0001~
36
01643-31232
WASHER
1
DBB0001~
37
01010-81230
BOLT
2
DBB0001~
38
01643-31232
WASHER
2
DBB0001~
39
20Y-54-61541
COVER
1
DBB0001~
40
01010-81230
BOLT
1
DBB0001~
41
01643-31232
WASHER
1
DBB0001~
42
01010-81220
BOLT
1
DBB0001~
43
01643-31232
WASHER
1
DBB0001~
44
20Y-54-12550
COLLAR
2
DBB0001~
45
01010-81230
BOLT
2
DBB0001~
46
01643-31232
WASHER
2
DBB0001~
Revolving Frame
PW1B780
MO- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 15

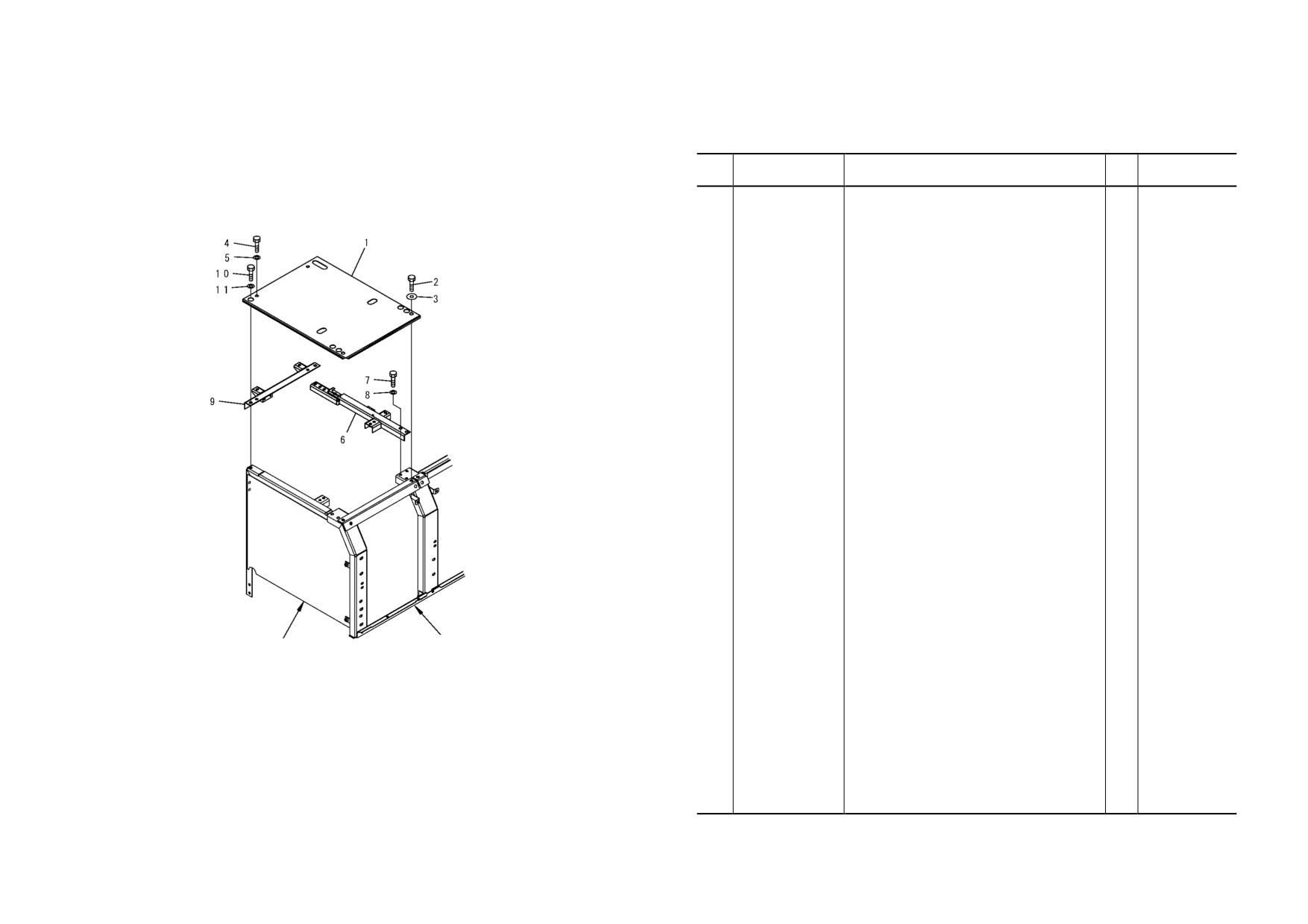

FIG NO. ：M1160-01A0
FIG. M1160-01A0 PARTITION
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-61711
COVER
1
DBB0001~
2
01010-81230
BOLT
2
DBB0001~
3
175-54-34170
WASHER
2
DBB0001~
4
01010-81230
BOLT
2
DBB0001~
5
01643-31232
WASHER
2
DBB0001~
6
20Y-54-61261
FRAME
1
DBB0001~
7
01010-81230
BOLT
4
DBB0001~
8
01643-31232
WASHER
4
DBB0001~
9
20Y-54-61272
FRAME
1
DBB0001~
10
01010-81230
BOLT
2
DBB0001~
11
01643-31232
WASHER
2
DBB0001~
See Fig. M1120-01A0
See Fig. M1130-01A0
PW1B781
MO- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 17

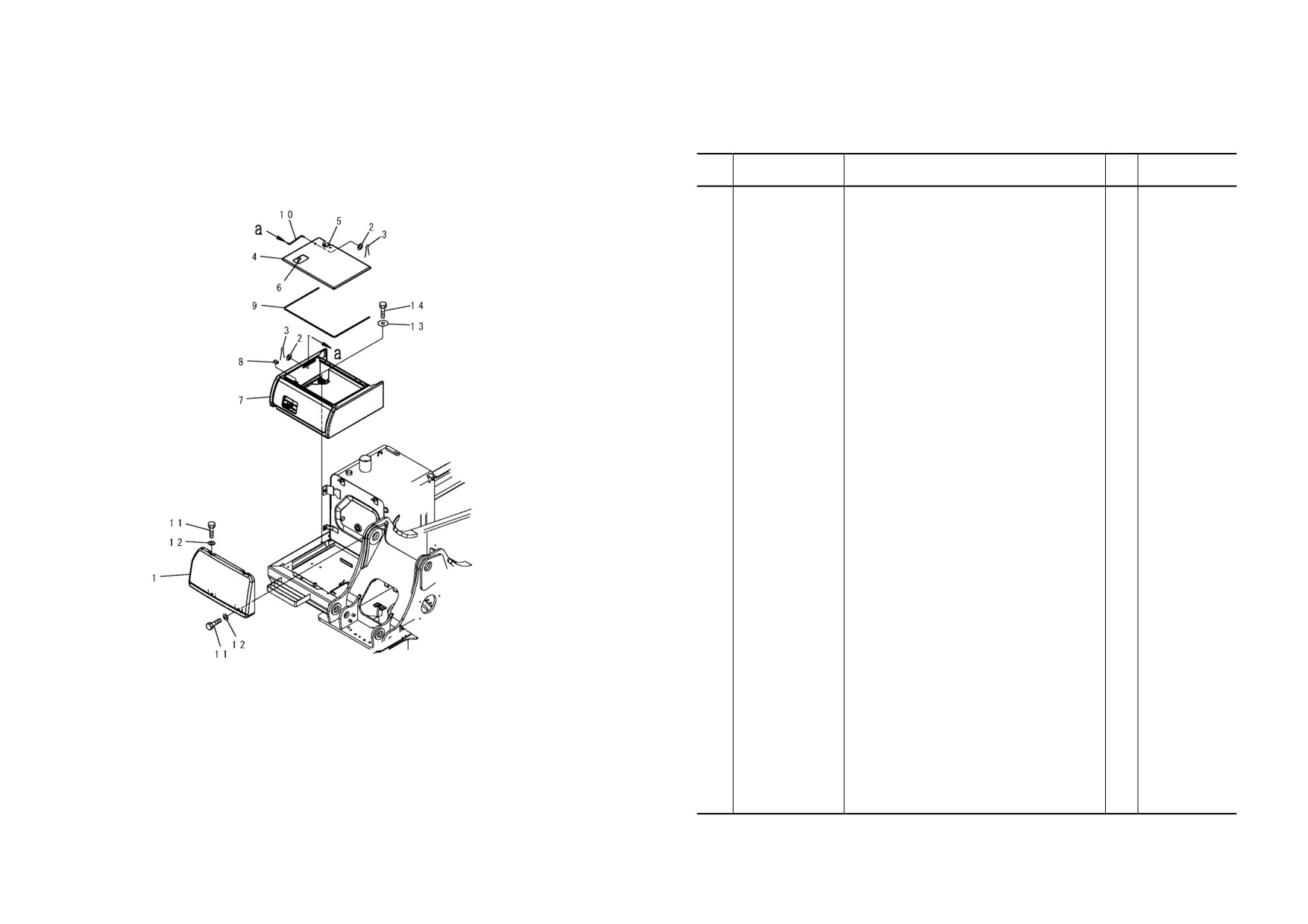

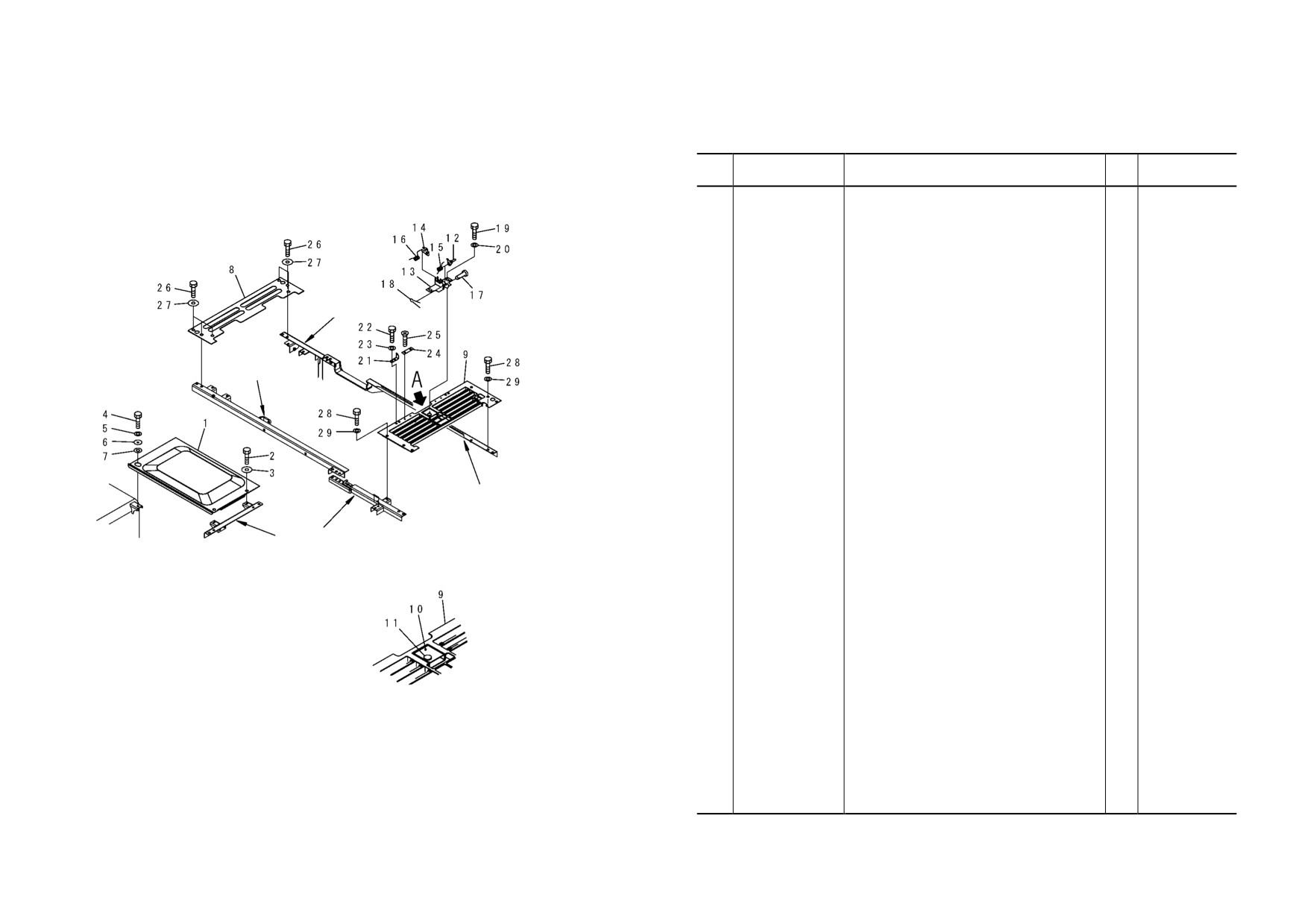

FIG NO. ：M1210-01A0
FIG. M1210-01A0 COVER (MACHINE CAB) (UPPER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-61721
COVER
1
DBB0001~
2
01010-81230
BOLT
2
DBB0001~
3
175-54-34170
WASHER
2
DBB0001~
4
01010-81230
BOLT
1
DBB0001~
5
01643-31232
WASHER
1
DBB0001~
6
20Y-54-61990
COLLAR
1
DBB0001~
See Fig. M1120-01A0
7
20Y-54-61790
PLATE
1
DBB0001~
8
20Y-54-61731
COVER
1
DBB0001~
9
20Y-54-61742
COVER
1
DBB0001~
See Fig. M1130-01A0
10
20Y-54-25850
. LOCK
1
DBB0001~
11
20Y-54-27540
.. LOCK ASS’ Y
1
DBB0001~
12
20Y-54-27511
PLATE
1
DBB0001~
13
20Y-54-27523
BRACKET
1
DBB0001~
14
21K-54-26341
LEVER
1
DBB0001~
15
21K-54-26351
SPRING
1
DBB0001~
See Fig. M1130-01A0
16
20X-54-21460
SPRING
1
DBB0001~
17
04205-11038
PIN
2
DBB0001~
18
04050-13020
PIN
2
DBB0001~
See Fig. M1160-01A0
Fuel Tank
19
01010-81025
BOLT
2
DBB0001~
20
01643-31032
WASHER
2
DBB0001~
21
20Y-54-27182
BRACKET
2
DBB0001~
22
01010-81025
BOLT
4
DBB0001~
23
01643-31032
WASHER
4
DBB0001~
24
205-54-68440
PLATE
2
DBB0001~
25
01224-40616
SCREW
4
DBB0001~
26
01010-81230
BOLT
6
DBB0001~
Detail A
27
175-54-34170
WASHER
6
DBB0001~
28
01010-81230
BOLT
6
DBB0001~
PW1B782
29
01643-31232
WASHER
6
DBB0001~
MO- 18
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 19
FIG NO. ：M1220-01A0
FIG. M1220-01A0 RIGHT SIDE CASE
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-66131
COVER
1
DBB0001~
2
01643-30623
WASHER
2
DBB0001~
3
04050-11612
PIN
2
DBB0001~
20Y-54-66111
COVER
1
DBB0001~
4
20Y-54-26360
. COVER
1
DBB0001~
5
20Y-54-29711
.. HINGE
2
DBB0001~
6
421-54-11372
.. LOCK ASS’ Y
1
DBB0001~
7
☆
. COVER
1
DBB0001~
8
20Y-54-29680
SHEET
1
DBB0001~
9
20Y-54-29660
SEAL
1
DBB0001~
10
203-54-56630
ROD
1
DBB0001~
11
01010-81230
BOLT
4
DBB0001~
12
01643-31232
WASHER
4
DBB0001~
13
175-54-34170
WASHER
4
DBB0001~
14
01010-81230
BOLT
4
DBB0001~
Fuel Tank
Revolving Frame
PW1B783
MO- 20
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 21

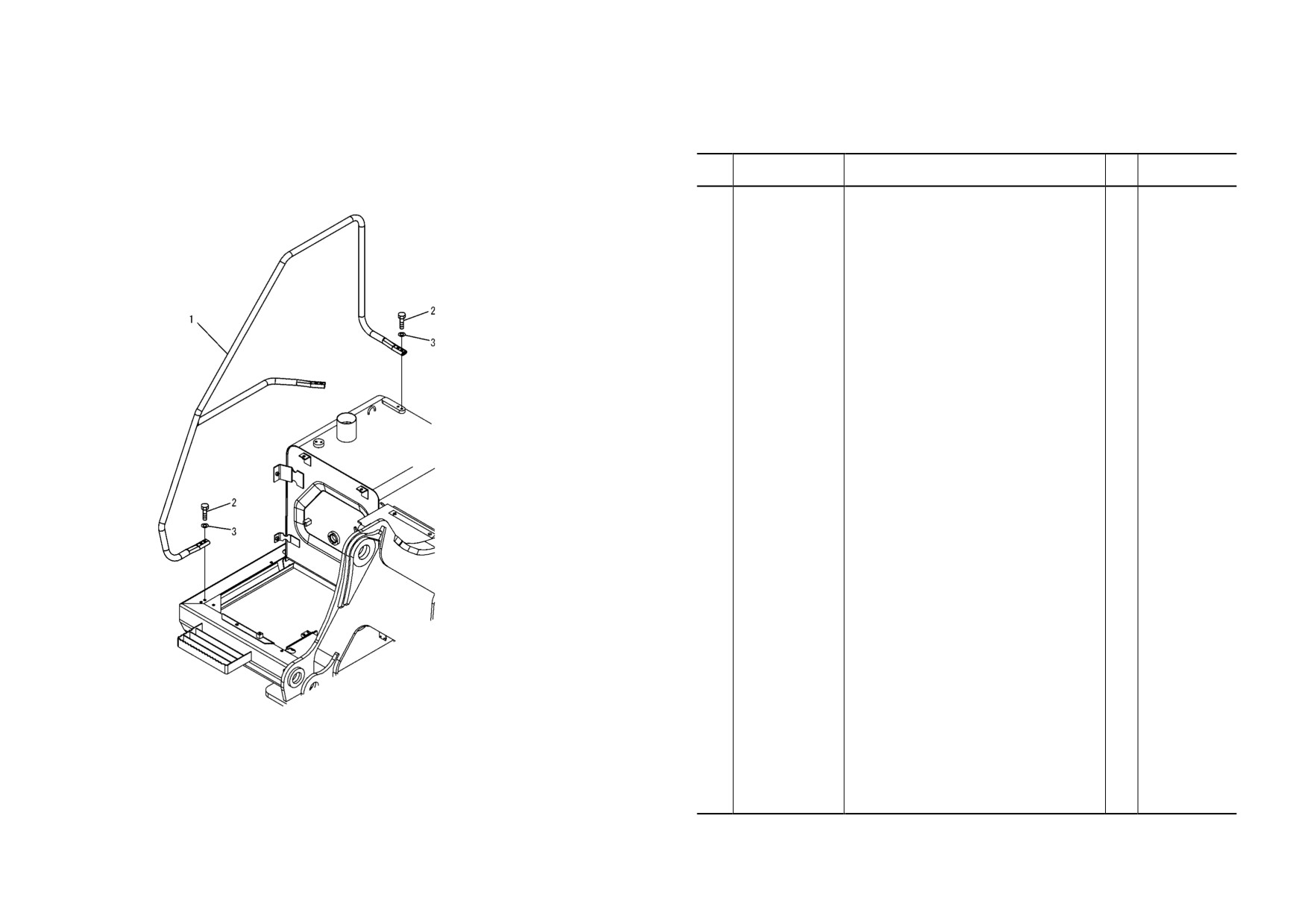

FIG NO. ：M1310-01A0
FIG. M1310-01A0 HAND RAIL
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-61611
HAND RAIL
1
DBB0001~
2
01010-81240
BOLT
6
DBB0001~
3
01643-31232
WASHER
6
DBB0001~
Fuel Tank
Revolving Frame
PW1B784
MO- 22
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 23

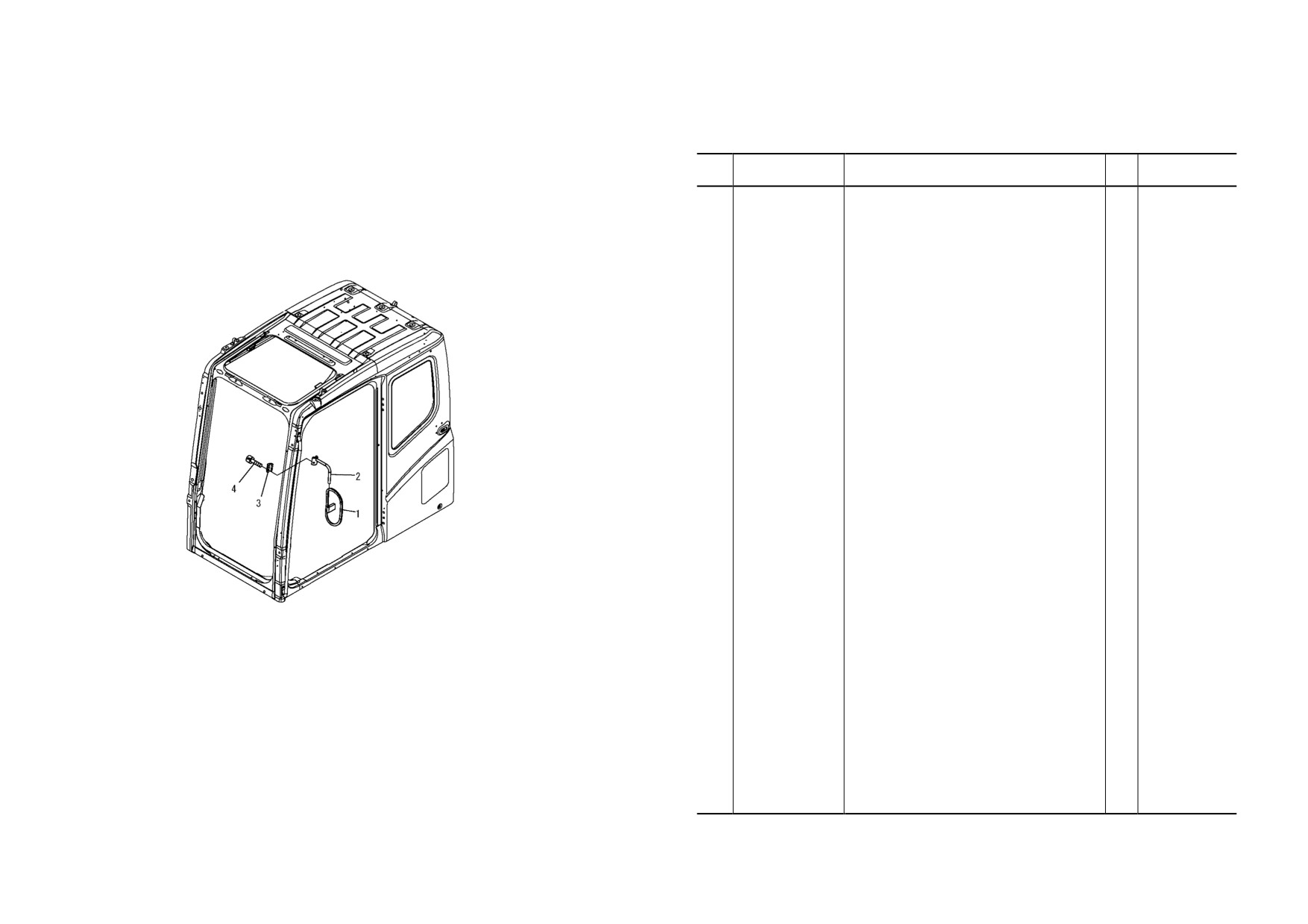

FIG NO. ：M1410-01A0
FIG. M1410-01A0 REAR VIEW MIRROR, L. H. (SINGLE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
08174-13118
MIRROR
1
DBB0001~
2
20Y-54-35420
SUPPORT
1
DBB0001~
3
20Y-54-35430
CLAMP
1
DBB0001~
4
01252-41030
BOLT
2
DBB0001~
Cab
PW1B785
MO- 24
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 25
FIG NO. ：M1420-01A0

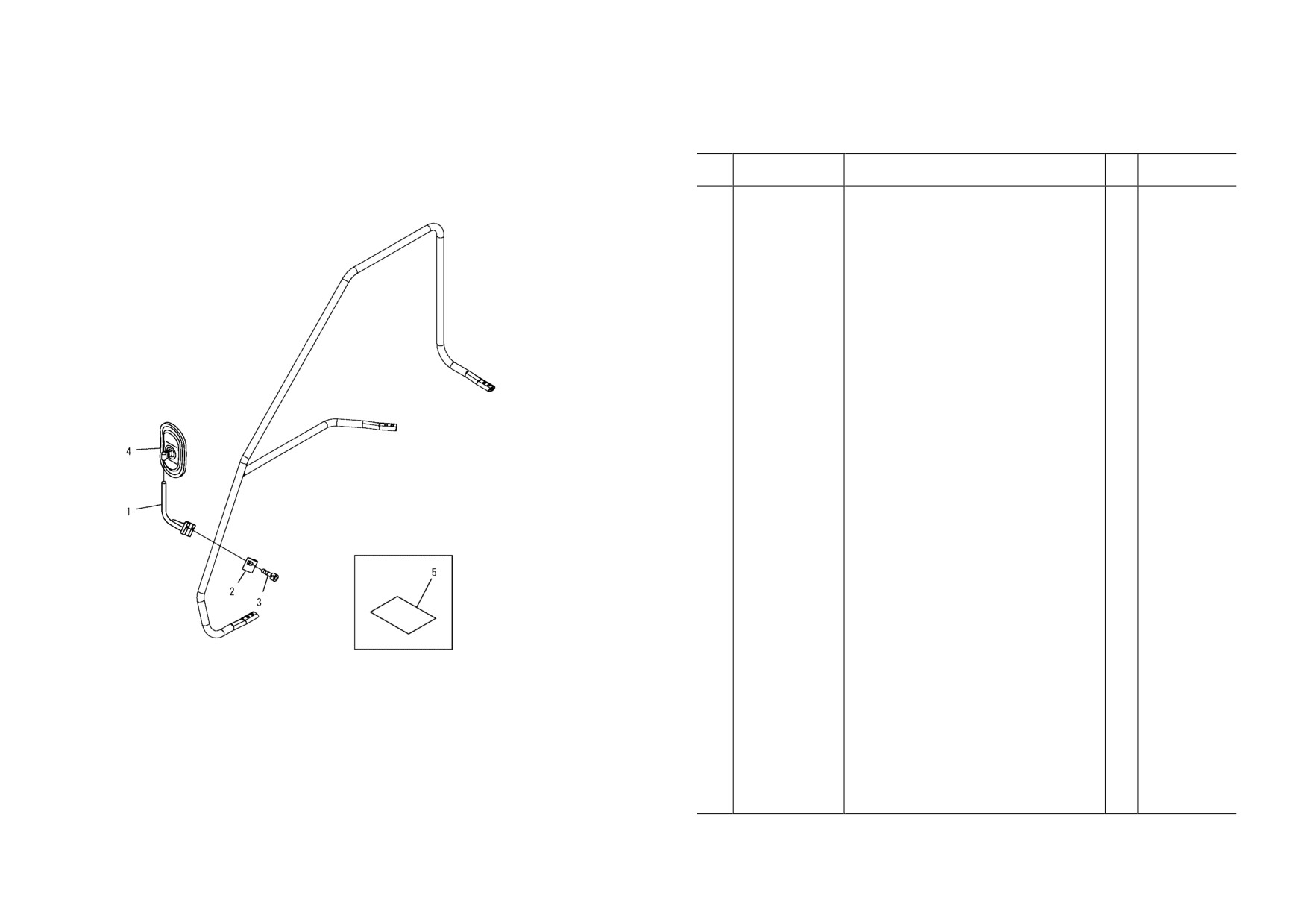

FIG. M1420-01A0 REAR VIEW MIRROR, R. H.
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-61621
SUPPORT
1
DBB0001~
2
20Y-54-61630
CLAMP
1
DBB0001~
3
01252-71030
BOLT
2
DBB0001~
4
20Y-54-28911
MIRROR
1
DBB0001~
5
20Y-98-D1170
PLATE
1
DBB0001~
Hand Rail
Installation of Mirror
PW1B786
MO- 26
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 27

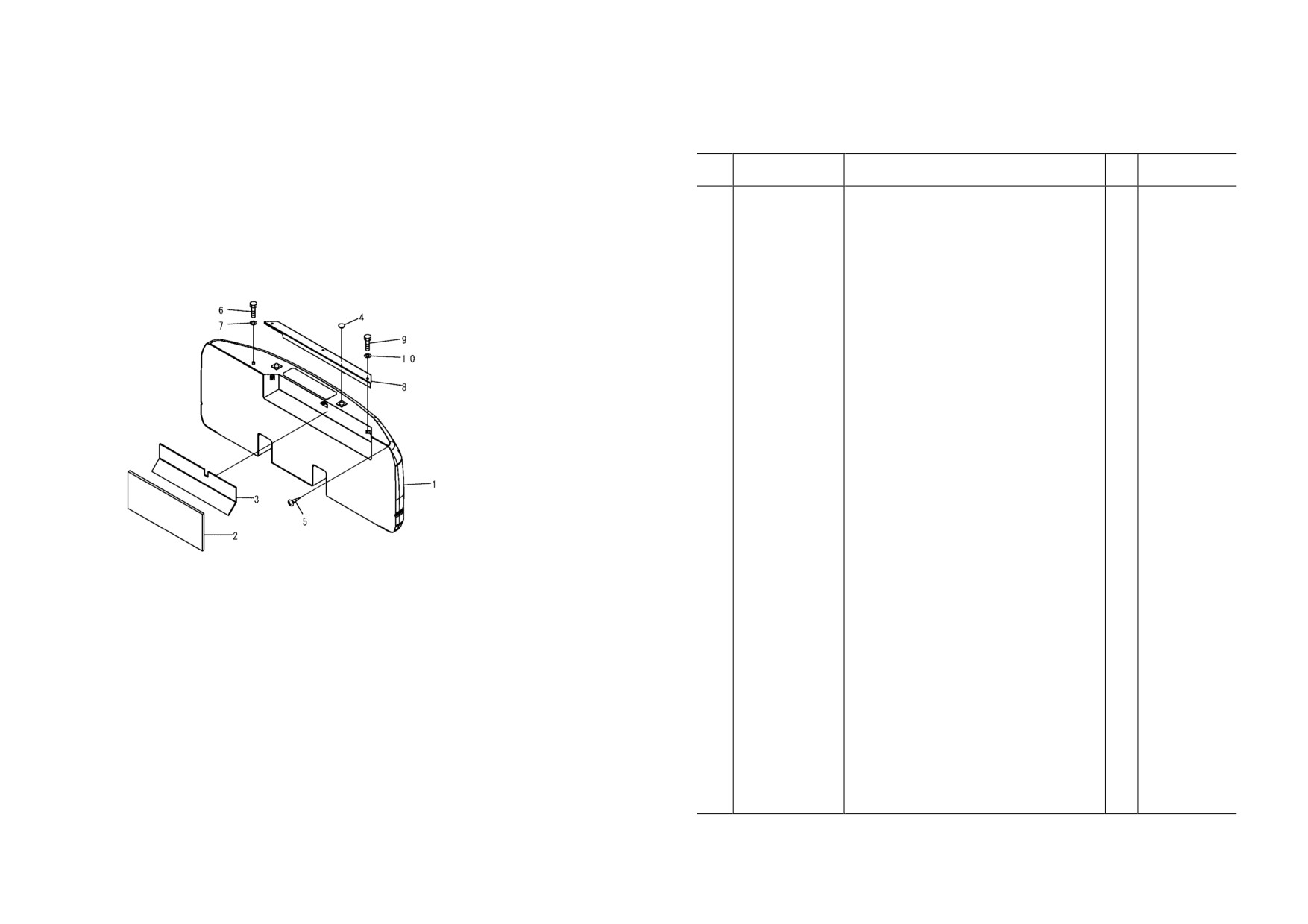

FIG NO. ：M1510-01A0
FIG. M1510-01A0 COUNTER WEIGHT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-46-44111
WEIGHT
1
DBB0001~
1
☆
. WEIGHT
1
DBB0001~
2
20Y-46-44171
. SHEET
1
DBB0001~
3
20Y-46-44191
. SHEET
1
DBB0001~
4
20Y-46-11270
CAP
2
DBB0001~
5
01370-00508
SCREW
1
DBB0001~
6
01010-81220
BOLT
1
DBB0001~
7
01643-31232
WASHER
1
DBB0001~
8
20Y-46-44141
COVER
1
DBB0001~
9
01010-81225
BOLT
3
DBB0001~
10
01643-31232
WASHER
3
DBB0001~
PW1B787
MO- 28
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 29
