FIG NO. ：K1730-01A0

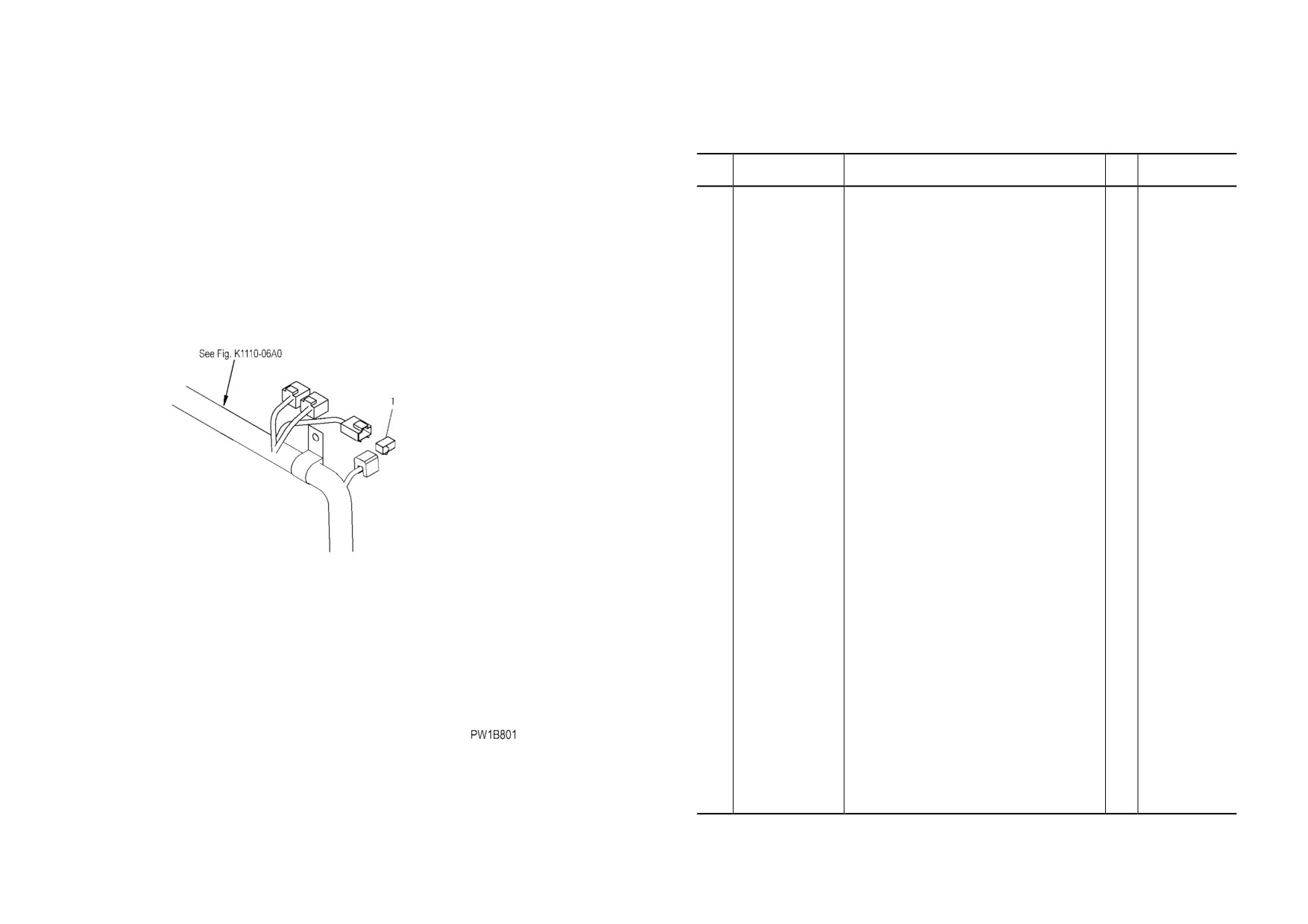

FIG. K1730-01A0 SWITCH
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-06-21421
SWITCH
1
DBB0001~
KO- 160
PC200,210(LC)-7
PC200,210(LC)-7
KO- 161
FIG NO. ：K0310-01A1

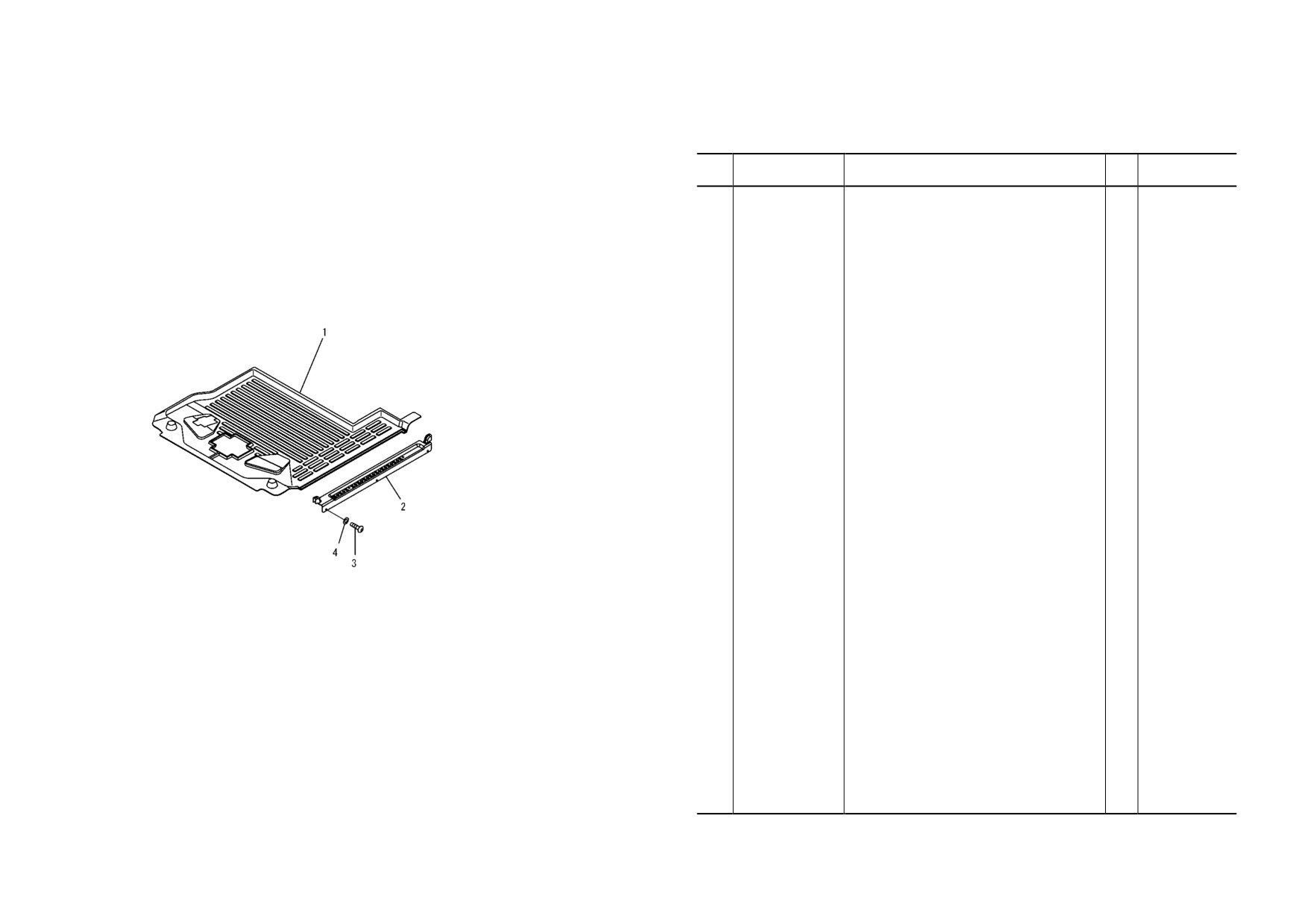

FIG. K0310-01A1 FLOOR MAT (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-65710
FLOOR MAT, 1 ATT
1
DBB0001~
2
20Y-54-51952
COVER
1
DBB0001~
3
01245-00612
SCREW
5
DBB0001~
4
01643-70623
WASHER
5
DBB0001~
PW1B867
K1- 62
PC200, 210(LC)-7
PC200, 210(LC)-7
K1- 63
FIG NO. ：K1110-04A1

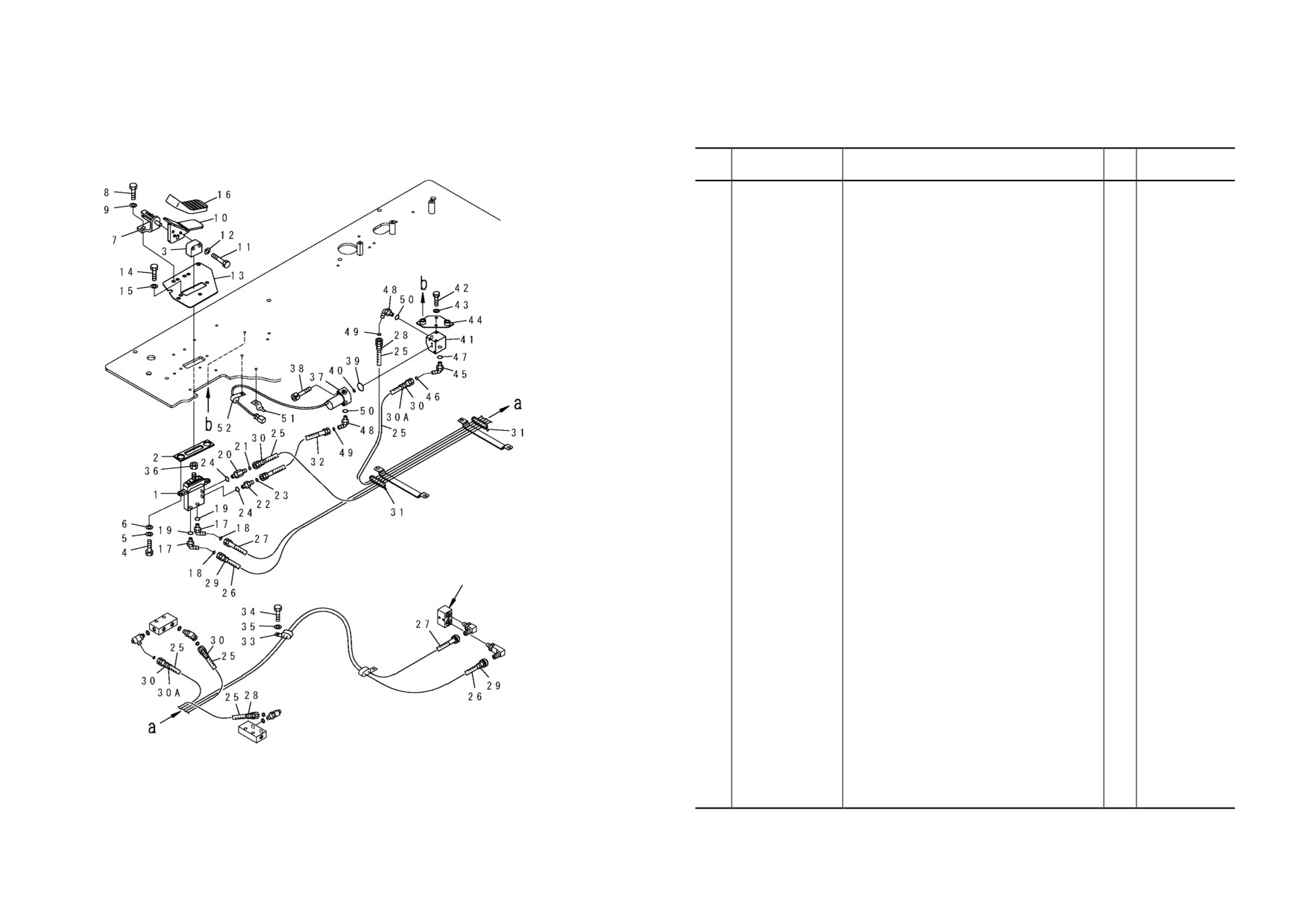

FIG. K1110-04A1 FLOOR FRAME (FOOT REST) (R. H.) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
(702-16-01230)
PILOT VALVE
1
DBB0001~
2
22U-54-25660
SEAL
1
DBB0001~
3
22U-43-21470
SEAL
1
DBB0001~
4
01010-81025
BOLT
2
DBB0001~
5
01643-31032
WASHER
2
DBB0001~
Floor Frame
6
01643-31032
WASHER
2
DBB0001~
7
20Y-62-25360
BRACKET
1
DBB0001~
8
01010-D1025
BOLT
2
DBB0001~
9
01643-71032
WASHER
2
DBB0001~
10
20Y-43-31220
PEDAL
1
DBB0001~
11
01010-D1045
BOLT
2
DBB0001~
12
01643-71032
WASHER
2
DBB0001~
13
22U-54-25541
PLATE
1
DBB0001~
14
01010-81020
BOLT
3
DBB0001~
15
01643-31032
WASHER
3
DBB0001~
16
22U-54-25670
CAP
1
DBB0001~
17
21W-62-43980
ELBOW
2
DBB0001~
18
02896-11008
O-RING
2
DBB0001~
19
07000-12011
O-RING
2
DBB0001~
20
20Y-62-43470
NIPPLE
1
DBB0001~
See Fig. H1840-02A1
21
02896-11008
O-RING
1
DBB0001~
22
11Y-62-12140
NIPPLE
1
DBB0001~
23
02896-11008
O-RING
1
DBB0001~
T-Block
24
07000-12011
O-RING
2
DBB0001~
25
02760-00212
HOSE
3
DBB0001~
26
20Y-62-43490
HOSE, 2400 MM
1
DBB0001~
27
20Y-62-43510
HOSE, 2350 MM
1
DBB0001~
28
20Y-62-22790
BAND, RED
2
DBB0001~
29
20Y-62-22810
BAND, YELLOW
2
DBB0001~
P-Block
PW1C013
30
20Y-62-22820
BAND, BLUE
4
DBB0001~
30A
20Y-62-22830
BAND, WHITE
2
DBB0001~
31
08034-00519
BAND
2
DBB0001~
32
21W-62-42240
HOSE
1
DBB0001~
K1- 86
PC200, 210(LC)-7
PC200, 210(LC)-7
K1- 87
FIG NO. ：K1110-04A1
FIG.
K1110-04A1 FLOOR FRAME (FOOT REST) (R. H.) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
33
04435-51210
CLIP
1
DBB0001~
34
01010-81016
BOLT
1
DBB0001~
35
01643-31032
WASHER
1
DBB0001~
36
01583-51408
NUT
1
DBB0001~
37
(702-21-07010)
SOLENOID VALVE, EPC
1
DBB0001~
Floor Frame
38
203-60-62220
BOLT
2
DBB0001~
39
700-93-11320
O-RING
1
DBB0001~
40
07000-02011
O-RING
1
DBB0001~
41
20Y-62-43410
BLOCK
1
DBB0001~
42
01010-80820
BOLT
2
DBB0001~
43
01643-30823
WASHER
2
DBB0001~
44
20Y-62-43420
BRACKET
1
DBB0001~
45
11Y-62-12160
ELBOW
1
DBB0001~
46
02896-11008
O-RING
1
DBB0001~
47
07002-11423
O-RING
1
DBB0001~
48
21W-62-43960
ELBOW
2
DBB0001~
49
02896-11008
O-RING
2
DBB0001~
50
07002-11423
O-RING
2
DBB0001~
51
08053-01510
CLIP
1
DBB0001~
52
04434-51010
CLIP
1
DBB0001~
See Fig. H1840-02A1
T-Block
P-Block
PW1C013
K1- 88
PC200, 210(LC)-7
PC200, 210(LC)-7
K1- 89
FIG NO. ：K1110-21A1

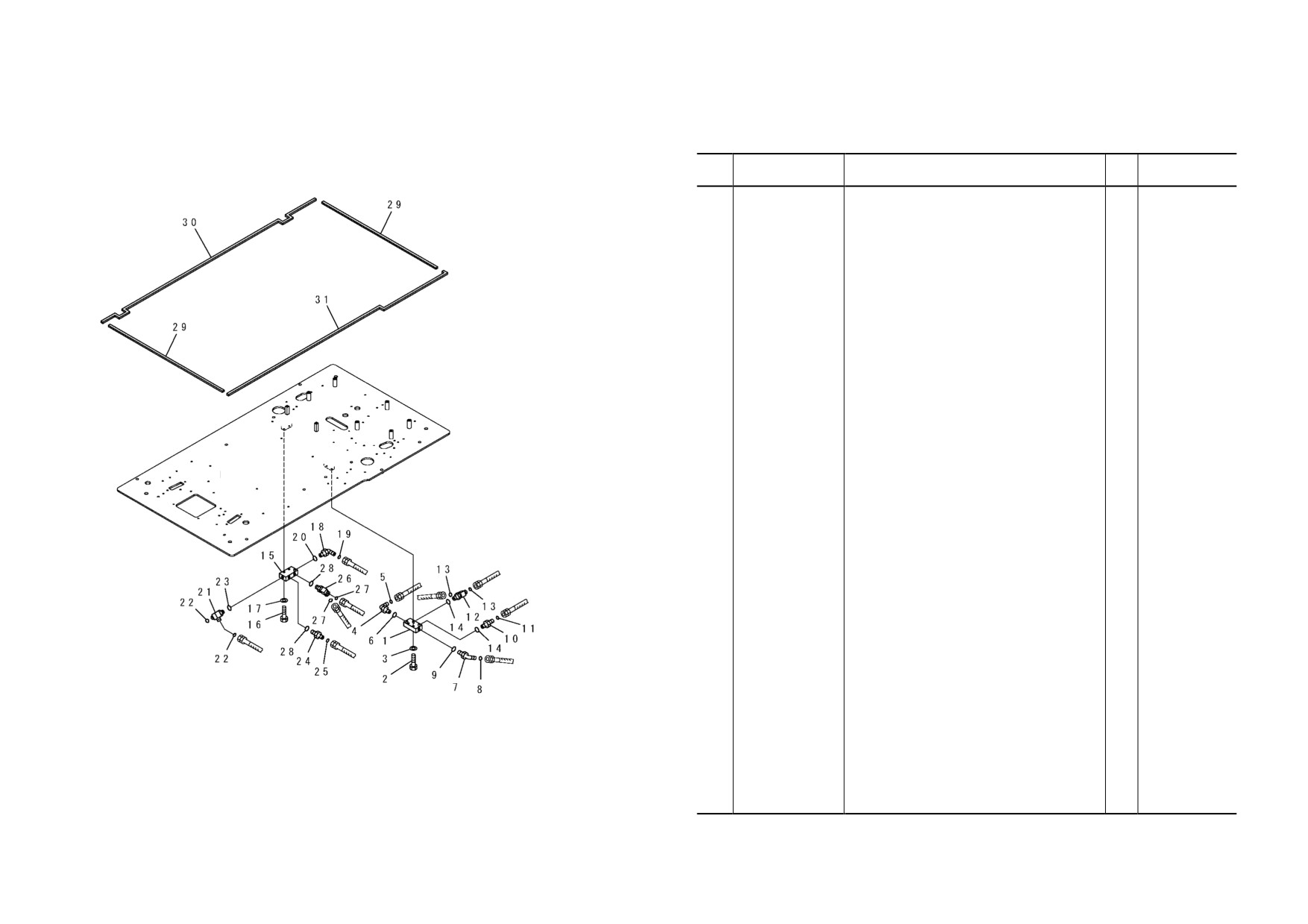

FIG. K1110-21A1 FLOOR FRAME (P, T BLOCK AND SEAL) (1 ACTUATOR) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-15831
BLOCK
1
DBB0001~
2
01010-81045
BOLT
2
DBB0001~
3
01643-31032
WASHER
2
DBB0001~
4
21W-62-42490
ELBOW
1
DBB0001~
5
02896-11009
O-RING
1
DBB0001~
6
07002-11423
O-RING
1
DBB0001~
7
11Y-62-12160
ELBOW
1
DBB0001~
8
02896-11008
O-RING
1
DBB0001~
9
07002-11423
O-RING
1
DBB0001~
10
11Y-62-12130
NIPPLE
1
DBB0001~
11
02896-11008
O-RING
1
DBB0001~
12
11Y-62-12330
TEE
1
DBB0001~
13
02896-11008
O-RING
2
DBB0001~
14
07002-11423
O-RING
2
DBB0001~
15
20Y-62-15831
BLOCK
1
DBB0001~
Floor Frame
16
01010-81045
BOLT
2
DBB0001~
17
01643-31032
WASHER
2
DBB0001~
18
21W-62-42490
ELBOW
1
DBB0001~
19
02896-11009
O-RING
1
DBB0001~
20
07002-11423
O-RING
1
DBB0001~
21
207-62-72141
ELBOW
1
DBB0001~
22
02896-11008
O-RING
2
DBB0001~
23
07002-11423
O-RING
1
DBB0001~
24
11Y-62-12130
NIPPLE
1
DBB0001~
25
02896-11008
O-RING
1
DBB0001~
26
11Y-62-12330
TEE
1
DBB0001~
27
02896-11008
O-RING
2
DBB0001~
28
07002-11423
O-RING
2
DBB0001~
PW1C014
29
20Y-54-65750
SEAL
2
DBB0001~
30
20Y-54-65760
SEAL
1
DBB0001~
31
20Y-54-65770
SEAL
1
DBB0001~
K1- 134
PC200, 210(LC)-7
PC200, 210(LC)-7
K1- 135
GUARD
FIG NO. ：M1110-01A0

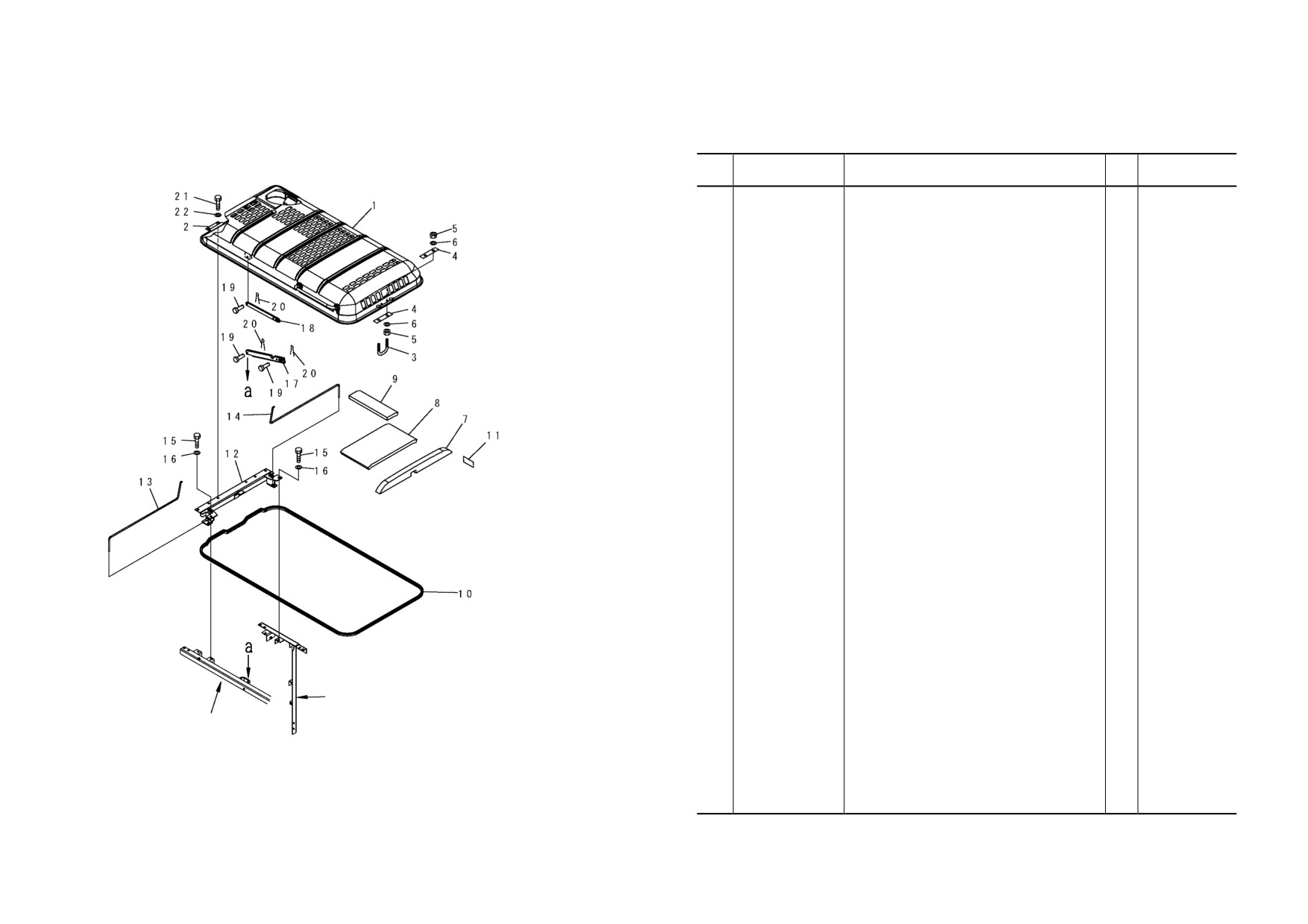

FIG. M1110-01A0 HOOD
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-D1730
HOOD
1
DBB0001~
2
20Y-54-27123
. HINGE (WELDED)
2
DBB0001~
3
20Y-54-27172
U-BOLT
1
DBB0001~
4
20Y-54-27330
PLATE
2
DBB0001~
5
01580-11210
NUT
4
DBB0001~
6
01643-31232
WASHER
4
DBB0001~
7
20Y-54-63122
SHEET
1
DBB0001~
8
20Y-54-61650
SHEET
1
DBB0001~
9
20Y-54-25681
SHEET
1
DBB0001~
10
20Y-54-29291
SEAL
1
DBB0001~
11
22U-54-15190
SHEET
1
DBB0001~
12
20Y-54-61240
FRAME
1
DBB0001~
13
20Y-54-27141
SPRING
1
DBB0001~
14
20Y-54-27131
SPRING
1
DBB0001~
15
01010-81230
BOLT
2
DBB0001~
16
01643-31232
WASHER
2
DBB0001~
17
20Y-54-27370
STAY
1
DBB0001~
18
20Y-54-27290
STAY
1
DBB0001~
19
04205-11230
PIN
3
DBB0001~
20
04050-13022
PIN
3
DBB0001~
21
01010-81230
BOLT
4
DBB0001~
22
01643-31232
WASHER
4
DBB0001~
See Fig. M1120-01A0
See Fig. M1130-01A0
PW1B776
MO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 3

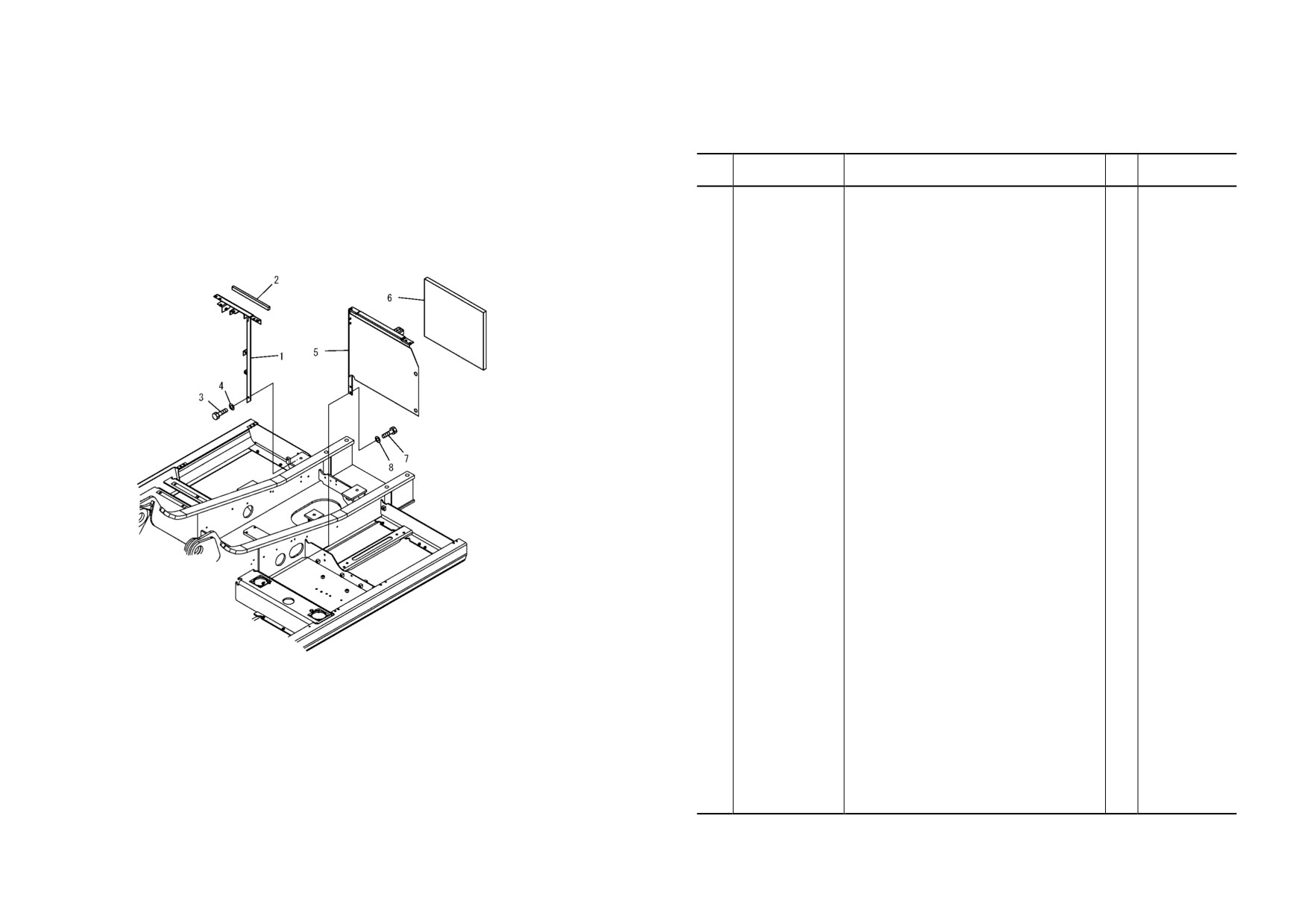

FIG NO. ：M1120-01A0
FIG. M1120-01A0 FRAME (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-54-62210
FRAME
1
DBB0001~
☆
. FRAME
1
DBB0001~
2
20Y-54-63131
. SHEET
1
DBB0001~
3
01010-81230
BOLT
2
DBB0001~
4
01643-31232
WASHER
2
DBB0001~
20Y-54-62220
FRAME
1
DBB0001~
5
☆
. FRAME
1
DBB0001~
6
20Y-54-D1810
. SHEET
1
DBB0001~
7
01010-81230
BOLT
2
DBB0001~
8
01643-31232
WASHER
2
DBB0001~
Revolving Frame
PW1B777
MO- 4
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 5
FIG NO. ：M1130-01A0

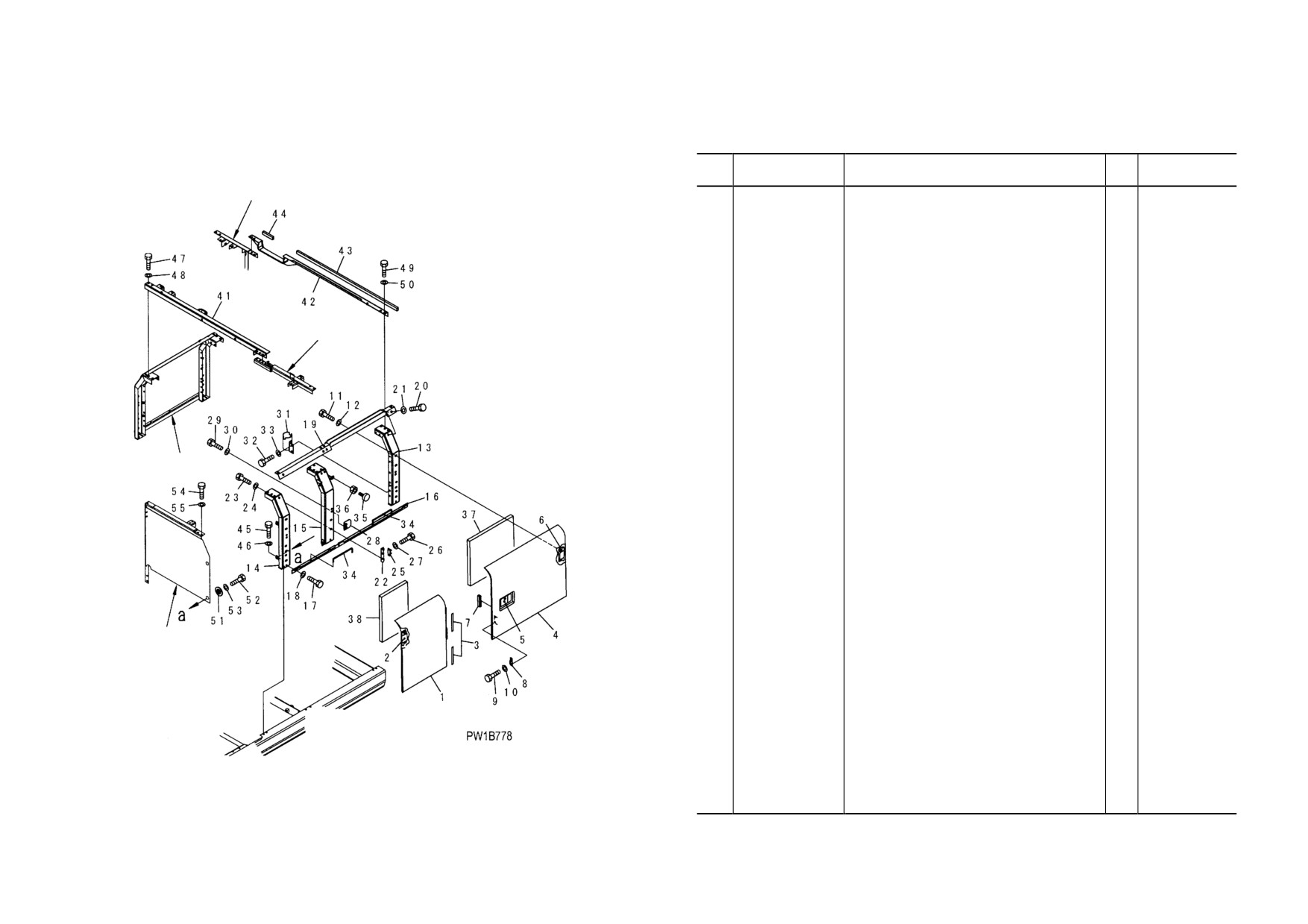

FIG. M1130-01A0 LEFT SIDE DOOR (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
See Fig. M1120-01A0
1
20Y-54-61143
COVER
1
DBB0001~
2
20Y-54-63410
. HINGE (WELDED)
2
DBB0001~
3
20Y-54-63390
. SHEET
2
DBB0001~
4
20Y-54-61132
COVER
1
DBB0001~
5
198-54-41982
. LOCK ASS’ Y
1
DBB0001~
6
20Y-54-63410
. HINGE (WELDED)
2
DBB0001~
7
20Y-54-61482
SHEET
1
DBB0001~
8
205-54-53550
DOVE TAIL
1
DBB0001~
See Fig. M1160-01A0
9
01010-80612
BOLT
2
DBB0001~
10
01643-30623
WASHER
2
DBB0001~
11
01010-81230
BOLT
8
DBB0001~
12
01643-31232
WASHER
8
DBB0001~
13
20Y-54-61311
FRAME
1
DBB0001~
14
20Y-54-61322
FRAME
1
DBB0001~
15
20Y-54-61331
FRAME
1
DBB0001~
16
20Y-54-61341
PLATE
1
DBB0001~
See Fig. M1140-01A0
17
01010-81225
BOLT
4
DBB0001~
18
01643-31232
WASHER
4
DBB0001~
19
20Y-54-61361
FRAME
1
DBB0001~
20
01010-81230
BOLT
4
DBB0001~
21
01643-31232
WASHER
4
DBB0001~
22
20Y-54-28170
BRACKET
1
DBB0001~
23
01010-81230
BOLT
2
DBB0001~
24
01643-31232
WASHER
2
DBB0001~
25
205-54-51970
DOVE TAIL
1
DBB0001~
26
01010-80616
BOLT
2
DBB0001~
27
01643-30623
WASHER
2
DBB0001~
28
20Y-54-61470
PLATE
1
DBB0001~
See Fig. M1120-01A0
29
01010-81230
BOLT
2
DBB0001~
30
01643-31232
WASHER
2
DBB0001~
31
20Y-54-61371
BRACKET
1
DBB0001~
32
01010-81230
BOLT
2
DBB0001~
33
01643-31232
WASHER
2
DBB0001~
34
20Y-54-29231
BAR
2
DBB0001~
Revolving Frame
35
20Y-54-11611
STOPPER
2
DBB0001~
36
01580-11008
NUT
2
DBB0001~
37
20Y-54-D1761
SHEET
1
DBB0001~
38
20Y-54-D1770
SHEET
1
DBB0001~
MO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 7
FIG NO. ：K1130-01A0
FIG. M1130-01A0
LEFT SIDE DOOR (MACHINE CAB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
See Fig. M1120-01A0
41
20Y-54-61221
FRAME
1
DBB0001~
42
20Y-54-61231
FRAME
1
DBB0001~
43
20Y-54-63341
SHEET
1
DBB0001~
44
20Y-54-63351
SHEET
1
DBB0001~
45
01010-81230
BOLT
6
DBB0001~
46
01643-31232
WASHER
6
DBB0001~
47
01010-81230
BOLT
3
DBB0001~
See Fig. M1160-01A0
48
01643-31232
WASHER
3
DBB0001~
49
01010-81230
BOLT
3
DBB0001~
50
01643-31232
WASHER
3
DBB0001~
51
20Y-54-12550
COLLAR
2
DBB0001~
52
01010-81225
BOLT
2
DBB0001~
53
01643-31232
WASHER
2
DBB0001~
54
01010-81230
BOLT
2
DBB0001~
See Fig. M1140-01A0
55
01643-31232
WASHER
2
DBB0001~
See Fig. M1120-01A0
Revolving Frame
MO- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
MO- 9
