Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 25
FIG NO. ：K1110-33A0

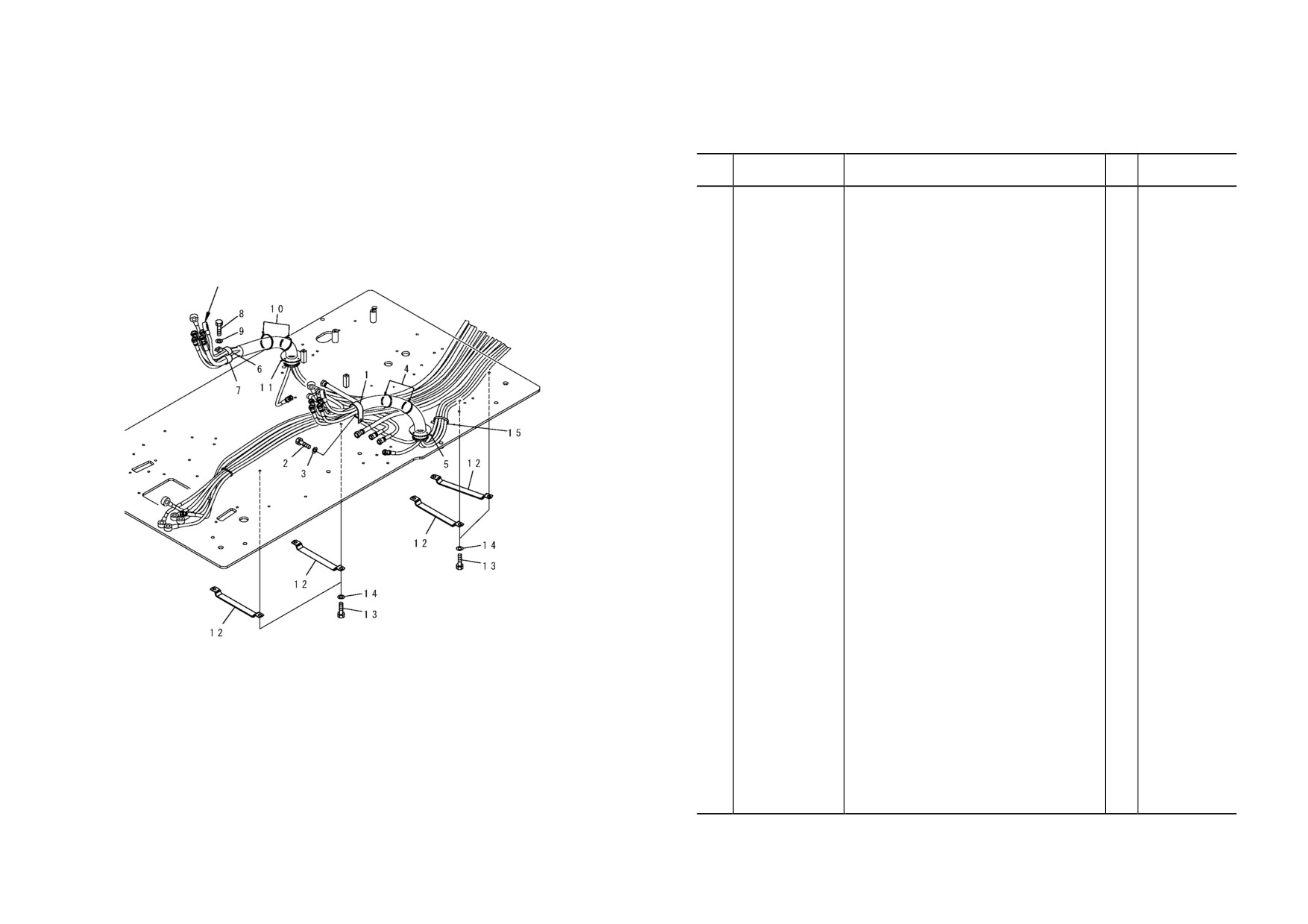

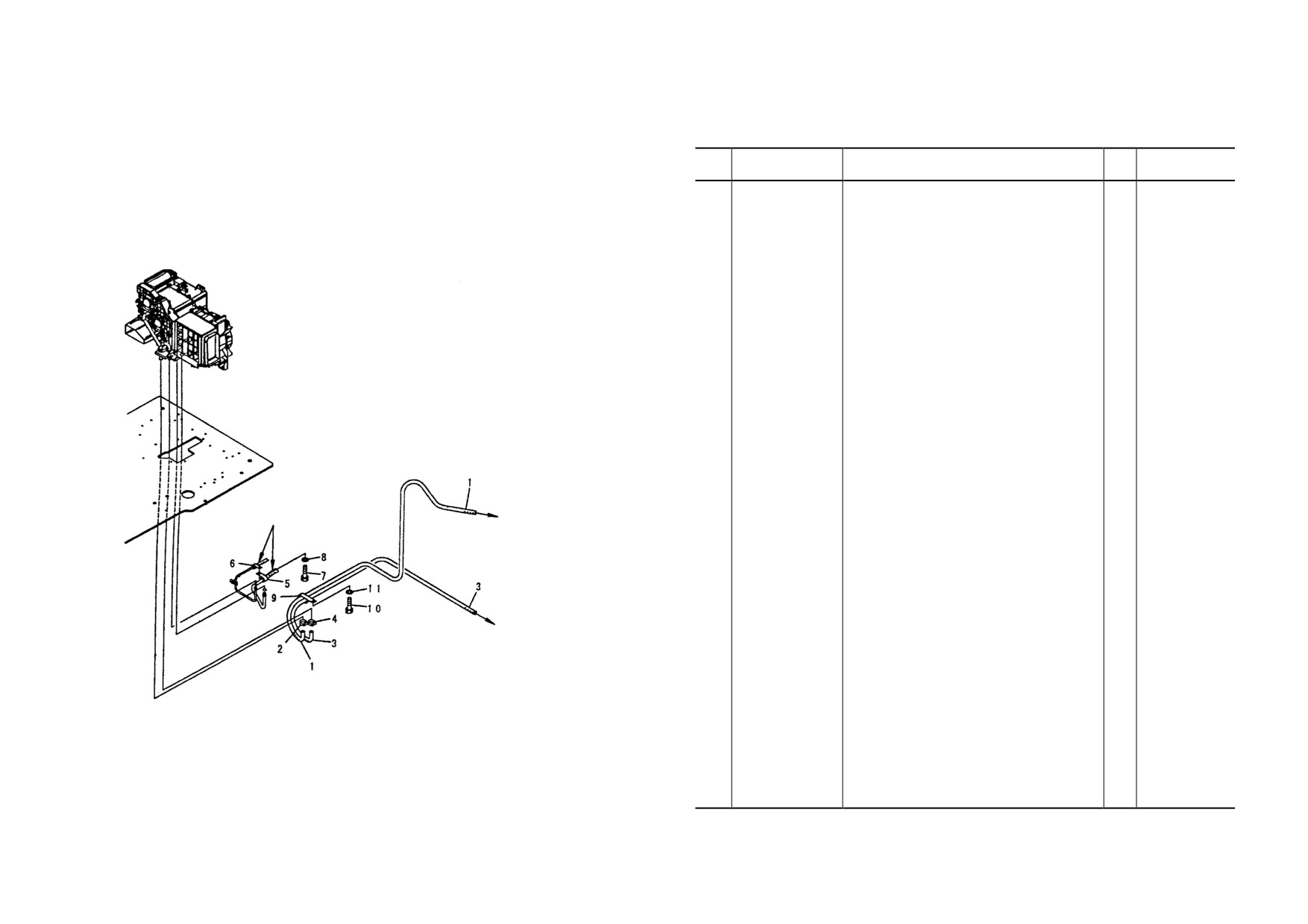

FIG. K1110-33A0 FLOOR FRAME (OPERATOR’S CAB) (HEATER HOSE AND CLAMP)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-979-7360
HOSE ASS’Y
1
DBB4709~
2
09479-02400
CLAMP
1
DBB4709~
3
20Y-979-7410
HOSE ASS’Y
1
DBB4709~
Air Conditioner
4
09479-02400
CLAMP
1
DBB4709~
5
04434-52511
CLIP
1
DBB4709~
6
04434-52110
CLIP
1
DBB4709~
7
01010-81020
BOLT
1
DBB4709~
8
01643-31032
WASHER
1
DBB4709~
9
141-06-11220
CLIP
1
DBB4709~
10
01010-81016
BOLT
1
DBB4709~
11
01643-31032
WASHER
1
DBB4709~
Floor Frame
See Fig. K1110-33D0
To Engine
To Radiator
00018146
KO- 128
PC200, 210(LC)-7
PC200, 210(LC)-7
KO- 129
FIG NO. ：K1110-34A0

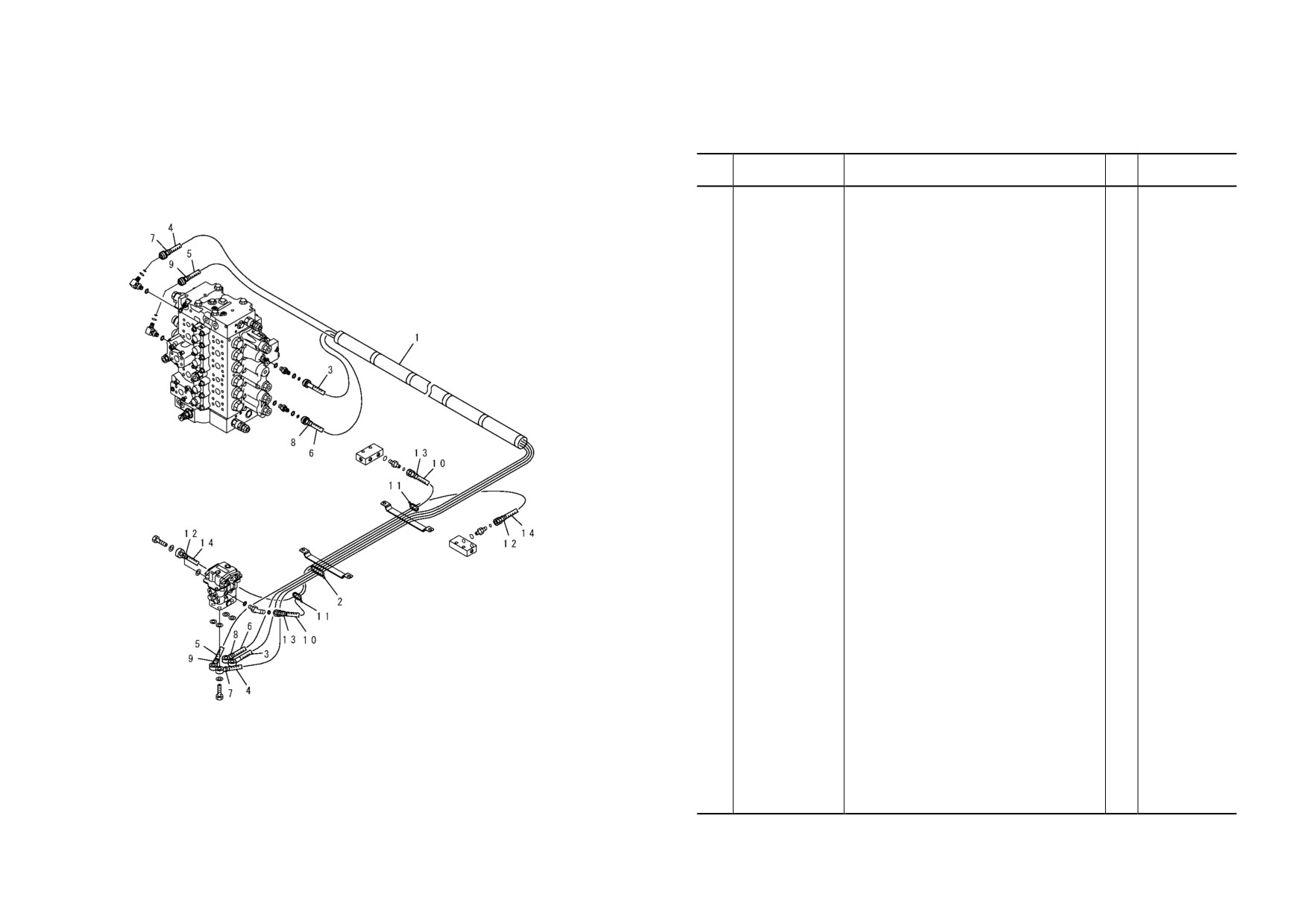

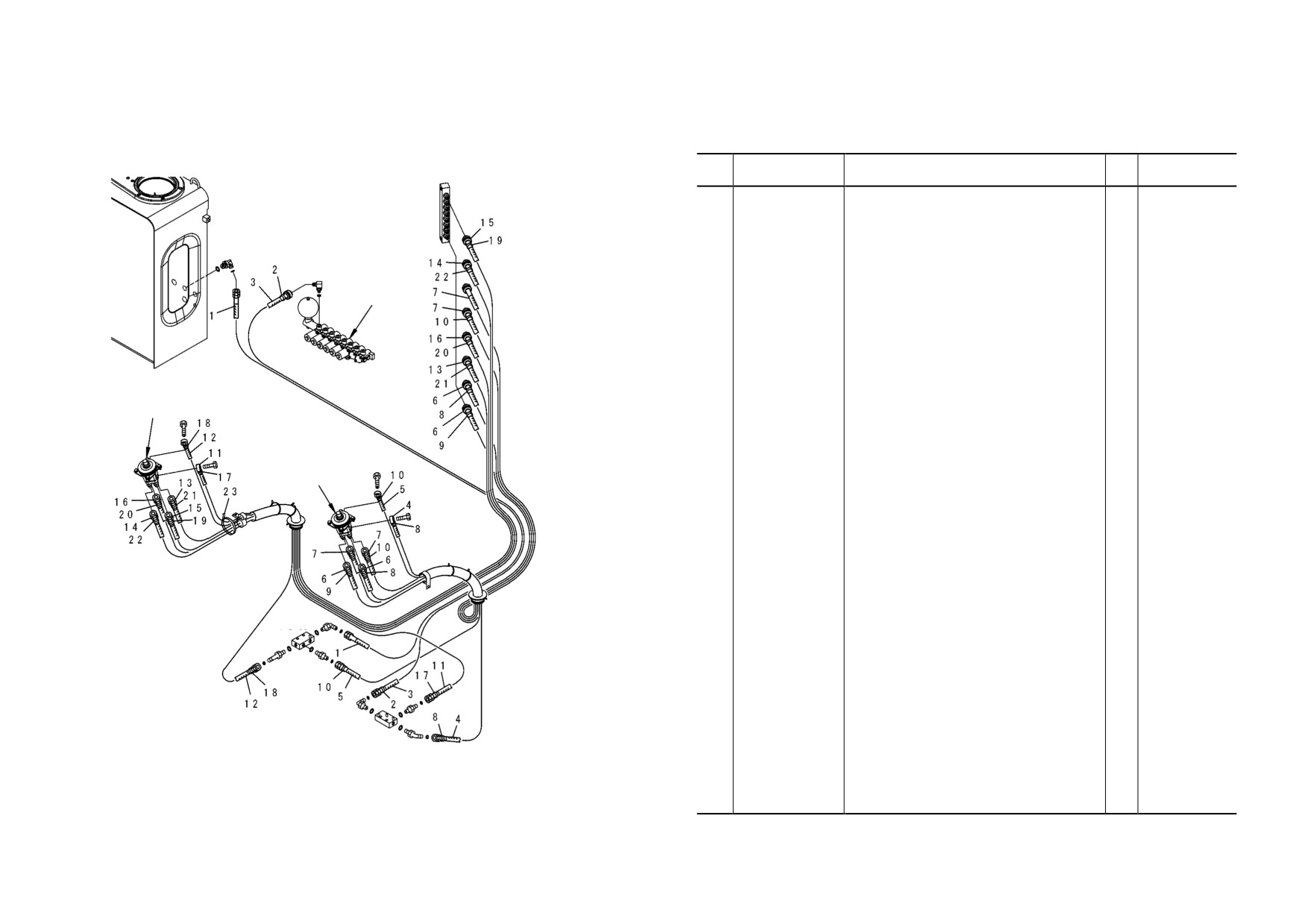

FIG. K1110-34A0 FLOOR FRAME (PPC) (1/2)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
08017-32810
CONDUIT
1
DBB0001~
2
08034-00536
BAND
1
DBB0001~
3
20Y-62-44260
HOSE, 3050 MM
1
DBB0001~
4
20Y-62-44270
HOSE
1
DBB0001~
5
20Y-62-44240
HOSE
1
DBB0001~
6
20Y-62-44250
HOSE
1
DBB0001~DBB4708
20Y-62-44630
HOSE
1
DBB4709~
7
20Y-62-22790
BAND, RED
2
DBB0001~
8
20Y-62-22820
BAND, BLUE
2
DBB0001~
9
20Y-62-22850
BAND, GREEN
2
DBB0001~
10
02760-00211
HOSE
1
DBB0001~DBB4708
02760-002A9
HOSE
1
DBB4709~
11
08034-00519
BAND
2
DBB0001~
Main Valve
12
20Y-62-22790
BAND, RED
2
DBB0001~
13
20Y-62-22820
BAND, BLUE
2
DBB0001~
T-Block
14
20Y-62-42251
HOSE, 950 MM
1
DBB0001~DBB4708
20Y-62-44630
HOSE, 950 MM
1
DBB4709~
Travel PPC Valve
P-Block
PW1B849
KO- 132
PC200,210(LC)-7
PC200,210(LC)-7
KO- 133
FIG NO. ：K1110-35A0
FIG. K1110-35A0 FLOOR FRAME (PPC) (2/2)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
02760-00334
HOSE
1
DBB0001~DBB4708
Relay Block
02760-00332
HOSE
1
DBB4709~
Hydraulic Tank
2
20Y-62-22790
BAND, RED
2
DBB0001~
3
20Y-62-42320
HOSE, 2300 MM
1
DBB0001~DBB4708
20Y-62-44620
HOSE, 2650 MM
DBB4709~
See Fig. H1831-01A0
4
20Y-62-42230
HOSE, 1350 MM
1
DBB0001~DBB4708
208-62-72710
HOSE, 1350 MM
1
DBB4709
5
20Y-62-42240
HOSE, 1450 MM
1
DBB0001~DBB4708
208-62-72780
HOSE, 1450 MM
1
DBB4709~
6
02760-00231
HOSE, 3050 MM
2
DBB0001~
7
02760-00232
HOSE, 3150 MM
2
DBB0001~
See Fig. K1110-13A0
8
02760-00332
BAND, RED
4
DBB0001~
9
20Y-62-22810
BAND, YELLOW
2
DBB0001~
10
20Y-62-22820
BAND, BLUE
4
DBB0001~
11
20Y-62-42210
HOSE, 1600 MM
1
DBB0001~DBB4708
See Fig. K1110-09A0
208-62-72870
HOSE, 1600 MM
1
DBB4709~
12
20Y-62-42220
HOSE, 1300 MM
1
DBB0001~DBB4708
208-62-72860
HOSE, 1300 MM
1
DBB4709~
13
02760-00233
HOSE, 3300 MM
1
DBB0001~
14
02760-00235
HOSE, 3500 MM
1
DBB0001~
15
20Y-62-42550
HOSE, 3500 MM
1
DBB0001~
16
20Y-62-42560
HOSE, 3300 MM
2
DBB0001~
17
20Y-62-22790
BAND, RED
2
DBB0001~
T-Block
18
20Y-62-22820
BAND, BLUE
2
DBB0001~
19
20Y-62-22830
BAND, WHITE
2
DBB0001~
20
20Y-62-22840
BAND, BLACK
2
DBB0001~
21
20Y-62-22850
BAND, GREEN
2
DBB0001~
22
20Y-62-22860
BAND, BROWN
1
DBB0001~
P-Block
23
08034-00519
BAND
DBB0001~
PW1B850
KO- 134
PC200,210(LC)-7
PC200,210(LC)-7
KO- 135
FIG NO. ：K1110-36A0
FIG. K1110-36A0 FLOOR FRAME (PPC CLAMP)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
04434-53211
CLIP
1
DBB0001~
2
01010-81020
BOLT
1
DBB0001~
3
01643-31032
WASHER
1
DBB0001~
4
08034-20536
BAND
2
DBB0001~
See Fig . K1110-19A0
5
08034-20536
BAND
1
DBB0001~
6
04435-51310
CLIP
1
DBB0001~
7
04434-53411
CLIP
1
DBB0001~
8
01010-81020
BOLT
1
DBB0001~
9
01643-31032
WASHER
1
DBB0001~
10
08034-20536
BAND
2
DBB0001~
11
08034-20536
BAND
1
DBB0001~
12
20Y-62-27770
CLAMP
4
DBB0001~
Floor Frame
13
01010-81016
BOLT
8
DBB0001~
14
01643-31032
WASHER
8
DBB0001~
15
08034-00519
BAND
1
DBB0001~
PW1B851
KO- 136
PC200,210(LC)-7
PC200,210(LC)-7
KO- 137
FIG NO. ：K1110-37A0

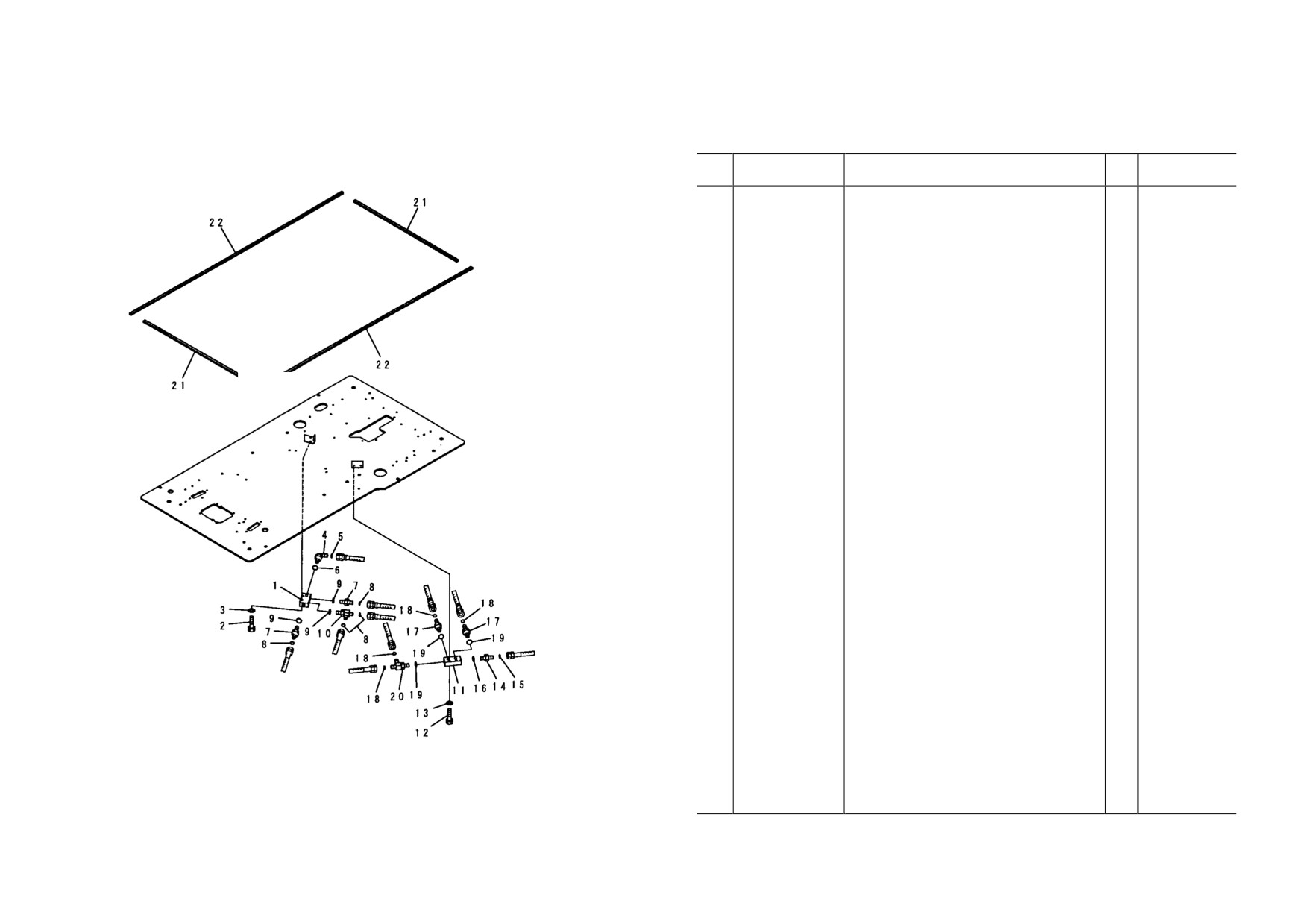

FIG. K1110-37A0 FLOOR FRAME (OPERATOR’S CAB) (P.T BLOCK AND SEAL )
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-15831
BLOCK
1
DBB0001~
2
01010-81045
BOLT
2
DBB0001~
3
01643-31032
WASHER
2
DBB0001~
4
02782-10311
ELBOW
1
DBB4709~
5
02896-11009
O-RING
1
DBB0001~
6
07002-11423
O-RING
1
DBB0001~
7
02781-0021D
UNION
3
DBB4709~
8
02896-11008
O-RING
3
DBB4709~
9
07002-11423
O-RING
3
DBB4709~
10
20Y-62-15831
BLOCK
1
DBB0001~
11
01010-81045
BOLT
2
DBB0001~
12
01643-31032
WASHER
2
DBB0001~
13
02781-0031D
UNION
1
DBB4709~
14
02896-11009
O-RING
1
DBB0001~
Floor Frame
15
07002-11423
O-RING
1
DBB0001~
16
02781-0021D
UNION
3
DBB4709~
17
002896-11008
O-RING
3
DBB4709~
18
07002-11423
O-RING
3
DBB4709~
19
208-53-11810
SEAL
2
DBB4709~
20
208-53-11820
SEAL
2
DBB4709~
00013349
KO- 138
PC200,210(LC)-7
PC200,210(LC)-7
KO-139
FIG NO. ：K1110-37A1
FIG.

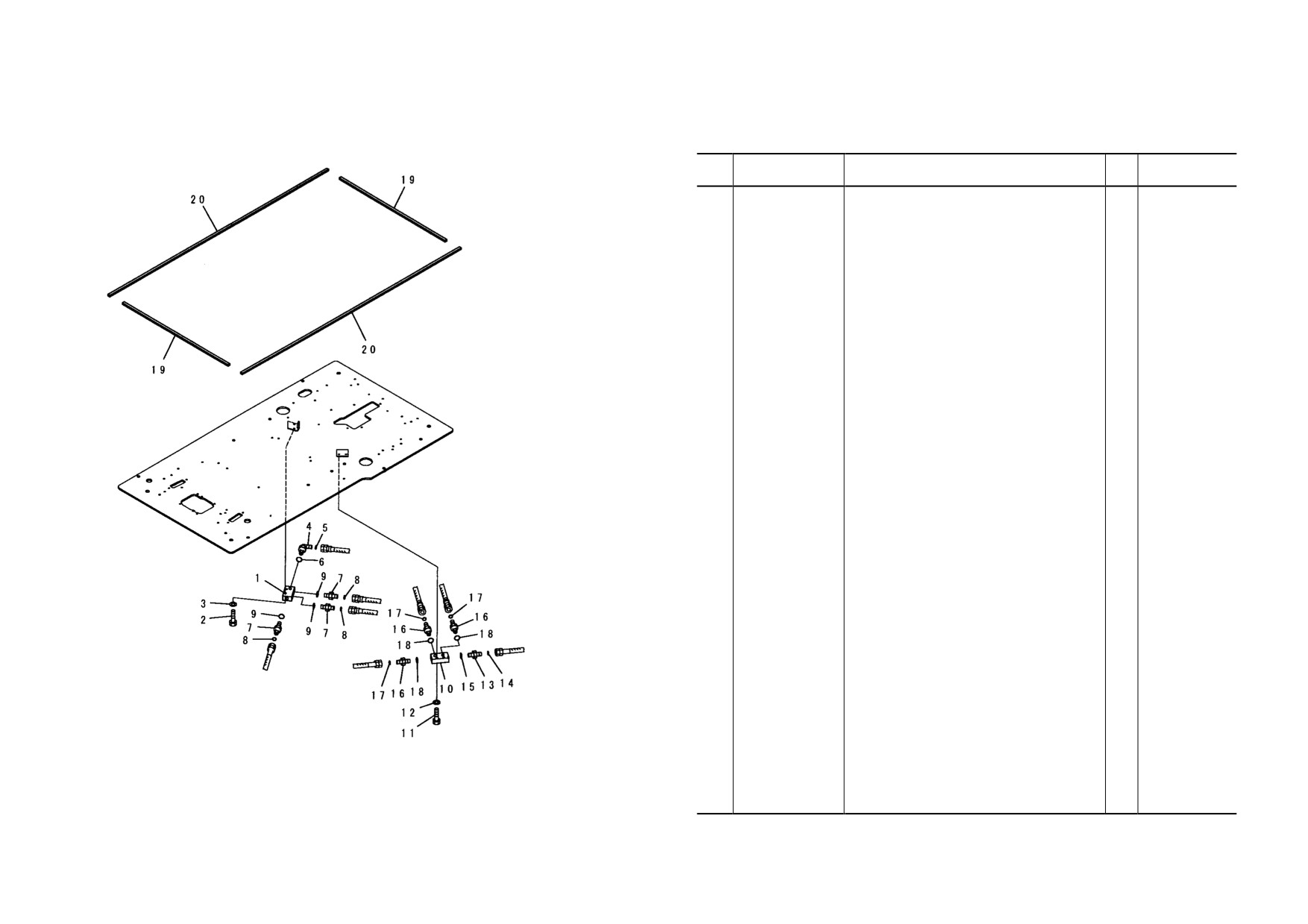

K1110-37A1 FLOOR FRAME (OPERATOR’S CAB) (P.T BLOCK AND SEAL) (SPECIAL PIPING FOR BREAKER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-15831
BLOCK
1
DBB4709~
2
01010-81045
BOLT
2
DBB4709~
3
01643-31032
WASHER
2
DBB4709~
4
02782-10311
ELBOW
1
DBB4709~
5
02896-11009
O-RING
1
DBB4709~
6
07002-11423
O-RING
1
DBB4709~
7
02781-0021D
UNION
2
DBB4709~
8
02896-11008
O-RING
4
DBB4709~
9
07002-11423
O-RING
3
DBB4709~
10
11Y-62-12330
TEE
1
DBB4709~
11
20Y-62-15831
BLOCK
1
DBB4709~
12
01010-81045
BOLT
2
DBB4709~
13
01643-31032
WASHER
2
DBB4709~
14
02781-0031D
UNION
1
DBB4709~
15
02896-11009
O-RING
1
DBB4709~
Floor Frame
16
07002-11423
O-RING
1
DBB4709~
17
02781-0021D
UNION
2
DBB4709~
18
02896-11008
O-RING
4
DBB4709~
19
07002-11423
O-RING
3
DBB4709~
20
11Y-62-12330
TEE
1
DBB4709~
21
208-53-11810
SEAL
2
DBB4709~
22
208-53-11820
SEAL
2
DBB4709~
00018471
KO- 140
PC200, 210(LC)-7
PC200, 210(LC)-7
KO-141
FIG NO. ：K1110-37B5

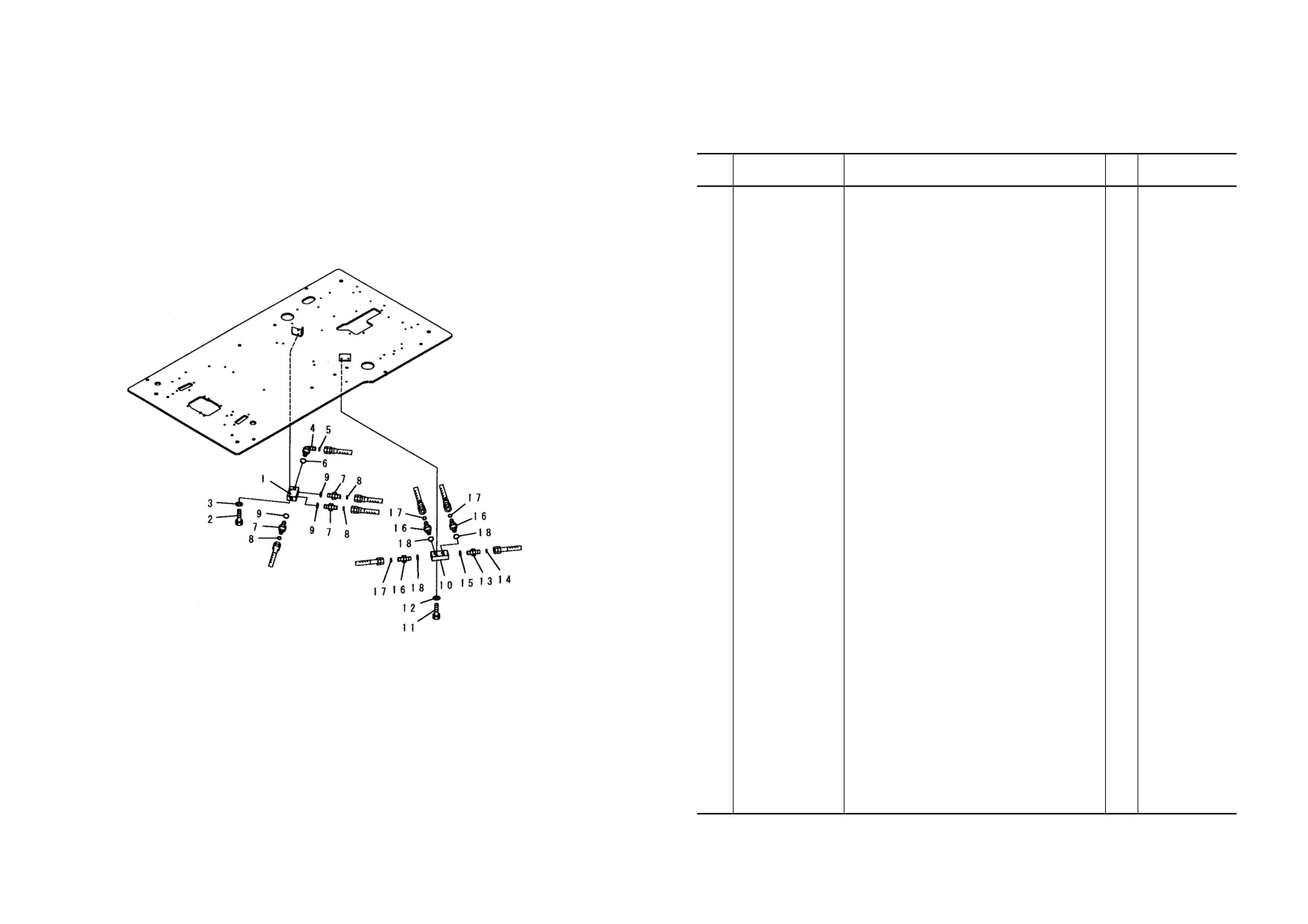

FIG. K1110-37B5 FLOOR FRAME (OPERATOR’S CAB) (P.T BLOCK) (WITHOUT AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-15831
BLOCK
1
DBB4709~
2
01010-81045
BOLT
2
DBB4709~
3
01643-31032
WASHER
2
DBB4709~
4
02782-10311
ELBOW
1
DBB4709~
5
02896-11009
O-RING
1
DBB4709~
6
07002-11423
O-RING
1
DBB4709~
7
02781-0021D
UNION
3
DBB4709~
8
02896-11008
O-RING
3
DBB4709~
9
07002-11423
O-RING
3
DBB4709~
Floor Frame
10
20Y-62-15831
BLOCK
1
DBB4709~
11
01010-81045
BOLT
2
DBB4709~
12
01643-31032
WASHER
2
DBB4709~
13
02781-0031D
UNION
1
DBB4709~
14
02896-11009
O-RING
1
DBB4709~
15
07002-11423
O-RING
1
DBB4709~
16
02781-0021D
UNION
3
DBB4709~
17
02896-11008
O-RING
3
DBB4709~
18
07002-11423
O-RING
3
DBB4709~
00014602
KO- 142
PC200,210(LC)-7
PC200,210(LC)-7
KO- 143
FIG NO. ：K1110-38A0

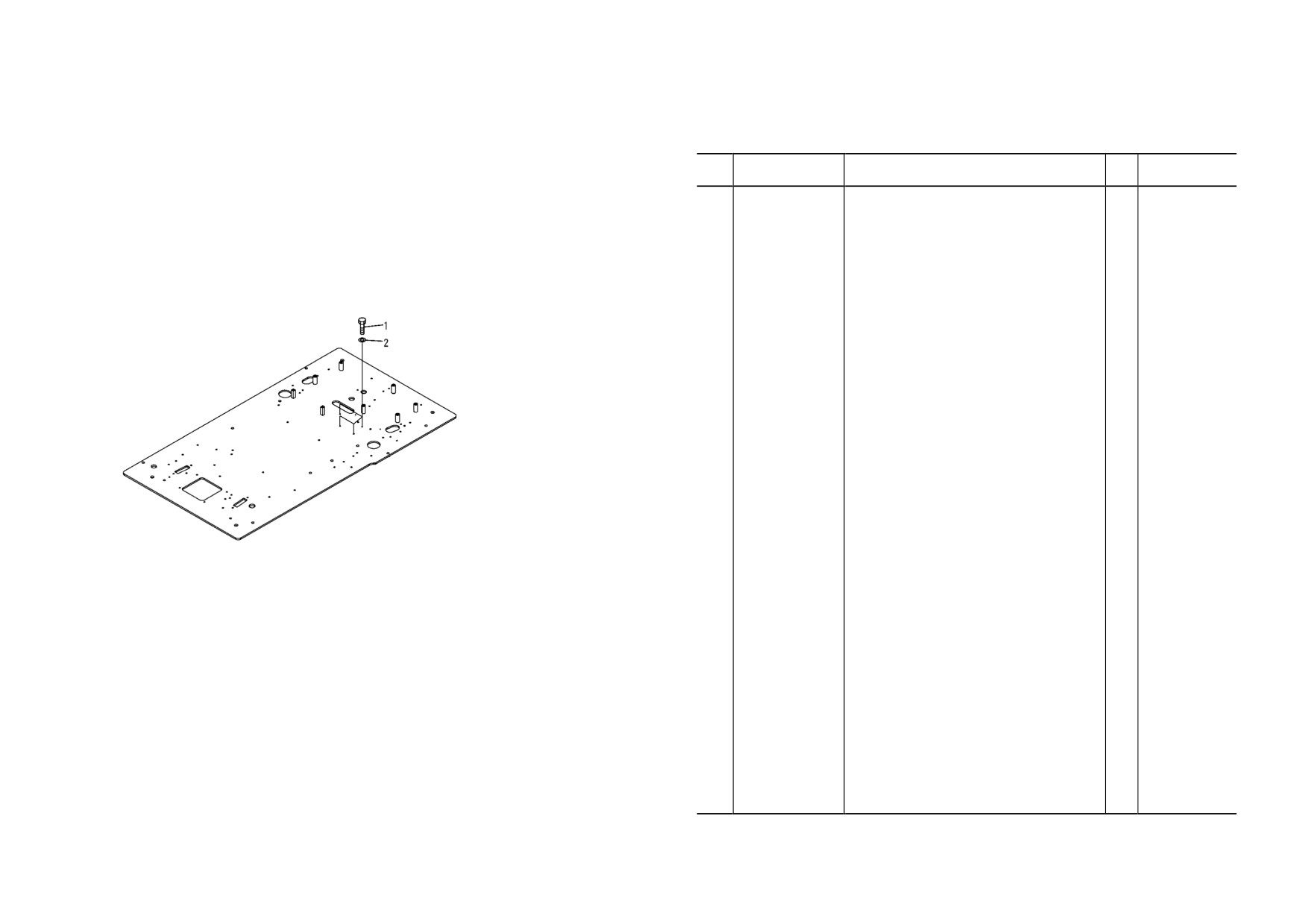

FIG. K1110-38A0 FLOOR FRAME
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
01010-D0816
BOLT
4
DBB0001~
2
01643-70823
WASHER
4
DBB0001~
Floor Frame
PW1C589
KO- 144
PC200,210(LC)-7
PC200,210(LC)-7
KO- 145
FIG NO. ：K1110-39A0

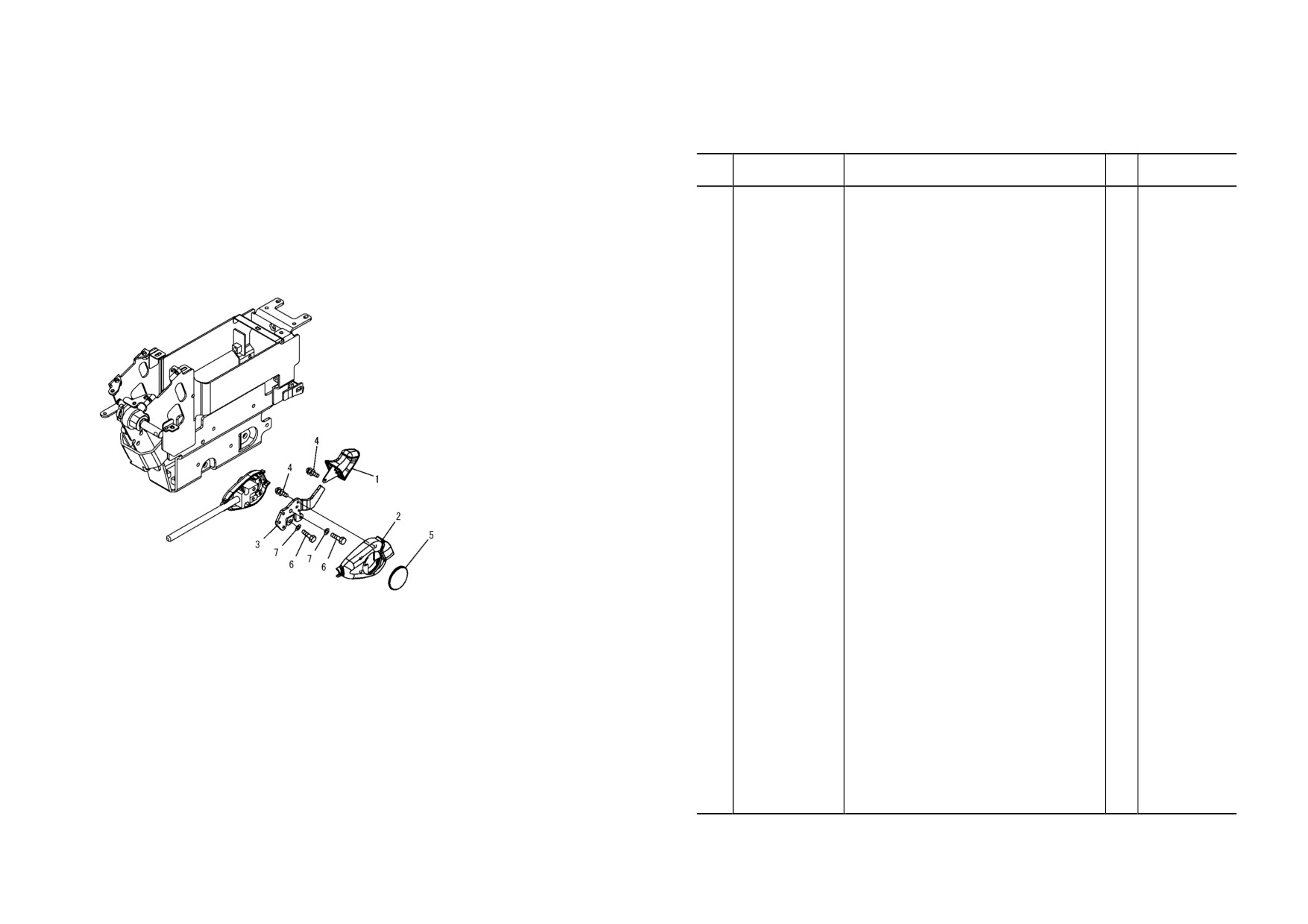

FIG. K1110-39A0 FLOOR FRAME (LEVER KNOB)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-43-31601
COVER ASS’ Y
1
DBB0001~
1
20Y-43-31610
. KNOB
1
DBB0001~
2
20Y-43-31621
. COVER
1
DBB0001~
3
20Y-43-31631
. PLATE
1
DBB4709~
4
01023-60412
. SCREW, SEMS
5
DBB4709~
5
208-53-12280
CAP
1
DBB4709~
6
01010-80616
BOLT
2
DBB0001~
7
01643-30623
WASHER
2
DBB0001~
PW1B853
KO- 146
PC200,210(LC)-7
PC200,210(LC)-7
KO- 147
FIG NO. ：K1120-01A0

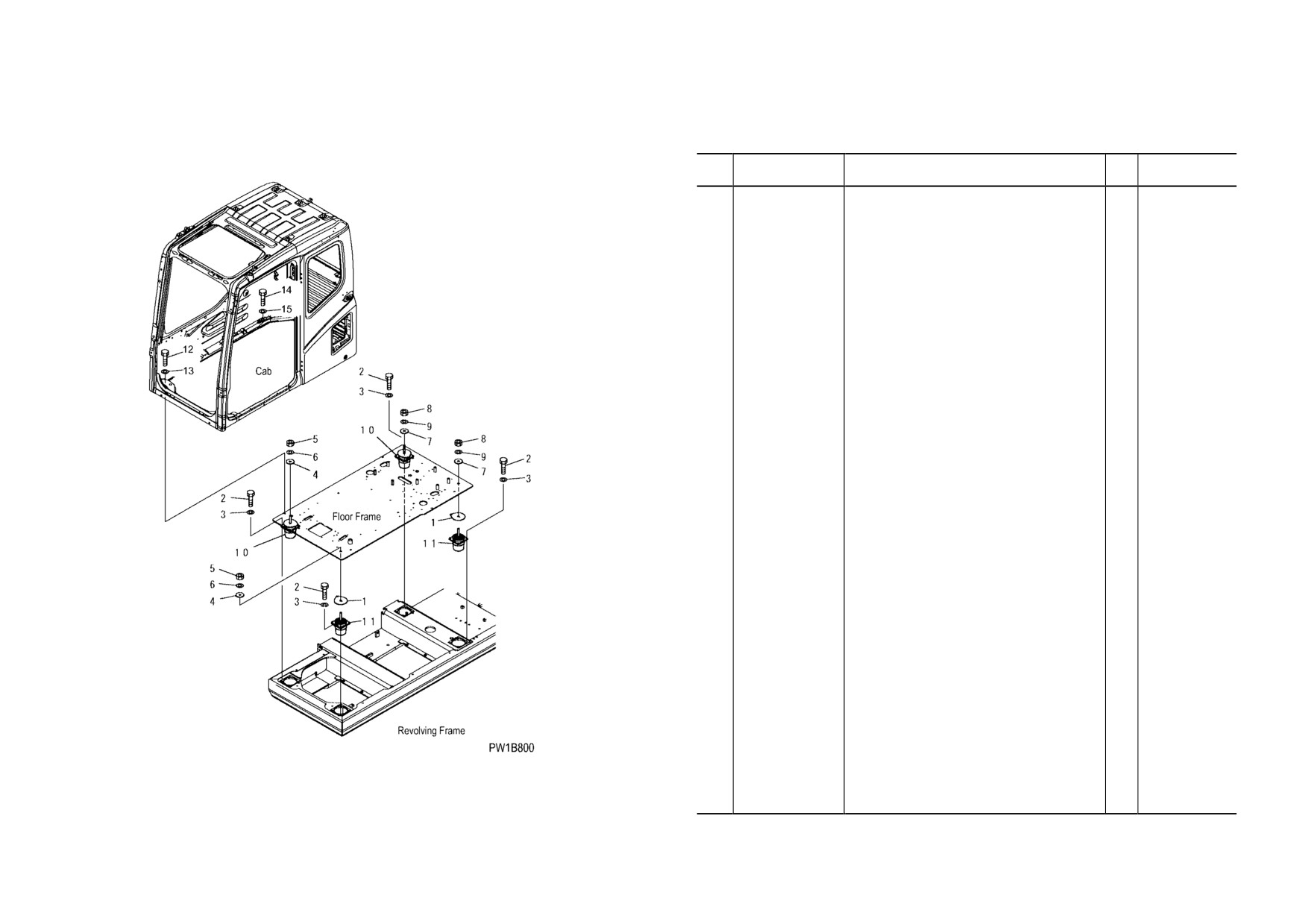

FIG. K1120-01A0 FLOOR MOUNT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
207-54-65130
SPACER
4
DBB0001~
2
01010-81035
BOLT
16
DBB0001~
3
01643-31032
WASHER
16
DBB0001~
4
113-01-21120
WASHER
2
DBB0001~
5
01580-11613
NUT
2
DBB0001~
6
01643-31645
WASHER
2
DBB0001~
7
21T-27-71220
HOLDER
2
DBB0001~
8
01580-11613
NUT
2
DBB0001~
9
01643-31645
WASHER
2
DBB0001~
10
20Y-54-65810
CUSHION
2
DBB0001~
11
20Y-54-65820
CUSHION
2
DBB0001~
12
01010-81240
BOLT
2
DBB0001~
13
01643-31232
WASHER
2
DBB0001~
14
01010-D1285
BOLT
3
DBB0001~
15
01643-71232
WASHER
3
DBB0001~
KO- 150
PC200,210(LC)-7
PC200,210(LC)-7
KO- 151
