BMW AG Motorcycle (F 650 GS). Manual - part 39
63.6
•
Disconnect the plug of the rear light.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
Colours of the wires in the housing for tail light/
brake light
1 green-red
2 blue-black
3 brown
X
Tightening torques:
Rear light cluster to number-plate carrier ....... 4 Nm
Number-plate carrier to rear mudguard .......... 3 Nm
Replacing bulb
e
Caution:
Always switch off the ignition before changing bulbs.
L
Note:
Do not touch inside of reflector and glass of bulbs
with bare hands.
63 12 241

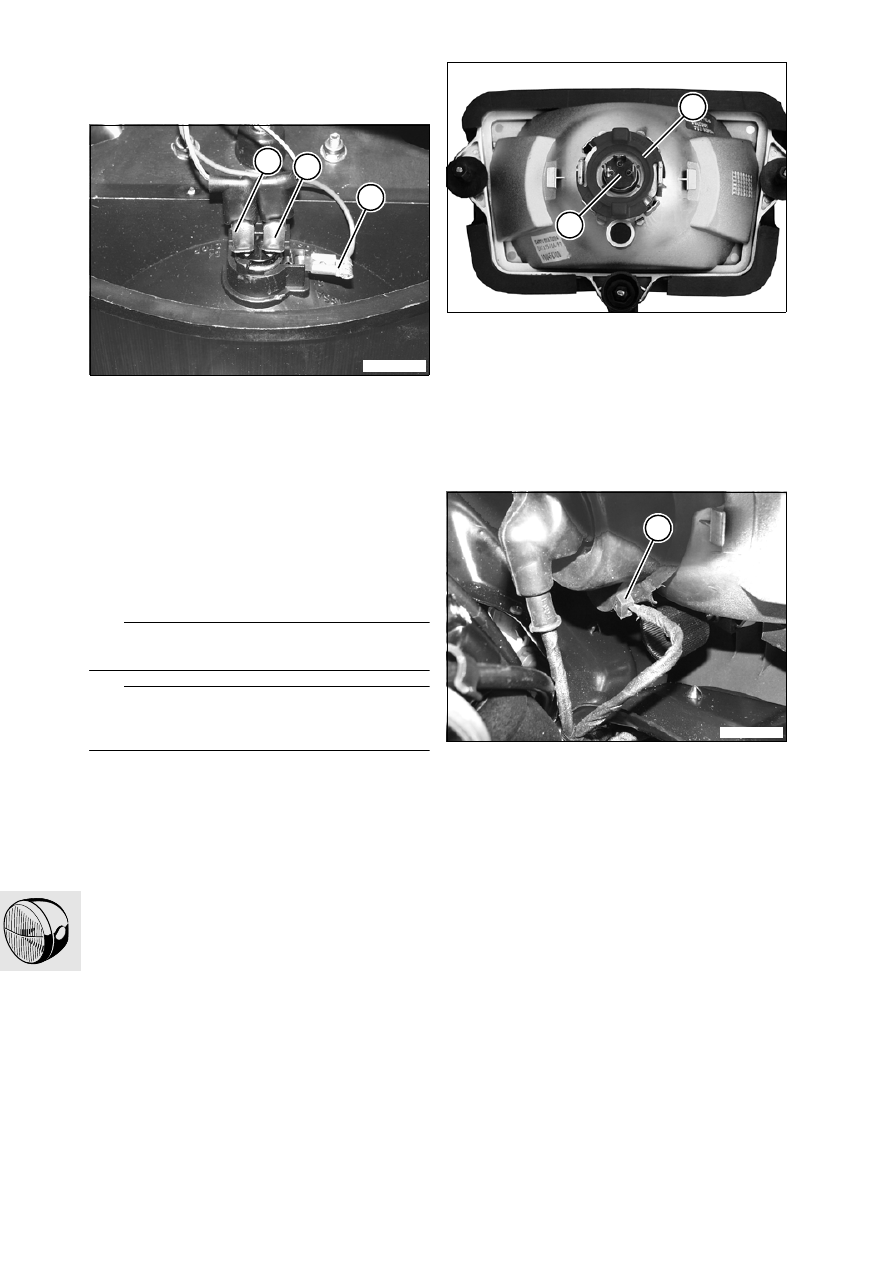

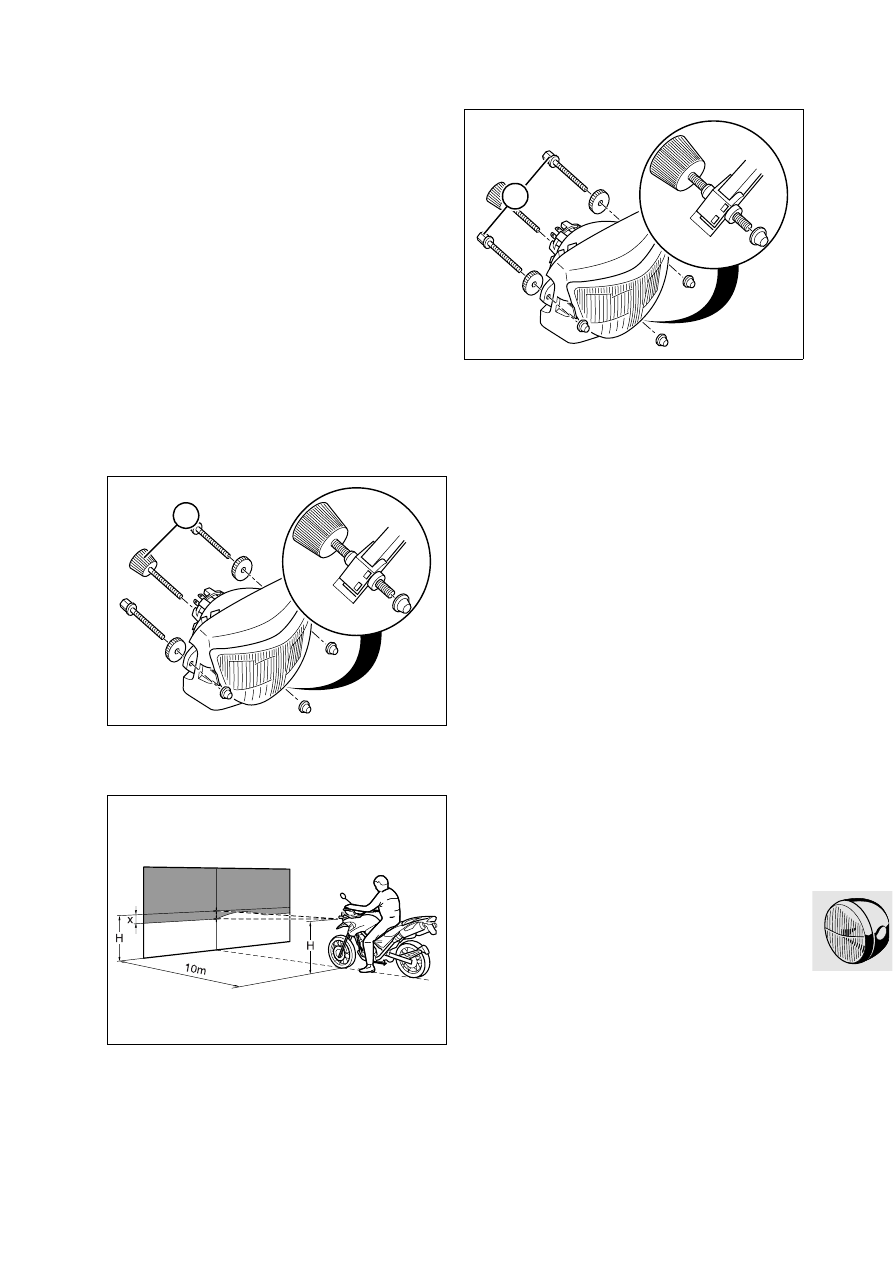

Bulb for low-beam headlight/
high-beam headlight
–
Place motorcycle on its centre stand.
•
Disconnect the multi-pin plug.
•
Pull the rubber boot to the rear.
•
Turn retainer (4) counterclockwise to release and
remove.
•
Remove bulb (5).
•
Installation is the reverse of the removal proce-
dure.
63 99 161
Bulb, parking light
–
Place motorcycle on its centre stand.
•
Pull the socket (6) to the rear and out of the head-
light housing.
•
Press the bulb in and turn it counterclockwise to
release.
•
Installation is the reverse of the removal proce-
dure.
E630060
1
2
3
E630070
4
5
E630080
6
