BMW AG Motorcycle (F 650 GS). Manual - part 38





62.6

62 11 200

Removing and installing

instrument panel

Place motorcycle on its centre stand.

Remove left and right covers.

L

 Note:

Note washers and rubber ring.

Remove the windshield.

Remove the instrument cover.

Remove the fairing upper section.

Disconnect the multi-pin plug from the headlight.

Pull off the rubber boot and pull the socket of the
sidelight to the rear.

Remove the fairing lower section complete with
the headlight.

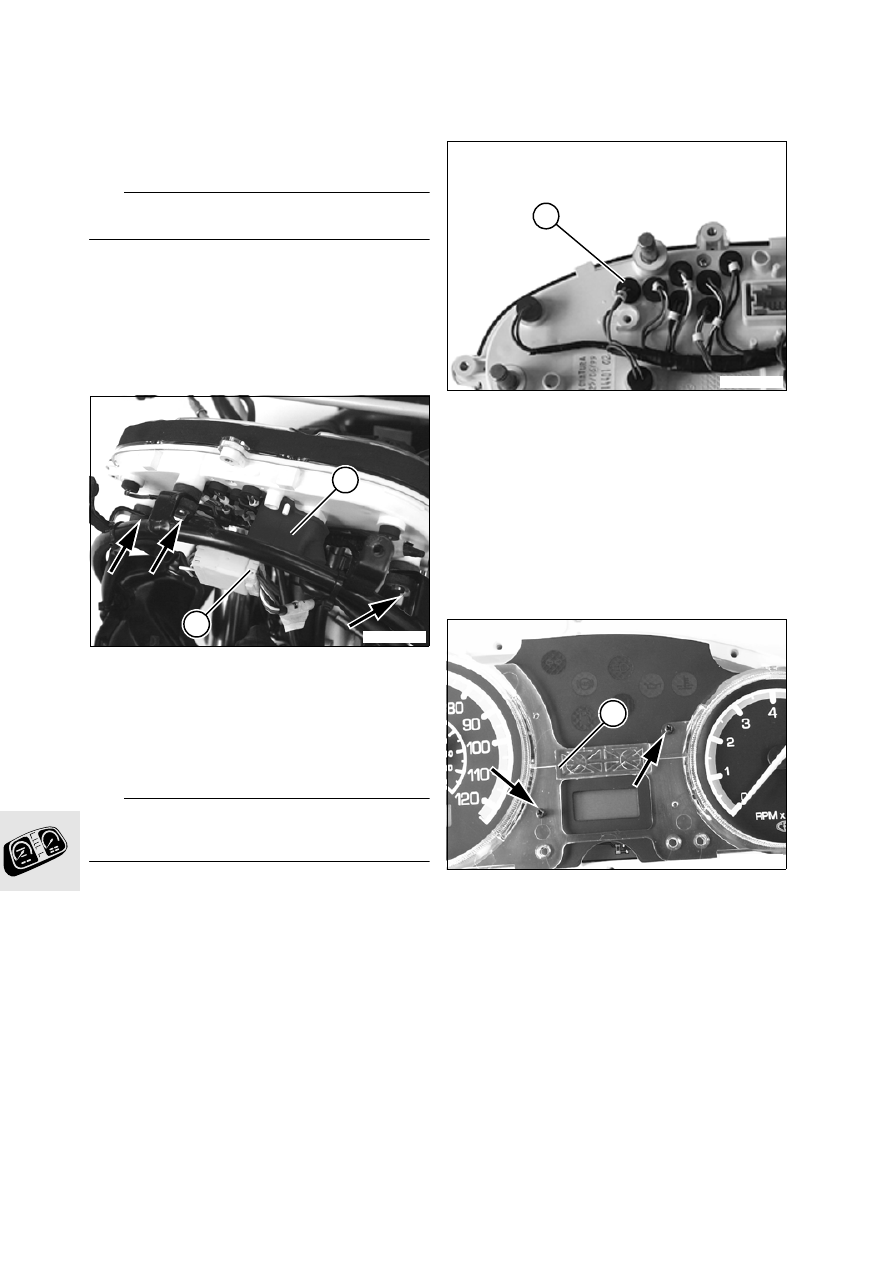

Disconnect the plug for the warning lights (2).

Pull off the rubber boot (1) and disconnect the
plug.

Remove the fuses (arrows) and remove the in-
strument cluster.

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.

d

 Warning:

After installing the windscreen, check and if neces-
sary adjust the headlight setting.

Replacing telltale/warning lights

Remove instrument panel.

Remove rubber grommet (3).

Pull the indicator light out of the socket.

Installation is the reverse of the removal proce-
dure.

62 11 630

Disassembling and

assembling instrument cluster

Remove instrument panel.

Remove 3 securing screws from the transparent
instrument cover and remove the cover.

Remove the bezel.

Remove the securing screws (arrows) and re-
move the cover (4).

E620010

2

1

E620040

3

E620020

4

62.7

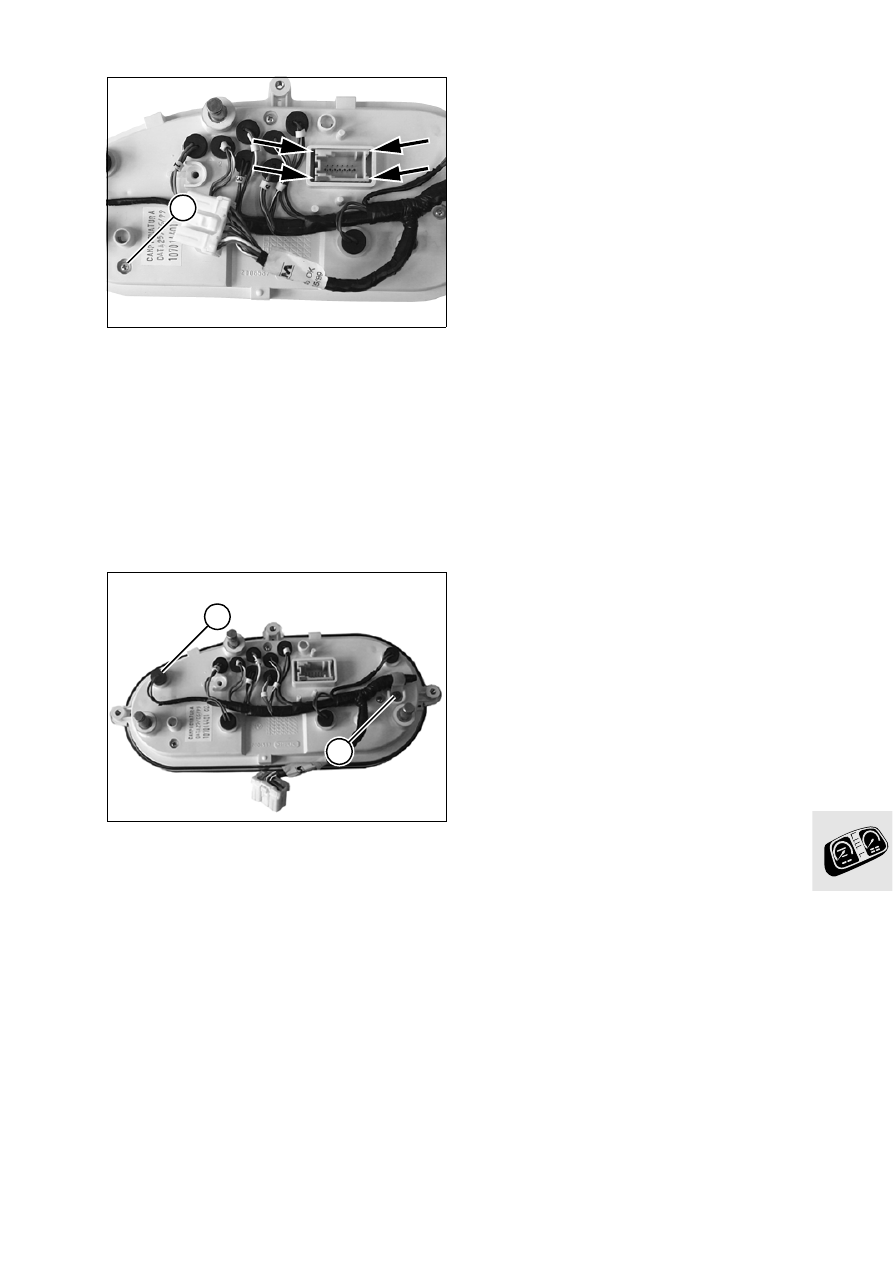

Remove the 3 securing screws (1) from the rear
of the housing.

Press back the 4 snap locks (arrows) on the plug
housing and press out the instrument panel.

Installation is the reverse of the removal proce-
dure.

Removing and installing wiring
harness

Remove instrument panel.

a

......................................................... See above

Pull out the warning lights (2) with the rubber
grommet.

Disconnect the wiring harness (3).

Installation is the reverse of the removal proce-
dure.

E620030

1

E620051

2

3

62.8

63.1

Contents

Page

63

Technical Data

............................................................................................................................... 3

Removing and installing headlight

.....................................................................................5

Removing and installing rear light

......................................................................................5

Replacing bulb

...............................................................................................................................6

Bulb for low-beam headlight/high-beam headlight

 ..........................................................6

Bulb, parking light

 ...........................................................................................................................6

Flashing turn indicator

 ..................................................................................................................7

Rear lights

 ..........................................................................................................................................7

Checking and adjusting headlight beam angle

...........................................................7

Vertical adjustment

 .........................................................................................................................7

Lateral adjustment

 ..........................................................................................................................7

63 Lights

63.2

63.3

63

Technical Data

F 650

Lights

Headlight

Halogen headlight and manual beam throw ad-
justment

Bulbs

High beam/low beam

H4 halogen,
12V 60/55W, asymmetric

Parking light

12V 5W
Type T8/4

Brake light/rear light

12V 21/5W
Type P25-2

Flashing turn indicator

12V 10W
Type P25-1

63.4

63.5

63 12 090

Removing and installing

headlight

Place motorcycle on its centre stand.

Remove left and right covers.

L

 Note:

Note washers and rubber ring.

Remove the windshield.

Remove the fasteners securing the cockpit fair-
ing.

Disconnect the multi-pin plug.

Pull the rubber boot to the rear.

Pull the socket of the sidelight out of the head-
light housing.

Remove the headlight complete with the trim
panel.

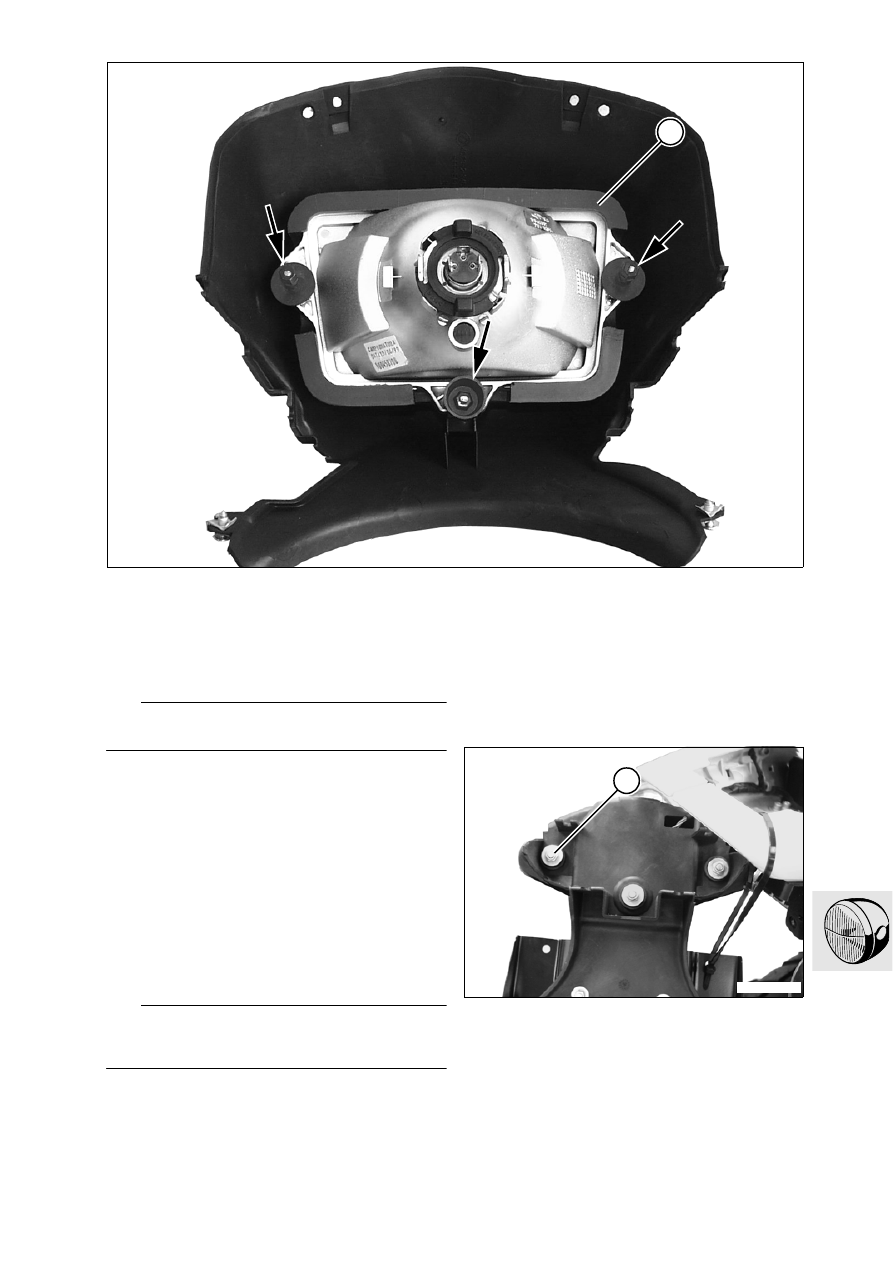

Press the adjustment screws (arrows) to release
the headlight from the trim panel.

If necessary, remove rubber ring (1).

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.

d

 Warning:

After installing the windscreen, check and if neces-
sary adjust the headlight setting.

63 21 380

Removing and installing

rear light

Remove the lid of the stowage compartment.

Remove the number plate holder complete with
the rear light from the frame.

Secure the number plate holder to the rear frame
with a cable tie or similar.

Remove the screws securing rear light (2).

E630020

1

E630050

2
