Motorcycle BMW R1150RT. Manual - part 89

63.6

63 10 004

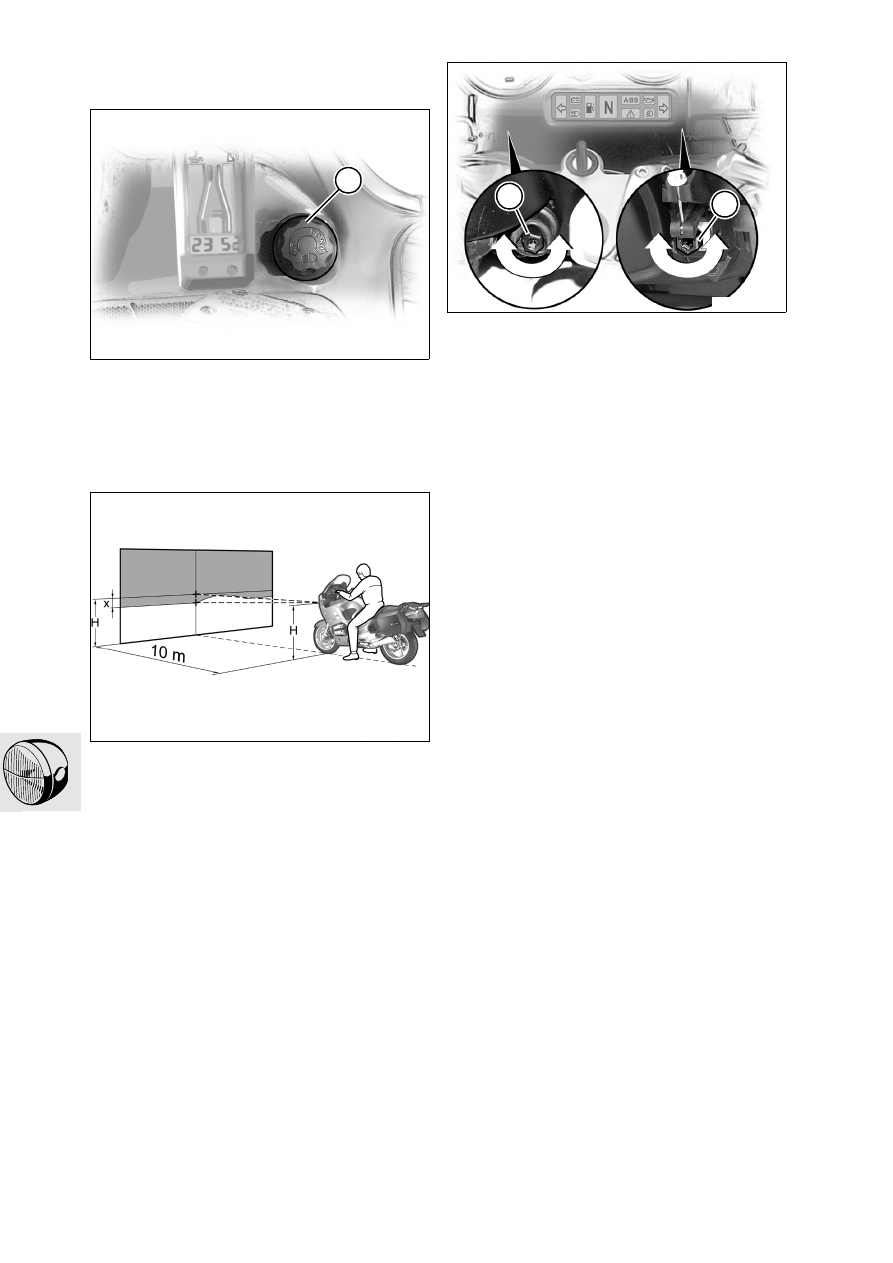

Adjusting headlight

•

Motorcycle on level surface.

•

Rider’s weight on motorcycle
(approx. 85 kg/187 lbs).

•

Turn knob (1) counter-clockwise as far as it
will go.

•

Check headlight beam throw.

Setting for headlight beam angle adjuster
X= ....-10 cm (-3.9370 in) for 10 m (32.8 ft) distance
H= ............................. Height to centre of headlamp

•

Turn screw (2) to adjust beam throw, if neces-
sary.

Direction of rotation,
counter-clockwise..............................further/higher
Direction of rotation,
clockwise .........................................shorter/deeper

•

Adjust left/right angle by turning screw (3).
