62.5

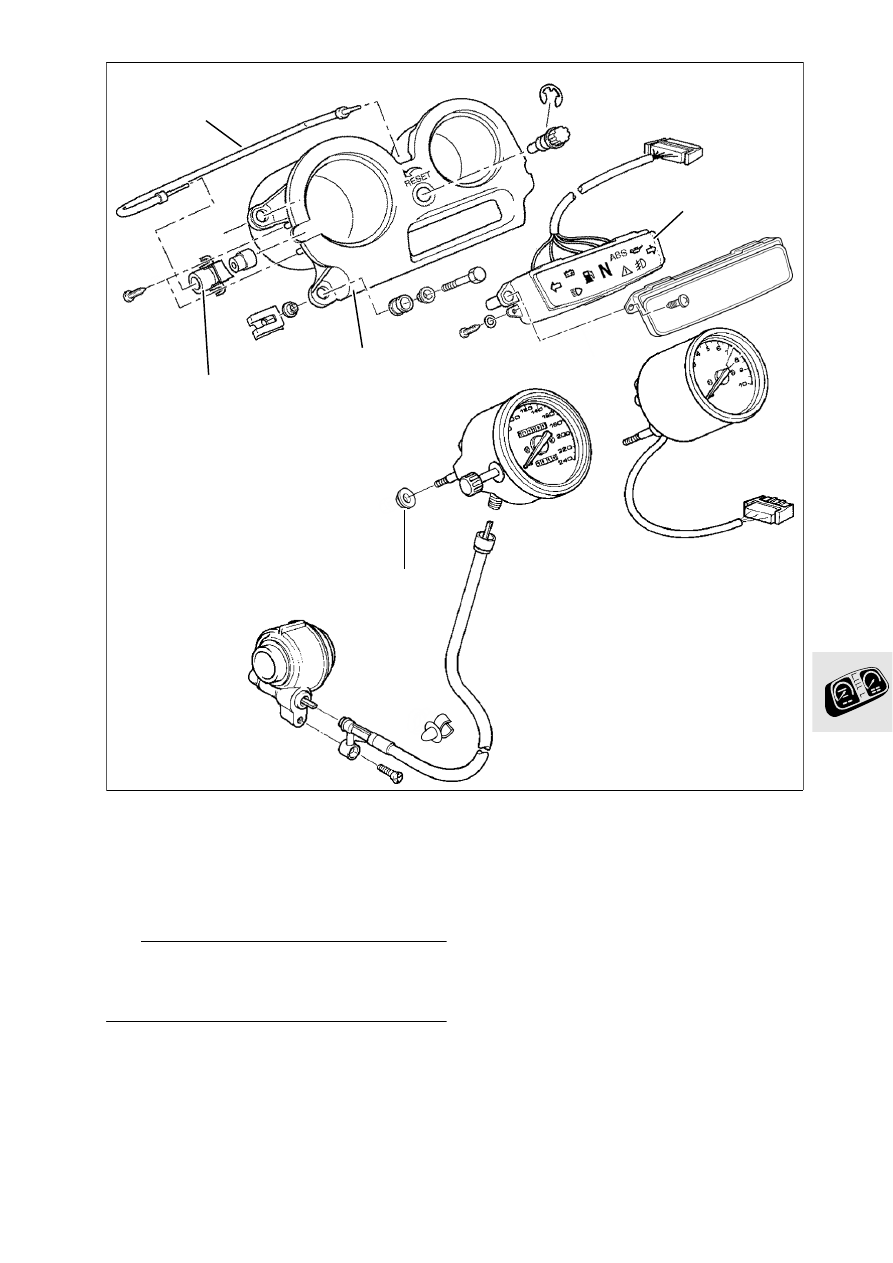

62 11 200

Removing and installing

instrument cluster

•

Remove the seat.

•

Raise the windscreen.

•

Remove left side section of fairing (

a

46.8).

e

 Attention:

Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.

•

Remove fasteners of cover for windscreen ad-
juster push adjuster up.

•

Remove inner trim of fairing.

•

[Radio] Remove left loudspeaker box.

•

[Radio] Slacken right loudspeaker box.

•

Disconnect speedometer shaft.

•

Release instrument cluster (1) and pull it up until
it is clear of the mount.

•

Disconnect plugs.

•

Installation is the reverse of the removal proce-
dure.

1

2

3

R22620010

4

5

63.1

Contents

Page

63

Technical Data

............................................................................................................................... 3

Removing and installing headlight

.....................................................................................5

Adjusting headlight

........................................................................................................................6

Removing and installing Bowden cable for headlight beam
throw adjustment

..........................................................................................................................7

Removing Bowden cable

.............................................................................................................7

Installing and adjusting Bowden cable

..................................................................................7

Removing and installing rear light cluster

......................................................................7

63 Lights

63.3

63

Technical Data 63 Lights

R 1150 RT

Headlamp type

Halogen tandem headlamp with two fog lights

Bulbs

Low (dipped) beam headlight

H7 halogen bulb, 12V 55W

High (main) beam headlamp

H3 halogen bulb, 12V 55W

Fog lamps

H3 halogen bulb, 12V 55W

Parking light

W 12V 5W

Rear plate/licence plate lamp

R 12V 10W

Brake lamp

12V 21W

Standard designation

P 25-1

Flashing turn indicator

12V 21W

Standard designation

P 25-1

63.5

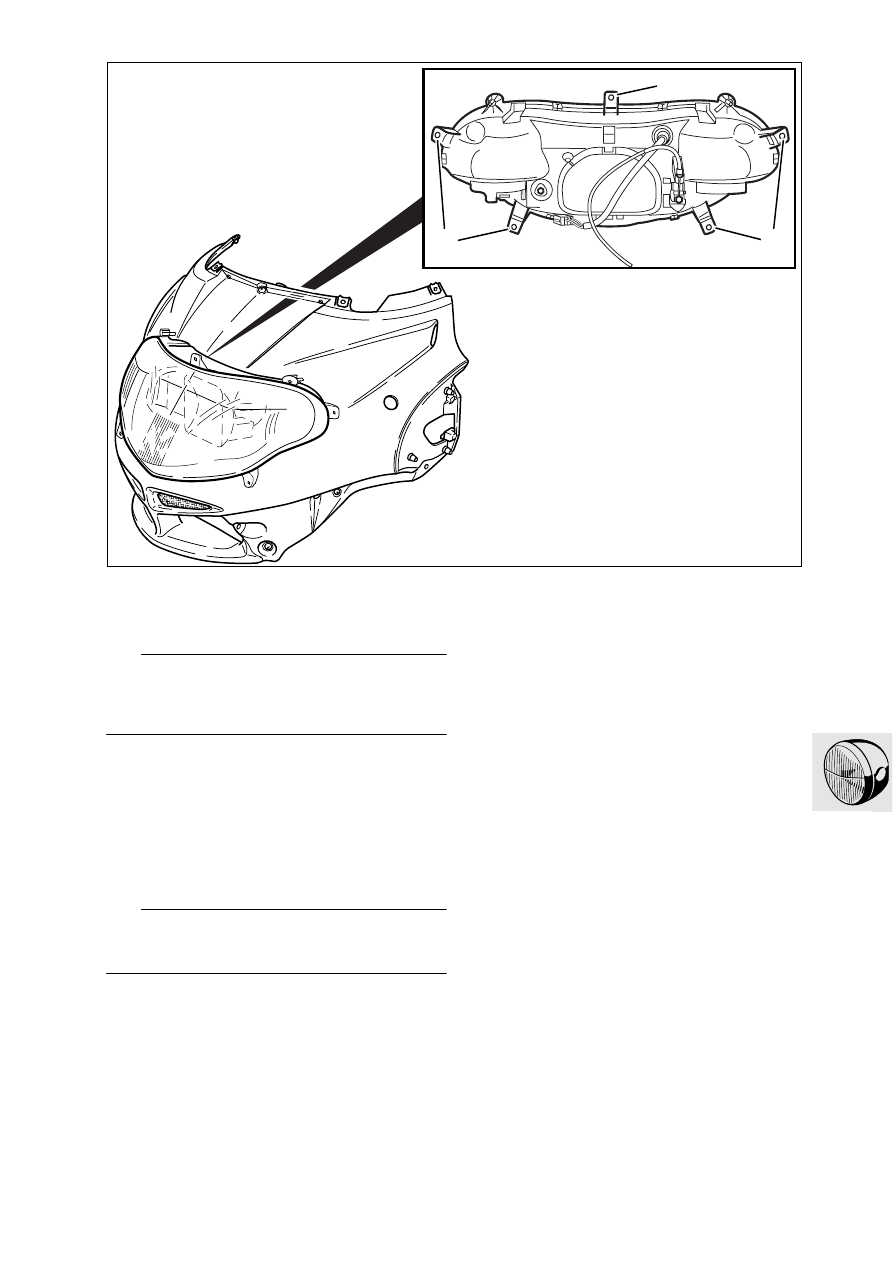

63 12 090

Removing and installing

headlight

e

 Attention:

Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.

•

Remove the seat.

•

Remove side panels (

a

46.8).

•

Remove upper section of fairing (

a

46.10).

•

Slacken securing screws (1) of headlight.

•

Remove headlight.

•

If necessary, check Bowden cable for damage
and connect it to the new headlight.

•

Installation is the reverse of the removal proce-
dure.

e

 Attention:

Do not touch reflectors or bulbs with your bare
hands.

•

Check headlight beam throw, adjust if necessary
(

a

63.6).

R22630010

1

1

1
