Removing and installing

ignition switch/steering lock

•

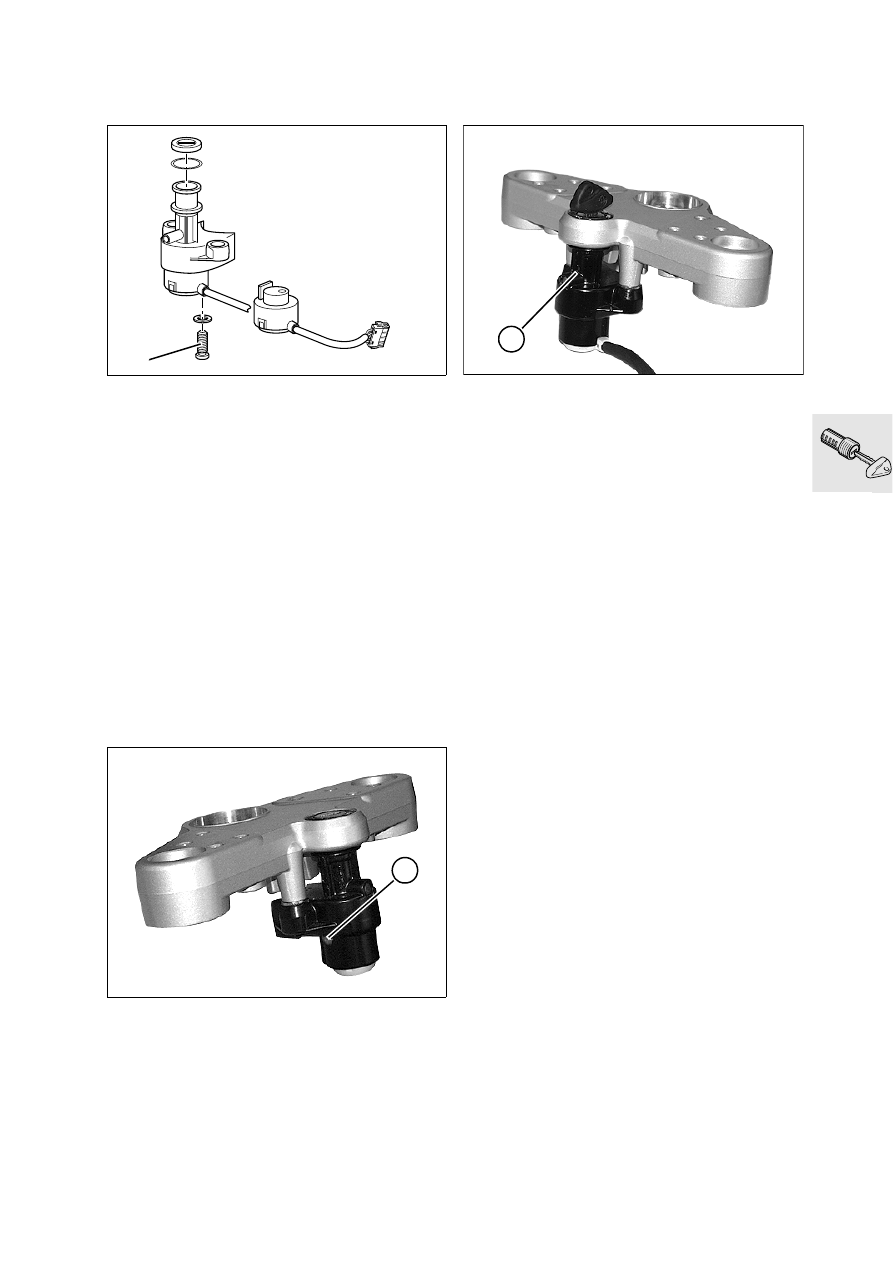

Remove fork bridge.

•

With a 4 mm (0.1575 in) dia. drill bit, drill
approx. 5 mm (0.1969 in) into non-removable
screw (1).

•

Use an 8 mm (0.3149 in) dia. drill bit to drill away
the screw head.

•

Pull out ignition and steering lock.

•

Unscrew and remove remainder of screw with
stud bolt extractor.

•

Install steering lock with socket wrench insert for
non-removable screws, BMW No. 51 0 531.

X

Tightening torque:

Non-removable screws
(microencapsulated) ..................................... 20 Nm

61 31 308

Removing and installing igni-

tion/light switch

•

Remove screw (1).

•

Remove the ignition/light switch.

•

Installation is the reverse of the removal proce-
dure.

51 25

Removing and installing lock bar-

rel

•

Key in ON position/press in keeper (2) with a stiff
wire or similar.

•

Pull out lock barrel with key.

•

Lubricate the new lock barrel with
Shell Retinax A.

•

Insert the lock barrel with the key in the ON posi-
tion.

•

Press lock barrel down until keeper engages.

Drilling out lock barrel

•

Use a 4-5 mm (0.1574-0.1968 in) dia. drill bit to
drill the full length of the lock barrel.

•

Continue to increase the diameter of the drill bit
until the lock barrel can be extracted.

R21510030

1

R22510010

1

R22510020

2

51.4

51 25 020

Removing and installing lock

barrel for fuel tank filler cap

L

 Note:

Make sure that screws do not fall into fuel tank: cov-
er fuel tank filler neck with cloth.

•

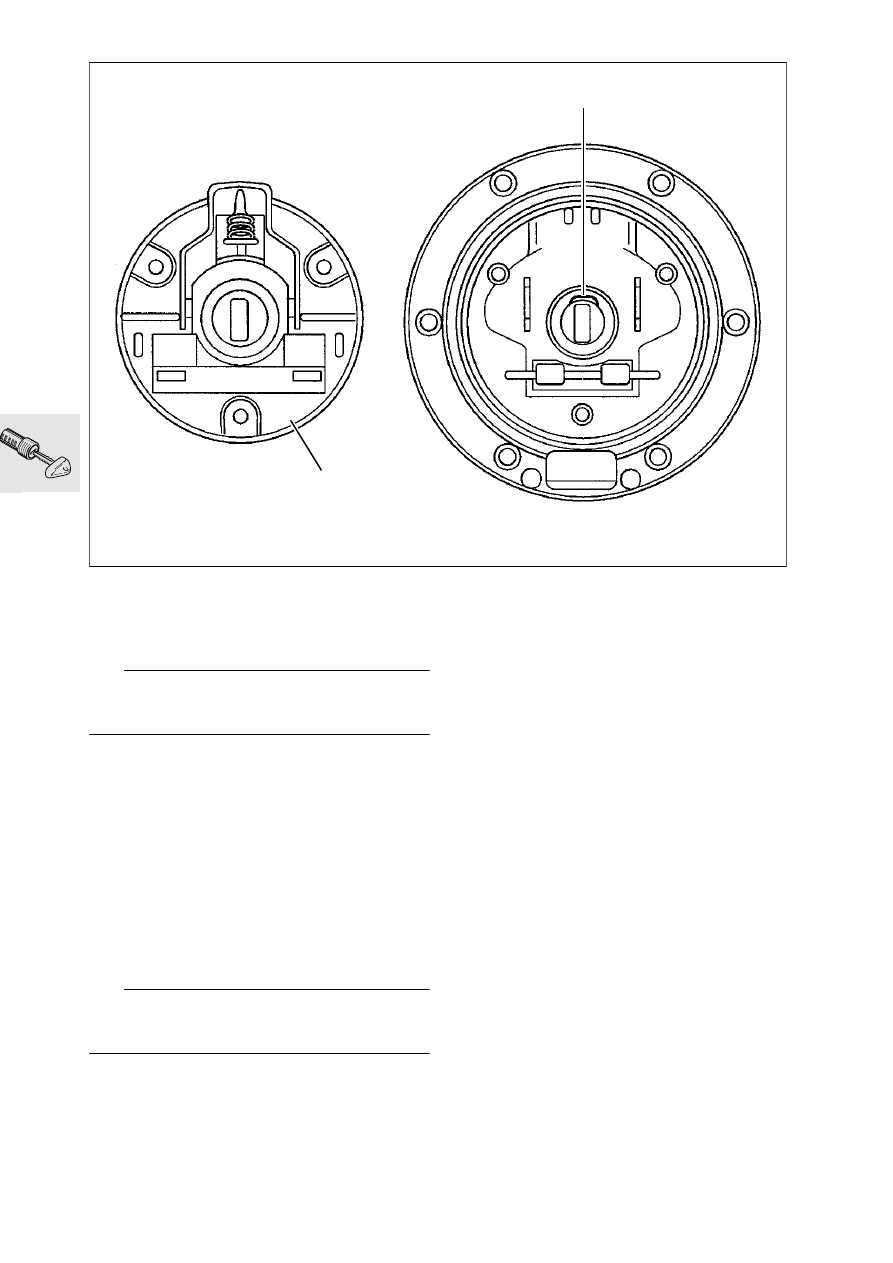

Open cap and remove lower part of cap (1).

•

Insert key in lock barrel and press down on
retainer (2).

•

Pull out lock barrel with key.

•

Lubricate the new lock barrel with
Shell Retinax A.

•

Install lock barrel with key (at a right angle to di-
rection of travel).

•

Installation is the reverse of the removal proce-
dure.

Drilling out lock barrel

e

 Attention:

Note drilling depth. Make sure that metal chips do
not drop into the fuel tank.

•

Use a 4-5 mm (0.1574-0.1968 in) dia. drill bit to
drill the full length of the lock barrel.

•

Continue to increase the diameter of the drill bit
until the lock barrel can be extracted.

1

2

GS510040

51.5

51 25 050

Removing and installing seat

lock

•

Remove the rear seat.

•

Remove the seat lock.

51 25 060

Removing and installing seat

lock

•

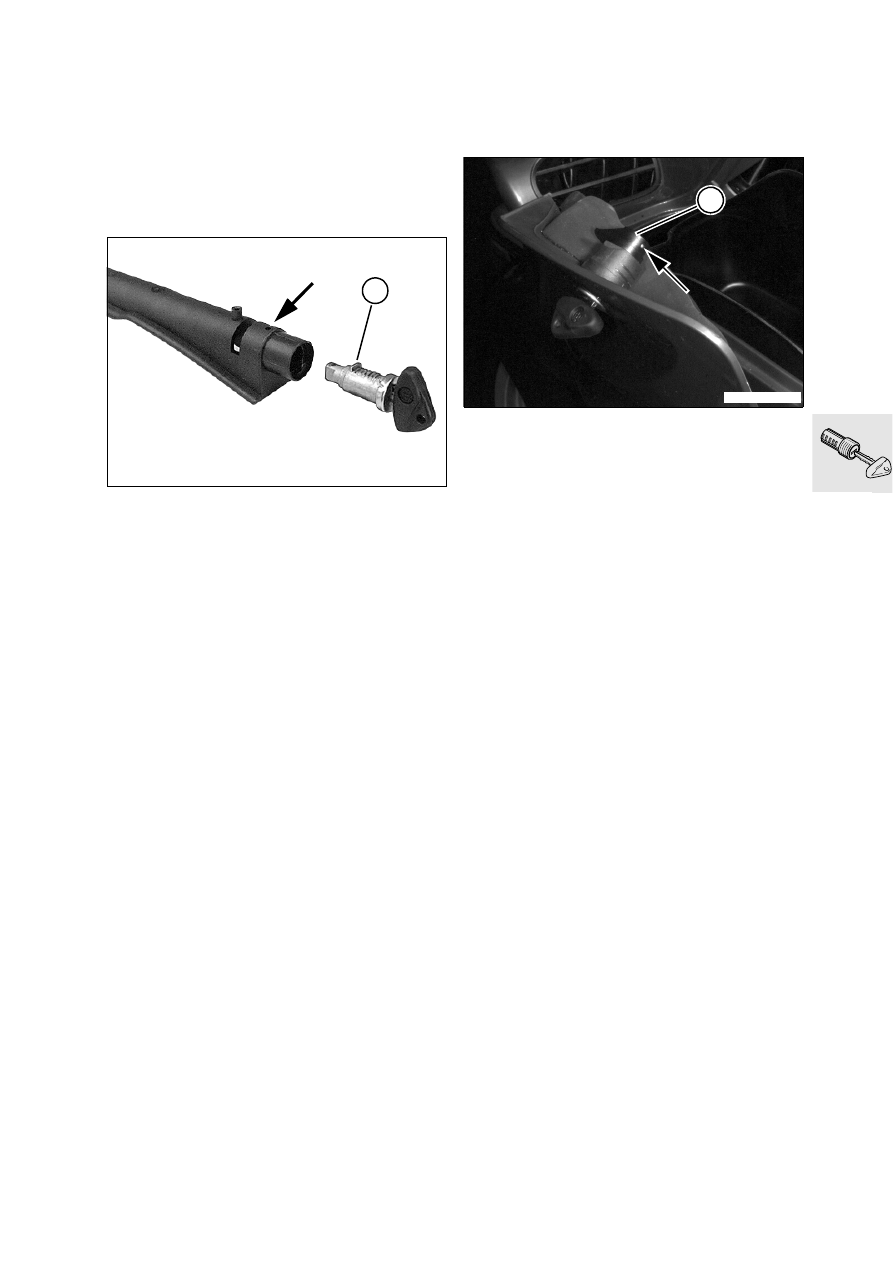

Insert key into lock barrel.

•

Press keeper (1) of the lock barrel into the hous-
ing through the opening (arrow) and use the key
to pull out the barrel.

•

Lubricate the new lock barrel with
Shell Retinax A.

•

Installation is the reverse of the removal proce-
dure.

51 25

Removing and installing cover of

radio compartment/stowage compart-
ment

•

Remove retaining pin (arrow) with a length of wire
or similar tool.

•

Remove latch (1).

•

Pull out lock barrel with key.

•

Lubricate the new lock barrel with
Shell Retinax A.

•

Press in the keeper in the barrel and insert the
lock barrel.

•

Place latch (1) in position and press in the retain-
ing pin (arrow).
