Motorcycle BMW R1150RT. Manual - part 81

46.23

X

Tightening torque:

Pivot mount to engine, right, M 12 screw
(clean thread + Loctite 2701)........................ 72 Nm

Pivot mount to engine, left
M 12 screw
(clean thread + Loctite 2701)........................ 72 Nm
M 8 screw
(clean thread + Loctite 2701).......................  21 Nm

Pivot mount of main (centre) stand (stud bolt)
(clean thread + Loctite 243).......................... 21 Nm

Pivot mount of main stand,
(cheesehead screw) ..................................... 21 Nm

Side stand to pivot mount
(clean thread + Loctite 2701)........................ 58 Nm

46 53 000

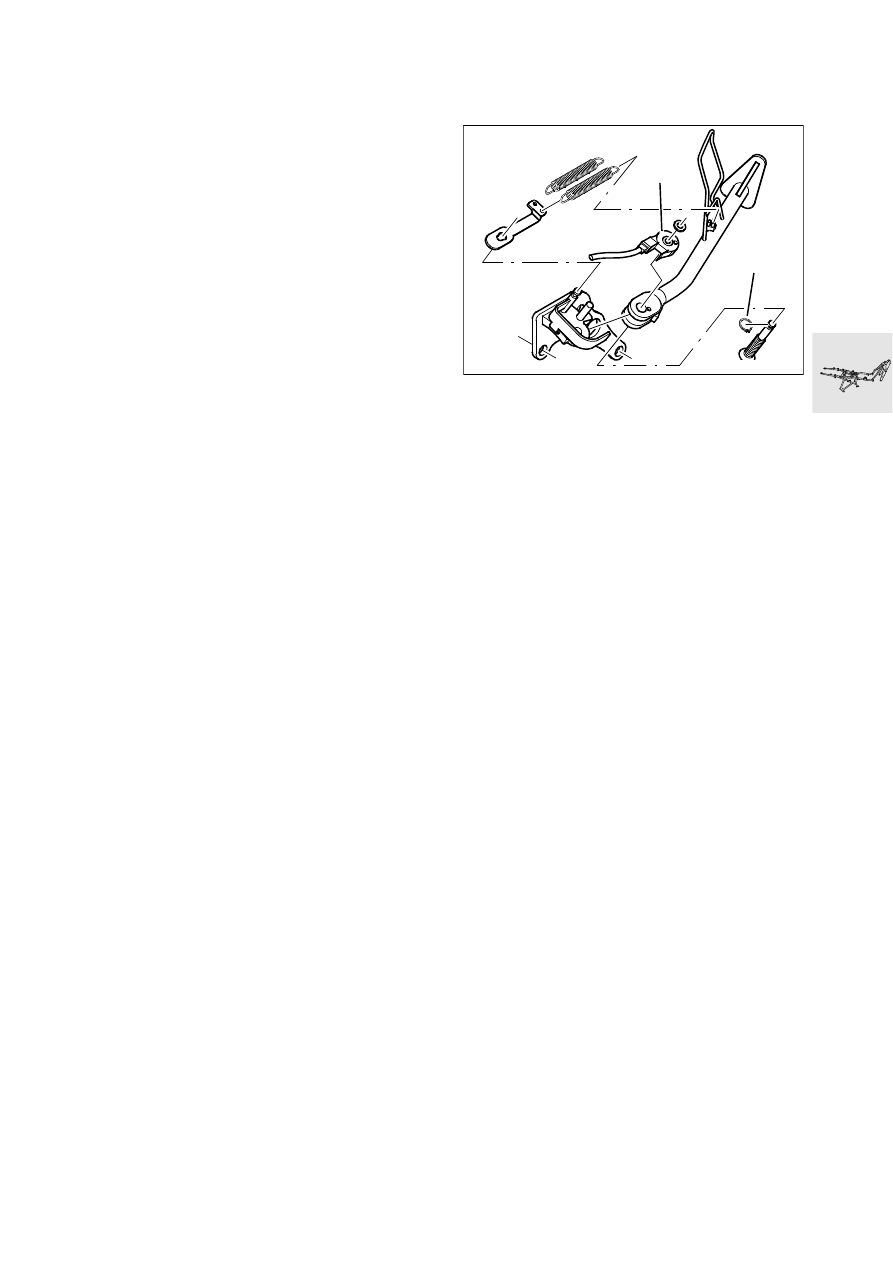

Removing and installing side

stand

•

Disengage tension springs.

•

Remove retaining ring (1).

•

Remove side stand switch (2).

•

Remove side stand.

•

Installation is the reverse of the removal proce-
dure.

Lubricant:.................. e.g. Staburags NBU 30 PTM

X

Tightening torque:

Side stand to pivot mount
(clean thread + Loctite 2701)........................ 58 Nm

R22460100

1

2

46.24

46 51 040

Measuring wheel track off-

set

–

Wheel bearings, zero play.

–

Rims checked for runout.

•

Place the motorcycle on its main (centre) stand
on a flat, level surface.

•

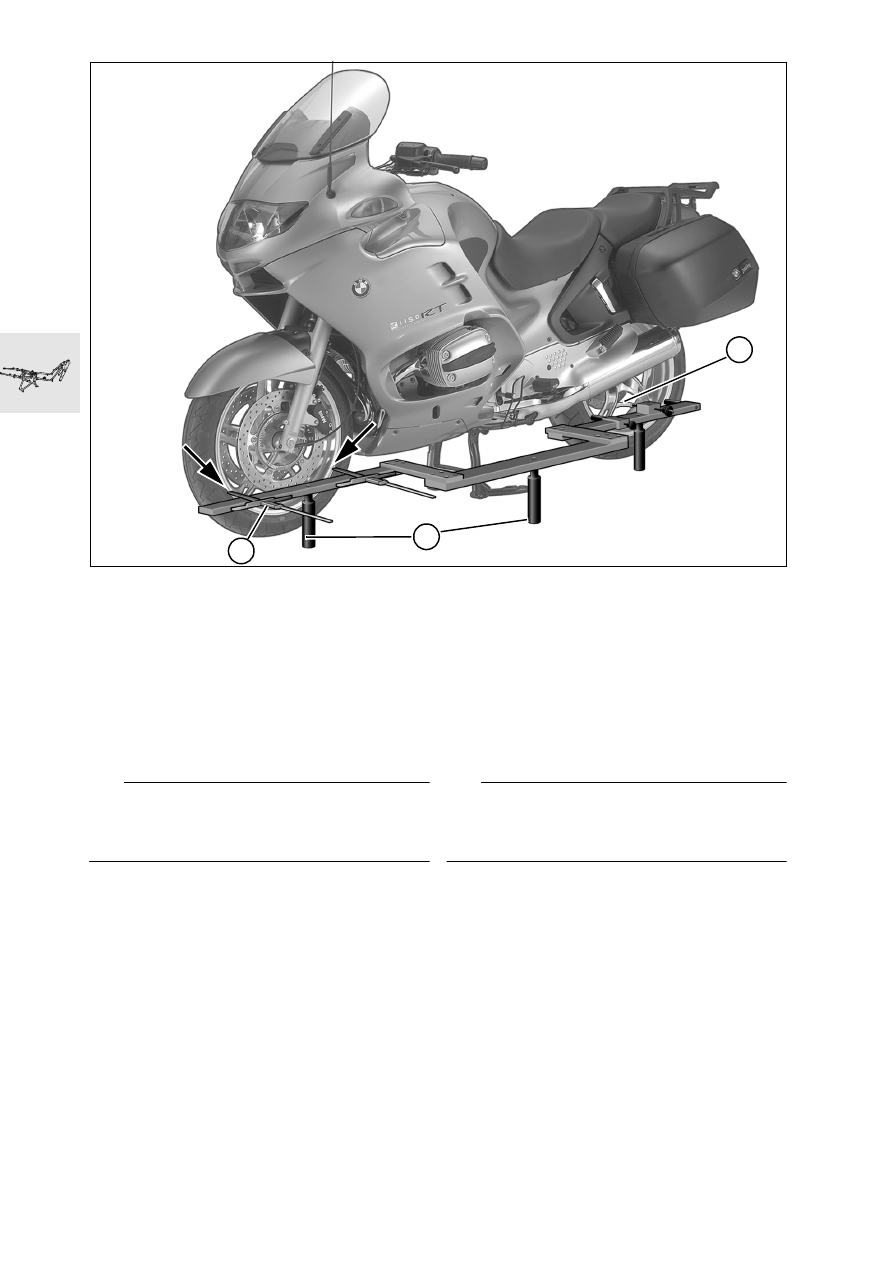

Place the track offset gauge,
BMW No. 36 3 920, against the left or right side
of the motorcycle.

L

 Note:

In order to use the track alignment gauge on either
the left or right side, simply screw the supports in on
the other side.

•

Adjust supports (1) so that the track alignment
gauge, BMW No. 36 3 920, is installed as high
as possible and align it horizontally.

•

Position the measuring stops (arrows) so that
they touch the wheel rim and not the tyre.

•

Attach hook (2) to wheel spoke to secure the
gauge firmly to the wheel.

•

Align front wheel parallel with the gauge.

•

Measure gap with depth gauge (3) from outer
edge of gauge up to rim and note reading in
measurement record.

•

Measure rim widths front and rear with caliper
gauge and note reading in measurement record.

•

Calculate wheel track offset “S”.

Wheel track offset “S” is the distance to left or right
of the longitudinal axis of the rear wheel from that of
the front wheel.

Track offset (S):

...........................+ 3.5 mm (+ 0.1378 in) (= to right)

Permissible wheel track offset (S):

.............................................. ± 9 mm (± 0.3543 in)

based on + 3.5 mm (+ 0.1378 in)

L

 Note:

Key to measurement result:
Negative sign = wheel track offset to left
Positive sign = wheel track offset to right

R22460120

1

2

3

46.25

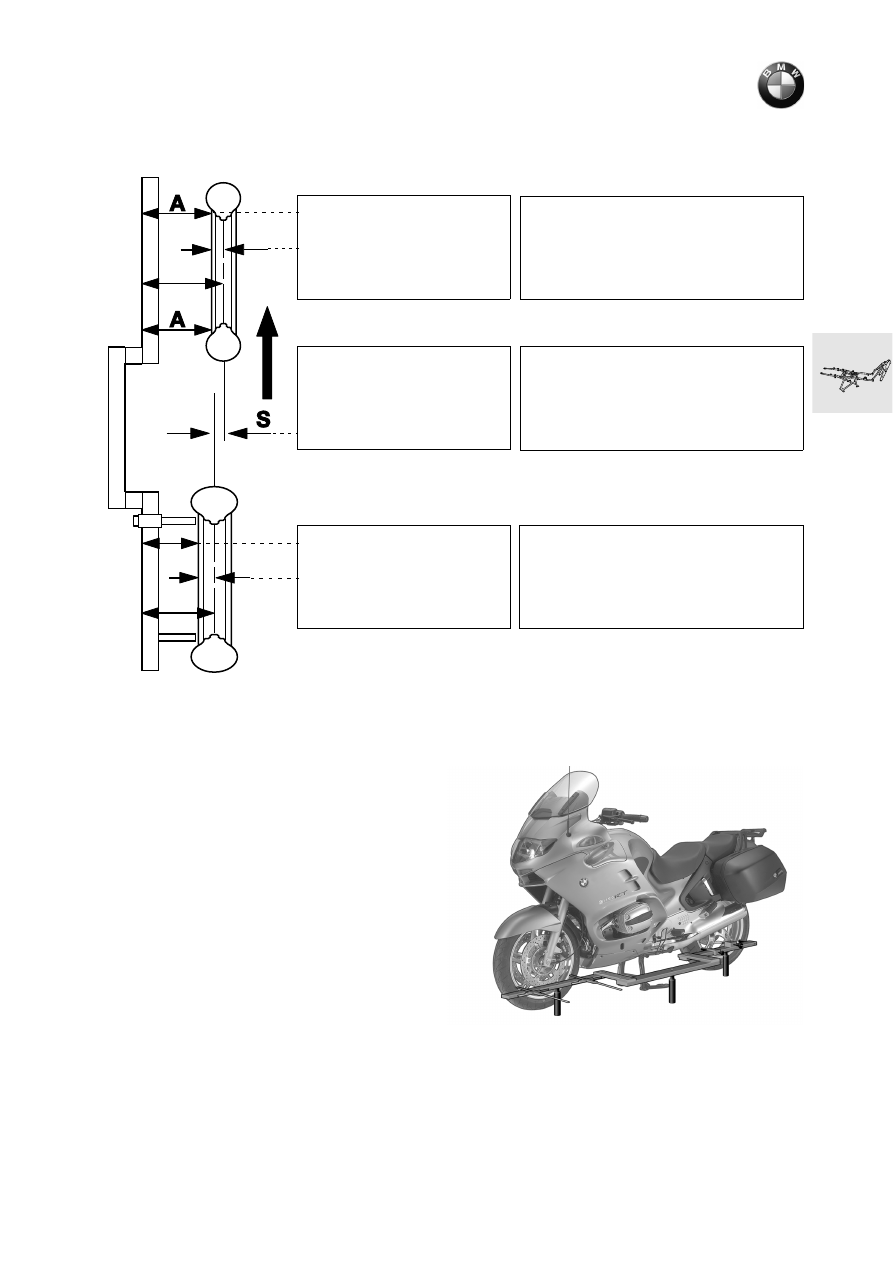

Measurement record, wheel track offset

Key to measurement result:

Wheel track offset “S” is the distance to left or right
of the longitudinal axis of the rear wheel from that of
the front wheel.

Negative sign = wheel track offset to left
Positive sign = wheel track offset to right

Permissible wheel track offset (S):

...±9 mm (0.3543 in); datum is +3.5 mm (0.1378 in)

Measured wheel track offset (S):
___________________________________________mm (in)

Distance A

___ mm (in)

+ ½ rim

___ mm (in)

= Front

___ mm (in)

Distance A

98.5 mm (3.8780 in)

+ ½ rim

41.4 mm (1.6299 in)

= Front

139.9 mm (5.5079 in)

Distance

90.0 _mm

(3.5464 in)

+ ½ rim

___ mm (in)

Distance

90.0 mm (3.5464 in)

+ ½ rim

49.3 mm (1.9409 in)

= Rear

139.3 mm (5.4843 in)

Rear

___ mm (in)

- Front

___ mm (in)

= S

___ mm (in)

Rear

139.3 mm (5.4843 in)

- Front

139.9 mm (5.5079 in)

= S

  - 0.6 mm (- 0.0236 in)

Front wheel

Rear wheel

Example

51.1

Contents

Page

51

Removing and installing ignition switch/steering lock

...........................................3

Removing and installing ignition/light switch

......................................................................3

Removing and installing lock barrel

........................................................................................3

Drilling out lock barrel ..........................................................................................................................3

Removing and installing lock barrel for fuel tank filler cap

..................................4

Drilling out lock barrel ..........................................................................................................................4

Removing and installing seat lock

......................................................................................5

Removing and installing seat lock

...........................................................................................5

Removing and installing cover of radio compartment/stowage compartment

....5

51 Equipment
