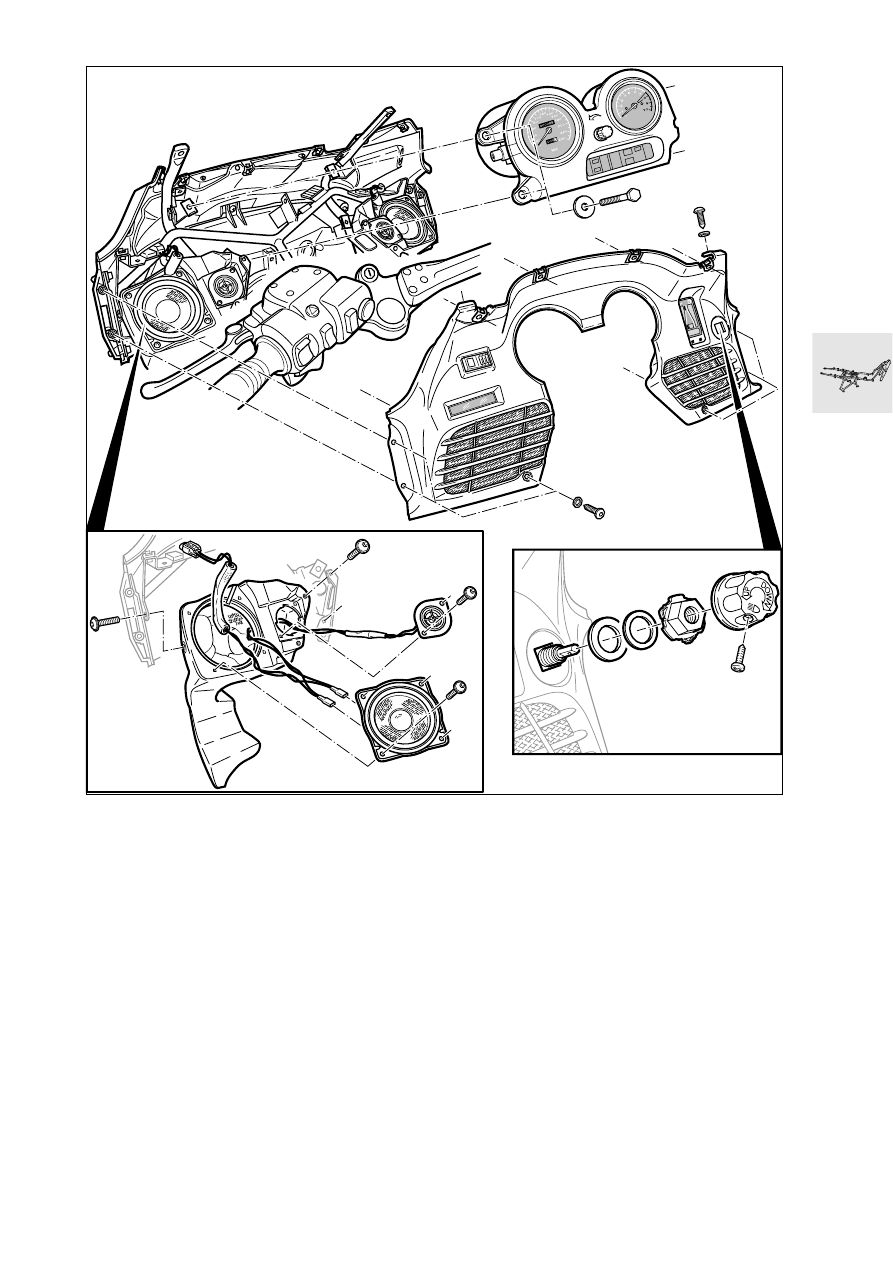

Removing and installing inner

trim of fairing

•

Remove knob for headlight beam throw
adjustment.

•

Remove windscreen.

•

Remove cover for windscreen adjuster.

•

Remove mirrors.

•

Remove inner cover.

•

Installation is the reverse of the removal proce-
dure.

6x

2x

2x

R22460040

46.8

46 63

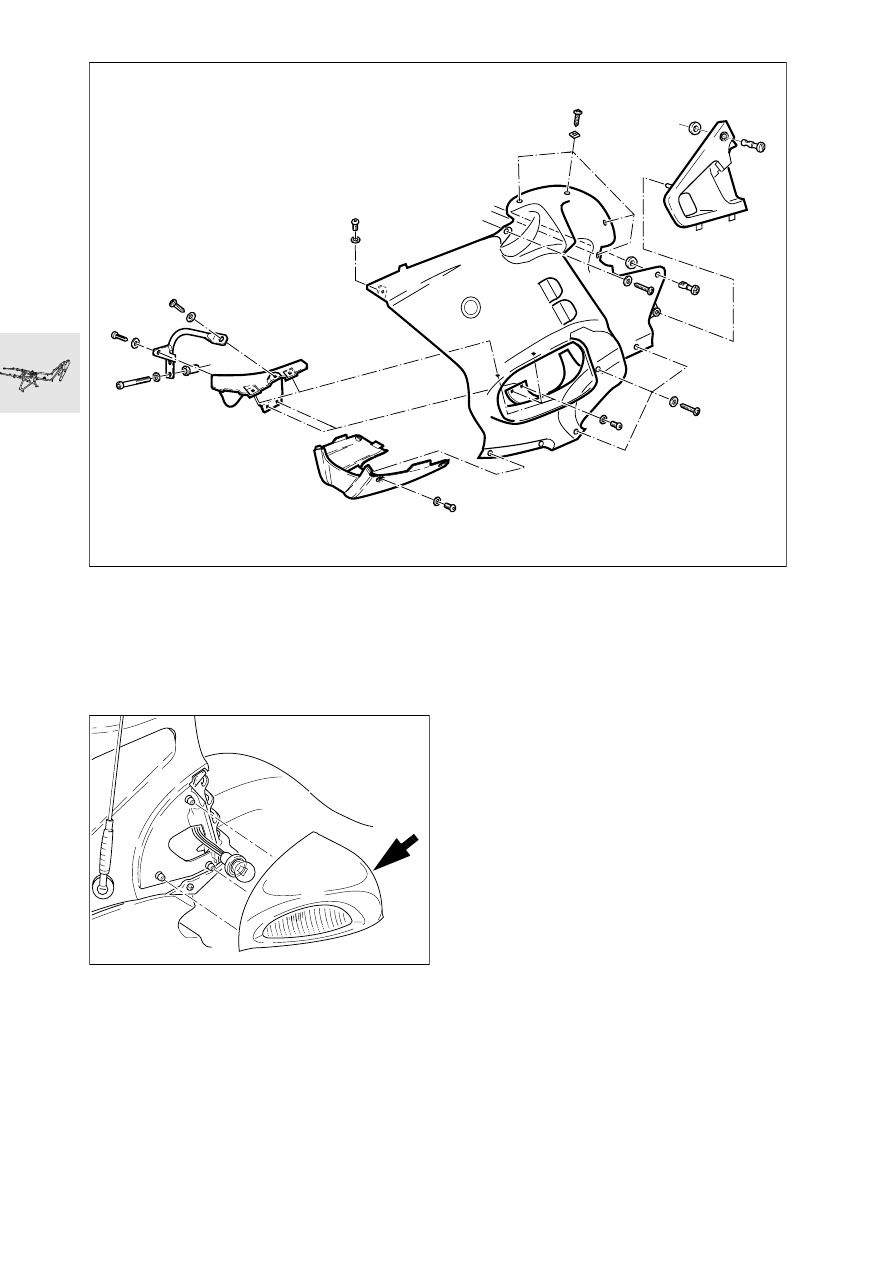

Removing and installing fairing

46 63

Removing and installing fairing

side section

•

Remove seat.

•

Remove small side fairing panels.

•

Hold side mirror with one hand. Release the mir-
ror by tapping lightly with the other hand on the
mirror casing in the direction of the mirror.

•

Remove engine spoiler.

•

Remove fairing side sections.

•

Installation is the reverse of the removal proce-
dure.

•

Position the mirror at the 3 attachment points.
Tap the mirror housing gently to engage it, first at
the front and then at the rear.

4x

3x

4x

4x

2x

R22460020

RT460280

46.9

46 63

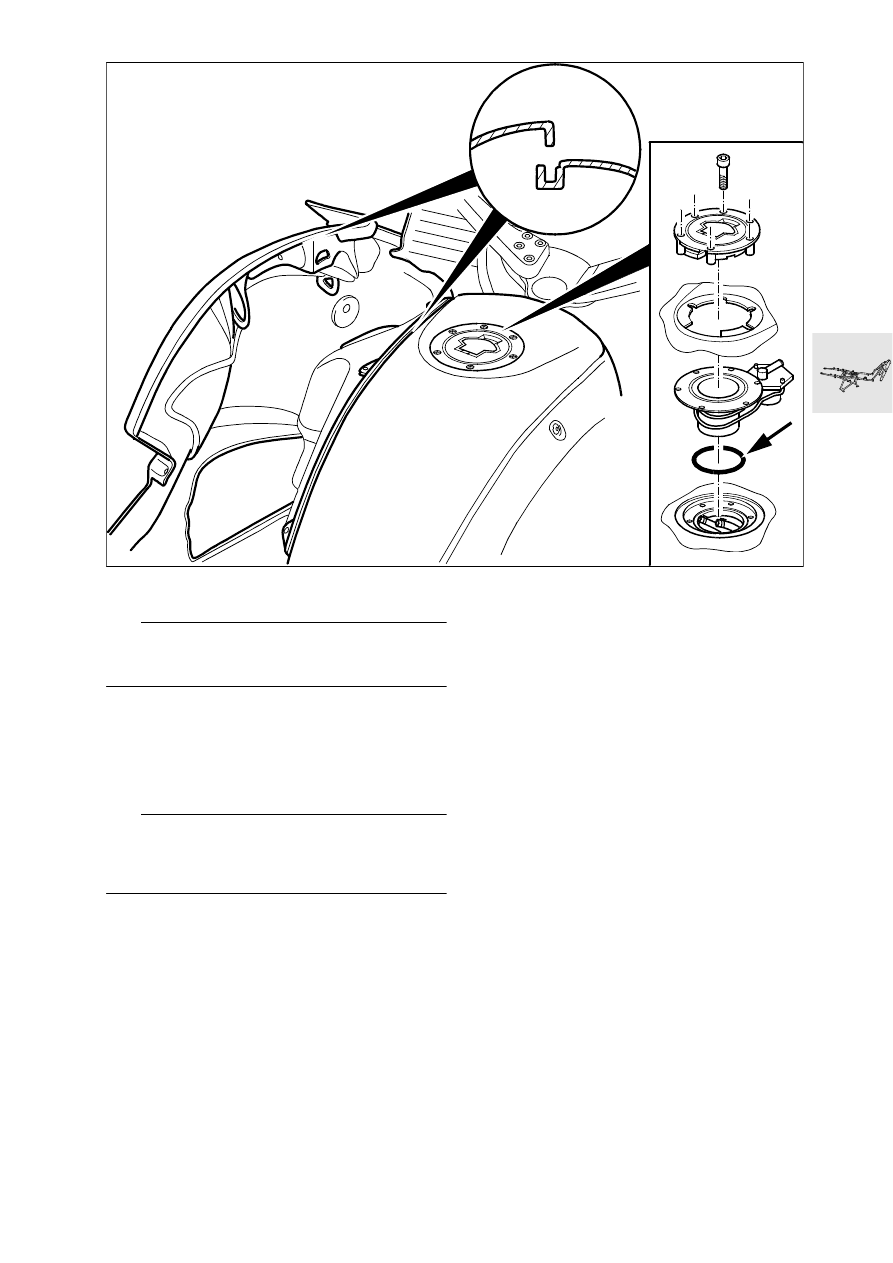

Removing and installing tank trim

e

 Attention:

Fuel is flammable and a hazard to health.
Observe all applicable safety regulations.

•

Remove side panels.

•

Remove screws securing fuel filler cap.

•

Remove fuel filler cap.

•

Remove tank trim.

•

Installation is the reverse of the removal proce-
dure.

e

 Attention:

Make sure that O-ring seal (arrow) is correctly
seated.
After installing, check fuel filler cap for leaks.

R22460130

46.10

46 63

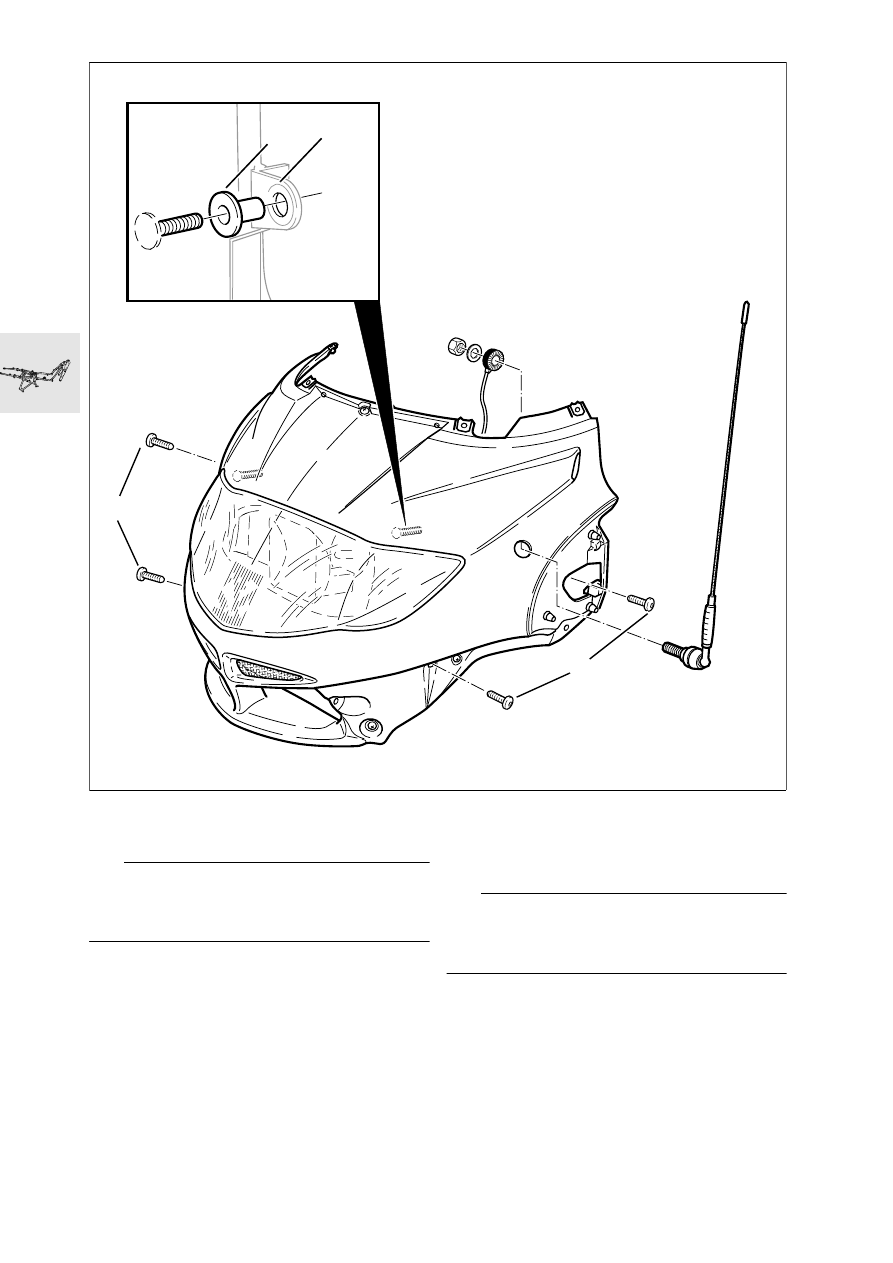

Removing and installing upper

section of fairing

e

 Attention:

Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.

•

Remove the seat.

•

Remove side mirrors.

•

Remove fairing side sections.

•

Remove windscreen.

•

Remove cover for windscreen adjuster.

•

Remove inner trim of fairing.

•

Remove left loudspeaker box.

•

Remove aerial.

•

Remove the sidelight from the headlight housing.

•

Feed left and right turn-indicator cables through
the fairing.

•

Remove screws (1), pull the upper section of the
fairing forward and hold it in position.

•

Disconnect plug for headlight.

•

Remove upper section of fairing.

•

Installation is the reverse of the removal proce-
dure.

L

 Note:

Before installing the upper section of the fairing, in-
sert metal bush (2) into rubber guide (3). Make sure
that the headlight adjuster is correctly routed.

R22460050
